SECURING CYBERSPACE: THE OM-AM, RBAC AND PKI ROADMAP Prof. Ravi Sandhu Laboratory for Information Security Technology George Mason University sandhu@gmu. edu www. list. gmu. edu

INTERNET INSECURITY u Internet l l l Morris worm of 1987 Password sniffing attacks in 1994 IP spoofing attacks in 1995 Denial of service attacks in 1996 Email borne viruses 1999 Distributed denial of service attacks 2000 u Internet l insecurity spreads at Internet speed insecurity grows at super-Internet speed security incidents are growing faster than the Internet (which has roughly doubled every year since 1988) © Ravi Sandhu 2000 2

INTERNET INSECURITY u Its © Ravi Sandhu 2000 only going to get worse 3

INTERNET SECURITY u There are no clear cut boundaries in modern cyberspace AOL-Microsoft instant messaging war of 1999 l Hotmail password bypass of 1999 l Ticketmaster deep web links l ebay versus auction aggregators l © Ravi Sandhu 2000 4

SECURITY OBJECTIVES CONFIDENTIALITY disclosure INTEGRITY modification © Ravi Sandhu 2000 AVAILABILITY access USAGE-CONTROL purpose 5

AUTHORIZATION, TRUST AND RISK u Information security is fundamentally about managing authorization and l trust l so as to manage risk © Ravi Sandhu 2000 6

SECURITY DOCTRINE u Prevent u Detect u Correct u Accept © Ravi Sandhu 2000 7

SECURITY DOCTRINE u absolute security is impossible does not mean absolute insecurity is acceptable u security is a journey not a destination © Ravi Sandhu 2000 8

SOLUTIONS u OM-AM u RBAC u PKI u and © Ravi Sandhu 2000 others 9

THE OM-AM WAY What? Objectives Model Architecture Mechanism How? © Ravi Sandhu 2000 A s s u r a n c e 10

LAYERS AND LAYERS u Multics rings u Layered abstractions u Waterfall model u Network protocol stacks u OM-AM © Ravi Sandhu 2000 11

OM-AM AND MANDATORY ACCESS CONTROL (MAC) What? No information leakage Lattices (Bell-La. Padula) Security kernel Security labels How? © Ravi Sandhu 2000 A s s u r a n c e 12

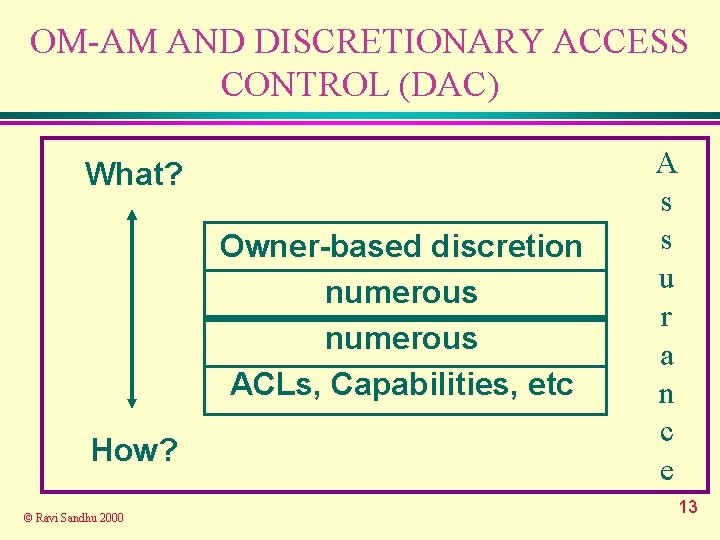

OM-AM AND DISCRETIONARY ACCESS CONTROL (DAC) What? Owner-based discretion numerous ACLs, Capabilities, etc How? © Ravi Sandhu 2000 A s s u r a n c e 13

OM-AM AND ROLE-BASED ACCESS CONTROL (RBAC) What? Policy neutral RBAC 96 user-pull, server-pull, etc. certificates, tickets, PACs, etc. How? © Ravi Sandhu 2000 A s s u r a n c e 14

ROLE-BASED ACCESS CONTROL (RBAC) u. A user’s permissions are determined by the user’s roles rather than identity or clearance l roles can encode arbitrary attributes l u multi-faceted u ranges from very simple to very sophisticated © Ravi Sandhu 2000 15

RBAC SECURITY PRINCIPLES u least privilege u separation of duties u separation of administration and access u abstract operations © Ravi Sandhu 2000 16

RBAC 96 IEEE Computer Feb. 1996 u Policy neutral u can be configured to do MAC l roles simulate clearances (ESORICS 96) u can l be configured to do DAC roles simulate identity (RBAC 98) © Ravi Sandhu 2000 17

RBAC 96 FAMILY OF MODELS RBAC 3 ROLE HIERARCHIES + CONSTRAINTS RBAC 1 ROLE HIERARCHIES RBAC 2 CONSTRAINTS RBAC 0 BASIC RBAC © Ravi Sandhu 2000 18

RBAC 0 USER-ROLE ASSIGNMENT USERS ROLES . . . © Ravi Sandhu 2000 PERMISSION-ROLE ASSIGNMENT PERMISSIONS SESSIONS 19

RBAC 1 ROLE HIERARCHIES USER-ROLE ASSIGNMENT USERS ROLES . . . © Ravi Sandhu 2000 PERMISSION-ROLE ASSIGNMENT PERMISSIONS SESSIONS 20

HIERARCHICAL ROLES Primary-Care Physician Specialist Physician Health-Care Provider © Ravi Sandhu 2000 21

HIERARCHICAL ROLES Supervising Engineer Hardware Engineer Software Engineer © Ravi Sandhu 2000 22

PRIVATE ROLES Hardware Engineer’ Supervising Engineer Hardware Engineer Software Engineer’ Software Engineer © Ravi Sandhu 2000 23

EXAMPLE ROLE HIERARCHY Director (DIR) Project Lead 1 (PL 1) Production 1 (P 1) Project Lead 2 (PL 2) Quality 1 (Q 1) Production 2 (P 2) Engineer 1 (E 1) PROJECT 1 © Ravi Sandhu 2000 Quality 2 (Q 2) Engineer 2 (E 2) Engineering Department (ED) Employee (E) PROJECT 2 24

EXAMPLE ROLE HIERARCHY Project Lead 1 (PL 1) Production 1 (P 1) Project Lead 2 (PL 2) Quality 1 (Q 1) Production 2 (P 2) Engineer 1 (E 1) PROJECT 1 © Ravi Sandhu 2000 Quality 2 (Q 2) Engineer 2 (E 2) Engineering Department (ED) Employee (E) PROJECT 2 25

EXAMPLE ROLE HIERARCHY Director (DIR) Project Lead 1 (PL 1) Production 1 (P 1) Quality 1 (Q 1) Engineer 1 (E 1) PROJECT 1 © Ravi Sandhu 2000 Project Lead 2 (PL 2) Production 2 (P 2) Quality 2 (Q 2) Engineer 2 (E 2) PROJECT 2 26

EXAMPLE ROLE HIERARCHY Project Lead 1 (PL 1) Production 1 (P 1) Quality 1 (Q 1) Engineer 1 (E 1) PROJECT 1 © Ravi Sandhu 2000 Project Lead 2 (PL 2) Production 2 (P 2) Quality 2 (Q 2) Engineer 2 (E 2) PROJECT 2 27

RBAC 3 ROLE HIERARCHIES USER-ROLE ASSIGNMENT USERS ROLES . . . © Ravi Sandhu 2000 PERMISSIONS-ROLE ASSIGNMENT SESSIONS PERMISSIONS CONSTRAINTS 28

CONSTRAINTS u Mutually Exclusive Roles l l u u u Static: The same individual can never hold both roles Dynamic: The same individual can never activate both roles in the same context Mutually Exclusive Permissions Cardinality Constraints on User-Role Assignment Cardinality Constraints on Permissions-Role Assignment © Ravi Sandhu 2000 29

OM-AM AND ROLE-BASED ACCESS CONTROL (RBAC) What? Policy neutral RBAC 96 user-pull, server-pull, etc. certificates, tickets, PACs, etc. How? © Ravi Sandhu 2000 A s s u r a n c e 30

CLIENT-SERVER-PULL ARCHITECTURE Client Authorization Server © Ravi Sandhu 2000 Server Authentication Server 31

CLIENT-SERVER USER-PULL ARCHITECTURE Client Authorization Server © Ravi Sandhu 2000 Server Authentication Server 32

CLIENT-SERVER PROXY OR THREE-TIER Client Authorization Server Authentication Server © Ravi Sandhu 2000 33

OM-AM AND ROLE-BASED ACCESS CONTROL (RBAC) What? Policy neutral RBAC 96 user-pull, server-pull, etc. certificates, tickets, PACs, etc. How? © Ravi Sandhu 2000 A s s u r a n c e 34

Related Mechanisms u Cookies l l l in widespread current use for maintaining state of HTTP becoming a standard not secure u Public-Key l l © Ravi Sandhu 2000 Certificates (X. 509) support security on the Web based on PKI standard simply, bind users to keys have the ability to be extended 35

Security Threats to Cookies u Cookies are not secure No authentication l No integrity l No confidentiality l u can be easily attacked by Network Security Threats l End-System Threats l Cookie Harvesting Threats l © Ravi Sandhu 2000 37

How to Use Secure Cookies © Ravi Sandhu 2000 38

Secure Cookies on the Web © Ravi Sandhu 2000 39

Applications of Secure Cookies u User Authentication u Electronic Transaction u Pay-Per-Access u Attribute-based Access Control © Ravi Sandhu 2000 40

X. 509 Certificate u Digitally l signed by a certificate authority to confirm the information in the certificate belongs to the holder of the corresponding private key u Contents l l version, serial number, subject, validity period, issuer, optional fields (v 2) subject’s public key and algorithm info. extension fields (v 3) digital signature of CA u Binding users to keys u Certificate Revocation © Ravi Sandhu 2000 List (CRL) 41

X. 509 Certificate © Ravi Sandhu 2000 42

Smart Certificates u Short-Lived l Lifetime More secure n typical validity period for X. 509 is months (years) n the longer-lived certificates have a higher probability of being attacked – users may leave copies of the corresponding keys behind l No Certificate Revocation List (CRL) n supports © Ravi Sandhu 2000 simple and less expensive PKI 43

Smart Certificates u Containing Attributes Securely Web servers can use secure attributes for their purposes l Each authority has independent control on the corresponding information l n basic certificate (containing identity information) n each attribute can be added, changed, revoked, or re-issued by the appropriate authority – e. g. , role, credit card number, clearance, etc. © Ravi Sandhu 2000 44

Applications of Smart Certificates u Very similar to applications of secure cookies © Ravi

INTERNET INSECURITY u Its only going to get worse u But security is a fun and profitable business and will get more so © Ravi Sandhu 2000 47
