Secure Socket Layer Protocol Dr John P Abraham

Secure Socket Layer Protocol Dr. John P. Abraham Professor, UTRGV

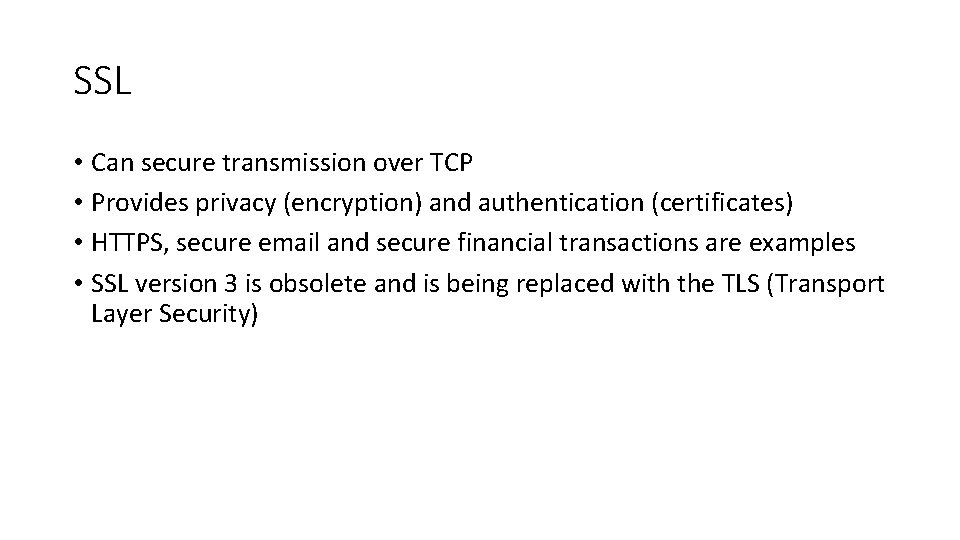

SSL • Can secure transmission over TCP • Provides privacy (encryption) and authentication (certificates) • HTTPS, secure email and secure financial transactions are examples • SSL version 3 is obsolete and is being replaced with the TLS (Transport Layer Security)

Web based SSL • Browsers are enabled with SSL as such no other configuration is necessary at the user site. • At the server side a certificate needs to be installed for each application. • Certificate authority such as verisign can provide it. • An administrator can create a certificate • Certificates are issued with an expiration time • The server should allow secure connections

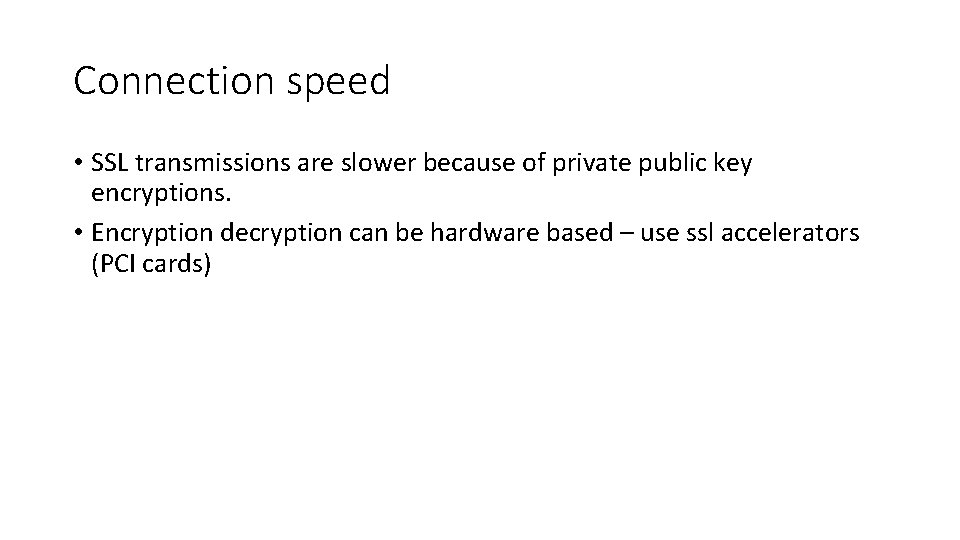

Connection speed • SSL transmissions are slower because of private public key encryptions. • Encryption decryption can be hardware based – use ssl accelerators (PCI cards)

SSL sublayers • Record Layer – formats messages – provides a header and hash • Change. Cipher. Spec Protocol- signals beginning of secure communication • Alert Protocol – transmits any errors that occurred. • Handshake protocol – client. Hello, server. Hello, Server. Key. Exchange, Server. Hello. Done, Client. Key. Exchange, Change. Cipher. Spec, Finished.
