Secure Cloud Computing and Cloud Forensics Dr. Bhavani Thuraisingham The University of Texas at Dallas (UTD) October 2010

Cloud Computing: NIST Definition • Cloud computing is a pay-per-use model for enabling available, convenient, on -demand network access to a shared pool of configurable computing resources (e. g. , networks, servers, storage, applications, services) that can be rapidly provisioned and released with minimal management effort or service provider interaction. This cloud model promotes availability and is comprised of five key characteristics, three delivery models, and four deployment models. • Key Characteristics: On-demand self-service, Location independent resource pooling. Rapid elasticity, Pay per use. • Delivery Models: Cloud Software as a Service (Saa. S), Cloud Platform as a Service (Paa. S), Cloud Infrastructure as a Service (Iaa. S). • Deployment Models: Private cloud, Community cloud, Public cloud. Hybrid cloud. • Our goal is to demonstrate policy based assured information sharing on clouds

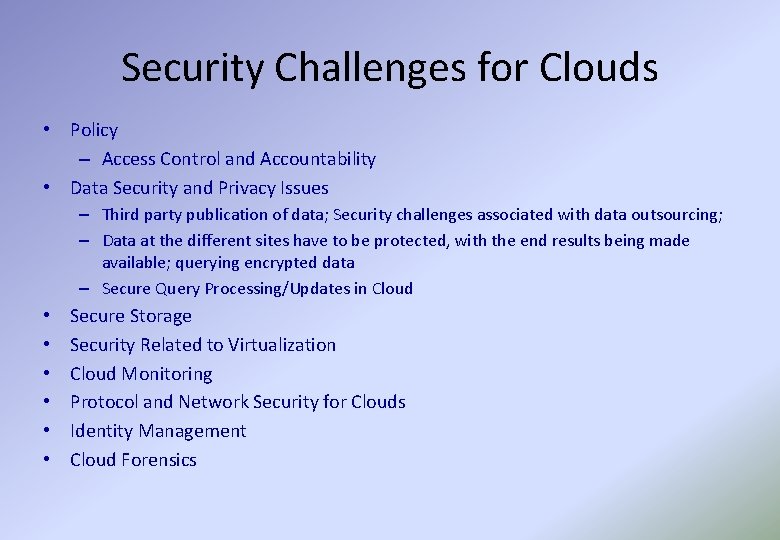

Security Challenges for Clouds • Policy – Access Control and Accountability • Data Security and Privacy Issues – Third party publication of data; Security challenges associated with data outsourcing; – Data at the different sites have to be protected, with the end results being made available; querying encrypted data – Secure Query Processing/Updates in Cloud • • • Secure Storage Security Related to Virtualization Cloud Monitoring Protocol and Network Security for Clouds Identity Management Cloud Forensics

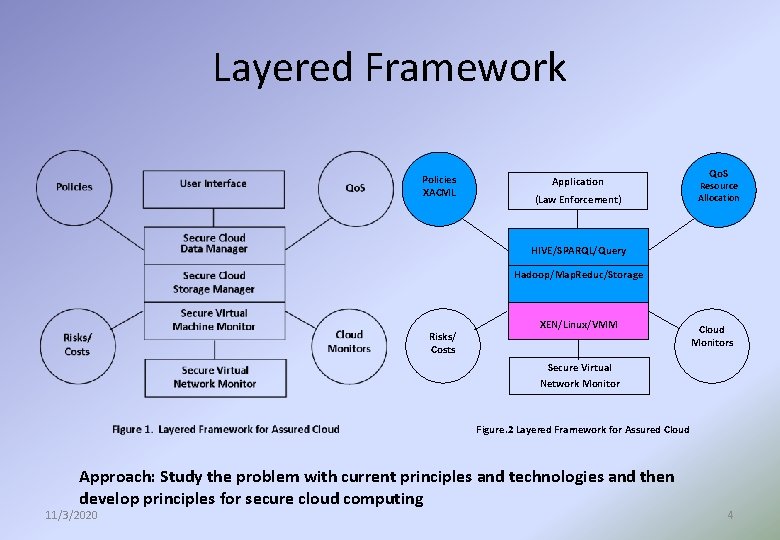

Layered Framework Policies XACML Application (Law Enforcement) Qo. S Resource Allocation HIVE/SPARQL/Query Hadoop/Map. Reduc/Storage Risks/ Costs XEN/Linux/VMM Cloud Monitors Secure Virtual Network Monitor Figure. 2 Layered Framework for Assured Cloud Approach: Study the problem with current principles and technologies and then develop principles for secure cloud computing 11/3/2020 4

Secure Query Processing with Hadoop/Map. Reduce • We have studied Clouds based on Hadoop • Query Rewriting and Optimization Principles defined and implemented for two types of data • (i) Relational data: Secure query processing with HIVE • (ii) RDF Data: Secure query processing with SPARQL • Demonstrated with XACML Policies (content, temporal, association) • Joint demonstration with Kings College and University of Insubria – First demo (2010): Each party submits their data and policies – Our cloud will manage the data and policies – Second demo (2011): Multiple clouds

Principles of Secure Query Optimization • Query optimization principles defined and strategies implemented in the 1970 s and 1980 s for relational data (IBM System R and DB 2 Ingres) – Query Rewriting, Query Evaluation Procedures, Search strategy, Cost functions • Secure query optimization principles defined and strategies implemented in the 1980 s and 1990 s (Honeywell, MITRE) • Extended secure query optimization for cloud environment – Query optimization for RDF data – Secure query optimization for RDF data in a cloud environment

Fine-grained Access Control with Hive is a data warehouse infrastructure built on top of Hadoop that provides tools to enable easy data summarization, adhoc querying and analysis of large datasets data stored in Hadoop files. It provides a mechanism to put structure on this data and it also provides a simple query language called Hive QL which is based on SQL and which enables users familiar with SQL to query this data q Policies include content dependent access control, association based access control, time-dependent access control q Table/View definition and loading, § Users can create tables as well as load data into tables. Further, they can also upload XACML policies for the table they are creating. Users can also create XACML policies for tables/views. § Users can define views only if they have permissions for all tables specified in the query used to create the view. They can also either specify or create XACML policies for the views they are defining.

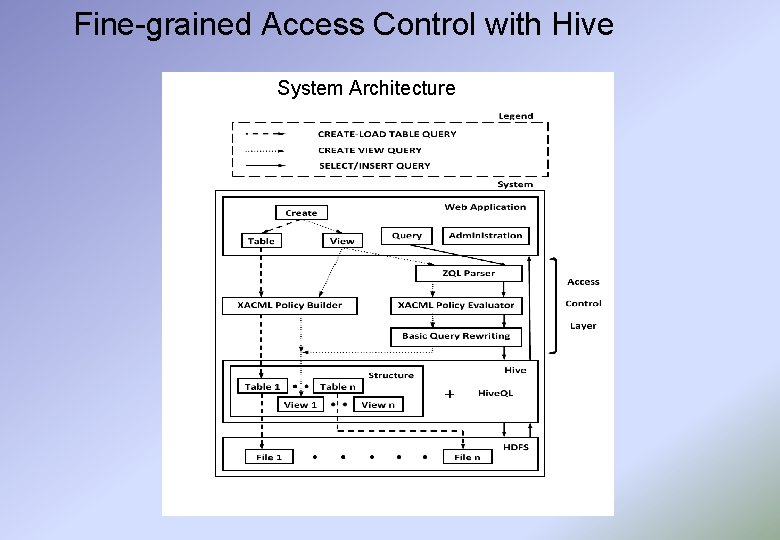

Fine-grained Access Control with Hive System Architecture

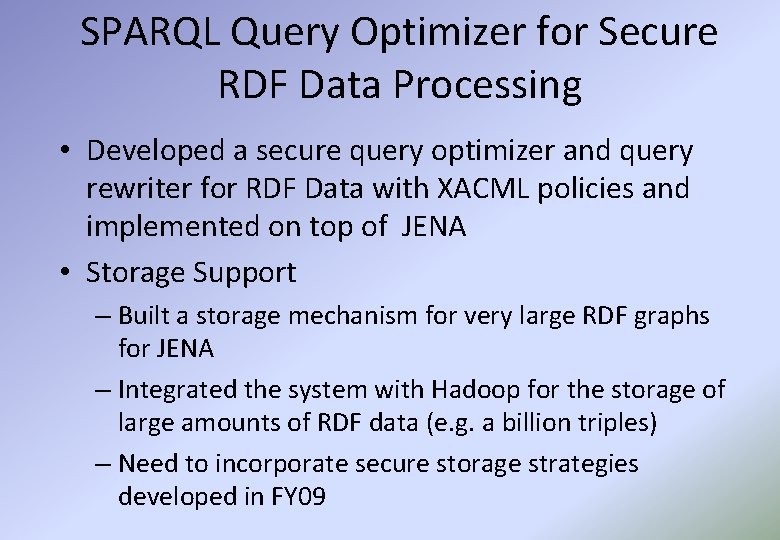

SPARQL Query Optimizer for Secure RDF Data Processing • Developed a secure query optimizer and query rewriter for RDF Data with XACML policies and implemented on top of JENA • Storage Support – Built a storage mechanism for very large RDF graphs for JENA – Integrated the system with Hadoop for the storage of large amounts of RDF data (e. g. a billion triples) – Need to incorporate secure storage strategies developed in FY 09

System Architecture Web Interface New Data Preprocessor Map. Reduce Framework Parser N-Triples Converter Query Validator & Rewriter Prefix Generator Predicate Based Splitter Predicate Object Based Splitter Answer Query Server Backend XACML PDP Query Rewriter By Policy Plan Generator Plan Executor

Security for AMAZON S 3 • Many organizations are using cloud services like Amazon S 3 for data storage. A few important questions arise here – – Can we use S 3 to store the data sources used by Blackbook? ; Is the data we store on S 3, secure? Is it accessible by any user outside our organization? ; How do we restrict access to files to the users within the organization? – BLACKBOOK is a semantic-web based tool used by analysts within the Intelligence Community. The tool federates queries across data sources. These data sources are databases or applications located either locally or remotely on the network. BLACKBOOK allows analysts to make logical inferences across the data sources, add their own knowledge and share that knowledge with other analysts using the system. • We use Amazon S 3 to store the data sources used by Blackbook. • To keep our data secure, we encrypt the data using AES (Advanced Encryption Standard) before uploading the data files on Amazon S 3. • To restrict access to the files to the users within the organization, we implemented RBAC policies using XACML

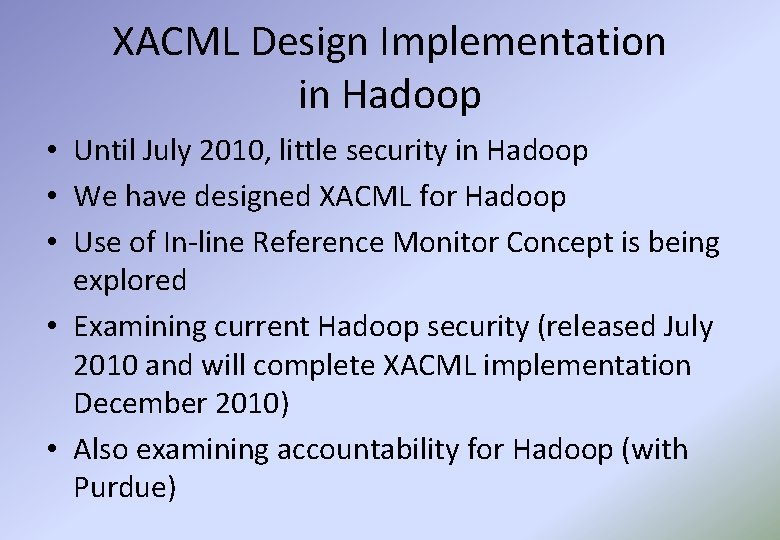

XACML Design Implementation in Hadoop • Until July 2010, little security in Hadoop • We have designed XACML for Hadoop • Use of In-line Reference Monitor Concept is being explored • Examining current Hadoop security (released July 2010 and will complete XACML implementation December 2010) • Also examining accountability for Hadoop (with Purdue)

Secure VMM: Xen Architecture Xen Hypervisor – The hypervisor runs just on top of the hardware and traps all calls by VMs to access the hardware. Domain 0 (Dom 0): Domain 0 is a modified version of Linux that is used to manage the other VMs. Domain U (Dom. U): Domain U is the user domain in Xen. Dom. U is where all of the untrusted guest OSs reside.

Virtual Machines Dom. U is broken into two parts Para-Virtualized Domains (PV) and Hardware Assisted Virtualized Domains (HVM) Para-virtualized Domain (PV): A Para-virtualized domain is a modified operating system that is aware that it is a virtual machine. Can achieve near native performance. Hardware Assisted Virtualized Machine Domain (HVM) – HVMs are VMs that run operating systems that have not been modified to work with Dom 0. This allows closed source operating systems like Windows. Memory: PVs are given Read-Only access to memory and any updates are controlled by the hypervisor. HVMs are given a shadow page table because they do not know how to work with non-contiguous physical address spaces. I/O Management: I/O Management is controlled by Dom 0. PVs share memory with Dom 0 through which they can pass messages with it. Dom 0 runs the Qemu deamon to emulate the devices for the HVMs

Security Issues Access Control – At the moment access control is discretionary. Finegrained multilevel controls are needed (Integrity Lock architecture) Secure Boot – The boot process needs to be secured. Proper attestation methods need to be developed. Component Isolation – Dom 0 supports networking, disk I/O, VM boot loading, hardware emulation, workload balancing, etc. Dom 0 needs to be decomposed into components Logging – More robust logging is needed to develop a clear view of the chain of events. Introspection – Introspection is a security technique where a virtual machine running security software is allowed to look inside the memory of another VM. Software such as IPSs and antriviruses, using introspection should be safe from tampering if the monitored VM is exploited.

Overall Architecture of Accountable Grid Systems (Purdue) * Accountability agents * Strategies for accountability data collection * Exchange of information among accountability agents to generate alarms

Data Collection Approaches Job-flow based approach Jobs flow across different organizational units Long computations are often divided into many sub-jobs to be run in parallel A possible approach is to employ point-to point agents which collect data at each node that the job traverses Grid node based approach It focuses on a given location in the flow and at a given instant of time for all jobs Viewpoint is fixed The combination of two approaches allows us to collect complementary information

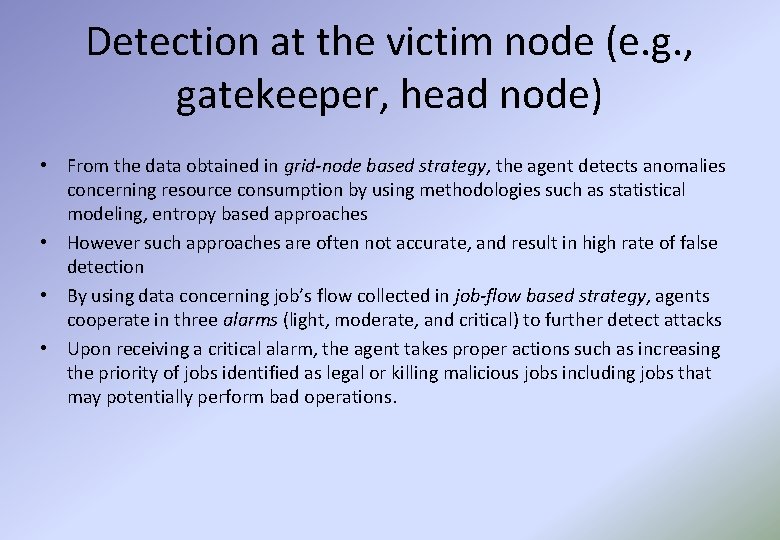

Detection at the victim node (e. g. , gatekeeper, head node) • From the data obtained in grid-node based strategy, the agent detects anomalies concerning resource consumption by using methodologies such as statistical modeling, entropy based approaches • However such approaches are often not accurate, and result in high rate of false detection • By using data concerning job’s flow collected in job-flow based strategy, agents cooperate in three alarms (light, moderate, and critical) to further detect attacks • Upon receiving a critical alarm, the agent takes proper actions such as increasing the priority of jobs identified as legal or killing malicious jobs including jobs that may potentially perform bad operations.

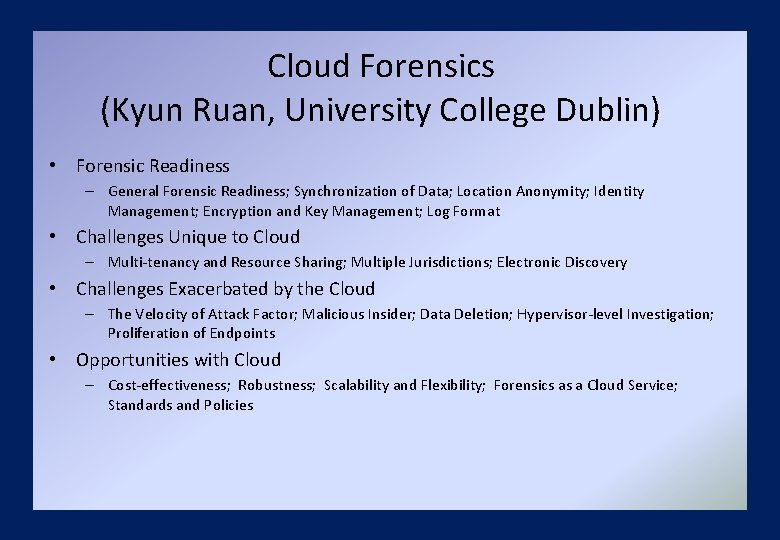

Cloud Forensics (Kyun Ruan, University College Dublin) • Forensic Readiness – General Forensic Readiness; Synchronization of Data; Location Anonymity; Identity Management; Encryption and Key Management; Log Format • Challenges Unique to Cloud – Multi-tenancy and Resource Sharing; Multiple Jurisdictions; Electronic Discovery • Challenges Exacerbated by the Cloud – The Velocity of Attack Factor; Malicious Insider; Data Deletion; Hypervisor-level Investigation; Proliferation of Endpoints • Opportunities with Cloud – Cost-effectiveness; Robustness; Scalability and Flexibility; Forensics as a Cloud Service; Standards and Policies

Current and Future Research • Secure VMM (Virtual Machine Monitor) – Exploring XEN VMM and examining security issues • Demonstration using the Secure Cloud with North Central Texas Fusion System Data (with ADB Consulting) • Coalition demonstration (with London and Italy) • Integrate Secure Storage Algorithms into the Storage System Developed (2011) • Identity Management (2011 with Purdue) • Secure Virtual Network Monitor (Future, 2012) • Cloud Forensics

Education Program • We offer a course in Cloud computing (Industry adjunct professor; Spring 2009) • Course planned for Summer 2011 that incorporate the research results (Building and Securing the Cloud) – Topics covered will include technologies, techniques, tools and trends
