Secure Certifying Compilation What do you want to type check today? David Walker Cornell University April 12, 2000 David Walker, Cornell University

Extensible Systems Many systems have programmable interfaces. Code Download, Link & Execute – – System Interface printers and editors (postscript printers, emacs, Word) browsers and servers (applets, plugins, CGI-scripts) operating systems (virus scanners) networks (active networks, JINI) 2 April 12, 2000 David Walker, Cornell University

Extensible Systems: Pros • Client-side customization – plug in your own devices, 3 rd-party utilities • Preservation of market-share – vendors can add features, improve functionality easily • System maintenance and evolution – software subscriptions 3 April 12, 2000 David Walker, Cornell University

Extensible Systems: Cons • Security – extensibility opens system to malicious attacks – how do we prevent misuse of resources? • Reliability – flexibility makes it hard to reason about system evolution – how do we limit damage done by erroneous extensions? 4 April 12, 2000 David Walker, Cornell University

Extensible Systems: Reality • Strong economic and engineering pros – Mobile code, systems with programmable interfaces will proliferate • A necessity: practical technology for increasing the security and reliability of extensible systems 5 April 12, 2000 David Walker, Cornell University

Outline • Framework for improved reliability and security – Idea I: certifying compilation – Idea II: security via code instrumentation • An instance [popl '00] – Security automaton specifications – A dependently-typed target language (TAL) • Related work & research directions 6 April 12, 2000 David Walker, Cornell University

Certified Code Untrusted Code Certificate Secure Code Download & Check System Interface Link & Execute • Attach annotations/certificate (types, proofs, . . . ) to untrusted object code extensions • Certificates make verification feasible • Move away from trust-based security & reliability 7 April 12, 2000 David Walker, Cornell University

Certifying Compilation High-level Program Compile certificate Annotated IR Optimize Transmit • Low-level certificate generation must be automated • Necessary components: 1) a source-level programming language 2) a compiler to compile and optimize source programs while preserving the certificate 3) a certifying target language 8 April 12, 2000 David Walker, Cornell University

Question How should we obtain the initial certificate? 9 April 12, 2000 David Walker, Cornell University

Answer • Use a type-safe language • Type inference relieves the tedium of proof construction • Programmers will rewrite programs so they type check 10 April 12, 2000 David Walker, Cornell University

Certifying Compilation So Far Type Safe High-level Program Compile 1) a strongly typed source-level programming language types 2) a type-preserving compiler to compile and optimize source programs Typed Program Optimize 3) a certificate language for typesafety properties Transmit 11 April 12, 2000 David Walker, Cornell University

Certifying Compilers • Proof-Carrying Code [Necula & Lee] – an expressive base logic that can encode many security policies – in practice, logic is extended with a type system – compilers produce type safety proofs • Typed Assembly Language [Morrisett, Walker, et al] – flexible type constructor language that can encode high-level abstractions – guarantees type safety properties 12 April 12, 2000 David Walker, Cornell University

Conventional Type Safety • Conventional types ensure basic safety: – basic operations performed correctly – abstraction/interfaces hide data representations and system code • Conventional types don't describe complex security policies – eg: policies that depend upon history • Melissa virus reads Outlook contacts list and then sends 50 emails 13 April 12, 2000 David Walker, Cornell University

Outline • Framework for improved reliability and security – Idea I: certifying compilation – Idea II: security via code instrumentation • An instance [popl '00] – Security automaton specifications – A dependently-typed target language (TAL) • Related work & research directions 14 April 12, 2000 David Walker, Cornell University

Flexible Security Policies High-level Extension Compiler Security Policy Instrument Analyze & Optimize • Specify policies independently of extensible system • Compiler instruments extensions • Easier to understand, debug, evolve policies 15 April 12, 2000 David Walker, Cornell University

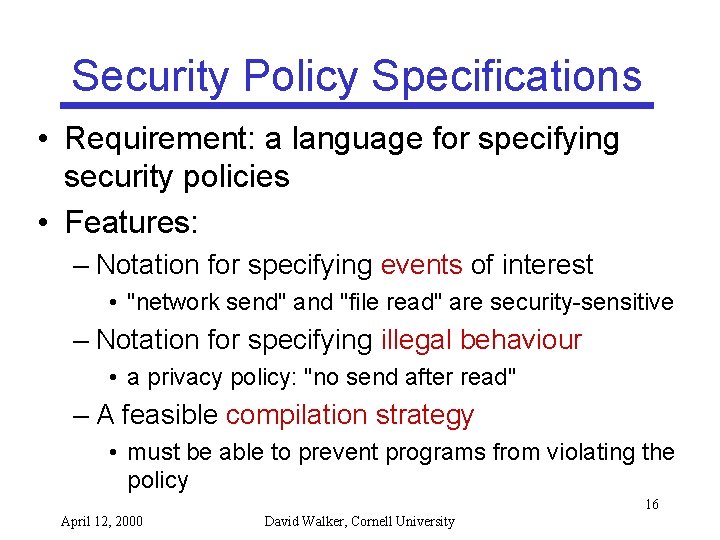

Security Policy Specifications • Requirement: a language for specifying security policies • Features: – Notation for specifying events of interest • "network send" and "file read" are security-sensitive – Notation for specifying illegal behaviour • a privacy policy: "no send after read" – A feasible compilation strategy • must be able to prevent programs from violating the policy 16 April 12, 2000 David Walker, Cornell University

Examples • SFI [Wahbe et al] – events are read, write, jump – enforce memory safety properties • SASI [Erlingsson & Schneider], Naccio [Evans & Twyman] – flexible policy languages – not certifying compilers 17 April 12, 2000 David Walker, Cornell University

Putting it Together – define policies in a high-level, flexible and system-independent specification language – instrument system extensions both with dynamic security checks and static information – preserve proof of security policy during compilation and optimization – verify certified compiler output to reduce TCB 18 April 12, 2000 David Walker, Cornell University

Outline • Framework for improved reliability and security – Idea I: certifying compilation – Idea II: security via code instrumentation • An instance [popl '00] – Security automaton specifications – A dependently-typed target language (TAL) • Related work & research directions 19 April 12, 2000 David Walker, Cornell University

Secure Certified Code • Overview of Architecture • Security Automata [Erlingsson & Schneider] – How to specify security properties – A simple compilation strategy • A dependently-typed target language (TAL) – A brief introduction to TAL – Extensions for certifying security properties • theoretical core language proven sound • can express any security automaton policy 20 April 12, 2000 David Walker, Cornell University

Security Architecture Security Automaton Specification High-level Extension System Interface Instrument Annotate Secure Typed Extension Secure Typed Interface Type Check Optimize Transmit Secure Executable 21 April 12, 2000 David Walker, Cornell University

Security Automata • A general mechanism for specifying security policies • Specify any safety property – access control policies: • “cannot access file foo” – resource bound policies: • “allocate no more than 1 M of memory” – the Melissa policy: • “no network send after file read” 22 April 12, 2000 David Walker, Cornell University

Example read(f) send has read start bad • • read(f) send Policy: No send operation after a read operation States: start, has read, bad Inputs (program operations): send, read Transitions (state x input -> state): – start x read(f) -> has read 23 April 12, 2000 David Walker, Cornell University

Example Cont’d read(f) send has read start bad read(f) send • S. A. monitor program execution • Entering the bad state = security violation % untrusted program send(); read(f); send(); % s. a. : start state % ok -> start % ok -> has read % bad, security violation 24 April 12, 2000 David Walker, Cornell University

Bounding Resource Use malloc (i) 0 . . . i . . . n-1 malloc (i) bad • Policy: "allocate fewer than n bytes" 25 April 12, 2000 David Walker, Cornell University

Enforcing S. A. Specs • Every security-relevant operation has an associated function: checkop • Trusted, provided by policy writer • checkop implements the s. a. transition function checksend (state) = if state = start then start else halt % terminates execution 26 April 12, 2000 David Walker, Cornell University

Enforcing S. A. Specs • Easy, wrap all function calls in checks: send() let next_state = checksend(current_state) in send() • Improve performance using program analysis 27 April 12, 2000 David Walker, Cornell University

Outline • Technology for improved reliability and security – Idea I: certifying compilation – Idea II: security via code instrumentation • Secure certifying compilation [popl '00] – Security automaton specifications – A dependently-typed target language (TAL) • Related work & research directions 28 April 12, 2000 David Walker, Cornell University

Brief TAL Overview Typecheck Link • Assembly or machine code with typing annotations • Object files checked separately and linked together • Ensures basic safety without run-time checks – Memory safety: can't read/write arbitrary memory – Control-flow safety: can't execute arbitrary data – Type abstraction: TAL can encode and enforce high-level abstract data types 29 April 12, 2000 David Walker, Cornell University

A TAL Compiler • TAL is practical – We compile "safe C" (aka Popcorn) – No pointer arithmetic, unsafe casts – ML-style data types, polymorphism, exceptions – Some simple optimizations • null-check elimination, inlining, register allocation – The compiler bootstraps • most compiler hacking by Grossman, Morrisett, Smith 30 April 12, 2000 David Walker, Cornell University

Other TAL Features • Memory management features – Stack types – Aliasing – Region-based MM – See Dave’s thesis • Other features – Dynamic linking – Run-time code generation • http: //www. cs. cornell/talc 31 April 12, 2000 David Walker, Cornell University

Typing Assembly Code • Programs divided into labeled code blocks • Each block has a code type: {eax: , ebx: , . . . } • Code types specify expected register contents – Assume code type to check the block – Prove control transfers (jumps) meet the assumptions Foo : {eax: int, ecx: {eax: int}} mov ebx, 3; % {eax: int, ebx: int, ecx: {eax: int}} add eax, ebx; % OK jmp ecx % OK 32 April 12, 2000 David Walker, Cornell University

Increasing Expressiveness • Basic types ensure standard type safety – functions and data used as intended and cannot be confused – security checks can’t be circumvented • Introduce a logic into the type system to express security invariants • Use the logic to encode the s. a. policy • Use the logic to prove checks unnecessary 33 April 12, 2000 David Walker, Cornell University

Target Language Predicates • States (for compile-time reasoning) • constants: start, has read, bad, . . . • variables: 1, 2, . . . • Predicates: – describe security states • instate( ) – describe relationships between states • transsend( 1, 2) – describe dependencies between values • (see the paper) 34 April 12, 2000 David Walker, Cornell University

Preconditions • Code types can specify preconditions: foo: [ , instate( ), bad]. {eax: 1, ecx: 2} • A typical use: bar: {. . . }. . . % Known: instate(start). . . jmp foo [start] - instantiate polymorphic variable - prove residual preconditions - eg: instate(start), start bad - hope proofs are easy (syntactic matching) - otherwise place explicit proof at call site - eg: jmp foo [start, Proof] 35 April 12, 2000 David Walker, Cornell University

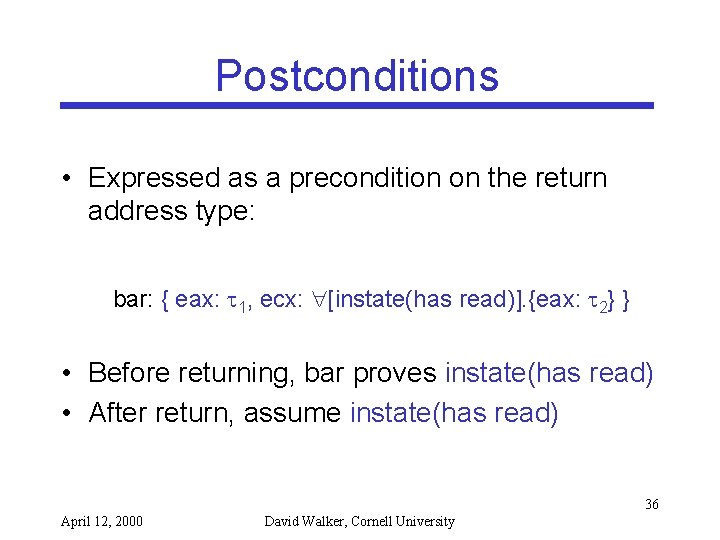

Postconditions • Expressed as a precondition on the return address type: bar: { eax: 1, ecx: [instate(has read)]. {eax: 2} } • Before returning, bar proves instate(has read) • After return, assume instate(has read) 36 April 12, 2000 David Walker, Cornell University

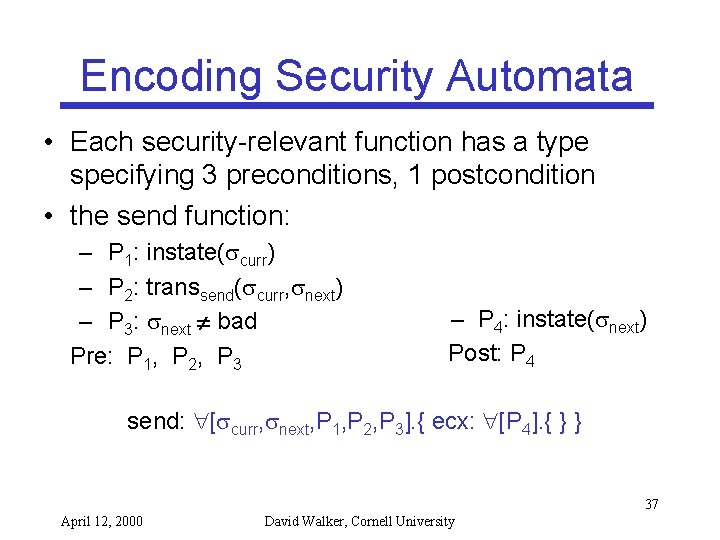

Encoding Security Automata • Each security-relevant function has a type specifying 3 preconditions, 1 postcondition • the send function: – P 1: instate( curr) – P 2: transsend( curr, next) – P 3: next bad Pre: P 1, P 2, P 3 – P 4: instate( next) Post: P 4 send: [ curr, next, P 1, P 2, P 3]. { ecx: [P 4]. { } } 37 April 12, 2000 David Walker, Cornell University

Technical Note • State predicates behave linearly – as in linear logic, each state predicate is used once – instate( curr) is "consumed" at send call site • can't be used in future proofs • can't fool type system into thinking code continues to be in state curr – instate( next) is "produced" on return • will be used when next calling a security-sensitive function 38 April 12, 2000 David Walker, Cornell University

Compile-time & Run-time • Compile-time reasoning depends on runtime values foo: mov eax, state % should represent the current state mov ecx, ret 1 jmp checksend % state argument, state result in eax ret 1: push eax mov ecx, ret 2 jmp send % must establish precondition for send checksend: % postcond. == precond. for ret 1, send April 12, 2000 % save next state on the stack 39 David Walker, Cornell University

Checksend • A type for checksend (first try) checksend: [ curr, P 1]. {eax: state, ecx: [ next, P 1, P 2, P 3]. {eax: state} } where P 1 = instate( curr), P 2 = transsend( curr, next), P 3 = next bad 40 April 12, 2000 David Walker, Cornell University

Checksend • A type for checksend (first try) checksend: [ curr, P 1]. {eax: state, ecx: [ next, P 1, P 2, P 3]. {eax: state} } where P 1 = instate( curr), P 2 = transsend( curr, next), P 3 = next bad • No correspondence between run-time argument and static information mov eax, wrong_state; mov ecx, next; jmp checksend 41 April 12, 2000 David Walker, Cornell University

Checksend • Solution: provide very precise types • Singleton types – A type containing one value – eax : state(start) • means eax contains a data structure that represents exactly the start state and no other state – eax : state( ) • eax contains data representing the unknown state • useful in many contexts – Similar to Dependent ML [Xi & Pfenning] April 12, 2000 David Walker, Cornell University 42

Using Singletons • checksend – implements the automaton transition function • intuitively has type state -> state • singletons help relate run-time values to compile-time predicates [ curr, P 1]. {eax: state( curr), ecx: [ next, P 1, P 2, P 3]. {eax: state( next)}} – P 1 = instate( curr), P 2 = transsend( curr, next), P 3 = next bad 43 April 12, 2000 David Walker, Cornell University

Using Checksend foo: { … }. . . % Assume: instate( curr), eax : state( curr) mov ecx, ret 1 jmp check_send[ curr] ret 1: [ next, instate( curr), transsend( curr, next), next bad]. {eax: state( next)}. push eax; mov ecx, ret 2; jmp send [ curr, next] % P 1 & P 2 & P 3 ==> ok ret 2: . . . April 12, 2000 44 David Walker, Cornell University

Optimization • Analysis of s. a. structure makes redundant check elimination possible – eg: send read(f) has read start bad read(f) send – identify transsend(start, start) as valid 45 April 12, 2000 David Walker, Cornell University

Optimization Low-level Interface Policy High-level Interface send: ' read: ' checksend: ' checkread: ' Axiom A = transsend(start, start) 46 April 12, 2000 David Walker, Cornell University

Optimization loop : [instate(start)]. { } mov ecx, loop jmp send [start, By A]; send: [ curr, next, instate( curr), transsend( curr, next), next bad]. {ecx: [P 4]. { }} • Type-checker is simple but general • Typical optimizations – redundant check removal – loop invariant removal 47 April 12, 2000 David Walker, Cornell University

Implementation • TALx 86 implementation is sufficient for these encodings – includes polymorphism, higher-order type constructors, logical connectives ( , , ), singleton types, . . • Lots more work to be done – axioms in module interfaces – policy compiler 48 April 12, 2000 David Walker, Cornell University

Outline • Technology for improved reliability and security – Idea I: certifying compilation – Idea II: security via code instrumentation • Secure certifying compilation [popl '00] – Security automaton specifications – A certifying target language • Related work & research directions 49 April 12, 2000 David Walker, Cornell University

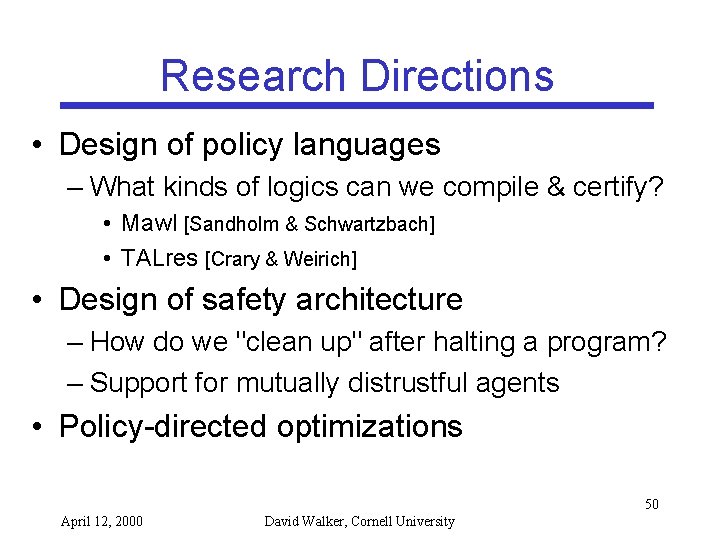

Research Directions • Design of policy languages – What kinds of logics can we compile & certify? • Mawl [Sandholm & Schwartzbach] • TALres [Crary & Weirich] • Design of safety architecture – How do we "clean up" after halting a program? – Support for mutually distrustful agents • Policy-directed optimizations 50 April 12, 2000 David Walker, Cornell University

Summary • A recipe for secure certified code: – types • ensure basic safety without run-time overhead • add a logic to encode complex invariants – policy-directed code instrumentation • specify security policies independently of the rest of the system • use dynamic checking to enforce policies when they can’t be proven statically 51 April 12, 2000 David Walker, Cornell University
