Section 12 3 Gathering Weather Data Objectives State

Section 12. 3 Gathering Weather Data Objectives State the importance of accurate weather data. Summarize the instruments used to collect weather data from Earth’s surface. Analyze the strengths and weaknesses of weather radar and weather satellites.

Section 12. 3 Gathering Weather Data Accurate measurements of atmospheric properties are a critical part of weather analysis and prediction. Review Vocabulary temperature: the average thermal energy of the particles that make up a substance

Section 12. 3 Gathering Weather Data New Vocabulary thermometer hygrometer barometer radiosonde anemometer Doppler effect

Section 12. 3 Gathering Weather Data from Earth’s Surface Two important factors in weather forecasting are the accuracy of the data and the amount of available data.

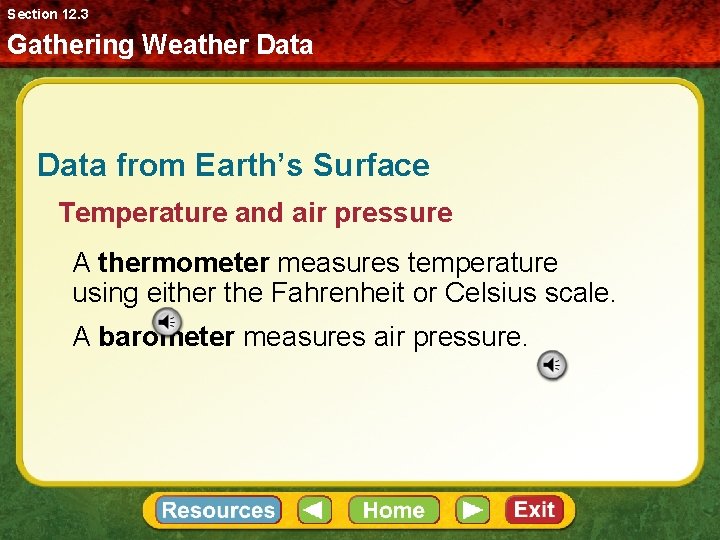

Section 12. 3 Gathering Weather Data from Earth’s Surface Temperature and air pressure A thermometer measures temperature using either the Fahrenheit or Celsius scale. A barometer measures air pressure.

Section 12. 3 Gathering Weather Data from Earth’s Surface Wind speed and relative humidity An anemometer measures wind speed. A hygrometer measures relative humidity.

Section 12. 3 Gathering Weather Data from Earth’s Surface Automated Surface Observing System The Automated Surface Observing System (ASOS) gathers data in a consistent manner, 24 hours a day, every day. It provides essential weather data for aviation, weather forecasting, and weather-related research.

Section 12. 3 Gathering Weather Data from the Upper Atmosphere The instrument used for gathering upperatmosphere data is a radiosonde. A radiosonde’s sensors measure the air’s temperature, pressure, and humidity. Also wind speed and direction( by its movement)

Section 12. 3 Gathering Weather Data Weather Observation Systems Weather radar A weather radar system detects specific locations of precipitation. The Doppler effect is the change in pitch or frequency that occurs due to the relative motion of a wave, such as sound or light, as it comes toward or goes away from an observer.

Section 12. 3 Gathering Weather Data Weather Observation Systems Doppler radar Analysis of Doppler radar data can be used to determine the speed at which precipitation moves toward or away from a radar station.

Difference between radar and Doppler radar. Radar Doppler radar detects specific locations speed at which precipitation moves of precipitation. toward or away from a radar station.

Section 12. 3 Gathering Weather Data Weather Observation Systems Weather satellites -3 types of imaging 1. Infra red, 2. visible light, 3. water vapor imagery. Some satellites use cameras that require visible light to photograph Earth. These digital photos are sent back to ground stations, and their data are plotted on maps. Unlike weather radar, which tracks precipitation but not clouds, satellites track clouds but not necessarily precipitation.

Section 12. 3 Gathering Weather Data Weather Observation Systems Weather satellites track clouds and water vapor. Some weather satellites use infrared imagery to make observations at night. Objects radiate thermal energy at slightly different frequencies. Infrared imagery detects these different frequencies, which enables meteorologists to map either cloud cover or surface temperatures.

Section 12. 3 Gathering Weather Data Weather Observation Systems Weather satellites Another type of satellite imagery that is useful in weather analysis and forecasting is called water-vapor imagery. Water-vapor imagery is a valuable tool for weather analysis and prediction because it shows moisture in the atmosphere, not just cloud patterns.

Difference between weather radar and weather satellite Radar Satellite Tracks precipitation Tracks clouds and moisture.

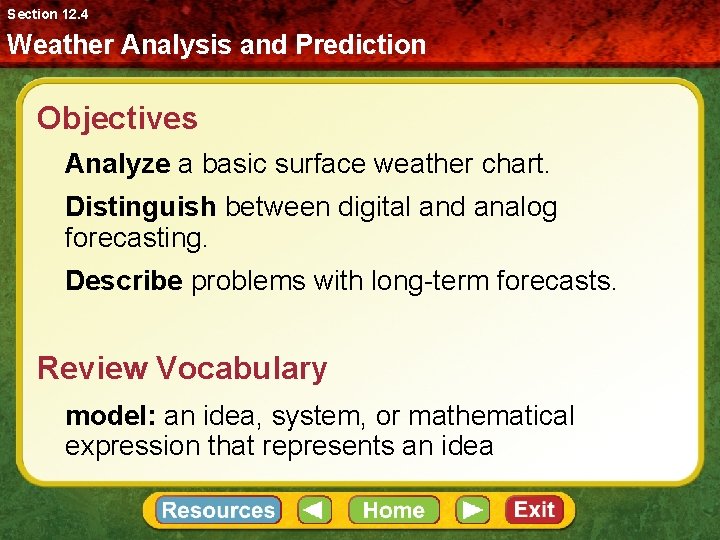

Section 12. 4 Weather Analysis and Prediction Objectives Analyze a basic surface weather chart. Distinguish between digital and analog forecasting. Describe problems with long-term forecasts. Review Vocabulary model: an idea, system, or mathematical expression that represents an idea

Section 12. 4 Weather Analysis and Prediction Several methods are used to develop short-term and long-term weather forecasts. New Vocabulary station model digital forecast isobar analog forecast isotherm

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Station models A station model is a record of weather data for a particular site at a particular time.

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Station models Meteorological symbols are used to represent weather data in a station model. Advantages: universal language, more info in less space.

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Plotting station model data To plot data nationwide and globally, meteorologists use lines that connect points of equal or constant values.

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Plotting station model data Lines of equal pressure are called isobars. Lines of equal temperature are called isotherms.

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Interpreting station model data The weather map shows isobars and air pressure data for the continental United States.

Section 12. 4 Weather Analysis and Prediction Surface Weather Analysis Interpreting station model data Using isobars, isotherms, and station model data, meteorologists can analyze current weather conditions for a particular location.

Section 12. 4 Weather Analysis and Prediction Types of Forecasts Digital forecasts A digital forecast is created by applying physical principles and mathematics to atmospheric variables and then making a prediction about how these variables will change over time.

Section 12. 4 Weather Analysis and Prediction Types of Forecasts Analog forecasts An analog forecast is based on a comparison of current weather patterns to similar weather patterns from the past.

Differences between digital and analog forecasts. Digital Analog By analyzing current weather data By comparing current weather patterns with similar patterns from the past.

Section 12. 4 Weather Analysis and Prediction Short-Term Forecasts The most accurate and detailed forecasts are short term because weather systems change directions, speeds, and intensities over time.

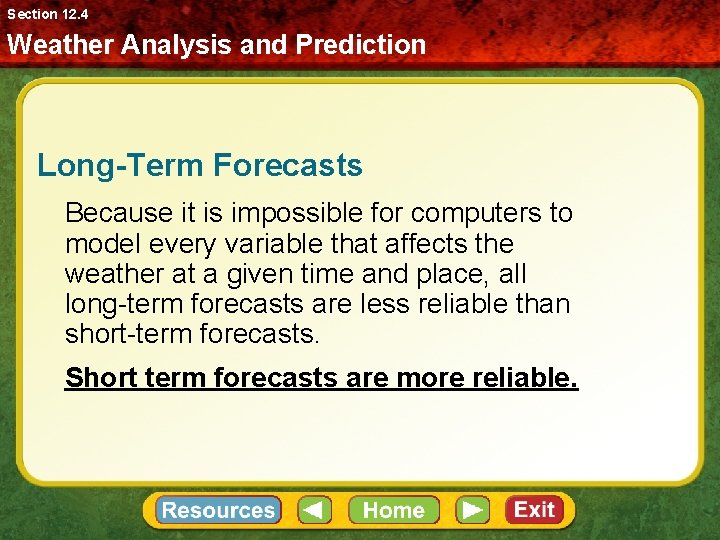

Section 12. 4 Weather Analysis and Prediction Long-Term Forecasts Because it is impossible for computers to model every variable that affects the weather at a given time and place, all long-term forecasts are less reliable than short-term forecasts. Short term forecasts are more reliable.

CH Study Guide Key Concepts Section 12. 3 Gathering Weather Data Accurate measurements of atmospheric properties are a critical part of weather analysis and prediction. § To make accurate weather forecasts, meteorologists analyze and interpret data gathered from Earth’s surface by weather instruments.

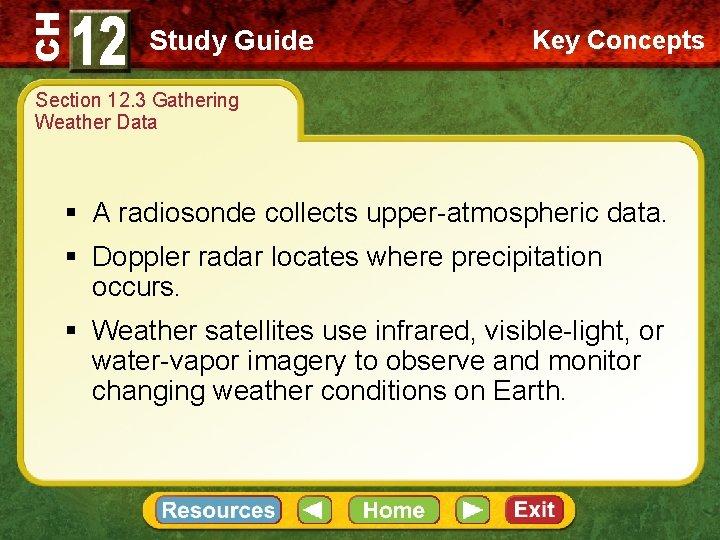

CH Study Guide Key Concepts Section 12. 3 Gathering Weather Data § A radiosonde collects upper-atmospheric data. § Doppler radar locates where precipitation occurs. § Weather satellites use infrared, visible-light, or water-vapor imagery to observe and monitor changing weather conditions on Earth.

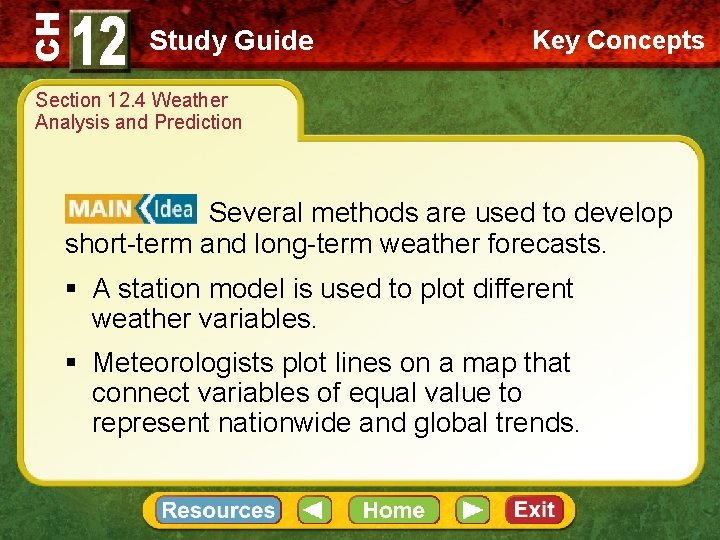

CH Study Guide Key Concepts Section 12. 4 Weather Analysis and Prediction Several methods are used to develop short-term and long-term weather forecasts. § A station model is used to plot different weather variables. § Meteorologists plot lines on a map that connect variables of equal value to represent nationwide and global trends.

CH Study Guide Key Concepts Section 12. 4 Weather Analysis and Prediction § Two kinds of forecasts are digital and analog. § The longer the prediction period, the less reliable the weather forecast.

CH Meteorology 12. 3 Section Questions Which weather instrument is used to measure wind speed? a. barometer b. thermometer c. anemometer d. hygrometer

CH Meteorology 12. 3 Section Questions Doppler radar data show that the return echo from one side of a storm has a shorter wavelength than the emitted wave. What can be concluded about the reflecting particles? a. They are very small. b. They are very large. c. They are moving toward the station. d. They are moving away from the station.

CH Meteorology 12. 3 Section Questions Why are weather satellites important to forecasters?

CH Meteorology 12. 3 Section Questions Answer: Satellites can monitor weather conditions over large regions of Earth using a variety of wavelengths. The satellites provide information about cloud cover, moisture, atmospheric circulation, and more, which can be used together to provide current and rapid forecasts.

CH Meteorology 12. 4 Section Questions What is an isobar? a. a line of constant altitude b. a line of constant temperature c. a line of constant pressure d. a line of constant moisture

CH Meteorology 12. 4 Section Questions Which weather forecast is usually the most accurate? a. one-day forecast b. three-day forecast c. seven-day forecast d. thirty-day forecast

CH Meteorology 12. 4 Section Questions How are digital forecasts made? Possible answer: Digital forecasts are made by using computers to model future weather conditions based on current weather data.

CH Meteorology Chapter Assessment Questions What characteristics describe a continental tropical air mass? a. cool and dry b. hot and dry c. mild and humid d. hot and humid

CH Meteorology Chapter Assessment Questions A high-pressure system has moved directly over a region. What weather condition most likely exists in this region? a. fair weather b. steady rain c. high winds d. thunderstorms

CH Meteorology Chapter Assessment Questions Which type of wave is transmitted by weather radar units? a. X rays b. sound waves c. radio waves d. infrared waves

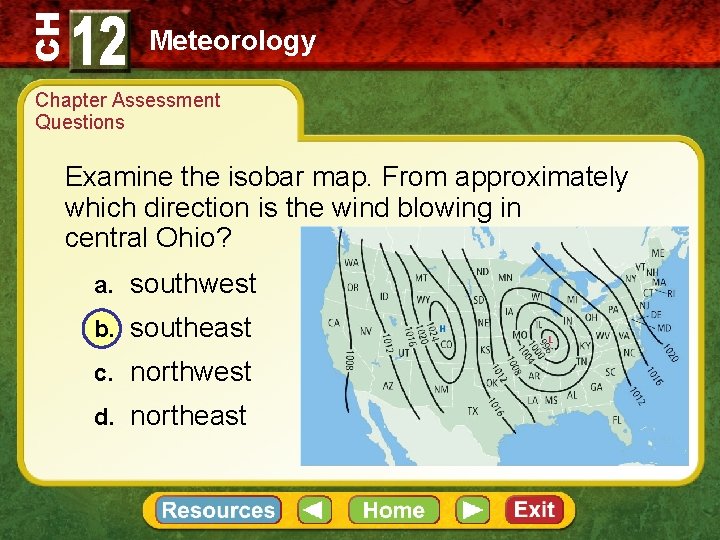

CH Meteorology Chapter Assessment Questions Examine the isobar map. From approximately which direction is the wind blowing in central Ohio? a. southwest b. southeast c. northwest d. northeast

CH Meteorology Chapter Assessment Questions A warm, moist air mass is currently over a region. What changes will occur as a strong cold front advances over this region?

CH Meteorology Chapter Assessment Questions Answer: The front has a high temperature contrast across it and a supply of moisture in front of it. As the cold front advances, uplift of moisture-laden air will occur and thunderstorms will probably develop. Some of these storms could be severe.

CH Meteorology Standardized Test Practice Which type of air mass forms over the Gulf of Mexico and Caribbean Sea? a. continental polar b. continental tropical c. maritime polar d. maritime tropical

CH Meteorology Standardized Test Practice A frigid, winter air mass is moving south across the central United States. Which feature can most modify the characteristics of this air mass? a. a large lake b. tree-covered hills c. snow-covered plains d. a lowland area

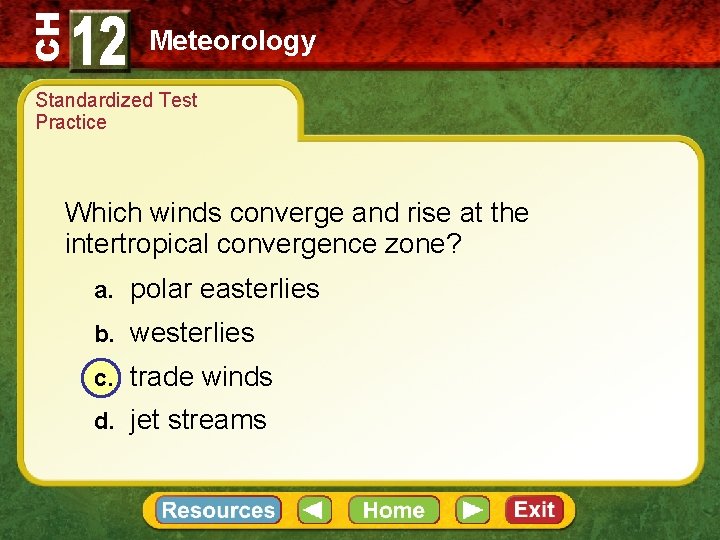

CH Meteorology Standardized Test Practice Which winds converge and rise at the intertropical convergence zone? a. polar easterlies b. westerlies c. trade winds d. jet streams

CH Meteorology Standardized Test Practice How is the path of a moving current of air in the southern hemisphere affected by Earth’s rotation? a. It curves to the right. b. It curves to the left. c. It curves upward. d. It curves downward.

CH Meteorology Standardized Test Practice How does the polar jet stream affect weather in the midlatitudes?

CH Meteorology Standardized Test Practice Possible answer: The jet stream marks the boundary between colder polar air and warmer subtropical air. Undulations in the jet stream move cold air to warmer latitudes and warm air to colder latitudes. Surface high- and low-pressure systems also form and move along the jet stream, so the jet stream guides weather across the midlatitudes.
