Section 10 4 Notes Inscribed Angles Learning Targets
Section 10. 4 Notes: Inscribed Angles Learning Targets Students will be able to find measures of inscribed angles. Students will be able to find measures of angles of inscribed polygons.

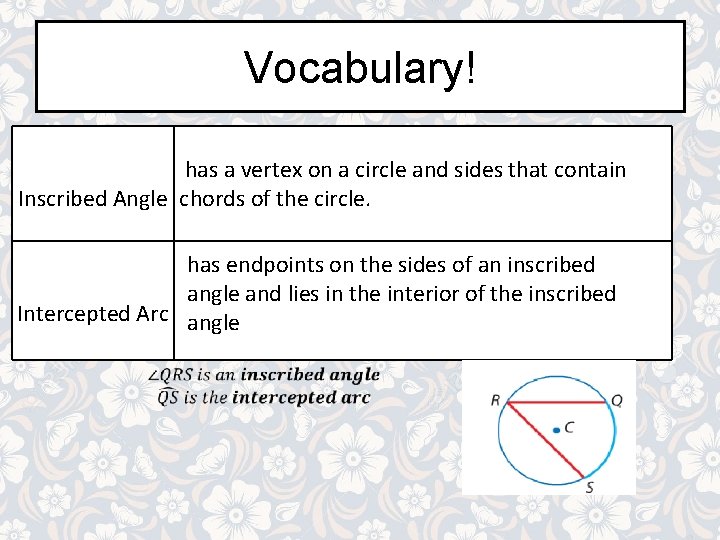

Vocabulary! has a vertex on a circle and sides that contain Inscribed Angle chords of the circle. has endpoints on the sides of an inscribed angle and lies in the interior of the inscribed Intercepted Arc angle

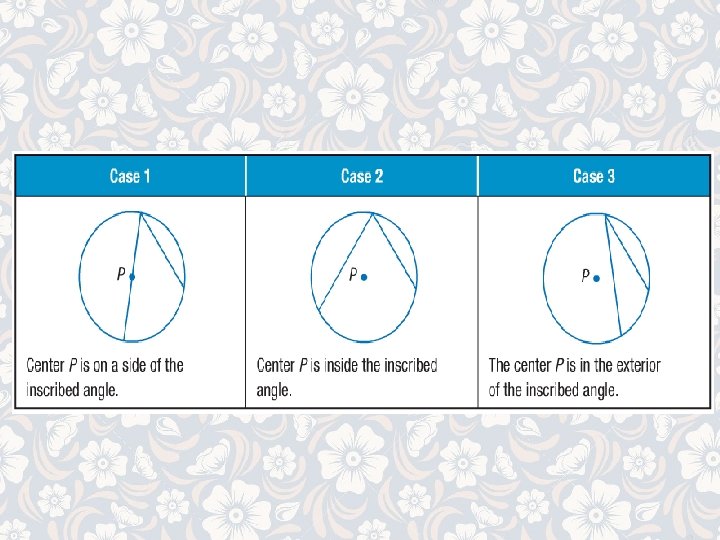

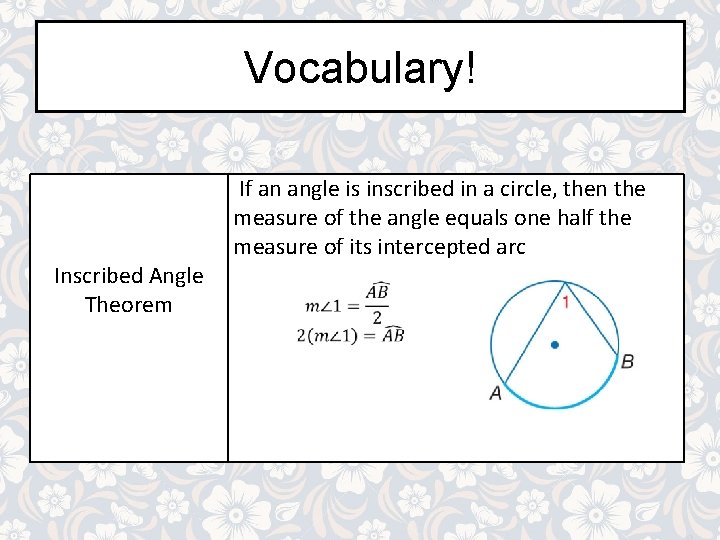

Vocabulary! Inscribed Angle Theorem If an angle is inscribed in a circle, then the measure of the angle equals one half the measure of its intercepted arc

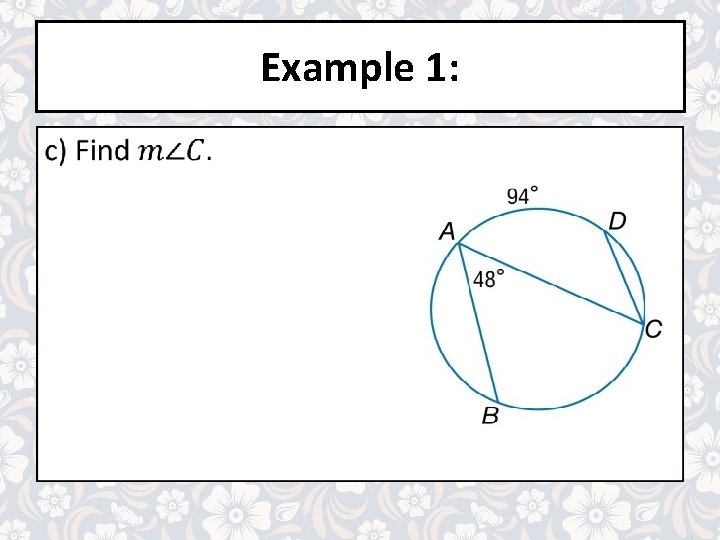

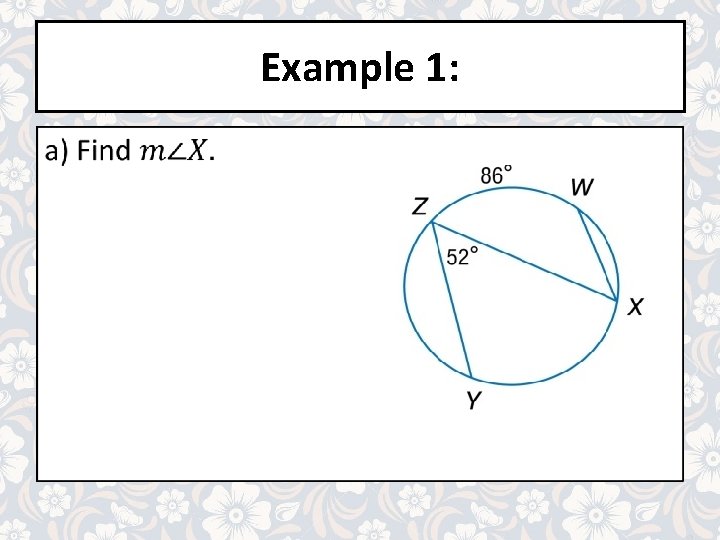

Example 1: •
Example 1: •
Example 1: •
Example 1: •

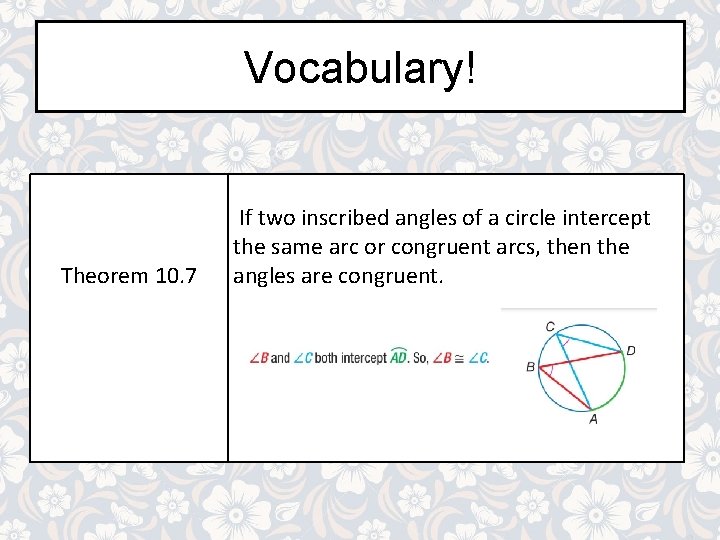

Vocabulary! Theorem 10. 7 If two inscribed angles of a circle intercept the same arc or congruent arcs, then the angles are congruent.

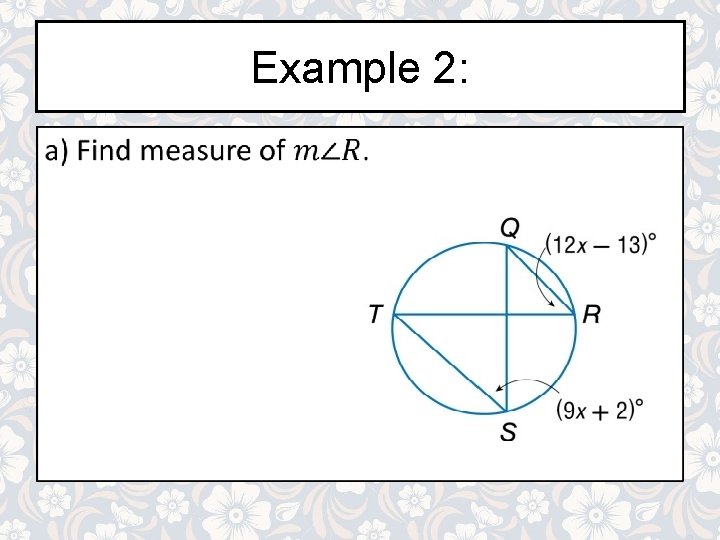

Example 2: •
Example 2: •

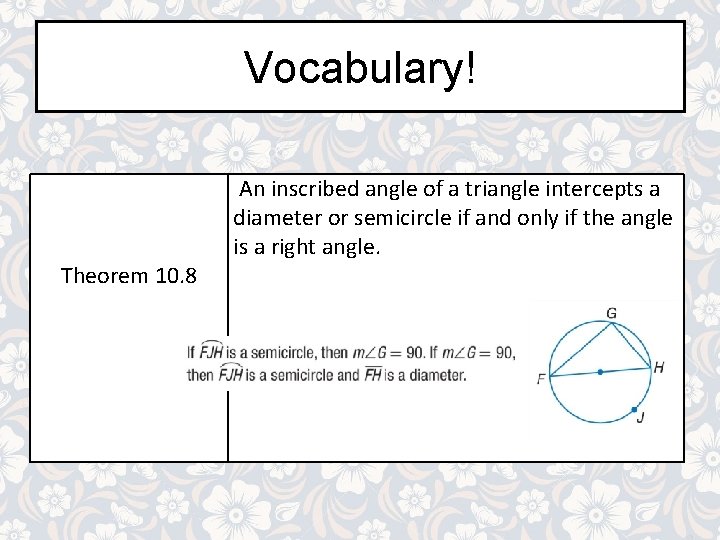

Vocabulary! Theorem 10. 8 An inscribed angle of a triangle intercepts a diameter or semicircle if and only if the angle is a right angle.

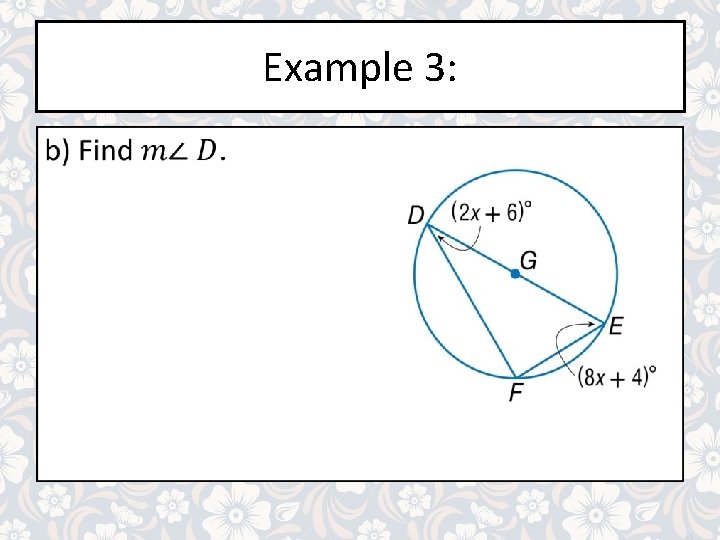

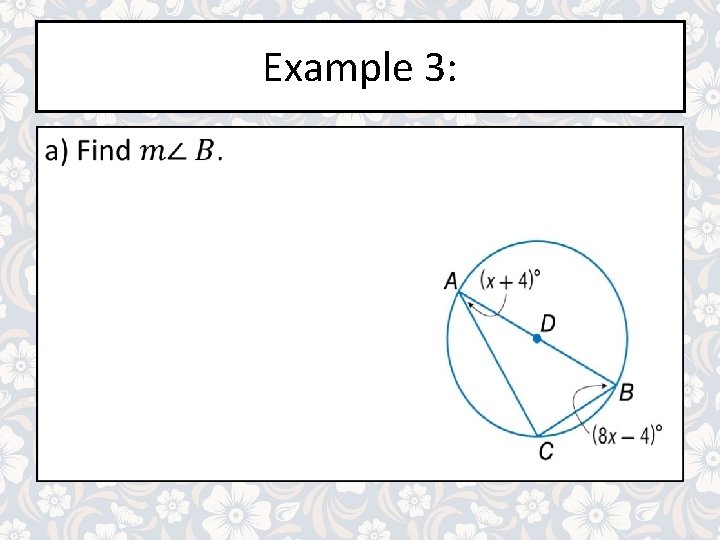

Example 3: •
Example 3: •

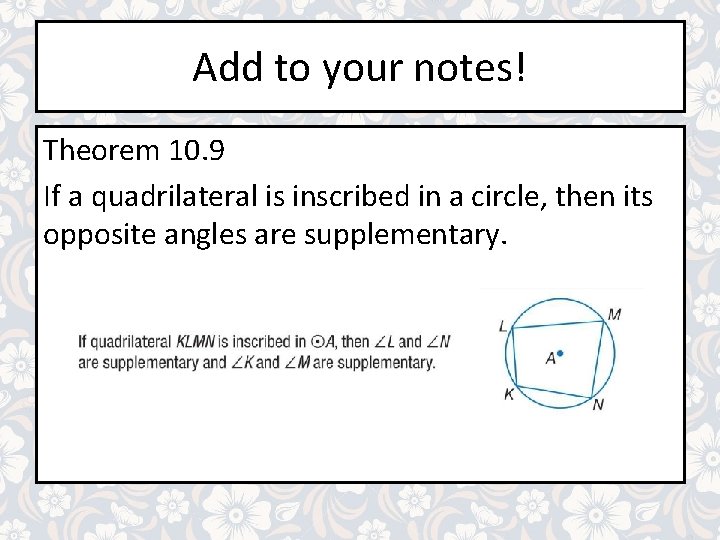

Add to your notes! Theorem 10. 9 If a quadrilateral is inscribed in a circle, then its opposite angles are supplementary.

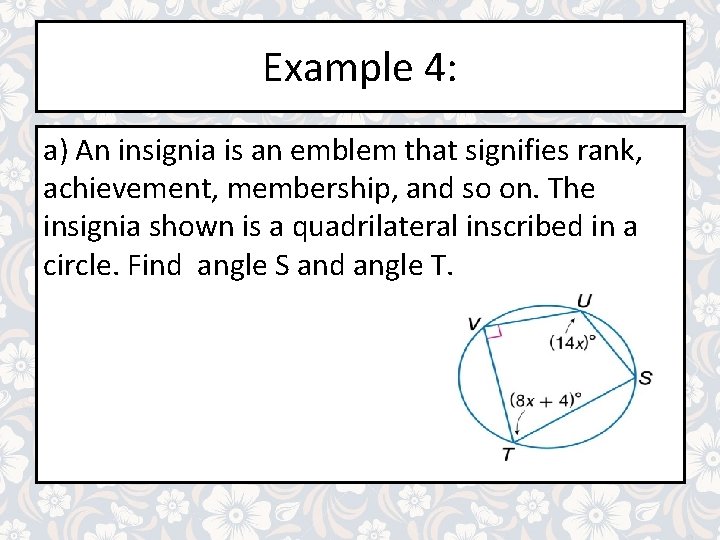

Example 4: a) An insignia is an emblem that signifies rank, achievement, membership, and so on. The insignia shown is a quadrilateral inscribed in a circle. Find angle S and angle T.

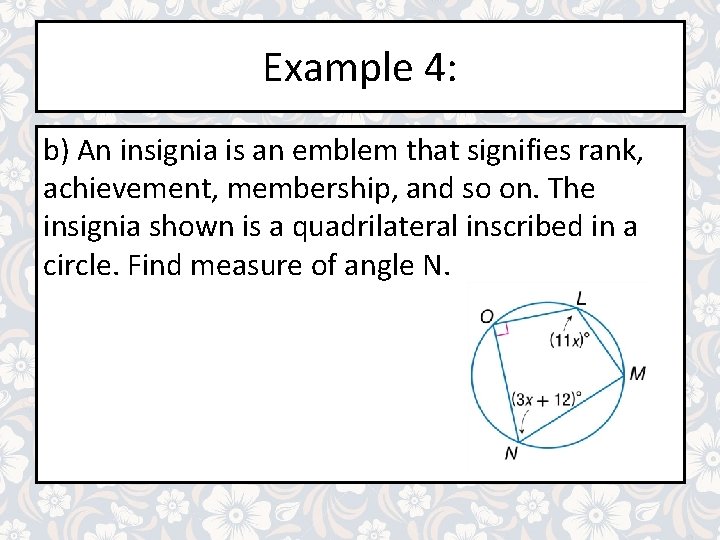

Example 4: b) An insignia is an emblem that signifies rank, achievement, membership, and so on. The insignia shown is a quadrilateral inscribed in a circle. Find measure of angle N.

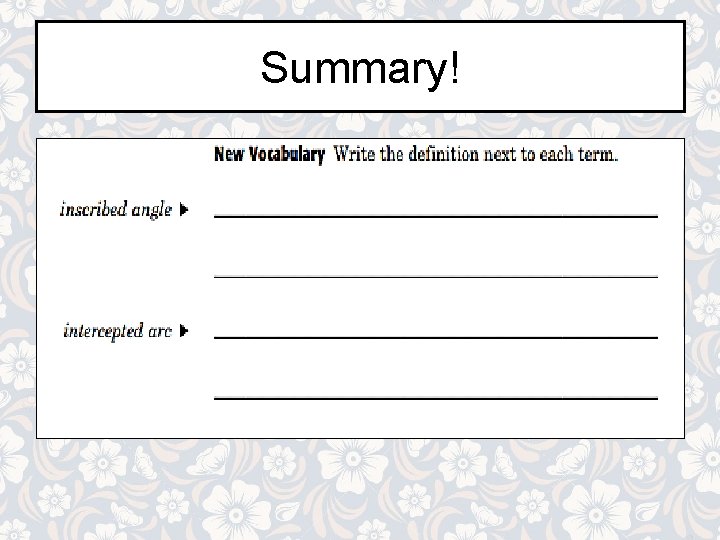

Summary!

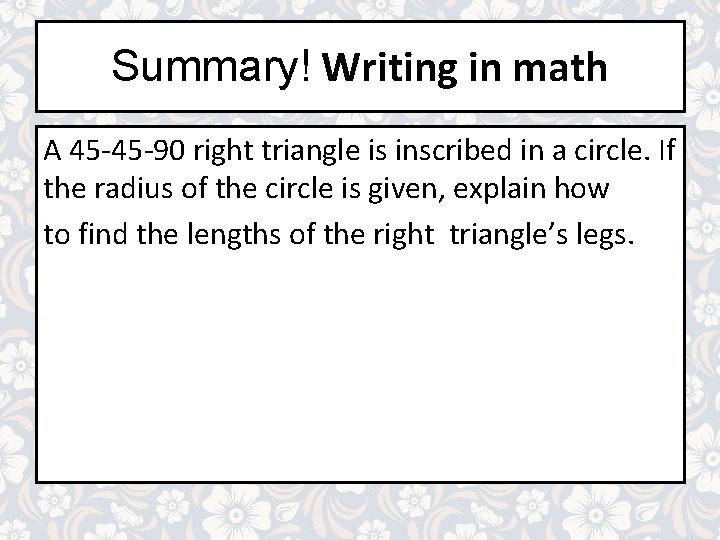

Summary! Writing in math A 45 -45 -90 right triangle is inscribed in a circle. If the radius of the circle is given, explain how to find the lengths of the right triangle’s legs.
