Section 1: Displacement, Velocity, and Acceleration
Displacement: Is the distance from where you start to where you finish. Δd=df-di
Velocity: How fast and in what direction (vector quantity) V = ∆d/t Speed: How fast (scalar quantity) Average Velocity: Overall velocity or the total displacement divided by the total time. Instantaneous Velocity: Velocity at a given moment.
Sample Calcs: Q 1: What is the average velocity of a car that moved 60 km in 3 hours? Q 2: How far will a car travel in 25 min at 12 m/s?
Practice Problems 1) What is the time for a student to travel 20 m when they have a velocity of 5 m/s. 2) Find the velocity of a car that travels 100 m in 10 seconds.
Sample Calc 3: TUFFY Q 3: Car A is traveling 30 m/s at mile marker 50 meters and car B is traveling 70 m/s at mile marker zero. Find the mile marker where the will meet.
Speed Trap Activity: Objective: 1) Find the tanks velocity. 2) Find how far the tank will go in 15 seconds.
Cable Car Demo: Find the cars speed and how far it will go in 6 seconds: ΔX=_____ t=_______
Acceleration (a) : Rate that an object changes its velocity or speed and direction. Linear Acceleration: acceleration along a straight path Centripetal Acceleration: Acceleration due to a change in direction
What linear acceleration means: For every one second that passes, the rockets velocity will increase by ______m/s
Acceleration Equations: Change in velocity with acceleration: a = (Vf – Vi )/t Displacement with acceleration: df = di +vit + 1/2 at 2 Final velocity after displacement: Vf 2 = Vi 2 + 2 aΔd
Sample Calc 1: 1) If a car accelerates from zero to 16 m/s in 2 seconds, what is the car's average acceleration? 2) Find How far it traveled in 2 seconds:
Sample Calc 2: 1) Find the acceleration of a rocket that goes from zero to 30 m/s in 10 seconds? 2) How fast is it traveling after 4 seconds? 3) How far does it go in 4 seconds?
Sample Calc 3: A track runner accelerates from 2 m/s to 10 m/s in 2 seconds. 1) What is his acceleration? 2) How fast is he going after 5 seconds? 3) How far will he go in 5 seconds?

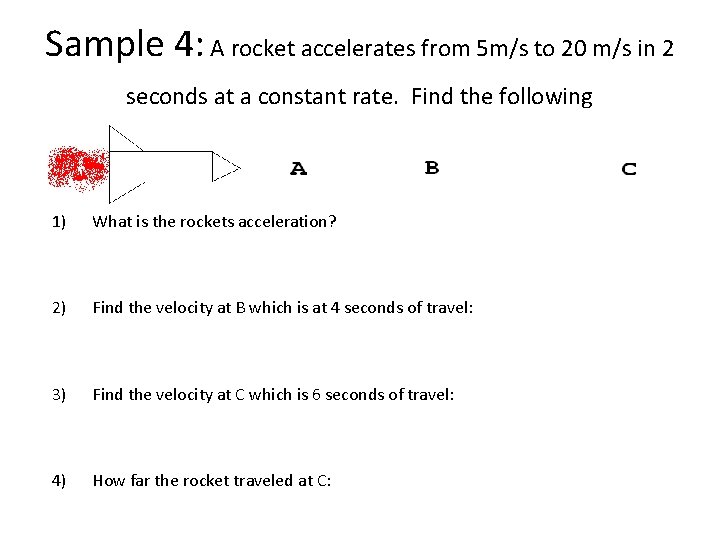

Sample 4: A rocket accelerates from 5 m/s to 20 m/s in 2 seconds at a constant rate. Find the following 1) What is the rockets acceleration? 2) Find the velocity at B which is at 4 seconds of travel: 3) Find the velocity at C which is 6 seconds of travel: 4) How far the rocket traveled at C:
Sample Calc 4: (Honors) Q 3: Car A starts at miles marker zero and begins to accelerate forward at a rate of 10 m/s 2. Car B is heading in the opposite direction at mile marker 400 meters and begins to accelerate at -20 m/s. Find where they meet.
Sample Calc 4: Q: You started to run at 10 m/s when you left your house and you arrived at school 300 seconds later. Assuming that your average acceleration was 30 m/s 2, how fast were you running when you arrived?
Velocity Warm-up: 1) Find the velocity of a car that passes through a 50 m speed trap in 2 seconds? 2) How far will this car have traveled in 10 seconds?
Velocity Warm up: Superman passes through a 30 meter long speed trap in. 01 seconds. 1) How fast is he going? 2) How long would it take him to fly around the earth if it has a circumference of 40, 000 meters.
Velocity Warm-up: Two cars approach each at the following velocities. Find where they collide.
Warm Up: A car accelerates from zero to 40 m/s in 10 seconds and then traveled at a constant speed for 20 seconds Find the following. a) Acceleration for the first 10 seconds: b) How far the car traveled for the first 10 seconds: c) How far the car traveled for while moving at constant speed:
$$Practice Problem: A water balloon is dropped from a skyscraper that is 100 meter high. Find the following if the balloon accelerates at a rate 30 m/s 2. 1) Final velocity. 2) Time to hit the ground.
Warm up: A rocket car is initially traveling at 30 m/s and turns on it thrusters to slow down. If the thrusters produce an acceleration of 10 m/s/s for 40 seconds, find the cars final location. What is the cars velocity?
Velocity Quiz: (5 pts each) A racecar passes through 20 meter speed trap in 40 seconds. Find the following: 1) The cars speed. 2) How far the car will go in 50 seconds. 3) The time it will take the car to go 80 meters.
Acceleration Quiz: (5 pts each) A ball is dropped and it accelerates at a rate of 20 m/s 2 for 15 seconds. 1) Find how far the ball drops. 2) Find the balls final velocity.
Acceleration and Velocity Quiz: (5 pts each) A car accelerates from rest to 90 m/s in 3 seconds. 1) Find its acceleration: 2) Find how far it traveled. 3) A rocket is traveling at constant speed of 20 m/s for 4 seconds. Find how far the rocket will travel.
Physics CP - Acceleration and Velocity Quiz #1: (5 pts each) A rock is thrown straight down at a velocity of 10 m/s off of a cliff on an alien moon. If the rock reaches a velocity of 40 m/s in 5 seconds, find the following: 1) Find its acceleration: 2) Find how far it traveled in 5 seconds. 3) Find the rocks velocity after 10 seconds of falling.
Online Timer: • http: //www. online-stopwatch. com/largestopwatch/
Quiz: A racecar passes through its final lap traveling at 55 m/s and applies it’s breaks for 2 seconds while slowing down to 5 m/s. Find the following: 1) Acceleration of the car: (5 pts) 2) Displacement traveled: (5 pts) 3) Average velocity of the car during the deceleration: (5 pts)
Text Problems From Holt v. Pg 49 (1 -5) v. Pg 53 (1 -4) v. Pg 55 (1 -4) v. Pg 58 (1 -6)
