Secret Codes Unforgeable Signatures and Coin Flipping on

Secret Codes, Unforgeable Signatures, and Coin Flipping on the Phone Martin Tompa Computer Science & Engineering University of Washington

Secret Codes, Unforgeable Signatures, and Coin Flipping on the Phone

What Is a Cryptosystem? KAB M A B C = EAB(M) Sender M = DAB(C) Receiver Cryptanalyst (bad guy) M Message Plaintext Cleartext C Encryption Cyphertext KAB Key

What Is a Public Key Cryptosystem? KAB A M C = EAB(M) Sender B M = DAB(C) Receiver Cryptanalyst (bad guy) M Message Plaintext Cleartext C Encryption Cyphertext KB Private Key EB Public Key

The RSA Public Key Cryptosystem v Invented by Rivest, Shamir, and Adleman in 1977. v Has proven resistant to cryptanalytic attacks.

Receiver’s Set-Up v Choose 500 -digit primes p and q, with p 2 (mod 3) and q 2 (mod 3) p = 5, q = 11 v Let n = pq. n = 55 v Let s = (1/3) (2(p - 1)(q - 1) + 1). s = (1/3) (2 4 10 + 1) = 27 v Publish n. Keep p, q, and s secret.

Note on the Version Presented Here I have simplified RSA to make it clearer. v The version presented here is not considered secure, because of the small exponent 3 used in encryption. See http: //crypto. stanford. edu/~dabo/pubs/papers/RSAsurvey. pdf, Section 4. 2, first two paragraphs for an explanation of the vulnerability of small exponents. v See Rosen’s textbook for the secure version of RSA. v Thanks to Dimitrios Gklezakos for pointing out this vulnerability to me. v

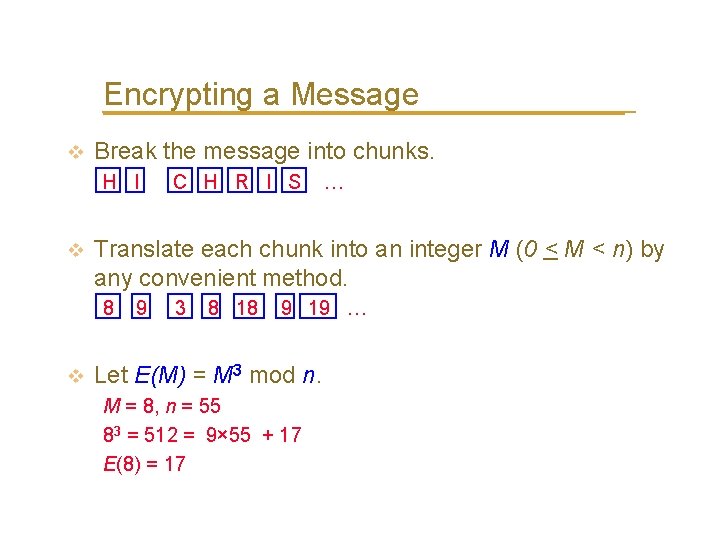

Encrypting a Message v Break the message into chunks. H I C H R I S … v Translate each chunk into an integer M (0 < M < n) by any convenient method. 8 9 3 8 18 9 19 … v Let E(M) = M 3 mod n. M = 8, n = 55 83 = 512 = 9× 55 + 17 E(8) = 17

Decrypting a Cyphertext C v Let D(C) = Cs mod n. C = 17, n = 55, s = 27 1727 = 1, 667, 711, 322, 168, 688, 287, 513, 535, 727, 415, 473 = 30, 322, 024, 039, 430, 696, 136, 609, 740, 498, 463 × 55 + 8 D(17) = 8 v Translate D(C) into letters. H

Decrypting a Cyphertext C Efficiently v C = 17, n = 55, s = 27 172 289 14 (mod 55) 174 172 14 196 31 (mod 55) 178 174 31 961 26 (mod 55) 1716 178 26 676 16 (mod 55) 1727 1716 178 172 171 16 26 14 17 416 14 17 31 14 17 434 17 (-6) 17 -102 8 (mod 55) D(17) = 8

Why Does It Work? Euler’s Theorem (1736): Suppose v p and q are distinct primes, v n = pq, v 0 < M < n, and v k > 0. Then Mk(p-1)(q-1)+1 mod n = M. (M 3)s = (M 3) (1/3)(2(p-1)(q-1)+1) = M 2(p-1)(q-1)+1 M (mod n)

Leonhard Euler 1707 -1783

Why Is It Secure? To find M = D(C), you seem to need s. v To find s, you seem to need p and q. v All the cryptanalyst has is n = pq. v How hard is it to factor a 1000 -digit number n? With the grade school method, doing 1, 000, 000 steps per second it would take … 10480 years. v

State of the Art in Factoring v v v 1977: Inventors encrypt a challenge using “RSA 129, ” a 129 -digit number n = pq. 1981: Pomerance invents Quadratic Sieve factoring method. 1994: Using Quadratic Sieve, RSA 129 is factored over 8 months using 1000 computers on the Internet around the world. 1999: Using Number Field Sieve, RSA 140 is factored over one month using 200 computers, about 8. 9 CPU -years. 2009: Using Number Field Sieve, RSA-768, a 232 digit number, is factored over two years using hundreds of machines, about 1500 CPU-years.

Secret Codes, Unforgeable Signatures, and Coin Flipping on the Phone

Signed Messages v How A sends a secret message to B A B C = EB(M) C M = DB(C) v How A sends a signed message to B A B C = DA(M) C M = EA(C)

Signed and Secret Messages v How A sends a secret message to B. . . A B C = EB(M) C M = DB(C) v How A sends a signed secret message to B. . . A B C = EB(DA(M)) C M = EA (DB(C))

Secret Codes, Unforgeable Signatures, and Coin Flipping on the Phone

Flipping a Coin Over the Phone v y “even” “odd” x
