Second Installation and Commissioning Workshop DAQ and ECS FMD contribution Børge S. Nielsen, Niels Bohr Institute with invaluable contributions from C. Holm, K. Gulbrandsen, G. Renault and F. Roukoutakis 11 December 2006 11/12 December 2006 1 Borge S. Nielsen, NBI

Status of FMD readout Test setup at NBI DAQ computer RCU Inner and Outer Digitizer VME crate for TTC and LTU Chain working: 2 digitizers, RCU, DDL, DATE To be done: TTC and LTU -- hardware is available at NBI 11/12 December 2006 2 Borge S. Nielsen, NBI

Read-out cable problem solved Unable to read out Digitizers to RCU with 3 -4 m standard cable Standard cable: flat cable, 50 connections, 1 mm pitch New cable: flat twisted pairs, 40 pairs, 0. 635 mm pitch 40 bit signal + 10 grounds Have tried this with all sorts of shielding, termination etc, without success 11/12 December 2006 40 bit signal + 40 grounds adaptor This works up to at least 4 m cable 3 Borge S. Nielsen, NBI

FMD specifics to remember • DAQ readout using 3 standard RCUs Digitizer card (FMDD) is a modified TPC FEC • DCS uses CAEN power supplies and interface to RCU-DCS card identical to TPC • Receive L 0, L 1, L 2 from LTU but we do not deliver trigger signal to CTP • Will require ped. and gain calibration runs 11/12 December 2006 4 Borge S. Nielsen, NBI

DAQ – Pre-commissioning (1) • Installation of DAQ system for pre-commissioning • PC installed with Linux and DATE V 5 in home institute ? Yes Linux SLC 3/SLC 4 ? DATE Version ? SLC 3, DATE 5. 14 • DDL SIU, RORC, and LTU modules available in home institute ? Yes Actel-based SIU ? RORC Version 4 ? Don't know, RORC sw 4. 4. 4 • Final readout electronics data formatting • Generation of the Common Data Header (CDH) with information from the trigger ? Presumably yes, but not tested (using RCU). 11/12 December 2006 5 Borge S. Nielsen, NBI

DAQ – Pre-commissioning (1) • Final electronics readout demonstrated via DDL + DATE with final TRG/DAQ system • Final readout electronics ? Yes (FMDD+RCU+SIU+DIU+RORC) • Configuration of electronics via DDL if used ? Will use for peds. Not tested. • Trigger with LTU + TTC system ? No. Detector busy to LTU ? yes. Not tested • Readout with DDL + DATE system ? Yes • Raw data with CDH info from Trigger ? yes, not tested. • CDH checking enabled in DATE ? No. • Trigger busy and DDL XON/OFF have been exercised ? don't know what this is. • Test performed with more than 1 DDL ? No 11/12 December 2006 6 Borge S. Nielsen, NBI

DAQ – Pre-commissioning (2) • Data Quality Monitoring (DQM) • Raw data decoding code ready ? Almost Same code as in Ali. ROOT ? Simplified version • MOOD module written to display raw data ? In progress • Metrics for automatic DQM ? Not yet • Detector algorithm (DA) • Online calibration procedures identified and specified ? Yes (peds. and gains). (Including information as required in the DA framework document) No • Implementation of the procedures using the DA framework ? Not yet • RAW data files ready to test them ? No 11/12 December 2006 7 Borge S. Nielsen, NBI

DAQ – Pre-commissioning (2) • Performance test in the lab • Max bw of readout electronics over DDL ? Not measured. • Max event rate ? ~1 k. Hz, apparently limited by RCU event buffer (internal limit is Digitizer->RCU serial readout : 1 -3 k. Hz event rate) Range of event size ? ~ 25 – 120 k. B Dead-time at nominal rate ? 1 ms • Stability (Full chain used since when ? Summer 2006 Stable run during several hours? Yes, even days. ) • Start Of Data (SOD), End Of Data (EOD) handling • Readout electronics ready to receive software triggers ? ? ? • Readout electronics able to generate SOD and EOD events fragments ? ? ? • Definition of Equipment identification • Detector identifier has been defined by offline. We think so • DDL index (mapping of DDL to readout partition) defined by detector ? Not sure. 11/12 December 2006 8 Borge S. Nielsen, NBI

FMD FSM Node DCS FMD HV HV: A 1512 CU DU details LV [0 -5] LV: A 3009 RCU [0 -3] Channel Channel 6 bd x 12 ch = 72 ch 4 bd x 12 ch = 48 ch 11/12 December 2006 9 RCU Borge S. Nielsen, NBI

ECS – Pre-commissioning • Detector DCS • Top-level DCS Finite State Machines (FSM) defined and implemented ? CAEN LV and HV: RCU: progressing well Not yet • Standard set of STATES and COMMANDS ? Yes • Front-end and readout electronics integration with the Trigger • Raw data generation controlled by LTU ? ? ? • Need to control detector-specific LTU sequences ? Maybe for gain calibration? • Detector readout with DAQ system based on DDL+DATE ? Yes • Sequences of operation (pedestal runs, calibration runs, etc) to be controlled by the ECS • Sequences defined and communicated to the ECS team ? More or less • Detector-dependent programs to implement the above sequences • Programs defined ? Yes • Programs developed and tested ? 11/12 December 2006 No 10 Borge S. Nielsen, NBI

Detector installation & commissioning • Check location of DDL SIUs and optical patch panels • Detector installation: • When ? 19 March 2007 (FMD 3) • Will the detector DAQ contact be present during commissioning ? Yes • DAQ & ECS needed during commissioning • When ? February 2007 in clean room • Operation from upstairs starting on ? In clean room Feb 2007 In P 2 early March 11/12 December 2006 11 Borge S. Nielsen, NBI

DCS questions • DCS status today subsystems PVSS Panels FSM Delivery date HV Yes Yes < Feb 07 LV Yes Yes < Feb 07 RCU No ROOT panels Inter. Com • DCS needs at clean room + P 2 for pre- and final installation what Pre-installation details Final installation when PC Quartus needed Feb 07 Network Yep. Feb 07 Cables YES !! Feb 07 details when ditto … 11/12 December 2006 12 Borge S. Nielsen, NBI

Questions for Detectors providing Trigger Inputs • FMD does not provide trigger inputs to CTP 11/12 December 2006 13 Borge S. Nielsen, NBI

Detector Readout I • Does the detector respond correctly to trigger sequences with errors? • Has this been checked using the list of sample error-sequences • Not explicitly, but we are using standard RCU Can the detector operate continuously with a high rate of triggers (i. e. up to a raw rate of 40 MHz, however respecting BUSY) without generating errors? Using standard RCU • Does the detector transfer L 1 and L 2 a messages in an appropriate way to • the event header? Using standard RCU Can the detector, using an LTU, maintain stable running conditions for a period of at least 12 hours. (i. e. more than the longest run. ) We haven't had an LTU running yet. 11/12 December 2006 14 Borge S. Nielsen, NBI

Detector Readout I • Some detectors require calibration triggers. These require a message to be sent to the CTP via a DIM server giving the details of the request. The details of the exact format for the request have not yet been released. However, does the detector foresee from where (which computer) the requests will be sent? Such a computer must be able to communicate with the CTP, which implies access to the DCS network. If the calibration trigger requires a pre-pulse, does the detector delay the pulse as required, e. g. by use of the TTCvi? We think this is not relevant… • Some detectors have expressed an interest in using the Region-of -Interest (Ro. I) We will not do Ro. I's • Can the detector drive the required LVDS signals over a distance equivalent to that for the cables connecting it to the CTP and maintain an acceptable BER (say <10 -11)? Yes, but we only return BUSY, not trigger signals 11/12 December 2006 15 Borge S. Nielsen, NBI

Detector Readout 2 (Reminders) • Can the detector make adequate individual adjustments to each final destination so as to obtain required time alignments for L 0 and L 1 output signals? If we understand the question, the answer is: Yes. • Does the detector provide its own counters for all signals coming from the trigger system (i. e. L 0, L 1, L 2 a, L 2 r, BUSY) and in addition for any trigger inputs sent to the CTP? Yes 11/12 December 2006 16 Borge S. Nielsen, NBI

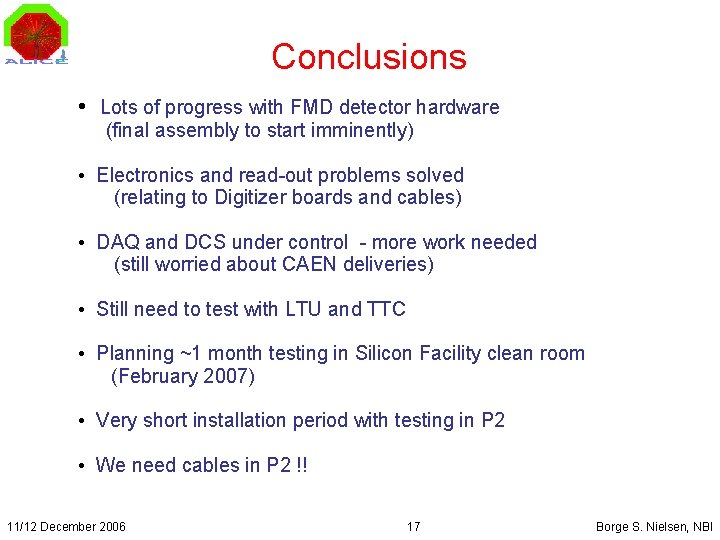

Conclusions • Lots of progress with FMD detector hardware (final assembly to start imminently) • Electronics and read-out problems solved (relating to Digitizer boards and cables) • DAQ and DCS under control - more work needed (still worried about CAEN deliveries) • Still need to test with LTU and TTC • Planning ~1 month testing in Silicon Facility clean room (February 2007) • Very short installation period with testing in P 2 • We need cables in P 2 !! 11/12 December 2006 17 Borge S. Nielsen, NBI
