SECO Secure Electronic Communications for Offices Team Two

SECO Secure Electronic Communications for Offices > Team Two: Della Killingsworth Hassan Elrhazouani Stephanie Smith Matthew Thompson Jimmie Lyn Jackson Cycle 2 Presentation

Overview � Security › Fingerprint access › Lock override � Convenience › Email notification of mail › Indicator lights

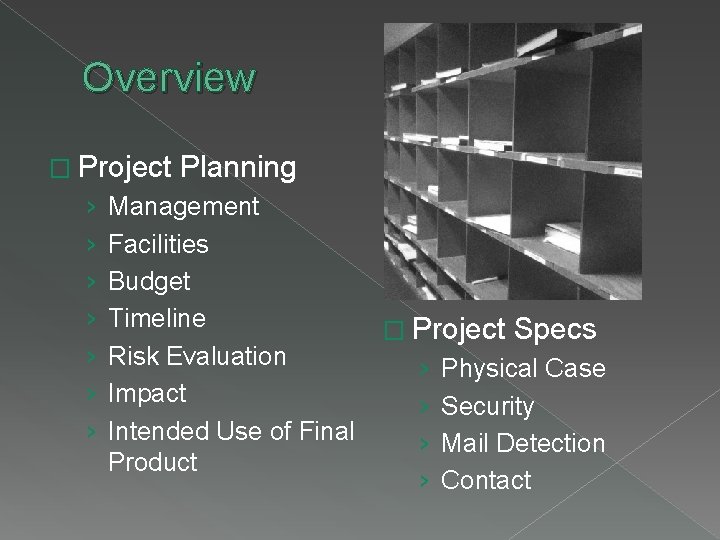

Overview � Project › › › › Planning Management Facilities Budget Timeline Risk Evaluation Impact Intended Use of Final Product � Project › › Specs Physical Case Security Mail Detection Contact

Project Planning |Management Programming Stephanie Hassan Hardware Matt Jimmie Lyn Construction and Construction Recording Della Special Projects

Project Planning |Facilities � Broun Hall › Green Room › Senior Design Lab � Team Member’s Homes

Project Planning |Budget Single SECO Cost General Final Mailbox Frame Finger. Print Scanner Dot Matrix Display Lock NI sb. RIO system Total $30 $66. 47 $162. 91 $26. 56 $109. 43 $2, 087. 00 $2, 482. 00 SECO Development Costs Total General components $30 Prototype Mailbox Frame $28. 46 Final Mailbox Frame $66. 47 Finger. Print Scanner $180. 90 Dot Matrix Display $132. 92 $395. 00 Lock $78. 88 NI Singleboard RIO $0. 00 $517. 63 National Instruments Donation Quantity NI sb. RIO-9626 NI 9694 RIO Mezzanine Card NI CB-50 LP Lab. VIEW Academic Suite Quantity 1 Unit Total Price 1846. 00 $1, 849. 00 1 149 $149. 00 1 5 89 1559 $89. 00 $7, 795. 00 $9, 882. 00

Project Planning |Timeline

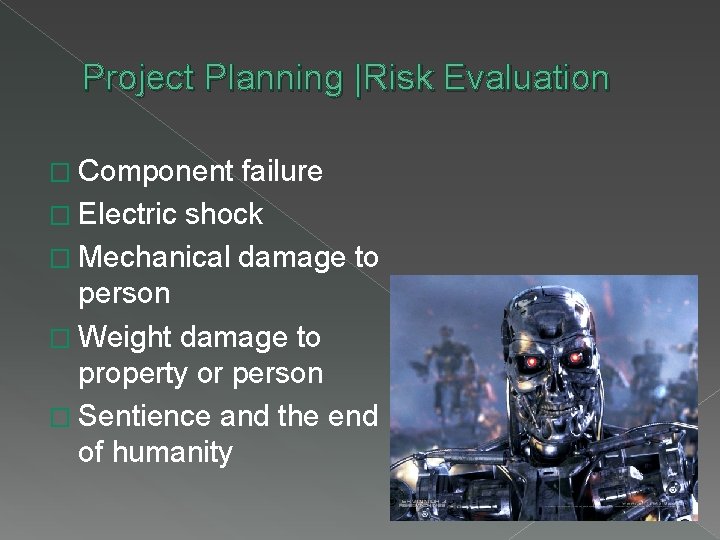

Project Planning |Risk Evaluation � Component failure � Electric shock � Mechanical damage to person � Weight damage to property or person � Sentience and the end of humanity

Project Planning |Impact � Economic – increased prices � Social - distrust � Ethical – biometric security › IEEE biometric standards › HIPAA › Privacy Act

Project Planning |use

Project Specs | Case � Material � Dimensions � Component › › Slot Scanner Lock User interface

Project Specs | Case � Material � Dimensions � Component › › Slot Scanner Lock User interface

Project Specs | Security � Fingerprint � 3 Scanner buttons: › Registration › Authentication › Deletion � Scan failed/success notice after each scan � Serial commands ensure proper setup

Project Specs | Security � Locking Mechanism Two ways to unlock the mailbox Door: 1) Fingerprint Authentication 2) Override Mechanism

Project Specs | Security � Locking Override: Push button switch that gets triggered by a key

Project Specs | Mail Detection � 2 Circuits across the mailbox slit � Mounted on 2 wires, the Black wire is the ground the RED one is the voltage source

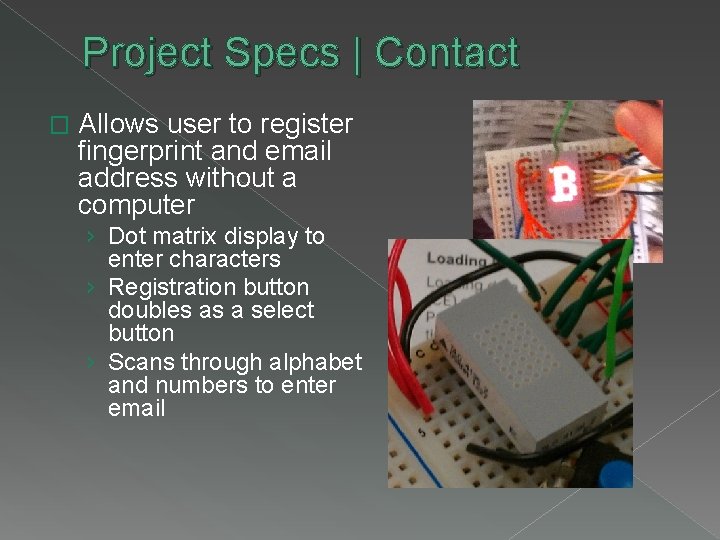

Project Specs | Contact � Allows user to register fingerprint and email address without a computer › Dot matrix display to enter characters › Registration button doubles as a select button › Scans through alphabet and numbers to enter email

Project Specs | Contact � Once an email has been registered a confirmation email is sent � User starts receiving emails whenever a piece of mail is placed in the mailbox

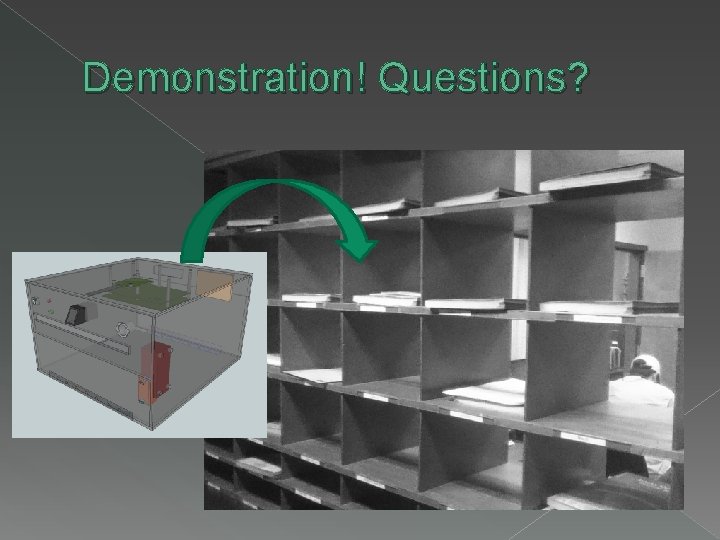

Demonstration! Questions?
