Secant Method Industrial Engineering Majors Authors: Autar Kaw, Jai Paul http: //numericalmethods. eng. usf. edu Transforming Numerical Methods Education for STEM Undergraduates 3/12/2021 http: //numericalmethods. eng. usf. edu 1

Secant Method http: //numericalmethods. eng. usf. edu

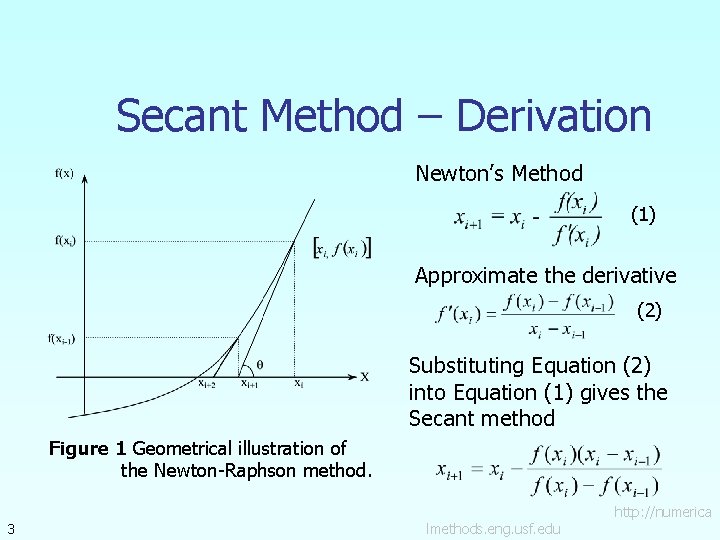

Secant Method – Derivation Newton’s Method (1) Approximate the derivative (2) Substituting Equation (2) into Equation (1) gives the Secant method Figure 1 Geometrical illustration of the Newton-Raphson method. 3 lmethods. eng. usf. edu http: //numerica

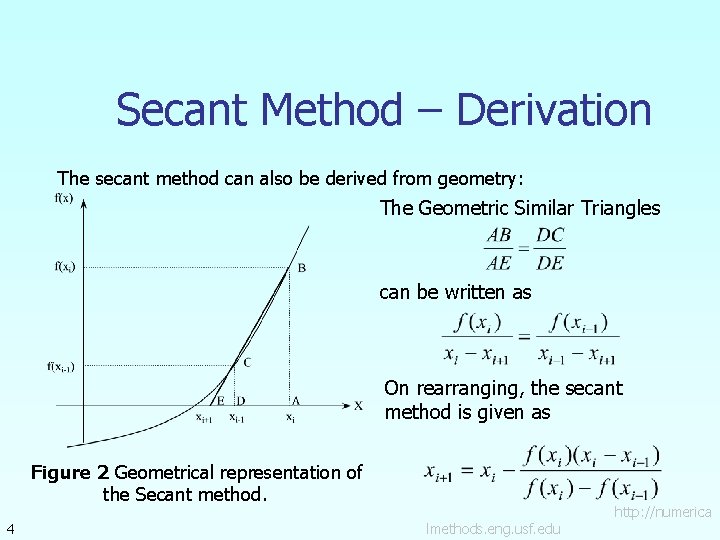

Secant Method – Derivation The secant method can also be derived from geometry: The Geometric Similar Triangles can be written as On rearranging, the secant method is given as Figure 2 Geometrical representation of the Secant method. 4 lmethods. eng. usf. edu http: //numerica

Algorithm for Secant Method 5 lmethods. eng. usf. edu http: //numerica

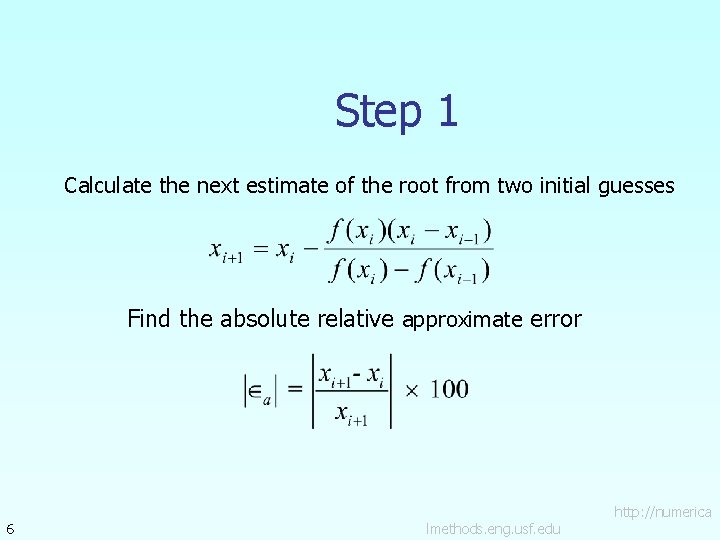

Step 1 Calculate the next estimate of the root from two initial guesses Find the absolute relative approximate error 6 lmethods. eng. usf. edu http: //numerica

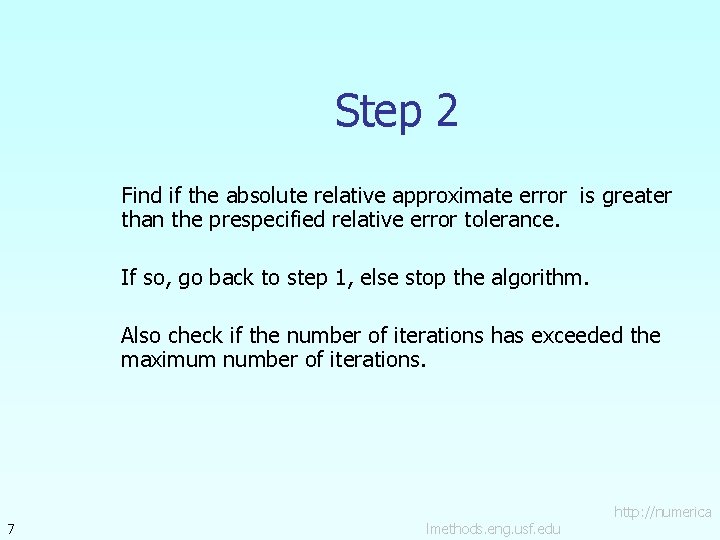

Step 2 Find if the absolute relative approximate error is greater than the prespecified relative error tolerance. If so, go back to step 1, else stop the algorithm. Also check if the number of iterations has exceeded the maximum number of iterations. 7 lmethods. eng. usf. edu http: //numerica

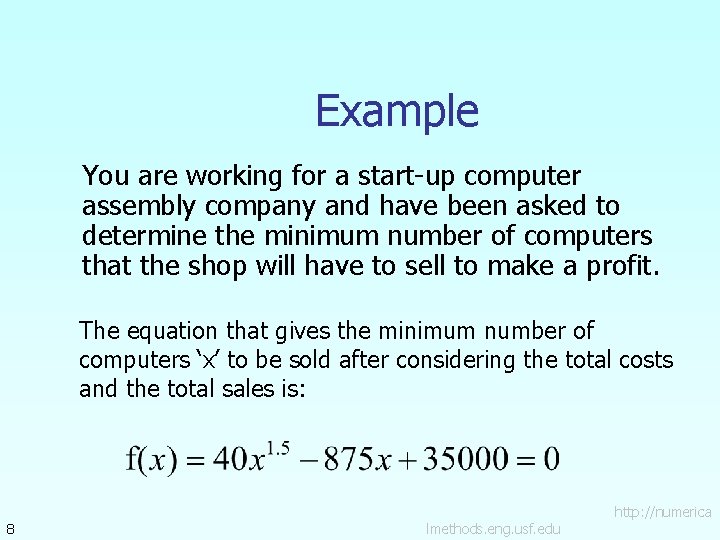

Example You are working for a start-up computer assembly company and have been asked to determine the minimum number of computers that the shop will have to sell to make a profit. The equation that gives the minimum number of computers ‘x’ to be sold after considering the total costs and the total sales is: 8 lmethods. eng. usf. edu http: //numerica

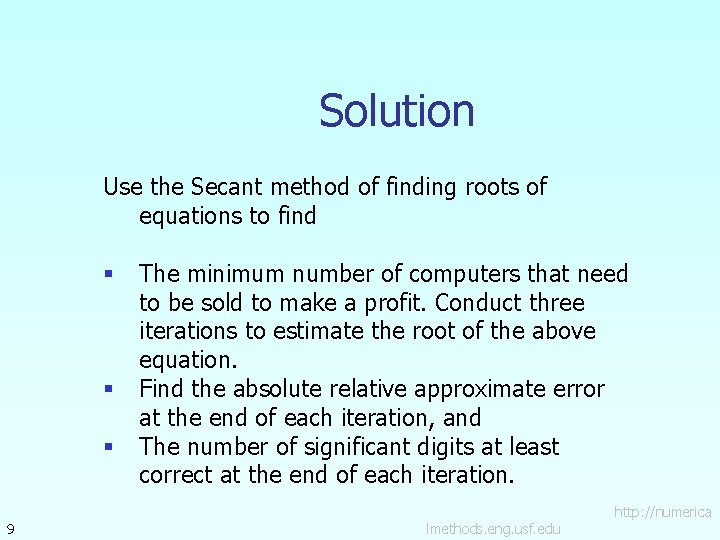

Solution Use the Secant method of finding roots of equations to find § § § 9 The minimum number of computers that need to be sold to make a profit. Conduct three iterations to estimate the root of the above equation. Find the absolute relative approximate error at the end of each iteration, and The number of significant digits at least correct at the end of each iteration. lmethods. eng. usf. edu http: //numerica

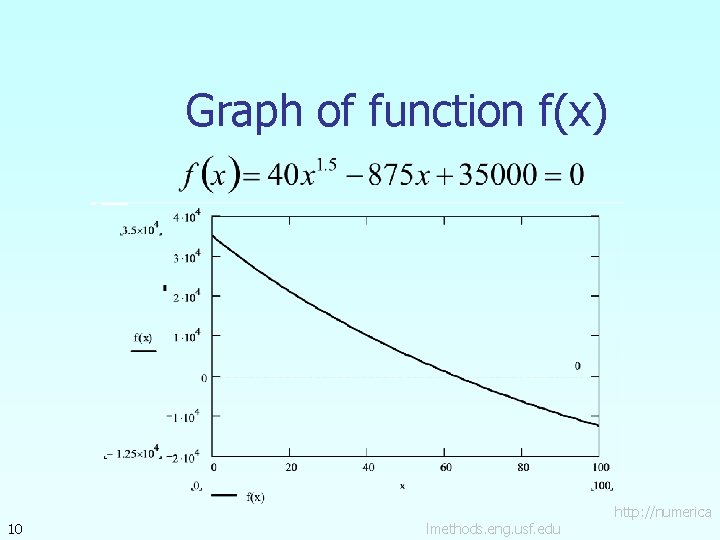

Graph of function f(x) 10 lmethods. eng. usf. edu http: //numerica

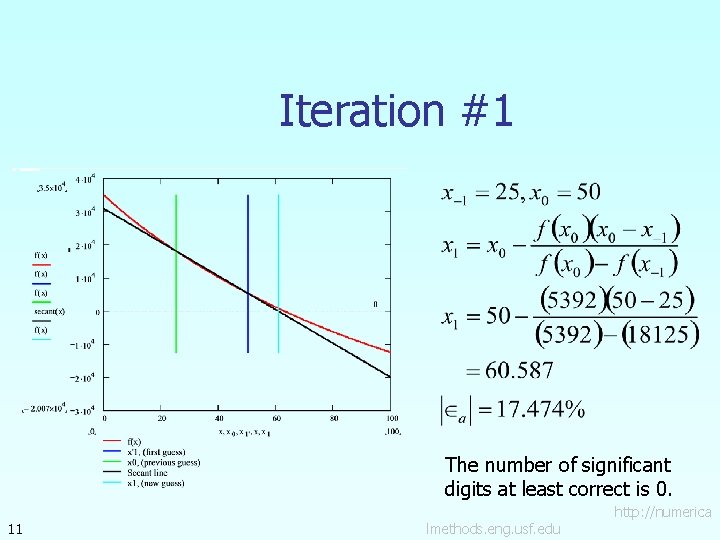

Iteration #1 The number of significant digits at least correct is 0. 11 lmethods. eng. usf. edu http: //numerica

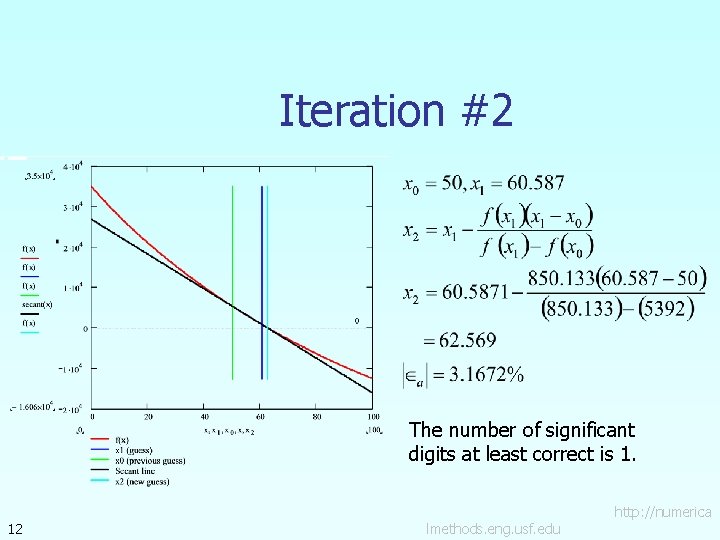

Iteration #2 The number of significant digits at least correct is 1. 12 lmethods. eng. usf. edu http: //numerica

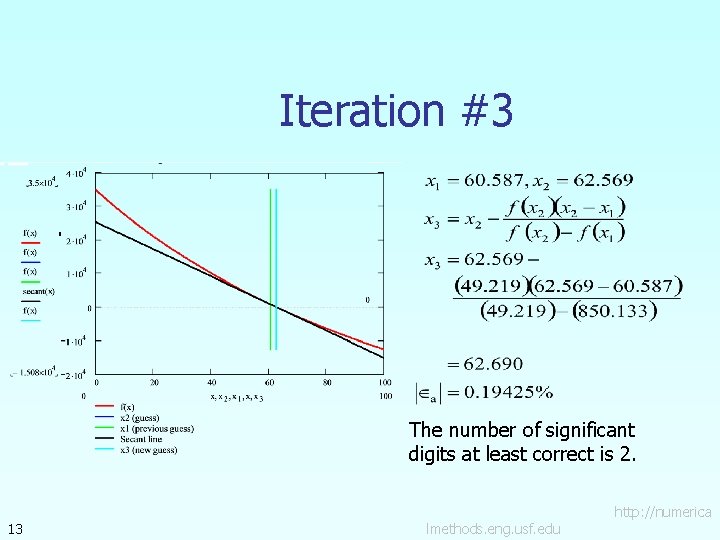

Iteration #3 The number of significant digits at least correct is 2. 13 lmethods. eng. usf. edu http: //numerica

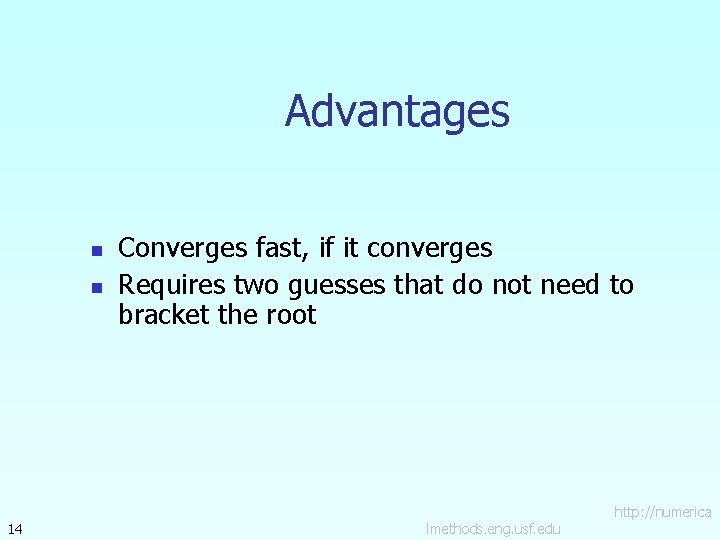

Advantages n n 14 Converges fast, if it converges Requires two guesses that do not need to bracket the root lmethods. eng. usf. edu http: //numerica

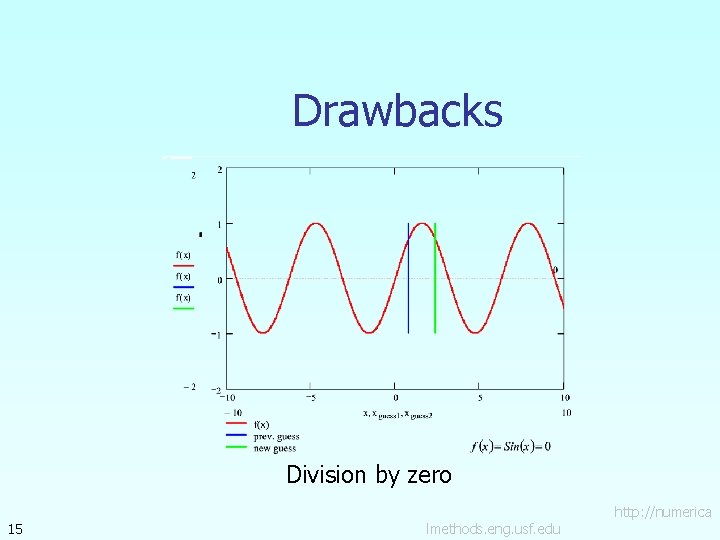

Drawbacks Division by zero 15 lmethods. eng. usf. edu http: //numerica

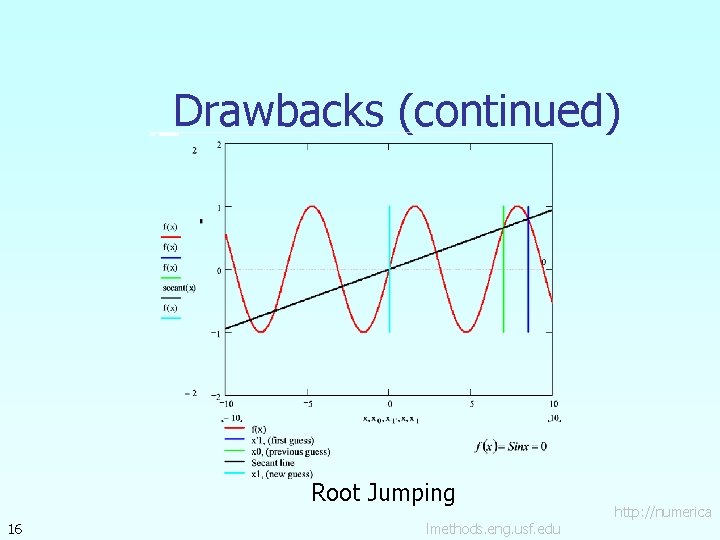

Drawbacks (continued) Root Jumping 16 lmethods. eng. usf. edu http: //numerica

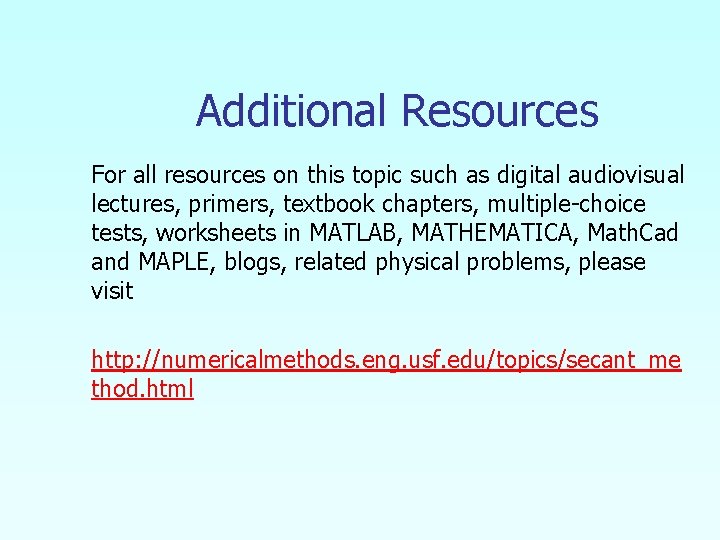

Additional Resources For all resources on this topic such as digital audiovisual lectures, primers, textbook chapters, multiple-choice tests, worksheets in MATLAB, MATHEMATICA, Math. Cad and MAPLE, blogs, related physical problems, please visit http: //numericalmethods. eng. usf. edu/topics/secant_me thod. html
