Sealed sources are radioactive materials encased or sealed

� Sealed sources are radioactive materials encased or "sealed" inside metal or plastic and can take many different forms, sizes and shapes. All forms share some type of encapsulation that prevents their radioactive contents from leaking or dispersing, barring tampering or a severe accident. In some forms, the radioactive material is an inherent part of the source and cannot be separated.

� Almost all "sealed sources" can be handled without concern that the radioactive material will rub-off or be dispersed onto hands or clothing. There is, however, reason to be concerned about exposure to the radiation emitted from the sealed source. Sealed sources are not a significant contamination hazard under normal conditions; however, they may present an external exposure hazard.

� Plated sources In this form, the radioactive material coats a disk or planchette. This coating may be covered, depending upon the type of radiation, by mylar, aluminum, steel, or plastic.

� Capsules �In this form, a capsule usually made of metal surrounds the radioactive material. These sources are often placed onto the end of metal or plastic handling rods. Another example of a capsule is when a mixture of radioactive compounds is placed into a container and welded or sealed closed.

� Activated metal �In this form, a metal wire or foil has been exposed to a neutron flux to irradiate the metal and create a radioactive isotope from the original material. This form of sealed source may have a plastic or epoxy coating to protect the activated metal. In some instances, however, the metal is not protected. � Many commonly used laboratory devices also contain sealed sources, such as gas chromatographs with electron capture detectors, liquid scintillation detectors, and static eliminators.

� Sealed sources present an external radiation hazard as opposed to a contamination hazard. Sealed sources can emit any type of ionizing radiation, including alpha particles, beta particles, gamma rays, x-rays, or neutrons. � 1. Do not touch electroplated sources, as this may result in the removal of the active material. � 2. Wear gloves when working with a plated or deposited source. � 3. Monitor hands and fingers after handling a plated or deposited source. � 4. Do not use handling tools in such a way as to penetrate the surface of the source. � 5. Storage containers should not have material that abrades the surface of the electroplated sources.

� 6. Sealed Sources shall not be opened under any circumstances! � 7. Only authorized individuals shall perform the repair and cleaning of sources. The safety and handling precautions furnished by the manufacturer shall be maintained in a location that is readily available to all workers and followed. � 8. Storage containers must be properly labeled.

� The equipment which may contain sources of interest in this publication varies widely in construction and application. Descriptions of some of the main types of equipment are provided below

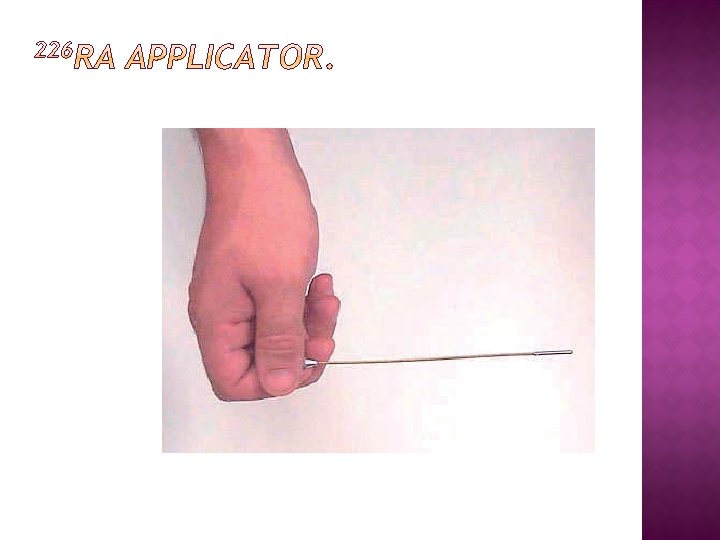

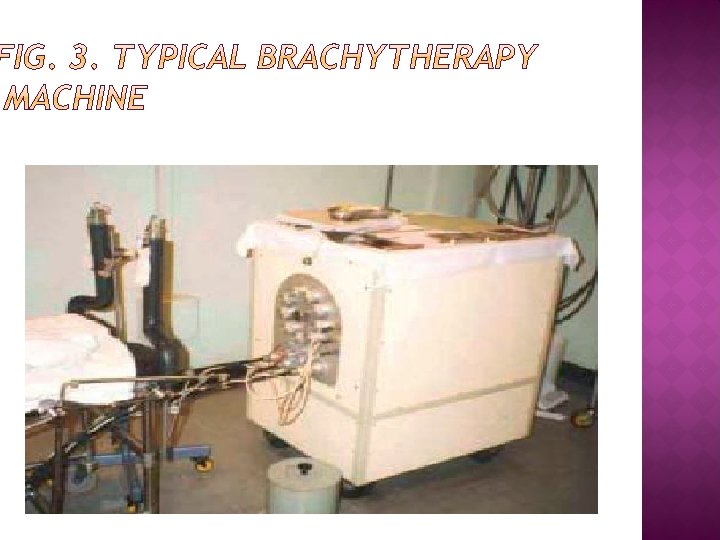

� 1. 1. Brachytherapy (therapy at a short distance) is a term that is used to describe the interstitial application of radioactive sources by placing them directly in the tumor (e. g. breast, prostate), in moulds (e. g. skin, rectum) or in special applicators (e. g. vagina, cervix). Originally, brachytherapy techniques involved the use of individual needles or manual after loading. Relatively low activity sources were used in these applications. Historically, 226 Ra encapsulated in platinum in either needles or tubes of a few mm in diameter and up to 5 cm in length was used (Fig).

� Emission of alpha particles (helium nucleus) leads to pressure buildup in a sealed capsule. A buildup of pressure may eventually damage the encapsulation, resulting in a release of radioactivity. Remote afterloading techniques were developed in the 1970 s. 226 Ra was replaced mainly by 137 Cs and 60 Co and more recently by 192 Ir and 252 Cf. These techniques involve the use of machines which can contain a large number of relatively low activity sources, but which taken together represent a significant inventory stored in a single, relatively transportable container. An example of brachytherapy equipment is shown in Fig. 3. This type of equipment typically contains activities of up to 185 GBq (usually of 137 Cs). Remote afterloading equipment is used to arrange sources into an appropriate configuration and to transfer them either pneumatically or on the end of a cable into the patient applicator.

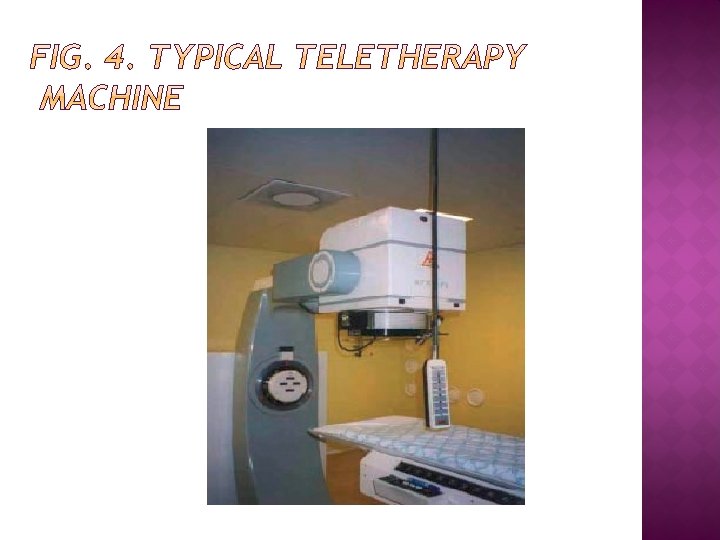

1. 2. TELETHERAPY � The other principal medical application of sealed sources is teletherapy, where a large source (typically 60 Co but possibly 137 Cs) of several hundred TBq is used, external to the body, to irradiate a tumor. 60 Co Teletherapy heads can contain up to 500 TBq of activity. An example of a 60 Co unit is shown in Fig. 4.

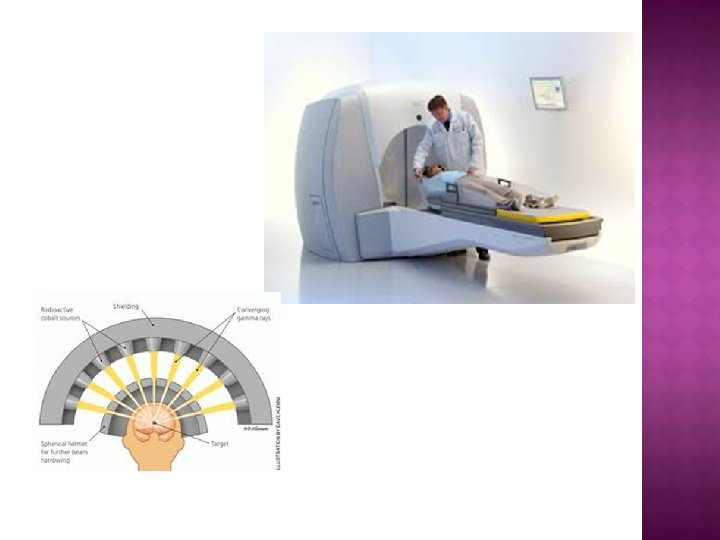

1. 3. OTHER MEDICAL APPLICATIONS � Sealed radioactive sources are also used in medicine for bone densitometry (241 Am, 153 Gd and 125 I), for whole blood irradiation (137 Co, 60 Co) and as gamma radiosurgery knives (60 Co).

� In heavy industries such as steel foundries or fabrication, portable, mobile or fixed radiographic equipment incorporating various radionuclides may be installed in purpose built enclosures. Mobile or fixed installations incorporate heavier shielding than portable source housing

� Typical industrial applications with their main isotopes are shown below: � (a) Industrial radiography: 6 o. Co, 192 Ir, 75 Se, 170 Tm, 169 Yb, 137 Cs (historical); 241 Am/Be, 252 Cf (neutron radio-graphy); (b) Moisture detectors: 241 Am/Be, 137 Cs, 226 Ra/Be, 252 Cf; (c) Well logging: 241 Am/Be, 137 Cs; (d) Gauges: 137 Cs, 6 o. Co, 241 Am, 85 Kr, 90 Sr(+90 Y), 32 P, 147 Pm;

� (e) Static eliminators: 241 Am, 210 Po, 226 Ra; � (f) Lightning rods: 241 Am, 85 Kr, 226 Ra (historical); (g) Dredgers: 60 Co � (h) X ray fluorescence analysis: 55 Fe, 109 Cd, 238 Pu, 241 Am, 57 Co; � (i) Calibration: 60 Co, 137 Cs; � (j) Smoke detectors: 241 Am, 239 Pu.

is the use of ionizing radiation to view objects in a way that cannot be seen otherwise. It is not to be confused with the use of ionizing radiation to change or modify objects; radiography's purpose is strictly viewing. Industrial radiography has grown out of engineering, and is a major element of nondestructive testing. It is a method of inspecting materials for hidden flaws by using the ability of short X-rays and gamma rays to penetrate various materials. One way to inspect materials for flaws is to utilize Xray computed tomography or Industrial computed tomography scanning.

Gamma-ray image of intermodal cargo container with stowaways A portable wireless controlled battery powered X-ray generator for use in nondestructive testing and security.

� For example � Soil moisture sensors measure the water content in soil. A soil moisture probe is made up of multiple soil moisture sensors. A simple soil moisture sensor for gardeners.

� Nuclear logging was initially developed to measure the natural gamma radiation emitted by underground formations. However, the industry quickly moved to logs that actively bombard rocks with nuclear particles. The gamma ray log, measuring the natural radioactivity. These logs were important because they can be used in cased wells (wells with production casing). WSI quickly became part of Lane-Wells. During World War II, the US Government gave a near wartime monopoly on open-hole logging to Schlumberger, and a monopoly on cased-hole logging to Lane. Wells Nuclear logs continued to evolve after the war.

� � A nuclear density gauge is a tool used in petroleum industry, as well as for mining and archaeology purposes. It consists of a radiation source that emits a directed beam of particles and a sensor that counts the received particles that are either reflected by the test material or pass through it. By calculating the percentage of particles that return to the sensor, the gauge can be calibrated to measure the density and inner structure of the test material. Different variants are used for different purposes. For density analysis of very shallow objects such as roads or walls, a gama source emitter such as 137 Cesium is used to produce gamma radiation. These isotopes are effective in analyzing the top 10 inches (25 centimeters) with high accuracy. 226 Radium is used for depths of 328 yards (300 meters). Such instruments can help find underground caves or identify locations with lower density that would make tunnel construction hazardous.

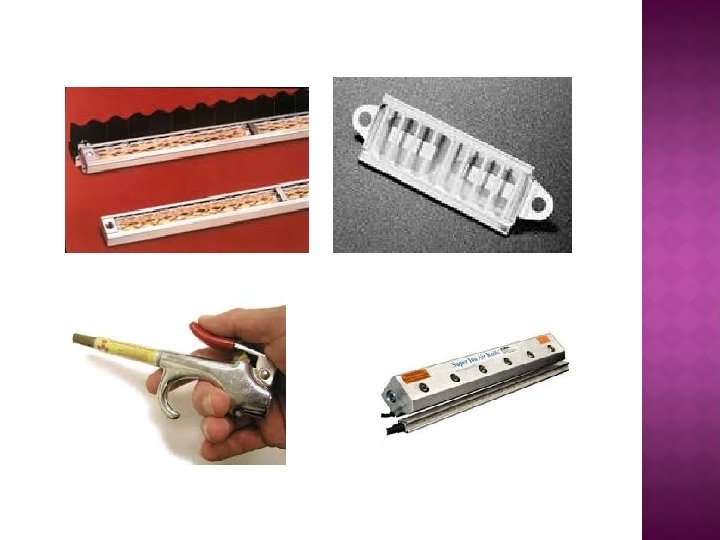

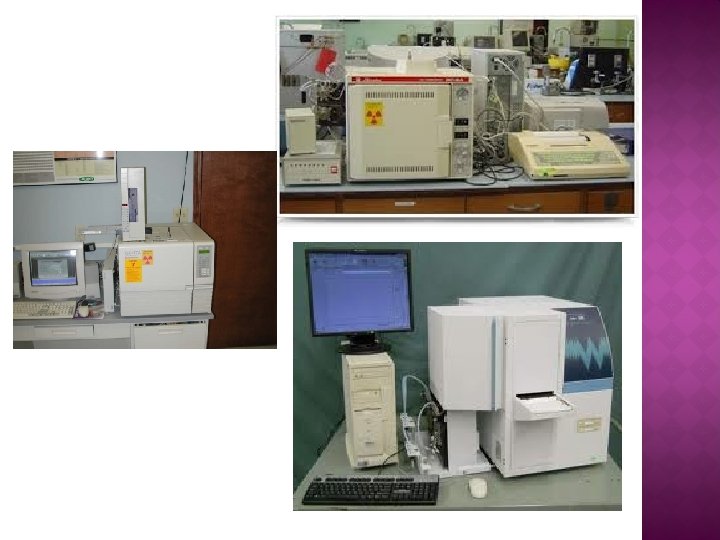

� Static eliminators may be used in research laboratories as part of analytical balances, or to neutralize static charges on membrane filters. These devices may contain Po 210, a radioactive material which emits alpha radiation. These devices often contain 500 microcuries of Po 210. They are often only useful for 1 -2 years due to the decay of the Po 210, which has a half live of only 138 days.

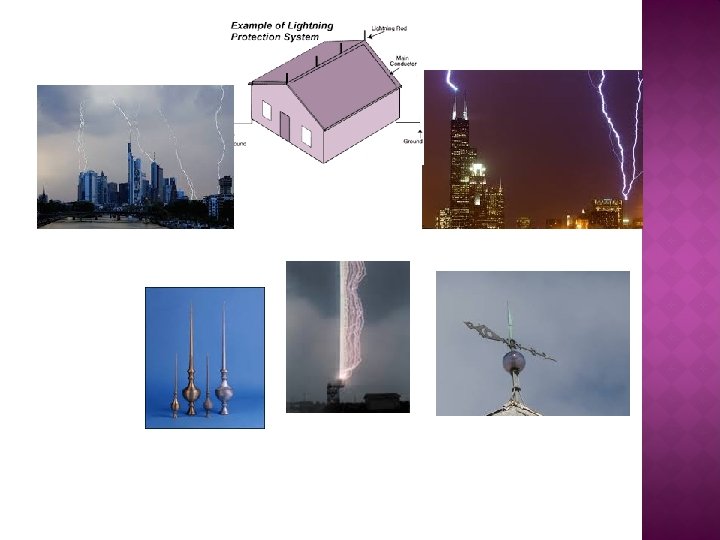

� is a metal rod or metallic object mounted on top of an elevated structure, such as a building, a ship, or even a tree, electrically bonded using a wire or electrical conductor to interface with ground or "earth“ through an electrode, engineered to protect the structure in the event of lightning strike. If lightning hits the structure, it will preferentially strike the rod and be conducted to ground through the wire, instead of passing through the structure, where it could start a fire or cause electrocution. In a lightning protection system, a lightning rod is a single component of the system. The lightning rod requires a connection to earth to perform its protective function. The main attribute common to all lightning rods is that they are all made of conductive materials

From article : � the lightening preventers are “highly � dangerous” and should not be touched. They said that if someone comes across the material they should not approach it. The Radiological Protection Institute of � Ireland said ”if handled they will cause radioactive contamination to the person’s hands and clothing with the possibly of internal radioactive contamination. Close proximity to these sources will result in a person exceeding the annual radiation dose limit in a matter of hours”. If the radioactive sources are cut up or � dismantled they could cause local environmental contamination as well as contamination of the person. Speaking to The. Journal. ie David Dawson � from the Radiological Protection Institute of Ireland said the metal rods “may just look like scrap metal, but on that metal are tiny black squares which are highly radioactive”. He added: � This material has a very high dose of � radiation and is extremely hazardous to the health of anyone who comes into contact with them.

� X-ray fluorescence (XRF) is the emission of characteristic "secondary" (or fluorescent) Xrays from a material that has been excited by bombarding with high-energy X-rays or gamma rays. The phenomenon is widely used for elemental analysis and chemical analysis, particularly in the investigation of metals, glass , ceramics and building materials, and for research in geochemistry, forensic science and archaeology.

� It is a statutory requirement that all instruments used for the designation and monitoring of controlled or supervised areas are tested on a regular basis. � A calibration will determine the instruments response to a range of well-defined radiations under reference conditions. This provides the user with evidence that the instrument’s response is satisfactory. It will usually confirm whether the response curve provided in the manual or type test data is satisfactory for use.

A smoke detector is a device that senses smoke, typically as an indicator of fire. Commercial and residential security devices issue a signal to a fire alarm control panel as part of a fire alarm system, while household detectors, known as smoke alarms, generally issue a local audible or visual alarm from the detector itself. � Smoke detectors are typically housed in a disk-shaped plastic enclosure about 150 millimetres (6 in) in diameter and 25 millimetres (1 in) thick, but the shape can vary by manufacturer or product line. Most smoke detectors work either by optical detection (photoelectric) or by physical process (ionization), while others use both detection methods to increase sensitivity to smoke. �

� An ionization smoke detector uses a radioisotope such as americium-241 to produce ionization in air; a difference due to smoke is detected an alarm is generated. Ionization detectors are more sensitive to the flaming stage of fires than optical detectors, while optical detectors are more sensitive to fires in the early smouldering stage. [2]

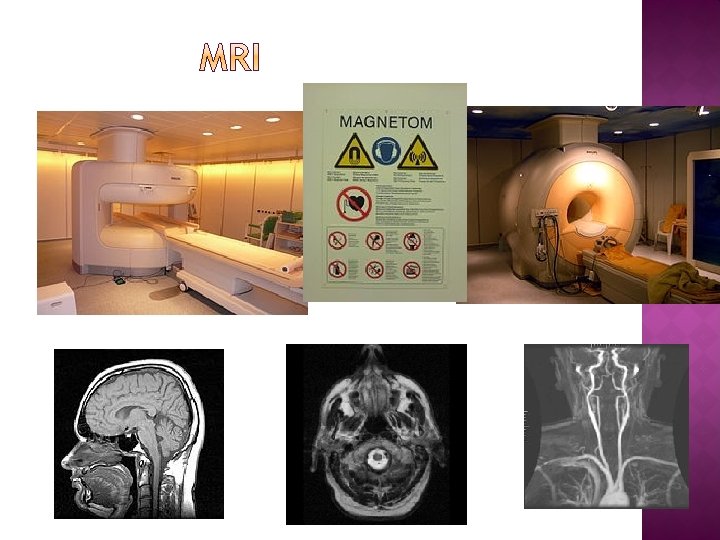

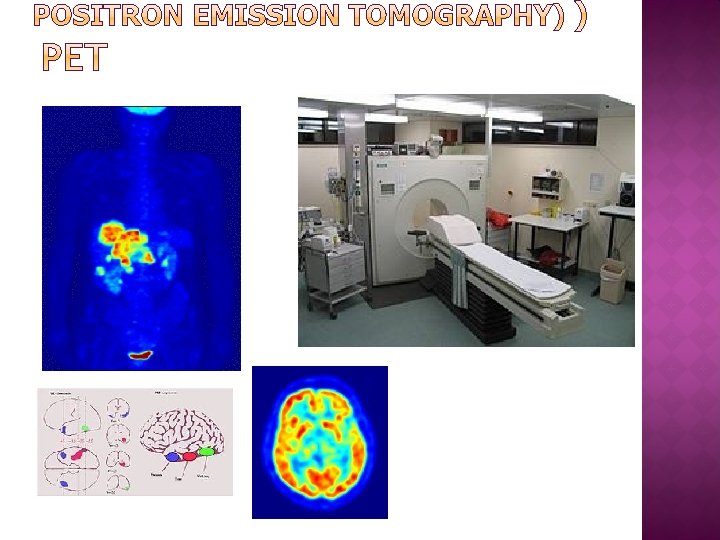

� Radiography is the use of ionizing electromagnetic radiation such as X-rays to view objects. Although not technically radiographic techniques, imaging modalities such as PET and MRI are sometimes grouped in radiography because the radiology department of hospitals handle all forms of imaging.

� Radiography started in 1895 with the discovery of X-rays , a type of electromagnetic radiation. Soon these found various applications, from helping to find shoes that fit, to the more lasting medical uses.

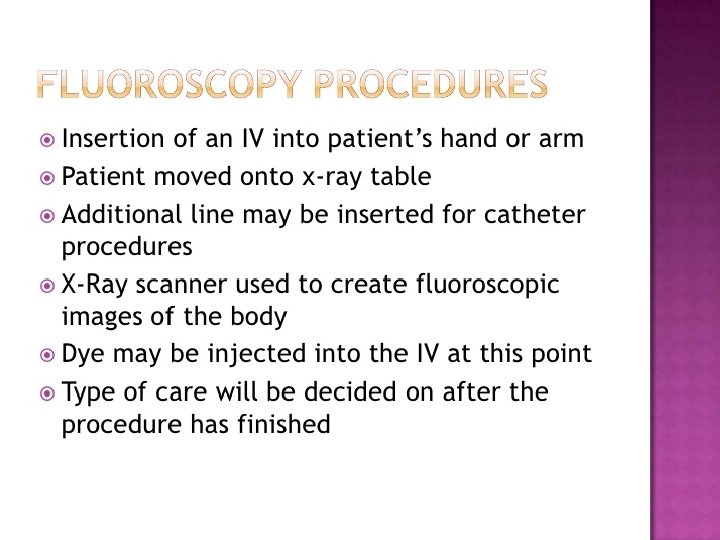

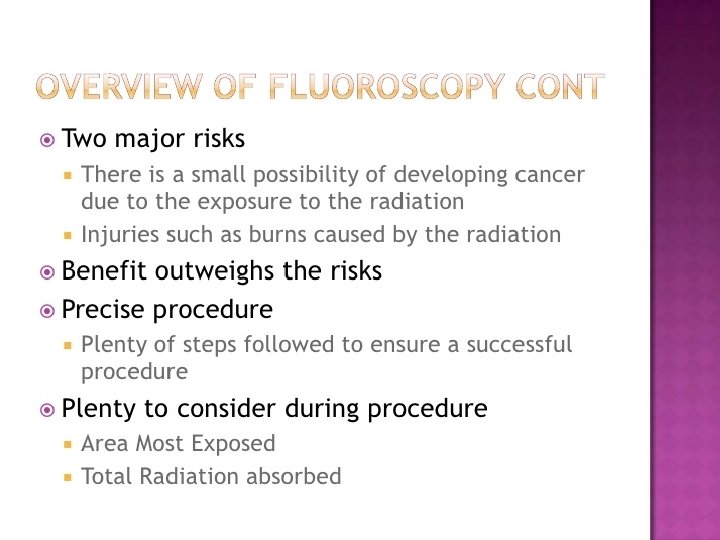

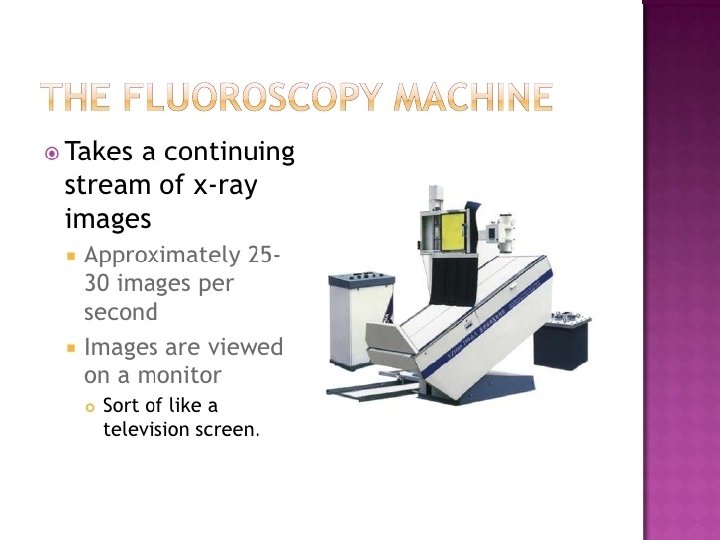

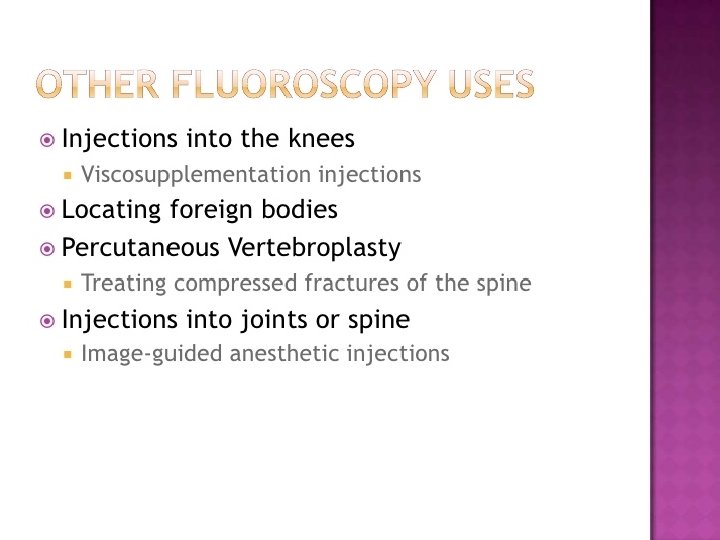

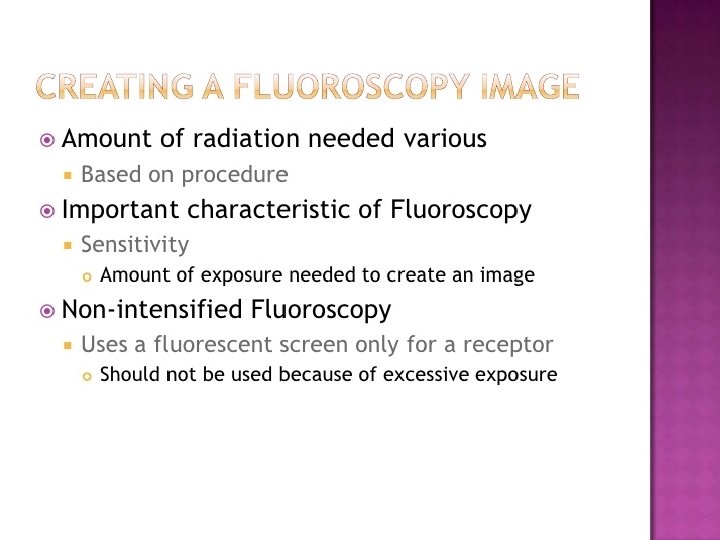

� X-rays were put to diagnostic use very early, before the dangers of ionizing radiation were discovered. The medical specialty of radiology grew up around the new technology, and new diagnostic tests involving X-rays were developed, it was natural for the radiographers to be trained and adopt this new technology. This happened first with fluoroscopy, computed (1960 s), and mammography � tomography Ultrasound (1970 s) and magnetic resonance imaging (1980 s) was added to the list of skills used by radiographers because they are also medical imaging, but these disciplines do not use ionizing radiation or X-rays.

� Diagnostic radiography involves the use of both ionizing radiation and non-ionizing radiation to create images for medical diagnoses. The predominant test is still the Xray. X-rays are the second most commonly used medical tests, after laboratory tests. This application is known as diagnostic radiography.

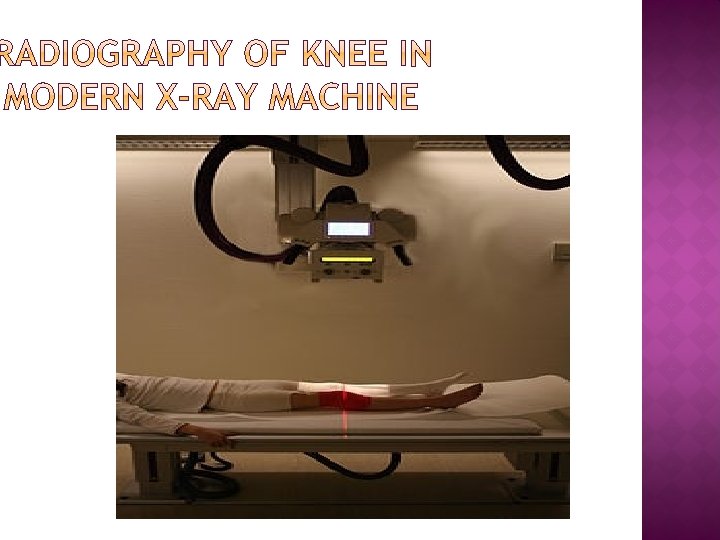

� Since the body is made up of various substances with differing densities, X-rays can be used to reveal the internal structure of the body on film by highlighting these differences using attenuation, or the absorption of X-ray photons by the denser substances (like calcium-rich bones). Medical diagnostic radiography is undertaken by a specially trained professional called a diagnostic radiographer in the UK, or a radiologic technologist in the USA.

� Mammography is an X-ray examination of breasts and other soft tissues. This has been used mostly on women to screen for breast cancer, but is also used to view male breasts, and used in conjunction with a radiologist or a surgeon to localise suspicious tissues before a biopsy or a lumpectomy.
