SE 846 How to change the nozzle inserts

SE 846 How to change the nozzle inserts?

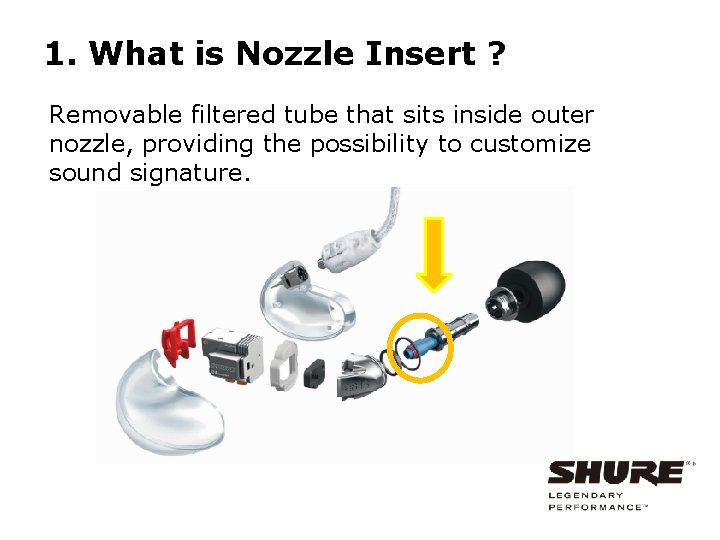

1. What is Nozzle Insert ? Removable filtered tube that sits inside outer nozzle, providing the possibility to customize sound signature.

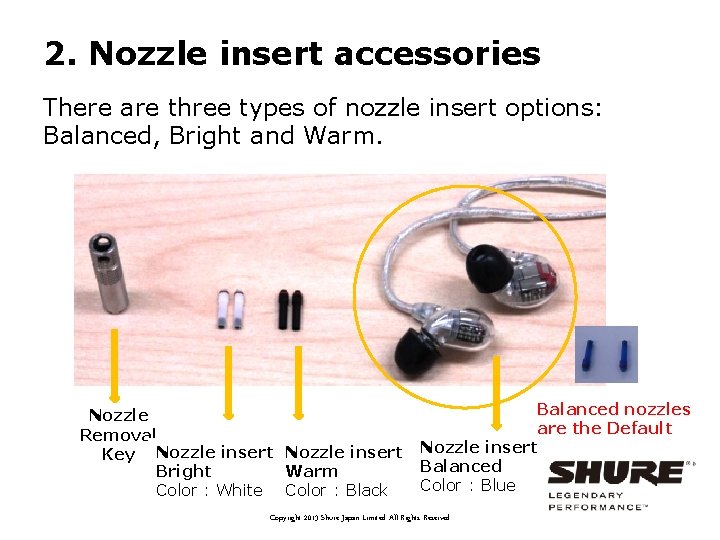

2. Nozzle insert accessories There are three types of nozzle insert options: Balanced, Bright and Warm. Nozzle Removal Key Nozzle insert Bright Warm Color : White Color : Black Balanced nozzles are the Default Nozzle insert Balanced Color : Blue Copyright 2013 Shure Japan Limited All Rights Reserved

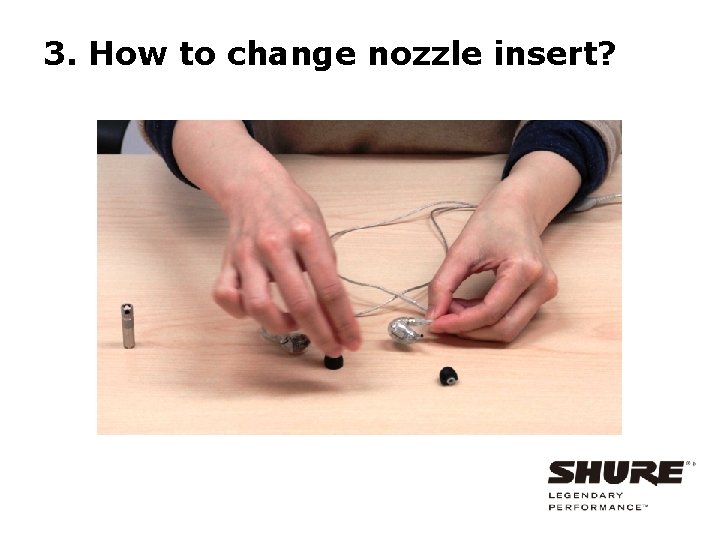

3. How to change nozzle insert?

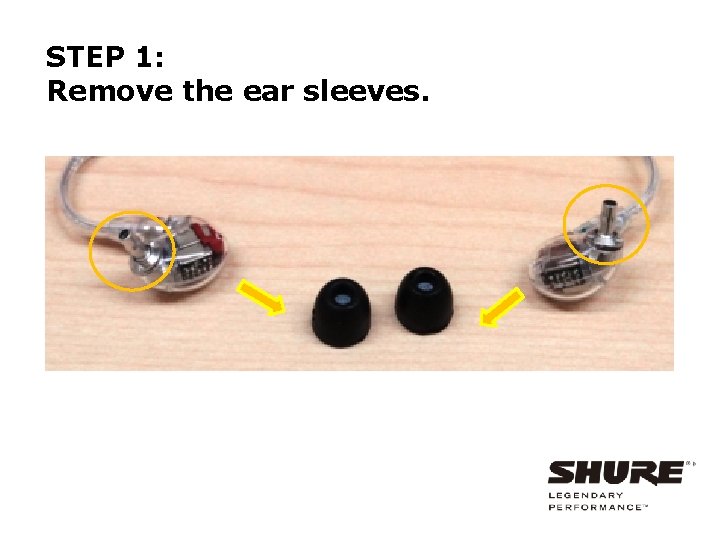

STEP 1: Remove the ear sleeves.

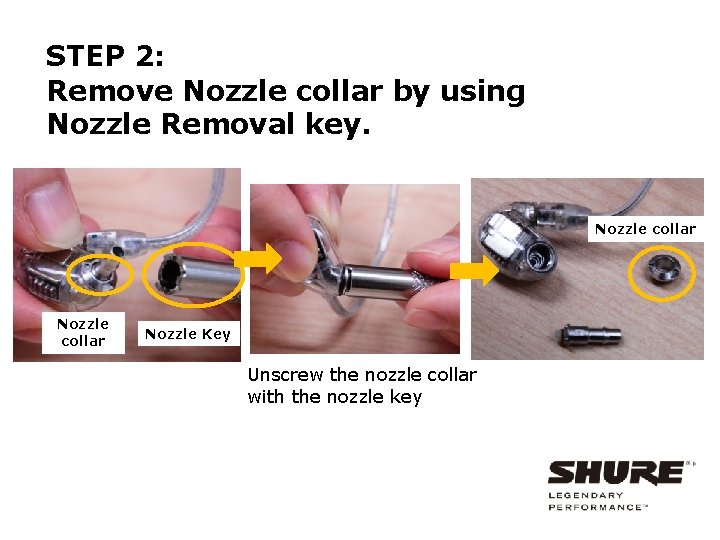

STEP 2: Remove Nozzle collar by using Nozzle Removal key. Nozzle collar Nozzle Key Unscrew the nozzle collar with the nozzle key

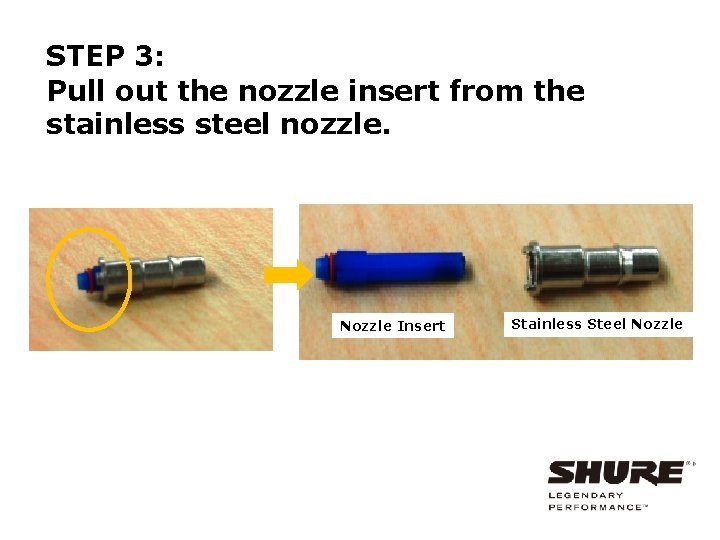

STEP 3: Pull out the nozzle insert from the stainless steel nozzle. Nozzle Insert Stainless Steel Nozzle

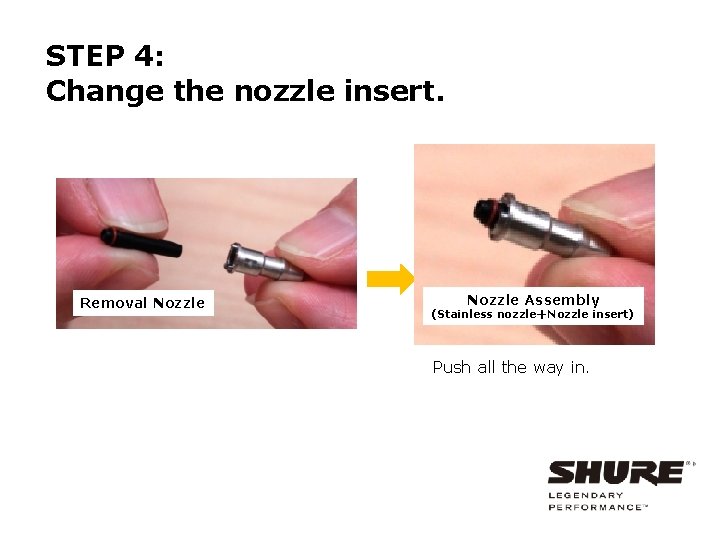

STEP 4: Change the nozzle insert. Removal Nozzle Assembly (Stainless nozzle＋Nozzle insert) Push all the way in.

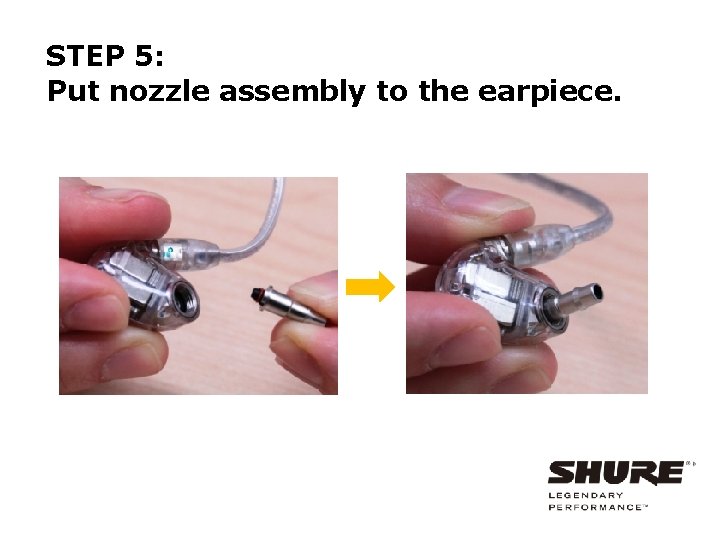

STEP 5: Put nozzle assembly to the earpiece.

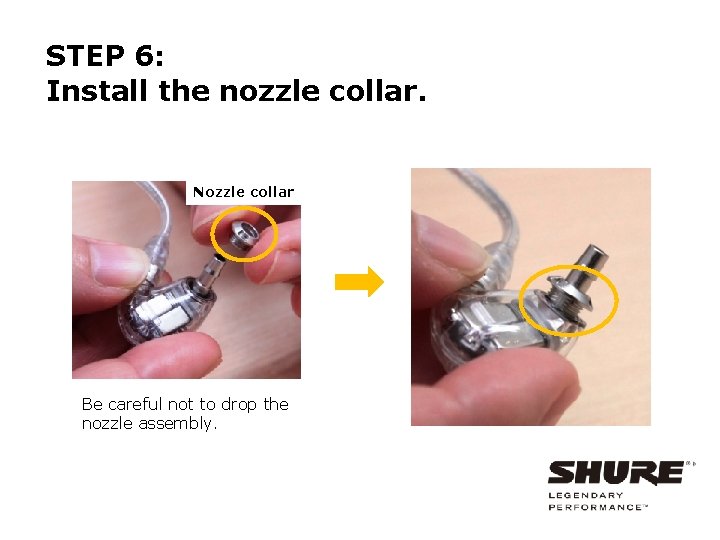

STEP 6: Install the nozzle collar. Nozzle collar Be careful not to drop the nozzle assembly.

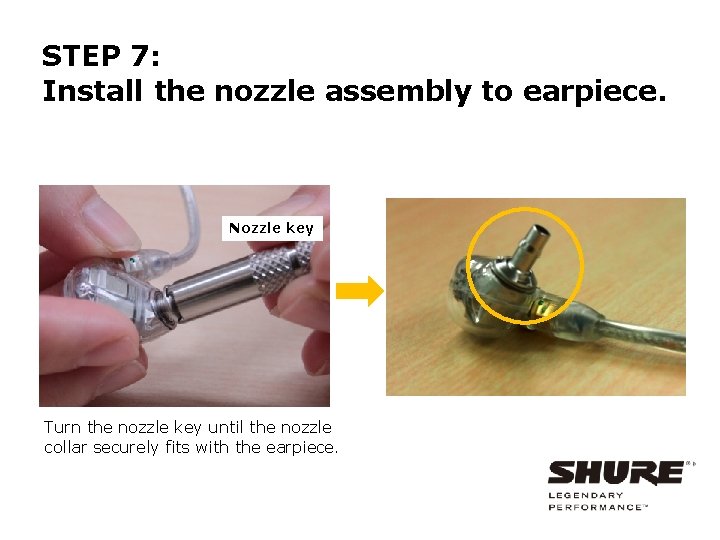

STEP 7: Install the nozzle assembly to earpiece. Nozzle key Turn the nozzle key until the nozzle collar securely fits with the earpiece.

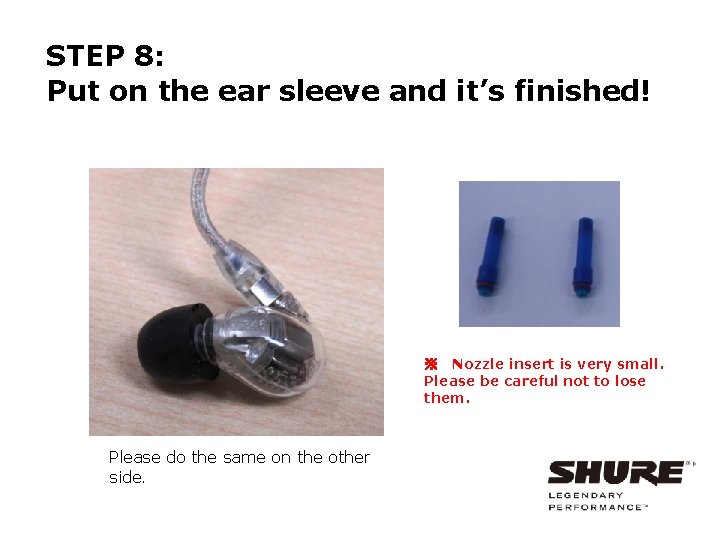

STEP 8: Put on the ear sleeve and it’s finished! ※ Nozzle insert is very small. Please be careful not to lose them. Please do the same on the other side.

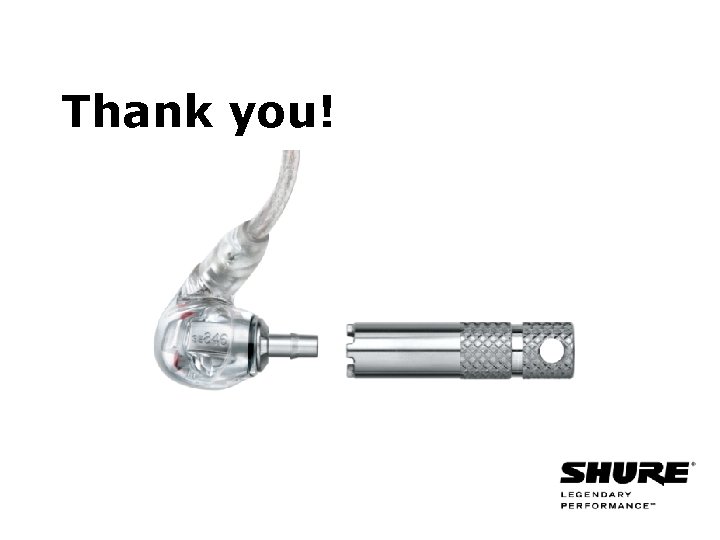

Thank you!
