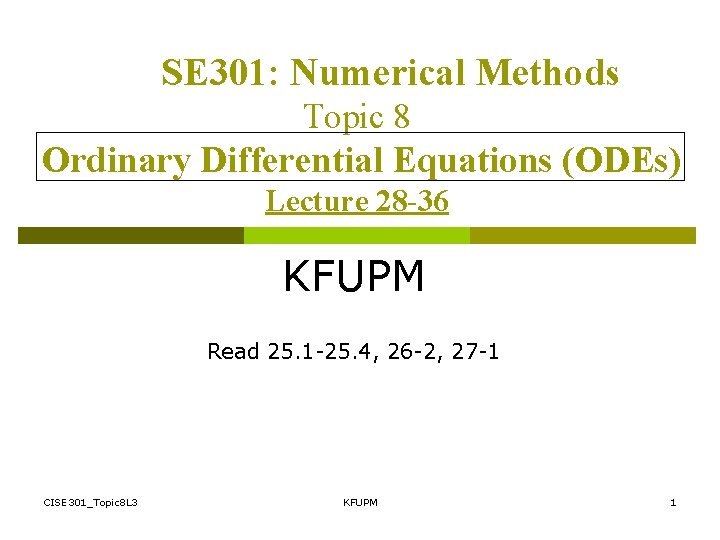

SE 301: Numerical Methods Topic 8 Ordinary Differential Equations (ODEs) Lecture 28 -36 KFUPM Read 25. 1 -25. 4, 26 -2, 27 -1 CISE 301_Topic 8 L 3 KFUPM 1

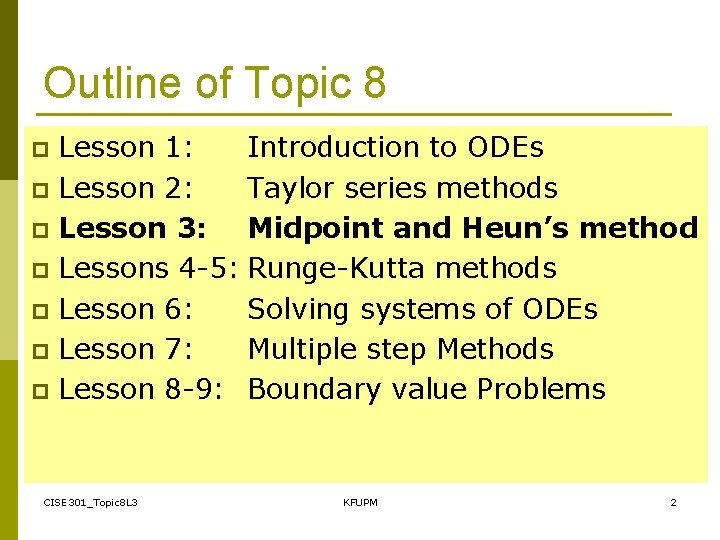

Outline of Topic 8 Lesson 1: Introduction to ODEs p Lesson 2: Taylor series methods p Lesson 3: Midpoint and Heun’s method p Lessons 4 -5: Runge-Kutta methods p Lesson 6: Solving systems of ODEs p Lesson 7: Multiple step Methods p Lesson 8 -9: Boundary value Problems p CISE 301_Topic 8 L 3 KFUPM 2

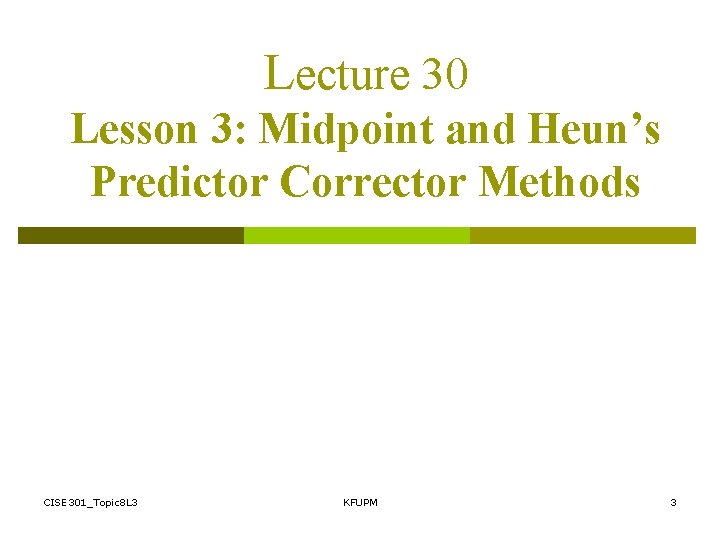

Lecture 30 Lesson 3: Midpoint and Heun’s Predictor Corrector Methods CISE 301_Topic 8 L 3 KFUPM 3

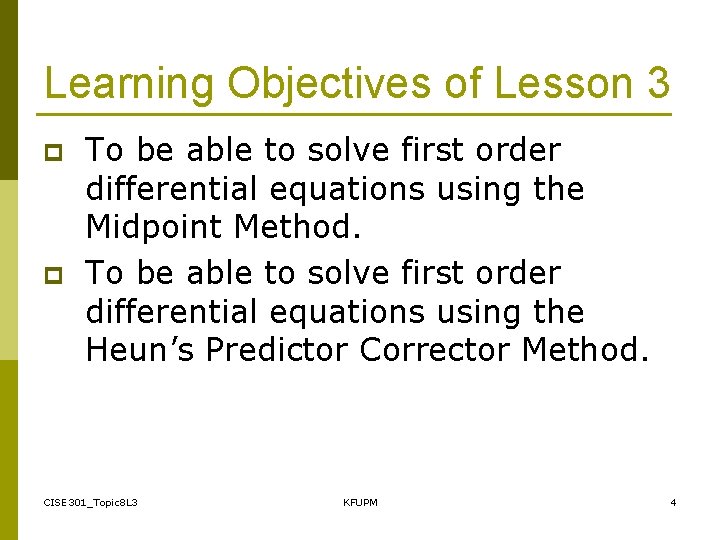

Learning Objectives of Lesson 3 p p To be able to solve first order differential equations using the Midpoint Method. To be able to solve first order differential equations using the Heun’s Predictor Corrector Method. CISE 301_Topic 8 L 3 KFUPM 4

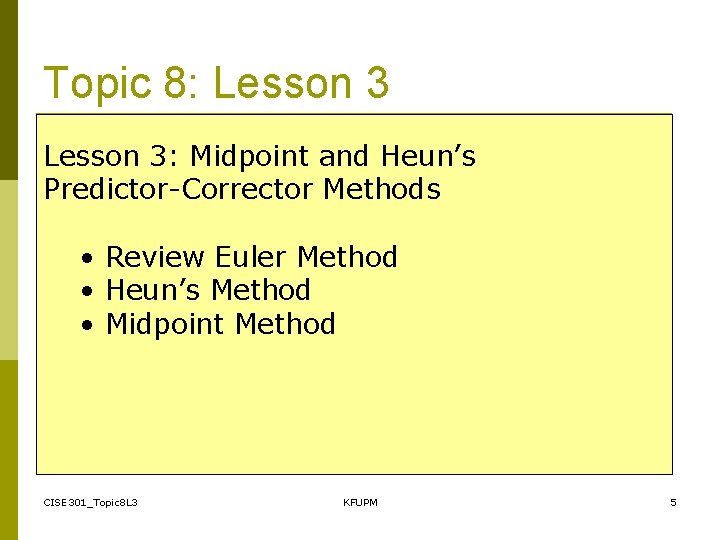

Topic 8: Lesson 3: Midpoint and Heun’s Predictor-Corrector Methods • Review Euler Method • Heun’s Method • Midpoint Method CISE 301_Topic 8 L 3 KFUPM 5

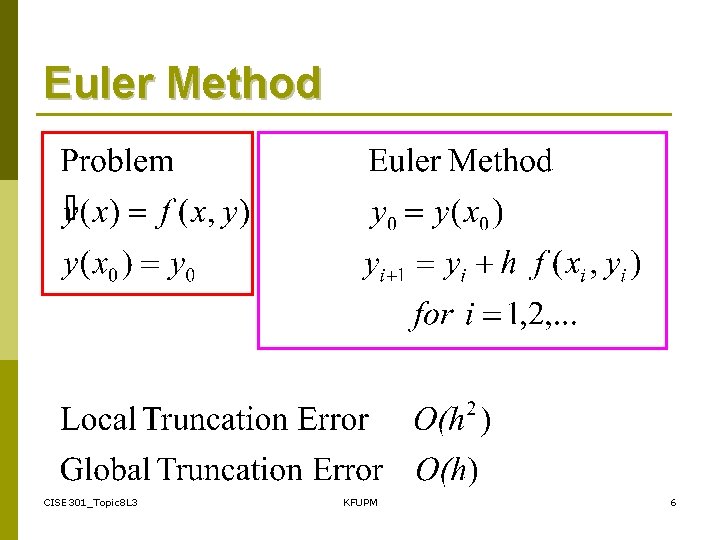

Euler Method CISE 301_Topic 8 L 3 KFUPM 6

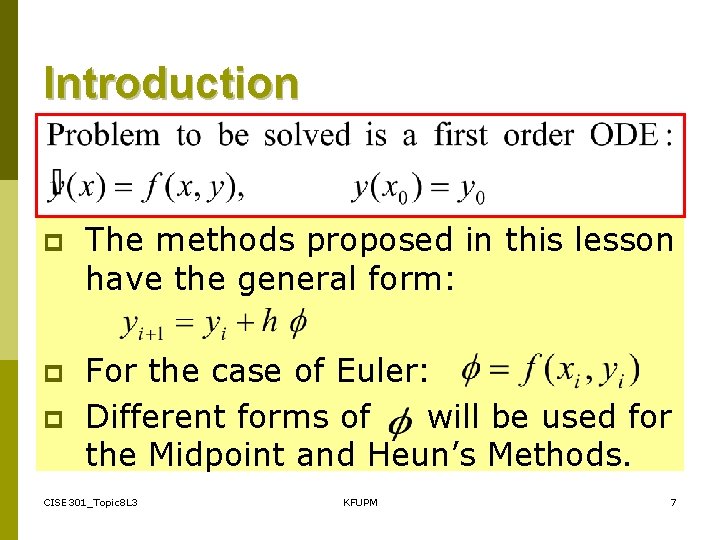

Introduction p The methods proposed in this lesson have the general form: p For the case of Euler: Different forms of will be used for the Midpoint and Heun’s Methods. p CISE 301_Topic 8 L 3 KFUPM 7

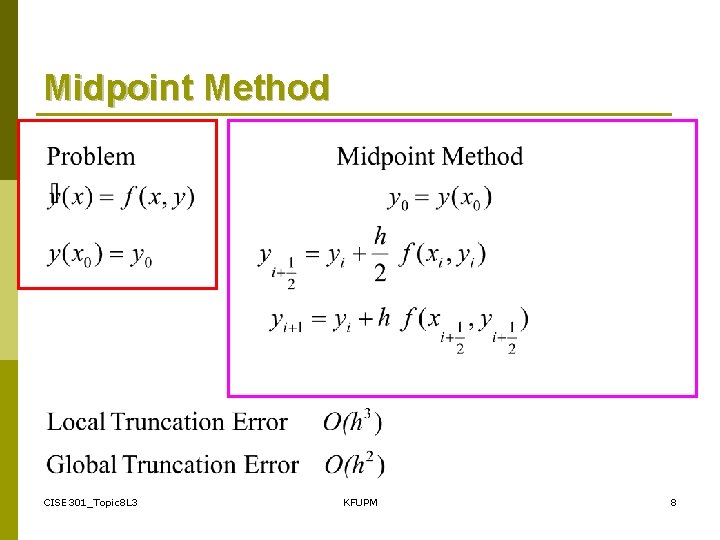

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 8

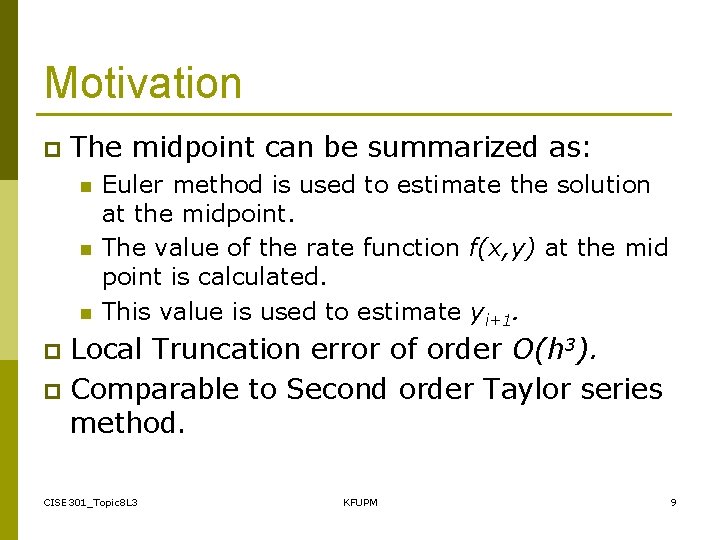

Motivation p The midpoint can be summarized as: n n n Euler method is used to estimate the solution at the midpoint. The value of the rate function f(x, y) at the mid point is calculated. This value is used to estimate yi+1. Local Truncation error of order O(h 3). p Comparable to Second order Taylor series method. p CISE 301_Topic 8 L 3 KFUPM 9

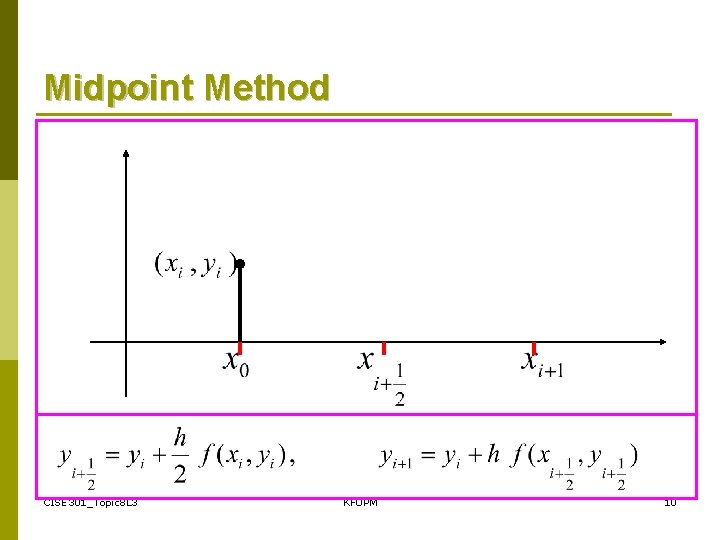

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 10

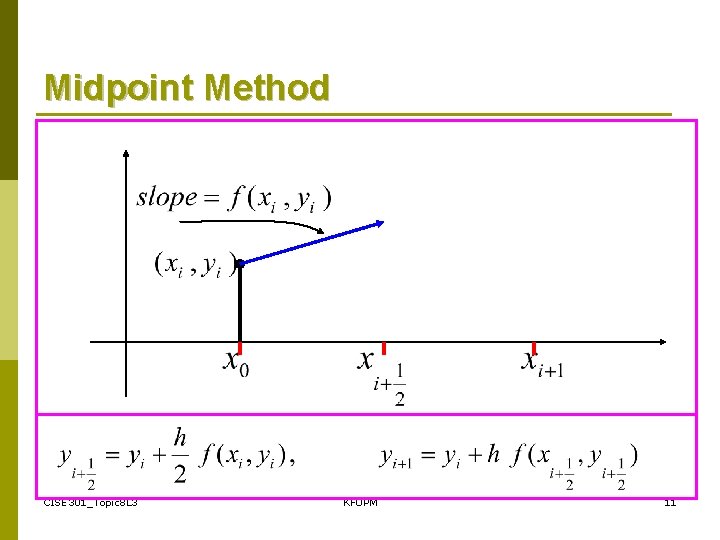

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 11

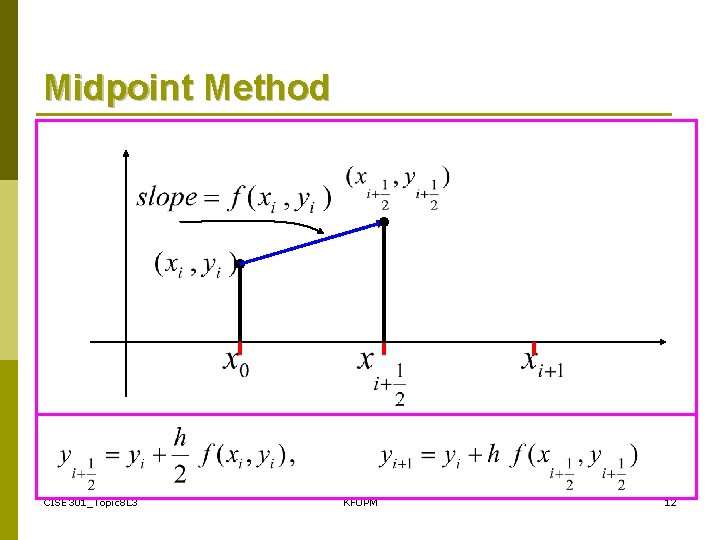

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 12

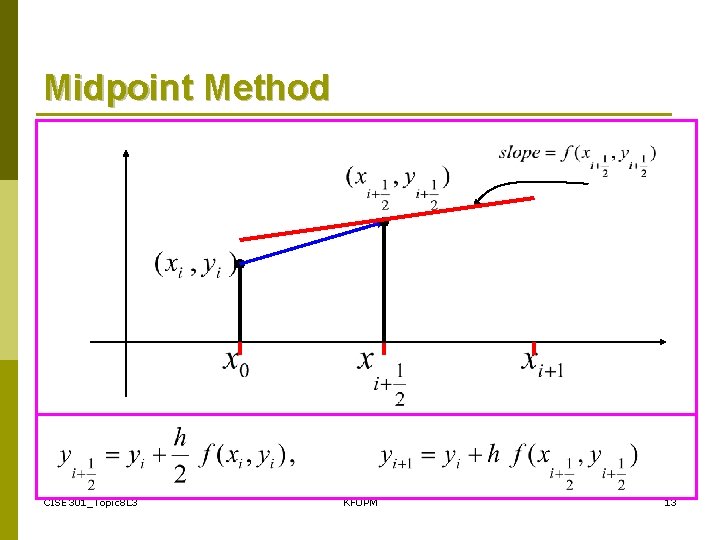

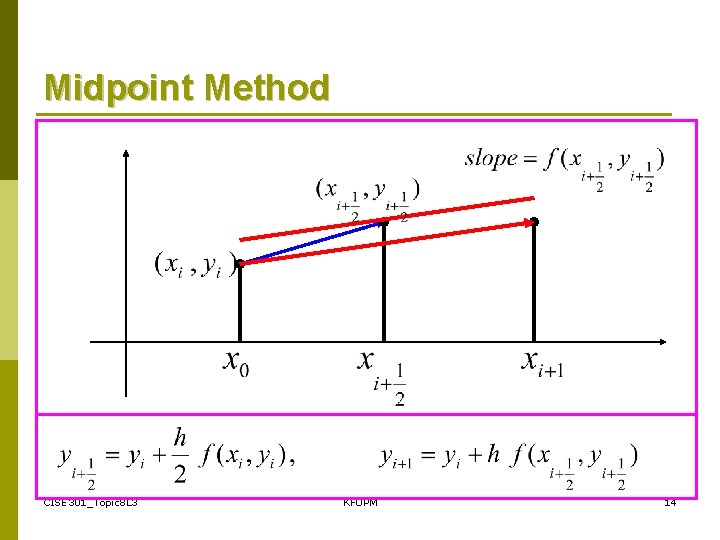

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 13

Midpoint Method CISE 301_Topic 8 L 3 KFUPM 14

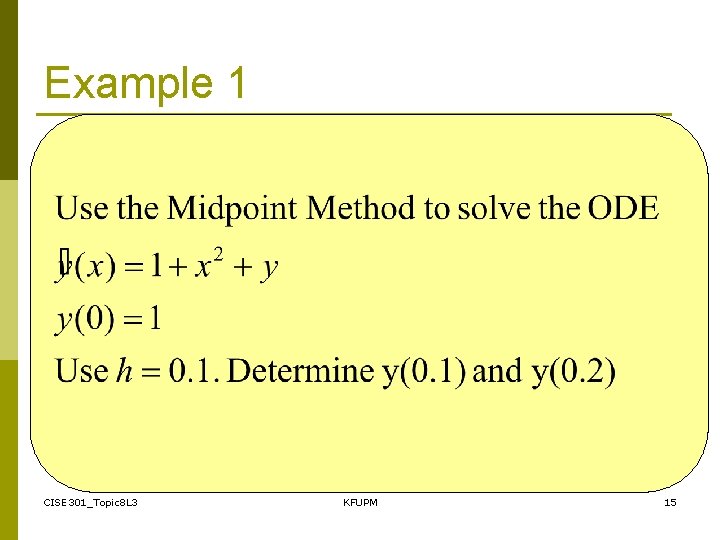

Example 1 CISE 301_Topic 8 L 3 KFUPM 15

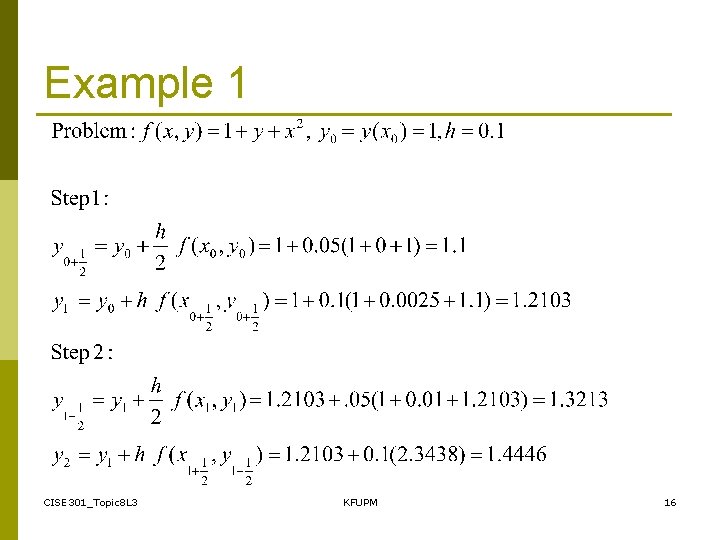

Example 1 CISE 301_Topic 8 L 3 KFUPM 16

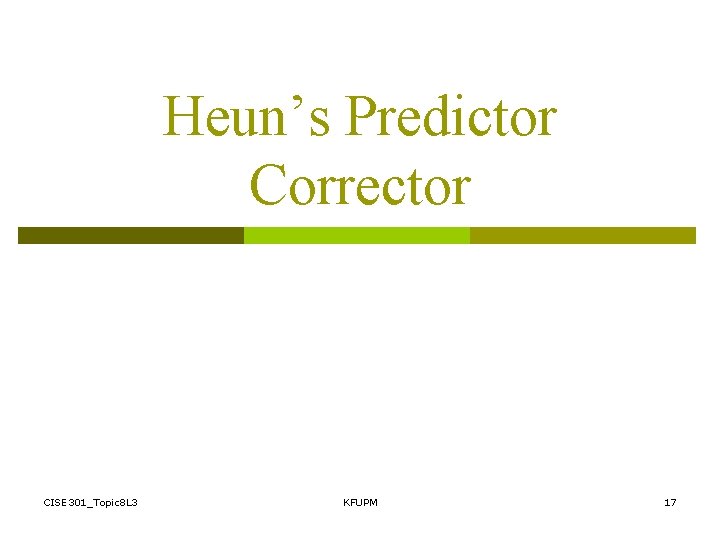

Heun’s Predictor Corrector CISE 301_Topic 8 L 3 KFUPM 17

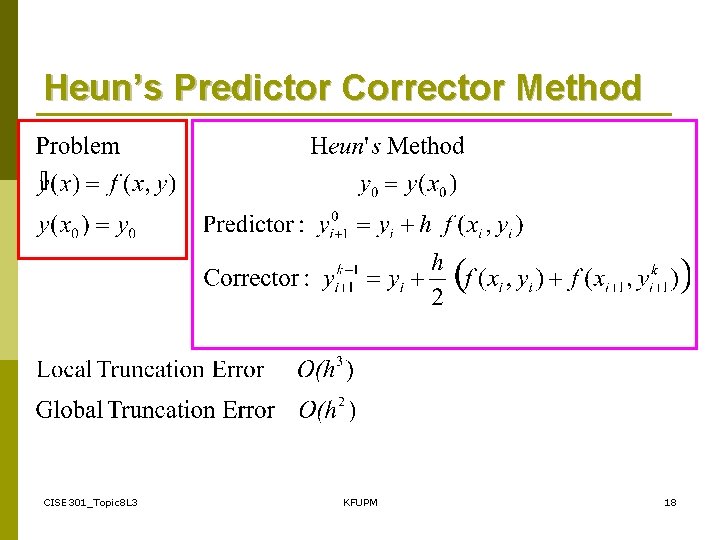

Heun’s Predictor Corrector Method CISE 301_Topic 8 L 3 KFUPM 18

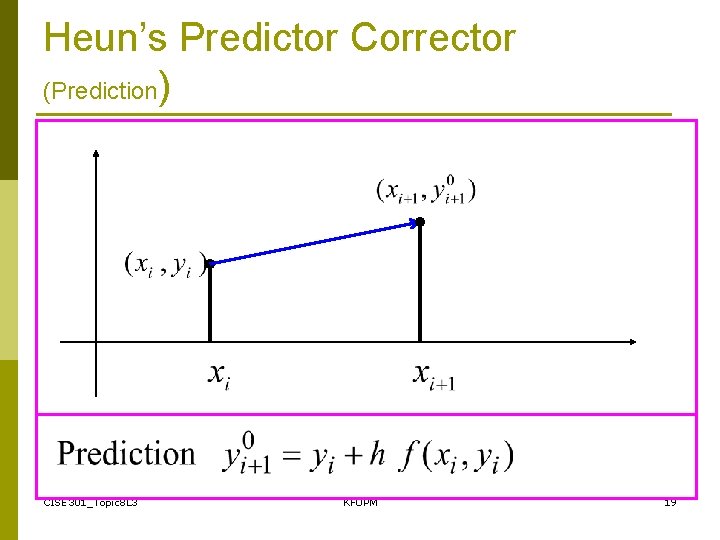

Heun’s Predictor Corrector (Prediction) CISE 301_Topic 8 L 3 KFUPM 19

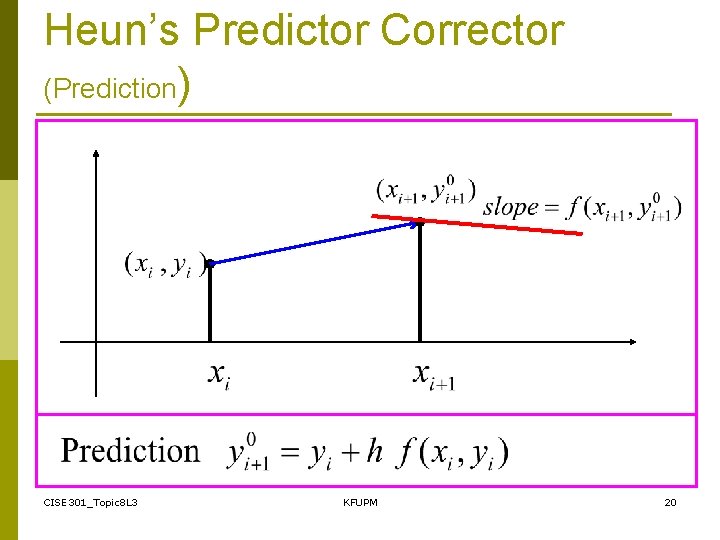

Heun’s Predictor Corrector (Prediction) CISE 301_Topic 8 L 3 KFUPM 20

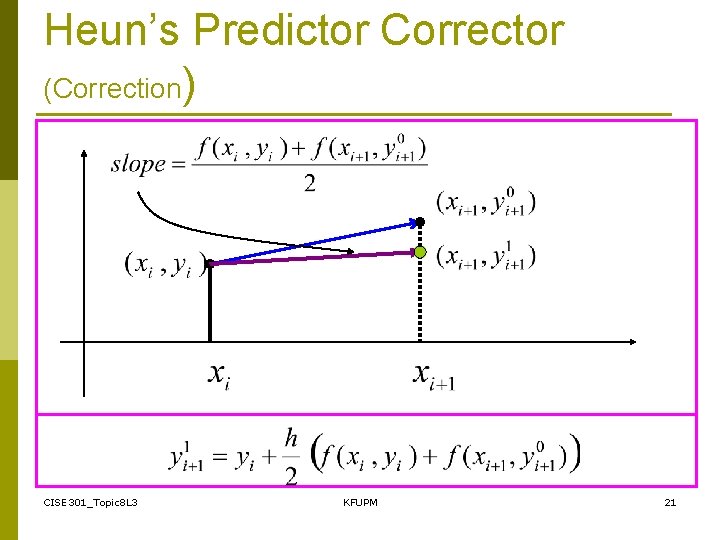

Heun’s Predictor Corrector (Correction) CISE 301_Topic 8 L 3 KFUPM 21

Example 2 CISE 301_Topic 8 L 3 KFUPM 22

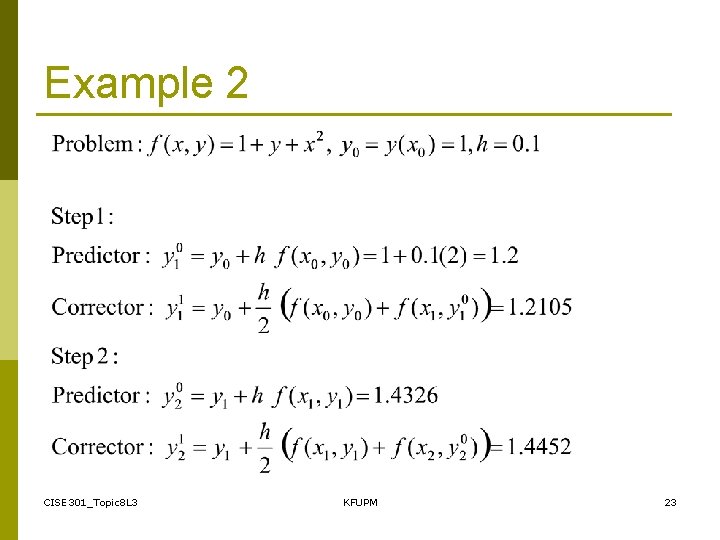

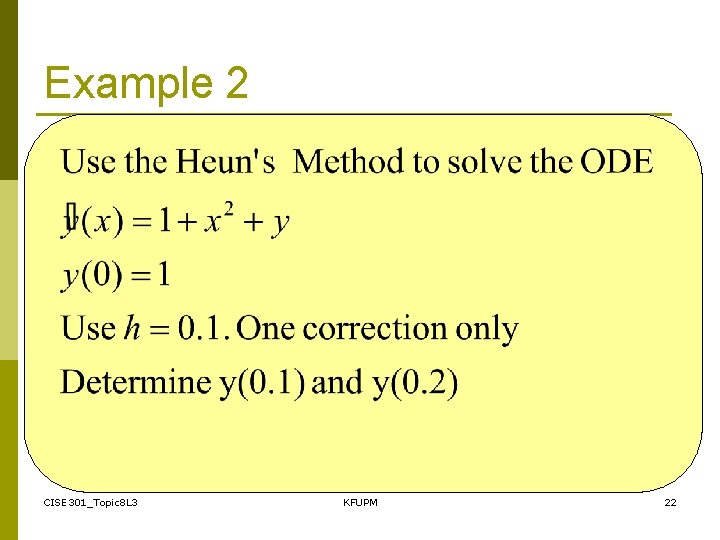

Example 2 CISE 301_Topic 8 L 3 KFUPM 23

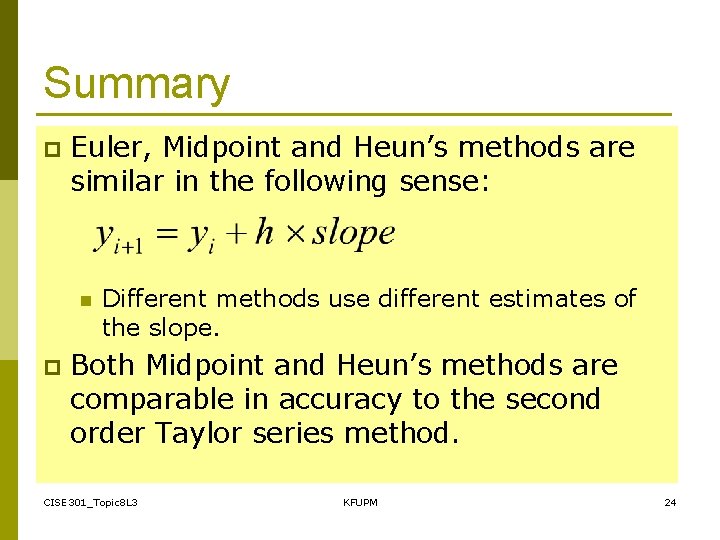

Summary p Euler, Midpoint and Heun’s methods are similar in the following sense: n p Different methods use different estimates of the slope. Both Midpoint and Heun’s methods are comparable in accuracy to the second order Taylor series method. CISE 301_Topic 8 L 3 KFUPM 24

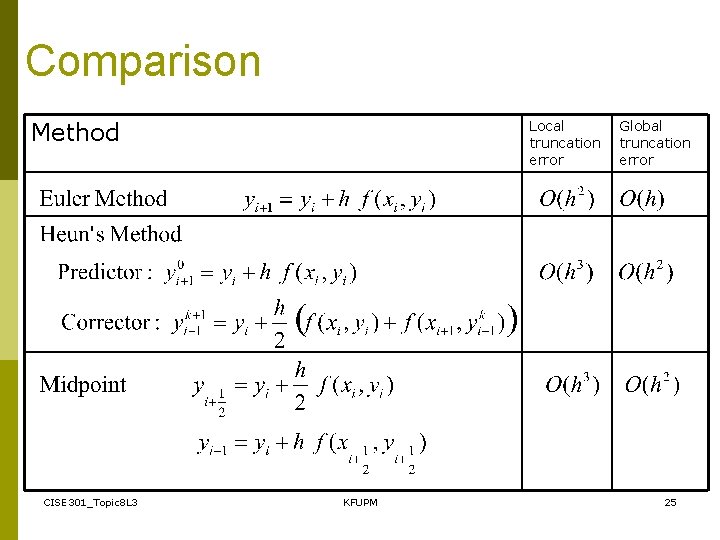

Comparison Method CISE 301_Topic 8 L 3 Local truncation error KFUPM Global truncation error 25

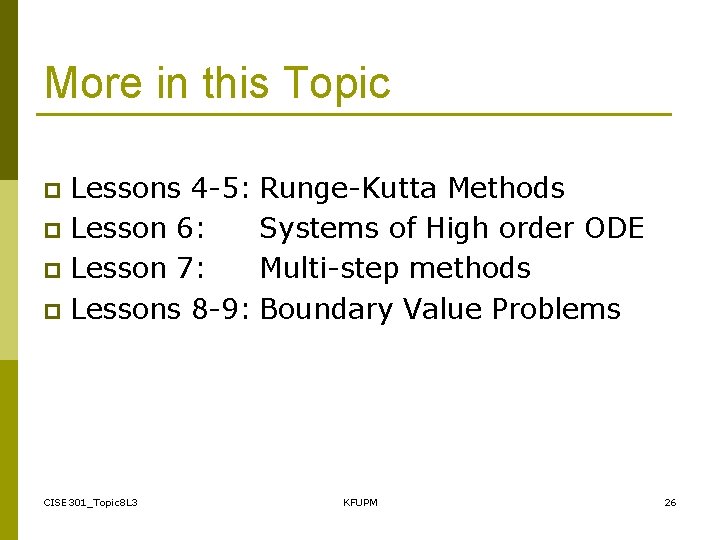

More in this Topic Lessons 4 -5: Runge-Kutta Methods p Lesson 6: Systems of High order ODE p Lesson 7: Multi-step methods p Lessons 8 -9: Boundary Value Problems p CISE 301_Topic 8 L 3 KFUPM 26
