SCR Thyristor Circuit Symbol and Terminal Identification SCR

SCR / Thyristor • Circuit Symbol and Terminal Identification

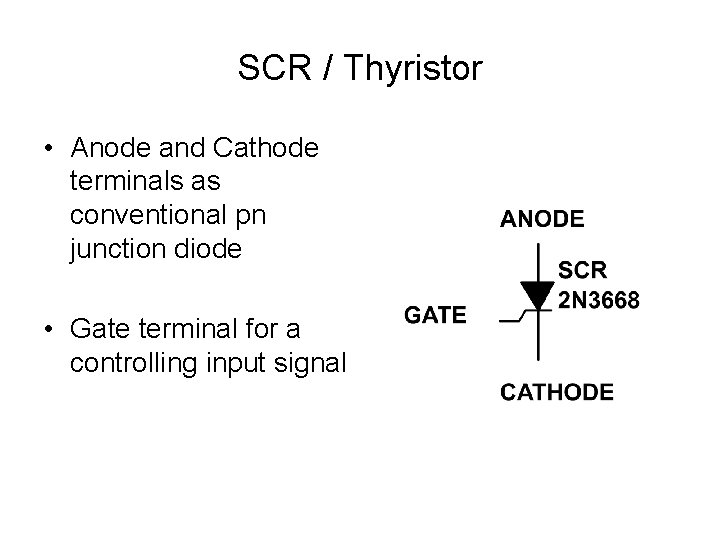

SCR / Thyristor • Anode and Cathode terminals as conventional pn junction diode • Gate terminal for a controlling input signal

SCR/ Thyristor • An SCR (Thyristor) is a “controlled” rectifier (diode) • Control the conduction under forward bias by applying a current into the Gate terminal • Under reverse bias, looks like conventional pn junction diode

SCR / Thyristor Anode • 4 -layer (pnpn) device • Anode, Cathode as for a conventional pn junction diode • Cathode Gate brought out for controlling input P N Gate P N Cathode

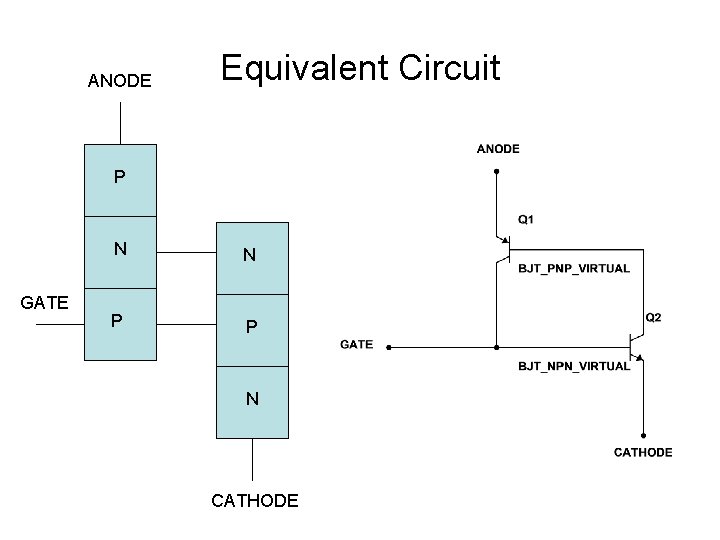

ANODE Equivalent Circuit P GATE N N P P N CATHODE

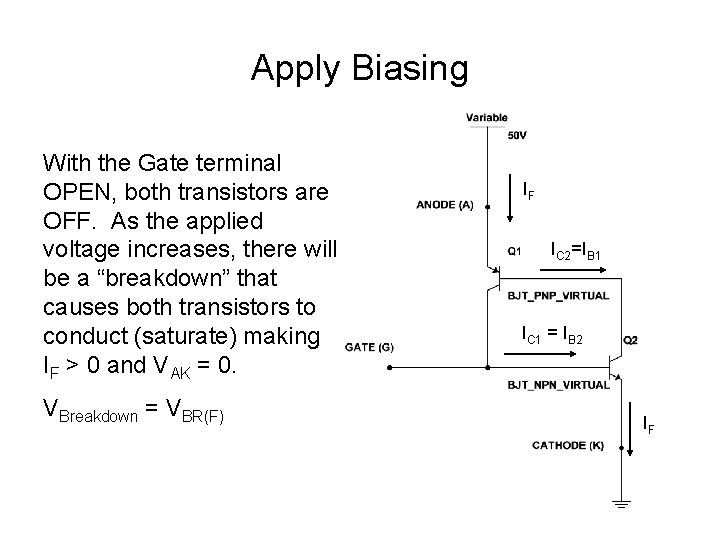

Apply Biasing With the Gate terminal OPEN, both transistors are OFF. As the applied voltage increases, there will be a “breakdown” that causes both transistors to conduct (saturate) making IF > 0 and VAK = 0. VBreakdown = VBR(F) IF IC 2=IB 1 IC 1 = IB 2 IF

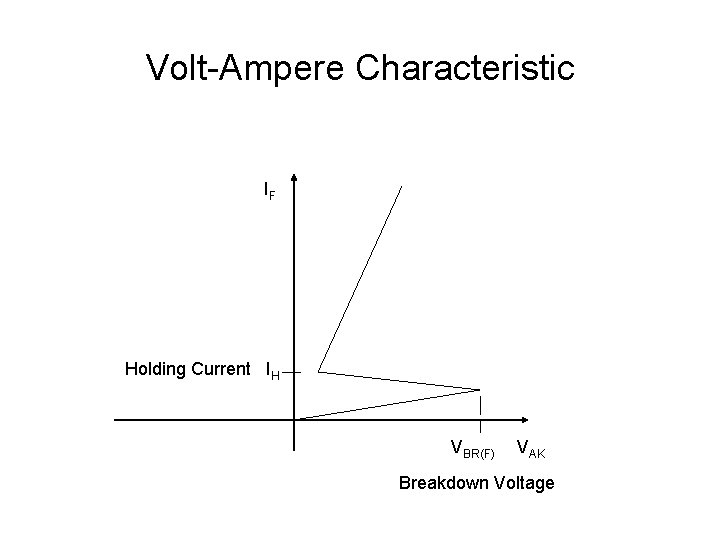

Volt-Ampere Characteristic IF Holding Current IH VBR(F) VAK Breakdown Voltage

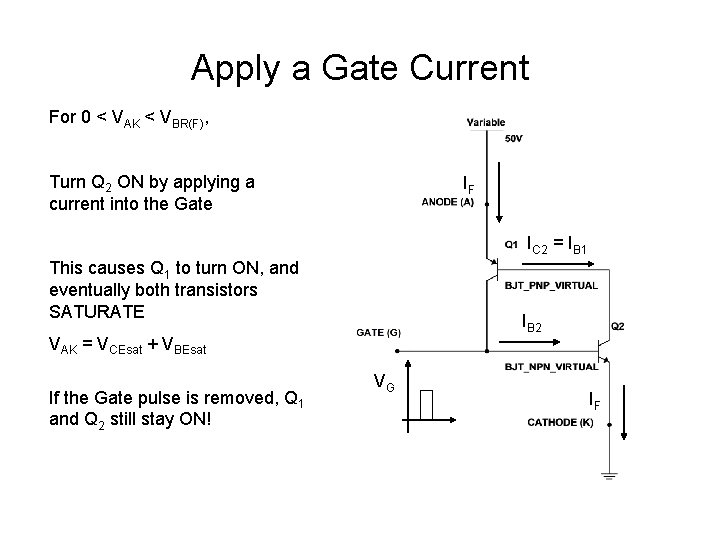

Apply a Gate Current For 0 < VAK < VBR(F), Turn Q 2 ON by applying a current into the Gate IF IC 2 = IB 1 This causes Q 1 to turn ON, and eventually both transistors SATURATE IB 2 VAK = VCEsat + VBEsat If the Gate pulse is removed, Q 1 and Q 2 still stay ON! VG IF

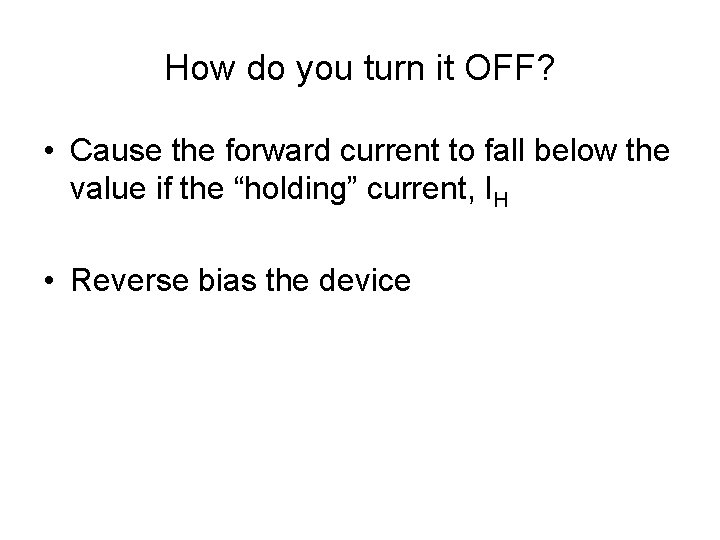

How do you turn it OFF? • Cause the forward current to fall below the value if the “holding” current, IH • Reverse bias the device

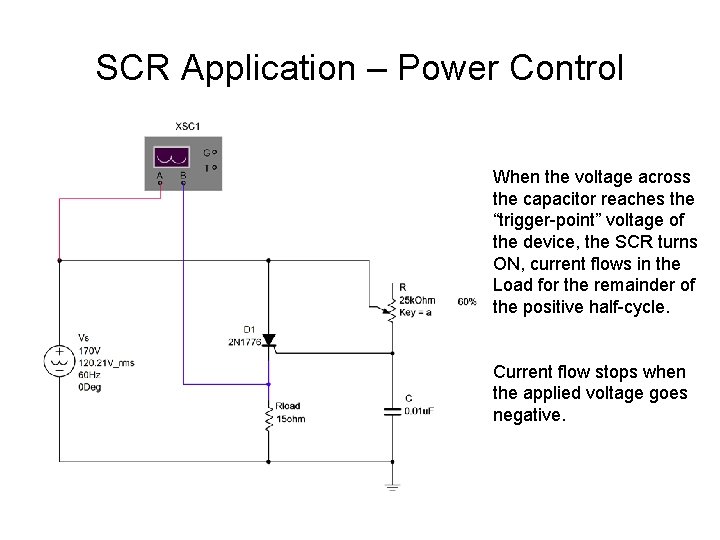

SCR Application – Power Control When the voltage across the capacitor reaches the “trigger-point” voltage of the device, the SCR turns ON, current flows in the Load for the remainder of the positive half-cycle. Current flow stops when the applied voltage goes negative.

Input / Output Voltages

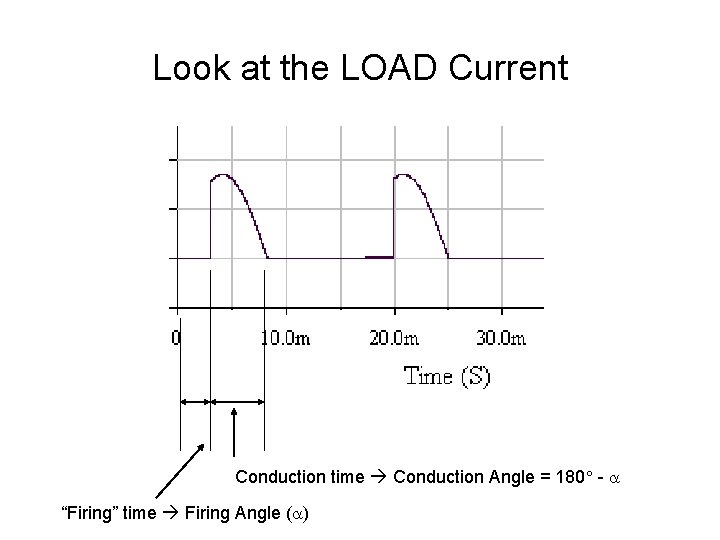

Look at the LOAD Current Conduction time Conduction Angle = 180 - “Firing” time Firing Angle ( )

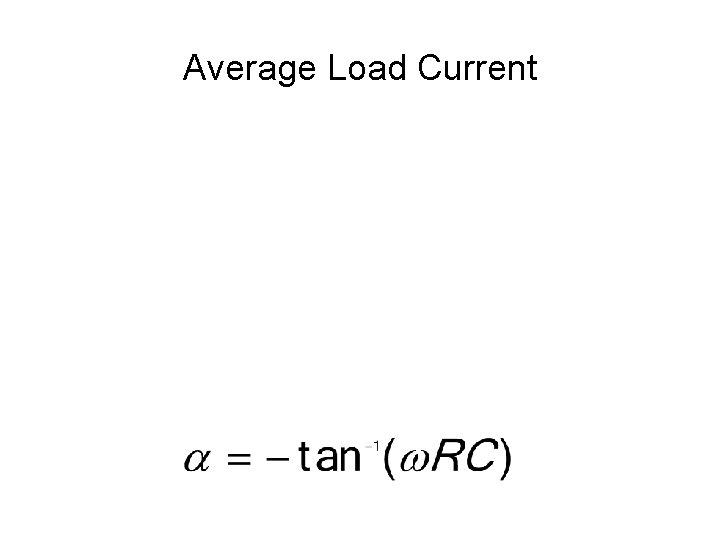

Average Load Current
