Science Applications International Corporation Practical Model Checking to

Science Applications International Corporation Practical Model Checking to Enforce Domain. Specific Interfaces and Requirements SAIC Mike Beims (Michael. A. Beims@ivv. nasa. gov) Gramma. Tech Mark Zarins (mzarins@grammatech. com) David Melski (melski@grammatech. com) David Chandler (chandler@grammatech. com) NASA OSMA SAS '04

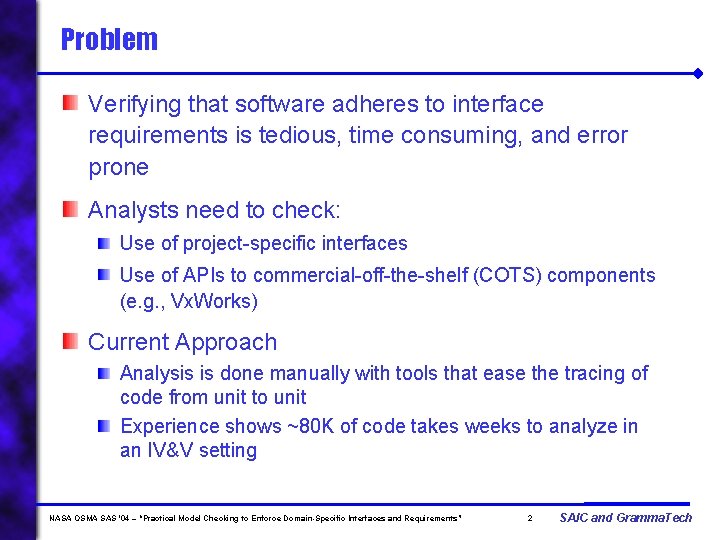

Problem Verifying that software adheres to interface requirements is tedious, time consuming, and error prone Analysts need to check: Use of project-specific interfaces Use of APIs to commercial-off-the-shelf (COTS) components (e. g. , Vx. Works) Current Approach Analysis is done manually with tools that ease the tracing of code from unit to unit Experience shows ~80 K of code takes weeks to analyze in an IV&V setting NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 2 SAIC and Gramma. Tech

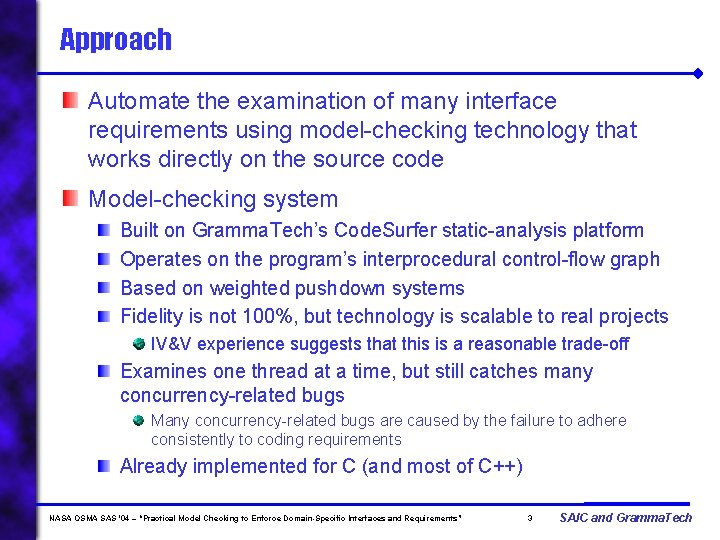

Approach Automate the examination of many interface requirements using model-checking technology that works directly on the source code Model-checking system Built on Gramma. Tech’s Code. Surfer static-analysis platform Operates on the program’s interprocedural control-flow graph Based on weighted pushdown systems Fidelity is not 100%, but technology is scalable to real projects IV&V experience suggests that this is a reasonable trade-off Examines one thread at a time, but still catches many concurrency-related bugs Many concurrency-related bugs are caused by the failure to adhere consistently to coding requirements Already implemented for C (and most of C++) NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 3 SAIC and Gramma. Tech

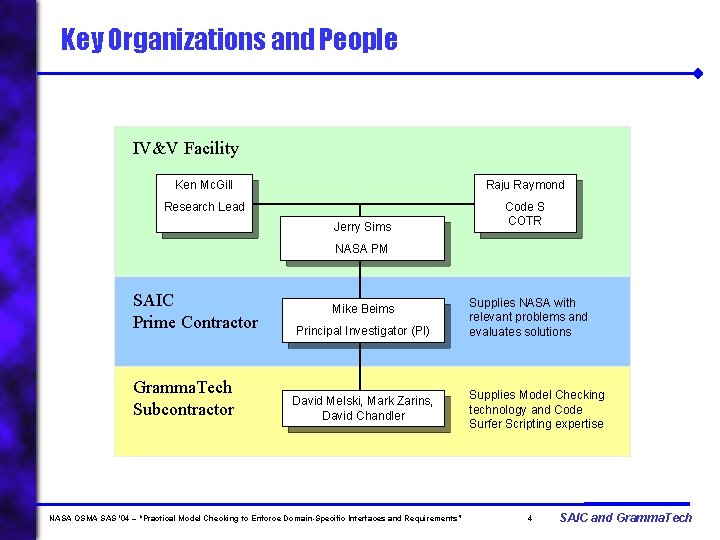

Key Organizations and People IV&V Facility Ken Mc. Gill Raju Raymond Research Lead Code S COTR Jerry Sims NASA PM SAIC Prime Contractor Gramma. Tech Subcontractor Mike Beims Principal Investigator (PI) David Melski, Mark Zarins, David Chandler NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” Supplies NASA with relevant problems and evaluates solutions Supplies Model Checking technology and Code Surfer Scripting expertise 4 SAIC and Gramma. Tech

Importance and Benefits Potential to significantly reduce the amount of labor needed to inspect the implementation of some requirements compared to current IV&V inspection methodology Better inspection coverage and/or reduced cost Projects likely to realize benefits Mission-critical software projects where source code interface requirements have been formally defined (e. g. , Principal Investigator Mode missions) Significant part of the effort is focused on transitioning approach to NASA IV&V center to ensure that benefits are realized by a broad base of IV&V practitioners. NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 5 SAIC and Gramma. Tech

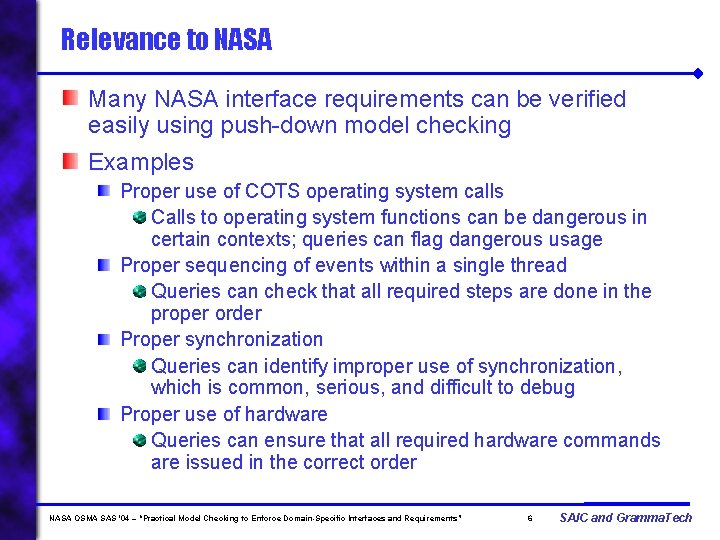

Relevance to NASA Many NASA interface requirements can be verified easily using push-down model checking Examples Proper use of COTS operating system calls Calls to operating system functions can be dangerous in certain contexts; queries can flag dangerous usage Proper sequencing of events within a single thread Queries can check that all required steps are done in the proper order Proper synchronization Queries can identify improper use of synchronization, which is common, serious, and difficult to debug Proper use of hardware Queries can ensure that all required hardware commands are issued in the correct order NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 6 SAIC and Gramma. Tech

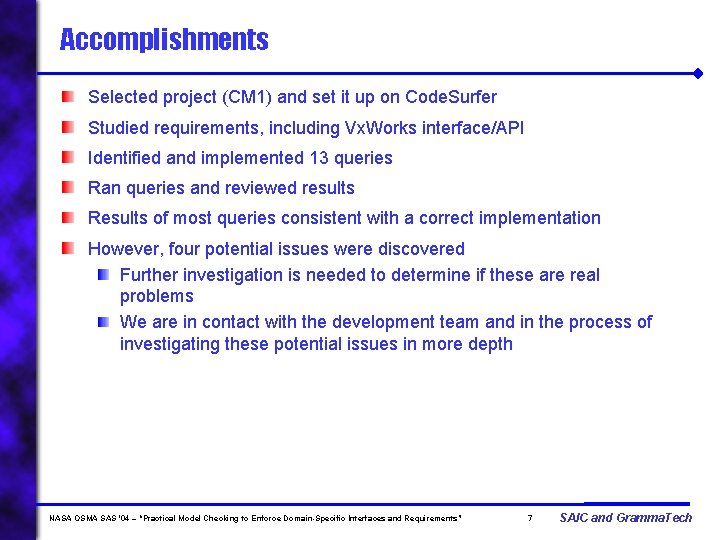

Accomplishments Selected project (CM 1) and set it up on Code. Surfer Studied requirements, including Vx. Works interface/API Identified and implemented 13 queries Ran queries and reviewed results Results of most queries consistent with a correct implementation However, four potential issues were discovered Further investigation is needed to determine if these are real problems We are in contact with the development team and in the process of investigating these potential issues in more depth NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 7 SAIC and Gramma. Tech

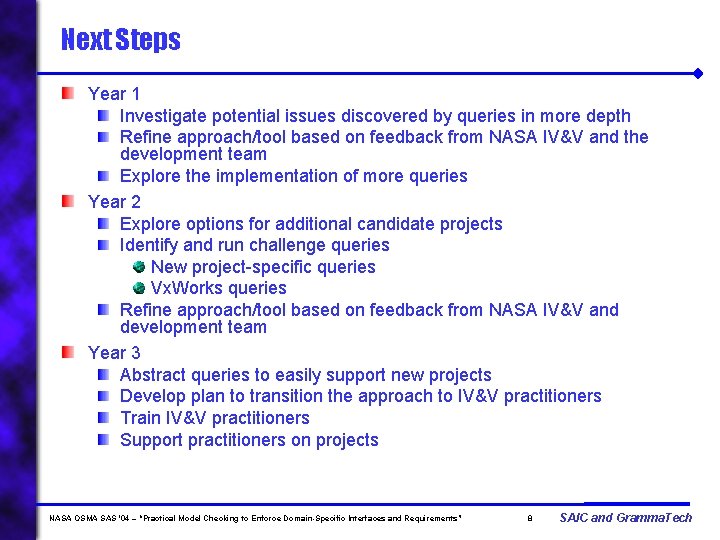

Next Steps Year 1 Investigate potential issues discovered by queries in more depth Refine approach/tool based on feedback from NASA IV&V and the development team Explore the implementation of more queries Year 2 Explore options for additional candidate projects Identify and run challenge queries New project-specific queries Vx. Works queries Refine approach/tool based on feedback from NASA IV&V and development team Year 3 Abstract queries to easily support new projects Develop plan to transition the approach to IV&V practitioners Train IV&V practitioners Support practitioners on projects NASA OSMA SAS '04 – “Practical Model Checking to Enforce Domain-Specific Interfaces and Requirements” 8 SAIC and Gramma. Tech
