![Scheme scheme plot crafting graph schemes in Stata Tim Morris MRC Clinical Trials Unit Scheme scheme, plot: crafting graph schemes in Stata Tim Morris MRC Clinical Trials Unit](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-1.jpg)
Scheme scheme, plot: crafting graph schemes in Stata Tim Morris MRC Clinical Trials Unit at UCL 7 Sep 2017
![Two poets Two poets](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-2.jpg)
Two poets
![By all means break the rules and break them beautifully deliberately and well By all means break the rules, and break them beautifully, deliberately and well. –](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-3.jpg)
By all means break the rules, and break them beautifully, deliberately and well. – Robert Bringhurst The Elements of Typographic Style
![Removing the typos Typography should honour the text data for its own sake Removing the ‘typo’s Typography should honour the text data for its own sake –](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-4.jpg)
Removing the ‘typo’s Typography should honour the text data for its own sake – always assuming that the text data is worth a typographer’s trouble – and it should honour and contribute to its own tradition: that of typography itself. – Robert Bringhurst The Elements of Typographic Style
![0 5 000 Price 10 000 15 000 tw scatter price weight if 0 5, 000 Price 10, 000 15, 000 . tw (scatter price weight if](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-5.jpg)
0 5, 000 Price 10, 000 15, 000 . tw (scatter price weight if foreign) > (scatter price weight if !foreign) 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000 Price Wow, ggp%*t default also looks this bad!
![Legibility in practice amounts simply to what one is accustomed to Eric Gill Legibility, in practice, amounts simply to what one is accustomed to. – Eric Gill](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-6.jpg)
Legibility, in practice, amounts simply to what one is accustomed to. – Eric Gill An essay on typography, 1936
![0 5 000 Price 10 000 15 000 schemes 1 mono 2 0 5, 000 Price 10, 000 15, 000 … , scheme(s 1 mono) 2,](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-7.jpg)
0 5, 000 Price 10, 000 15, 000 … , scheme(s 1 mono) 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000
![ylabel angle0 15 000 Price 10 000 5 000 0 2 … , … ylabel(, angle(0)) 15, 000 Price 10, 000 5, 000 0 2,](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-8.jpg)
… , … ylabel(, angle(0)) 15, 000 Price 10, 000 5, 000 0 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000
![0 Price 250 000500 000750 000 1 250 000 1 500 000 Why 0 Price (¢) 250, 000500, 000750, 000 1, 250, 000 1, 500, 000 Why?](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-9.jpg)
0 Price (¢) 250, 000500, 000750, 000 1, 250, 000 1, 500, 000 Why? Let’s recode $ to ¢ 2, 000 3, 000 Weight (lbs. ) Price (¢) 4, 000 Price (¢) 5, 000
![Why Lets recode to 1 500 000 Price 1 250 000 Why? Let’s recode $ to ¢ 1, 500, 000 Price (¢) 1, 250, 000](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-10.jpg)
Why? Let’s recode $ to ¢ 1, 500, 000 Price (¢) 1, 250, 000 1, 000 750, 000 500, 000 250, 000 0 2, 000 3, 000 Weight (lbs. ) Price (¢) 4, 000 Price (¢) 5, 000
![tw scatter msymbolOh scatter msymbolOh 15 000 Price 10 . tw (scatter …, msymbol(Oh)) > (scatter …, msymbol(Oh)), … 15, 000 Price 10,](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-11.jpg)

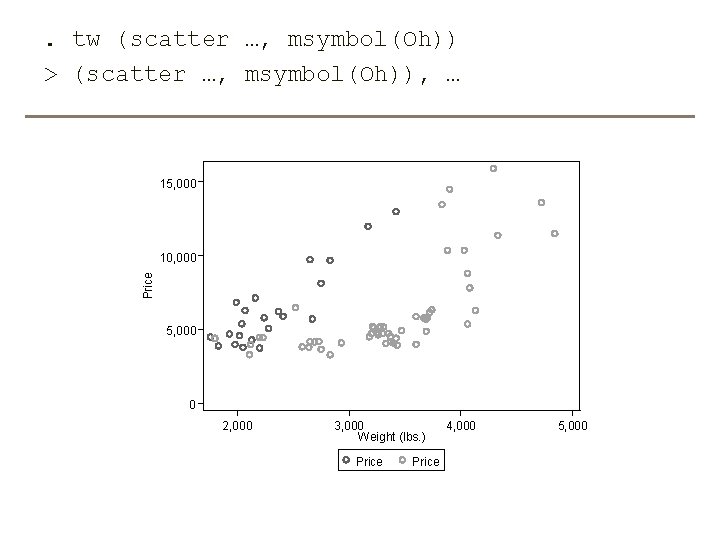

. tw (scatter …, msymbol(Oh)) > (scatter …, msymbol(Oh)), … 15, 000 Price 10, 000 5, 000 0 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000
![ytitle orientation0 plotregionstylenone ylabel angle0 noticks grid gmin xlabel noticks yscalenoline … > > ytitle(, orientation(0)) plotregion(style(none)) ylabel(, angle(0) noticks grid gmin) xlabel(, noticks) yscale(noline)](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-12.jpg)
… > > ytitle(, orientation(0)) plotregion(style(none)) ylabel(, angle(0) noticks grid gmin) xlabel(, noticks) yscale(noline) xscale(noline) 15, 000 10, 000 Price 5, 000 0 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000
![Every Single Time almost tw scatter price weight if foreign msymbolOh mcolor33 103 126 Every. Single. Time. (almost). tw (scatter price weight if foreign, msymbol(Oh) mcolor("33 103 126"))](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-13.jpg)
Every. Single. Time. (almost). tw (scatter price weight if foreign, msymbol(Oh) mcolor("33 103 126")) (scatter price weight if !foreign, msymbol(Oh) mcolor("106 59 119")) , ytitle(, orientation(0)) ylabel(, angle(0) noticks grid gmin) xlabel(, noticks) yscale(noline) xscale(noline) plotregion(style(none))
![Discovering scheme files Several years ago Rachel Jinks and I were looking through Discovering scheme files • Several years ago, Rachel Jinks and I were looking through](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-14.jpg)
Discovering scheme files • Several years ago, Rachel Jinks and I were looking through our adopaths, as you do, and stumbled across the basestyle directory • Opened something like color-blue. style and saw that it contains. set rgb "0 0 255" • I set-to writing my own to match MRC’s branding
![Discovering scheme files Not yet content we stumbled across scheme s 2 color Discovering scheme files • Not yet content, we stumbled across scheme -s 2 color.](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-15.jpg)
Discovering scheme files • Not yet content, we stumbled across scheme -s 2 color. scheme • It was easy enough to read, so I started tinkering… • Within a few hours, had done all of the every -single-time changes so I had to do them No. More. Times.
![Help scheme entries At the time I wasnt aware of the scheme entries Help: scheme entries • At the time, I wasn’t aware of the ‘scheme entries’](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-16.jpg)
Help: scheme entries • At the time, I wasn’t aware of the ‘scheme entries’ help • It’s helpful • Importantly: you don’t have to write a full scheme file. Of Stata’s base schemes, only s 2 color is ‘full’ • To write your own scheme, start file with: #include s 2 color • Inherits everything that you don’t change
![Example schememy scheme goes in adopath at personals 15 000 Price include s 2 Example: scheme-my. scheme (goes in adopath at personals) 15, 000 Price #include s 2](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-17.jpg)
Example: scheme-my. scheme (goes in adopath at personals) 15, 000 Price #include s 2 color background white 10, 000 anglestyle vertical_tick horizontal symbol p circle_hollow color plotregion_line none 5, 000 yesno draw_major_vgrid yesno extend_axes_full_low no yesno extend_axes_full_high no 0 2, 000 3, 000 Weight (lbs. ) Price 4, 000 5, 000
![Writing your own scheme Work cautiously when writing a scheme Nice effects Writing your own scheme • Work cautiously when writing a scheme • Nice effects](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-18.jpg)
Writing your own scheme • Work cautiously when writing a scheme • Nice effects on one plot type may have unintended consequences on others • Build scheme with a primary plot but have a battery of others to check against • Can spend a long time on a scheme then suddenly realise you’ve broken something and can’t get back
![Why dont many people know Its mostly because Vince didnt use a Ludacris lyric Why don’t many people know? It’s mostly because Vince didn’t use a Ludacris lyric](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-19.jpg)

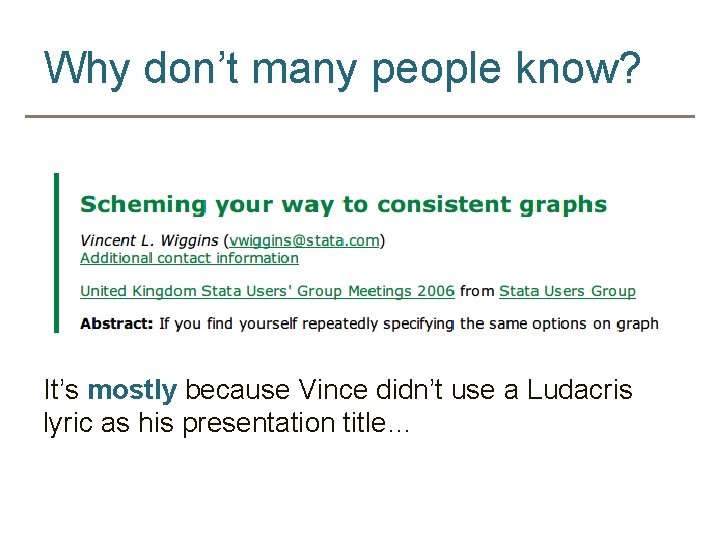

Why don’t many people know? It’s mostly because Vince didn’t use a Ludacris lyric as his presentation title…
![Why dont many people know A lot of schemechanging is about colour I wrote Why don’t many people know? A lot of scheme-changing is about colour. I wrote](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-20.jpg)

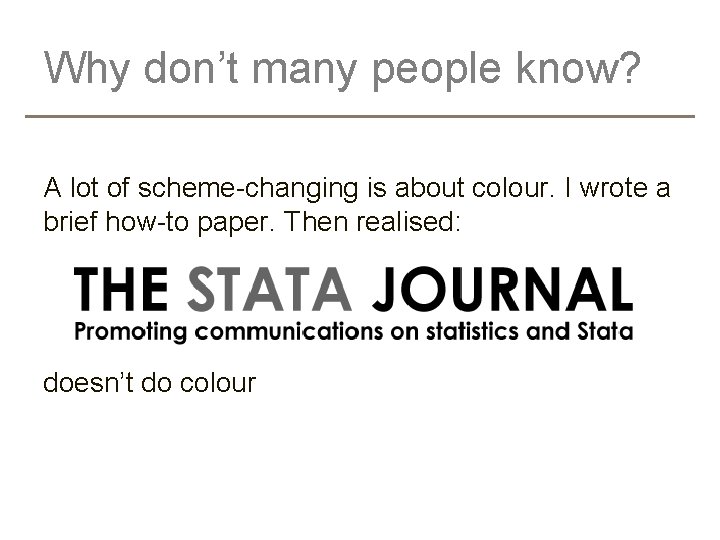

Why don’t many people know? A lot of scheme-changing is about colour. I wrote a brief how-to paper. Then realised: doesn’t do colour
![Finally In the spirit of keeping Wishes and Grumbles to time 1 Grumble The Finally In the spirit of keeping Wishes and Grumbles to time: 1. Grumble: The](https://slidetodoc.com/presentation_image_h/0839691e3bb96738b86e2eeea8c42c79/image-21.jpg)
Finally In the spirit of keeping Wishes and Grumbles to time: 1. Grumble: The Stata Journal doesn’t allow colour 2. Wish: That The Stata Journal would allow colour (and put my paper in the first issue)
