SCHEMATIC MANOEUVRE ILLUSTRATIONS GBRCAA Masters SCHEDULE Takeoff procedure

SCHEMATIC MANOEUVRE ILLUSTRATIONS GBR/CAA Masters SCHEDULE

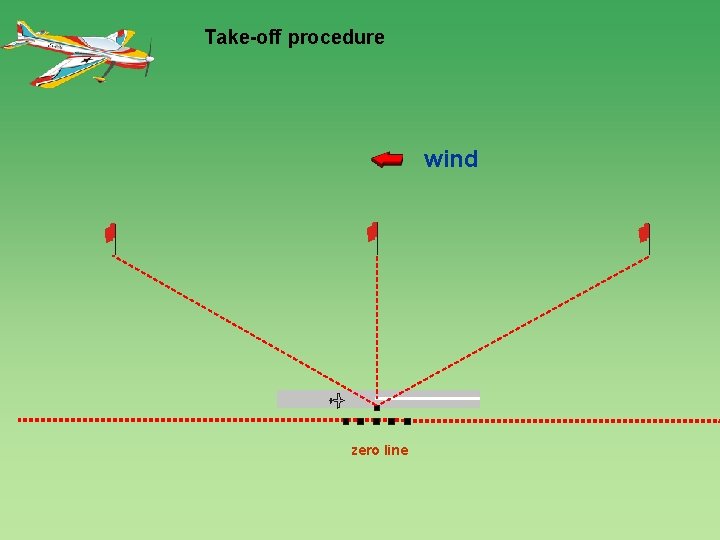

Take-off procedure wind 1200 zero line

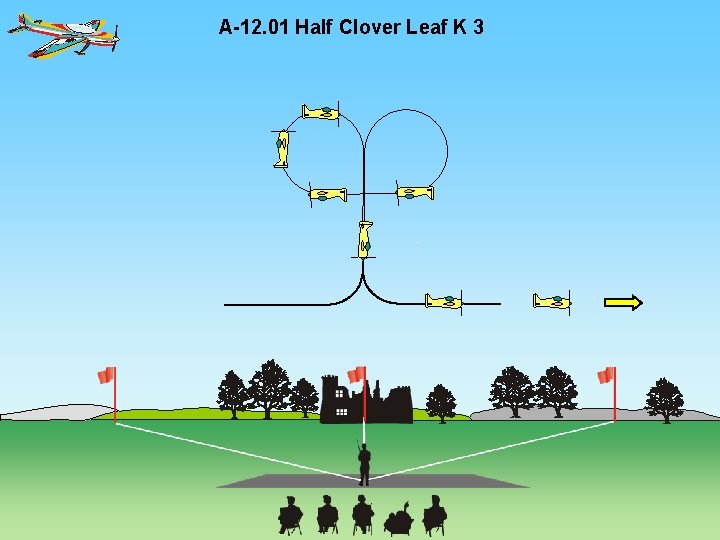

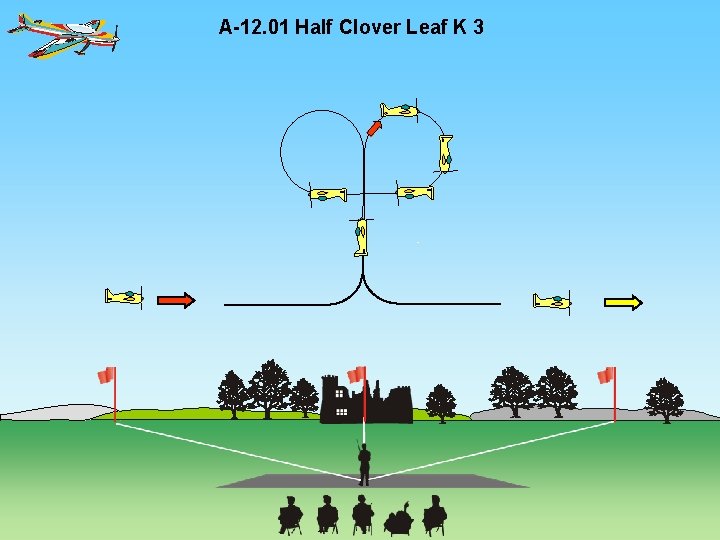

A-12. 01 Half Clover Leaf K 3

A-12. 01 Half Clover Leaf K 3

A-12. 01 Half Clover Leaf K 3 All radii are equal. Entry and exit at same height.

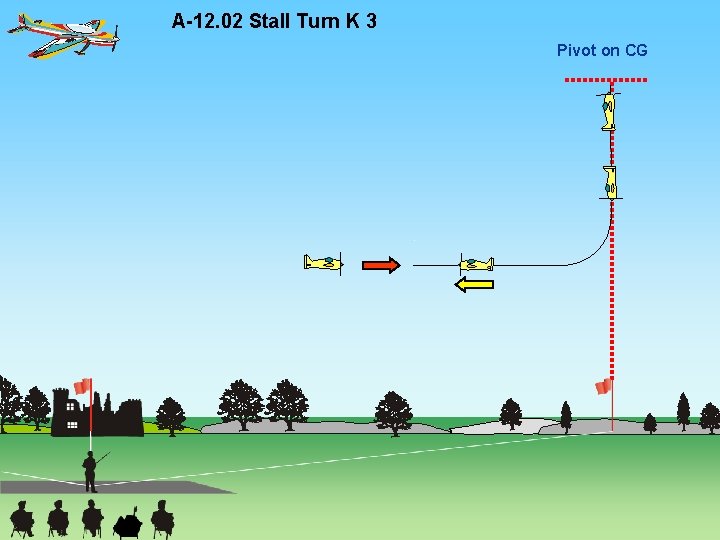

A-12. 02 Stall Turn K 3 Pivot on CG

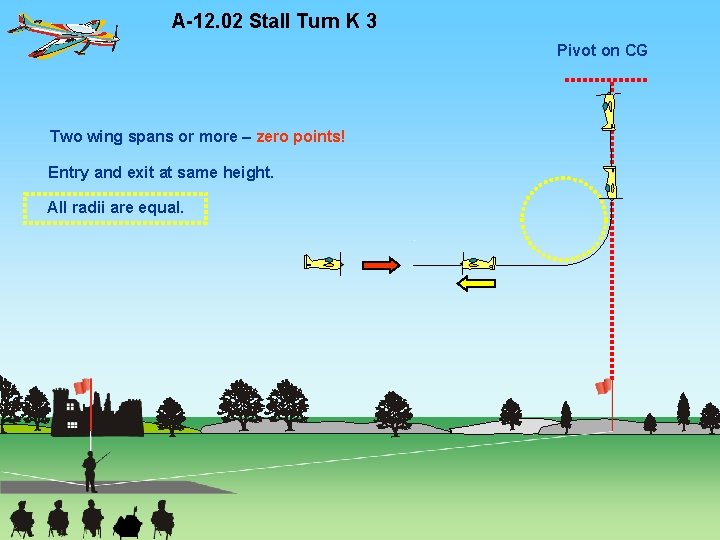

A-12. 02 Stall Turn K 3 Pivot on CG Two wing spans or more – zero points! Entry and exit at same height. All radii are equal.

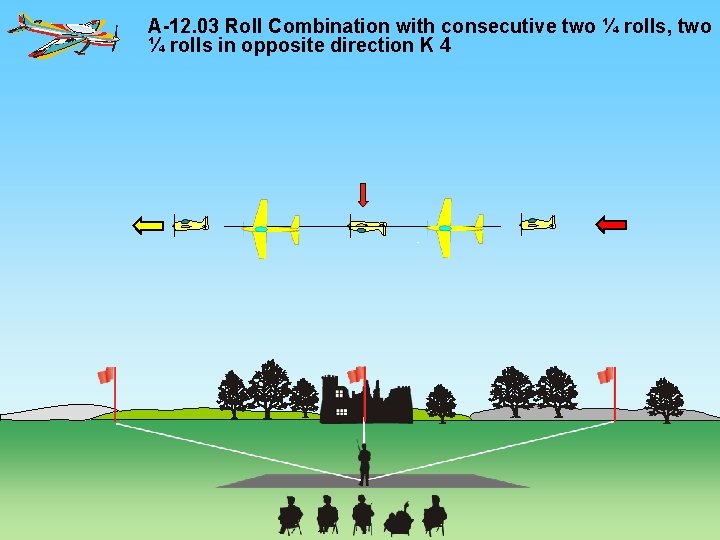

A-12. 03 Roll Combination with consecutive two ¼ rolls, two ¼ rolls in opposite direction K 4

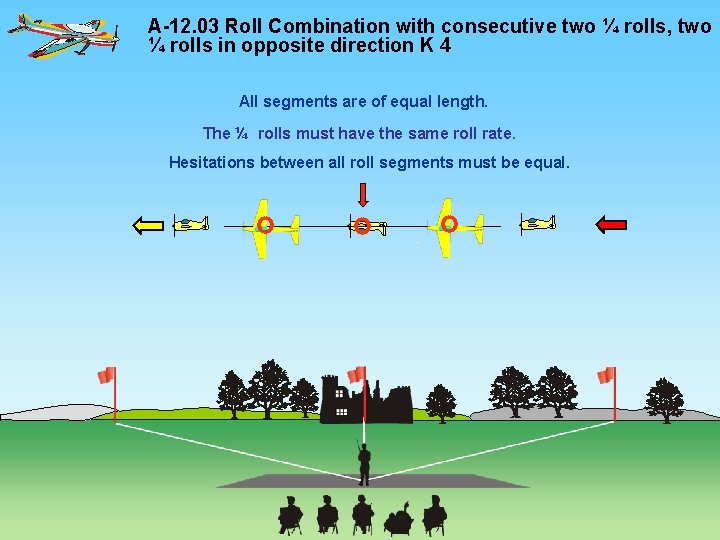

A-12. 03 Roll Combination with consecutive two ¼ rolls, two ¼ rolls in opposite direction K 4 All segments are of equal length. The ¼ rolls must have the same roll rate. Hesitations between all roll segments must be equal.

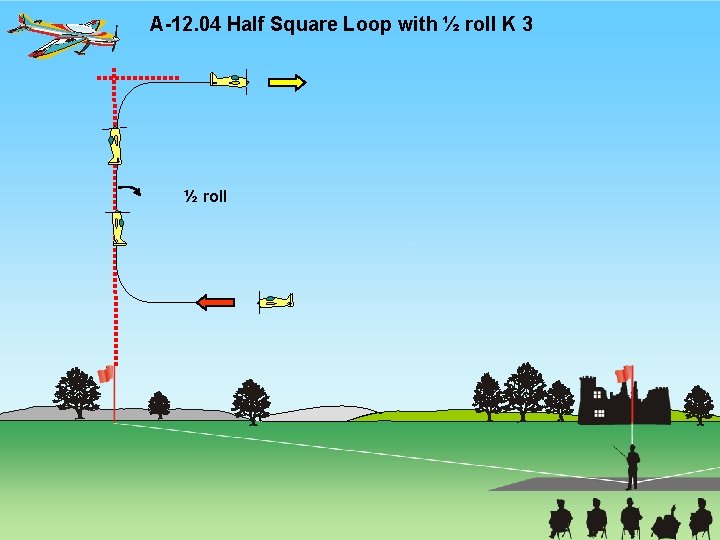

A-12. 04 Half Square Loop with ½ roll K 3 ½ roll

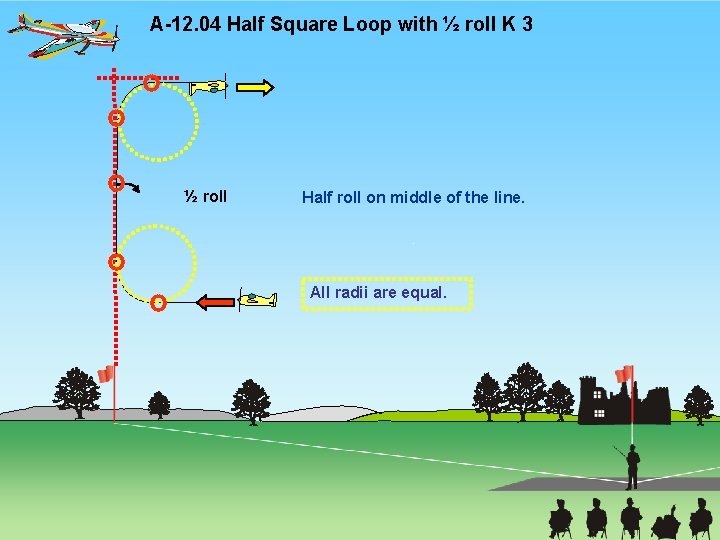

A-12. 04 Half Square Loop with ½ roll K 3 ½ roll Half roll on middle of the line. All radii are equal.

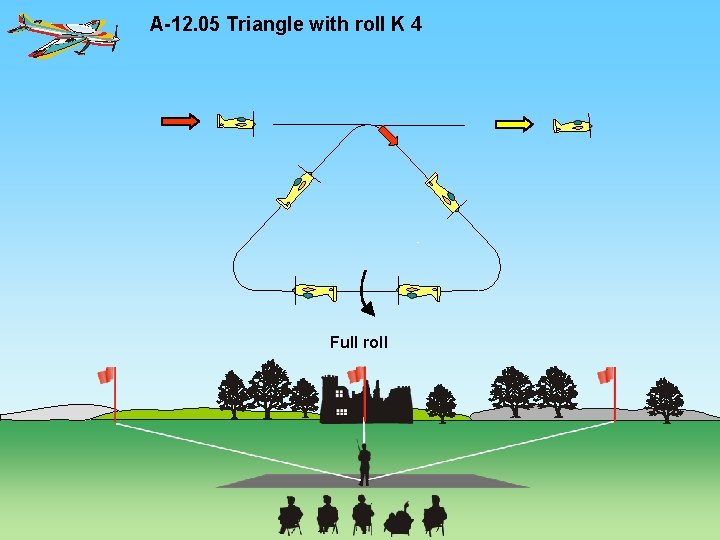

A-12. 05 Triangle with roll K 4 Full roll

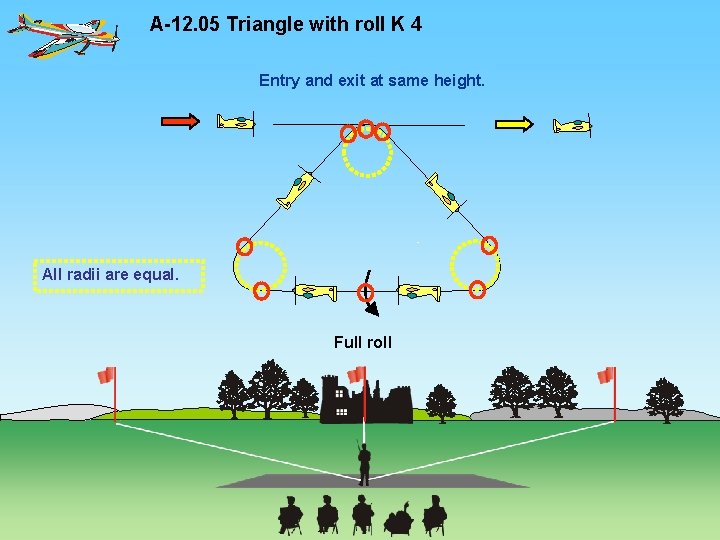

A-12. 05 Triangle with roll K 4 Entry and exit at same height. All radii are equal. Full roll

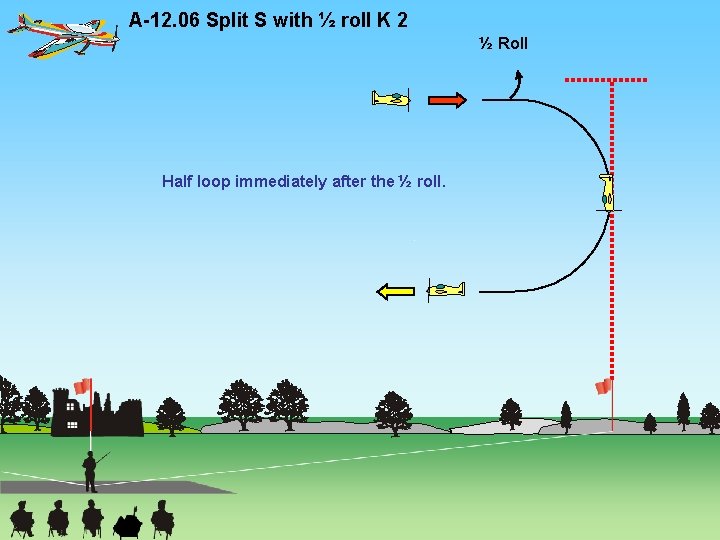

A-12. 06 Split S with ½ roll K 2 ½ Roll Half loop immediately after the ½ roll.

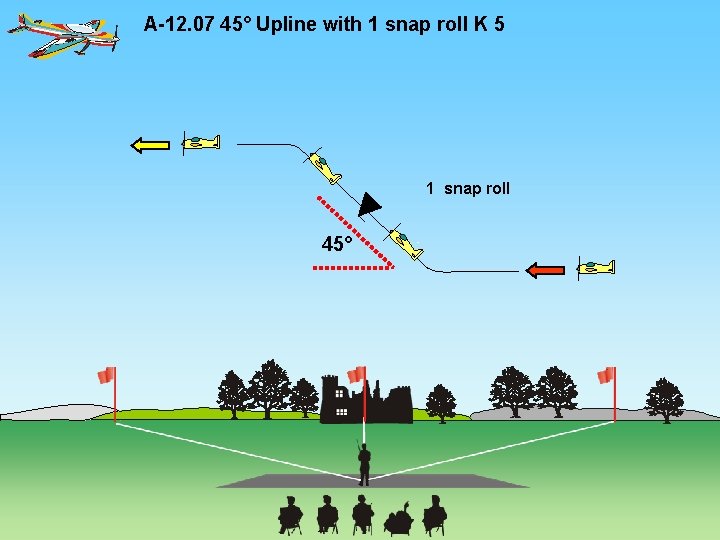

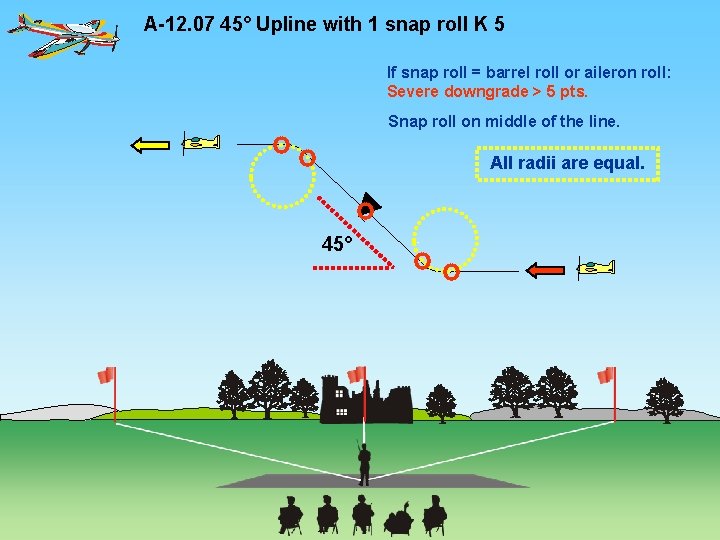

A-12. 07 45° Upline with 1 snap roll K 5 1 snap roll 45°

A-12. 07 45° Upline with 1 snap roll K 5 If snap roll = barrel roll or aileron roll: Severe downgrade > 5 pts. Snap roll on middle of the line. All radii are equal. 45°

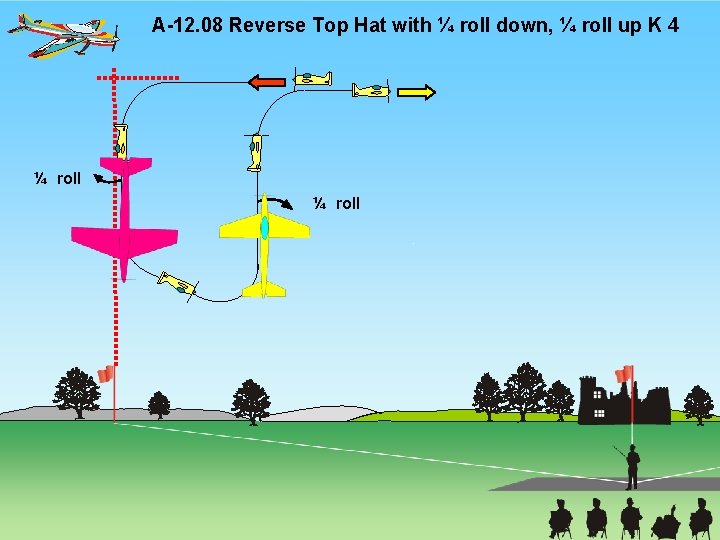

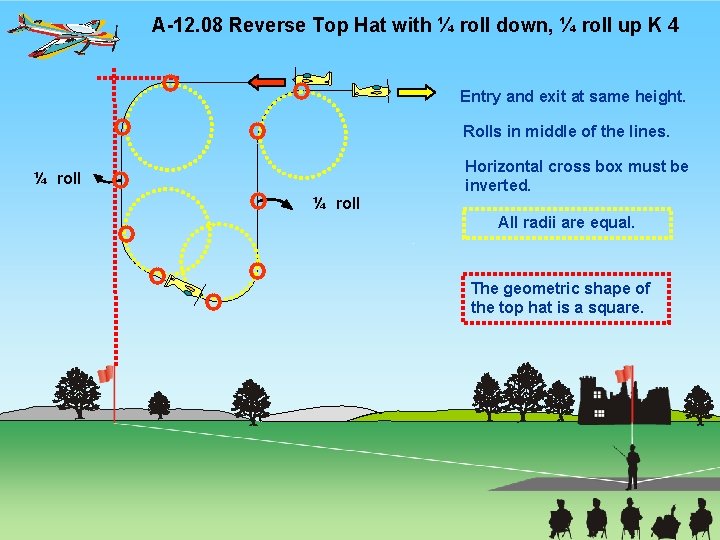

A-12. 08 Reverse Top Hat with ¼ roll down, ¼ roll up K 4 ¼ roll

A-12. 08 Reverse Top Hat with ¼ roll down, ¼ roll up K 4 Entry and exit at same height. Rolls in middle of the lines. Horizontal cross box must be inverted. ¼ roll All radii are equal. The geometric shape of the top hat is a square.

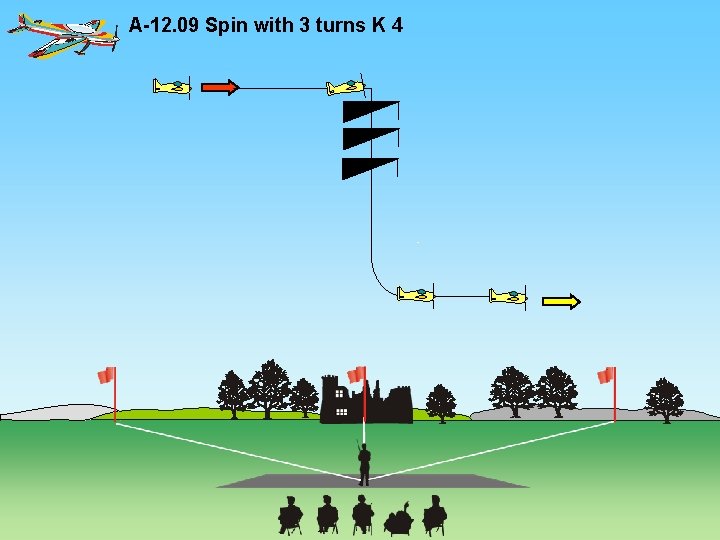

A-12. 09 Spin with 3 turns K 4

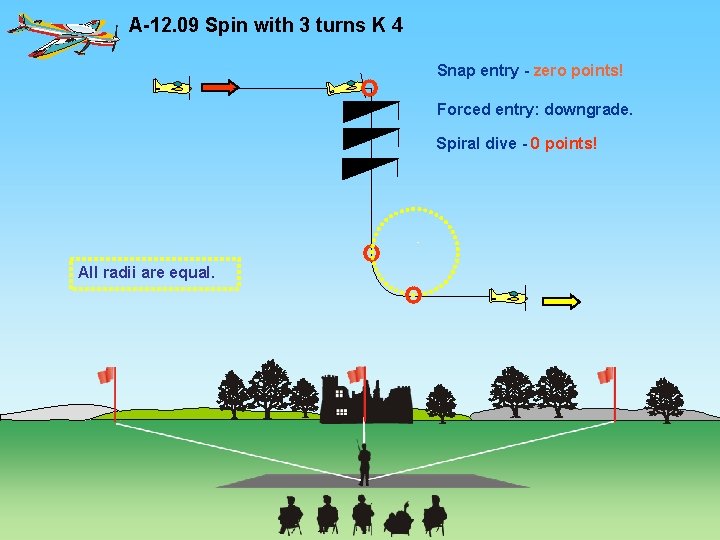

A-12. 09 Spin with 3 turns K 4 Snap entry - zero points! Forced entry: downgrade. Spiral dive - 0 points! All radii are equal.

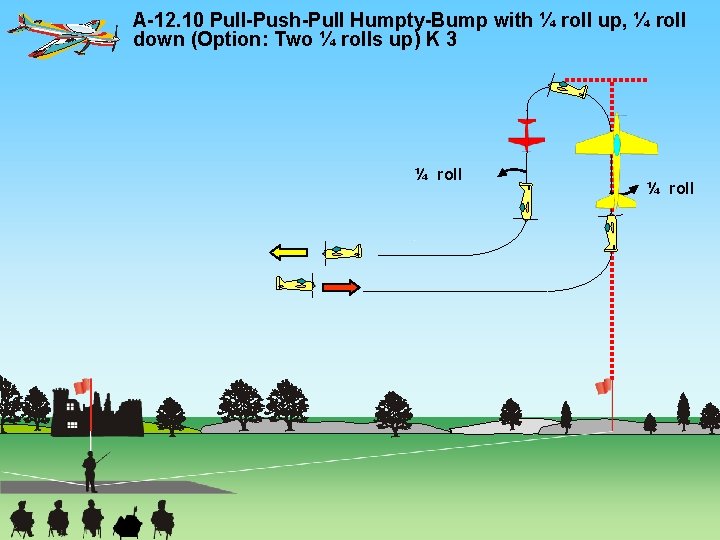

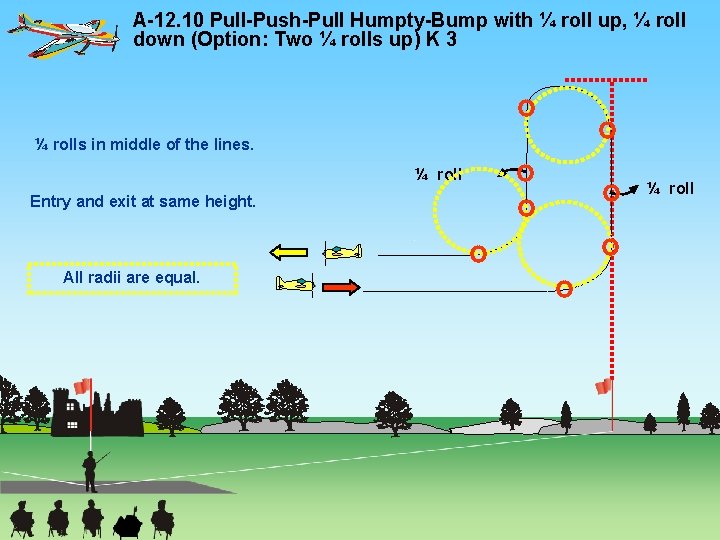

A-12. 10 Pull-Push-Pull Humpty-Bump with ¼ roll up, ¼ roll down (Option: Two ¼ rolls up) K 3 ¼ roll

A-12. 10 Pull-Push-Pull Humpty-Bump with ¼ roll up, ¼ roll down (Option: Two ¼ rolls up) K 3 ¼ rolls in middle of the lines. ¼ roll Entry and exit at same height. All radii are equal. ¼ roll

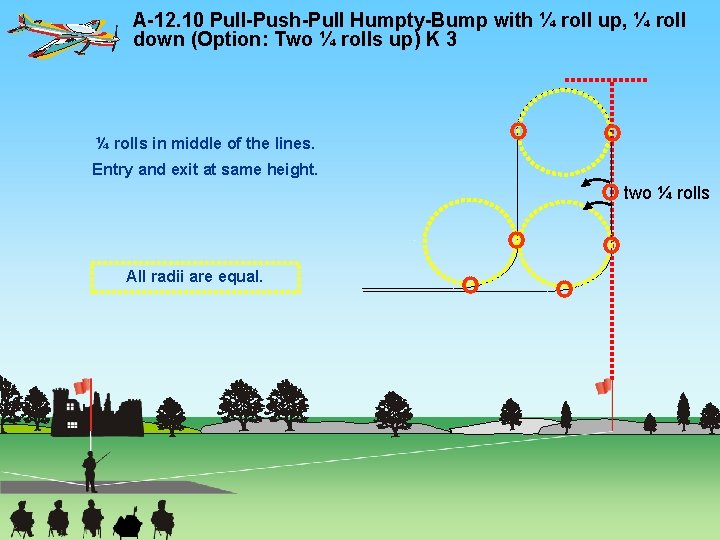

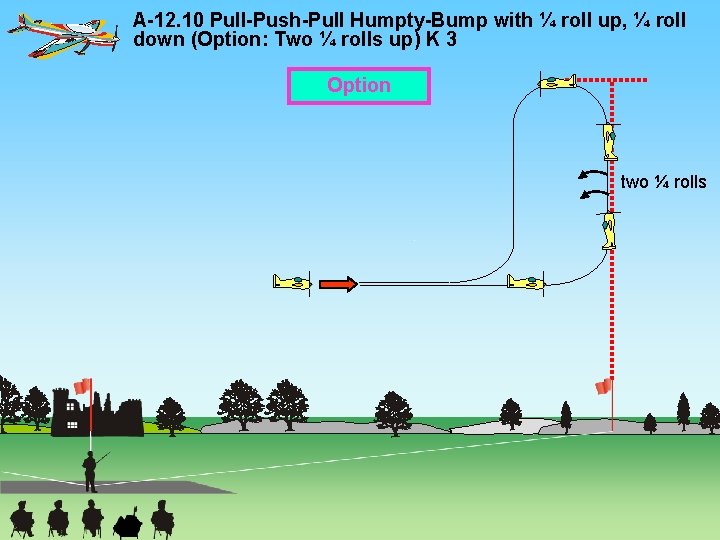

A-12. 10 Pull-Push-Pull Humpty-Bump with ¼ roll up, ¼ roll down (Option: Two ¼ rolls up) K 3 Option two ¼ rolls

A-12. 10 Pull-Push-Pull Humpty-Bump with ¼ roll up, ¼ roll down (Option: Two ¼ rolls up) K 3 ¼ rolls in middle of the lines. Entry and exit at same height. two ¼ rolls All radii are equal.

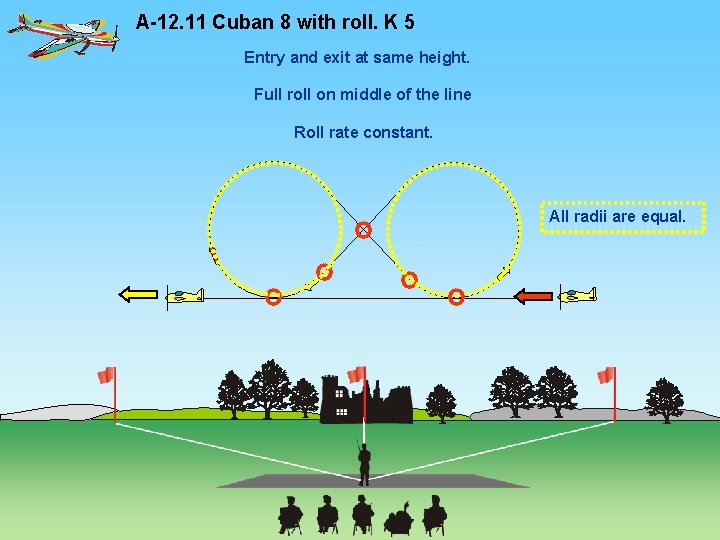

A-12. 11 Cuban 8 with roll. K 5 Full roll

A-12. 11 Cuban 8 with roll. K 5 Entry and exit at same height. Full roll on middle of the line Roll rate constant. All radii are equal.

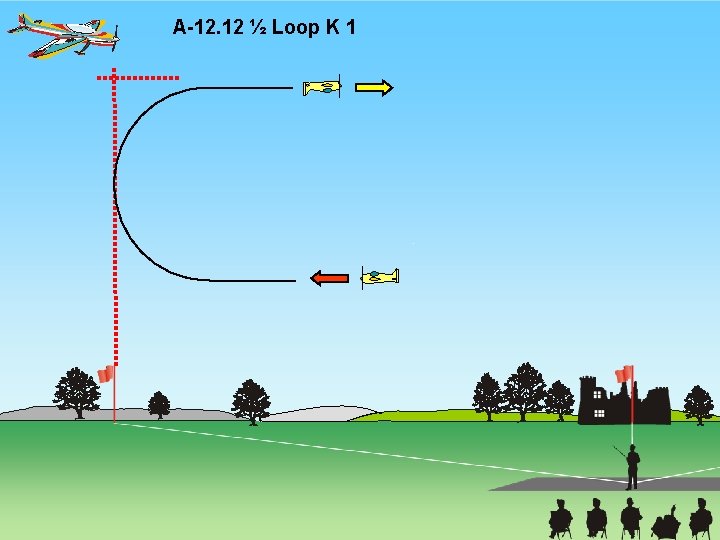

A-12. 12 ½ Loop K 1

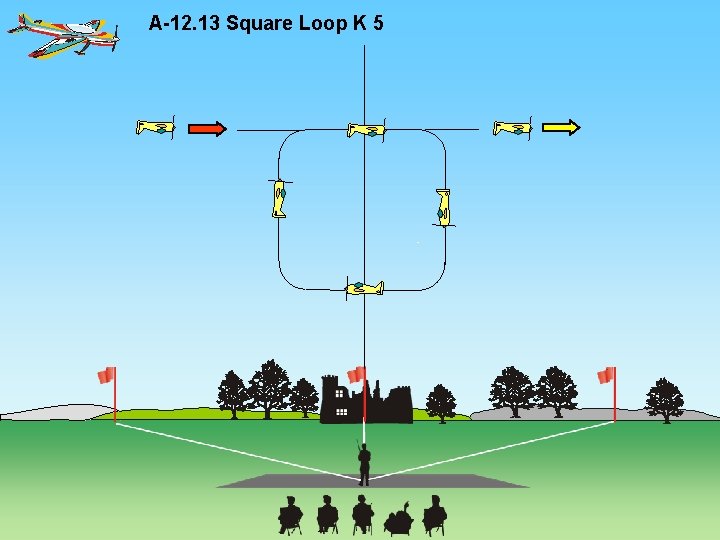

A-12. 13 Square Loop K 5

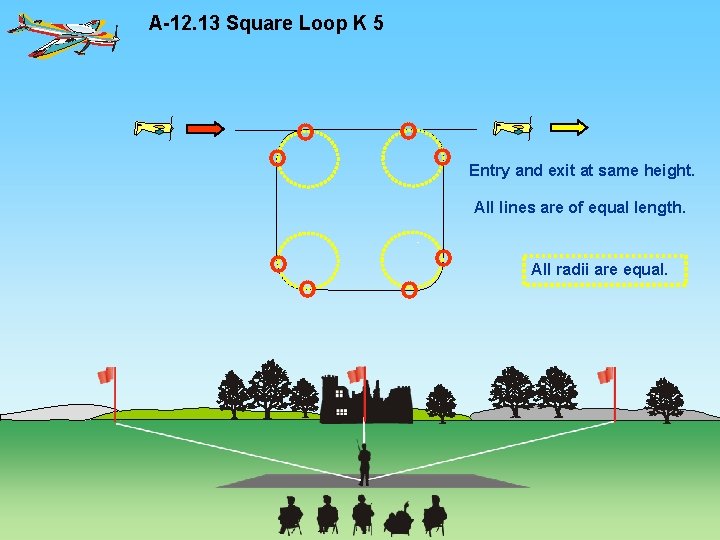

A-12. 13 Square Loop K 5 Entry and exit at same height. All lines are of equal length. All radii are equal.

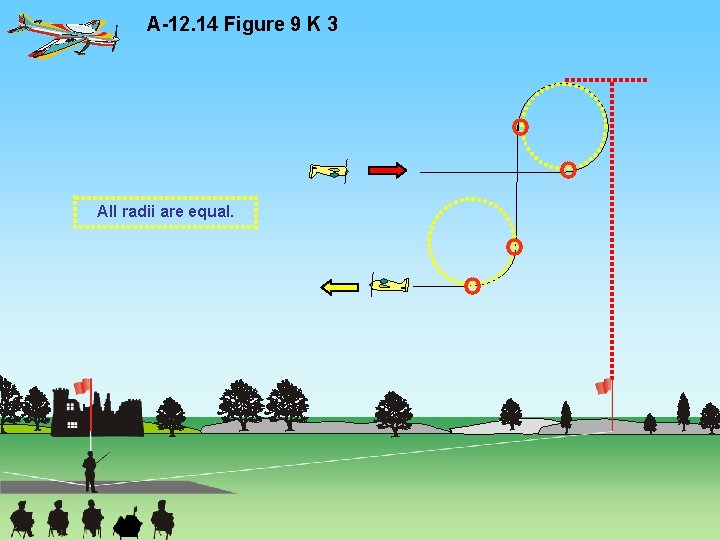

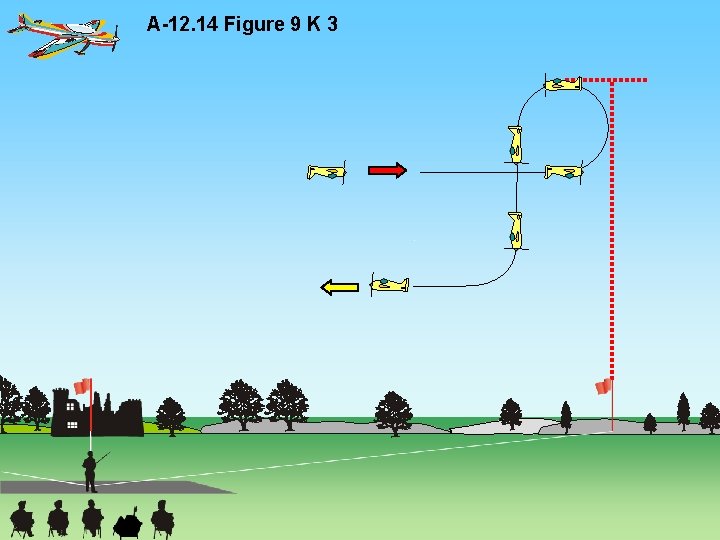

A-12. 14 Figure 9 K 3

A-12. 14 Figure 9 K 3 All radii are equal.

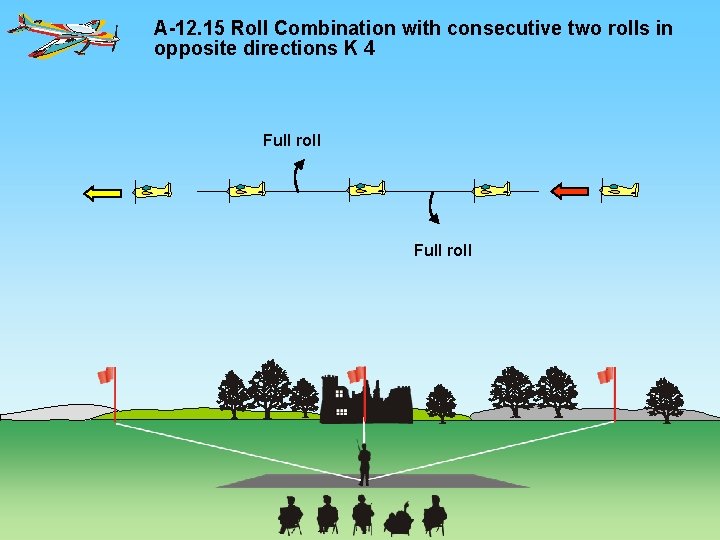

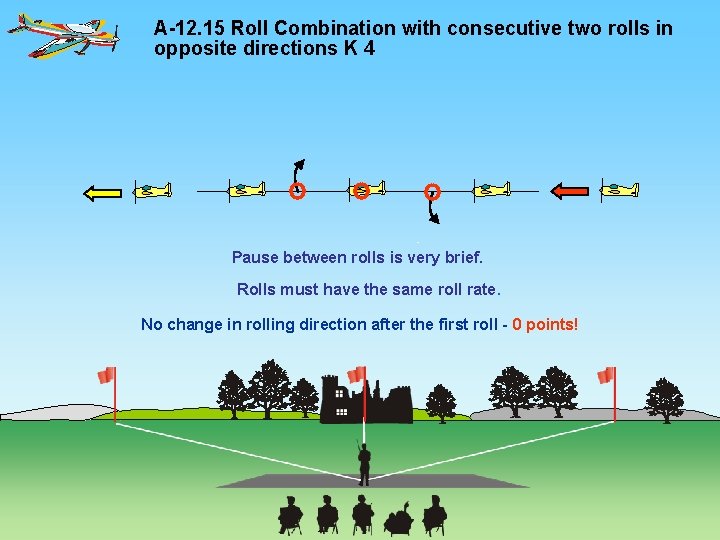

A-12. 15 Roll Combination with consecutive two rolls in opposite directions K 4 Full roll

A-12. 15 Roll Combination with consecutive two rolls in opposite directions K 4 Pause between rolls is very brief. Rolls must have the same roll rate. No change in rolling direction after the first roll - 0 points!

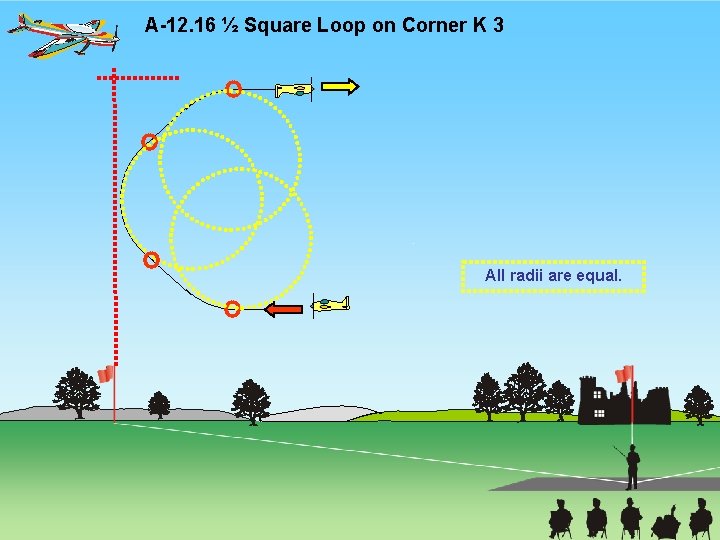

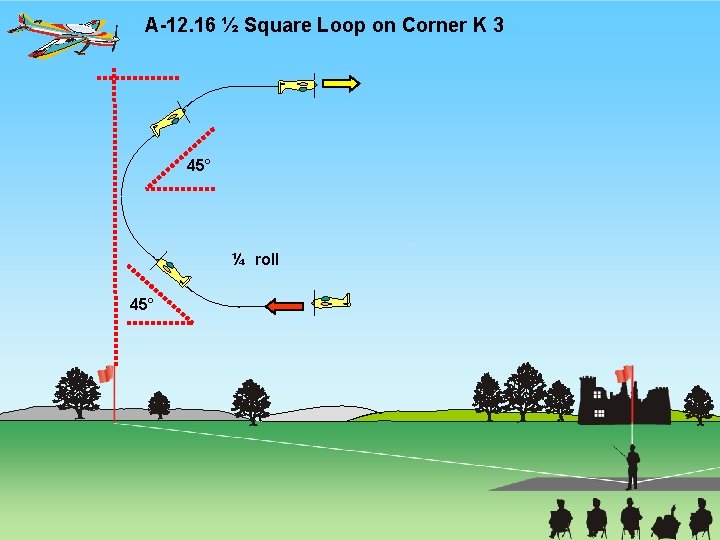

A-12. 16 ½ Square Loop on Corner K 3 45° ¼ roll 45°

A-12. 16 ½ Square Loop on Corner K 3 All radii are equal.

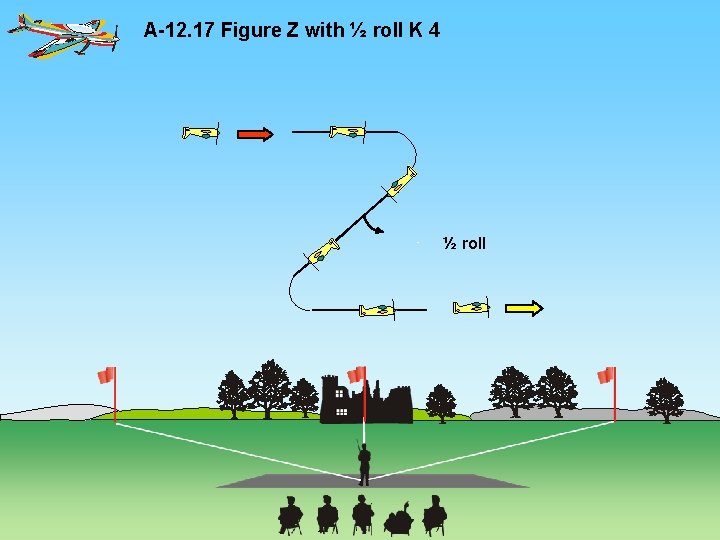

A-12. 17 Figure Z with ½ roll K 4 ½ roll

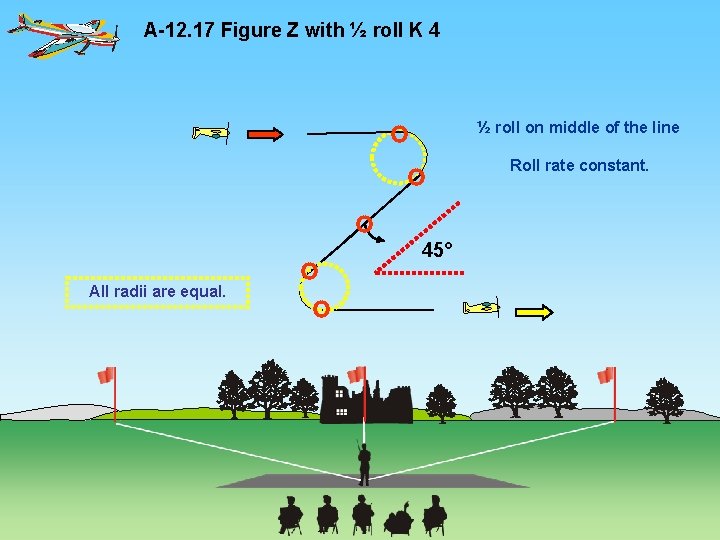

A-12. 17 Figure Z with ½ roll K 4 ½ roll on middle of the line Roll rate constant. 45° All radii are equal.

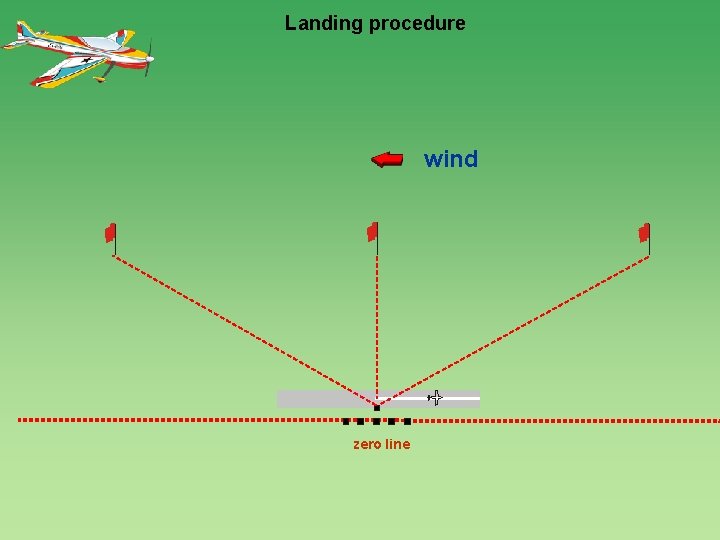

Landing procedure wind 1200 zero line

Forget WHO is flying (friend, rival, countryman, flier from other nation) Forget WHAT is flying (2 -stroke, 4 -stroke, electric, turbine, rubber-power) LOOK ONLY AT LINES DESCRIBED IN THE SKY! (and the precision, smoothness, positioning, and size) Thank you!
