Schematic Lighting Design Natty Boh Building Baltimore , Maryland Eric Singley Penn State University Architectural Engineering

Location Natty Boh Building Brewers Hill Baltimore , Maryland Penn State AE Schematic Lighting Proposal Eric Singley

Project Information Natty Boh Building Character: v Old home of the Gunther Brewing Company. v Consists of 6 sections of differing heights. v Declared a historic place in 2002. Building Statistics: v Overall Building Size : 189, 550 ft 2. v Maximum Height : 9 stories v Multi-purpose: office, storage, residential, commercial Penn State AE Schematic Lighting Proposal Eric Singley

Design Spaces Natty Boh Building v Large Work Space v Special Purpose Space Friday’s Day Care Center Countrywide conference room v Circulation Space v Outdoor Space Canton Self Storage Lobby Parking lot and rear facade Penn State AE Schematic Lighting Proposal Eric Singley

Day Care Center Natty Boh Building Space Properties v Floor area 4092 ft 2. v Exposed ceiling at 14 ft. v Large windows on east and west walls. v Interior partitions dividing kitchen and storage areas. Space Tasks v Primarily play and learning area for small children. v Light kitchen use. Penn State AE Schematic Lighting Proposal Eric Singley

Day Care Center Penn State AE Natty Boh Building Schematic Lighting Proposal Eric Singley

Day Care Center Natty Boh Building Design Goals v Separate the spaces by function. v Focus on the children’s area, all other spaces are support. v Create a comfortable atmosphere for the children to spend the day in. v Possible Ideas: Playful, Safe v Make use of the large windows to introduce daylighting to the space. v 1. 5 Watts per square foot allowed. v CCT 5000 to match daylight in space. Penn State AE Schematic Lighting Proposal Eric Singley

Day Care Center Natty Boh Building Design Solution v Separate the spaces. v. Linear fluorescents in circulation spaces leading toward subspaces. v Atmosphere Ideas. v Suspend ceiling in children’s area for a more enclosed “safe” space. v Create multi-level ceiling and add colored light for visual interest. v Daylighting concerns v Use zoned switching to shut off lights near windows during the daytime. Penn State AE Schematic Lighting Proposal Eric Singley

Day Care Center Natty Boh Building Looking into children’s play area with wall removed. Penn State AE Schematic Lighting Proposal Eric Singley

Day Care Center Natty Boh Building Detail of uplights at corner of lower suspended ceiling. Penn State AE Schematic Lighting Proposal Eric Singley

Lobby Natty Boh Building Space Properties v Floor Area ≈ 2500 ft 2 v Ceiling at 8 ft and 21. 5 ft v No windows v Entrances on both levels Space Tasks v Light office work v Display of model storage unit v Sales / Receptionist desks Penn State AE Schematic Lighting Proposal Eric Singley

Lobby Penn State AE Natty Boh Building Schematic Lighting Proposal Eric Singley

Lobby Natty Boh Building Design Goals v Direct customers to sales desk. v Accent wall spaces for company logo and decorative artwork. v Maintain a small number of unique luminaires within the complex space. v Flynn mode: Spacious v Maximum power density: 1. 3 W / square foot v Target Illuminance values - 30 fc on work-plane at desks - 10 -15 fc on floor throughout rest of space Penn State AE Schematic Lighting Proposal Eric Singley

Lobby Natty Boh Building Design Solution v Linear fluorescent’s directing customers down the stairs and into the space upon entering. v CFL downlights over each of the desk areas. v Spot lamps washing ceiling along 1’ 6” indent in lower section. v Linear wall-washers along wall in lower section and on the angled portion of the 2 -story area. v CCT of 5000 K to mimic daylight and make the lobby appear more spacious. Penn State AE Schematic Lighting Proposal Eric Singley

Lobby Natty Boh Building Two-story portion of the lobby Penn State AE Schematic Lighting Proposal Eric Singley

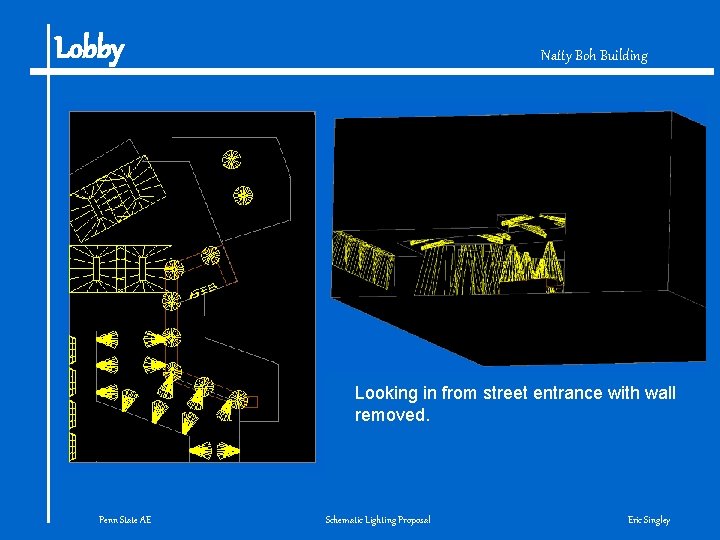

Lobby Natty Boh Building Looking in from street entrance with wall removed. Penn State AE Schematic Lighting Proposal Eric Singley

Conference Room Natty Boh Building Space Properties v Floor Area : 150 ft 2 v Ceiling at 8 ft v Conference table with chairs v No windows Space Tasks v Professional and Casual conferences v Possible light video conferencing Penn State AE Schematic Lighting Proposal Eric Singley

Conference Room Penn State AE Natty Boh Building Schematic Lighting Proposal Eric Singley

Conference Room Natty Boh Building Design Goals v Create a comfortable yet professional environment. v Provide flexibility to accommodate different uses. Including: v Roundtable discussion v Video conferencing -Target Illuminace ratios ( on participant’s head). Front / Side 1 : 1 to 3 Front / Side 2 : 1 to 1. 5 Front / Top : 2 to 3. 5 - Prevent spill of light onto camera and monitor located in the front of the room Penn State AE Schematic Lighting Proposal Eric Singley

Conference Room Natty Boh Building Roundtable Discussion v Drop center ceiling 6 inches. v Light the space indirectly with linear fluorescent fixtures recessed in the side of the dropped ceiling. Penn State AE Schematic Lighting Proposal Eric Singley

Conference Room Natty Boh Building Video Conferencing v Switch off front 3 indirect fixtures. v Wash each participant with linear fluorescent from recessed fixtures as shown. v CCT : 4000 K Penn State AE Schematic Lighting Proposal Eric Singley

Conference Room Penn State AE Natty Boh Building Schematic Lighting Proposal Eric Singley

Exterior Natty Boh Building Space Tasks Space Properties v Parking for Natty Boh Building v Ground Area : 37, 050 ft 2 v Entrance to the building v Surrounded on 3 sides by buildings v Historically significant Penn State AE Schematic Lighting Proposal Eric Singley

Exterior Natty Boh Building Design Goals v Provide sufficient light to allow drivers to read signs and see parking lines. v Call attention to the building entrances. v Achieve 100% Dark Sky compliance. v Maintain luminaire appearance for historical reasons. Power Density v 0. 3 Watts per square foot allowed Penn State AE Schematic Lighting Proposal Eric Singley

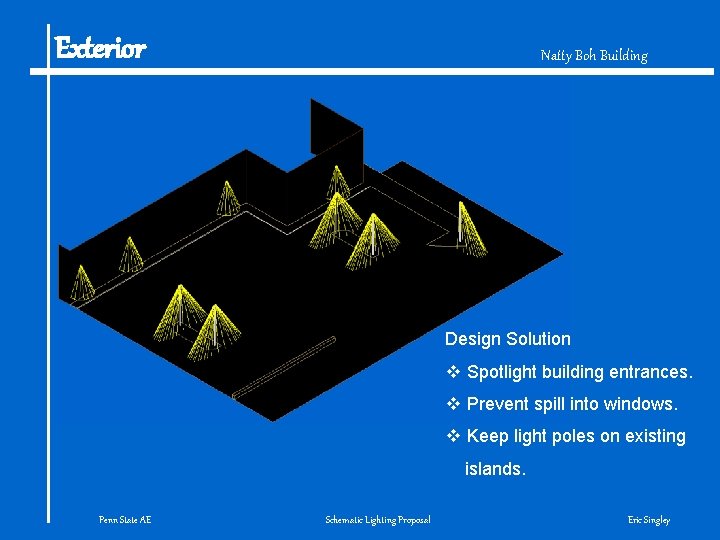

Exterior Natty Boh Building Design Solution v Spotlight building entrances. v Prevent spill into windows. v Keep light poles on existing islands. Penn State AE Schematic Lighting Proposal Eric Singley

Fin Natty Boh Building Any Questions? Penn State AE Schematic Lighting Proposal Eric Singley
