Schedulers and Resource Brokers ITCS 4010 Grid Computing

Schedulers and Resource Brokers ITCS 4010 Grid Computing, 2005, UNC-Charlotte, B. Wilkinson. 1

Scheduler • Job manager submits jobs to scheduler. • Scheduler assigns work to resources to achieve specified time requirements. 2

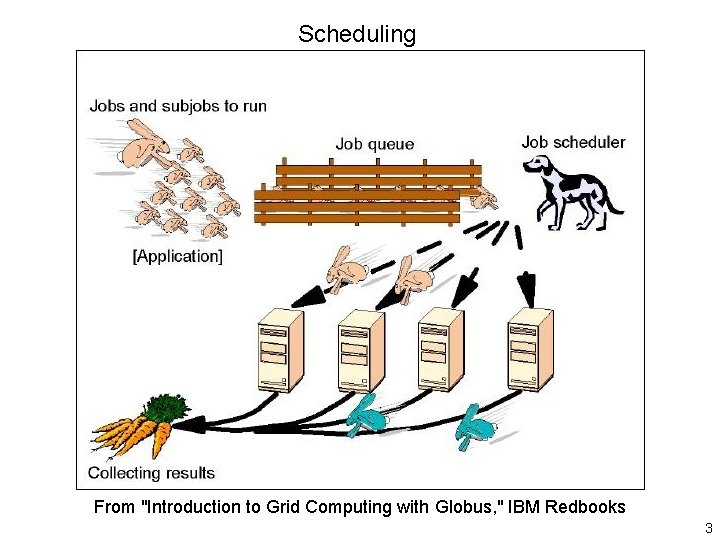

Scheduling From "Introduction to Grid Computing with Globus, " IBM Redbooks 3

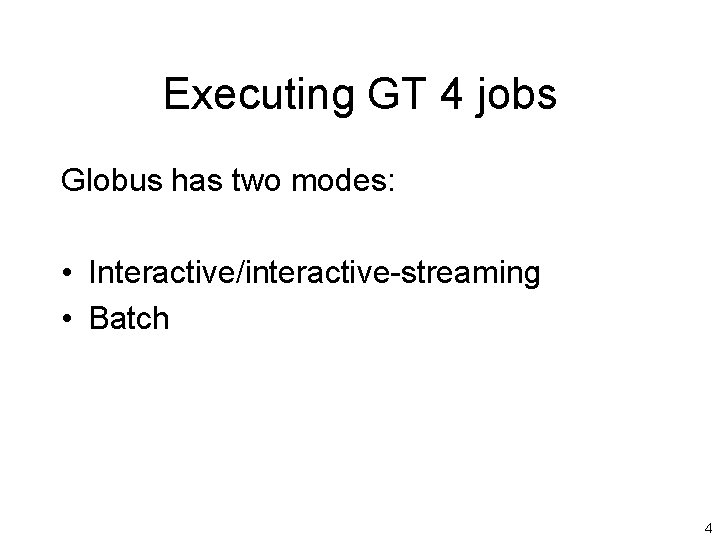

Executing GT 4 jobs Globus has two modes: • Interactive/interactive-streaming • Batch 4

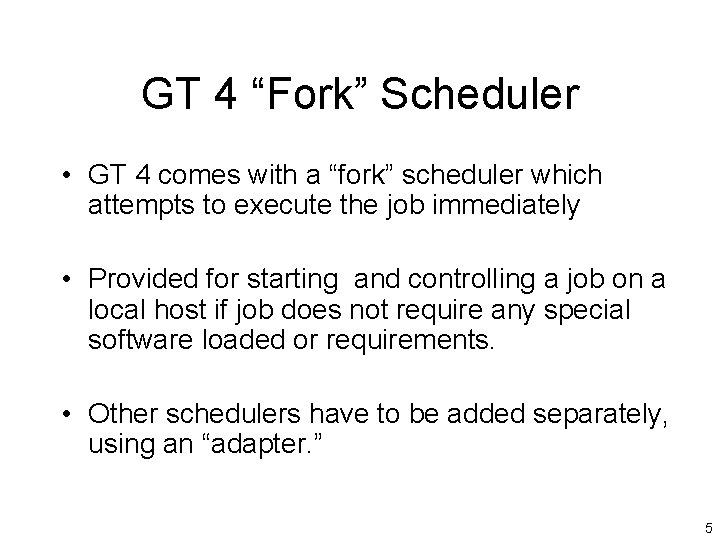

GT 4 “Fork” Scheduler • GT 4 comes with a “fork” scheduler which attempts to execute the job immediately • Provided for starting and controlling a job on a local host if job does not require any special software loaded or requirements. • Other schedulers have to be added separately, using an “adapter. ” 5

Batch scheduling • Batch, a term form old computing days, when one submitted a pack of punched cards as the program to a computer and one would come back after the program had been run on the computer, maybe overnight. 6

Relationship between GT 4 GRAM and a Local Scheduler Job tions c fun GT 4 Java Container Local job GRAM control services Compute element GRAM adapter Local scheduler Client User job Various possible I Foster 7

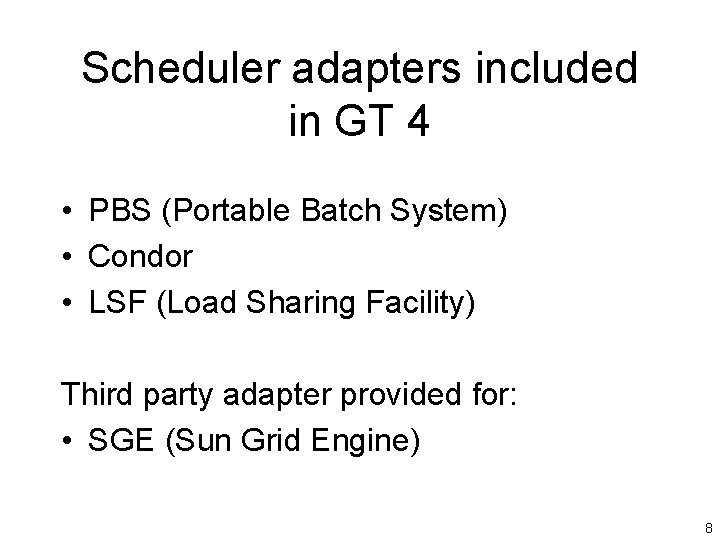

Scheduler adapters included in GT 4 • PBS (Portable Batch System) • Condor • LSF (Load Sharing Facility) Third party adapter provided for: • SGE (Sun Grid Engine) 8

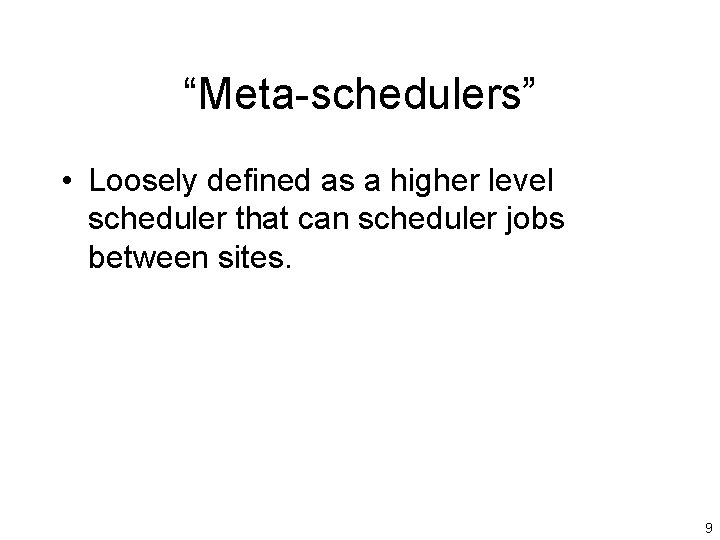

“Meta-schedulers” • Loosely defined as a higher level scheduler that can scheduler jobs between sites. 9

(Local) Scheduler Issues • Distribute job • Based on load and characteristics of machines, available disk storage, network characteristics, …. • Both globally and locally. • Runtime scheduling! • Arrange data in right place (Staging) – Data Replication and movement as needed – Data Error checking 10

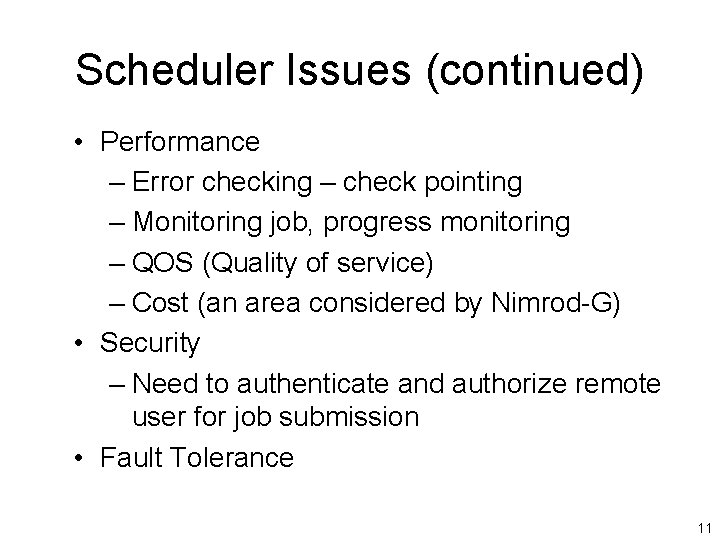

Scheduler Issues (continued) • Performance – Error checking – check pointing – Monitoring job, progress monitoring – QOS (Quality of service) – Cost (an area considered by Nimrod-G) • Security – Need to authenticate and authorize remote user for job submission • Fault Tolerance 11

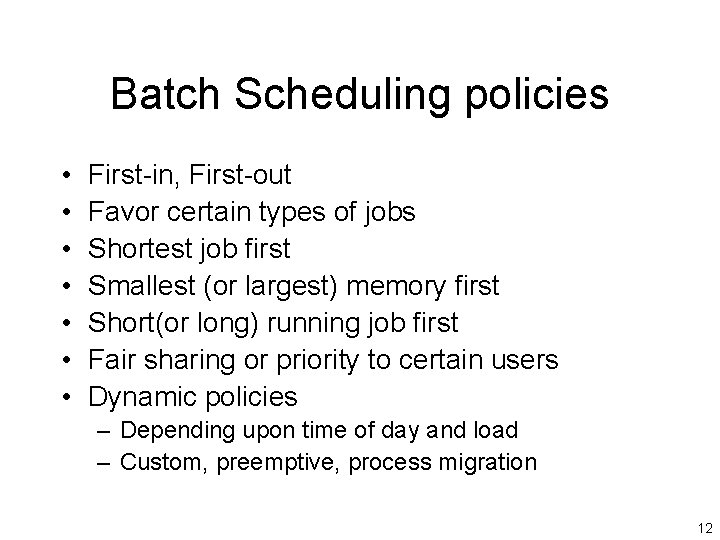

Batch Scheduling policies • • First-in, First-out Favor certain types of jobs Shortest job first Smallest (or largest) memory first Short(or long) running job first Fair sharing or priority to certain users Dynamic policies – Depending upon time of day and load – Custom, preemptive, process migration 12

Advance Reservation • Requesting actions at times in future. • “A service level agreement in which the conditions of the agreement start at some agreed-upon time in the future” [2] “The Grid 2, Blueprint for a New Computing Infrastructure, ” I. Foster and C. Kesselman editors, Morgan Kaufmann, 2004. 13

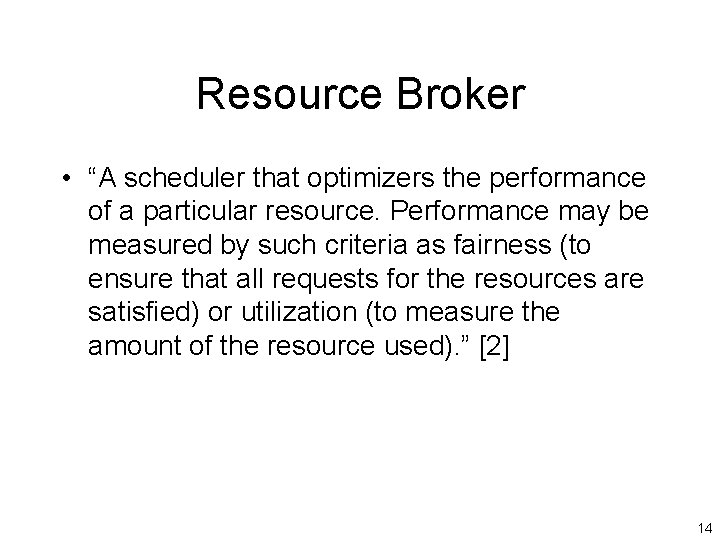

Resource Broker • “A scheduler that optimizers the performance of a particular resource. Performance may be measured by such criteria as fairness (to ensure that all requests for the resources are satisfied) or utilization (to measure the amount of the resource used). ” [2] 14

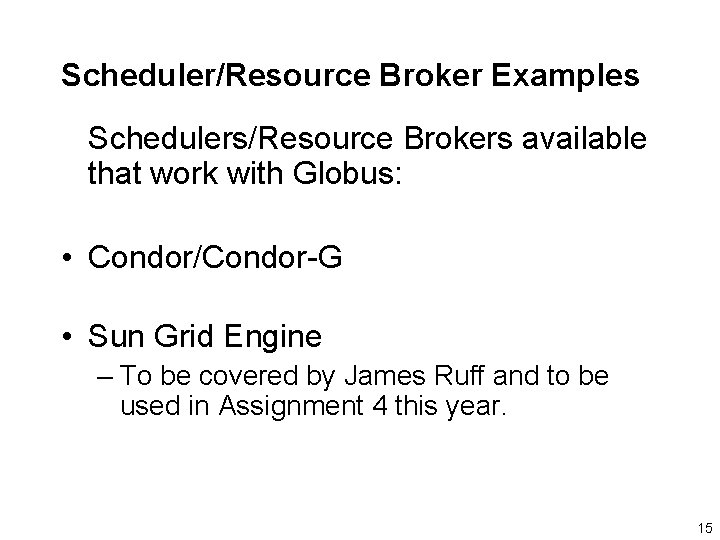

Scheduler/Resource Broker Examples Schedulers/Resource Brokers available that work with Globus: • Condor/Condor-G • Sun Grid Engine – To be covered by James Ruff and to be used in Assignment 4 this year. 15

Condor • First developed at University of Wisconsin-Madison in mid 1980’s to convert a collection of distributed workstations and clusters into a highthroughput computing facility. • Key concept - using wasted computer power of idle workstations. 16

Condor • Converts collections of distributed workstations and dedicated clusters into a distributed high-throughput computing facility. 17

Features • Include: – Resource finder – Batch queue manager – Scheduler – Checkpoint/restart – Process migration 18

Intended to complete job even if: • • • Machines crash Disk space exhausted Software not installed Machines are needed by others Machines are managed by others Machines are far away 19

Uses • Consider following scenario: – I have a simulation that takes two hours to run on my high-end computer – I need to run it 1000 times with slightly different parameters each time. – If I do this on one computer, it will take at least 2000 hours (or about 3 months) From: “Condor: What it is and why you should worry about it, ” by B. Beckles, University of Cambridge, Seminar, June 23, 2004 20

– Suppose my department has 100 PCs like mine that are mostly sitting idle overnight (say 8 hours a day). – If I could use them when their legitimate users are not using them, so that I do not inconvenience them, I could get about 800 CPU hours/day. – This is an ideal situation for Condor. • I could do my simulations in 2. 5 days. From: “Condor: What it is and why you should worry about it, ” by B. Beckles, University of Cambridge, Seminar, June 23, 2004 21

• The Condor high-throughput computing system • Condor-G agent for grid computing 22

HTCS • Distributed batch computing system – Provide large amounts of fault-tolerant computing power. • Opportunistic computing. – Effectively utilizing all resources on the network • Scavenger (but polite!) 23

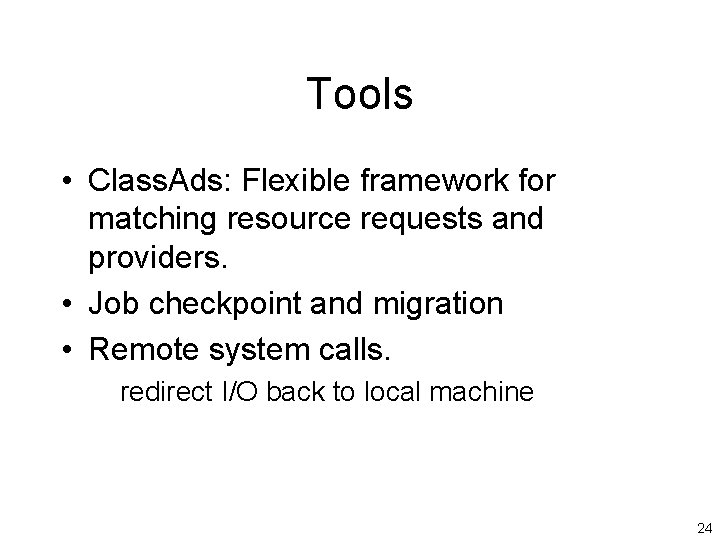

Tools • Class. Ads: Flexible framework for matching resource requests and providers. • Job checkpoint and migration • Remote system calls. redirect I/O back to local machine 24

Condor-G • Globus contributes protocols for secure inter-domain communications and standardized access to remote batch systems. • Condor provides everything else 25

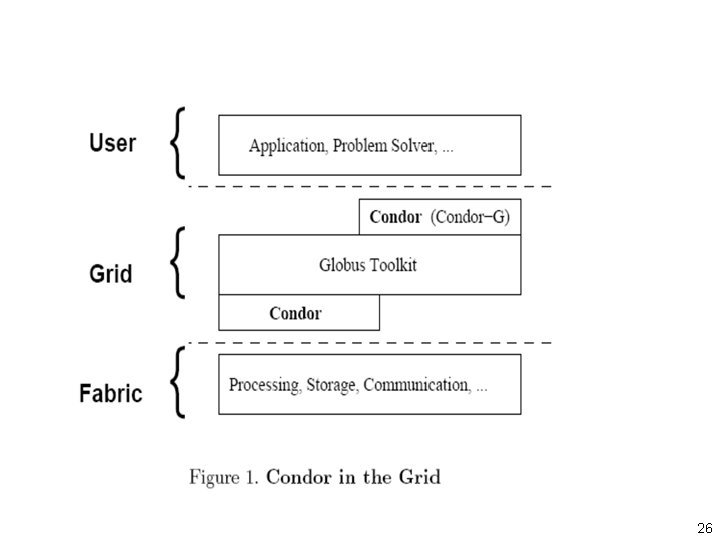

26

Condor Core Components 27

• User submits job to agent – Keeps job and finds resources willing to run them. • Agents and resources advertise themselves to a matchmaker. – E-harmony. com: 29 dimensions of compatibility. • Agent contacts resource 28

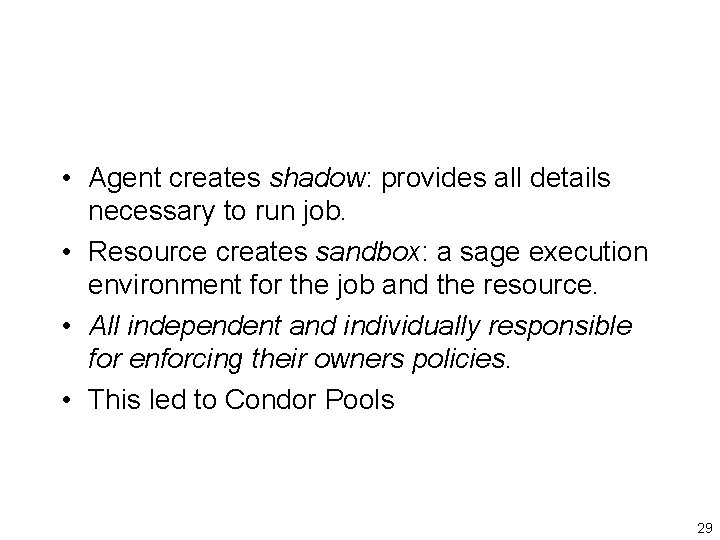

• Agent creates shadow: provides all details necessary to run job. • Resource creates sandbox: a sage execution environment for the job and the resource. • All independent and individually responsible for enforcing their owners policies. • This led to Condor Pools 29

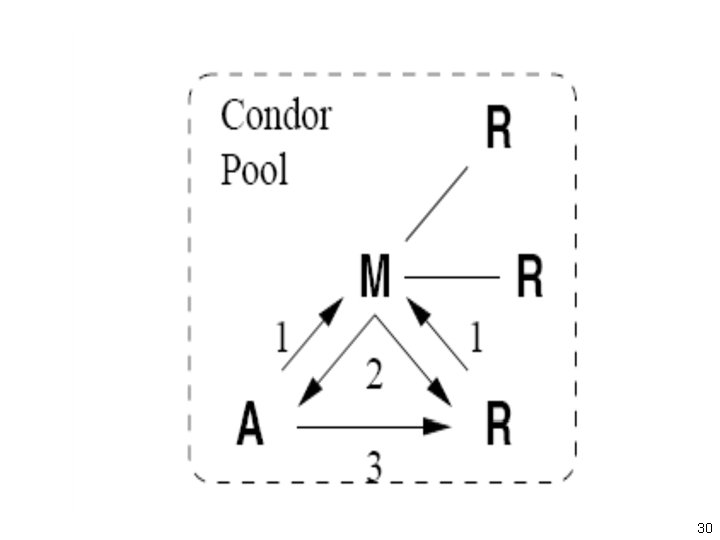

30

Direct Flocking (Multiple pools) 31

Globus • To develop worldwide Grid, needed uniform interface for batch execution. • Grid Resource Access and Management protocol (GRAM). – Provides abstraction for remote process queuing and execution (with security and Grid. FTP). • Globus provides a server that speaks GRAM, converts its commands into a form understood by local schedulers 32

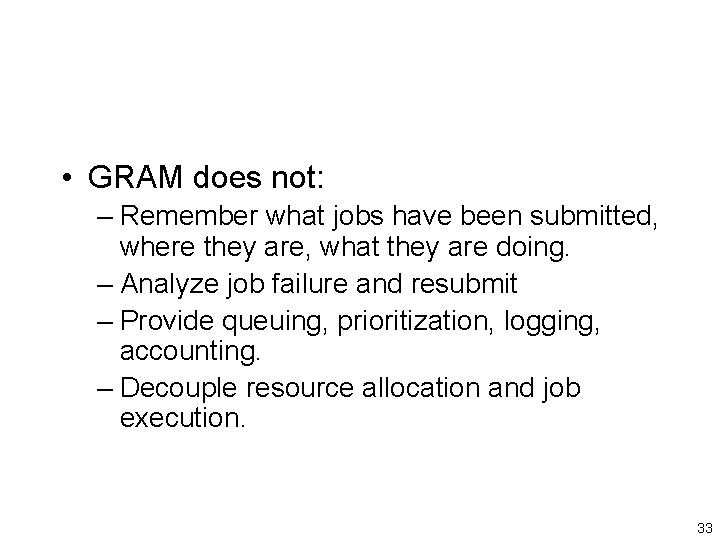

• GRAM does not: – Remember what jobs have been submitted, where they are, what they are doing. – Analyze job failure and resubmit – Provide queuing, prioritization, logging, accounting. – Decouple resource allocation and job execution. 33

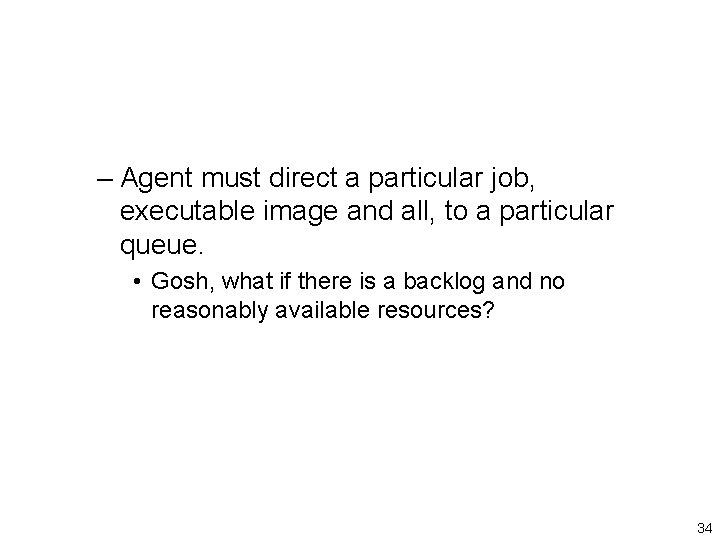

– Agent must direct a particular job, executable image and all, to a particular queue. • Gosh, what if there is a backlog and no reasonably available resources? 34

• Condor adapted standard agent to speak GRAM and uses own middleware. • Gliding 35

36

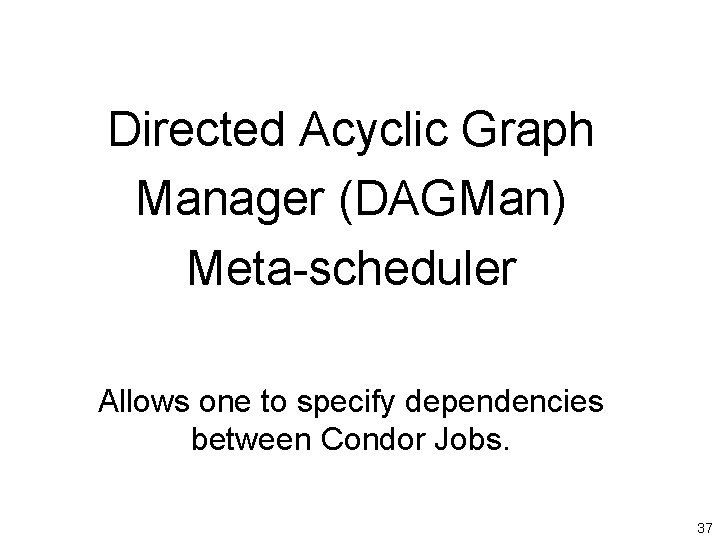

Directed Acyclic Graph Manager (DAGMan) Meta-scheduler Allows one to specify dependencies between Condor Jobs. 37

Example “Do not run Job B until Job A completed successfully” Especially important to jobs working together (as in Grid computing). 38

Directed Acyclic Graph (DAG) • A data structure used to represent dependencies. • Directed graph. • No cycles. • Each job is a node in the DAG. • Each node can have any number of parents and children as long as there are no loops (Acyclic graph). 39

DAG Do job A. Do jobs B and C after job A finished Do job D after both jobs B and C finished. Job A Job B Job C Job D 40

Defining a DAG • Defined by a. dag file, listing each of the nodes and their dependencies. • Each “job” statement has an abstract job name (say A) and a file (say a. condor) • PARENT-CHILD statement describes relationship between two or more jobs • Other statements available. 41

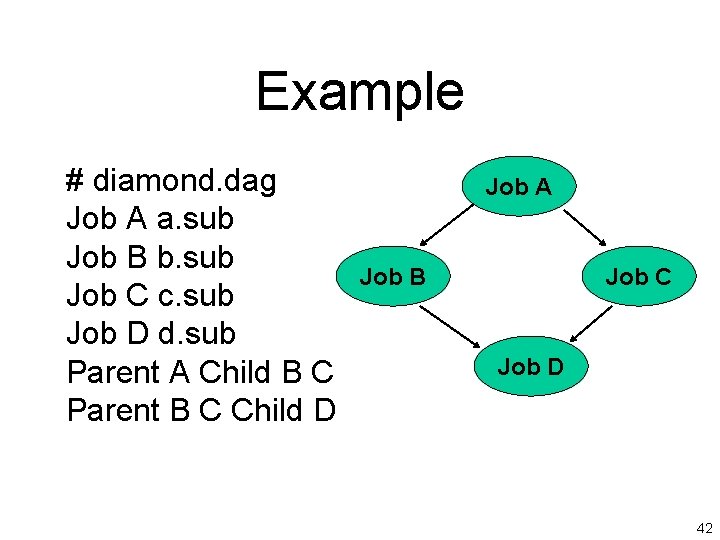

Example # diamond. dag Job A a. sub Job B b. sub Job C c. sub Job D d. sub Parent A Child B C Parent B C Child D Job A Job B Job C Job D 42

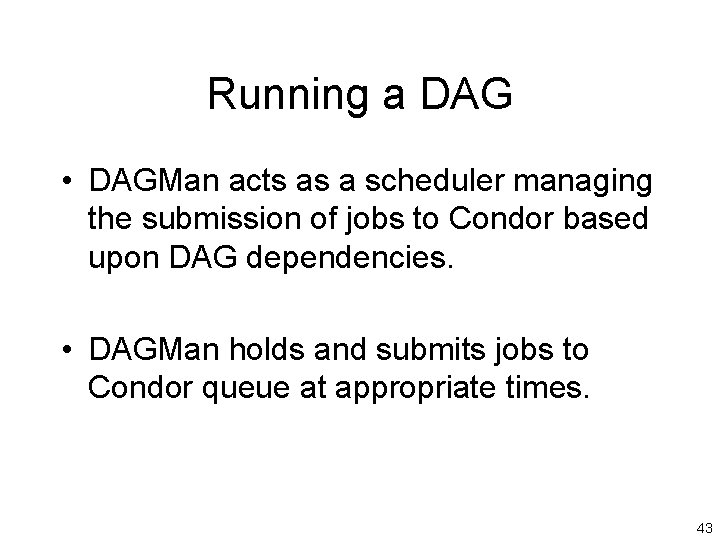

Running a DAG • DAGMan acts as a scheduler managing the submission of jobs to Condor based upon DAG dependencies. • DAGMan holds and submits jobs to Condor queue at appropriate times. 43

Job Failures • DAGMan continues until it cannot make progress and then creates a rescue file holding current state of DAG. • When failed job ready to re-run, rescue file used to restore prior state of DAG. 44

Summary of Key Condor Features • High throughput computing using an opportunitistic environment. • Provides a mechanisms for running jobs on remote machines. • Matchmaking • Checkpointing • DAG scheduling 45
