SCCM 2016 1511 1610 Overview SCCM 2016 R
- Slides: 47
SCCM 2016 (1511 -1610) Overview
SCCM 2016 R 2 Administering and configuring System Center Configuration Manager 2016 R 2 SP 1 Topics: • Configuring and deploying SCCM 2016 R 2 • Data Querying using WQL and gathering collections • Configuring Software and Hardware Inventory, asset intelligence and software metering.
Overview of the System Center 2016 Environment Configuration Manager Manage clients on the organizational network and the Internet Single admin console
Overview of System Center 2016 R 2 Asset management Change management Administrative features Hardware and Software Inventory Application Management Compliance Settings Role-Based Administration Asset Intelligence Software Update Management Power Management Remote Management Client Health Reporting Endpoint Protection Monitoring Software Metering Operating System Deployment Content Management
SCCM Newer Features • Support for clients that run Windows 8, Windows 8. 1, Windows RT, Windows 8. 1 RT, Windows 10, i. OS, Mac OS X, and Android • Support for Windows Server 2016 and Windows Server 2016 R 2 to host site system roles • Support for SQL Server 2016 to host Configuration Manager databases • Support for merging of System Center 2016 R 2 Configuration Manager hierarchies • New site system roles for the certificate registration point • Bulk reassignment of clients to alternate primary sites • Configuration Manager Windows Power. Shell cmdlets
Overview of the SCCM Hierarchy Central administration site Primary site SQL database Secondary site SQL database Primary site SQL database • Each site is identified by a unique three-character code • The central administration site is for reporting and management only • Primary sites can be parents of secondary sites only • Secondary sites now have their own database
Site System Roles in Configuration Manager • Default site system roles are installed when Configuration Manager setup is run • Optional site system roles are added post-installation to support specific features Default site system roles • Site server Optional site system roles • Certificate registration point • Site system • Distribution point • Component server • Management point • Site database server • Reporting services point • SMS Provider: does not display in the console • Software update point • State migration point
What Is a Central Administration Site? A central administration site: • Is required to use a multi-site hierarchy • Is used for administration and reporting • Requires an SQL database • Does not process client data • Does not support client assignment • Has a limited number of site system roles
What Is a Primary Site? • To use Configuration Manager, you must have at least one primary site • Primary sites: • Can be in a child relationship to a central administration site, which can only be set during installation • Cannot be a child to another primary site • Manage clients in well-connected networks • Require a SQL Server database • Replicate their data to a central administration site if part of a hierarchy • Support client assignment • Consist of one or more systems that host various site system roles
What Is a Secondary Site? A secondary site: • Is optional • Must be in a child relationship to a primary site, which is set in the secondary site during installation • Is used when you need to control network bandwidth • Requires SQL Server Express or a SQL Server database to store configuration information • Replicates its collected client data to its parent site by using file-based replication • Does not support client assignment • Consists of one or more systems that host various site system roles
Small- to Medium-Sized Organization Small- to medium-sized organizations often use a single primary site that includes: • Mandatory: • Site server • Site database • Management point • Distribution point • Optional: • Reporting services point • Software update point • Fallback status point • Other roles as required Single Server with All Site Roles
Medium- to Large-Sized Organization Medium- to large-sized organizations use primary and secondary sites Site Server • A primary site typically includes: • Site server • Site database • Management point • Distribution point • Reporting services point • Software update point • Fallback status point • Other roles as required • Secondary sites include: • Management point • Distribution point Site Database Software Update Point Secondary Site Server Remote Distribution Point
Configuration Manager in a Global Organization Example of a complex hierarchy implementation: Central Administration Site Primary Sites Secondary Sites Remote Distribution Point
How Data Flows and Replicates in a Hierarchy Central Administration Site Primary Site Secondary Site Global data Site data • • • • • • Alert rules Client discovery Collections rules and count Configuration items metadata Deployments Operating system images Package metadata Program metadata Site control file Site security objects Software updates metadata System resource list Global Data Site Data Alert messages Asset intelligence CAL tracking Client Health data Client Health history Collection membership results Component and Site Status Summarizers Hardware inventory Software distribution status details Software inventory and metering Software updates site data Status messages
Considerations Install a stand-alone primary site when you have: • A centralized administration approach • No more than 100, 000 clients Install secondary sites when you want: • To offload the client communication from the primary site • To provide tiered content routing between secondary sites with the same parent Install multiple primary sites in a hierarchy when you have: • More clients than can be managed using a single primary site • Multiple administrative teams that require local connectivity for the Configuration Manager consoles • A large number of remote locations • Export regulations on content
Planning a Multiple-Site Hierarchy A central administration site: • Supports up to 25 child primary sites • Supports up to 400, 000 clients in the hierarchy when using SQL Server Enterprise for the site database • Supports up to 50, 000 clients in the hierarchy when using SQL Server Standard for the site database A primary site: • • • Supports Supports up up up to to to 250 secondary sites 250 distribution points 10 management points 50, 000 clients when SQL Server is on the site server 100, 000 clients when SQL Server is on a separate computer A secondary site: • Supports up to 250 distribution points • Supports a single management point located on site server • Supports communications from up to 5, 000 clients
Overview of the Administration Tools • Configuration Manager console: • Primary method of managing a Configuration Manager deployment • You can install it on an administrator’s client computer • Configuration Manager client: • Trigger updates and retrieve information about individual client computers • Windows Power. Shell Configuration Manager cmdlets: • Enable you to script Configuration Manager activities • Orchestrator runbooks: • Enable using runbook automation to perform Configuration Manager tasks
Using the Configuration Manager Console Workspac es Navigation Pane Ribbon Results Pane Preview Pane
Overview of Client Installation Methods • The client deployment installation methods include: • • Client push installation Group Policy installation Software update point installation Manual installation Logon script installation Upgrade installation (software deployment) Operating system deployment Computer imaging
Device Requirements to Support the Client Agent Supported Windows-based clients include: • Windows XP SP 3, Windows XP x 64 SP 2, Windows Server 2003 SP 2, and newer operating systems Prerequisite software includes: • Windows Installer version 3. 1. 4000. 2435 or newer • Installation process installs these additional prerequisites before client installation: • • • Windows Update Agent Microsoft Core XML Services Microsoft Visual C++ Redistributable Microsoft Policy Platform Microsoft Silverlight Microsoft. NET Framework 4 Client
Considerations for Virtual Desktop Infrastructure • RDS • Configuration Manager client agent is installed only once on the Remote Desktop Session Host • All features are supported • Private virtual machines • Configuration Manager client agent is installed in each virtual machine • All features are supported • Pooled virtual machines • Configuration Manager client agent is installed on each virtual machine • Software inventory, hardware inventory, and software metering data may not be relevant
Supporting Internet-Based Clients • Considerations for supporting Internet-based clients: • • • Internet-based clients require a PKI Microsoft Certificate Services certificate templates can simplify certificate enrollment All systems involved must trust the root CA Internet-facing roles require a certificate Client systems use a certificate for authentication Primary site PKI infrastructure Root CA HTTPS connection Client system on Internet with PKI-issued client certificate Secure web services All utilized IIS-based site services except fallback status point (not an HTTPS service) without PKI-issued server certificate Issuing CA
Supporting Mobile Devices • Supported mobile devices include: • Windows Phone 8, Windows 10, Windows RT, and i. OS devices • Windows Mobile 6. 0 or newer • Windows CE 5. 0 or newer • Nokia Symbian Belle • Limited support for devices that use Active. Sync • Android • Client certificates are required on mobile devices for full support • You can support and manage mobile devices by using: • Windows Intune connector • Configuration Manager client agent • Legacy Configuration Manager client agent • Exchange connector
Supporting Workgroup-based Clients The prerequisites that workgroup-based computers must meet include: • The Configuration Manager client agent must be installed manually on each workgroup-based computer • A network access account must be configured The features that workgroup-based computers do not support include: • Client push installation • Targeting users for application deployment • Global roaming • Using AD DS to locate site systems • Active Directory discovery
Supporting Mac Computers The following features are supported in Mac OS X computers: • Hardware inventory: • Viewed in Resource Explorer • Used to create queries, collections, and reports • Software deployment. Deploy software packages in the following formats: • Mac OS Installer Package (. PKG) • Mac OS X Application (. APP) • Apple Disk Image (. DMG) • Meta Package File (. MPKG) • Compliance settings. Configuration Manager supports: • . plist files • Shell scripts
Supporting Linux-based and UNIX-based Computers The supported operating systems include: • Red Hat Enterprise, Solaris, SUSE Linux Enterprise Server, Debian, Cent. OS, Ubuntu Server, Oracle Linux • IBM AIX, HP-UX Linux-based and UNIX-based computers support the following features: • Hardware inventory: • Viewed in Resource Explorer • Used to create queries, collections, and reports • Software deployment: • User interaction is not supported • Maintenance windows are fully supported
Support Structure for Client Support
Backend Infrastructure Diagram
Data Query • Data Queries extract information related to resource discovery or inventory data. • In general the primary purpose of Data Queries are to build collections.
Status Message Query has a very specific use. The site status and component status nodes show status messages related to a very specific site system or component. Although there are some filtering options these may not be sufficient when troubleshooting an issue. In such case you can use the status message queries to create custom queries for status messages including status messages from client. The primary purpose of status message queries are to locate stored status messages.
Querying Elements New Logical Operators Class Group Indicators Delete Required Name Group Properties Ungroup Not Attribute Required Sort Change Object Type Operator Attribute classes and attributes are required, and if not specified, all available attributes display Optional query elements are used to narrow the scope of a query Every query requires a unique name, and System Resource is the default object type
Managing Data Queries To create a data query: 1 Complete the settings on the General page of the Create Query Wizard 2 Import an existing query or build a query from scratch 3 Edit the query statement 4 Edit the General tab of the query statement properties to specify the criteria to display 5 Add search criterion on the Criteria tab 6 When creating criterion, use the Values button to display the related data currently stored in the database
What Is Inventory Collection? Inventory collection is: • The process of gathering information that describes the hardware and software installed on a client computer • Configured by using client settings for the hierarchy or assigned on a percollection basis Hardware inventory data Software inventory data Asset intelligence data
Management Tasks That Use Inventory Data Uses of hardware and software inventory data include: • Building queries based upon hardware configuration or installed software • Building collections on the basis of queried inventory results • Creating reports to display hardware configuration or installed software details • Maintaining corporate standards • Troubleshooting client problems • Collecting files (software inventory only)
The Process of Inventory Collection View inventory information at a site after its database is updated by this process: 1. Client gets settings and collects inventory 2. Deliver data to management point 3. 4. 5. Deliver data to site server Site Server Site Database Server Update site database Replicate to the central administration site Management Point Client
How Is Hardware Inventory Collected? • A hardware inventory obtains information by querying: WMI database on Windows client computers • CMI database named OMI on Linux, UNIX, and Mac OS X • • The hardware inventory agent collects: An initial full hardware inventory • Subsequent delta inventories •
Collecting Hardware Inventory
How Is Software Inventory Collected? The software inventory process: • Collects data directly from files by reading the file header information • Collects file system details even from unknown files that may not have information in their file header • Collects copies of files that you specify and stores them on the site server • Enables you to view collected inventory and file information by using Resource Explorer, or view software inventory information in reports
Software Inventory File Types • To configure new software inventory rules: • Create a new inventory rule • Type the file name or variable • Specify the location • Specify whether to exclude encrypted and compressed files • Specify whether to exclude files in the Windows directory • Specify the reporting detail for all rules
Overview of Asset Intelligence: • Extends hardware inventory • License reporting • Supports ISO/IEC 19770 -2 tags • Collect information about App-V apps
Benefits of Asset Intelligence provides the following benefits over software inventory: • More accurate representation of software titles present on managed computers. • Information about the license usage for specific products, rather than just information about the software itself. • Asset intelligence retrieves information about installed software through the Hardware Inventory Client Agent.
The Asset Intelligence Catalog Asset Intelligence catalog features: • Includes more than 500, 000 software titles • Enables import of software license information • Provides information about hardware requirements for some titles • Is updated periodically through System Center Online

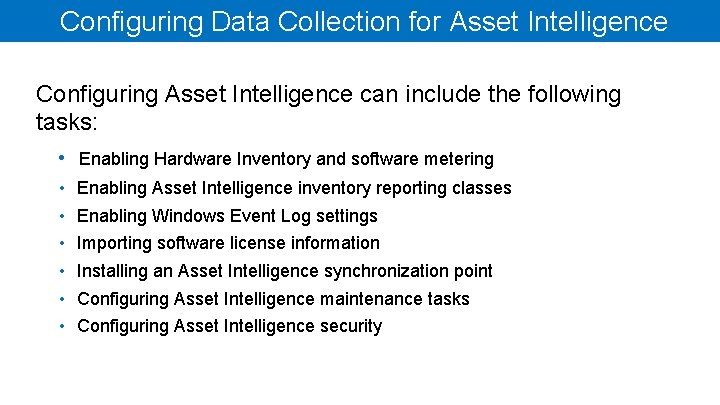

Configuring Data Collection for Asset Intelligence Configuring Asset Intelligence can include the following tasks: • Enabling Hardware Inventory and software metering • • • Enabling Asset Intelligence inventory reporting classes Enabling Windows Event Log settings Importing software license information Installing an Asset Intelligence synchronization point Configuring Asset Intelligence maintenance tasks Configuring Asset Intelligence security
Overview of Software Metering • Software metering is the process of gathering detailed data on program usage from client computers in a Configuration Manager site • Types of data collected: • Program usage information • File information • Program information
How Software Metering Works Monitored program Software 1 Metering Agent 3 2 4 When you enable the Software Metering Agent, it: Site 1 Collects data each time a monitored program runs and terminates Server 2 Uploads data to the management point on a scheduled basis 3 Forwards data to the site server 4 Adds data to the site database
Configuring the Software Metering Agent and Rules To create a software metering rule: 1 Navigate to the Software Metering node 2 Create a new software metering rule 3 Provide relevant information for the program that you want to meter 4 Apply the rule to other sites if applicable
END Abu Zobayer (MCT) Updated by Eddie Jackson
