Scatterplots Chapter 7 Definition and components Describing Correlation

Scatterplots Chapter 7 Definition and components Describing Correlation vs. Association

I. Scatterplots • A graph that plots the relationship between two quantitative variables. • Used to see if a relationship exists between the two variables.

I. Scatterplots • Explanatory Variable – x- value – Predictor – Input – Independent • Response Variable – Y-value – Output – Dependent

II. Creating a Scatterplot • Enter all x-variables in L 1, and all y-variables in L 2. • Turn on Statplot and go to • Use Zoom. Stat to obtain graph. • Use Trace to get specific points • Scale and label axes. • I: Math DepartmentTI -84 EmulatorWabbitemu. exe

Does fast driving waste fuel? Speed (km/h) Fuel used (L/100 km) 10 21. 00 90 7. 57 20 13. 00 100 8. 27 30 10. 00 110 9. 03 40 8. 00 120 9. 87 50 7. 00 130 10. 79 60 5. 90 140 11. 77 70 6. 30 150 12. 83 80 6. 95

• Make scatterplot in calculator. • Transfer information onto your paper, make sure to add labels and scale for x & y-axis.

Now try on your own. Either by hand or in the calculator, create a scatterplot of the data on Age at First Word vs. Gesell Score. A score of 100 is considered to be average.

III. Describing Scatterplots • Direction – Positive – Negative • Form – – Linear Exp. Curve Quadratic curve none

III. Describing Scatterplots • Strength – Strong – Weak • Unusual Features – Outliers – Change in form or strength.

Example 2 • Describe the following Scatterplots (direction, form, strength, unusual features)

Describe the scatterplot you made in the fuel efficiency example.

Now try on your own. Now describe the relationship between Age at First Word vs. Gesell Score on your worksheet.

IV. Correlation coefficient • Measures the strength of the linear association between two quantitative variables. • In order to use this number, the data must meet the following conditions. – Quantitative Variables Condition – Straight Enough Condition – Outlier Condition (calculate with & without outlier)

IV. Correlation Coefficient • To calculate correlation: – Enter data into L 1 & L 2 – Go to Catalog (2 nd , 0) and choose Diagnostics. ON. – STAT, CALC, Lin. Reg(ax+b). – The correlation number is the last entry r= • Calculate the correlation coefficient of your speed vs fuel example. • Is it appropriate to use correlation for this example? Why or Why not?

IV. Correlation Coefficient • Correlation gives strength and direction. – Closer to -1 indicates perfect Negative linear association. – Closer to +1 indicates perfect Positive linear association. – Closer to 0 indicates NO Linear association.

Now try on your own. Calculate the correlation coefficient for the relationship between Age at First Word vs. Gesell Score on your worksheet. Then answer question # 4 on the worksheet.

Pick up SEC Football Worksheet. This is due at the end of the class.

What do you think the correlation coefficients are for the following?

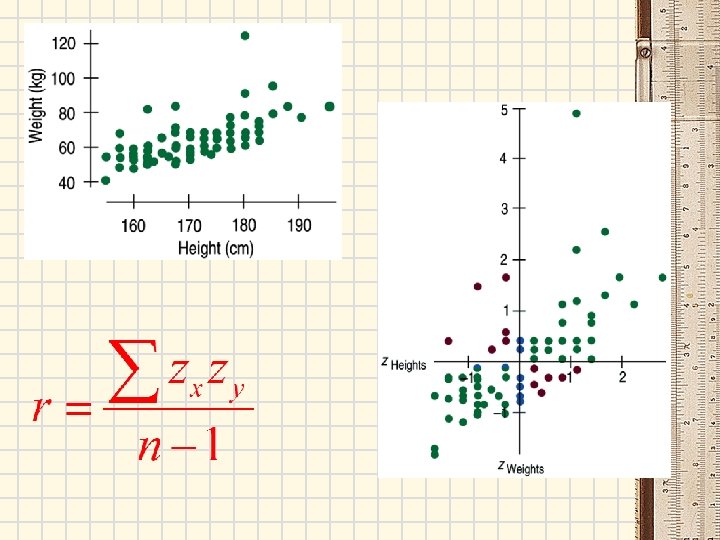

IV. Correlation Coefficient • Has no units, based on z-scores • Are unaffected by changes in center or scale. • Can be greatly affected by outliers.

V. Correlation vs Association Correlation • Indicates that there is a relationship between the two variables (any form). • Measures the strength of a LINEAR association. Get out a whiteboard and marker

Examples • Sketch what you think the scatterplot would look like, then describe the association. – Drug dose vs. degree of pain relief. – Calories consumed and weight loss. – Hours of sleep and score on a test. – Shoe size and grade point average – Age of car and money spent on repairs

What’s wrong with these statements? • There is a high correlation between the gender of American workers and their income. • We found a high correlation (r=1. 09) between students’ ratings of faculty teaching and ratings made by other faculty members. • The correlation between planting rate and yield of corn was found to be r= 0. 23 bushel
