SCATTER PLOTS AND LINES OF BEST FIT Bivariate

SCATTER PLOTS AND LINES OF BEST FIT

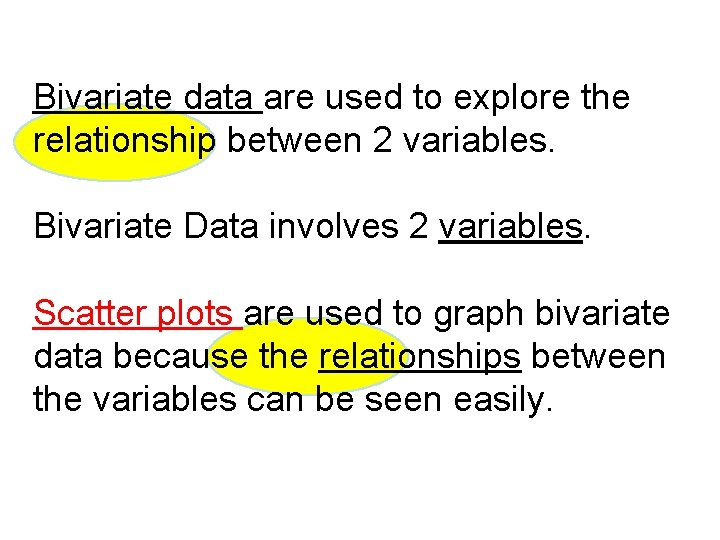

Bivariate data are used to explore the relationship between 2 variables. Bivariate Data involves 2 variables. Scatter plots are used to graph bivariate data because the relationships between the variables can be seen easily.

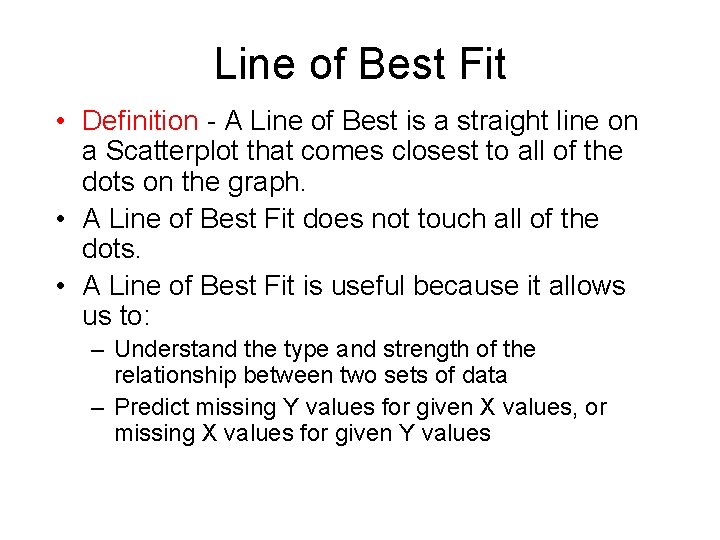

Line of Best Fit • Definition - A Line of Best is a straight line on a Scatterplot that comes closest to all of the dots on the graph. • A Line of Best Fit does not touch all of the dots. • A Line of Best Fit is useful because it allows us to: – Understand the type and strength of the relationship between two sets of data – Predict missing Y values for given X values, or missing X values for given Y values

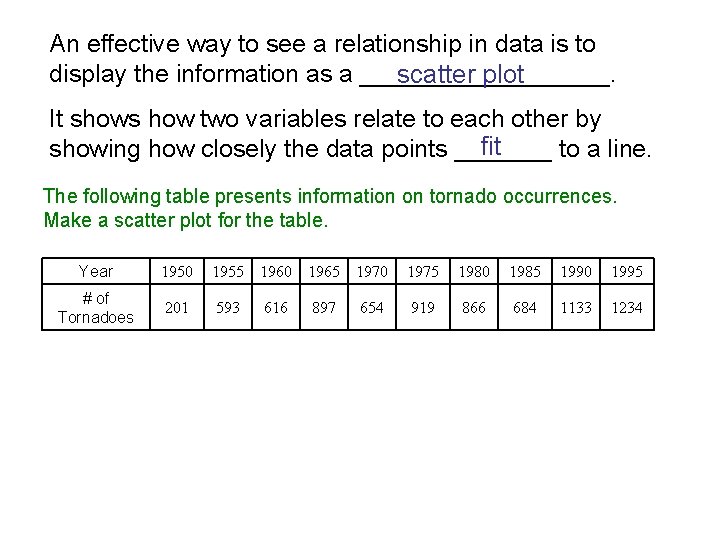

An effective way to see a relationship in data is to display the information as a _________. scatter plot It shows how two variables relate to each other by fit showing how closely the data points _______ to a line. The following table presents information on tornado occurrences. Make a scatter plot for the table. Year 1950 1955 1960 1965 1970 1975 1980 1985 1990 1995 # of Tornadoes 201 593 897 654 919 866 684 1133 1234 616

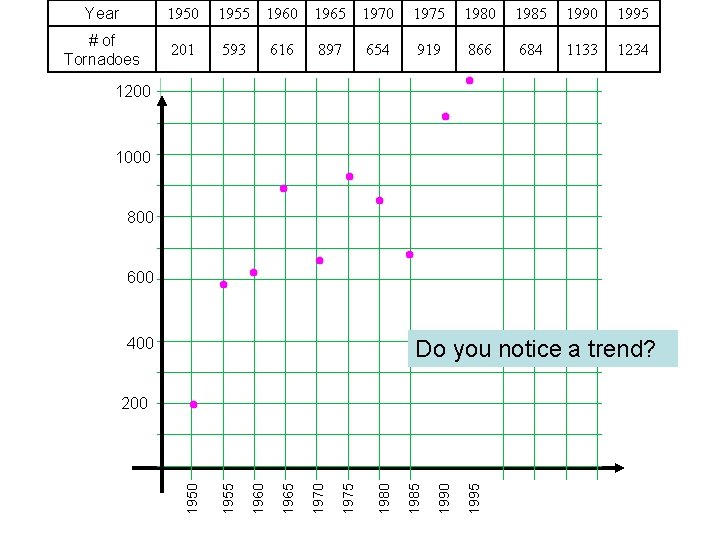

Year 1950 1955 1960 1965 1970 1975 1980 1985 1990 1995 # of Tornadoes 201 593 897 654 919 866 684 1133 1234 616 1200 1000 800 600 400 Do you notice a trend? 1995 1990 1985 1980 1975 1970 1965 1960 1955 1950 200

Scatter plots provide a convenient way to determine correlation exists between two variables. whether a ______ positive A _____ correlation occurs when both variables increase. negative A ______ correlation occurs when one variable increases and the other variable decreases. If the data points are randomly scattered there is little _______ or no correlation.

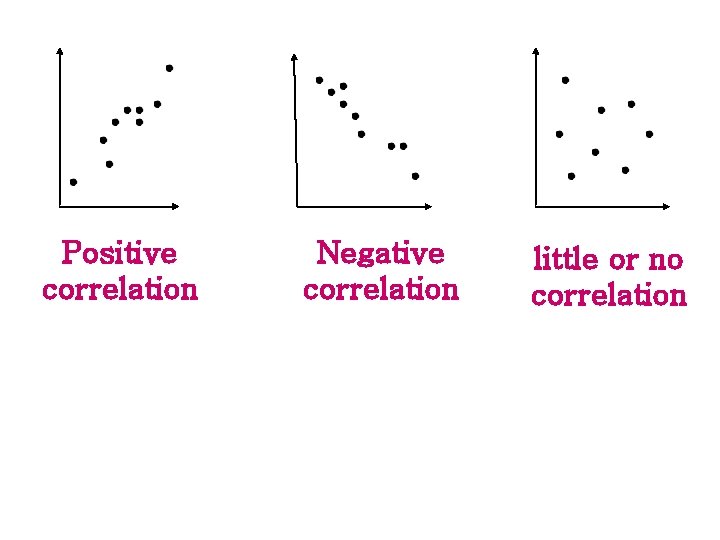

Positive correlation Negative correlation little or no correlation

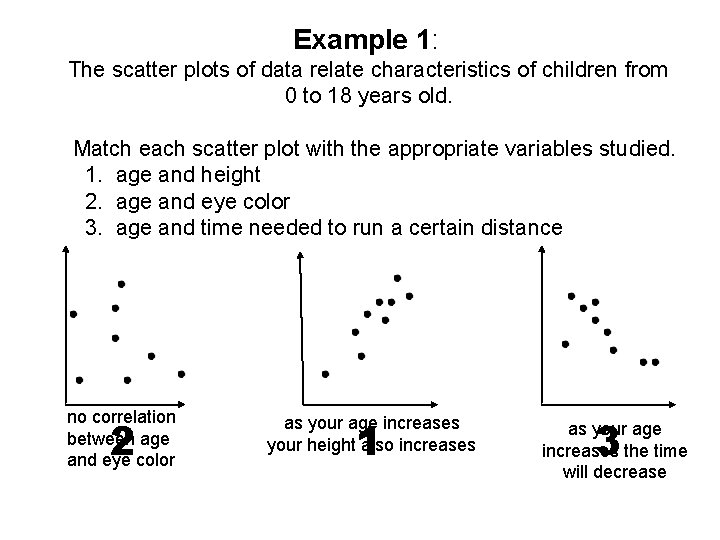

Example 1: The scatter plots of data relate characteristics of children from 0 to 18 years old. Match each scatter plot with the appropriate variables studied. 1. age and height 2. age and eye color 3. age and time needed to run a certain distance no correlation between age and eye color 2 1 as your age increases your height also increases 3 as your age increases the time will decrease

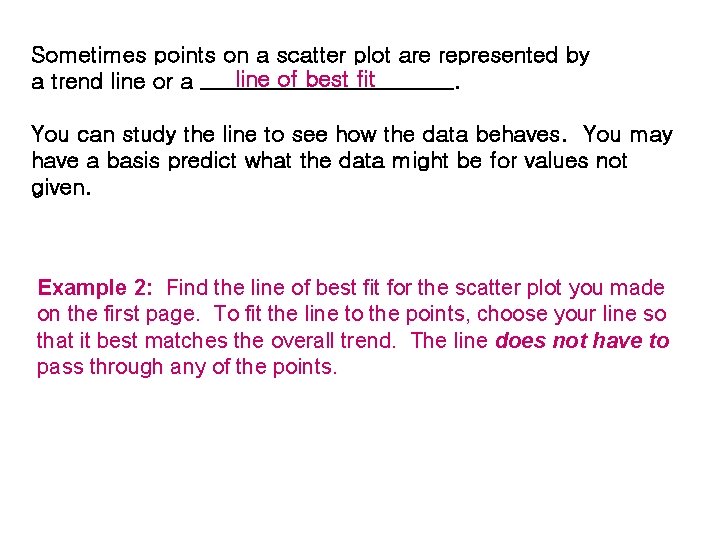

Sometimes points on a scatter plot are represented by line of best fit a trend line or a ____________. You can study the line to see how the data behaves. You may have a basis predict what the data might be for values not given. Example 2: Find the line of best fit for the scatter plot you made on the first page. To fit the line to the points, choose your line so that it best matches the overall trend. The line does not have to pass through any of the points.

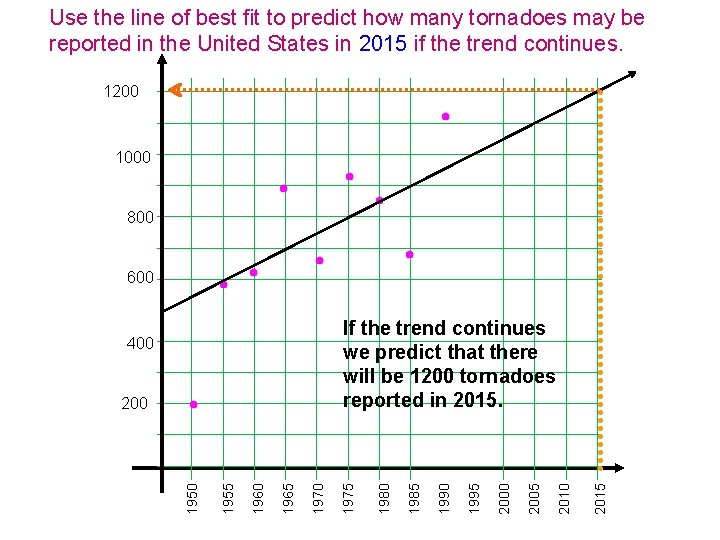

Use the line of best fit to predict how many tornadoes may be reported in the United States in 2015 if the trend continues. 1200 1000 800 600 2015 2010 2005 2000 1995 1990 1985 1970 1965 1960 1955 1950 200 1980 400 1975 If the trend continues we predict that there will be 1200 tornadoes reported in 2015.

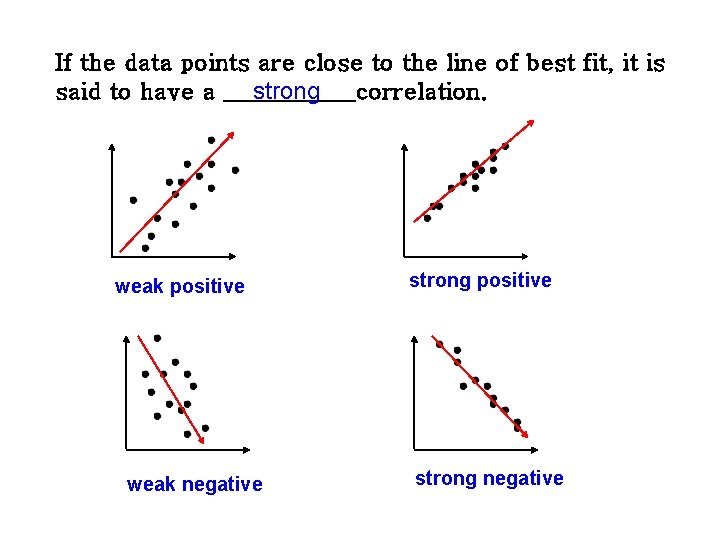

If the data points are close to the line of best fit, it is strong said to have a ______correlation. weak positive weak negative strong positive strong negative

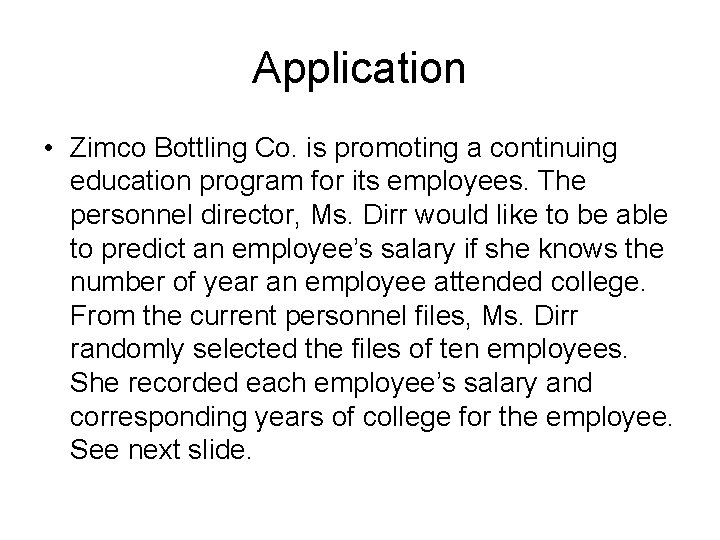

Application • Zimco Bottling Co. is promoting a continuing education program for its employees. The personnel director, Ms. Dirr would like to be able to predict an employee’s salary if she knows the number of year an employee attended college. From the current personnel files, Ms. Dirr randomly selected the files of ten employees. She recorded each employee’s salary and corresponding years of college for the employee. See next slide.

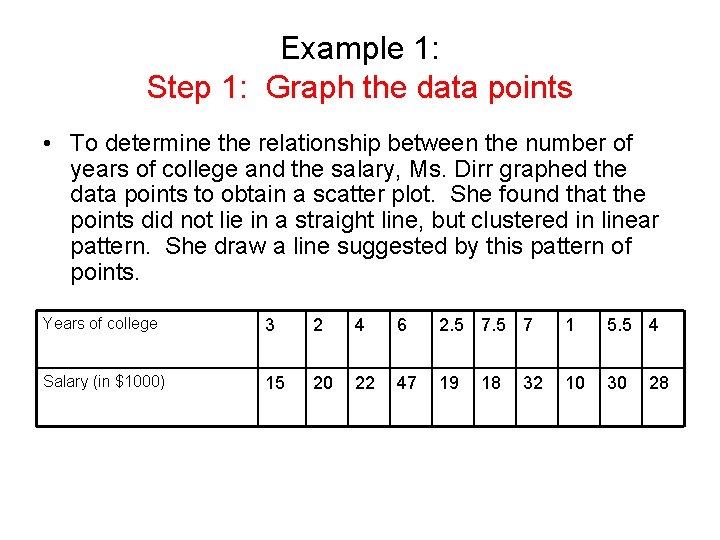

Example 1: Step 1: Graph the data points • To determine the relationship between the number of years of college and the salary, Ms. Dirr graphed the data points to obtain a scatter plot. She found that the points did not lie in a straight line, but clustered in linear pattern. She draw a line suggested by this pattern of points. Years of college 3 2 4 6 2. 5 7 1 5. 5 4 Salary (in $1000) 15 20 22 47 19 10 30 18 32 28

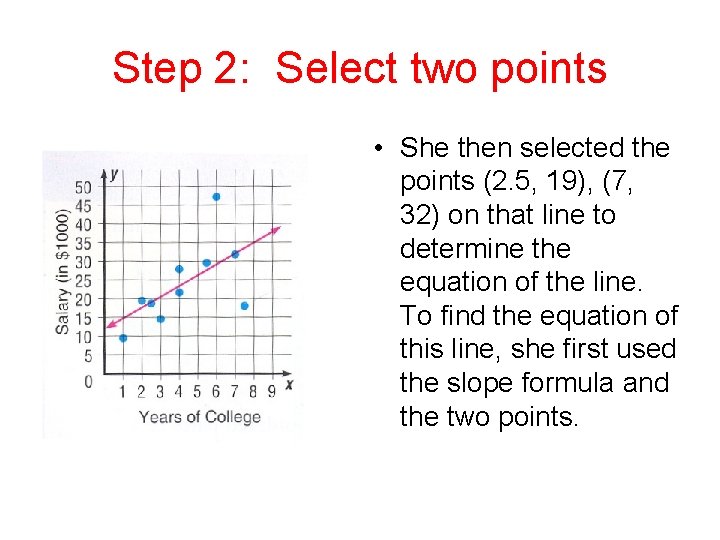

Step 2: Select two points • She then selected the points (2. 5, 19), (7, 32) on that line to determine the equation of the line. To find the equation of this line, she first used the slope formula and the two points.

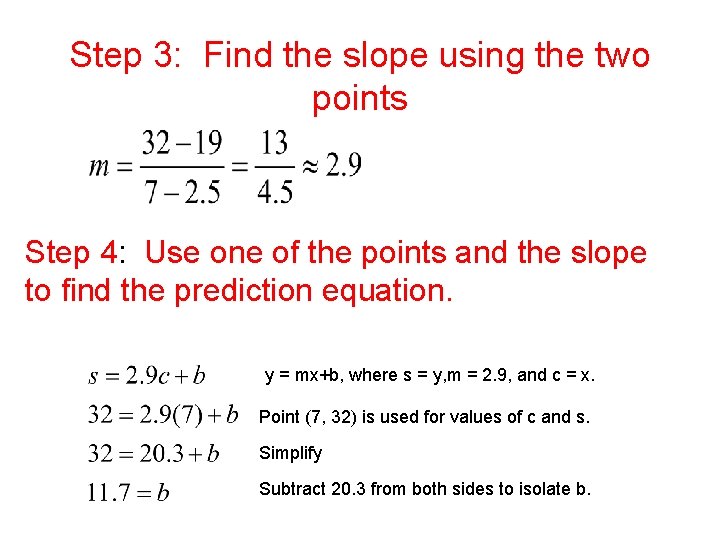

Step 3: Find the slope using the two points Step 4: Use one of the points and the slope to find the prediction equation. y = mx+b, where s = y, m = 2. 9, and c = x. Point (7, 32) is used for values of c and s. Simplify Subtract 20. 3 from both sides to isolate b.

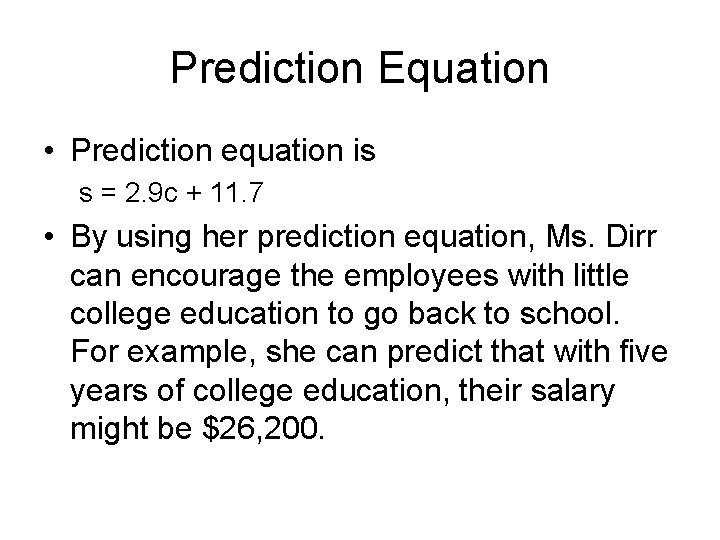

Prediction Equation • Prediction equation is s = 2. 9 c + 11. 7 • By using her prediction equation, Ms. Dirr can encourage the employees with little college education to go back to school. For example, she can predict that with five years of college education, their salary might be $26, 200.
