Scanning Probe Microscopy Using Quartz Crystal Resonator Yongho Seo Wonho Jhe School of Physics and Center for Near-field Atom-photon technology, Seoul Nation University in South Korea Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

QCRs as a Force Sensor AT-cut QCR Z-cut trident QCR Z-cut Tuning fork Low Frequency (32 k. Hz) Flexural Mode k = 103 - 104 N/m High force sensitivity High Frequency (rf) Thickness Shear k = 105 - 106 N/m High Speed High Frequency (1 MHz) Extensional mode k = 105 - 106 N/m High resolution Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

High Speed NSOM -Shear mode - 2 MHz dithering frequency - make a hole to insert optical fiber tip - easy to replace tip - increased the stability - high Q-value > 103 Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Fastest Scanning NSOM Image Topography of CD Optical image of Grating Total time : 20 s Total time : 0. 5 s 7 x 7 mm 2 Y. Seo, et. al, Appl. Phys. Lett. 77 4274 (2000). Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Continuous Images using High Speed Shear Force Microscope Slowly diffusing micro-spheres in water 9630 min. 12 min Scanning time 25 s, 5 x 4 mm 2 Y. Seo and W. Jhe, Rev. Sci. Instrum. 73, 2057 (2002) Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Tuning Fork Based Electrostatic force microscopy -Ferroelectrics -surface charge in Semiconductor f = 32. 768 KHz k = 1300 N/m L = 2. 2 mm, t = 190 mm, w = 100 mm k = 1300 N/m. Q = 1800, f = 32 k. Hz Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Force Sensitivity of Quartz Tuning Fork minimum detectable force = (k/Qf) 1/2 Si Cantilever Quartz Tuning Fork f = 10 - 100 k. Hz k = 1 - 100 N/m f = 10 - 100 k. Hz k = 103 - 105 N/m Q = 102 - 103 ~ 10 nm dithering Q = 103 - 105 < 1 nm dithering Lift mode • Long range electrostatic force • Short range shear force • keep constant gap between tip and sample (~10 nm) • to avoid the strong short range topographic contrast Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Tip Manufacture Electrochemical Etching - Co or Ni wire H 3 PO 4 Pt Co, Ni H 3 PO 4 D = 100 mm Creative Research Initiatives 10 mm Seoul National University Center for Near-field Atom-Photon Technology

Tip Attachment -Attach the wire to the tuning fork and make a tip -Use home-made micromanipulator Pt Co, Ni Silver paint H 3 PO 4 Tuning fork Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Ferroelectric PZT Thin Film PZT (100 nm) / Pt electrode layer / Si substrate • for high quality nano storage devices : • high ferroelectric properties • long term stability and reliability Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Approach Curve in EFM Tip PZT Pt Bias voltage applied between the tip and Pt substrate Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Poling and Drawing by EFM polarization poling Line drawing 7 x 7 mm 2 0. 9 x 0. 9 mm 2 long time stable (10 hr) High resolution (50 nm) narrow line width Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

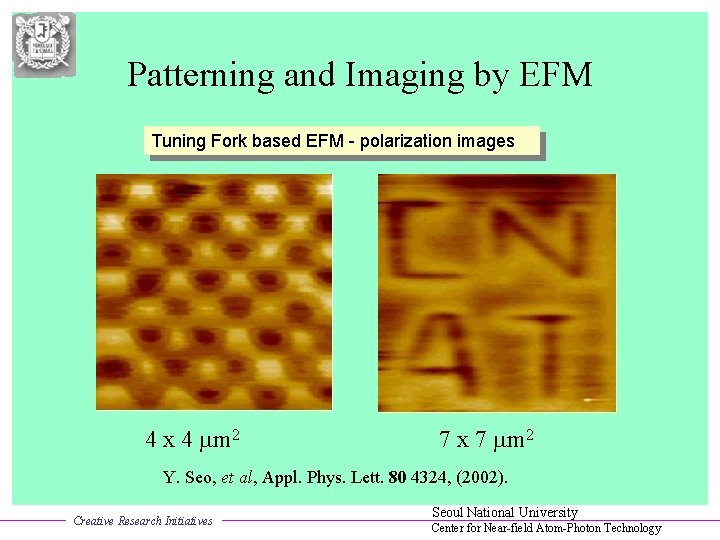

Patterning and Imaging by EFM Tuning Fork based EFM - polarization images 4 x 4 mm 2 7 x 7 mm 2 Y. Seo, et al, Appl. Phys. Lett. 80 4324, (2002). Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Tuning Fork Based Magnetic Force Microscopy MFM contrast - magnetic force gradient between tip and sample Force gradient Frequency shift Phase shift Magnetic force - very weak force (~p. N) Lift mode - keep constant gap between tip and sample (~10 nm) - to avoid the strong short range topographic contrast Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Approach Curve of MFM Shear force Approach Withdraw attractive force high S/N ratio high frequency Sensitivity < 3 m. Hz Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Tip & Tuning Fork epoxy Co or Ni tip L = 2. 2 mm, t = 190 mm, w = 100 mm spring constant, k = 1300 N/m Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Shear Mode MFM Advantage of the shear mode MFM - Perpendicularly recorded sample -longitudinally polarized tip - monopole approximation Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

Magnetic Force Microscopy Images (a) shear mode, Co tip, perpendicular 100 Mbit / Inch 2 (b) shear mode, Co tip, parallel dithering (c) shear mode, Ni tip hard disk (d) tapping mode 30 x 30 mm 2 Creative Research Initiatives 30 x 30 mm 2 Seoul National University Center for Near-field Atom-Photon Technology

Lift Height & Dithering Amplitude Height (h) dependency Amplitude (a) dependency Tip h a Sample 13 x 3 mm 2 Creative Research Initiatives 3 x 1 mm 2 Seoul National University Center for Near-field Atom-Photon Technology

High Resolution Tuning Fork Based MFM 1 Gbit/inch 2 hard disk Dithering Amplitude : 20 nm lift height : 50 nm Spatial resolution : 50 nm 2 x 2 mm 2 Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

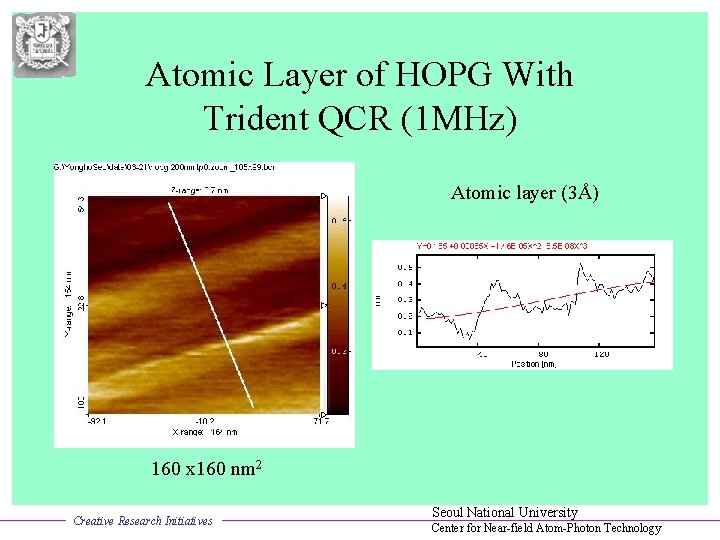

Atomic Layer of HOPG With Trident QCR (1 MHz) Atomic layer (3Å) 160 x 160 nm 2 Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology

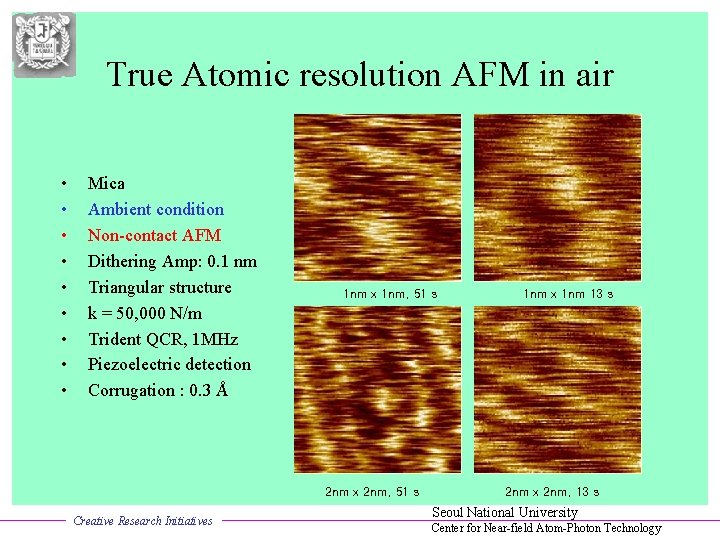

True Atomic resolution AFM in air • • • Mica Ambient condition Non-contact AFM Dithering Amp: 0. 1 nm Triangular structure k = 50, 000 N/m Trident QCR, 1 MHz Piezoelectric detection Corrugation : 0. 3 Å 1 nm x 1 nm, 51 s 2 nm x 2 nm, 51 s Creative Research Initiatives 1 nm x 1 nm 13 s 2 nm x 2 nm, 13 s Seoul National University Center for Near-field Atom-Photon Technology

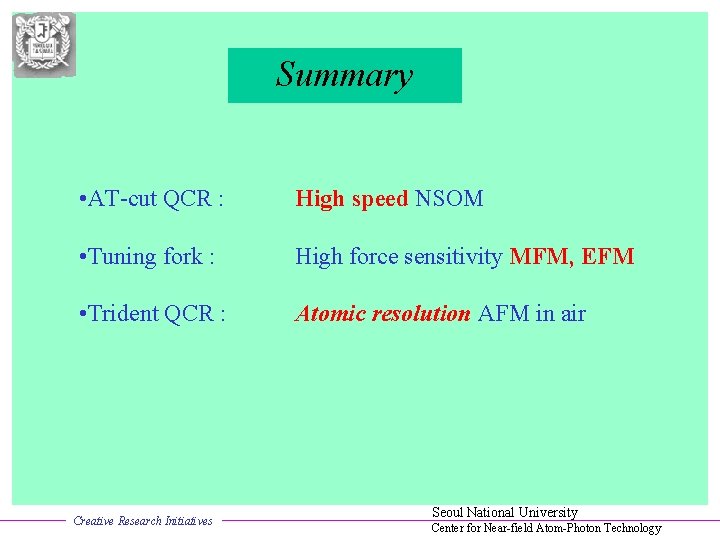

Summary • AT-cut QCR : High speed NSOM • Tuning fork : High force sensitivity MFM, EFM • Trident QCR : Atomic resolution AFM in air Creative Research Initiatives Seoul National University Center for Near-field Atom-Photon Technology
