Scalable Synchronous Queues By William N Scherer III

Scalable Synchronous Queues By William N. Scherer III, Doug Lea, and Michael L. Scott Presented by Ran Isenberg

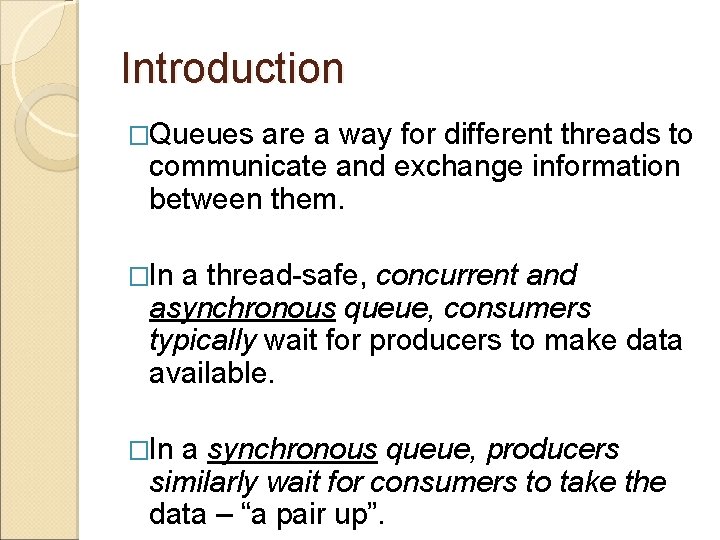

Introduction �Queues are a way for different threads to communicate and exchange information between them. �In a thread-safe, concurrent and asynchronous queue, consumers typically wait for producers to make data available. �In a synchronous queue, producers similarly wait for consumers to take the data – “a pair up”.

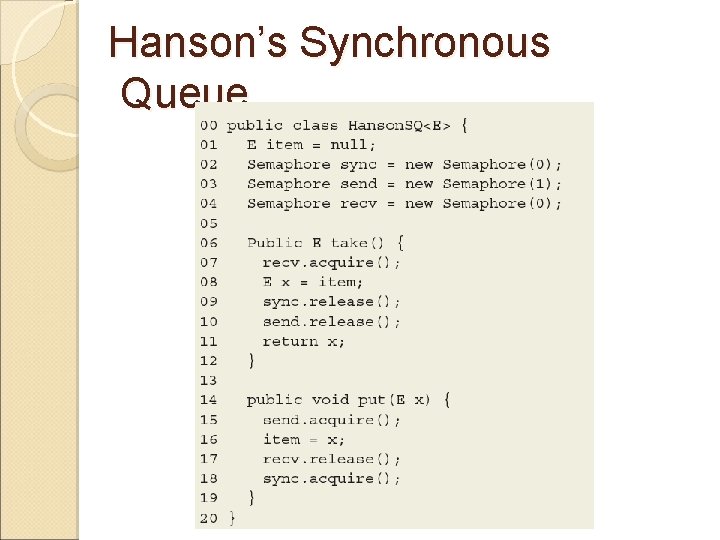

Hanson’s Synchronous Queue

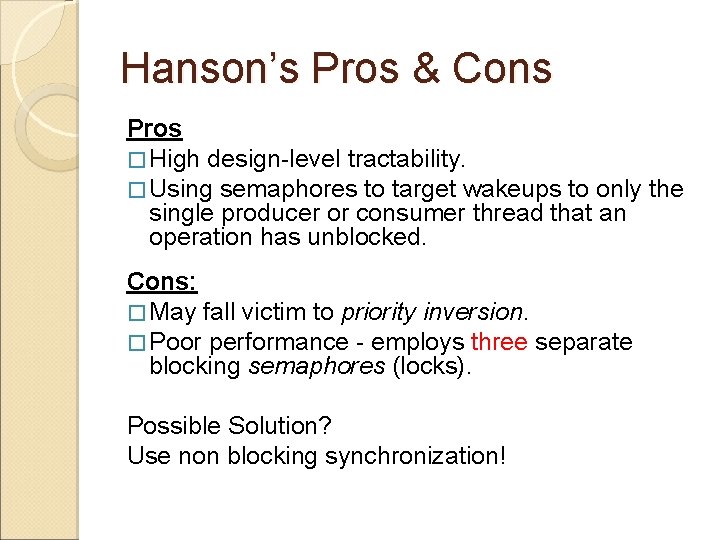

Hanson’s Pros & Cons Pros � High design-level tractability. � Using semaphores to target wakeups to only the single producer or consumer thread that an operation has unblocked. Cons: � May fall victim to priority inversion. � Poor performance - employs three separate blocking semaphores (locks). Possible Solution? Use non blocking synchronization!

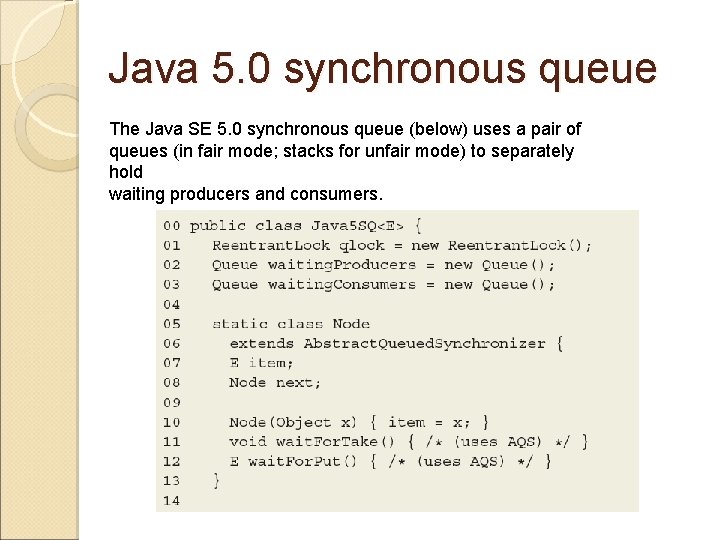

Java 5. 0 synchronous queue The Java SE 5. 0 synchronous queue (below) uses a pair of queues (in fair mode; stacks for unfair mode) to separately hold waiting producers and consumers.

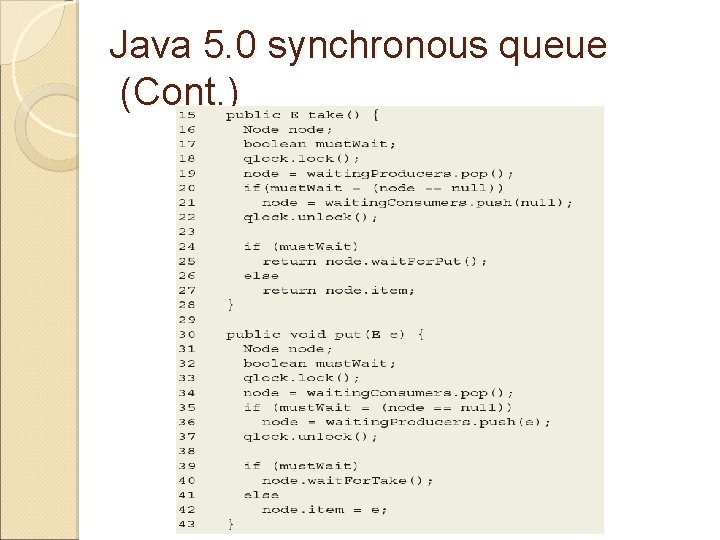

Java 5. 0 synchronous queue (Cont. )

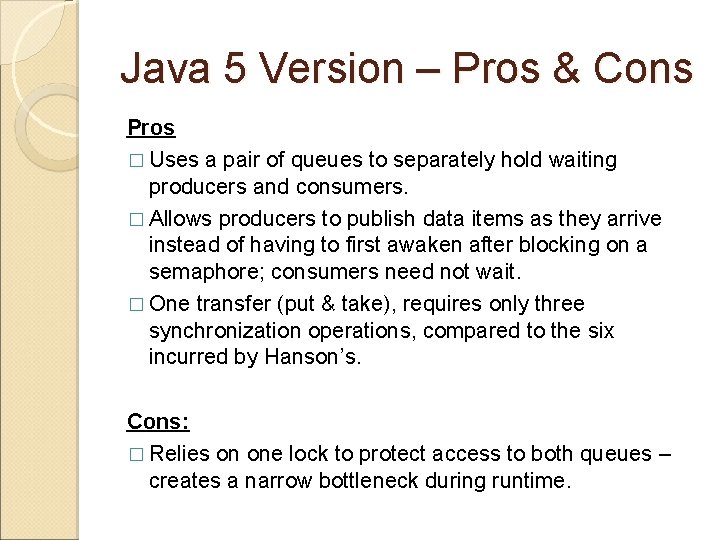

Java 5 Version – Pros & Cons Pros � Uses a pair of queues to separately hold waiting producers and consumers. � Allows producers to publish data items as they arrive instead of having to first awaken after blocking on a semaphore; consumers need not wait. � One transfer (put & take), requires only three synchronization operations, compared to the six incurred by Hanson’s. Cons: � Relies on one lock to protect access to both queues – creates a narrow bottleneck during runtime.

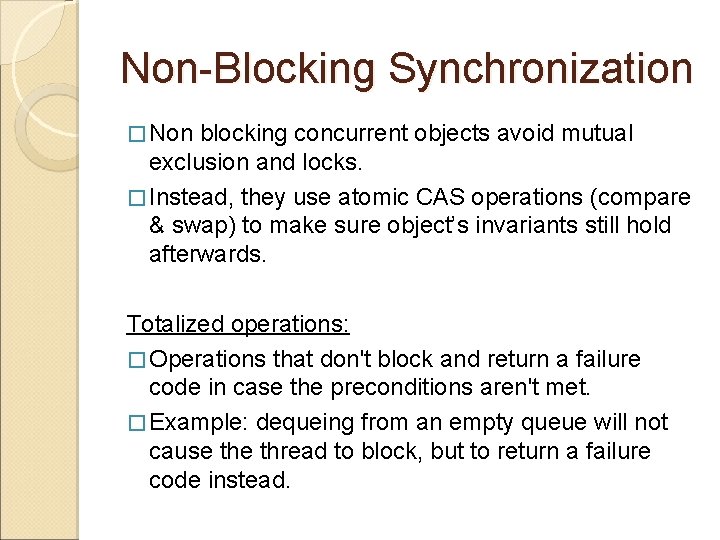

Non-Blocking Synchronization � Non blocking concurrent objects avoid mutual exclusion and locks. � Instead, they use atomic CAS operations (compare & swap) to make sure object’s invariants still hold afterwards. Totalized operations: � Operations that don't block and return a failure code in case the preconditions aren't met. � Example: dequeing from an empty queue will not cause thread to block, but to return a failure code instead.

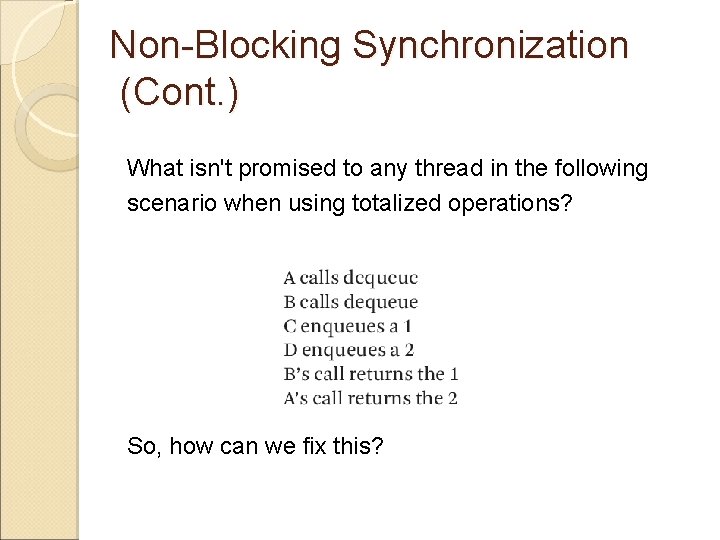

Non-Blocking Synchronization (Cont. ) What isn't promised to any thread in the following scenario when using totalized operations? So, how can we fix this?

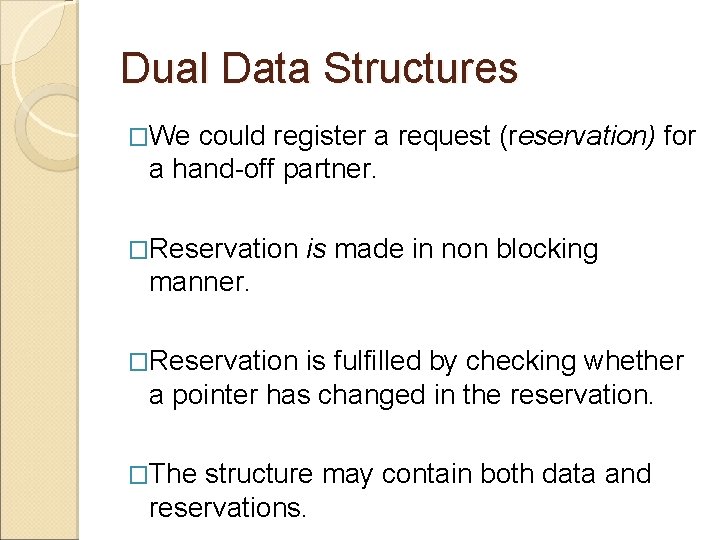

Dual Data Structures �We could register a request (reservation) for a hand-off partner. �Reservation is made in non blocking manner. �Reservation is fulfilled by checking whether a pointer has changed in the reservation. �The structure may contain both data and reservations.

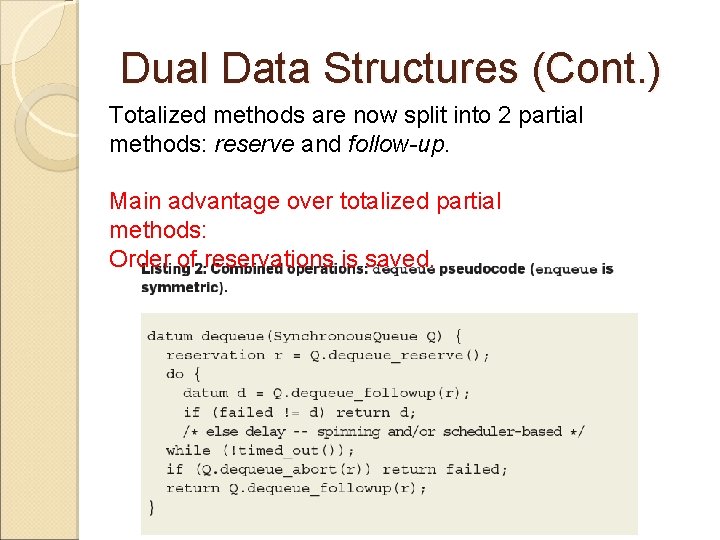

Dual Data Structures (Cont. ) Totalized methods are now split into 2 partial methods: reserve and follow-up. Main advantage over totalized partial methods: Order of reservations is saved.

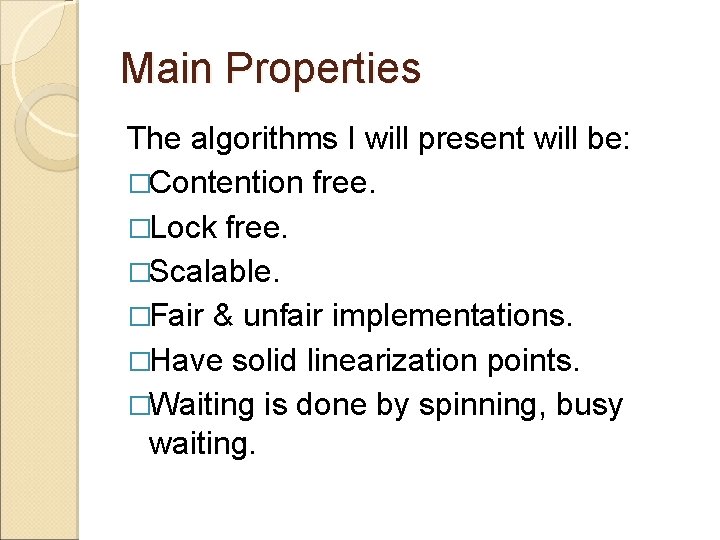

Main Properties The algorithms I will present will be: �Contention free. �Lock free. �Scalable. �Fair & unfair implementations. �Have solid linearization points. �Waiting is done by spinning, busy waiting.

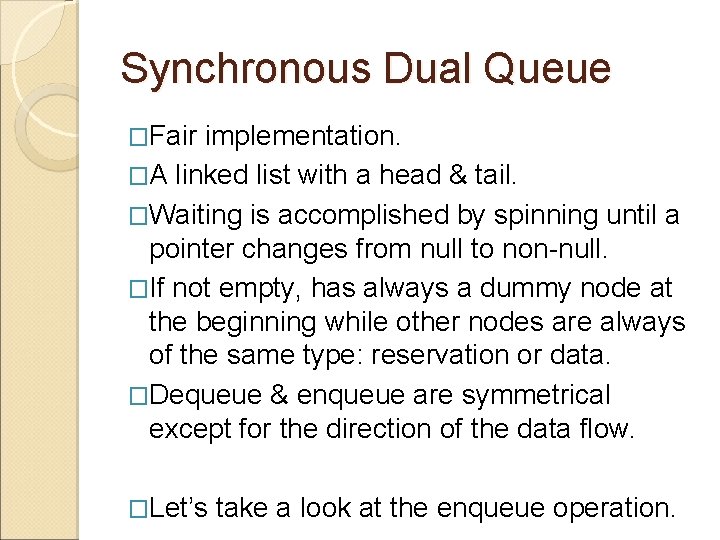

Synchronous Dual Queue �Fair implementation. �A linked list with a head & tail. �Waiting is accomplished by spinning until a pointer changes from null to non-null. �If not empty, has always a dummy node at the beginning while other nodes are always of the same type: reservation or data. �Dequeue & enqueue are symmetrical except for the direction of the data flow. �Let’s take a look at the enqueue operation.

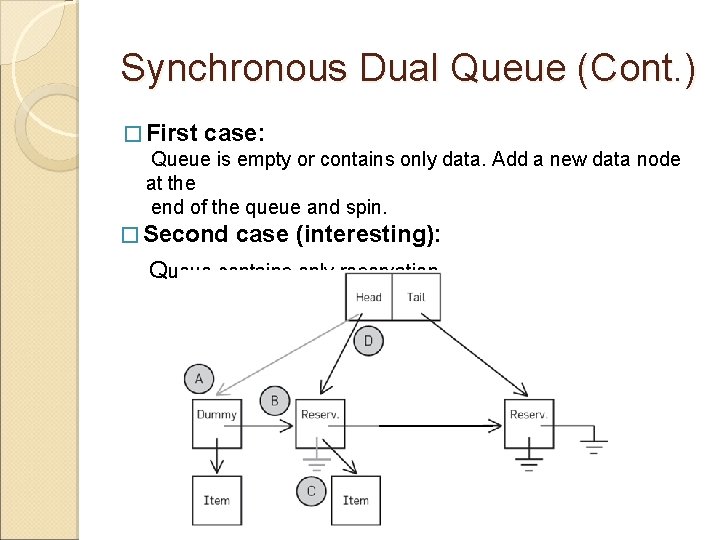

Synchronous Dual Queue (Cont. ) � First case: Queue is empty or contains only data. Add a new data node at the end of the queue and spin. � Second case (interesting): Queue contains only reservation.

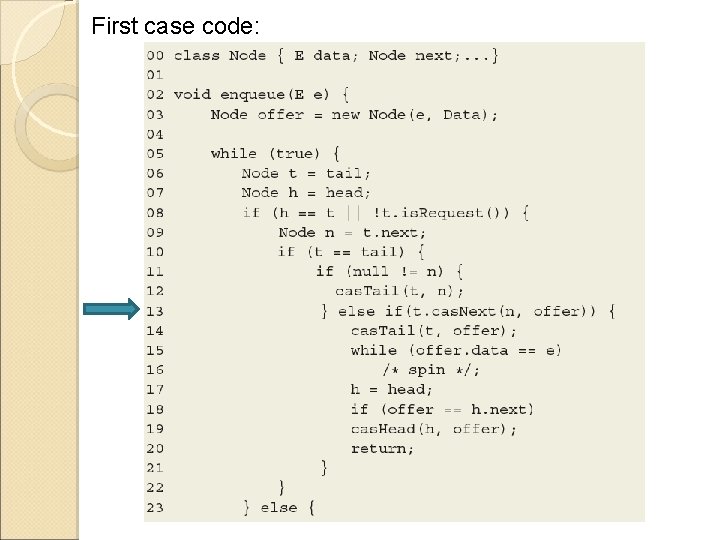

First case code:

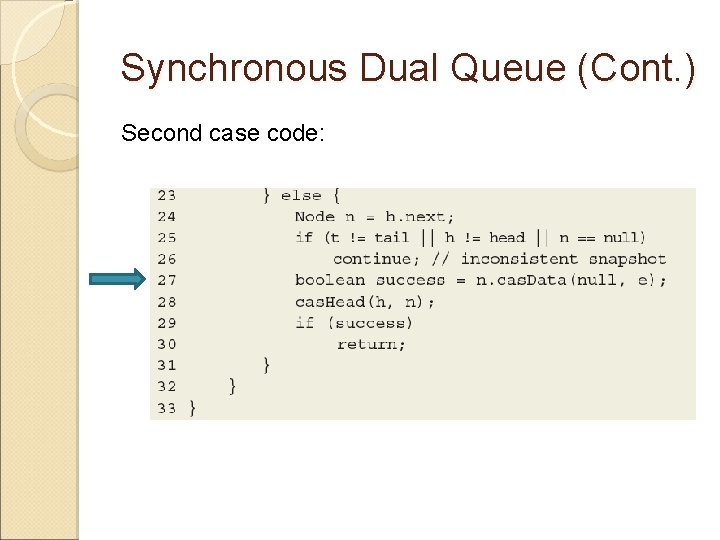

Synchronous Dual Queue (Cont. ) Second case code:

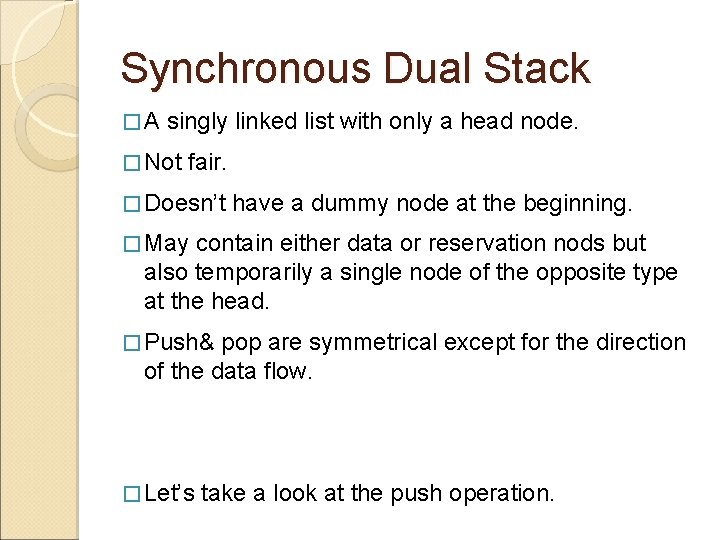

Synchronous Dual Stack �A singly linked list with only a head node. � Not fair. � Doesn’t have a dummy node at the beginning. � May contain either data or reservation nods but also temporarily a single node of the opposite type at the head. � Push& pop are symmetrical except for the direction of the data flow. � Let’s take a look at the push operation.

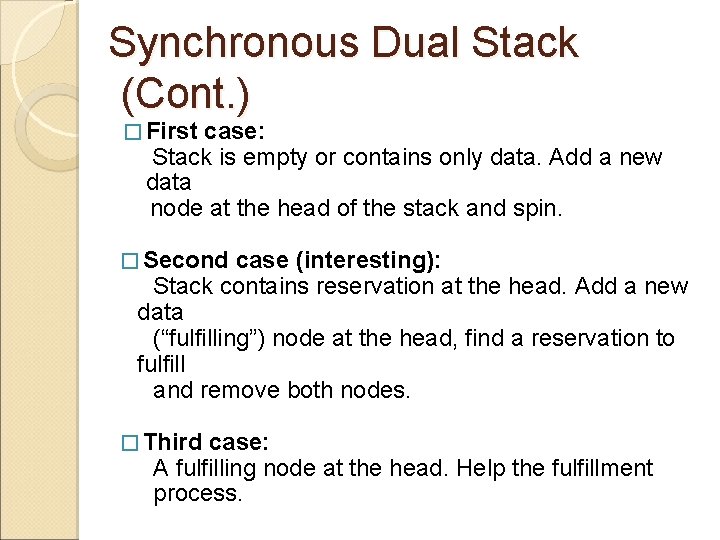

Synchronous Dual Stack (Cont. ) � First case: Stack is empty or contains only data. Add a new data node at the head of the stack and spin. � Second case (interesting): Stack contains reservation at the head. Add a new data (“fulfilling”) node at the head, find a reservation to fulfill and remove both nodes. � Third case: A fulfilling node at the head. Help the fulfillment process.

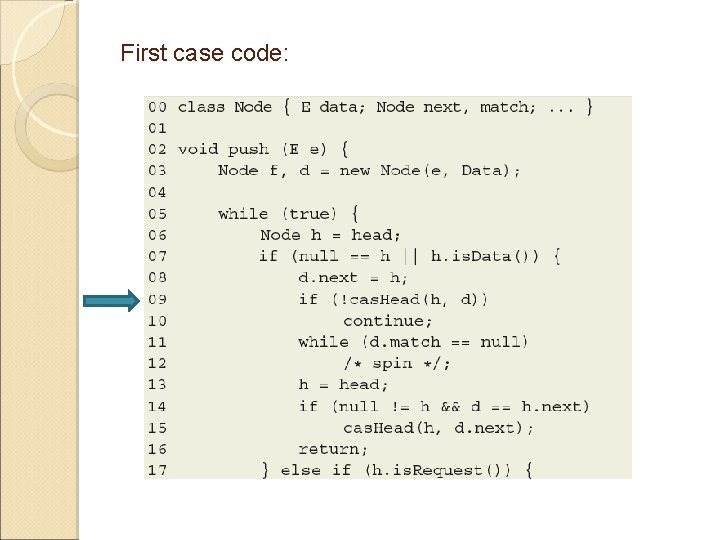

First case code:

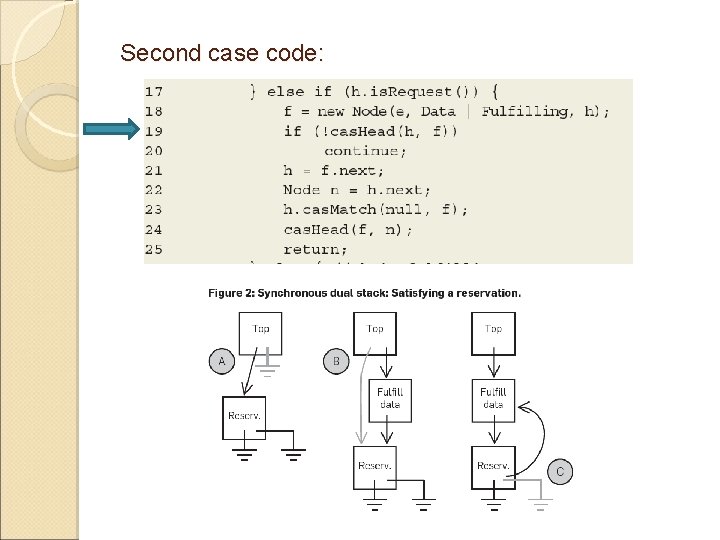

Second case code:

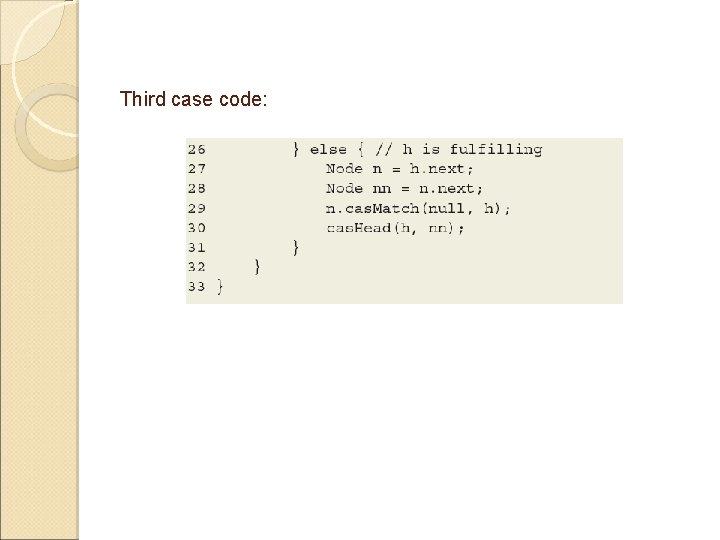

Third case code:

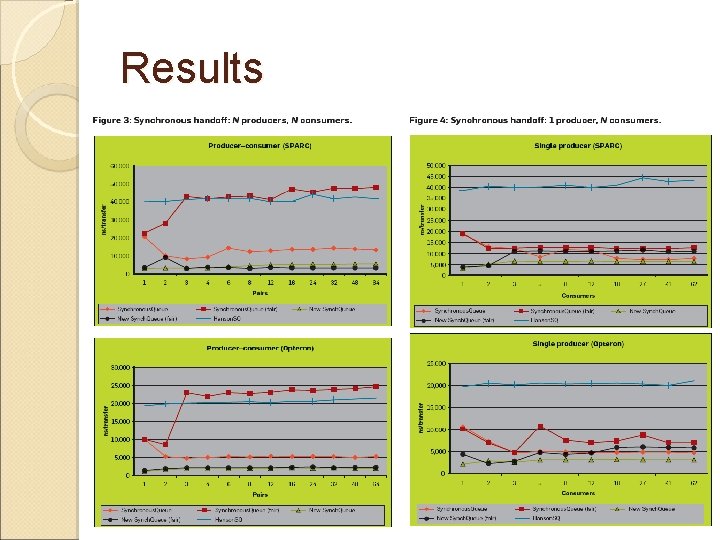

Results

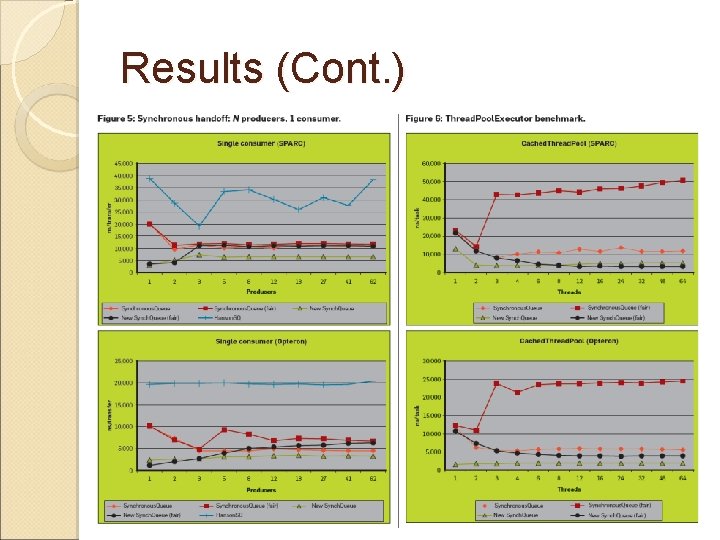

Results (Cont. )

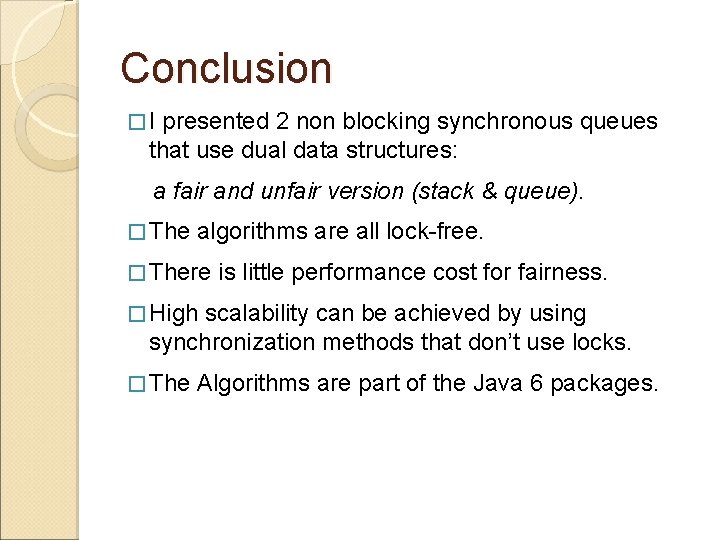

Conclusion �I presented 2 non blocking synchronous queues that use dual data structures: a fair and unfair version (stack & queue). � The algorithms are all lock-free. � There is little performance cost for fairness. � High scalability can be achieved by using synchronization methods that don’t use locks. � The Algorithms are part of the Java 6 packages.
