Scalable Group Communication In Heterogeneous Cluster Filip Hanik

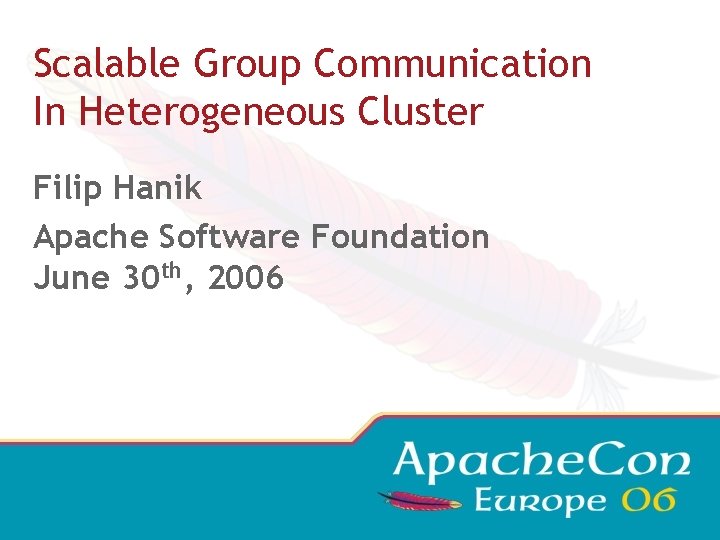

Scalable Group Communication In Heterogeneous Cluster Filip Hanik Apache Software Foundation June 30 th, 2006

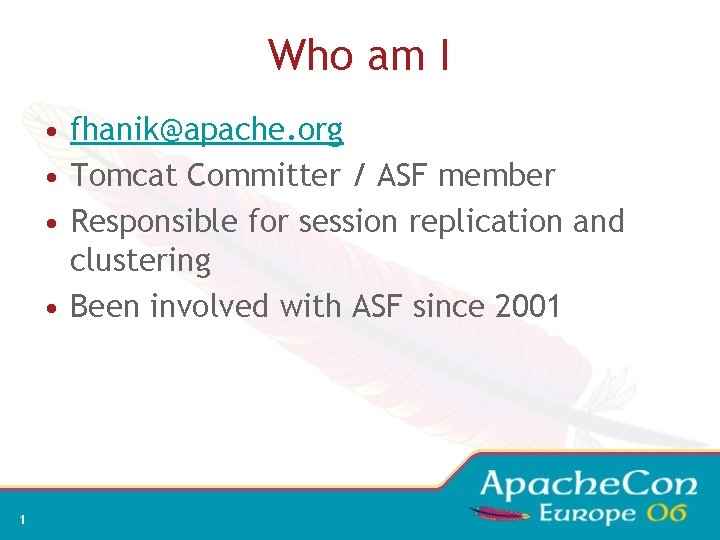

Who am I • fhanik@apache. org • Tomcat Committer / ASF member • Responsible for session replication and clustering • Been involved with ASF since 2001 1

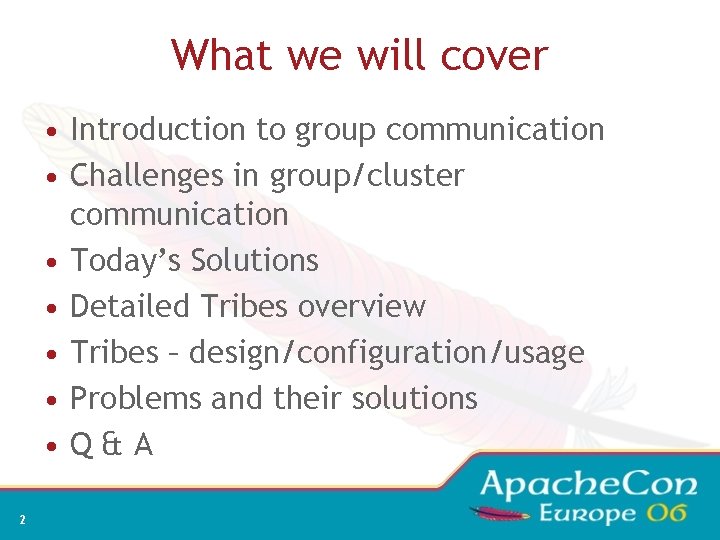

What we will cover • Introduction to group communication • Challenges in group/cluster communication • Today’s Solutions • Detailed Tribes overview • Tribes – design/configuration/usage • Problems and their solutions • Q&A 2

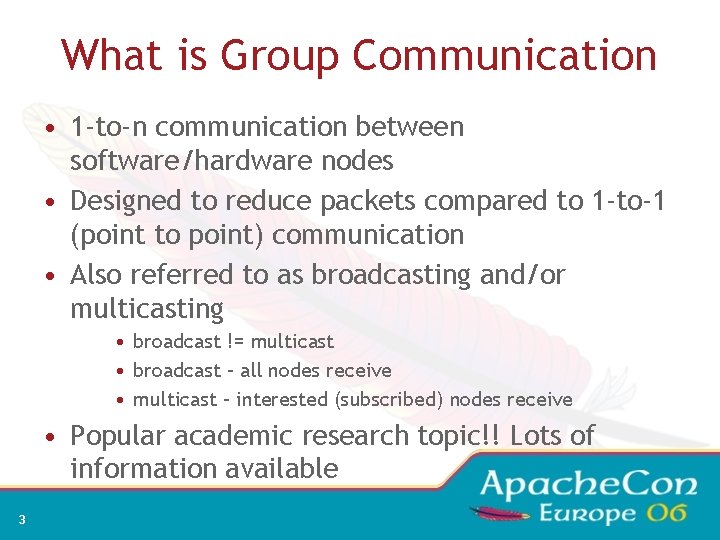

What is Group Communication • 1 -to-n communication between software/hardware nodes • Designed to reduce packets compared to 1 -to-1 (point to point) communication • Also referred to as broadcasting and/or multicasting • broadcast != multicast • broadcast – all nodes receive • multicast – interested (subscribed) nodes receive • Popular academic research topic!! Lots of information available 3

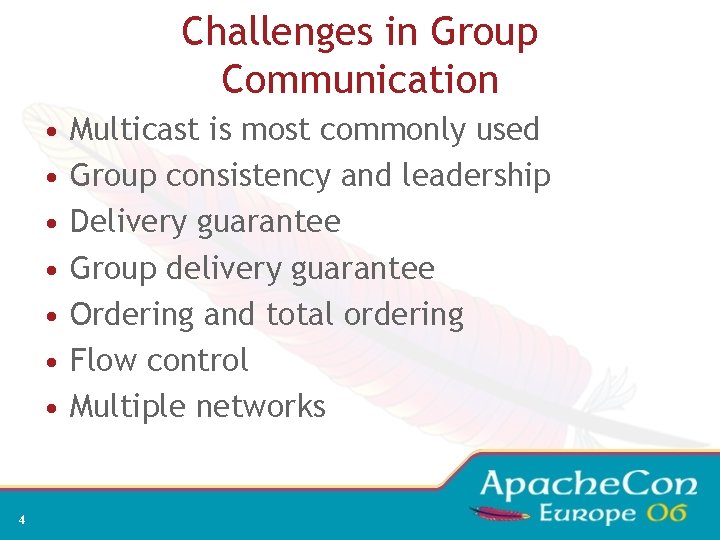

Challenges in Group Communication • • 4 Multicast is most commonly used Group consistency and leadership Delivery guarantee Group delivery guarantee Ordering and total ordering Flow control Multiple networks

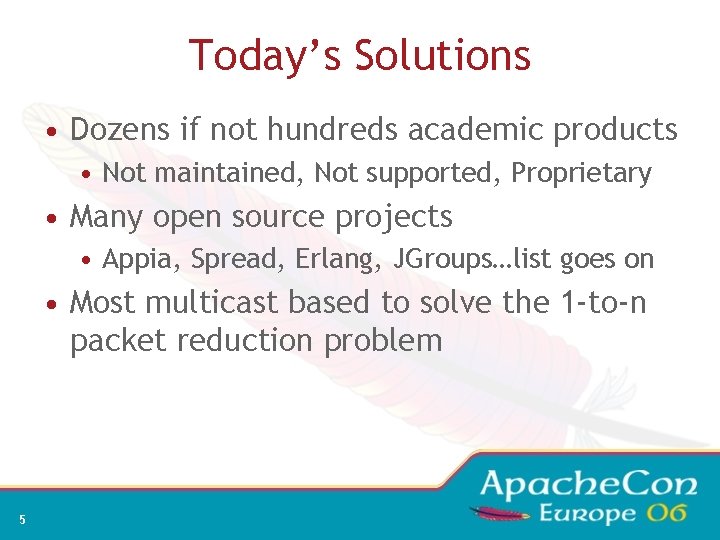

Today’s Solutions • Dozens if not hundreds academic products • Not maintained, Not supported, Proprietary • Many open source projects • Appia, Spread, Erlang, JGroups…list goes on • Most multicast based to solve the 1 -to-n packet reduction problem 5

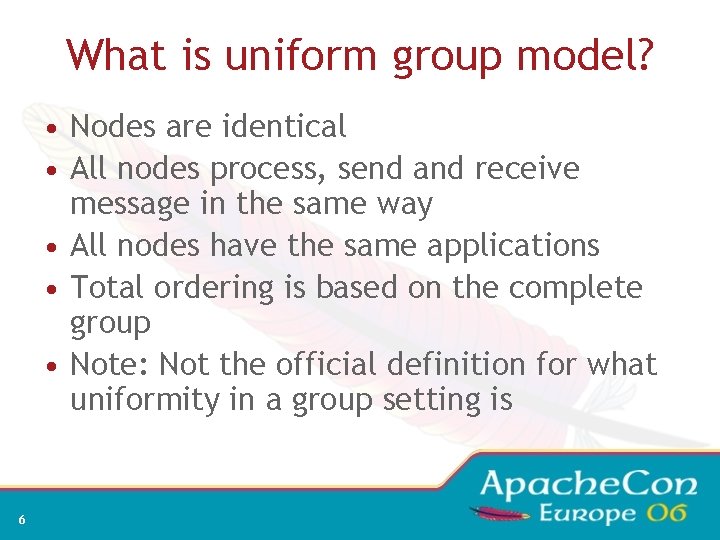

What is uniform group model? • Nodes are identical • All nodes process, send and receive message in the same way • All nodes have the same applications • Total ordering is based on the complete group • Note: Not the official definition for what uniformity in a group setting is 6

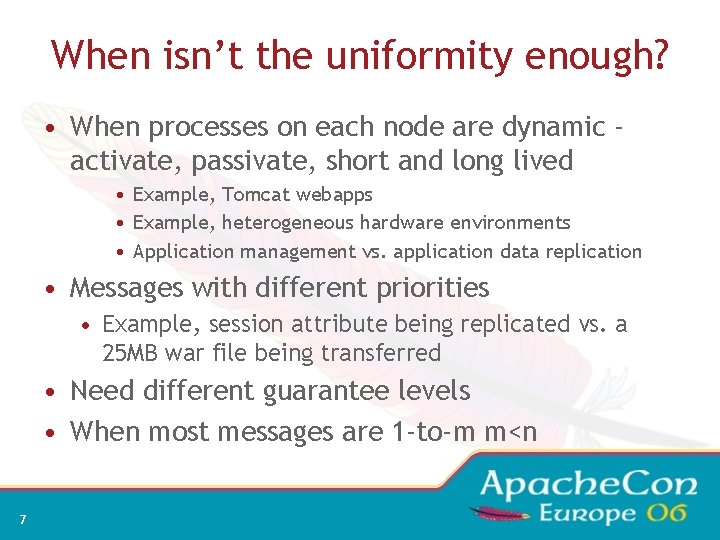

When isn’t the uniformity enough? • When processes on each node are dynamic activate, passivate, short and long lived • Example, Tomcat webapps • Example, heterogeneous hardware environments • Application management vs. application data replication • Messages with different priorities • Example, session attribute being replicated vs. a 25 MB war file being transferred • Need different guarantee levels • When most messages are 1 -to-m m<n 7

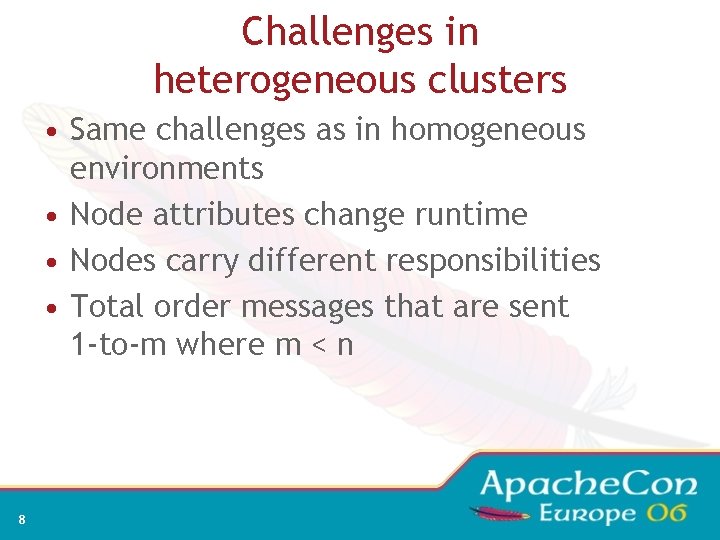

Challenges in heterogeneous clusters • Same challenges as in homogeneous environments • Node attributes change runtime • Nodes carry different responsibilities • Total order messages that are sent 1 -to-m where m < n 8

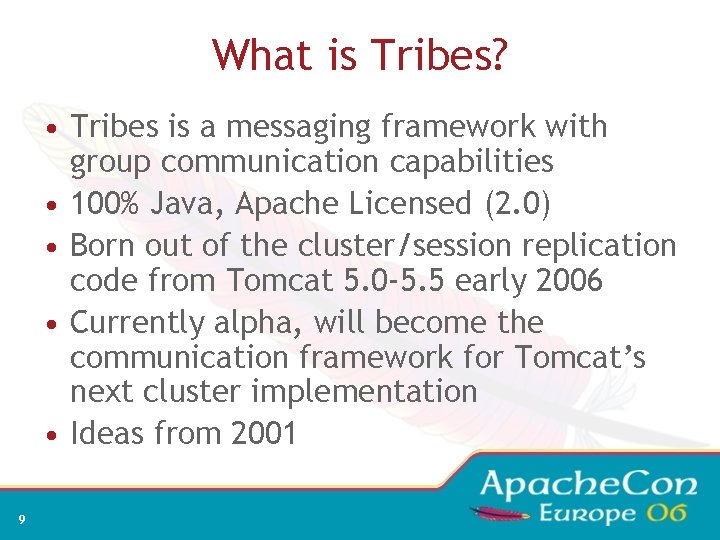

What is Tribes? • Tribes is a messaging framework with group communication capabilities • 100% Java, Apache Licensed (2. 0) • Born out of the cluster/session replication code from Tomcat 5. 0 -5. 5 early 2006 • Currently alpha, will become the communication framework for Tomcat’s next cluster implementation • Ideas from 2001 9

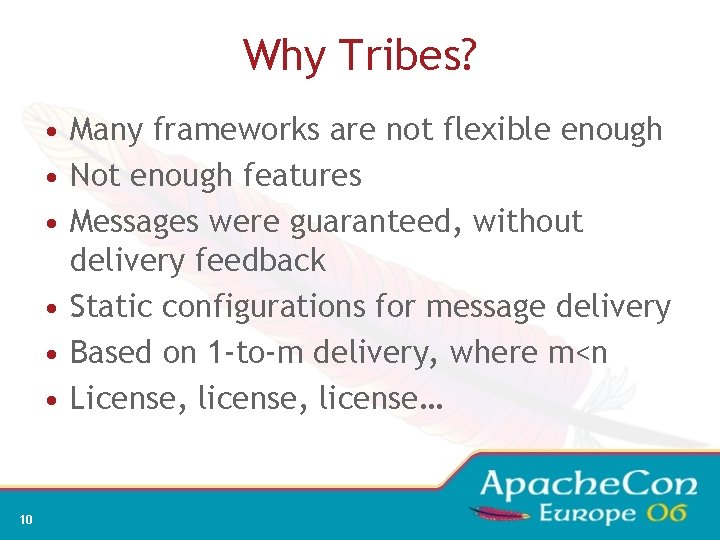

Why Tribes? • Many frameworks are not flexible enough • Not enough features • Messages were guaranteed, without delivery feedback • Static configurations for message delivery • Based on 1 -to-m delivery, where m<n • License, license… 10

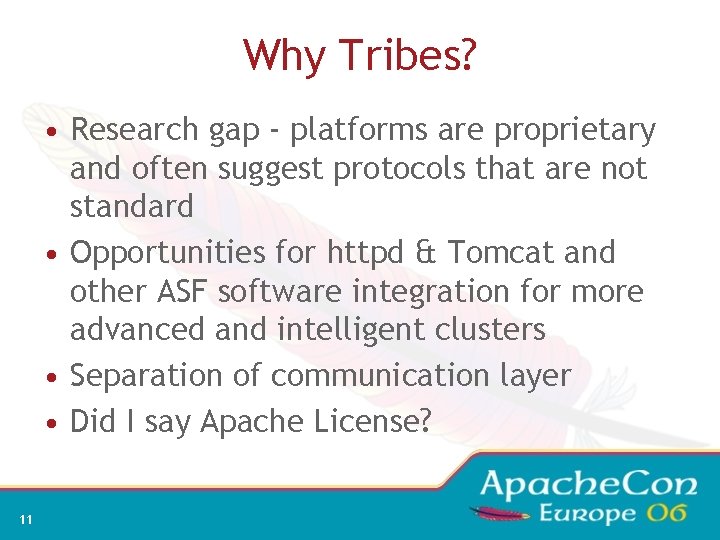

Why Tribes? • Research gap - platforms are proprietary and often suggest protocols that are not standard • Opportunities for httpd & Tomcat and other ASF software integration for more advanced and intelligent clusters • Separation of communication layer • Did I say Apache License? 11

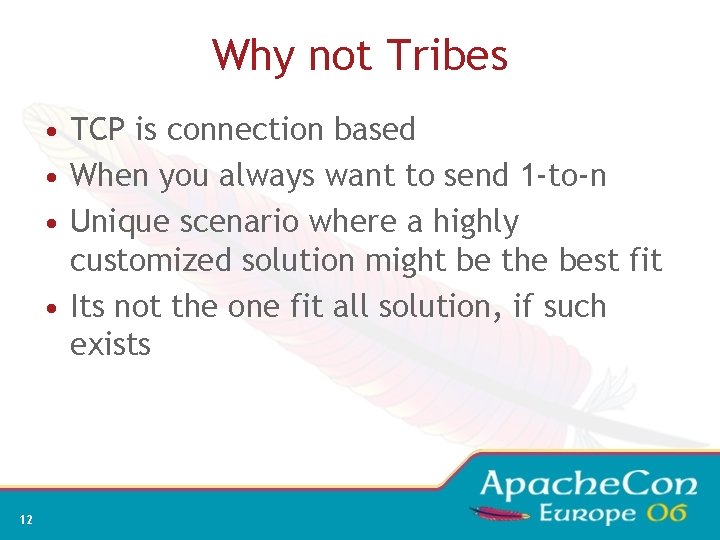

Why not Tribes • TCP is connection based • When you always want to send 1 -to-n • Unique scenario where a highly customized solution might be the best fit • Its not the one fit all solution, if such exists 12

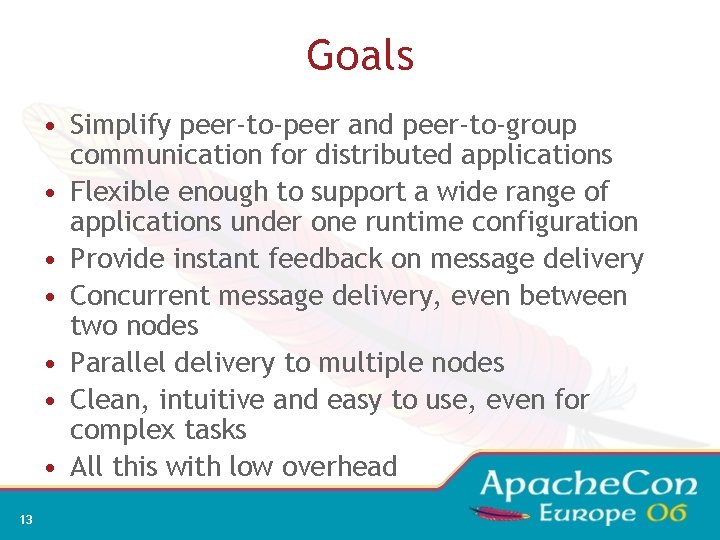

Goals • Simplify peer-to-peer and peer-to-group communication for distributed applications • Flexible enough to support a wide range of applications under one runtime configuration • Provide instant feedback on message delivery • Concurrent message delivery, even between two nodes • Parallel delivery to multiple nodes • Clean, intuitive and easy to use, even for complex tasks • All this with low overhead 13

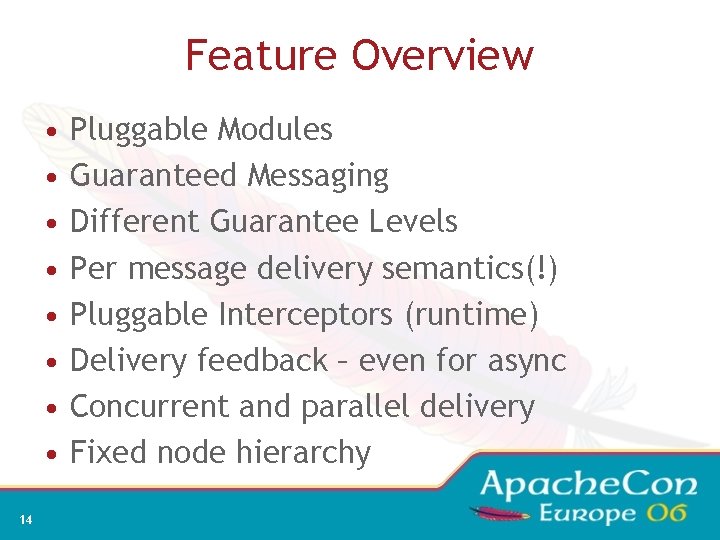

Feature Overview • • 14 Pluggable Modules Guaranteed Messaging Different Guarantee Levels Per message delivery semantics(!) Pluggable Interceptors (runtime) Delivery feedback – even for async Concurrent and parallel delivery Fixed node hierarchy

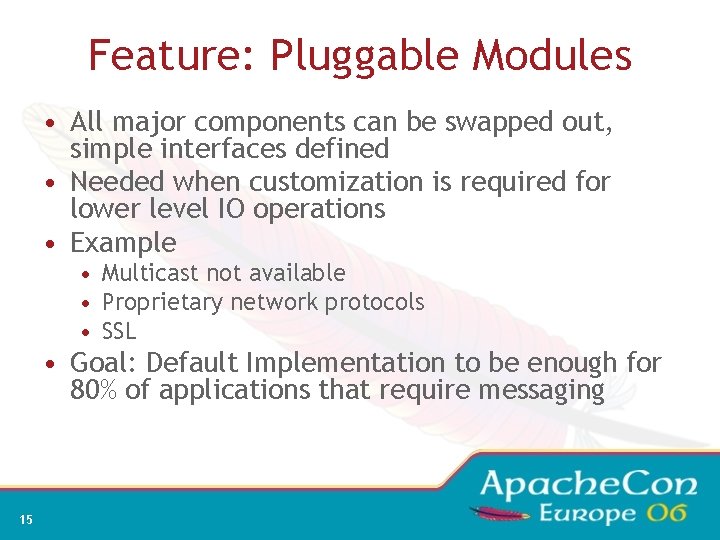

Feature: Pluggable Modules • All major components can be swapped out, simple interfaces defined • Needed when customization is required for lower level IO operations • Example • Multicast not available • Proprietary network protocols • SSL • Goal: Default Implementation to be enough for 80% of applications that require messaging 15

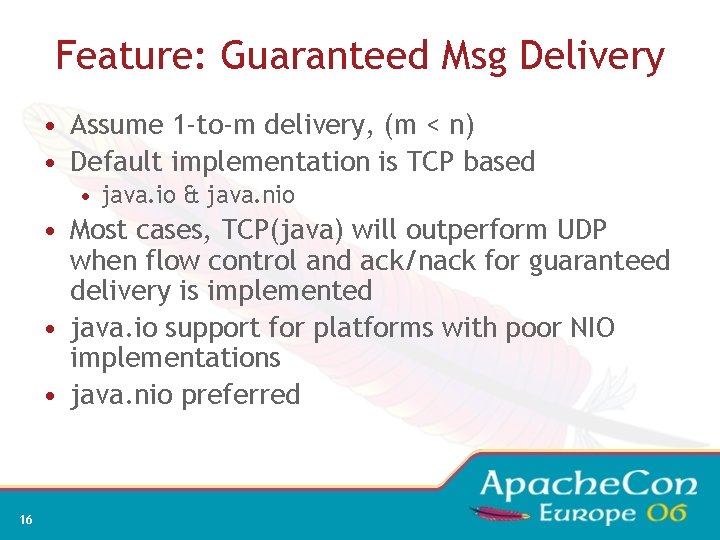

Feature: Guaranteed Msg Delivery • Assume 1 -to-m delivery, (m < n) • Default implementation is TCP based • java. io & java. nio • Most cases, TCP(java) will outperform UDP when flow control and ack/nack for guaranteed delivery is implemented • java. io support for platforms with poor NIO implementations • java. nio preferred 16

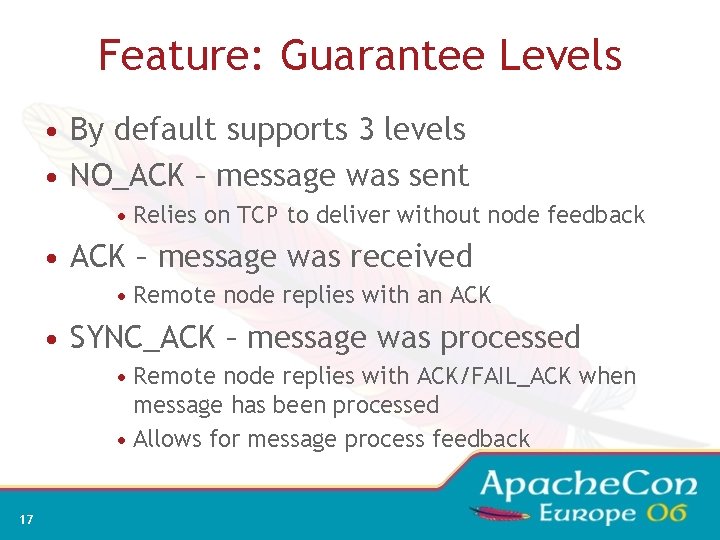

Feature: Guarantee Levels • By default supports 3 levels • NO_ACK – message was sent • Relies on TCP to deliver without node feedback • ACK – message was received • Remote node replies with an ACK • SYNC_ACK – message was processed • Remote node replies with ACK/FAIL_ACK when message has been processed • Allows for message process feedback 17

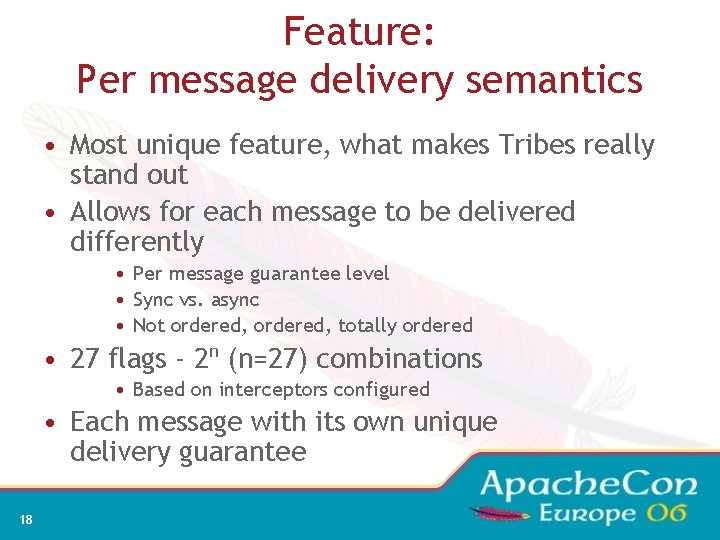

Feature: Per message delivery semantics • Most unique feature, what makes Tribes really stand out • Allows for each message to be delivered differently • Per message guarantee level • Sync vs. async • Not ordered, totally ordered • 27 flags - 2ⁿ (n=27) combinations • Based on interceptors configured • Each message with its own unique delivery guarantee 18

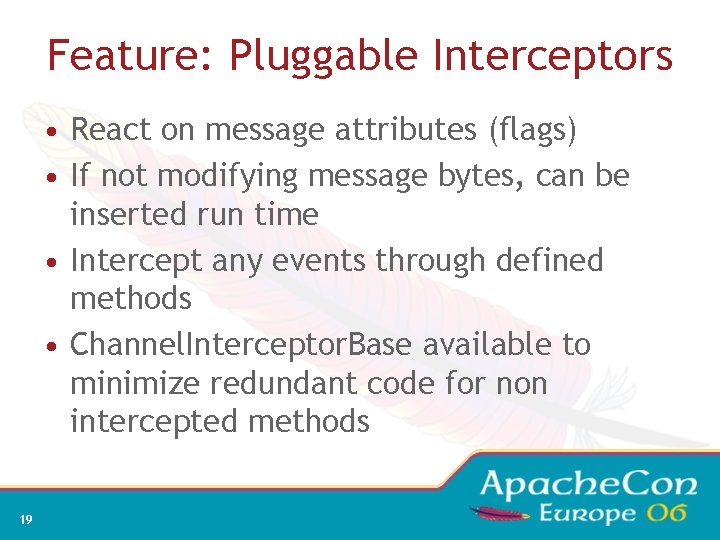

Feature: Pluggable Interceptors • React on message attributes (flags) • If not modifying message bytes, can be inserted run time • Intercept any events through defined methods • Channel. Interceptor. Base available to minimize redundant code for non intercepted methods 19

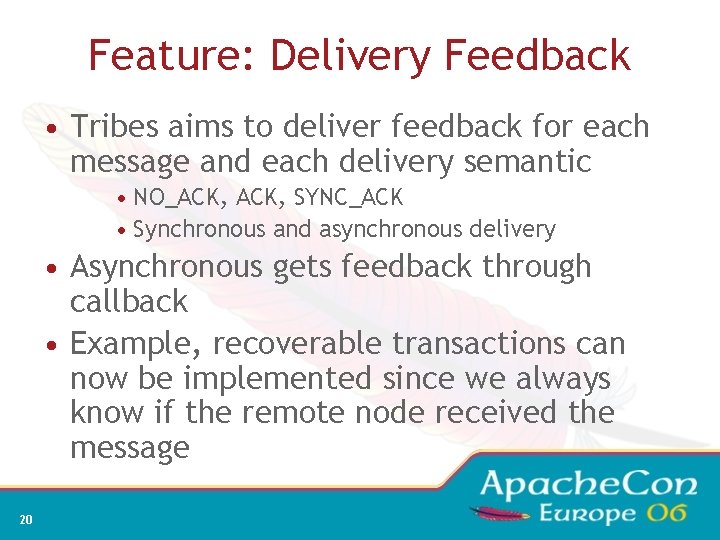

Feature: Delivery Feedback • Tribes aims to deliver feedback for each message and each delivery semantic • NO_ACK, SYNC_ACK • Synchronous and asynchronous delivery • Asynchronous gets feedback through callback • Example, recoverable transactions can now be implemented since we always know if the remote node received the message 20

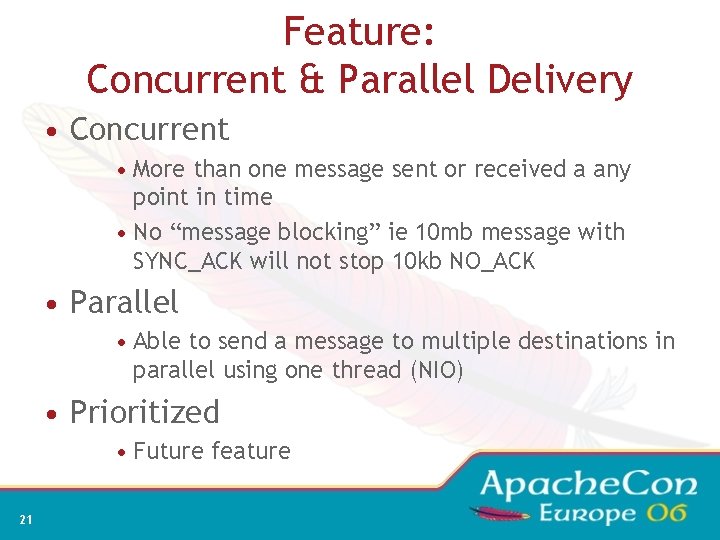

Feature: Concurrent & Parallel Delivery • Concurrent • More than one message sent or received a any point in time • No “message blocking” ie 10 mb message with SYNC_ACK will not stop 10 kb NO_ACK • Parallel • Able to send a message to multiple destinations in parallel using one thread (NIO) • Prioritized • Future feature 21

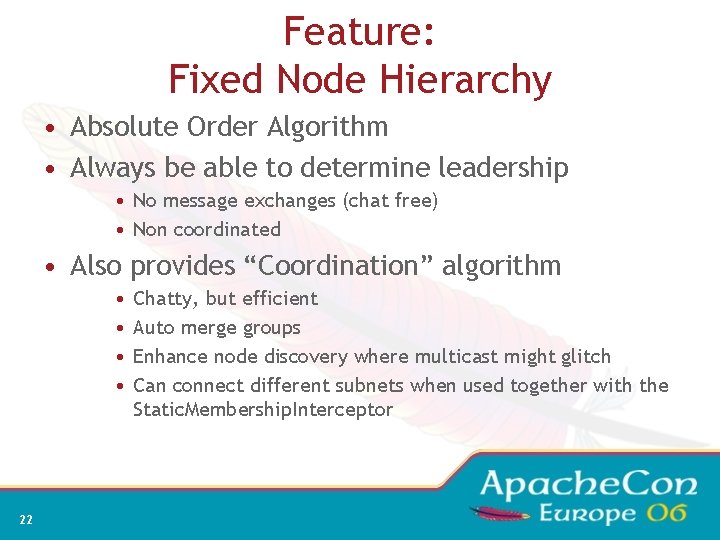

Feature: Fixed Node Hierarchy • Absolute Order Algorithm • Always be able to determine leadership • No message exchanges (chat free) • Non coordinated • Also provides “Coordination” algorithm • • 22 Chatty, but efficient Auto merge groups Enhance node discovery where multicast might glitch Can connect different subnets when used together with the Static. Membership. Interceptor

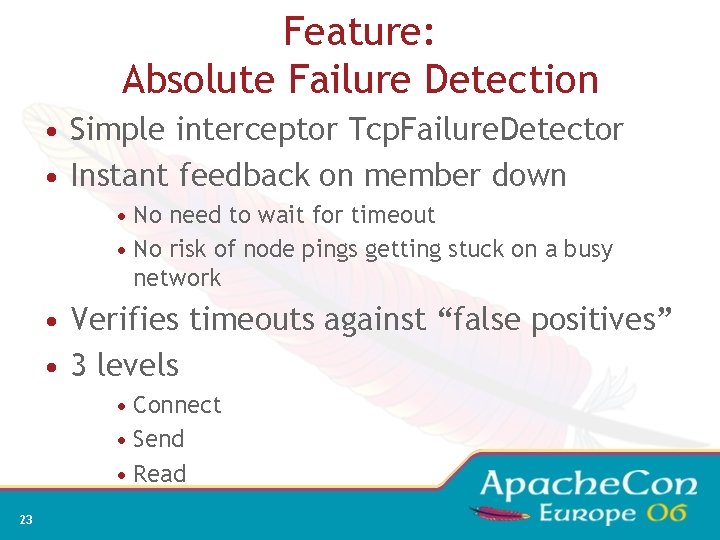

Feature: Absolute Failure Detection • Simple interceptor Tcp. Failure. Detector • Instant feedback on member down • No need to wait for timeout • No risk of node pings getting stuck on a busy network • Verifies timeouts against “false positives” • 3 levels • Connect • Send • Read 23

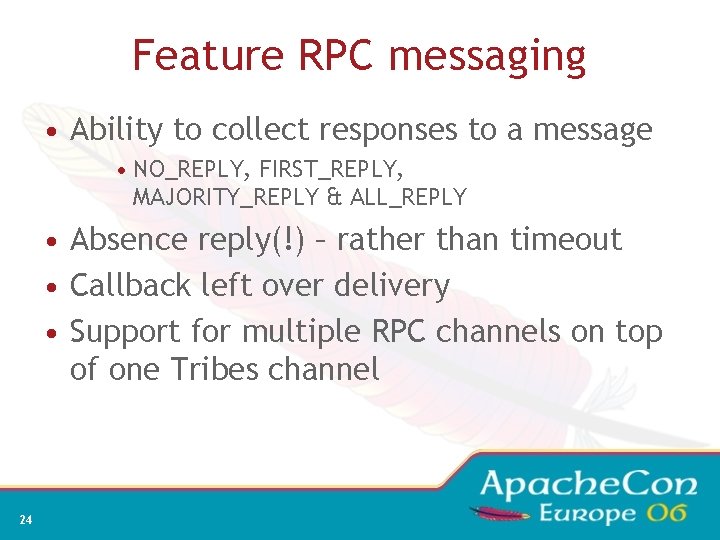

Feature RPC messaging • Ability to collect responses to a message • NO_REPLY, FIRST_REPLY, MAJORITY_REPLY & ALL_REPLY • Absence reply(!) – rather than timeout • Callback left over delivery • Support for multiple RPC channels on top of one Tribes channel 24

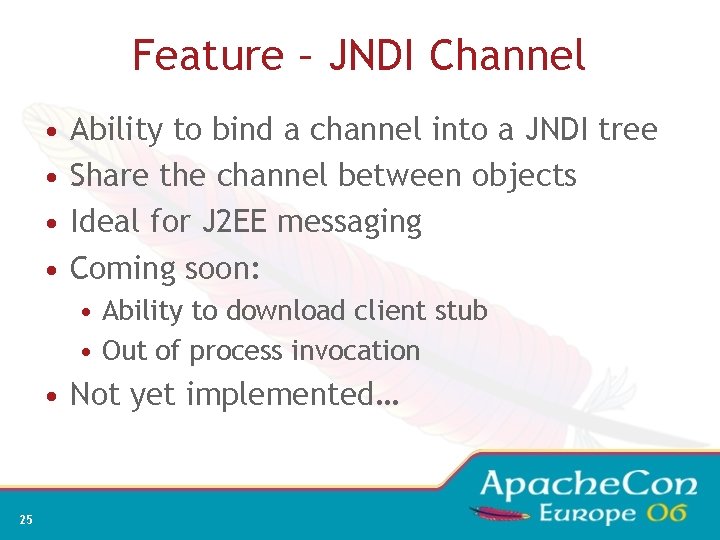

Feature – JNDI Channel • • Ability to bind a channel into a JNDI tree Share the channel between objects Ideal for J 2 EE messaging Coming soon: • Ability to download client stub • Out of process invocation • Not yet implemented… 25

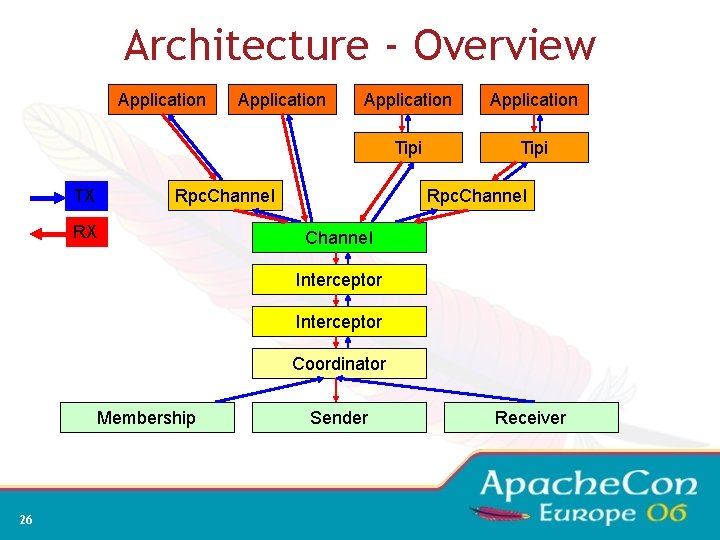

Architecture - Overview Application Tipi Rpc. Channel TX RX Rpc. Channel Interceptor Coordinator Membership 26 Sender Receiver

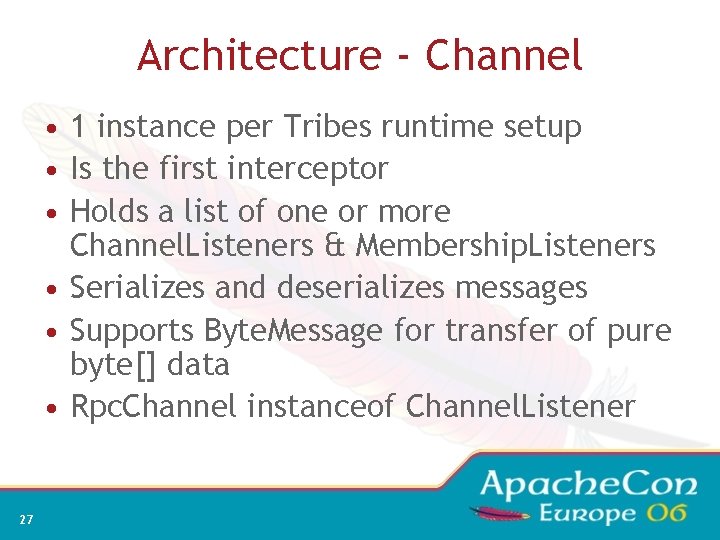

Architecture - Channel • 1 instance per Tribes runtime setup • Is the first interceptor • Holds a list of one or more Channel. Listeners & Membership. Listeners • Serializes and deserializes messages • Supports Byte. Message for transfer of pure byte[] data • Rpc. Channel instanceof Channel. Listener 27

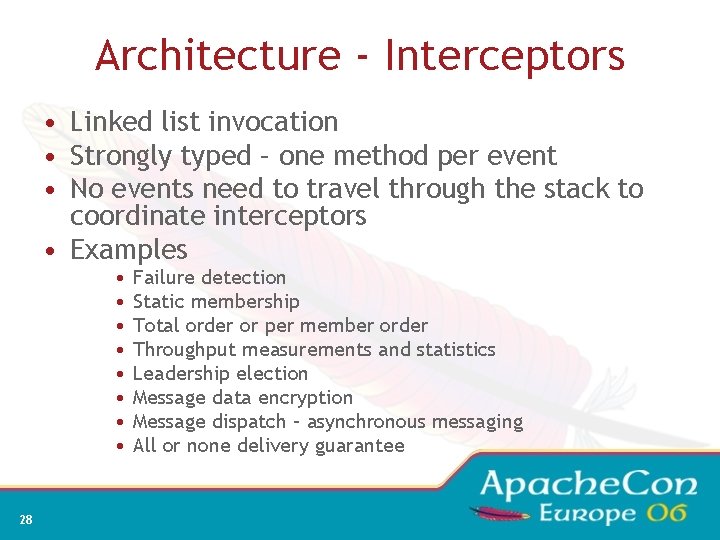

Architecture - Interceptors • Linked list invocation • Strongly typed – one method per event • No events need to travel through the stack to coordinate interceptors • Examples • • 28 Failure detection Static membership Total order or per member order Throughput measurements and statistics Leadership election Message data encryption Message dispatch – asynchronous messaging All or none delivery guarantee

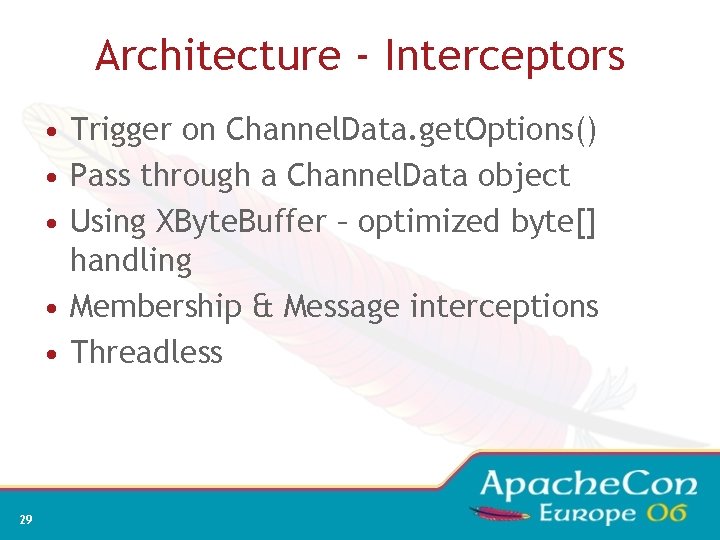

Architecture - Interceptors • Trigger on Channel. Data. get. Options() • Pass through a Channel. Data object • Using XByte. Buffer – optimized byte[] handling • Membership & Message interceptions • Threadless 29

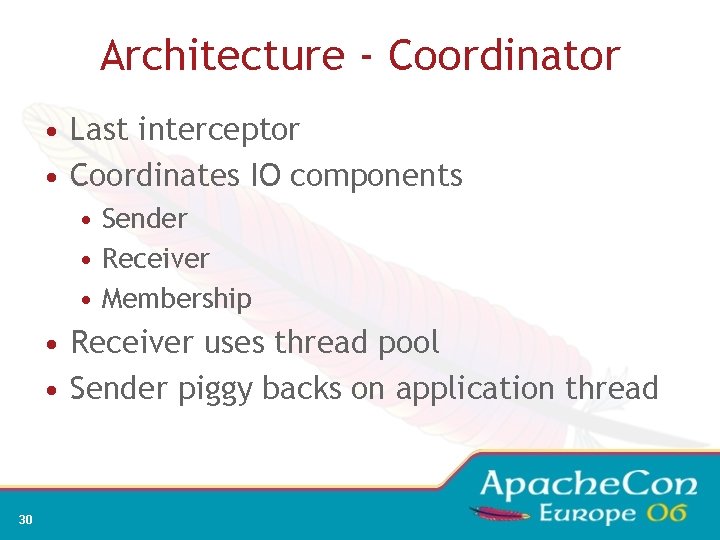

Architecture - Coordinator • Last interceptor • Coordinates IO components • Sender • Receiver • Membership • Receiver uses thread pool • Sender piggy backs on application thread 30

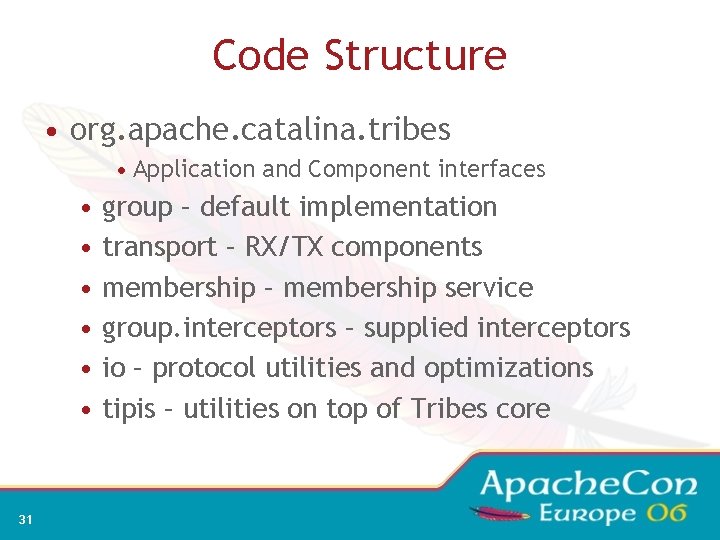

Code Structure • org. apache. catalina. tribes • Application and Component interfaces • group – default implementation • transport – RX/TX components • membership – membership service • group. interceptors – supplied interceptors • io – protocol utilities and optimizations • tipis – utilities on top of Tribes core 31

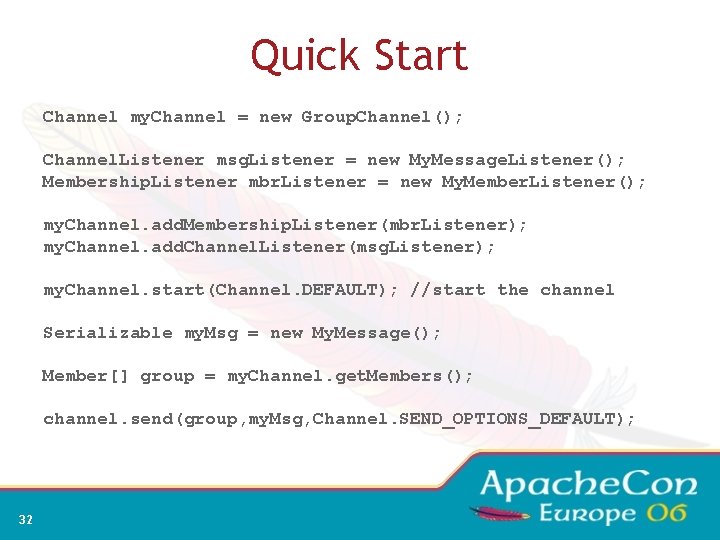

Quick Start Channel my. Channel = new Group. Channel(); Channel. Listener msg. Listener = new My. Message. Listener(); Membership. Listener mbr. Listener = new My. Member. Listener(); my. Channel. add. Membership. Listener(mbr. Listener); my. Channel. add. Channel. Listener(msg. Listener); my. Channel. start(Channel. DEFAULT); //start the channel Serializable my. Msg = new My. Message(); Member[] group = my. Channel. get. Members(); channel. send(group, my. Msg, Channel. SEND_OPTIONS_DEFAULT); 32

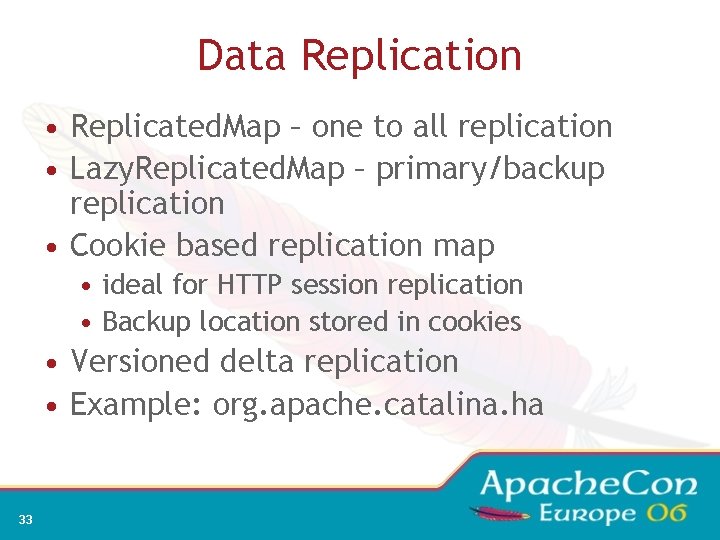

Data Replication • Replicated. Map – one to all replication • Lazy. Replicated. Map – primary/backup replication • Cookie based replication map • ideal for HTTP session replication • Backup location stored in cookies • Versioned delta replication • Example: org. apache. catalina. ha 33

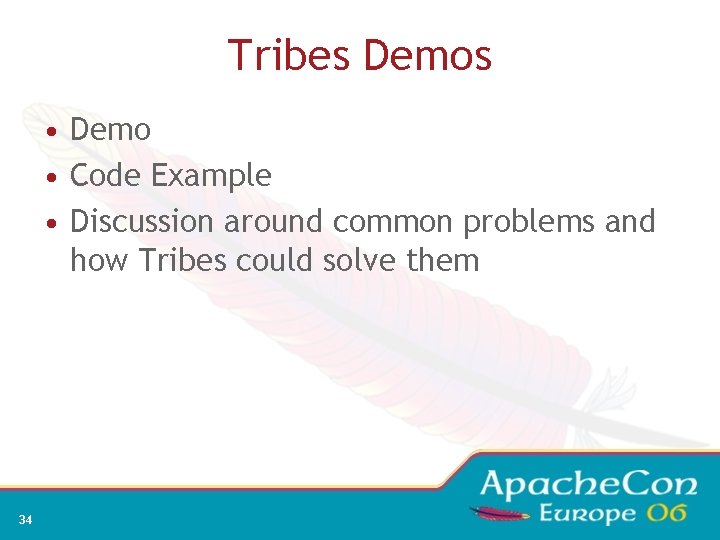

Tribes Demos • Demo • Code Example • Discussion around common problems and how Tribes could solve them 34

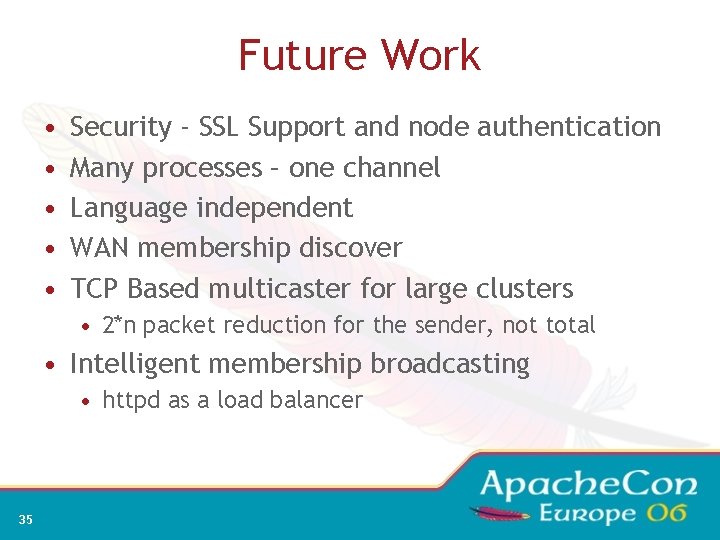

Future Work • • • Security - SSL Support and node authentication Many processes – one channel Language independent WAN membership discover TCP Based multicaster for large clusters • 2*n packet reduction for the sender, not total • Intelligent membership broadcasting • httpd as a load balancer 35

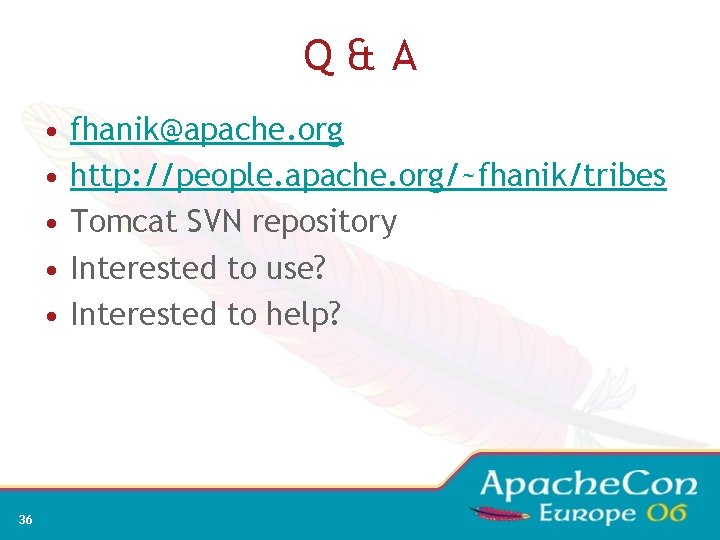

Q&A • • • 36 fhanik@apache. org http: //people. apache. org/~fhanik/tribes Tomcat SVN repository Interested to use? Interested to help?

Folientitel • Font: Trebuchet MS, 32 pt • Font: Trebuchet MS, 28 pt • Font: Trebuchet MS, 24 pt • Font: Trebuchet MS, 20 pt • Lorem ipsum dolor sit amet, consectetur adipscing elit, sed diam nonnumy eiusmod tempor incidunt ut labore et dolore magna aliquam erat volupat. 37

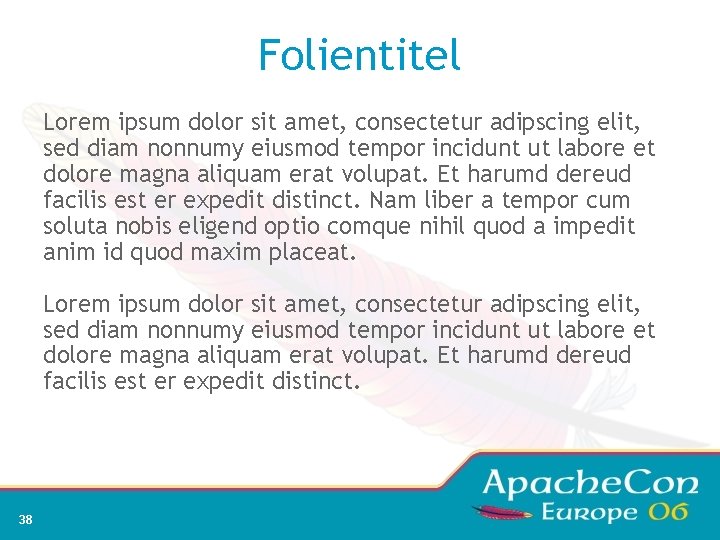

Folientitel Lorem ipsum dolor sit amet, consectetur adipscing elit, sed diam nonnumy eiusmod tempor incidunt ut labore et dolore magna aliquam erat volupat. Et harumd dereud facilis est er expedit distinct. Nam liber a tempor cum soluta nobis eligend optio comque nihil quod a impedit anim id quod maxim placeat. Lorem ipsum dolor sit amet, consectetur adipscing elit, sed diam nonnumy eiusmod tempor incidunt ut labore et dolore magna aliquam erat volupat. Et harumd dereud facilis est er expedit distinct. 38
