SBMDS: an interpretable string based malware detection system using SVM ensemble with bagging Yanfang Ye, Lifei Chen, Dingding Wang, Tao Li, Qingshan Jiang, Min Zhao Presented by: Akanksha Kaul Dept of Computer & Information Sciences University of Delaware CISC 879 - Machine Learning for Solving Systems Problems

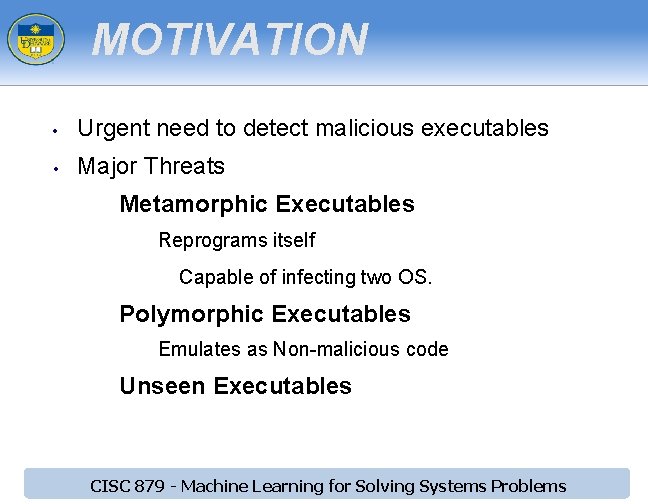

MOTIVATION • Urgent need to detect malicious executables • Major Threats Metamorphic Executables Reprograms itself Capable of infecting two OS. Polymorphic Executables Emulates as Non-malicious code Unseen Executables CISC 879 - Machine Learning for Solving Systems Problems

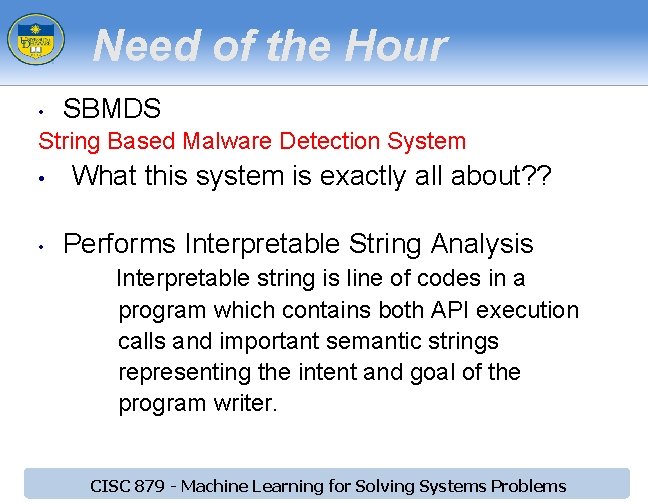

Need of the Hour • SBMDS String Based Malware Detection System • • What this system is exactly all about? ? Performs Interpretable String Analysis Interpretable string is line of codes in a program which contains both API execution calls and important semantic strings representing the intent and goal of the program writer. CISC 879 - Machine Learning for Solving Systems Problems

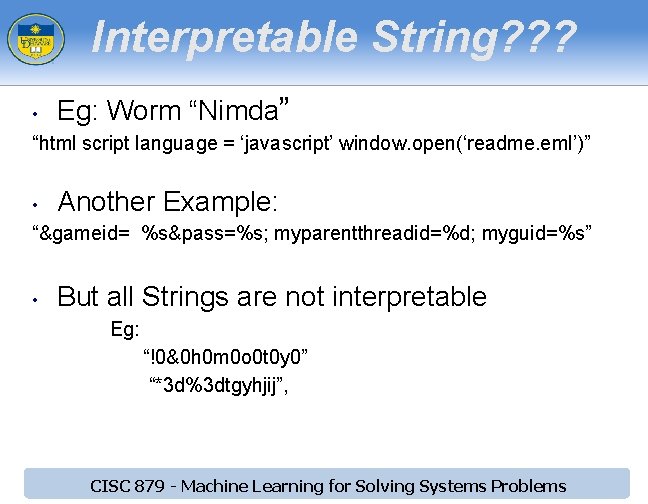

Interpretable String? ? ? • Eg: Worm “Nimda” “html script language = ‘javascript’ window. open(‘readme. eml’)” • Another Example: “&gameid= %s&pass=%s; myparentthreadid=%d; myguid=%s” • But all Strings are not interpretable Eg: “!0&0 h 0 m 0 o 0 t 0 y 0” “*3 d%3 dtgyhjij”, CISC 879 - Machine Learning for Solving Systems Problems

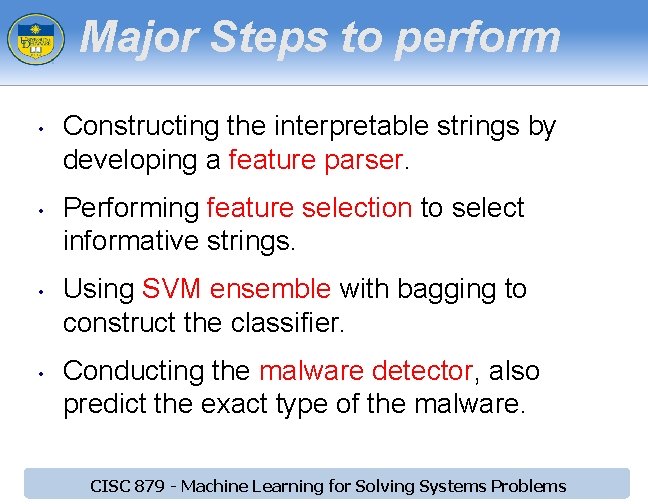

Major Steps to perform • • Constructing the interpretable strings by developing a feature parser. Performing feature selection to select informative strings. Using SVM ensemble with bagging to construct the classifier. Conducting the malware detector, also predict the exact type of the malware. CISC 879 - Machine Learning for Solving Systems Problems

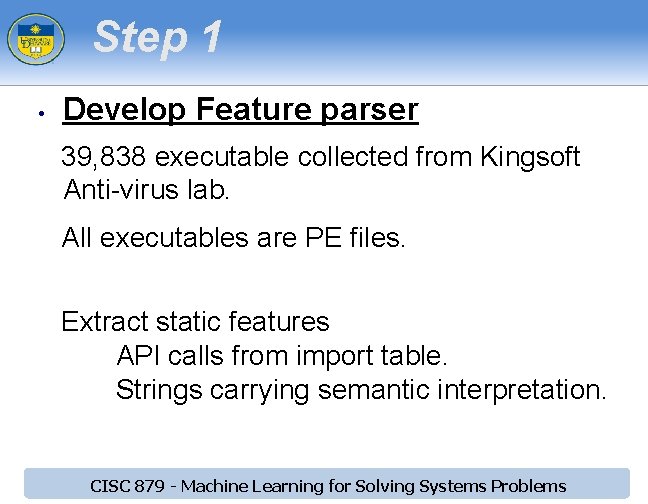

Step 1 • Develop Feature parser 39, 838 executable collected from Kingsoft Anti-virus lab. All executables are PE files. Extract static features API calls from import table. Strings carrying semantic interpretation. CISC 879 - Machine Learning for Solving Systems Problems

SAMPLE (Backdoor-Redgirl. exe) ‘%s’ goto delete” always implicates that the malware may generate the “. bat” file to suicide CISC 879 - Machine Learning for Solving Systems Problems

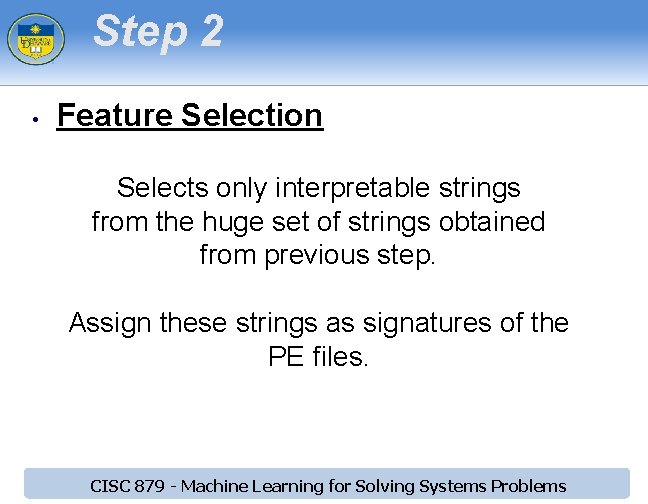

Step 2 • Feature Selection Selects only interpretable strings from the huge set of strings obtained from previous step. Assign these strings as signatures of the PE files. CISC 879 - Machine Learning for Solving Systems Problems

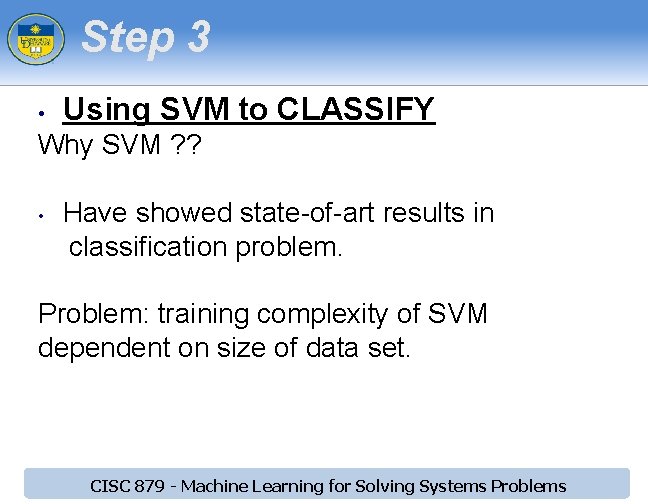

Step 3 • Using SVM to CLASSIFY Why SVM ? ? • Have showed state-of-art results in classification problem. Problem: training complexity of SVM dependent on size of data set. CISC 879 - Machine Learning for Solving Systems Problems

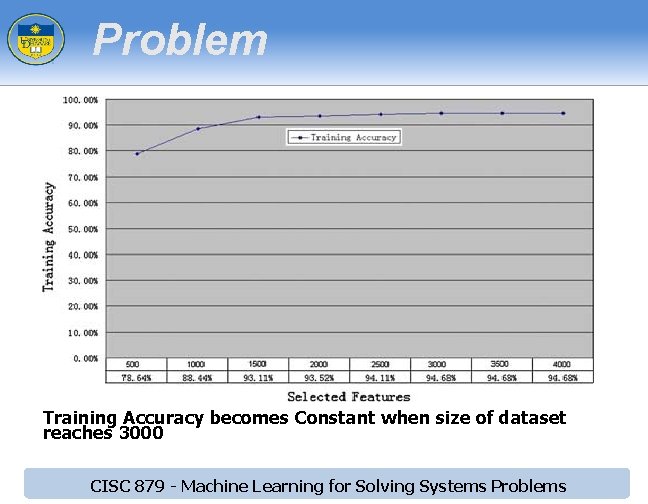

Problem Training Accuracy becomes Constant when size of dataset reaches 3000 CISC 879 - Machine Learning for Solving Systems Problems

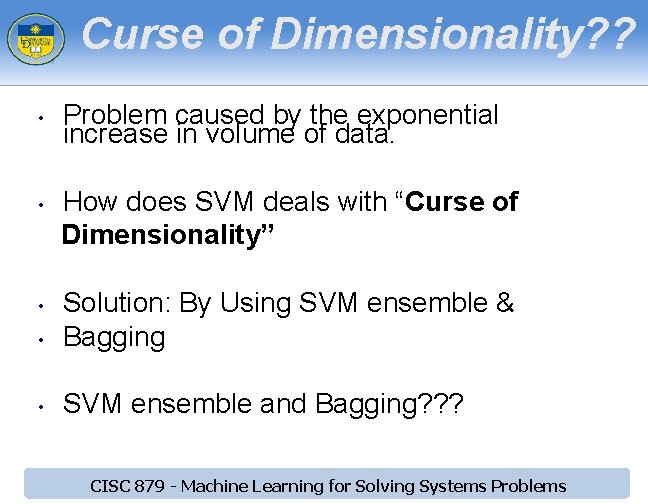

Curse of Dimensionality? ? • • Problem caused by the exponential increase in volume of data. How does SVM deals with “Curse of Dimensionality” • Solution: By Using SVM ensemble & Bagging • SVM ensemble and Bagging? ? ? • CISC 879 - Machine Learning for Solving Systems Problems

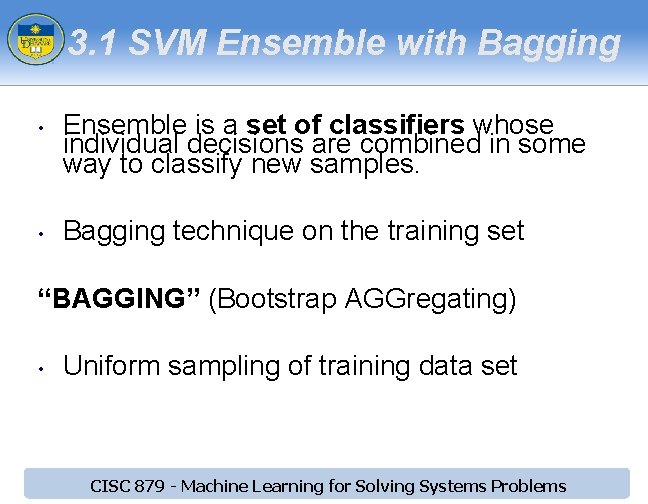

3. 1 SVM Ensemble with Bagging • • Ensemble is a set of classifiers whose individual decisions are combined in some way to classify new samples. Bagging technique on the training set “BAGGING” (Bootstrap AGGregating) • Uniform sampling of training data set CISC 879 - Machine Learning for Solving Systems Problems

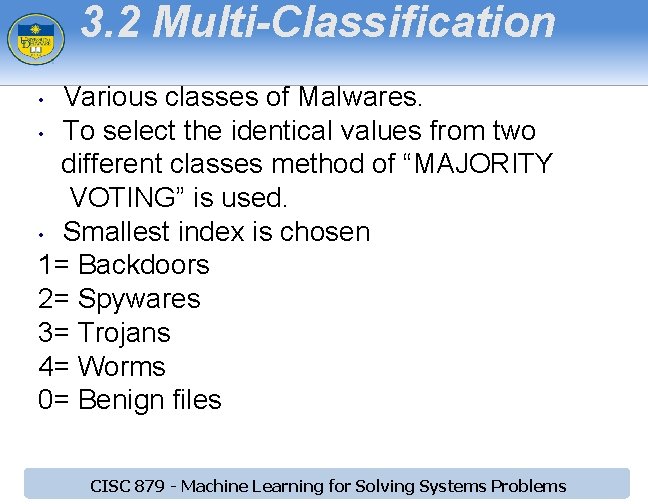

3. 2 Multi-Classification Various classes of Malwares. • To select the identical values from two different classes method of “MAJORITY VOTING” is used. • Smallest index is chosen 1= Backdoors 2= Spywares 3= Trojans 4= Worms 0= Benign files • CISC 879 - Machine Learning for Solving Systems Problems

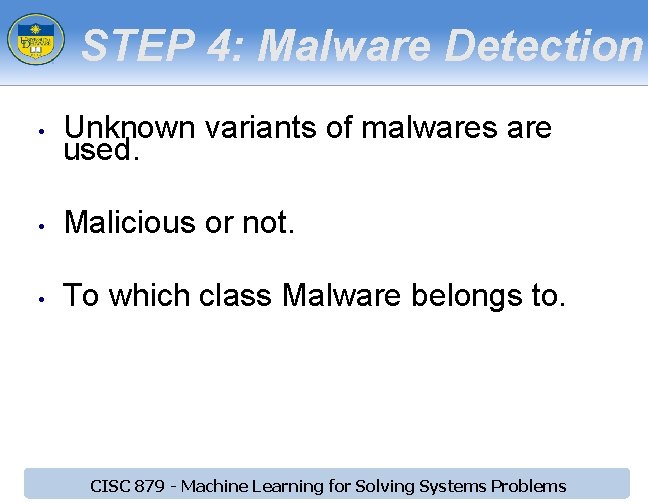

STEP 4: Malware Detection • Unknown variants of malwares are used. • Malicious or not. • To which class Malware belongs to. CISC 879 - Machine Learning for Solving Systems Problems

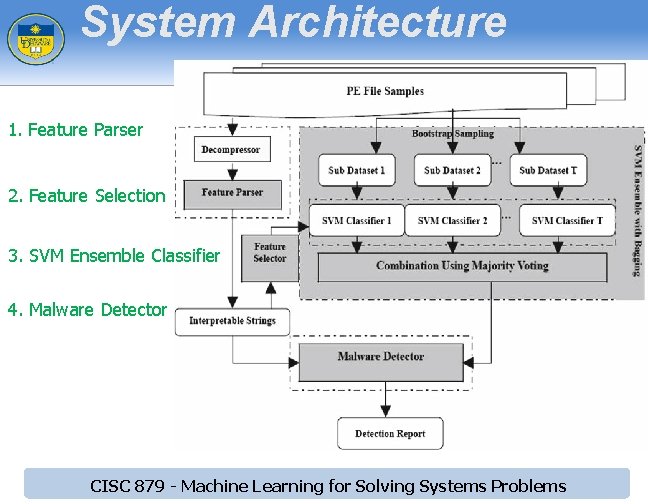

System Architecture 1. Feature Parser 2. Feature Selection 3. SVM Ensemble Classifier 4. Malware Detector CISC 879 - Machine Learning for Solving Systems Problems

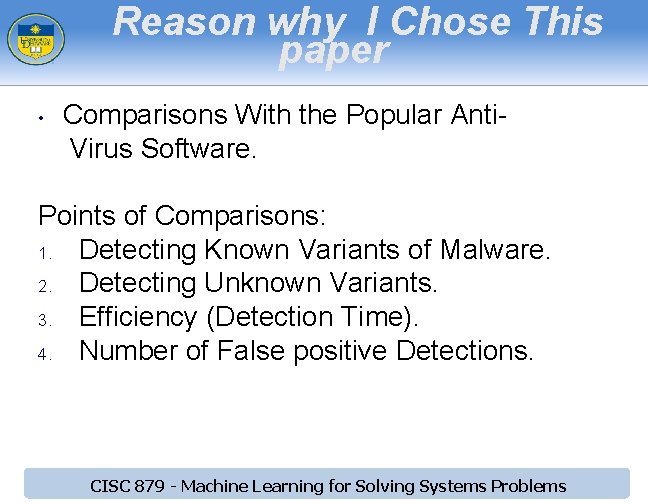

Reason why I Chose This paper • Comparisons With the Popular Anti. Virus Software. Points of Comparisons: 1. Detecting Known Variants of Malware. 2. Detecting Unknown Variants. 3. Efficiency (Detection Time). 4. Number of False positive Detections. CISC 879 - Machine Learning for Solving Systems Problems

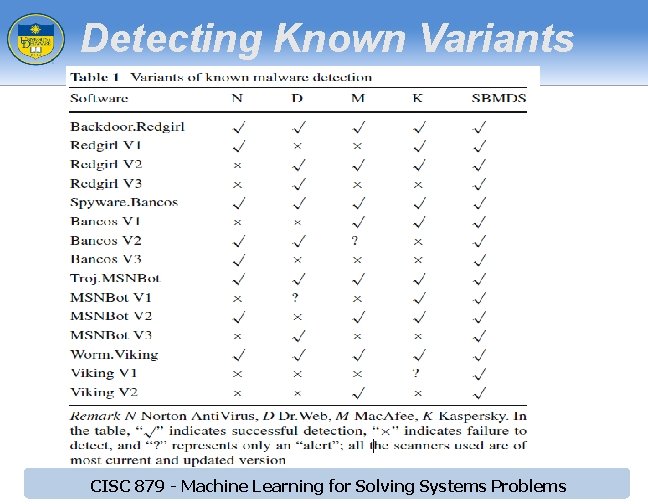

Detecting Known Variants CISC 879 - Machine Learning for Solving Systems Problems

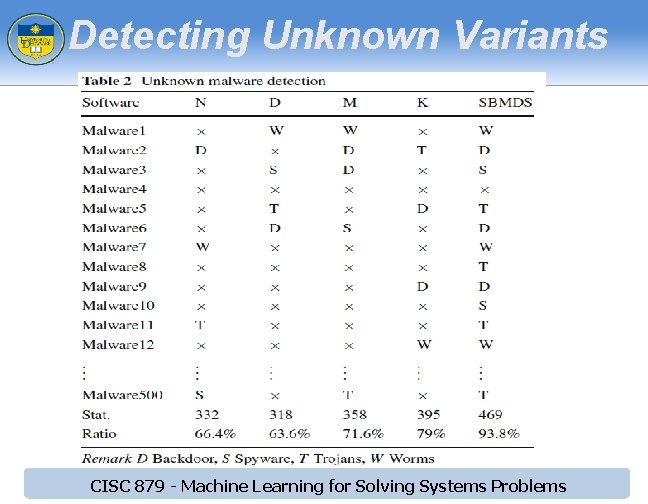

Detecting Unknown Variants CISC 879 - Machine Learning for Solving Systems Problems

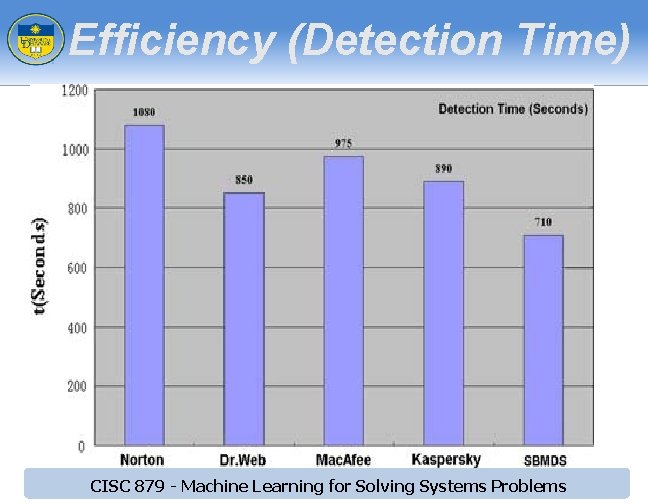

Efficiency (Detection Time) CISC 879 - Machine Learning for Solving Systems Problems

Number of False Positives CISC 879 - Machine Learning for Solving Systems Problems

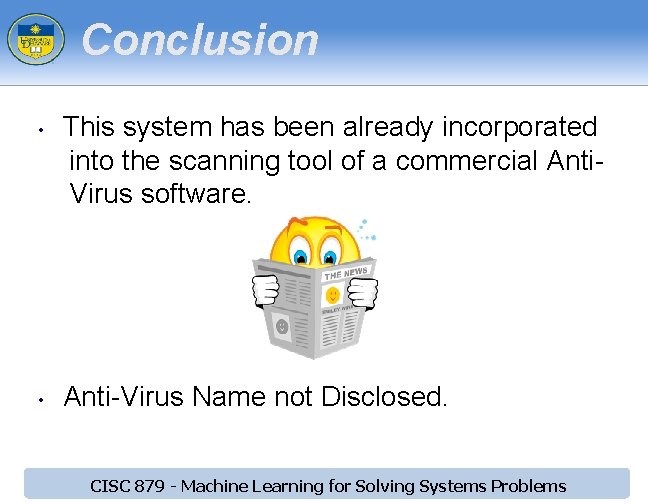

Conclusion • • This system has been already incorporated into the scanning tool of a commercial Anti. Virus software. Anti-Virus Name not Disclosed. CISC 879 - Machine Learning for Solving Systems Problems

Questions? ? ? CISC 879 - Machine Learning for Solving Systems Problems

All Well that Ends Well THANK YOU CISC 879 - Machine Learning for Solving Systems Problems
