Satellitebased Broadband Network Bona Simanjuntak ICT Centre Jakarta

Satellite-based Broadband Network Bona Simanjuntak ICT Centre Jakarta Presented by Wan DKI http: //www. ictcentre. net

Satellite-based Broadband Network Fast and reliable broadband connections to the Global Internet backbone, bypassing the congestion of the terrestrial network, and reaching the parts other networks cannot reach. l Communications-intensive business, Media content providers, Broadband content providers, ISPs and ASPs can benefit from PCM's turnkey end-to-end, customized solutions. High-level timing goals l

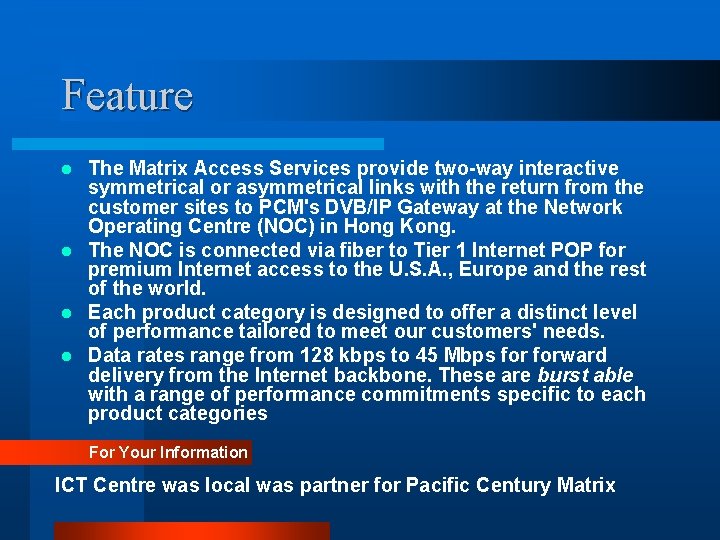

Feature The Matrix Access Services provide two-way interactive symmetrical or asymmetrical links with the return from the customer sites to PCM's DVB/IP Gateway at the Network Operating Centre (NOC) in Hong Kong. l The NOC is connected via fiber to Tier 1 Internet POP for premium Internet access to the U. S. A. , Europe and the rest of the world. l Each product category is designed to offer a distinct level of performance tailored to meet our customers' needs. l Data rates range from 128 kbps to 45 Mbps forward delivery from the Internet backbone. These are burst able with a range of performance commitments specific to each product categories l For Your Information ICT Centre was local was partner for Pacific Century Matrix

Topology

Category of Services. l Access Platinum – 99. 7% availability and reliability – 99% guaranteed packet delivery with consistently short delay – Average throughput 98% l Access Gold – > 99. 5% availability – Close to 99% packet delivery with consistently small delay – Average throughput 50% l Access Silver – > 99. 5% availability – Close to 99% packet delivery with consistently small delay – Average throughput 36% l Access Bronze Plus – For Small Office Each Category Will has support

Technology l SPECIFICATIONS: – RF Tuner • • • Clock speed 1 Ghz Memory 256 MB VGA 32 MB Hard Disk 40 GB. – QPSK • • – l + $ 500 Included Tax Computer Bus PCI Interface Protocol 2, 1 Host Bus Burst rate 133 MB/s burst to host Host Bus width 32 bit PCI Bus Master 32 bit DMA Demultiplexing Max Input Rate 100 Mbps • • • All Equipment Provide by Online Store ICT Centre LNB Supply Voltage 13 V / 18 V DISEq. C 1. 0 Max LNB Supply 350 m. A with Short Circuit Protection Support Data Burst & Tone Burst Antenna Control Signal 22, 33 and 44 k. Hz PCI Interface • • • Satellite Dish 12 Ft Symbol rate 2~45 MS/s Filtering 0. 35 Nyquist Half BW Viterbi Inner Code 1/2, 2/3, 3/4, 5/6, 7/8, Auto Sense Reed-Solomon Outer code 204, 188, 8 (K+T, K, T) LNB Power & Switching • • • – External Connectors-type 75 Ohms-Band Frequency 950 - 2150 MHz tuning range Input Signal Level-65 ~ 25 d. Bm Dynamic Range 40 db Typical Filter Bandwidth Direct Conversion Tuners Input Return Loss 6 db. L/O Leakage at RF Input-80 dbm, Max 63 dbm. SPC/MCPC Yes, both. Image Rejection 40 d. Bc. Phase Noise 75 d. Bc @ 10 k. Hz, Max -70 d. Bc @ 10 k. Hz. Noise Figure 6 -12 d. B Max No. Data Stream 33+ Max No. Section Filters 33+ No. Sections Per Packet Unlimited

Advantages l l l l Comprehensive one-stop-shop premium managed network services from the customers' terminal into PCM's network to the Internet backbone in the U. S. A. Full range of access products with different performance commitments, managed to minimize Internet traffic congestion and priced to serve different customer requirements and needs Service Providers can evolve to integrated TV, Internet, and content delivery services on one platform. Fully reliable network with state-of-the-art facilities at the NOC, non-stop round-theclock operations and network monitoring. PCM customers obtain an average throughput significantly higher than CIR (Committed Information Rate). This results in much less congestion when the users' network needs are properly dimensioned. Flexible and customized charging scheme: by usage, by time-of-day, and for package/large file delivery within specific time windows. Consultation on network planning, including selection of equipment, testing and lineup support Responsive Customer Care and Network performance statistics are also available

Schedule l Project Plan Installation Trial Max 3 Days Contract, Etc Days 1 Days 2 -5 Days 6 FOR MORE INFO. . . For Corporate Client technician will provide by both side (Client and ISP)

CIR 1: 3 Kbps USD IDR 96 $ 260 Rp 2. 405. 000 128 $ 280 Rp 2. 590. 000 192 $ 390 Rp 3. 607. 500 256 $ 440 Rp 4. 070. 000 384 $ 610 Rp 5. 642. 500 512 $ 740 Rp 6. 845. 000 $ 1. 330 Rp 12. 302. 500 1024 CIR 1: 2 Kbps USD IDR 96 $ 330 Rp 3. 052. 500 128 $ 370 Rp 3. 422. 500 192 $ 500 Rp 4. 625. 000 256 $ 600 Rp 5. 550. 000 384 $ 870 Rp 8. 047. 500 512 $ 1. 070 Rp 9. 897. 500 1024 $ 1. 970 Rp 18. 222. 500 CIR 1: 1 Kbps USD IDR 96 $ 510 Rp 4. 717. 500 128 $ 570 Rp 5. 272. 500 192 $ 860 Rp 7. 955. 000 256 $ 980 Rp 9. 065. 000 384 $ 1. 450 Rp 13. 412. 500 512 $ 1. 800 Rp 16. 650. 000 1024 $ 3. 470 Rp 32. 097. 500

Thanks For More Information Contact us at Centre Of ICT Studies DKI Jakarta Pangkalan Jati II No 19. Kalimalang. East Jakarta DKI Jakarta. Indonesia 13620 Phone : 021 8613027, 86600004 -5 Fax : 8605987 Mail at : info@wan-dki. net Homepage : www. ictcentre. net / www. wan-dki. net
