SAP n n n SAP SAP Logical View

SAP 架構及前端軟體安裝 n n n SAP前端軟體安裝 SAP登入 Logical View of the SAP System – Presentation Components – Basis System – 主要模組 SAP 楊子青 1

1. SAP前端軟體安裝 n SAP前端軟體 7. 40版 – http: //www. cs. pu. edu. tw/~tcyang/ftp/SAPGUI 740. zip – 下載後，解壓縮 • 執行Setup. All. exe • 安裝內容，至少要勾選SAP GUI for Windows 7. 4 (Compilation 2) • 安裝後，桌面會出現SAP Logon圖示 SAP 楊子青 2

Clients in SAP n A self-contained organizational unit in the SAP System. – Clients have their own data environment (user master and transaction data). – Users of different clients coexist independently and isolated in the same SAP System. – Client 000 is defined as an SAP standard and must not be changed by customers. (初始data) – Clients have a three digit name. – 可視為“企業集團”，集團下可包含許多事業部門及 子公司 SAP 楊子青 3

SAP 功能逐層展開 click 最底層 double-click SAP 楊子青 8

SAP 最底層功能展開實例 n SAP menu → Tools → Administration → User Maintenance → SU 01 Users SAP 楊子青 9

SAP設定實例 n Extra: Settings SAP 楊子青 10

SAP操作實例 n Add to Favorites SAP 楊子青 11

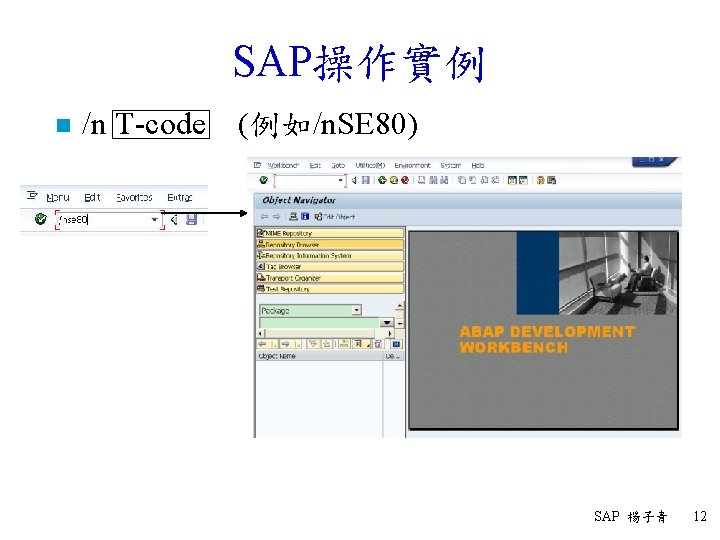

SAP操作實例 n /n T-code (例如/n. SE 80) SAP 楊子青 12

3. Logical view of the SAP System SAP 楊子青 13

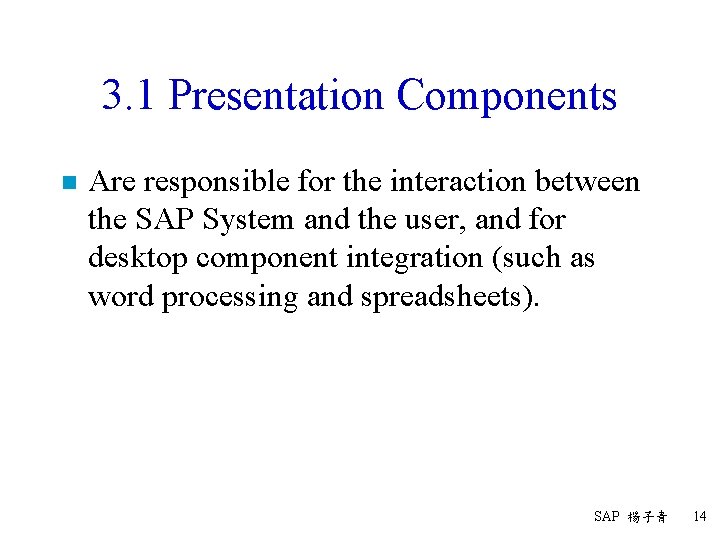

3. 1 Presentation Components n Are responsible for the interaction between the SAP System and the user, and for desktop component integration (such as word processing and spreadsheets). SAP 楊子青 14

實例：查詢Users n T-code: SM 51 (System Monitoring: Server) SAP 楊子青 15

3. 3 Basis System n n The platform for all other applications (financial accounting, logistics, human resources management) in the R/3 System Kernel and Basis Services – – – Running applications System Monitoring and Administration User and process administration Database access Communication SAP 楊子青 17

Basis System (Cont. ) n ABAP Workbench – a development environment for applications in the ABAP language. – With it, you can create, edit, test, and organize application developments. SAP 楊子青 18

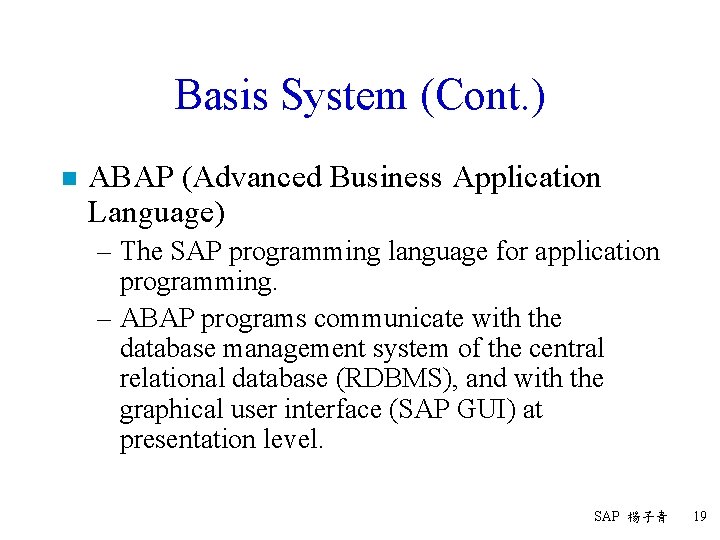

Basis System (Cont. ) n ABAP (Advanced Business Application Language) – The SAP programming language for application programming. – ABAP programs communicate with the database management system of the central relational database (RDBMS), and with the graphical user interface (SAP GUI) at presentation level. SAP 楊子青 19

SAP操作實例 n System: Status (以/n. PBAZ之T-Code為例) SAP 楊子青 20

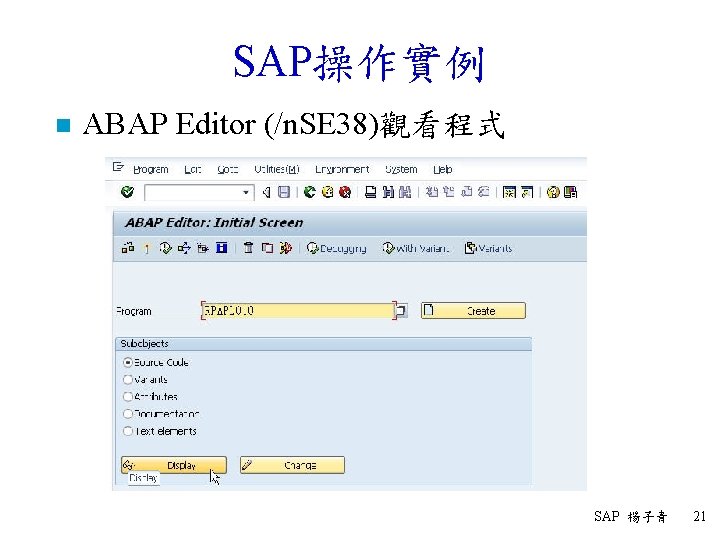

SAP操作實例 n ABAP Editor (/n. SE 38)觀看程式 SAP 楊子青 21

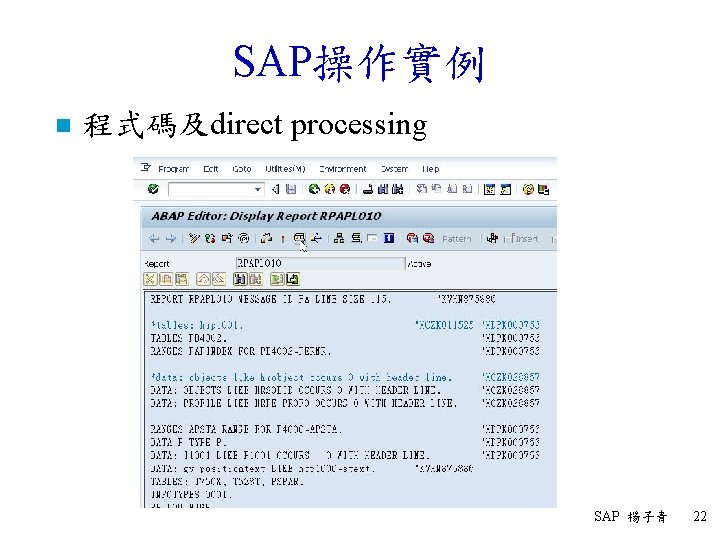

SAP操作實例 n 程式碼及direct processing SAP 楊子青 22

SAP操作實例 n User Overview SAP 楊子青 23

SAP操作實例 n Copy/Change/ Display/Delete/Lock a User (/n. SU 01) SAP 楊子青 24

使用Object Navigator (SE 80) n 建立package 按Enter鍵 SAP 楊子青 25

建立package n 輸入Short Description，並建立request SAP 楊子青 26
