SAP Business One 9 0 integration for SAP

SAP Business One 9. 0 integration for SAP Net. Weaver Installation and Technical Configuration 2013 March INTE RNA L

Objectives At the end of this module, you will be able to: • Outline the supported operating systems, databases and application systems • Explain how to install on Linux using SAP HANA or My. SQL • Define how to configure and start SAP Business One Event. Sender • Explain where to install SAP Business One DIProxy • Explain how to run on Linux • Define how to uninstall, repair or change the installation © 2013 SAP AG. All rights reserved. RKT 2

Agenda Introduction – Supported Operating Systems and Databases – Supported Application Systems – Installation Components and Content – General Prerequisites – Database and Operating System Prerequisites Installation – Installation Procedure On Linux – Using SAP HANA on Linux After Installation – Checking Integration Framework Service – Setting up and Starting SAP Business One Event. Sender – Installing SAP Business One DIProxy on Windows – Starting SAP Business One integration for SAP Net. Weaver – Importing Documentation Add, Remove, Repair, Uninstall © 2013 SAP AG. All rights reserved. RKT 3

Introduction Supported Operating Systems and Databases Server platforms: Microsoft® Windows Server 2008, 32 Bit (x 86) / 64 Bit (x 64) Microsoft® Windows Server 2008 R 2, 32 Bit (x 86) / 64 Bit (x 64) Microsoft® Windows 7 32 Bit (x 86) / 64 Bit (x 64) Linux, SUSE SLES 11 Windows 32/64 Bit Linux Microsoft® SQL Server 2012 Microsoft SQL Server 2008 Microsoft SQL Server 2012 SAP Max. DB 7. 9, 32 Bit (x 86) / 64 Bit (x 64) Max. DB X X My. SQL 5. 0 My. SQL X SAP HANA X X Databases: Microsoft® SQL Server 2008 SAP HANA Platform Edition 1. 0 Installation options for: X X SAP Business One integration for SAP Net. Weaver on Linux SAP Business One integration for SAP Net. Weaver on Microsoft Windows Find the Administrator‘s Guide in the System Setup subfolder http: //sappartneredge. com/B 1/platforms © 2013 SAP AG. All rights reserved. RKT 4

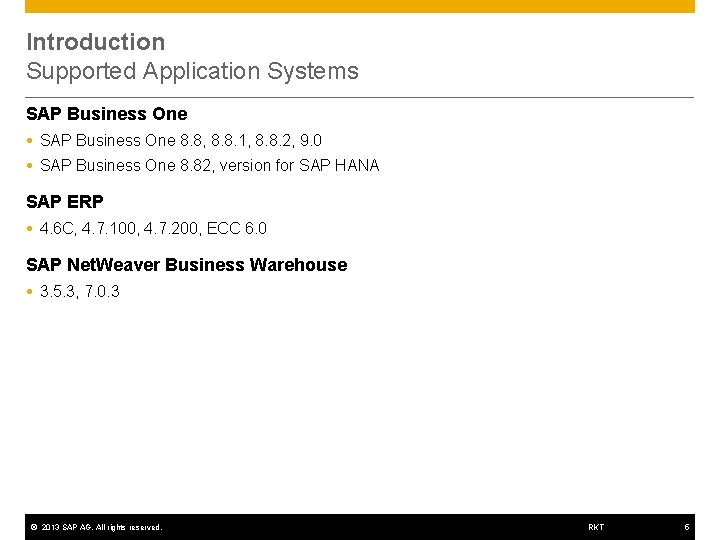

Introduction Supported Application Systems SAP Business One 8. 8, 8. 8. 1, 8. 8. 2, 9. 0 SAP Business One 8. 82, version for SAP HANA SAP ERP 4. 6 C, 4. 7. 100, 4. 7. 200, ECC 6. 0 SAP Net. Weaver Business Warehouse 3. 5. 3, 7. 0. 3 © 2013 SAP AG. All rights reserved. RKT 5

Introduction Installation Components and Content With the installation program you install: SAP Business One integration for SAP Net. Weaver (integration framework) SAP Business One Components: Event. Sender, DI Proxy Integration Content SAP Business One Financial Consolidation SAP Business One Intercompany Purchasing SAP Business One Master Data Distribution Business Partners SAP Business One Master Data Distribution Products Customizing Data Distribution for Business Partners Customizing Data Distribution for Products Intercompany Purchasing In-House Cash Liquidity Forecasting Master Data Distribution Business Partners Master Data Distribution Products Management Reporting © 2013 SAP AG. All rights reserved. RKT 6

Introduction General Prerequisites Hardware Requirements: 1 x Intel Pentium CPU Minimum 2 GB, 4 GB RAM (for typical production usage) 500 MB free disk space Install on separate dedicated machine Do not install on machine, where you run SAP Business One or the integration framework of SAP Business One Further Requirements: Installation rights in the system Your database server is installed No other Tomcat installation with default configuration on machine For latest information, see SAP Note 1823861 © 2013 SAP AG. All rights reserved. RKT 7

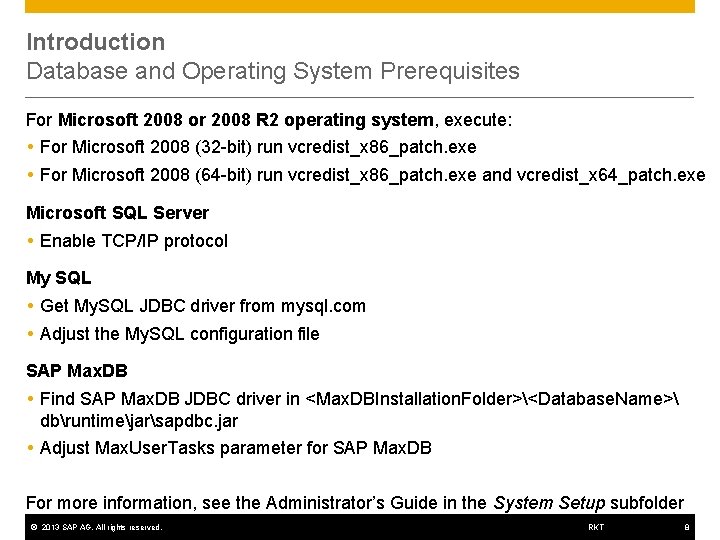

Introduction Database and Operating System Prerequisites For Microsoft 2008 or 2008 R 2 operating system, execute: For Microsoft 2008 (32 -bit) run vcredist_x 86_patch. exe For Microsoft 2008 (64 -bit) run vcredist_x 86_patch. exe and vcredist_x 64_patch. exe Microsoft SQL Server Enable TCP/IP protocol My SQL Get My. SQL JDBC driver from mysql. com Adjust the My. SQL configuration file SAP Max. DB Find SAP Max. DB JDBC driver in <Max. DBInstallation. Folder><Database. Name> dbruntimejarsapdbc. jar Adjust Max. User. Tasks parameter for SAP Max. DB For more information, see the Administrator’s Guide in the System Setup subfolder © 2013 SAP AG. All rights reserved. RKT 8

Agenda Introduction – Supported Operating Systems and Databases – Supported Application Systems – Installation Components and Content – General Prerequisites – Database and Operating System Prerequisites Installation – Installation Procedure On Linux – Using SAP HANA on Linux After Installation – Checking Integration Framework Service – Setting up and Starting SAP Business One Event. Sender – Installing SAP Business One DIProxy on Windows – Starting SAP Business One integration for SAP Net. Weaver – Importing Documentation Add, Remove, Repair, Uninstall © 2013 SAP AG. All rights reserved. RKT 9

Installation On Linux I In /root/B 1 i. SN_Linux, select setup. bin. The Terminal window opens. Choose File Open in Terminal. Setup prepares to install…. . Enter: . /setup. bin. Setup prepares to install…. . © 2013 SAP AG. All rights reserved. RKT 10

Installation On Linux II Choose Next. Choose the installation folder. The default installation folder is: /root/SAP Business One 9. 0 integration for SAP Net. Weaver Choose Next. © 2013 SAP AG. All rights reserved. RKT 11

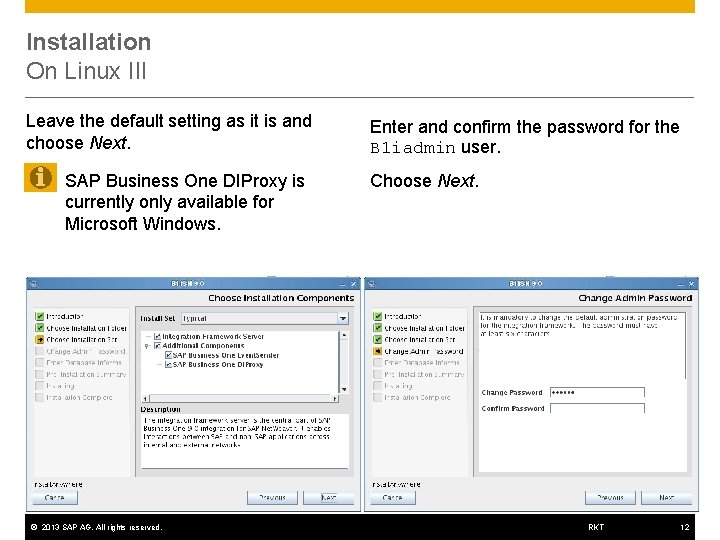

Installation On Linux III Leave the default setting as it is and choose Next. Enter and confirm the password for the B 1 iadmin user. SAP Business One DIProxy is currently only available for Microsoft Windows. Choose Next. © 2013 SAP AG. All rights reserved. RKT 12

Installation On Linux IV Enter database information. On Linux you can use: SAP Max. DB My. SQL SAP HANA Before you enter information and test the connection, you can check, whether My. SQL has been started. Enter: service mysql status If the service is not running, enter: service mysql start Choose My. SQL. © 2013 SAP AG. All rights reserved. RKT 13

Installation On Linux V Setup detects and suggests settings for: Database Server and Port Database Name Database Username Enter the password for database access. Choose the location where you have stored the database driver and select: mysql-connector-java-5. 1. 14 -bin. jar Choose Next. Setup checks the connection to the database. © 2013 SAP AG. All rights reserved. RKT 14

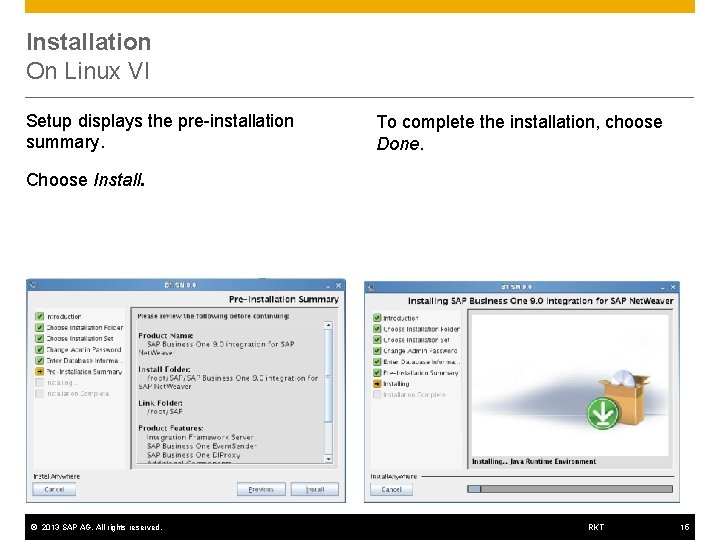

Installation On Linux VI Setup displays the pre-installation summary. To complete the installation, choose Done. Choose Install. © 2013 SAP AG. All rights reserved. RKT 15

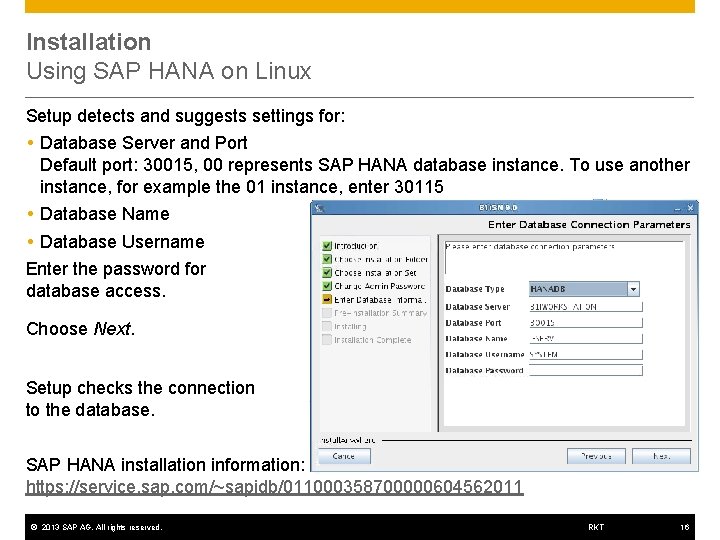

Installation Using SAP HANA on Linux Setup detects and suggests settings for: Database Server and Port Default port: 30015, 00 represents SAP HANA database instance. To use another instance, for example the 01 instance, enter 30115 Database Name Database Username Enter the password for database access. Choose Next. Setup checks the connection to the database. SAP HANA installation information: https: //service. sap. com/~sapidb/011000358700000604562011 © 2013 SAP AG. All rights reserved. RKT 16

Agenda Introduction – Supported Operating Systems and Databases – Supported Application Systems – Installation Components and Content – General Prerequisites – Database and Operating System Prerequisites Installation – Installation Procedure On Linux – Using SAP HANA on Linux After Installation – Checking Integration Framework Service – Setting up and Starting SAP Business One Event. Sender – Installing SAP Business One DIProxy on Windows – Starting SAP Business One integration for SAP Net. Weaver – Importing Documentation Add, Remove, Repair, Uninstall © 2013 SAP AG. All rights reserved. RKT 17

After Installation Check Integration Framework Service In terminal, enter: service tomcat 6 status If you do not get the message: integration framework server is running Enter: service tomcat 6 start © 2013 SAP AG. All rights reserved. RKT 18

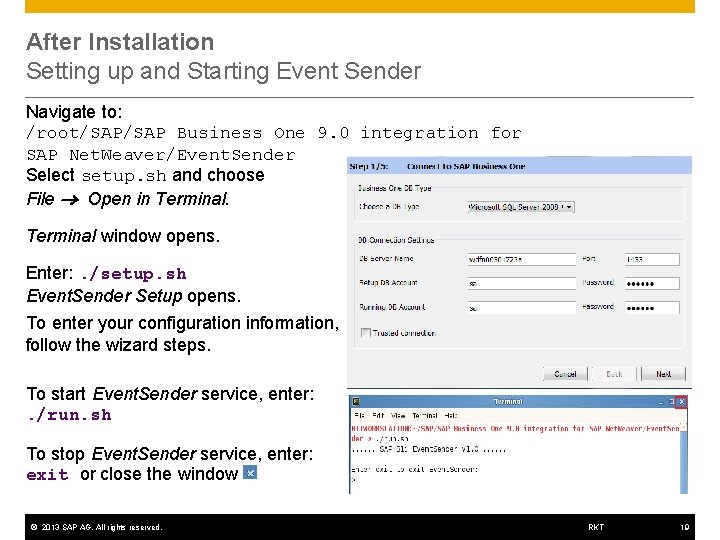

After Installation Setting up and Starting Event Sender Navigate to: /root/SAP Business One 9. 0 integration for SAP Net. Weaver/Event. Sender Select setup. sh and choose File Open in Terminal window opens. Enter: . /setup. sh Event. Sender Setup opens. To enter your configuration information, follow the wizard steps. To start Event. Sender service, enter: . /run. sh To stop Event. Sender service, enter: exit or close the window © 2013 SAP AG. All rights reserved. RKT 19

After Installation Installing SAP Business One DIProxy on Windows Install SAP Business One DIProxy on the SAP Business One Server. SAP Business One runs on the Microsoft Windows operation system. On Windows, run setup. exe and install SAP Business One DIProxy. © 2013 SAP AG. All rights reserved. RKT 20

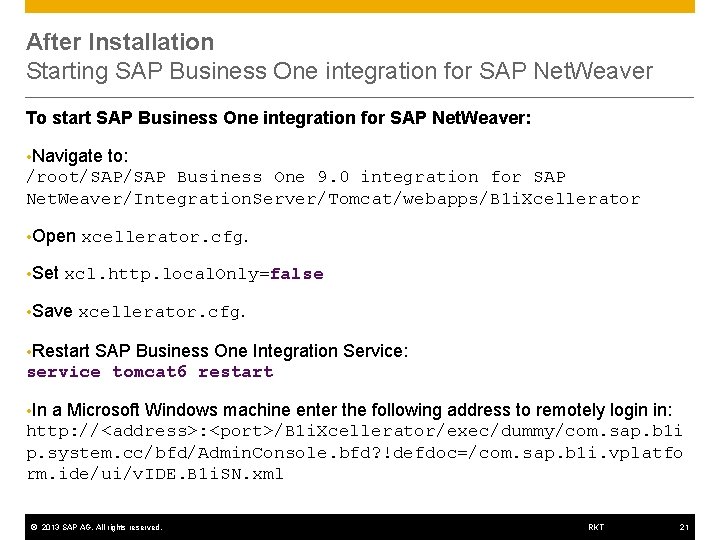

After Installation Starting SAP Business One integration for SAP Net. Weaver To start SAP Business One integration for SAP Net. Weaver: Navigate to: /root/SAP Business One 9. 0 integration for SAP Net. Weaver/Integration. Server/Tomcat/webapps/B 1 i. Xcellerator Open xcellerator. cfg. Set xcl. http. local. Only=false Save xcellerator. cfg. Restart SAP Business One Integration Service: service tomcat 6 restart In a Microsoft Windows machine enter the following address to remotely login in: http: //<address>: <port>/B 1 i. Xcellerator/exec/dummy/com. sap. b 1 i p. system. cc/bfd/Admin. Console. bfd? !defdoc=/com. sap. b 1 i. vplatfo rm. ide/ui/v. IDE. B 1 i. SN. xml © 2013 SAP AG. All rights reserved. RKT 21

After Installation Importing Documentation Setup does not import documentation to Biz. Store. Install it manually: Choose Maintenance ZIP Import and navigate to <Installation. Path>Integration. ServerTomcatwebappsB 1 i. XcelleratorB 1 i. FDocs Import the following archives: © 2013 SAP AG. All rights reserved. RKT 22

Agenda Introduction – Supported Operating Systems and Databases – Supported Application Systems – Installation Components and Content – General Prerequisites – Database and Operating System Prerequisites Installation – Installation Procedure On Linux – Using SAP HANA on Linux After Installation – Checking Integration Framework Service – Setting up and Starting SAP Business One Event. Sender – Installing SAP Business One DIProxy on Windows – Starting SAP Business One integration for SAP Net. Weaver – Importing Documentation Add, Remove, Repair, Uninstall © 2013 SAP AG. All rights reserved. RKT 23

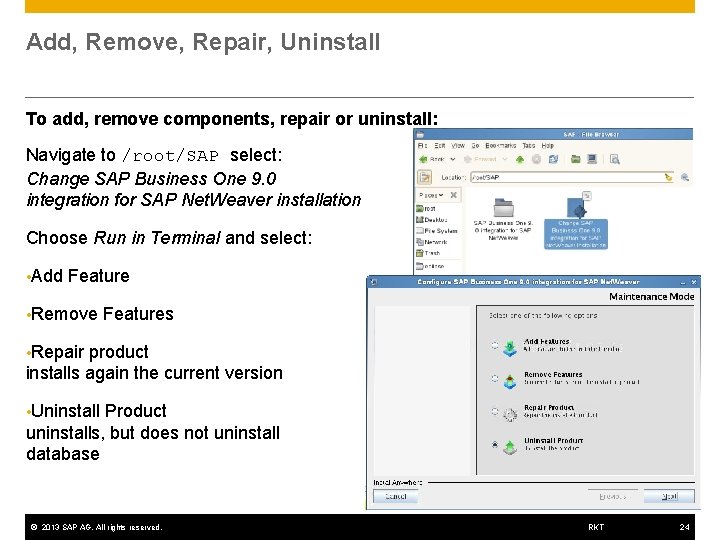

Add, Remove, Repair, Uninstall To add, remove components, repair or uninstall: Navigate to /root/SAP select: Change SAP Business One 9. 0 integration for SAP Net. Weaver installation Choose Run in Terminal and select: • Add Feature • Remove Features • Repair product installs again the current version • Uninstall Product uninstalls, but does not uninstall database © 2013 SAP AG. All rights reserved. RKT 24

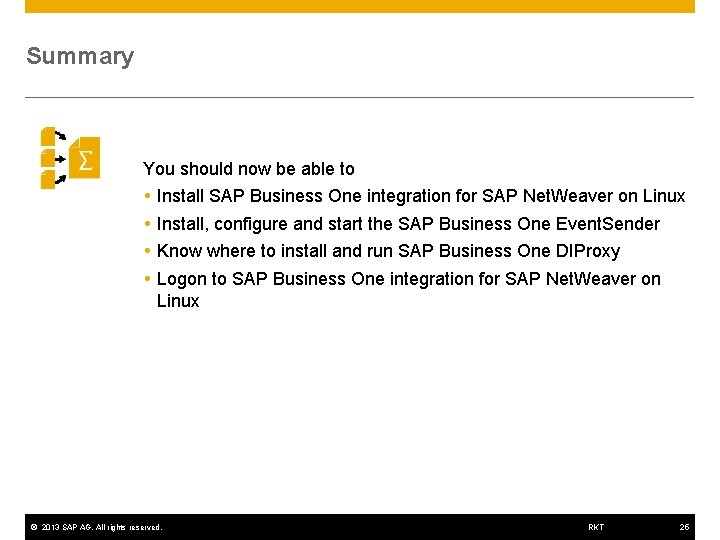

Summary You should now be able to Install SAP Business One integration for SAP Net. Weaver on Linux Install, configure and start the SAP Business One Event. Sender Know where to install and run SAP Business One DIProxy Logon to SAP Business One integration for SAP Net. Weaver on Linux © 2013 SAP AG. All rights reserved. RKT 25
