SAP Business Integration SAP S Systems A Applications

SAP Business Integration

SAP: S – Systems A – Applications P – Products Integration through Processes & Organization Structure

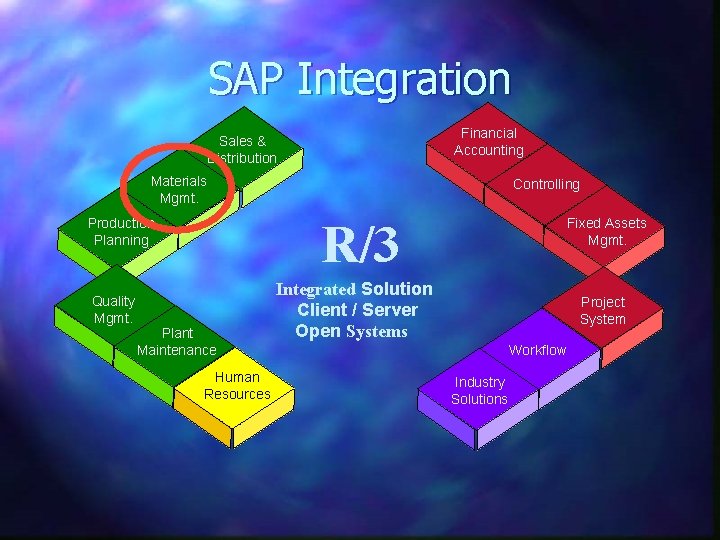

SAP Integration Financial Accounting Sales & Distribution Materials Mgmt. R/3 Production Planning Quality Mgmt. Controlling Plant Maintenance Human Resources Fixed Assets Mgmt. Integrated Solution Client / Server Open Systems Project System Workflow Industry Solutions

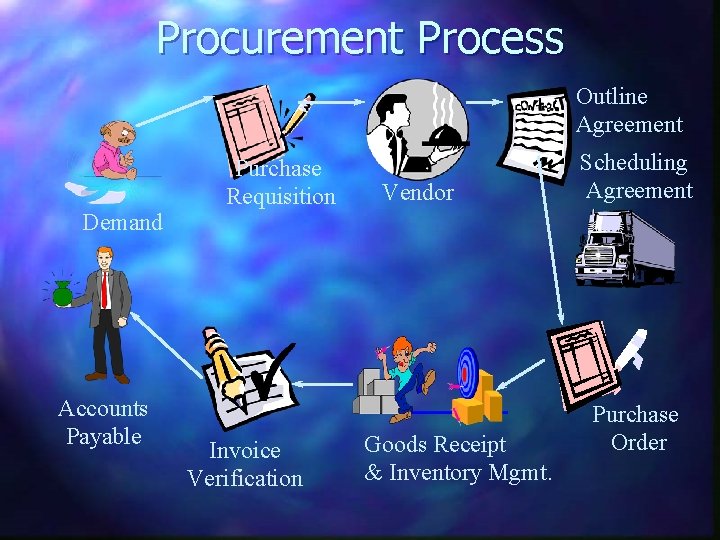

Procurement Process Outline Agreement Demand Accounts Payable Purchase Requisition Invoice Verification Vendor Goods Receipt & Inventory Mgmt. Scheduling Agreement Purchase Order

Internal Order - Company Picnic Settle Order to Departments Invoice Verification Purchase Requisition Purchase Order Goods Receipt of Hats

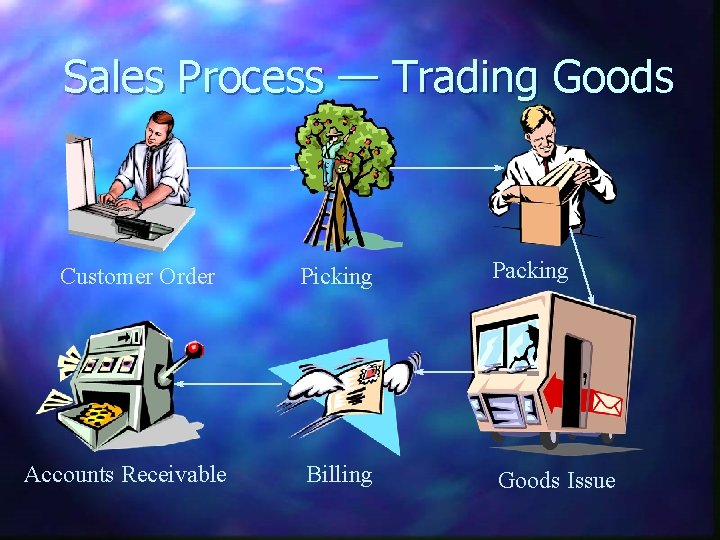

Sales Process — Trading Goods Customer Order Accounts Receivable Picking Packing Billing Goods Issue

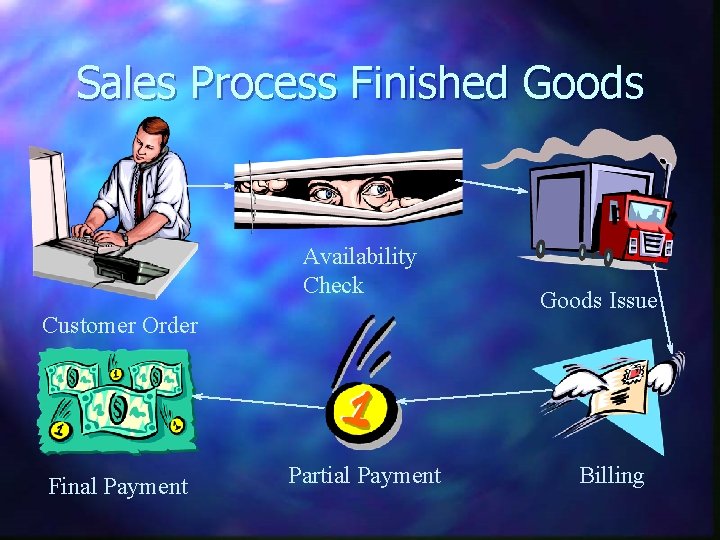

Sales Process Finished Goods Availability Check Customer Order Final Payment Partial Payment Goods Issue Billing

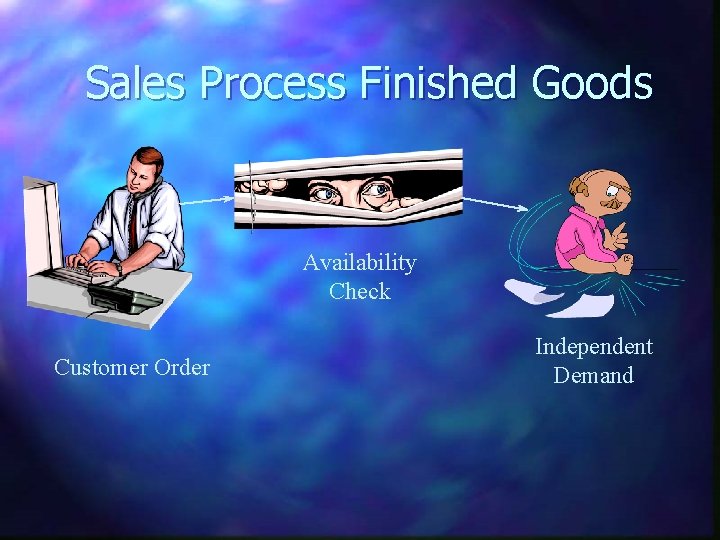

Sales Process Finished Goods Availability Check Customer Order Independent Demand

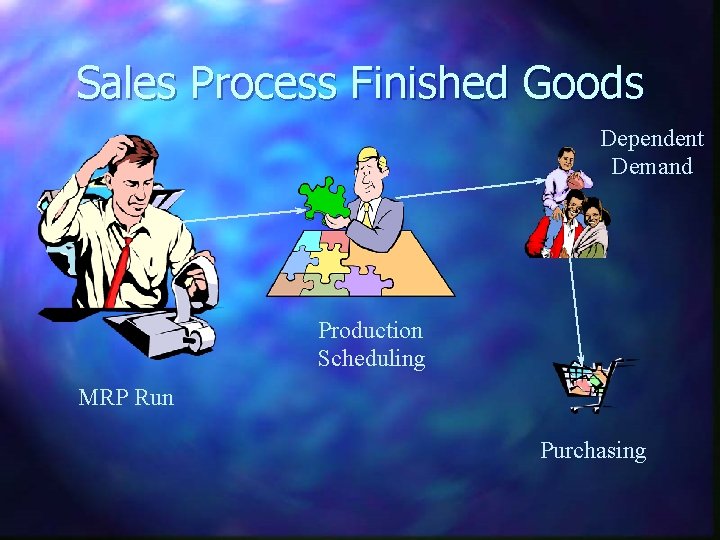

Sales Process Finished Goods Dependent Demand Production Scheduling MRP Run Purchasing

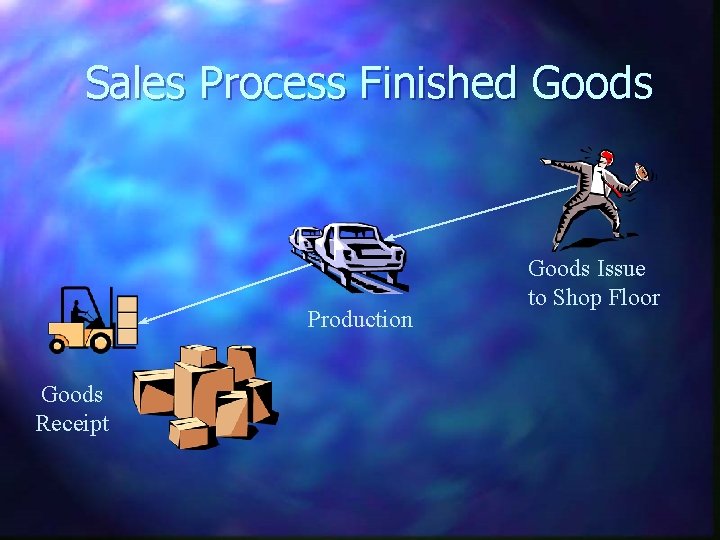

Sales Process Finished Goods Production Goods Receipt Goods Issue to Shop Floor

Production Process Goods Issue Order Settlement Shop Floor Goods Receipt

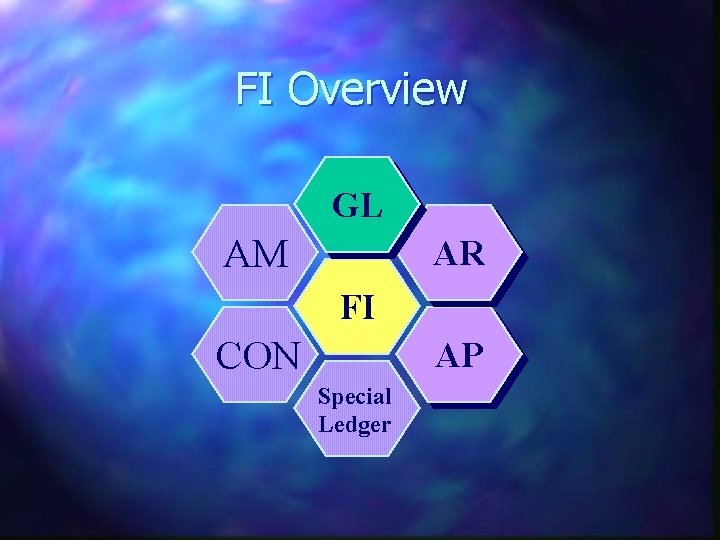

FI Overview GL AM AR FI CON AP Special Ledger

Financial Accounting External Accounting Stockholders Financial Position Profit & Loss Balance Sheet Bankers, Lenders External Auditors IRS, Taxing Authority SEC

Controlling Internal Accounting Executives Department Managers Departmental Expense Report Salaries 10, 000 Overhead 8, 000 Other 5, 000 Total 23, 000 Controllers Senior Management

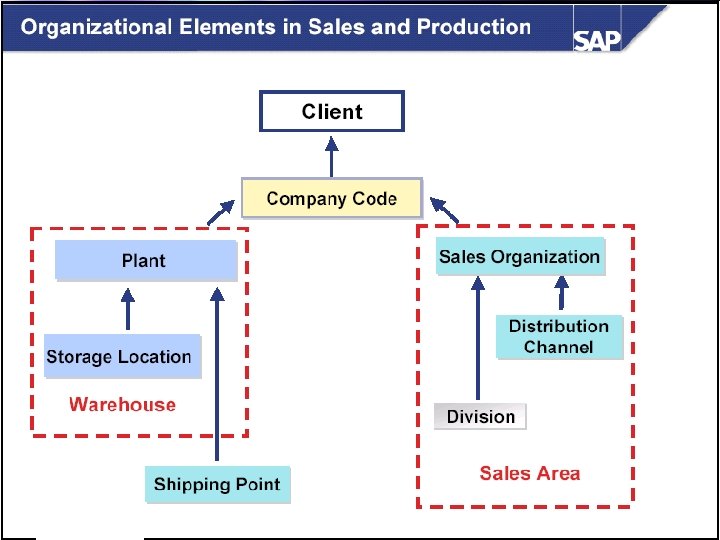

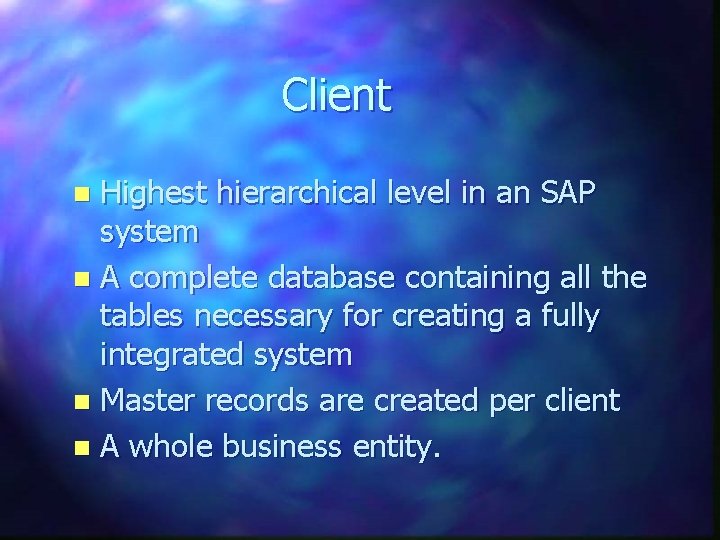

Client Highest hierarchical level in an SAP system n A complete database containing all the tables necessary for creating a fully integrated system n Master records are created per client n A whole business entity. n

Company Consolidated financial statements are created at the company level n A company can include one or more company codes n – All company codes must use the same chart of accounts and fiscal year

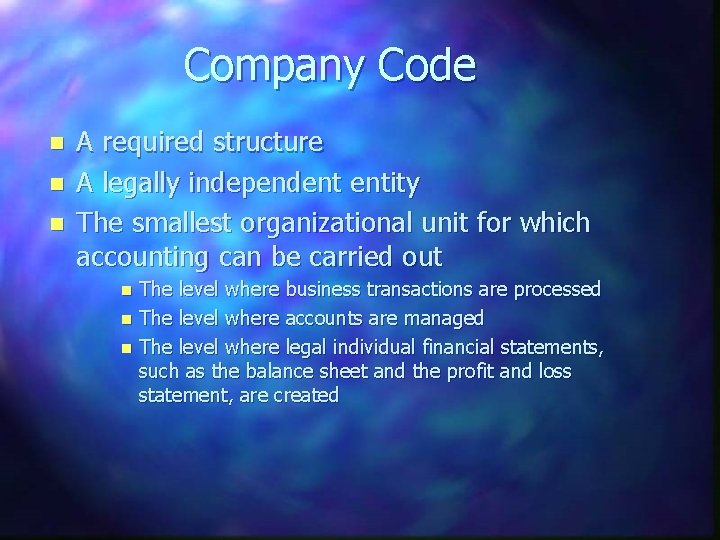

Company Code n n n A required structure A legally independent entity The smallest organizational unit for which accounting can be carried out The level where business transactions are processed n The level where accounts are managed n The level where legal individual financial statements, such as the balance sheet and the profit and loss statement, are created n

A COMPANY CODE IS. . . A BALANCED SET OF BOOKS

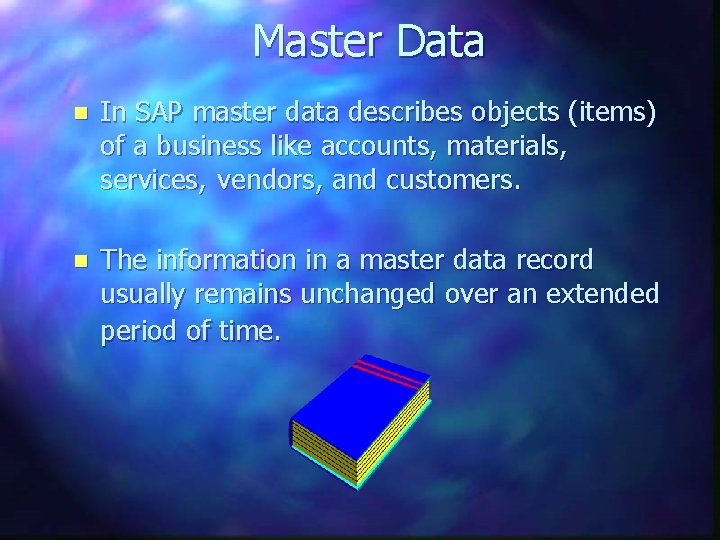

Master Data n In SAP master data describes objects (items) of a business like accounts, materials, services, vendors, and customers. n The information in a master data record usually remains unchanged over an extended period of time.

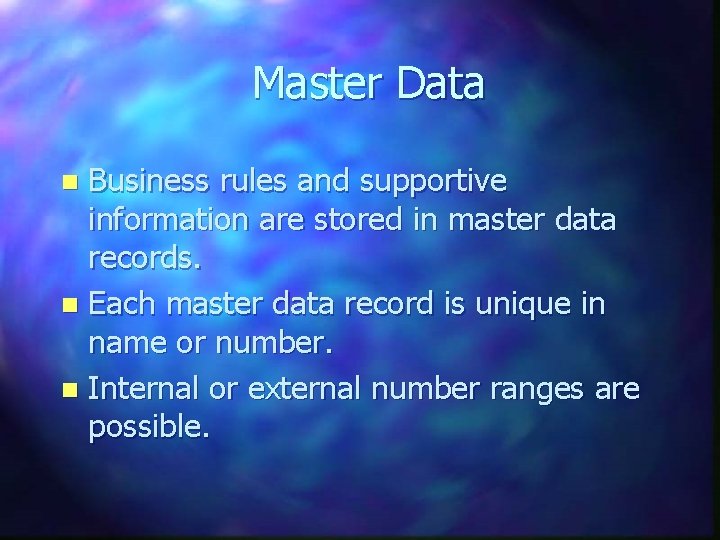

Master Data Business rules and supportive information are stored in master data records. n Each master data record is unique in name or number. n Internal or external number ranges are possible. n

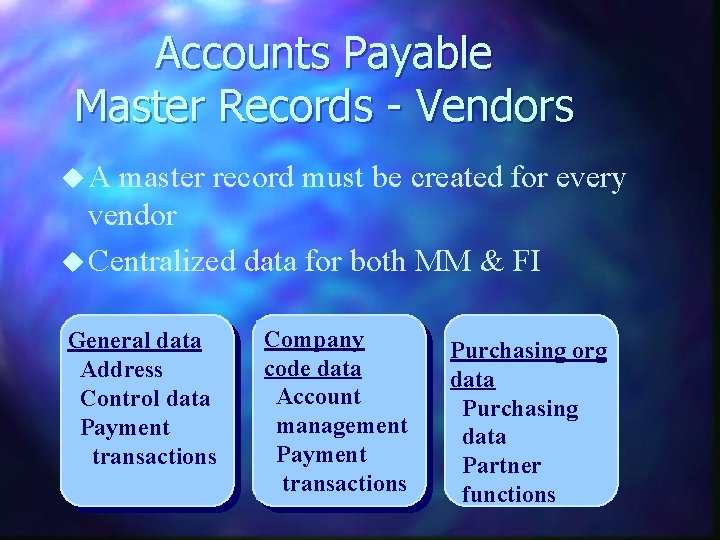

Accounts Payable Master Records - Vendors u. A master record must be created for every vendor u Centralized data for both MM & FI General data Address Control data Payment transactions Company code data Account management Payment transactions Purchasing org data Purchasing data Partner functions

Vendor Master Address screen Vendor Name Search Term Street address, City, Postal code Country Language Telephone, Fax, Data numbers Address screen Control Payment transactions

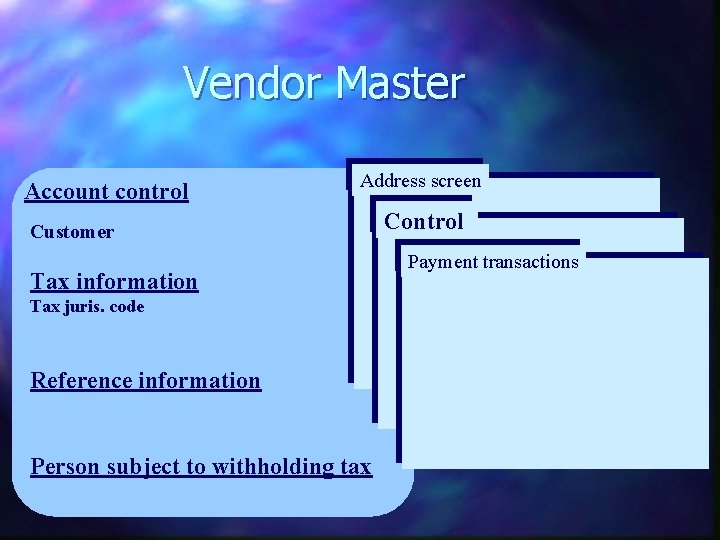

Vendor Master Account control Address screen Customer Tax information Tax juris. code Reference information Person subject to withholding tax Control Payment transactions

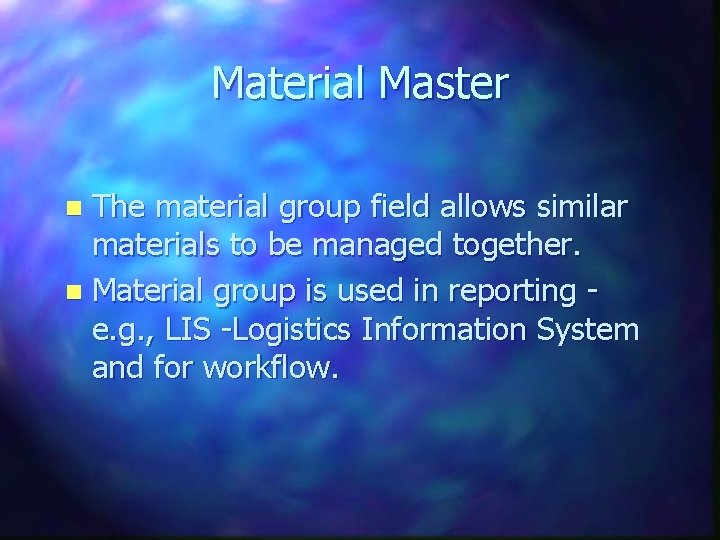

Material Master The material group field allows similar materials to be managed together. n Material group is used in reporting e. g. , LIS -Logistics Information System and for workflow. n

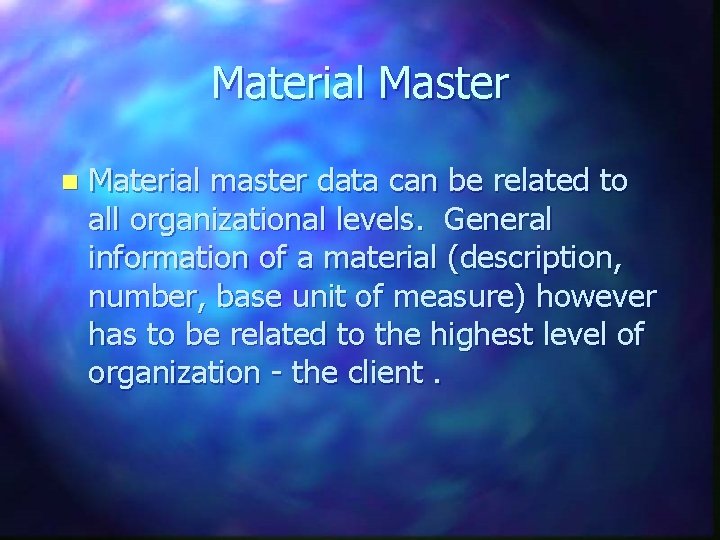

Material Master n Material master data can be related to all organizational levels. General information of a material (description, number, base unit of measure) however has to be related to the highest level of organization - the client.

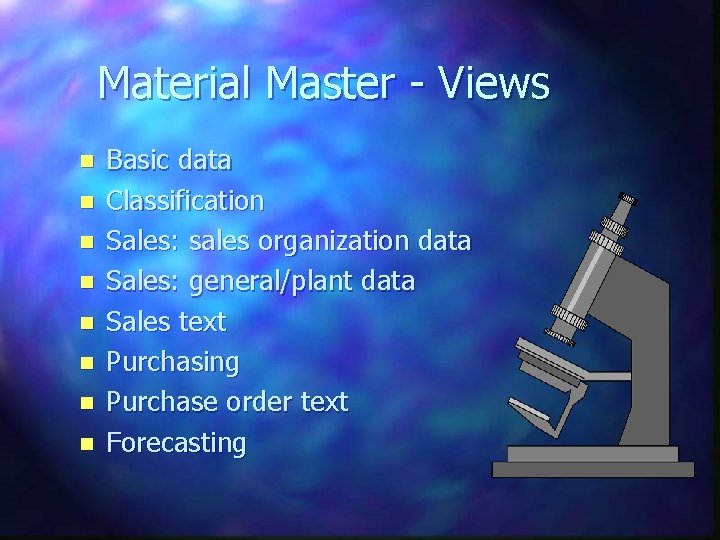

Material Master - Views n n n n Basic data Classification Sales: sales organization data Sales: general/plant data Sales text Purchasing Purchase order text Forecasting

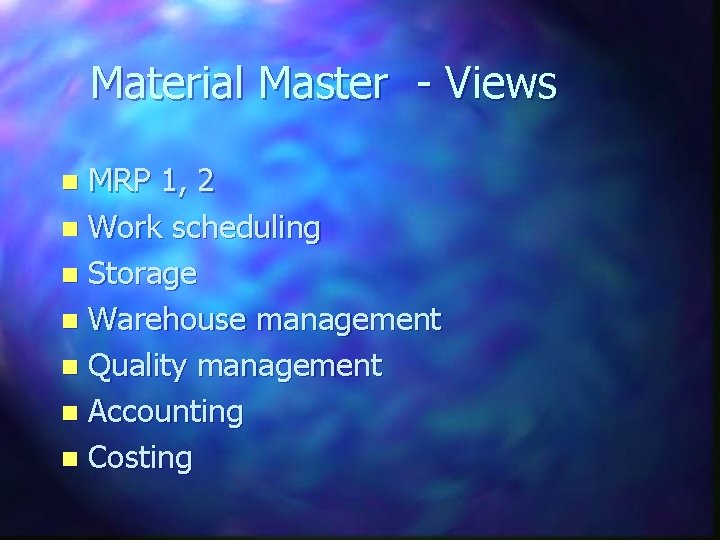

Material Master - Views MRP 1, 2 n Work scheduling n Storage n Warehouse management n Quality management n Accounting n Costing n

Material Type n n n The material type is used to categorize materials. Example: raw materials, finished goods, trading goods, etc. The material type defines the material attributes, e. g. , valuation, procurement, price control

Material Types

Material Type The material type also controls number assignment, field selection, and account determination. n Standard material types are used in all industries. The following material types come already designed as a reference. n

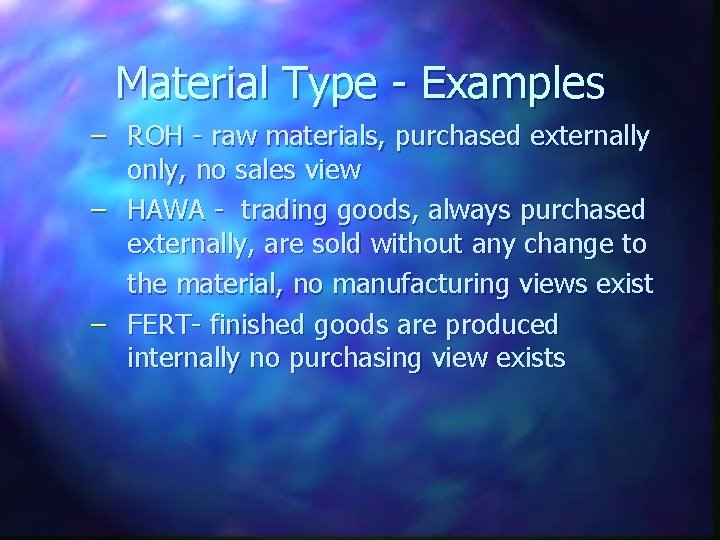

Material Type - Examples – ROH - raw materials, purchased externally only, no sales view – HAWA - trading goods, always purchased externally, are sold without any change to the material, no manufacturing views exist – FERT- finished goods are produced internally no purchasing view exists

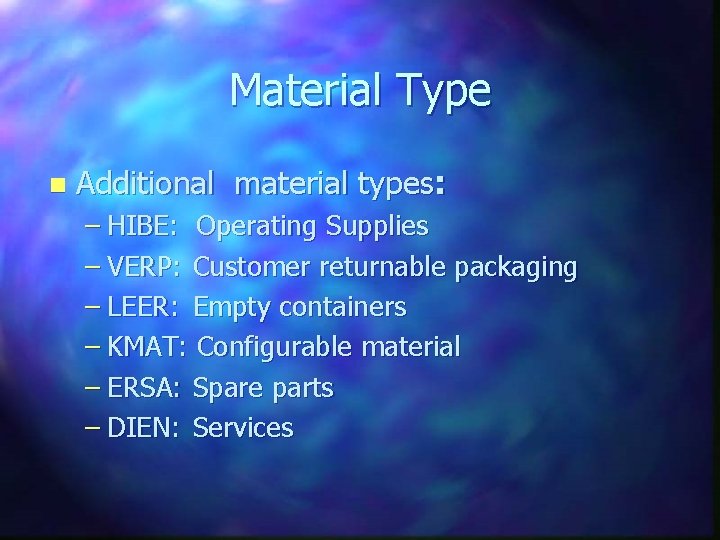

Material Type n Additional material types: – HIBE: Operating Supplies – VERP: Customer returnable packaging – LEER: Empty containers – KMAT: Configurable material – ERSA: Spare parts – DIEN: Services

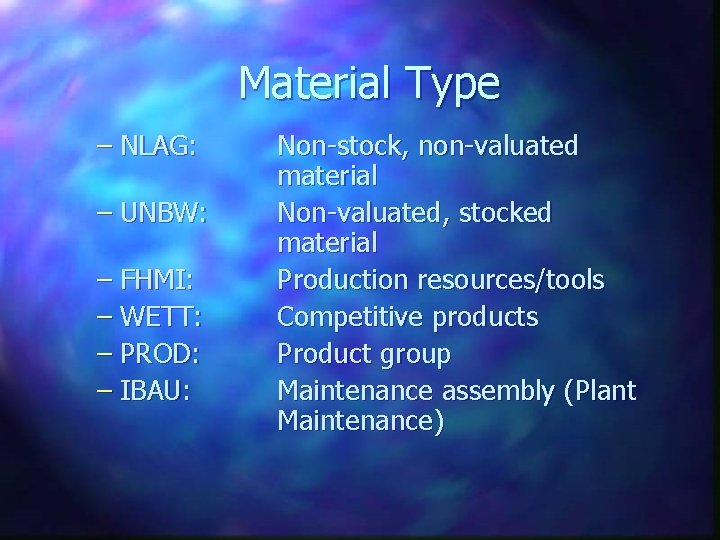

Material Type – NLAG: – UNBW: – FHMI: – WETT: – PROD: – IBAU: Non-stock, non-valuated material Non-valuated, stocked material Production resources/tools Competitive products Product group Maintenance assembly (Plant Maintenance)

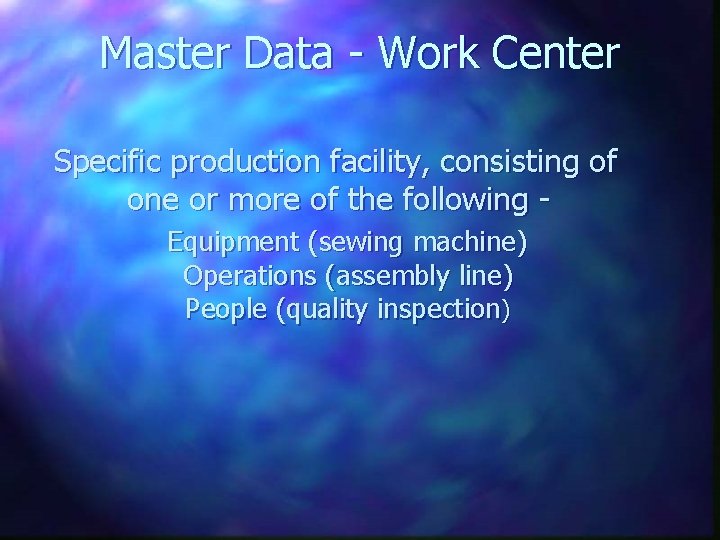

Master Data - Work Center Specific production facility, consisting of one or more of the following Equipment (sewing machine) Operations (assembly line) People (quality inspection)

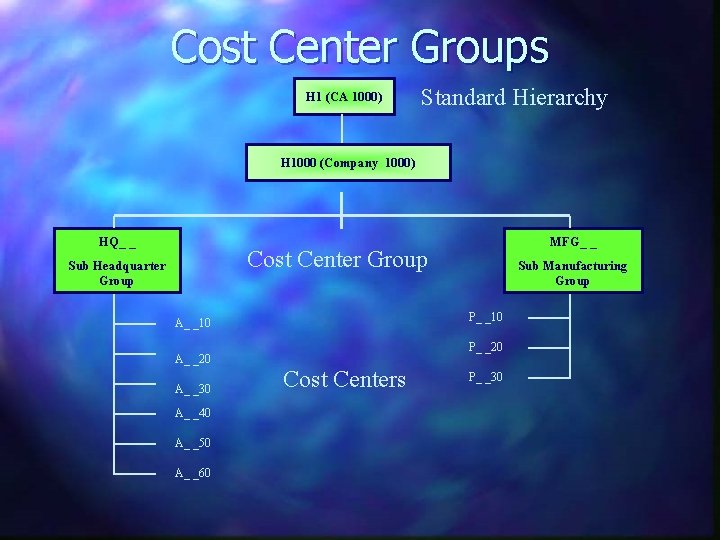

Cost Center Groups H 1 (CA 1000) Standard Hierarchy H 1000 (Company 1000) HQ_ _ MFG_ _ Cost Center Group Sub Headquarter Group P_ _10 A_ _20 A_ _30 A_ _40 A_ _50 A_ _60 Sub Manufacturing Group P_ _20 Cost Centers P_ _30

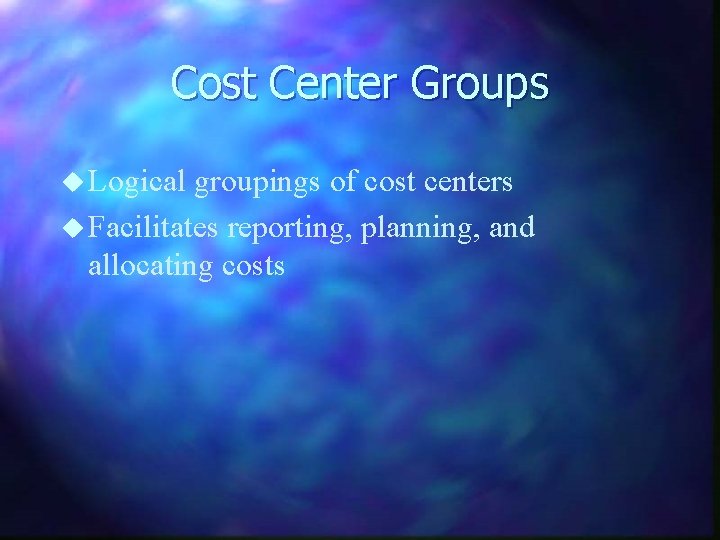

Cost Center Groups u Logical groupings of cost centers u Facilitates reporting, planning, and allocating costs

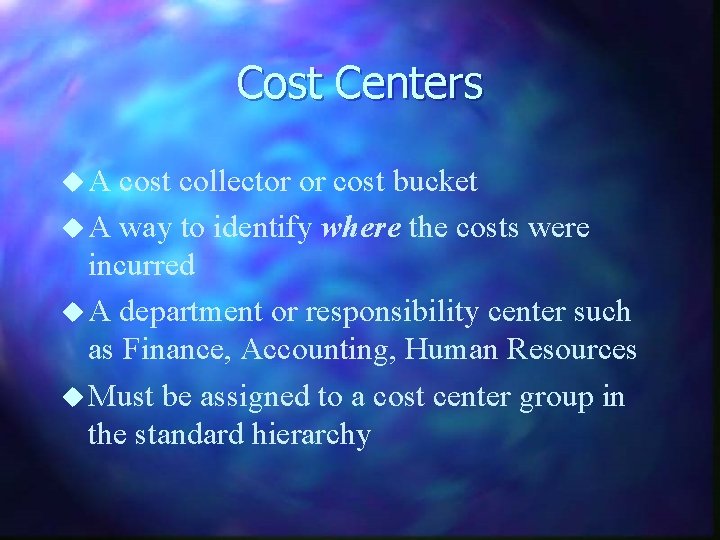

Cost Centers u. A cost collector or cost bucket u A way to identify where the costs were incurred u A department or responsibility center such as Finance, Accounting, Human Resources u Must be assigned to a cost center group in the standard hierarchy

Cost Centers Cost center Valid from Name Description Basic data Person in charge Department Cost center type Hierarchy area Business Area Currency Profit center To ? ?

Navigation

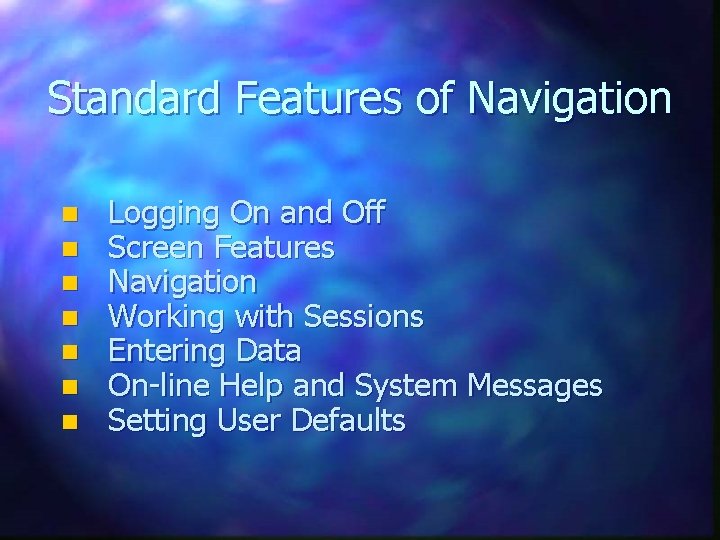

Standard Features of Navigation n n n Logging On and Off Screen Features Navigation Working with Sessions Entering Data On-line Help and System Messages Setting User Defaults

Logon Screen

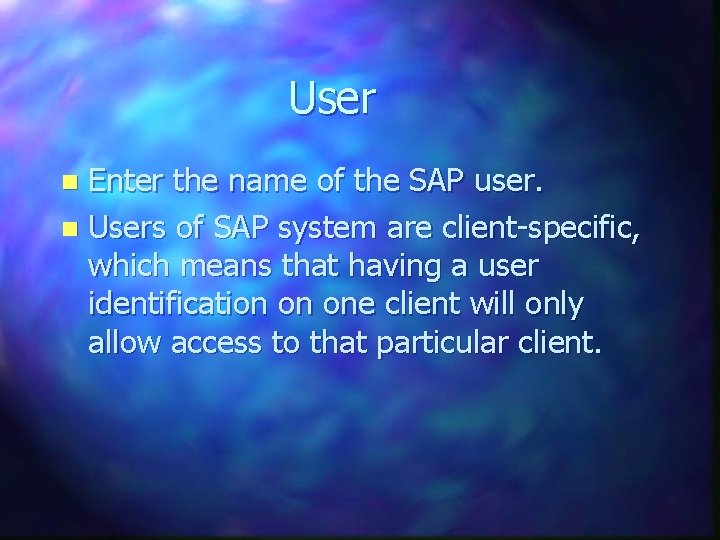

User Enter the name of the SAP user. n Users of SAP system are client-specific, which means that having a user identification on one client will only allow access to that particular client. n

Password Rules Letters n Numbers n Easy to remember n 3 -8 Characters long n No 3 Characters can be the same n Do not start with a ? or an ! n Do not use previous 5 passwords n

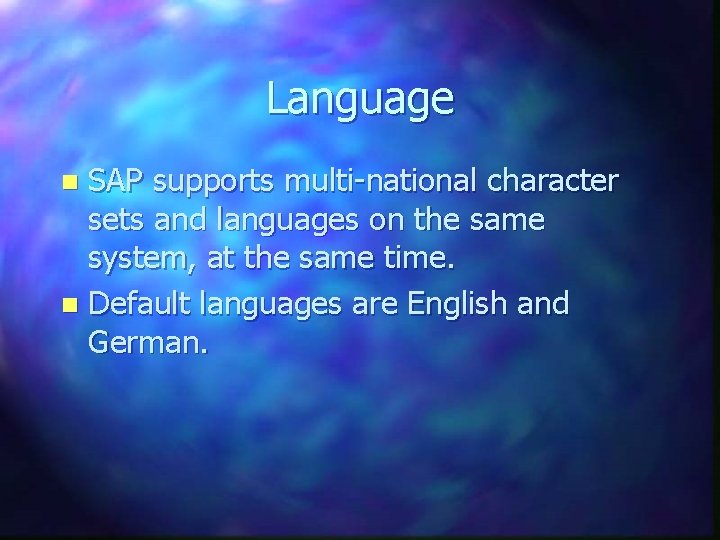

Language SAP supports multi-national character sets and languages on the same system, at the same time. n Default languages are English and German. n

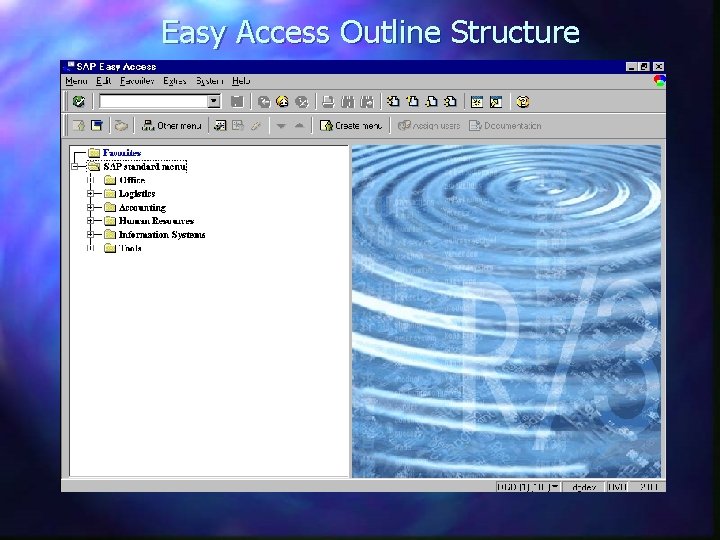

Easy Access Outline Structure

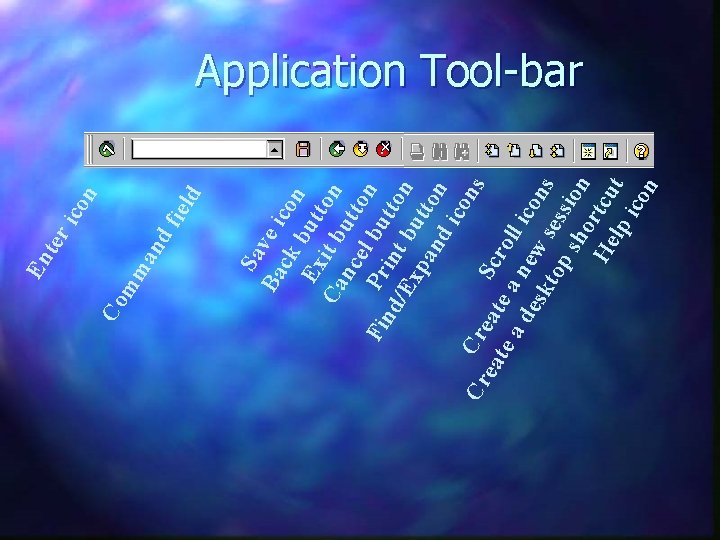

Sa Ba ve i ck con Ex butt Ca it b on nc utt el o Fin Pr bu n d/E int tton xp but an ton di co ns C Cr r ea eat Scr te e a d a n oll ic esk ew on top ses s sh sion or He tcu lp t ico n iel d df an mm Co n co ri En te Application Tool-bar

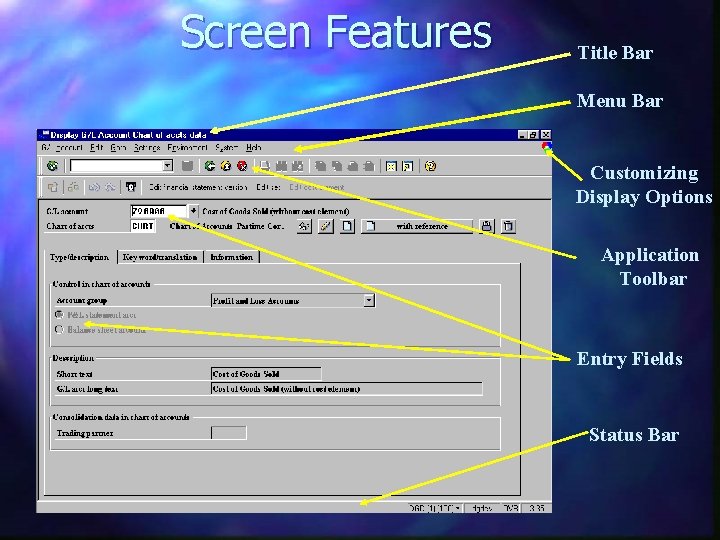

Screen Features Title Bar Menu Bar Customizing Display Options Application Toolbar Entry Fields Status Bar

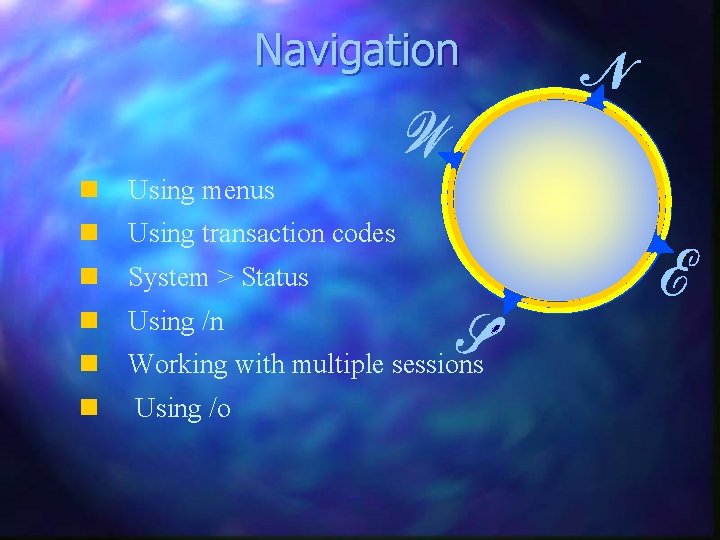

Navigation n Using menus n Using transaction codes n System > Status n Using /n n Working with multiple sessions n Using /o

Entering Data n Types of entry fields n Moving between fields n Radio buttons and check boxes n Possible entry fields n Match-codes n Saving data n Canceling data

Field Types n There are three types of Entry Fields – Required – Default entry – Optional entry field

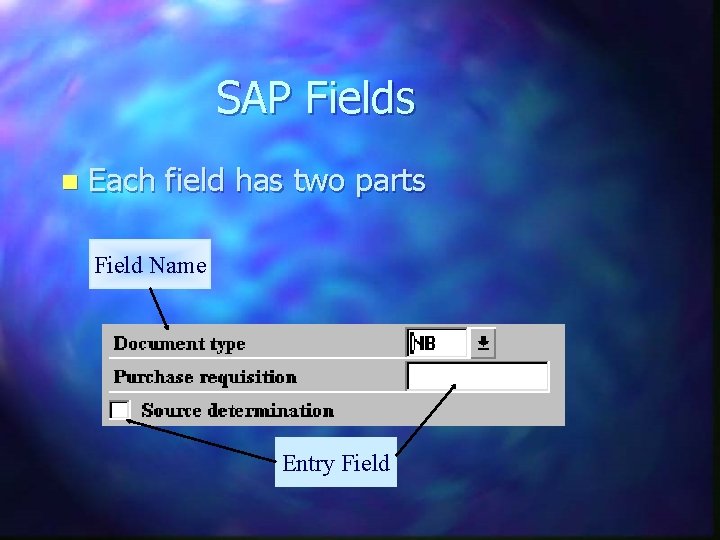

SAP Fields n Each field has two parts Field Name Entry Field

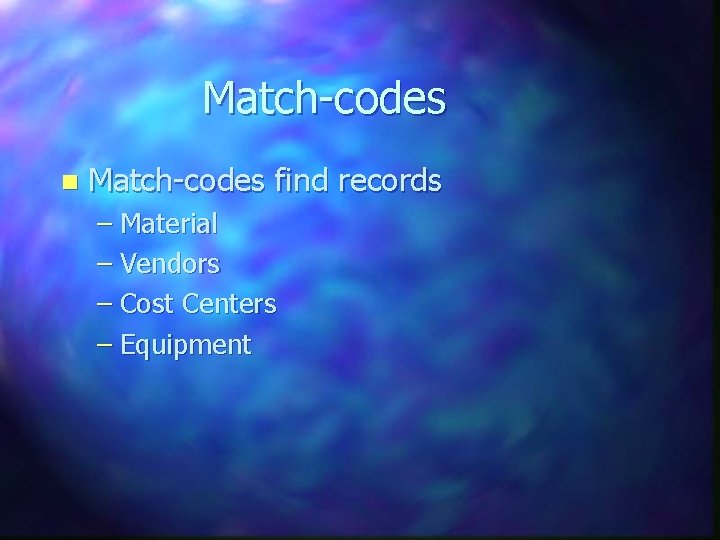

Match-codes n Match-codes find records – Material – Vendors – Cost Centers – Equipment

Sessions An SAP session is a window in which the user may perform a particular task. n A User may have up to nine sessions open at one time. n

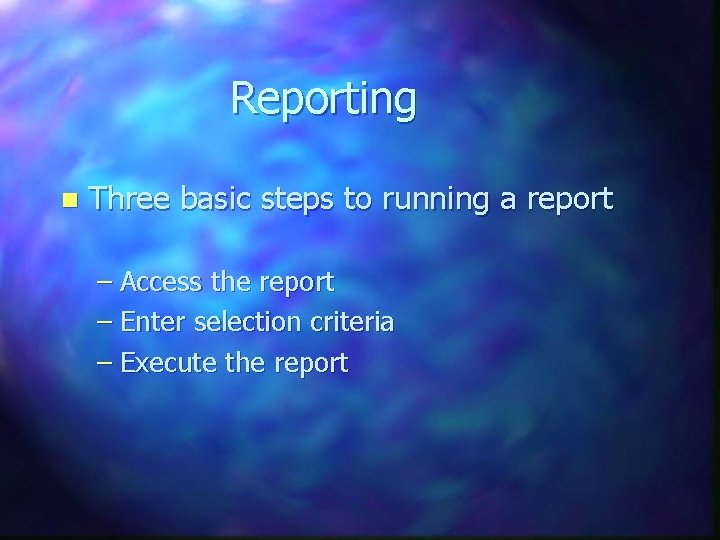

Reporting n Three basic steps to running a report – Access the report – Enter selection criteria – Execute the report

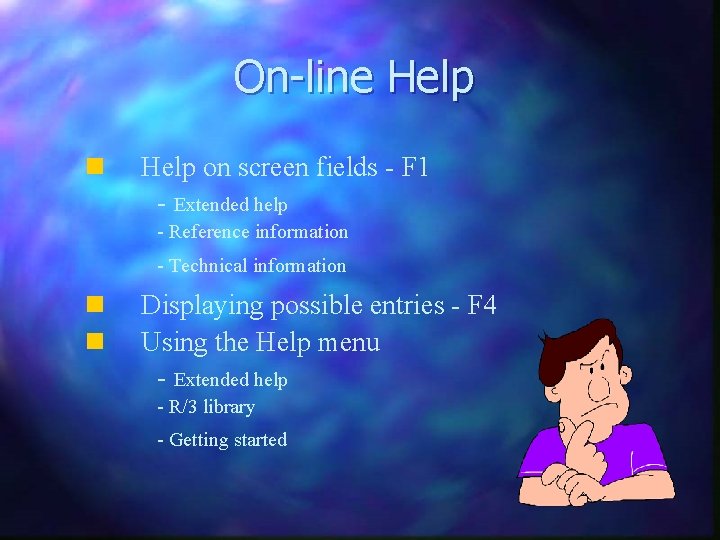

On-line Help n Help on screen fields - F 1 - Extended help - Reference information - Technical information n n Displaying possible entries - F 4 Using the Help menu - Extended help - R/3 library - Getting started

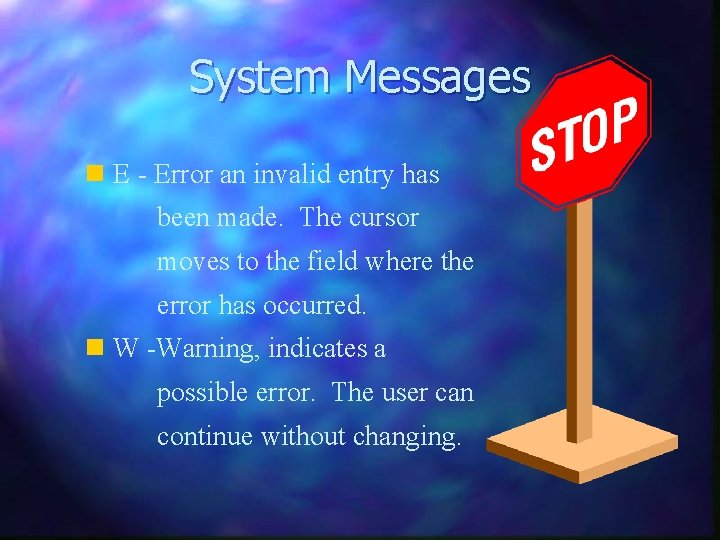

System Messages n E - Error an invalid entry has been made. The cursor moves to the field where the error has occurred. n W -Warning, indicates a possible error. The user can continue without changing.

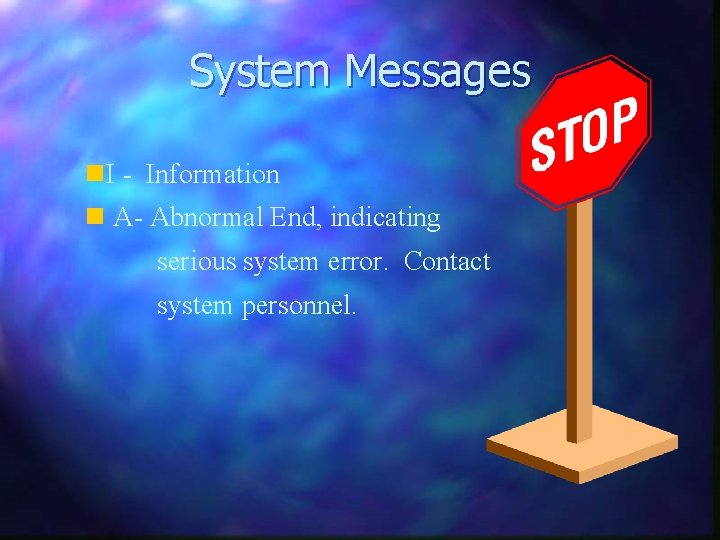

System Messages n. I - Information n A- Abnormal End, indicating serious system error. Contact system personnel.

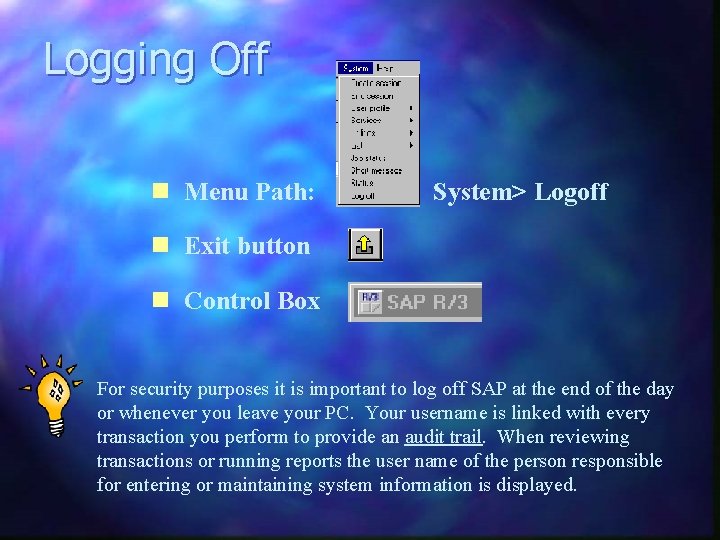

Logging Off n Menu Path: System> Logoff n Exit button n Control Box For security purposes it is important to log off SAP at the end of the day or whenever you leave your PC. Your username is linked with every transaction you perform to provide an audit trail. When reviewing transactions or running reports the user name of the person responsible for entering or maintaining system information is displayed.
