Sanitary Household Wastewater treatment solutions Wastewater treatment is
- Slides: 21
Sanitary & Household Wastewater treatment solutions Wastewater treatment is simple and easy. .

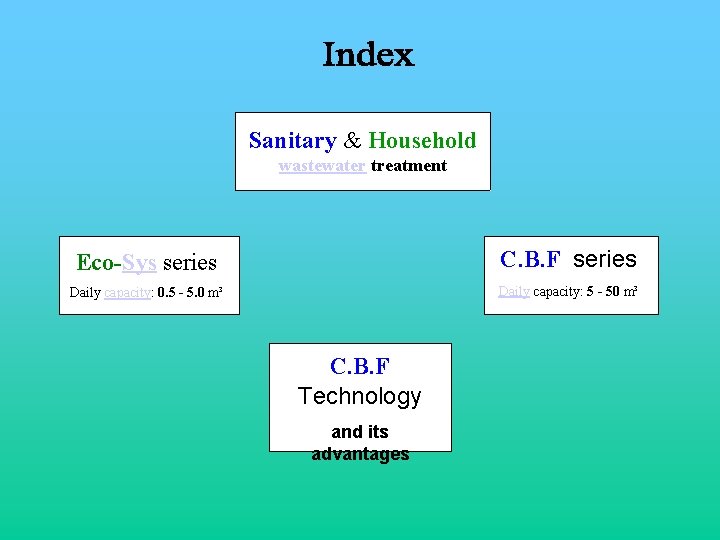

Sanitary & Household wastewater treatment Eco-Sys series C. B. F series Daily capacity: 0. 5 - 5. 0 m³ Daily capacity: 5 - 50 m³ C. B. F Technology and its advantages
Small scale wastewater treatment units Daily capacity: 0. 5 – 5. 0 m³ The best solution for private houses, houses gas stations, stations restaurants, restaurants guesthouses and more. Units available: Eco-Sys 1+, 2+ , 4+ & P
Eco-Sys 01+ unit Small scale wastewater treatment unit (0. 5 to 1. 5 m³/d) * Energy low! (Small circulation pump) * Pre-separation tank is required (volume: 0. 5 m³) * Can be installed in 4 hours (!) * The filter should be replaced every 6 -12 months * Service to the unit once a month.

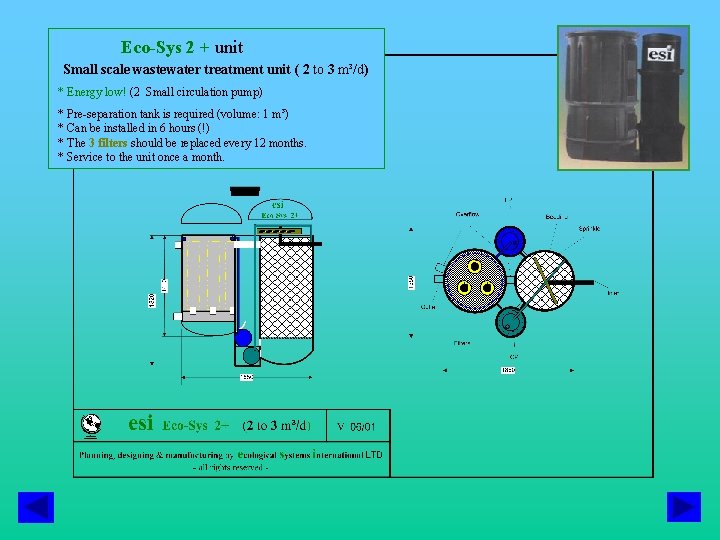

Eco-Sys 2 + unit Small scale wastewater treatment unit ( 2 to 3 m³/d) * Energy low! (2 Small circulation pump) * Pre-separation tank is required (volume: 1 m³) * Can be installed in 6 hours (!) * The 3 filters should be replaced every 12 months. * Service to the unit once a month.
Eco-Sys 4+ unit Small scale wastewater treatment unit (up to 5 m³/d). * Energy low! (Small circulation pump). * Pre-separation tank is required (volume: 2 m³). * Can be installed in 6 hours (!). * The 5 filters should be replaced every 6 -12 months. * Service to the unit once a month.
Eco-Sys P (pumping well) The P indicates an integral pumping well (attached to the unit). * Energy low! (Small pump). * The pumping well volume is 100 liters (or more). * Should be ordered with the unit. * All props for operation are including. * Service with the unit - once a month.
Small scale wastewater treatment plants Daily capacity: 5 - 50 m³ The best solution for gas stations, stations restaurants, restaurants guests houses, houses hotels, hotels small farms and villages, villages country clubs , Army camps, camps Public parks and more Note: the treated water can be reused as irrigation water in public parks or for agriculture needs.

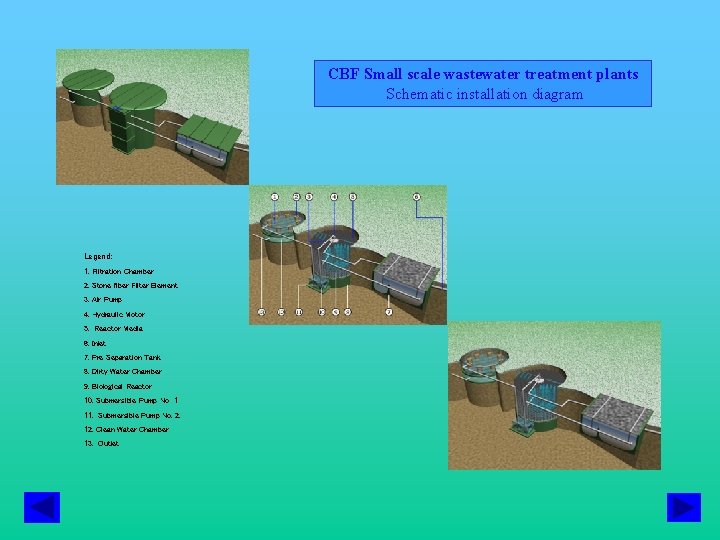

CBF Small scale wastewater treatment plants Schematic installation diagram Legend: 1. Filtration Chamber 2. Stone fiber Filter Element 3. Air Pump 4. Hydraulic Motor 5. Reactor Media 6. Inlet 7. Pre Separation Tank 8. Dirty Water Chamber 9. Biological Reactor 10. Submersible Pump No 1 11. Submersible Pump No. 2. 12. Clean Water Chamber 13. Outlet
C. B. F 5+ plant Small scale wastewater treatment plant (up to 8 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 2. 5 m³) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month
C. B. F 10+ plant Small scale wastewater treatment plant (up to 13 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 5 m³) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month

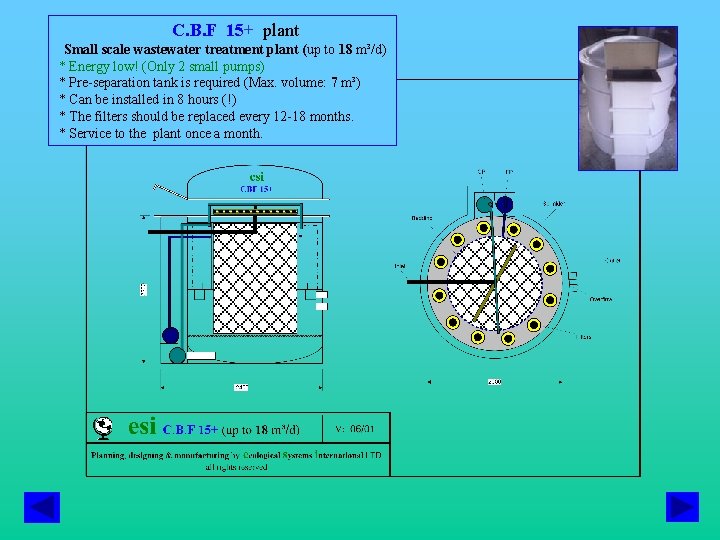

C. B. F 15+ plant Small scale wastewater treatment plant (up to 18 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 7 m³) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.

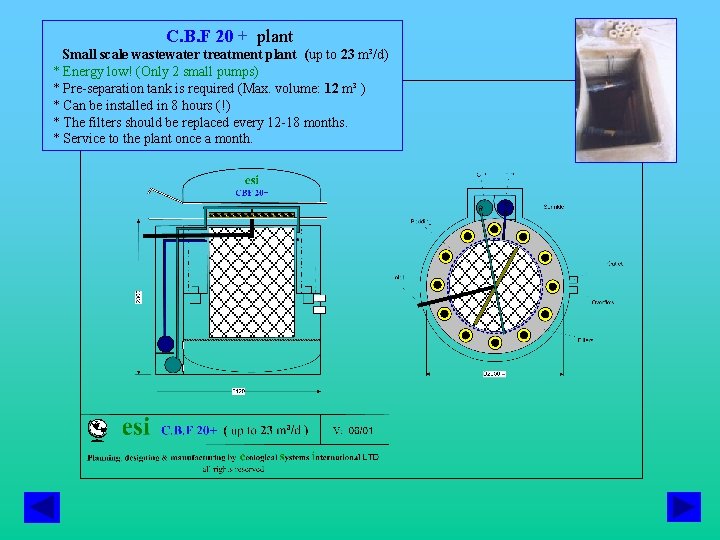

C. B. F 20 + plant Small scale wastewater treatment plant (up to 23 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 12 m³ ) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.
C. B. F 25+ plant Small scale wastewater treatment plant (up to 28 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 14 m³) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.
C. B. F 30+ plant Small scale wastewater treatment plant (up to 33 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 16 m³) * Can be installed in 8 hours (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.
C. B. F 35+ plant Small scale wastewater treatment plant (up to 40 m³/d) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 20 m³) * Can be installed in 2 days (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.
C. B. F 50 plant Small scale wastewater treatment plant (up to 50 m³/d ) * Energy low! (Only 2 small pumps) * Pre-separation tank is required (Max. volume: 25 m³) * Can be installed in 2 days (!) * The filters should be replaced every 12 -18 months. * Service to the plant once a month.

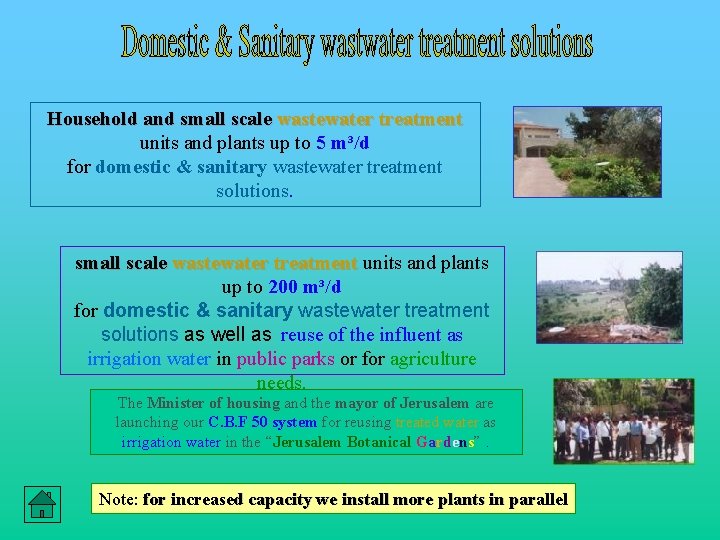

Household and small scale wastewater treatment units and plants up to 5 m³/d for domestic & sanitary wastewater treatment solutions. small scale wastewater treatment units and plants up to 200 m³/d for domestic & sanitary wastewater treatment solutions as well as reuse of the influent as irrigation water in public parks or for agriculture needs. The Minister of housing and the mayor of Jerusalem are launching our C. B. F 50 system for reusing treated water as irrigation water in the “Jerusalem Botanical Gardens”. Note: for increased capacity we install more plants in parallel

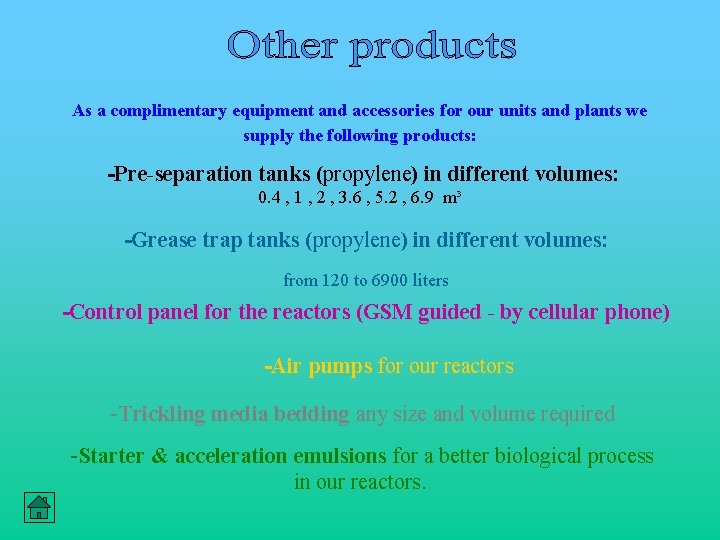

As a complimentary equipment and accessories for our units and plants we supply the following products: -Pre-separation tanks (propylene) in different volumes: 0. 4 , 1 , 2 , 3. 6 , 5. 2 , 6. 9 m³ -Grease trap tanks (propylene) in different volumes: from 120 to 6900 liters -Control panel for the reactors (GSM guided - by cellular phone) -Air pumps for our reactors -Trickling media bedding any size and volume required -Starter & acceleration emulsions for a better biological process in our reactors.
Our “C. B. F” technology is based on bio-filter and trickling-filter technologies. We manage to minimized the size and volume of the reactor but to keep its efficiency while treating maximum capacity. The main advantages are: > Energy low- minimum electro mechanical components – strive to O failures. > Minimum reactor volume - Maximum wastewater capacity. > Installation , service and maintenance are simple , easy & Low cost. > Modular- when capacity increases installing anther module in parallel to the exiting system without any interference. > Our reactors are designed to operate in hot and cold climate zones all around the globe.
