Samsung Techwin 2010 Average door configuration Control Panel

Samsung Techwin Контроль доступа 2010

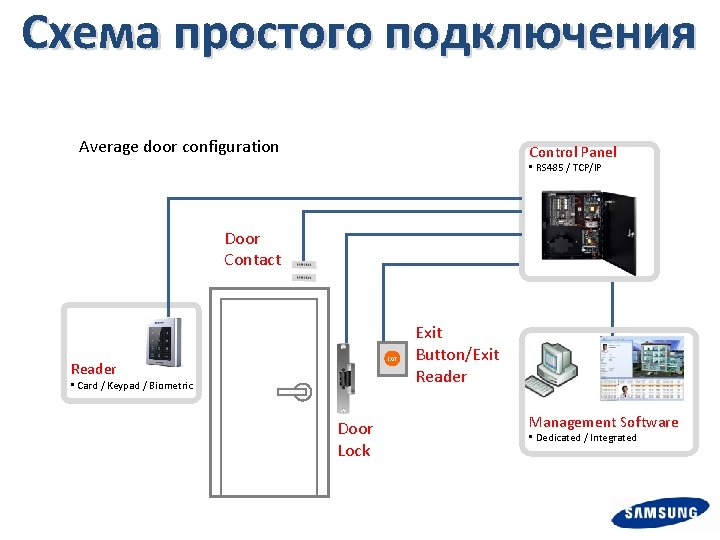

Схема простого подключения Average door configuration Control Panel • RS 485 / TCP/IP Door Contact EXIT Reader • Card / Keypad / Biometric Door Lock Exit Button/Exit Reader Management Software • Dedicated / Integrated

Номенклатура - считыватели S S A - S 1 0 0 0 V Vandal Resistant Samsung System Access Control R – Reader S – Standalone 0 – No 1 – 1 K 2 - 2 K 4 – 4 K 0 – Samsung 1 – Mifare 3 - EM 0 – Normal 1 – Special 1 – Card 2 – Card /PIN or Card/Fingerprint 3 – Card – PIN - Fingerprint 4 – Card – PIN – Fingerprint – Facial Recognition/Capture

Считыватели SSA-R 1000/1001/1003 • Samsung (125 KHz 26 Bit Wiegand)/Mifare (13. 56 MHz 34 Bit Wiegand)/ /EM (125 KHz 26 Bit Wiegand) card formats • IP 66 • Пьезо-зуммер • Защита от переполюсовки • 47. 0 x 122 x 26 мм • Антивандальная модификация SSAR 1000 V/1001 V • Модификация большей ширины SSAR 110 X/R 1100 XV - 75. 3 x 122 x 26 мм

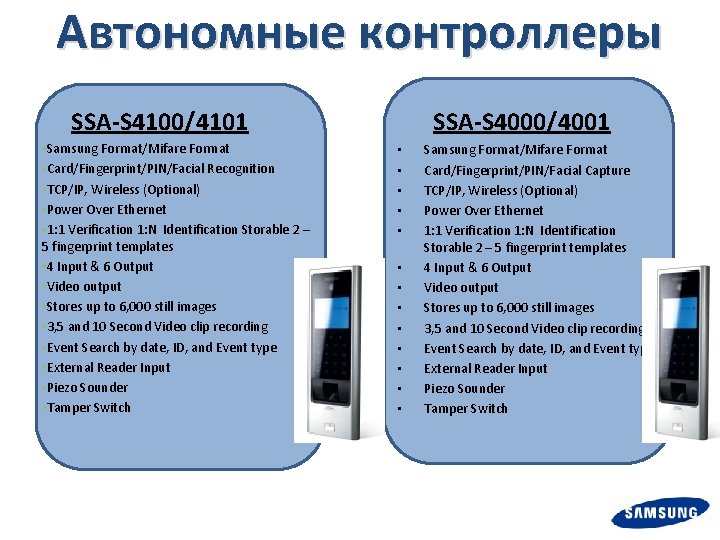

Автономные контроллеры SSA-S 4000/4001 SSA-S 4100/4101 • Samsung Format/Mifare Format • Card/Fingerprint/PIN/Facial Recognition • TCP/IP, Wireless (Optional) • Power Over Ethernet • 1: 1 Verification 1: N Identification Storable 2 – 5 fingerprint templates • 4 Input & 6 Output • Video output • Stores up to 6, 000 still images • 3, 5 and 10 Second Video clip recording • Event Search by date, ID, and Event type • External Reader Input • Piezo Sounder • Tamper Switch • • • • Samsung Format/Mifare Format Card/Fingerprint/PIN/Facial Capture TCP/IP, Wireless (Optional) Power Over Ethernet 1: 1 Verification 1: N Identification Storable 2 – 5 fingerprint templates 4 Input & 6 Output Video output Stores up to 6, 000 still images 3, 5 and 10 Second Video clip recording Event Search by date, ID, and Event type External Reader Input Piezo Sounder Tamper Switch

Аксессуары Samsung Format Cards • SSA-C 100 • ISO Credit card size and thickness Mifare Format Cards • SSA-C 200 • ISO Credit card size and thickness • SSA-C 110 • Clamshell Design • SSA-X 500 • Add fingerprint users in the software • USB interface • SSA-C 120 • Key tag Type

Software SSA-M 1000 Standard software package Multi Site Configuration Card Management Graphic Map Time and Attendance SSA-M 2000 Pro Software Multi Site Configuration Card management Graphic Map Time and Attendance Video Integration SSA-M 1100 SAMS Software Standard software package Multi Site Card Management Graphic Map Time and Attendance SSA-M 2100 Standard software package Multi Site Card management Graphic Map Time and Attendance Video Integration

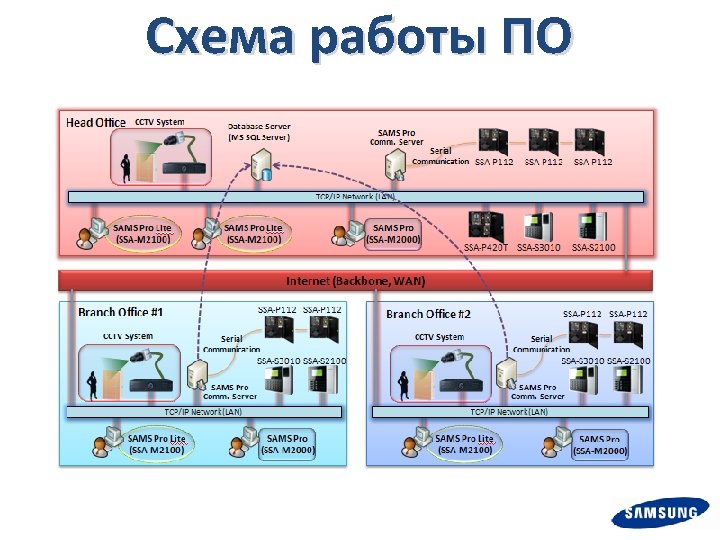

Принцип работы ПО SAMS Pro Application & Database TCP/IP DVR (SHR, SRD Series) TCP/IP Database Server (Microsoft SQL Server 2005) SAMS Pro Lite TCP/IP Communication Server SAMS Basic Communication Server Serial Communication Access Controller (Hardware) TCP/IP SSA-P 40 x/SSA-P 102 SSA-S 30 xx/210 x/SSA-R 20 xx TCP/IP
