Sample Landscape Study Digital Twin Technology Digital twins

Sample Landscape Study Digital Twin Technology “Digital twins can be practically applied in almost every industry. ” Image Source: Network World

Content Ø Introduction of Digital Twin Ø How it works & Why it matters Ø Economic value of Digital Twin Ø Future of Digital Twin Ø Major Application & Benefits Ø Objectives of the Landscape/Study Ø Patent Literature Analysis v Graphical and Analytical Representation Ø Appendix 1 – Sources Ø Appendix 2 – Definition of IPC Sub Classes Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Introduction to Digital Twin Technology What is a digital twin? A digital twin or digital replica is a virtual model of a physical asset such as a product, process, system or a facility. Said digital replica takes and uses data from an actual physical asset to better understand augment its performance. For example, engineers can identify the safety risks of an aircraft engine by assessing different temperatures and stresses on parts, surgeons can navigate a digital visualization of an organ before operating on it, a digital twin of a rocket that displays its maximum wind resistance can ensure a launch in bad conditions, and so on. Powered by a combination of artificial intelligence (AI), machine learning, and data analytics, digital twins can mirror a physical twin and reveal issues before they occur. To do so, they rely on a range of sensors embedded in the physical world to transfer real-time data about the operative process and environment. The data collected from the connected sensors is then analysed on the cloud and is accessible via a dashboard. Internet of Things an integral part of digital twin technology From the very definition, it’s clear that digital twins ought to depend on Io. T technologies. Driven by sensors, artificial intelligence, machine learning, data and analytics, Io. T acts as the foundation for digital twins, as it leverages specific data about physical assets to help companies make better decisions. Digital twin is, therefore, expected to increase Io. T deployments given its ability to add value for end-customers. Experts predict that, within the next five years, digital twins will be adopted by 85% of all Io. T platforms. Insight The term “Digital Twin” was defined for the first time by Dr. Michael Grives at the University of Michigan 2002/03 in Virtually Perfect Driving Innovative and Lean Products through Product Lifecycle Management. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: Appendix 1

Introduction to Digital Twin Technology Connect & Collect 01 Innovation & Transform 05 Decide & Optimize 02 Learn & Analyze Digital Twin 04 03 Alert & Advice Source: Appendix 1 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

How it works & Why it matters Digital Twin, the virtual counterparts of a physical asset is created as the digitalized duplicate of a machine/ equipment or aa physical site. These digital assets can be created even before an asset is built physically. To create a digital twin of any physical asset, engineers collect and synthesize data from various sources including physical data, manufacturing data, operational data and insights from analytics software. All this information along with AI algorithms is integrated into a physics-based virtual model and by applying Analytics into these models we get relevant insights regarding the physical asset. The consistent flow of data helps in getting the best possible analysis and insights regarding the asset which helps in optimizing the outcome. Digital twins are powerful masterminds to drive innovation and performance. Imagine it as your most talented product technicians with the most advanced monitoring, analytical, and predictive capabilities at their fingertips. By 2018, companies who invest in digital twin technology will see a 30 percent improvement in cycle times of critical processes, predicts IDC. Also, the digital twin technology helps companies improve the customer experience by better understanding customer needs, develop enhancements to existing products, operations, and services, and can even help drive the innovation of new business. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: Appendix 1

Major Applications-Digital Twin Technology Manufacturing Automobile Aero Space Health Care Wind Farm Other Applications Retail, Infrastructure, Oil & Gas Industry and Gas Turbines Source: Appendix 1 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Economic value of Digital Twin The economic value of the digital twins technology will vary widely, depending on the monetization models that drive them. For complex, expensive industrial or business equipment, services or processes, improving utilization by reducing asset downtime and lowering overall maintenance costs will be extremely valuable, making internal software competencies critical to driving value with digital twins. As such, the costs of developing and maintaining digital twins must be driven by both business and economic models. Digital twins are not developed in a vacuum. Both the business concept and model must be tested against an economic architecture – revenue, profits, return on investment (ROI), cost optimization – and a way to measure progress as the products/services are rolling out. To obtain the highest value from digital twins, the enterprise must address the digital ethics issues raised by different parties interacting with the data from not just the enterprise, but also its partners and customers. This will require the enterprise to think about the value of the data and its contributions to the business and partners, and also to identify potential areas where its customers or its own data could drive value but also could be at risk. Source: Appendix 1 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

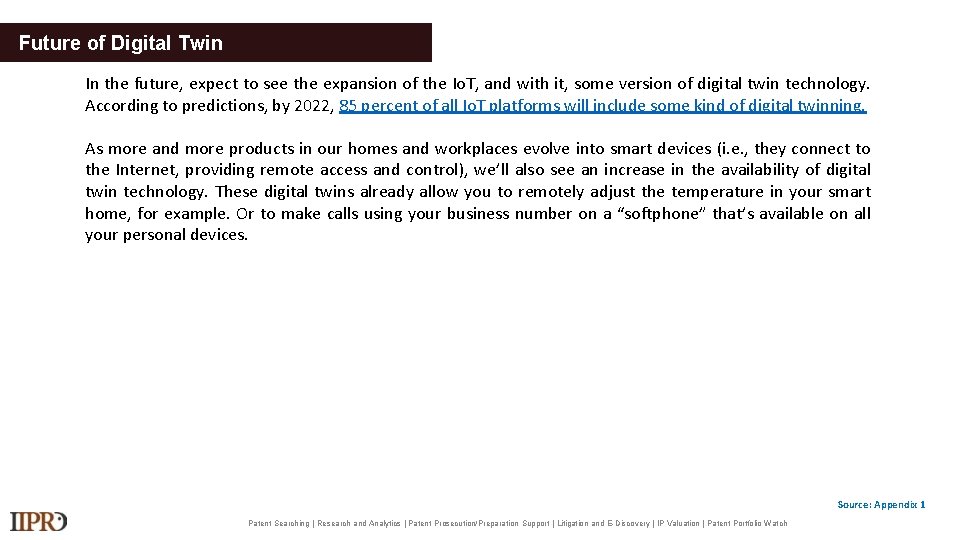

Future of Digital Twin In the future, expect to see the expansion of the Io. T, and with it, some version of digital twin technology. According to predictions, by 2022, 85 percent of all Io. T platforms will include some kind of digital twinning. As more and more products in our homes and workplaces evolve into smart devices (i. e. , they connect to the Internet, providing remote access and control), we’ll also see an increase in the availability of digital twin technology. These digital twins already allow you to remotely adjust the temperature in your smart home, for example. Or to make calls using your business number on a “softphone” that’s available on all your personal devices. Source: Appendix 1 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Benefits of Digital Twin q. Improve quality & yield q. Reduce operational costs q. Increase efficiency of Engineers Digital Twin q. Reduce cycle time & boost productivity q. Optimize robot operation Management q. Diagnose & fix failures Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Objectives of the Study q To understand “Digital Twins” technology and prepare a patent landscape report. q To understand major patent holders, geographical distribution of patents, Technologies analysis etc. q To analyse patent application filing/publication/grant trends over the years, top assignees, and patent classifications among others. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Patent Literature Analysis: Assumptions: q Report provides patent analysis for the budding technology Viz. “Digital Twin” that relates to incorporation of digital replicas of physical assets, processes, people, places, systems and devices for various purposes. q. The landscape study focuses on patents and/or published patents applications pertaining to the technology “Digital Twin”. q. The patent search started with identifying relevant search terms and patent classification codes. The IPC codes searched are summarized in the Appendix 2. q The study was primarily carried out using Questel-Orbit, a popular database of patent applications and granted patents from 95 patent jurisdictions around the world created by Questel. q All analysis in this report has been done on unique families (One publication per family). q Broadly, the search query tried to get patent documents pertaining to the “Digital Twin”. q As a result, the analysis obtained 199 relevant patent documents from a total of 2542 patent documents.

Graphical and Analytical Filing Based Trends Representation 1. Filing Based Trends 80 74 70 60 Number of Patents 60 50 40 30 23 19 20 10 4 8 7 4 0 <2011 2012 2013 2014 2015 2016 2017 2018 Year Insight The filing based trend demonstrates that maximum number of patent applications were filed in the year 2016. # The graph representing filing based trends was prepared based on the earliest priority year. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

2. Geographic Filing Trends Insight Trend related to Geographical filing demonstrates that maximum number of filing were originated in the US followed by CN and EP jurisdictions. # The table representing Geographical filing based trends was prepared based on the analysis of patent family data. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

3. Types of Assignees Practising entities (PEs) Practising entities is someone who makes, uses or sells a product for which patent is granted. Non-practicing entity (NPEs) A non-practicing entity (NPE) is someone who holds a patent for a product or process but has no intentions of developing it. NPEs have been emerging as a prominent feature in the developed countries IP landscape since last many years. NPE’s have increasingly become the source of curiosity for manufacturing companies 140 120 Major PEs, 120 100 80 Other PEs, 55 60 40 NPEs, 24 20 0 Major PEs Other PEs NPEs Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

3. 1. Top Practising Entities (PEs) 60 55 50 40 31 30 20 10 10 4 3 3 t os icr M Im m er sio of n l el w ey po m cr St at el ie r. S De s Ho n in t g in ea M kt op Bo e et al s en Si em GE 0 Insight General Electric (GE) is the leading patent applicant in Digital Twin Technology, followed by Siemens and Desktop Metal. # The graph representing Top Practising Entities was prepared based on the analysis of patent family data. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

3. 2. Non-Practising Entities (NPEs) Ind. Inventor 5 Research Centres/Labs 4 University 15 University Ind. Inventor Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Applications of Digital Twins 4. Digital Twin Application Analysis Others 25 Entertainment 23 Wind Farm 30 Industrial IOT 31 Infrastructure 23 Health Care 33 Aerospace 48 Automobile 34 112 Manufacturing 0 20 40 60 80 100 120 Insight Digital Twin Application Analysis demonstrates that maximum number of Digital Twin patent applications were filed in Manufacturing Industry followed by Aerospace and Automobile Industries. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

5. Assignee Vs Application Trend rs ur ct ru st 2 In fra rta En te 2 Others Ot he e t en in m Fa d 2 Entertainment Infrastructure rm Wind Farm in 1 W st In du 1 1 ria l. I Ca th al He Industrial IOT OT re e sp ro 2 Health Care ac ile ob 2 to m 1 Aerospace Ae an M Honeywell Int uf ac Immersion Au tu rin Microsoft Tech Boeing Manufacturing Automobile g 80 60 40 20 0 Satellier Screampoint 3 3 Phoenix Contact 3 Desktop Metal 11 Siemens 25 1 1 1 4 1 6 3 GE 30 21 34 18 19 25 3 17 Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

GE Applications of Digital Twins 5. 1 GE Vs Applications Trend Others 17 Wind Farm 25 Industrial IOT 19 Infrastructure 3 Health Care 18 Aerospace 34 Automobile 21 Manufacturing 30 Insight General Electric (GE) Vs Applications Trend demonstrates that GE majorly focussing in Aerospace followed by Manufacturing and Windfarm. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

Applications of Digital Twins 5. 2 Siemens Vs Applications Trend Others 3 Wind Farm 1 Industrial IOT 4 Infrastructure 6 Health Care 1 Aerospace 1 Automobile 1 Manufacturing 25 Insight Siemens Vs Applications Trend demonstrates that Siemens majorly focussing in Manufacturing followed by and Infrastructure. Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

6. Technical Dissection Other 24% Test/Monitor/Contro l 42% Data Processing 34% Insight Maximum number of patents/applications are falling under Test/Monitor/Control (42%) followed by Data Processing (34%). Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

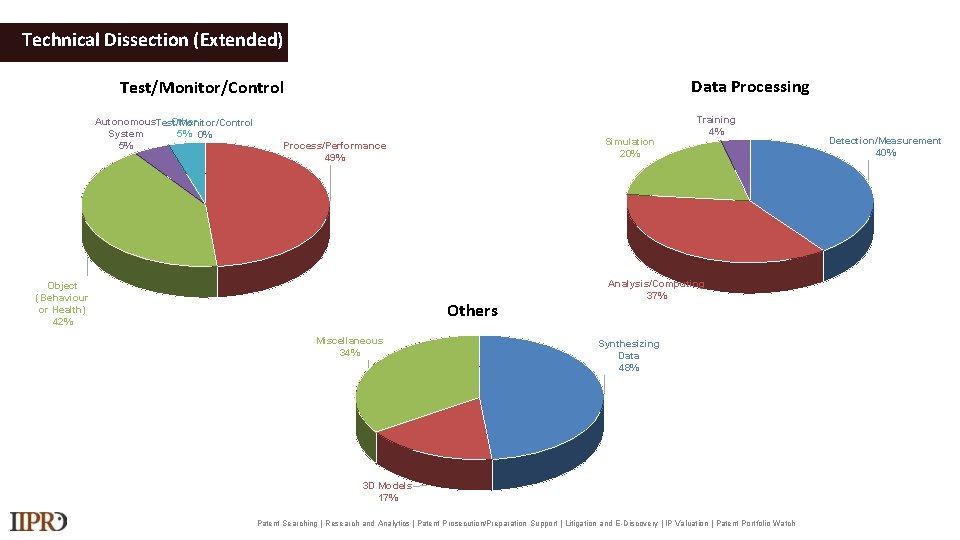

Technical Dissection (Extended) Data Processing Test/Monitor/Control Autonomous. Test/Monitor/Control Other System 5% 0% 5% Simulation 20% Process/Performance 49% Object (Behaviour or Health) 42% Others Miscellaneous 34% Training 4% Analysis/Computing 37% Synthesizing Data 48% 3 D Models 17% Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Detection/Measurement 40%

7. IPCs Based Trends IPC G 06 F 25% Others 43% G 05 B 14% G 06 Q 9% H 04 L 10% DEFINITION G 06 F Electric Digital Data Processing G 05 B Control or Regulating Systems in General; Functional Elements of Such Systems; Monitoring or Testing Arrangements for Such Systems or Elements H 04 L Transmission of Digital Information, e. g. Telegraphic Communication G 06 Q Data Processing Systems or Methods, Specially Adapted for Administrative, Commercial, Financial, Managerial, Supervisory or Forecasting Purposes; Systems or Methods Specially Adapted for Administrative, Commercial, Financial, Managerial, Supervisory or Forecasting Purposes, Not Otherwise Provided For [2006. 01] Insight Majority of patent applications were assigned with IPC “G 06 F” and “G 05 B” followed by IPC ”H 04 L” and ”G 06 Q” Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: WIPO

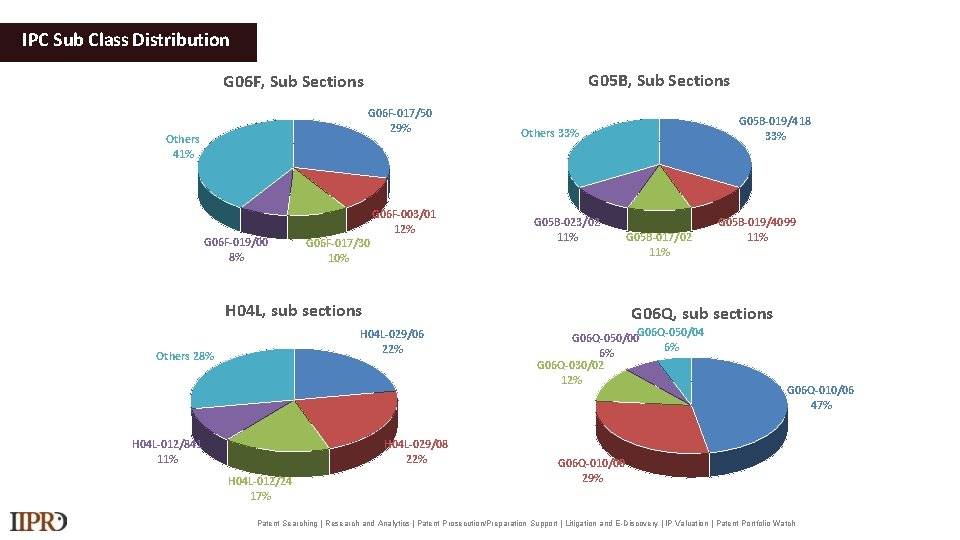

IPC Sub Class Distribution G 05 B, Sub Sections G 06 F-017/50 29% Others 41% G 06 F-019/00 8% G 06 F-017/30 10% G 06 F-003/01 12% G 05 B-023/02 11% H 04 L, sub sections H 04 L-012/841 11% H 04 L-029/08 22% H 04 L-012/24 17% G 05 B-017/02 11% G 05 B-019/4099 11% G 06 Q, sub sections H 04 L-029/06 22% Others 28% G 05 B-019/418 33% Others 33% G 06 Q-050/00 G 06 Q-050/04 6% 6% G 06 Q-030/02 12% G 06 Q-010/06 47% G 06 Q-010/00 29% Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

APPENDIX 1: Sources [1] https: //www. netscribes. com/digital-twin-next-frontier-iot/ [2] https: //www. happiestminds. com/insights/digital-twins/ [3] https: //www. i-scoop. eu/internet-of-things-guide/industrial-internet-things-iiot-saving-costs-innovation/digitaltwins/ [4] Templates [5] Icons made by Freepik, Geotatah from flaticons [6] https: //www. gartner. com/smarterwithgartner/prepare-for-the-impact-of-digital-twins/ [7] Dr. Michael Grieves, “Digital Twin: Manufacturing Excellence through Virtual Factory Replication”, 2014 [8] https: //jive. com/resources/blog/what-is-digital-twin-technology/ [9] https: //www. forbes. com/sites/bernardmarr/2017/03/06/what-is-digital-twin-technology-and-why-is-it-soimportant/#266561122 e 2 a Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch

APPENDIX 2: IPC Sub-class Definitions IPC SUB-CLASS DEFINITIONS G 05 B-019/418 Total factory control, i. e. centrally controlling a plurality of machines, e. g. direct or distributed numerical control (DNC), flexible manufacturing systems (FMS), integrated manufacturing systems (IMS), computer integrated manufacturing (CIM) G 05 B-019/4099 Surface or curve machining, making 3 D objects, e. g. desktop manufacturing G 05 B-023/02 G 05 B-017/02 Electric testing or monitoring Electric G 06 F-003/01 Input arrangements or combined input and output arrangements for interaction between user and computer G 06 F-017/50 Digital computers in general Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: WIPO

APPENDIX 2: IPC Sub-class Definitions IPC SUB-CLASS DEFINITIONS G 06 F-017/30 Information retrieval; Database structures therefor G 06 F-019/00 Digital computing or data processing equipment or methods, specially adapted for specific applications G 06 Q-010/00 Administration; Management G 06 Q-010/06 Resources, workflows, human or project management, e. g. organising, planning, scheduling or allocating time, human or machine resources; Enterprise planning; Organisational models G 06 Q-030/02 Marketing, e. g. market research and analysis, surveying, promotions, advertising, buyer profiling, customer management or rewards; Price estimation or determination Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: WIPO

APPENDIX 2: IPC Sub-class Definitions IPC SUB-CLASS DEFINITIONS G 06 Q-050/00 Systems or methods specially adapted for specific business sectors, e. g. utilities or tourism G 06 Q-050/04 Manufacturing H 04 L-012/24 Arrangements for maintenance or administration H 04 L-012/841 Flow control actions using time consideration, e. g. round trip time H 04 L-029/06 Characterised by a protocol H 04 L-029/08 Transmission control procedure, e. g. data link level control procedure Patent Searching | Research and Analytics | Patent Prosecution/Preparation Support | Litigation and E-Discovery | IP Valuation | Patent Portfolio Watch Source: WIPO
