Sameer Shende and John Linford Para Tools Inc

Sameer Shende and John Linford Para. Tools, Inc. {sameer, jlinford}@paratools. com Aug 1, 2012, ITL Building 8000, Salon V, ERDC, Vicksburg, MS For Official Use Only – not for secondary distribution

Outline Part I: PTools. RTE Introduction Part II: Parallel Programming Examples Part III: Interactive Computing with IPython Notebook Part IV: Callstack Debugging with TAU For Official Use Only – not for secondary distribution 2

Part I: PTools. RTE Introduction For Official Use Only – not for secondary distribution 3

PTools. RTE Goal Provide a rich and consistent environment for parallel Python program development, deployment, and debugging on all DSRC systems. For Official Use Only – not for secondary distribution 4

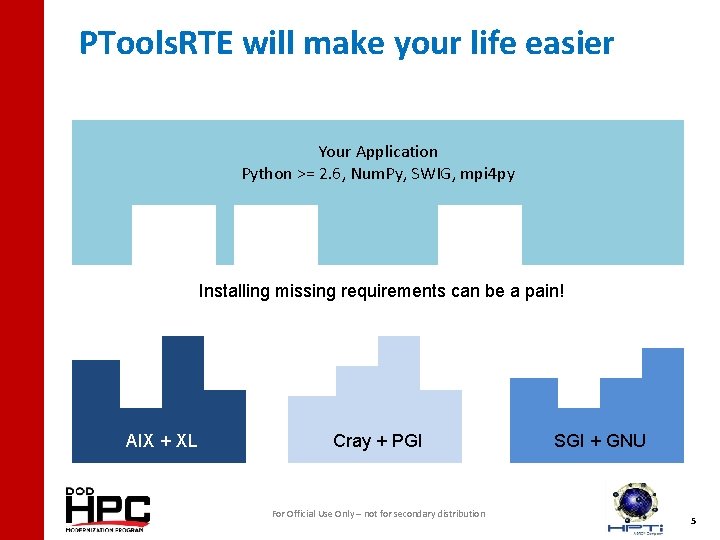

PTools. RTE will make your life easier Your Application Python >= 2. 6, Num. Py, SWIG, mpi 4 py Installing missing requirements can be a pain! AIX + XL Cray + PGI For Official Use Only – not for secondary distribution SGI + GNU 5

A consistent Python environment + extras Your Application Python >= 2. 6, Num. Py, SWIG, mpi 4 py Num. Py TAU SWIG IPython 2. 7. 2 Missing Libraries AIX + XL Cray + PGI SGI + GNU For Official Use Only – not for secondary distribution 6

PTools. RTE is installed on all DSRC systems For Official Use Only – not for secondary distribution 7

How do I use PTools. RTE? Just load the module: • module use $PET_HOME/pkgs/ptoolsrte/etc • module load ptoolsrte Or source a shell script: Bash: source $PET_HOME/pkgs/ptoolsrte/etc/ptoolsrte. bashrc C Shell: source $PET_HOME/pkgs/ptoolsrte/etc/ptoolsrte. cshrc For Official Use Only – not for secondary distribution 8

Part II: Parallel Programming Examples For Official Use Only – not for secondary distribution 9

Write a parallel program with mpi 4 py from mpi 4 py import MPI comm = MPI. COMM_WORLD rank = comm. Get_rank() print 'Hello from rank %d' % rank if rank == 0: data = {'a': 7, 'b': 3. 14} comm. send(data, dest=1, tag=11) elif rank == 1: data = comm. recv(source=0, tag=11) print 'Rank %d received %s' % (rank, str(data)) For Official Use Only – not for secondary distribution 10

How to run an mpi 4 py application 1. 2. 3. 4. qsub -I. . . module use $PET_HOME/pkgs/ptoolsrte/etc module load ptoolsrte mpirun -np {n} python mpi 4 py_p 2 p. py For Official Use Only – not for secondary distribution 11

Use Num. Py for computation and mpi 4 py for communication import numpy as np from mpi 4 py import MPI comm = MPI. COMM_WORLD rank = comm. rank my_size = size // comm. size = comm. size*my_size my_offset = rank*my_size vec = np. zeros(size) #. . . Initialize vec. . . my_M = np. zeros((my_size, size)) #. . . Initialize my_M. . . for t in xrange(iter): my_new_vec = np. inner(my_M, vec) comm. Allgather([my_new_vec, MPI. DOUBLE], [vec, MPI. DOUBLE]) For Official Use Only – not for secondary distribution 12

Write a parallel program that uses py. MPI import mpi rank = mpi. rank size = mpi. size if rank == 0: n = int(100) mpi. bcast(n) else: n = mpi. bcast() h = 1. 0/n local_sum = 0. 0 for i in range(rank+1, n+1, size): x = h*(i-0. 5) y = 4. 0/(1. 0+x*x) local_sum += y global_sum = mpi. reduce(local_sum, mpi. SUM) if mpi. rank == 0: print "PI = %f " % (h*global_sum) For Official Use Only – not for secondary distribution 13

How to run a py. MPI application 1. 2. 3. 4. qsub -I. . . module use $PET_HOME/pkgs/ptoolsrte/etc module load ptoolsrte mpirun -np {n} py. MPI pympi_pi. py For Official Use Only – not for secondary distribution 14

Part III: Interactive computing with IPython Notebook For Official Use Only – not for secondary distribution 15

IPython Notebook • • • An open-source, Python-based toolkit. Interactive scientific and parallel computing. Mathematica-like, MATLAB-like. Symbolic computation. Renders in your web browser. For Official Use Only – not for secondary distribution 16

Launch IPython Notebook remotely Terminal 1 Start the notebook kinit ssh diamond 03. erdc. hpc. mil module use $PET_HOME/pkgs/ptoolsrte/etc module load ptoolsrte ipython notebook --pylab=inline --no-browser. . . The IPython Notebook is running at: http: //127. 0. 0. 1: 8888. . . Use ssh to forward the notebook port Terminal 2 kinit ssh -g. N -L 8888: localhost: 8888 diamond 03. erdc. hpc. mil For Official Use Only – not for secondary distribution 17

Use IPython Notebook locally Open the forwarded port in your local web browser Standards-compliant browser required. Firefox, Chrome, and Safari are OK. For Official Use Only – not for secondary distribution ! 18

2 D matplotlib graphics For Official Use Only – not for secondary distribution 19

3 D matplotlib graphics For Official Use Only – not for secondary distribution 20

mpl_toolkits. basemap by popular demand For Official Use Only – not for secondary distribution 21

Parallel computing with IPython ipcontroller ipengine For Official Use Only – not for secondary distribution 22

PBS scripts to start ipcontroller and ipengine on Diamond ipcontroller. pbs ipengine. pbs #PBS -A ARLAP 96070 PET #PBS -q debug #PBS -l select=1: ncpus=8: mpiprocs=8 #PBS -l place=scatter: excl #PBS -l walltime=00: 30: 00 #PBS -N ipcontroller #PBS -j oe #PBS -S /bin/bash cd ${WORKDIR} #PBS -A ARLAP 96070 PET #PBS -q debug #PBS -l select=8: ncpus=8: mpiprocs=8 #PBS -l place=scatter: excl #PBS -l walltime=00: 30: 00 #PBS -N ipcontroller #PBS -j oe #PBS -S /bin/bash cd ${WORKDIR} source $PET_HOME/pkgs/ptoolsrte/etc/ptoolsrte. bashr c ipcontroller --ip=* mpiexec_mpt -np 64 ipengine --mpi=mpi 4 py For Official Use Only – not for secondary distribution 23

Start your engines 1. qsub ipcontroller. pbs 2. qsub ipengine. pbs For Official Use Only – not for secondary distribution 24

Connect to the controller and execute For Official Use Only – not for secondary distribution 25

Part IV: Callstack Debugging with TAU For Official Use Only – not for secondary distribution 26

Segfault! What do you do? Python Callpath Need to debug multi-language codes, even if the input files can’t be shared. Core files aren’t much help here. Most tools are mono-lingual. C++ Fortran Use TAU! export TAU_TRACK_SIGNALS=1 For Official Use Only – not for secondary distribution 27

Real-world example: CREATE-AV Helios For Official Use Only – not for secondary distribution 28

Helios: a multi-language program For Official Use Only – not for secondary distribution 29

Rebuild with ‘-g’ to get debugging symbols Note: you can skip this step, but your backtrace will be less informative For Official Use Only – not for secondary distribution 30

Create a wrapper file wrapper. py: import tau def Our. Main(): import samarcrun Your application name here tau. run('Our. Main()') For Official Use Only – not for secondary distribution 31

Run with TAU 1. export TAU_TRACK_SIGNALS=1 2. export TAU_CALLPATH_DEPTH=100 3. mpirun -np {n} tau_exec -T python py. MPI. /wrapper. py For Official Use Only – not for secondary distribution 32

TAU generates profile data on when error occurs For Official Use Only – not for secondary distribution 33

Use Para. Prof to explore profile data For Official Use Only – not for secondary distribution 34

Right-click the thread you want to explore For Official Use Only – not for secondary distribution 35

Use the Metadata window to locate code line that caused the error For Official Use Only – not for secondary distribution 36

Para. Prof highlights the erroneous line For Official Use Only – not for secondary distribution 37

Summary • Use PTools. RTE for a rich and consistent Python environment on all DSRC systems • mpi 4 py, numpy, py. MPI, matplotlib, and many more packages are included • Use IPython Notebook to interact with all the features of PTools. RTE, including large-scale parallel deployment • Use TAU callstack debugging to find and fix errors For Official Use Only – not for secondary distribution 38

Acknowledgments This work was supported by the Do. D High Performance Computing Modernization Program (HPCMP) User Productivity Enhancement, Technology Transfer and Training (PETTT) program and through support provided by the Do. D HPCMO to the HIARMS Institute and the CREATE program. Special thanks to Dr. Andrew Wissink and Stephen Adamec.
