SALIVARY GLAND DISEASES Omar alnoubani MD, MRCS

SALIVARY GLAND DISEASES Omar alnoubani MD, MRCS

Salivary Glands Overview Parotid gland Sublingual gland Submandibular gland

Salivary Glands Overview Parotid gland Sublingual gland Submandibular gland

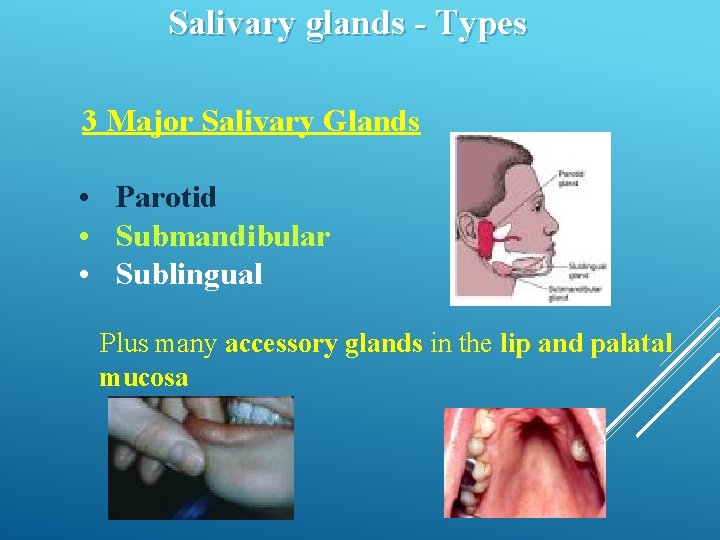

Salivary glands - Types 3 Major Salivary Glands • Parotid • Submandibular • Sublingual

Salivary glands - Types 3 Major Salivary Glands • Parotid • Submandibular • Sublingual Plus many accessory glands in the lip and palatal mucosa

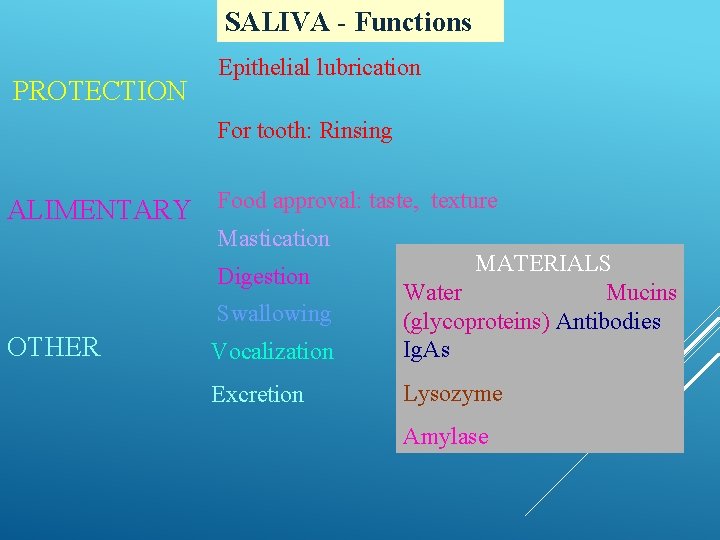

SALIVA - Functions PROTECTION Epithelial lubrication For tooth: Rinsing ALIMENTARY Food approval: taste, texture

SALIVA - Functions PROTECTION Epithelial lubrication For tooth: Rinsing ALIMENTARY Food approval: taste, texture Mastication Vocalization MATERIALS Water Mucins (glycoproteins) Antibodies Ig. As Excretion Lysozyme Digestion Swallowing OTHER Amylase

SALIVARY GLAND DISEASES Functional disorders Obstructive disorders Infectious disorders Neoplastic disorders

SALIVARY GLAND DISEASES Functional disorders Obstructive disorders Infectious disorders Neoplastic disorders

Functional Disorders of the Salivary Glands

Functional Disorders of the Salivary Glands

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Sialorrhea (Increase in saliva flow) (i) Psychosis (ii)

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Sialorrhea (Increase in saliva flow) (i) Psychosis (ii) mental retardation (iii) certain neurological diseases (iv) rabies ( v) mercery poisoning

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Xerostomia (Decrease in saliva flow) (i) Mumps, (ii)

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Xerostomia (Decrease in saliva flow) (i) Mumps, (ii) Sarcoidosis (iii) Sjoegrens syndrome (iv) Lupus (v) post-irradiation treatment

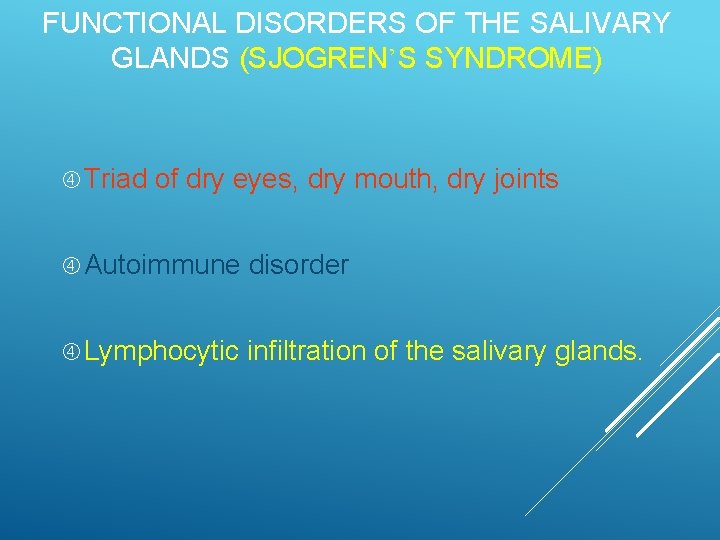

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS (SJOGREN’S SYNDROME) Triad of dry eyes, dry mouth,

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS (SJOGREN’S SYNDROME) Triad of dry eyes, dry mouth, dry joints Autoimmune disorder Lymphocytic infiltration of the salivary glands.

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Mucocele Secondary to trauma 70% occur in lower

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Mucocele Secondary to trauma 70% occur in lower lip Excisional biopsy usually curative

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Ranula Sublingual salivary gland mucocele Treatment should include

FUNCTIONAL DISORDERS OF THE SALIVARY GLANDS Ranula Sublingual salivary gland mucocele Treatment should include removal of Sublingual gland

Obstructive Disorders of the Salivary Glands

Obstructive Disorders of the Salivary Glands

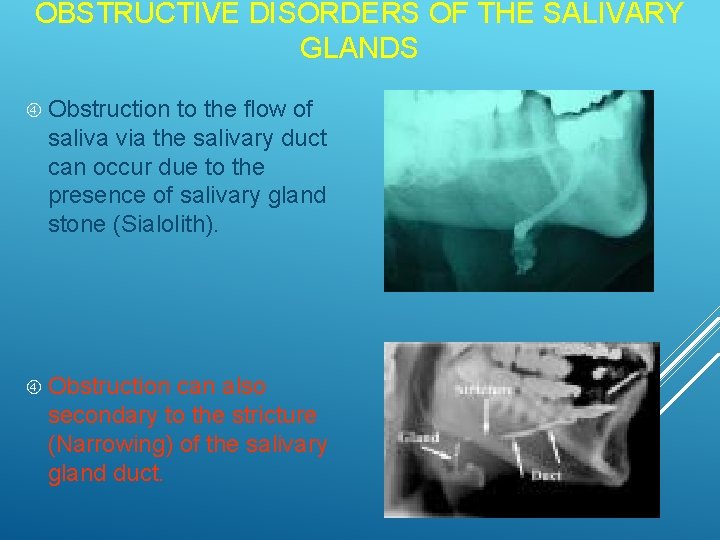

OBSTRUCTIVE DISORDERS OF THE SALIVARY GLANDS Obstruction to the flow of saliva via the

OBSTRUCTIVE DISORDERS OF THE SALIVARY GLANDS Obstruction to the flow of saliva via the salivary duct can occur due to the presence of salivary gland stone (Sialolith). Obstruction can also secondary to the stricture (Narrowing) of the salivary gland duct.

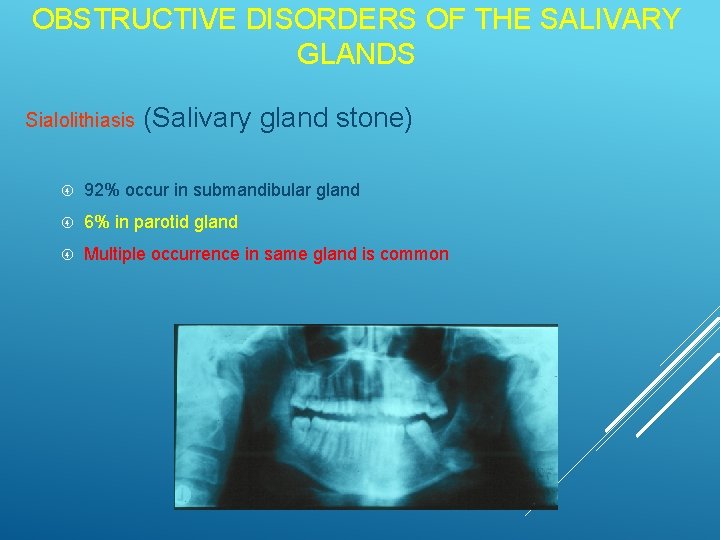

OBSTRUCTIVE DISORDERS OF THE SALIVARY GLANDS Sialolithiasis (Salivary gland stone) 92% occur in submandibular

OBSTRUCTIVE DISORDERS OF THE SALIVARY GLANDS Sialolithiasis (Salivary gland stone) 92% occur in submandibular gland 6% in parotid gland Multiple occurrence in same gland is common

SUBMANDIBULAR GLAND SIALOLITHIASIS Diagnosis Pain and sudden enlargement of gland while eating - Palpation

SUBMANDIBULAR GLAND SIALOLITHIASIS Diagnosis Pain and sudden enlargement of gland while eating - Palpation of stone in the submandibular duct - Occlusal radiograph (80%) - Sialogram

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment Stone can be removed transorally if in the duct and

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment Stone can be removed transorally if in the duct and easily palpable

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment Stone can be removed transorally if in the duct and

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment Stone can be removed transorally if in the duct and easily palpable

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment If the stone is inside the gland therefore damaging the

SUBMANDIBULAR GLAND SIALOLITHIASIS Treatment If the stone is inside the gland therefore damaging the gland, then the whole gland should be removed under G. A.

PAROTID GLAND - SIALOLITHIASIS Diagnosis Based on history Swelling during meals Bimanual 40% Most

PAROTID GLAND - SIALOLITHIASIS Diagnosis Based on history Swelling during meals Bimanual 40% Most - palpation of painful gland non-radiopaque parotid stones are multiple Sialogram

SIALOGRAM A sialogram is a dye investigation of a salivary gland. It is carried

SIALOGRAM A sialogram is a dye investigation of a salivary gland. It is carried out to look in detail at the larger salivary glands, namely the parotid or submandibular glands.

ADVANCED RADIOGRAPHIC INVESTIGATIONS Plain and contrast-enhanced axial CT image of parotid glands. Diffuse enhancement

ADVANCED RADIOGRAPHIC INVESTIGATIONS Plain and contrast-enhanced axial CT image of parotid glands. Diffuse enhancement of the left parotid gland ; sialadenitis

PAROTID GLAND - SIALOLITHIASIS Treatment Stones in extraglandular portion of duct can be removed

PAROTID GLAND - SIALOLITHIASIS Treatment Stones in extraglandular portion of duct can be removed transorally Intraglandular stones removed from extraoral approach by Superficial Parotidectomy.

Infectious Disorders of the Salivary Glands

Infectious Disorders of the Salivary Glands

ACUTE SIALADENITIS INFECTIOUS Etiology Viral - ( Mumps) Bacterial

ACUTE SIALADENITIS INFECTIOUS Etiology Viral - ( Mumps) Bacterial

VIRAL- ACUTE SIALADENITIS (MUMPS) Acute painful parotitis Viral in aetiology Self limiting

VIRAL- ACUTE SIALADENITIS (MUMPS) Acute painful parotitis Viral in aetiology Self limiting

BACTERIAL - ACUTE SIALADENITIS Signs and symptoms Swelling, xerostomia, failure of secretion with ascending

BACTERIAL - ACUTE SIALADENITIS Signs and symptoms Swelling, xerostomia, failure of secretion with ascending infection (Staph aureus, Strep pyogenes, most common infective organism) Painful swelling parotid gland, overlying skin red, shiny & tense, pus from parotid duct (if involving the parotid gland)

BACTERIAL - ACUTE SIALADENITIS Treatment Culture pus for Sensitivity Prescribe appropriate antibiotic Supportive therapy

BACTERIAL - ACUTE SIALADENITIS Treatment Culture pus for Sensitivity Prescribe appropriate antibiotic Supportive therapy Fluids Heat Salivary stimulants

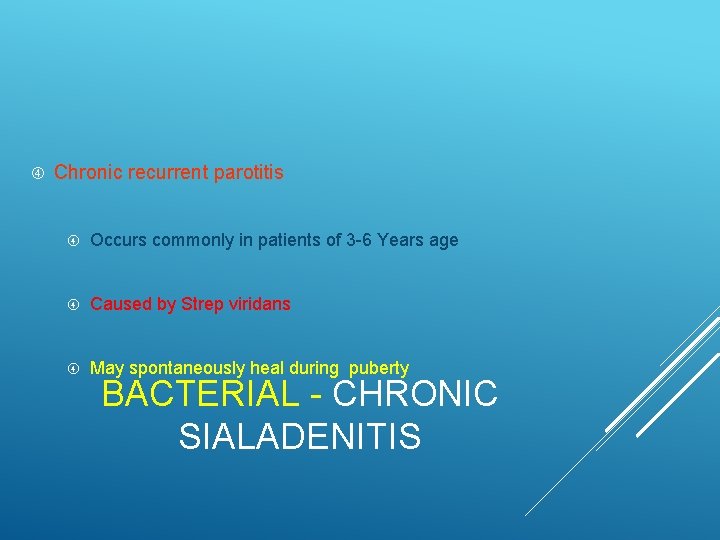

 Chronic recurrent parotitis Occurs commonly in patients of 3 -6 Years age Caused

Chronic recurrent parotitis Occurs commonly in patients of 3 -6 Years age Caused by Strep viridans May spontaneously heal during puberty BACTERIAL - CHRONIC SIALADENITIS

NECROTIZING SIALOMETAPLASIA Benign inflammatory condition Usually involves the minor salivary gland of hard palate

NECROTIZING SIALOMETAPLASIA Benign inflammatory condition Usually involves the minor salivary gland of hard palate Will often simulate a malignant condition No definite etiology 1 -3 cm ulcer heals spontaneously

Neoplastic Disorders of the Salivary Glands

Neoplastic Disorders of the Salivary Glands

SALIVARY GLAND TUMORS 80 % occur in parotid gland 5 -10 1 % occur

SALIVARY GLAND TUMORS 80 % occur in parotid gland 5 -10 1 % occur in the sub-mandibular gland % occur in sublingual gland 10 -15% occur in the minor salivary glands

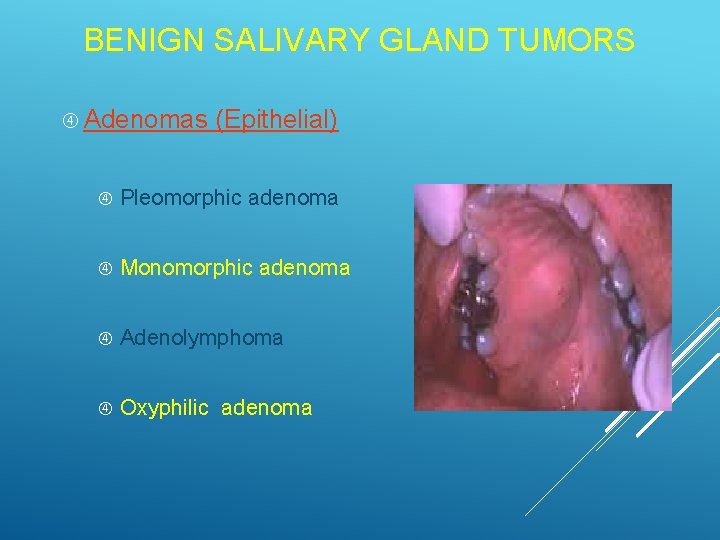

BENIGN SALIVARY GLAND TUMORS Adenomas (Epithelial) Pleomorphic adenoma Monomorphic adenoma Adenolymphoma Oxyphilic adenoma

BENIGN SALIVARY GLAND TUMORS Adenomas (Epithelial) Pleomorphic adenoma Monomorphic adenoma Adenolymphoma Oxyphilic adenoma

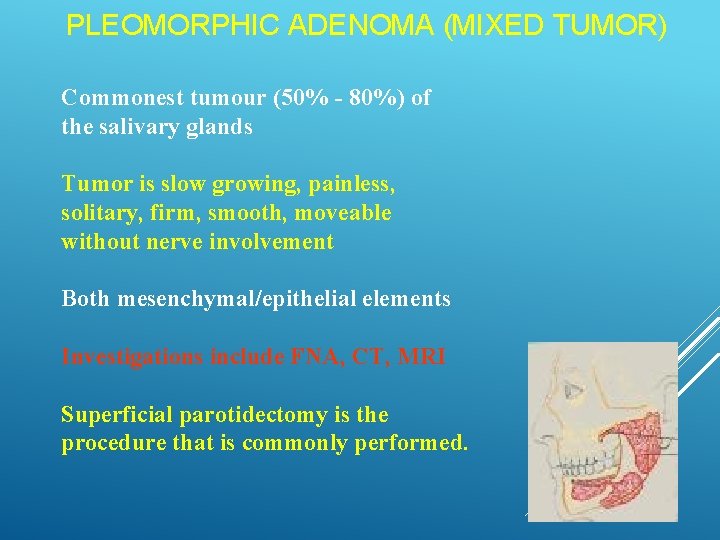

PLEOMORPHIC ADENOMA (MIXED TUMOR) Commonest tumour (50% - 80%) of the salivary glands Tumor

PLEOMORPHIC ADENOMA (MIXED TUMOR) Commonest tumour (50% - 80%) of the salivary glands Tumor is slow growing, painless, solitary, firm, smooth, moveable without nerve involvement Both mesenchymal/epithelial elements Investigations include FNA, CT, MRI Superficial parotidectomy is the procedure that is commonly performed.

MONOMORPHIC ADENOMA Characteristics Consists of a single epithelial cell type with a dense fibrous

MONOMORPHIC ADENOMA Characteristics Consists of a single epithelial cell type with a dense fibrous connective tissue capsule. Two types - Basal cell adenoma - Canalicular adenoma

WARTHINS TUMOR Warthin’s tumour is also called as papillary cystadenoma lymphomatosum) 6% - 10%

WARTHINS TUMOR Warthin’s tumour is also called as papillary cystadenoma lymphomatosum) 6% - 10% Benign, bilateral, parotid gland only Older age group Superficial location, therefore in most cases Superficial parotidectomy is performed. Malignant potential non existent

Malignant Tumours of the Salivary Glands

Malignant Tumours of the Salivary Glands

MALIGNANT TUMOURS OF THE SALIVARY GLANDS Locally aggressive in nature Some grow along neural

MALIGNANT TUMOURS OF THE SALIVARY GLANDS Locally aggressive in nature Some grow along neural pathways, may access skull base and brain eventually Also lymphatic and haematogenous spread of tumor

 Sublingual 70% Submandibular 40% Parotid 20 % INCIDENCE OF SALIVARY GLAND MALIGNANCY ACCORDING

Sublingual 70% Submandibular 40% Parotid 20 % INCIDENCE OF SALIVARY GLAND MALIGNANCY ACCORDING TO SITE

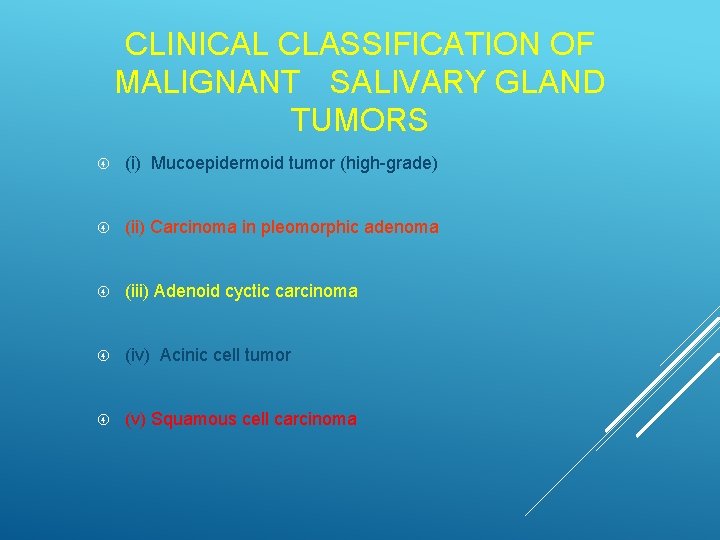

CLINICAL CLASSIFICATION OF MALIGNANT SALIVARY GLAND TUMORS (i) Mucoepidermoid tumor (high-grade) (ii) Carcinoma in

CLINICAL CLASSIFICATION OF MALIGNANT SALIVARY GLAND TUMORS (i) Mucoepidermoid tumor (high-grade) (ii) Carcinoma in pleomorphic adenoma (iii) Adenoid cyctic carcinoma (iv) Acinic cell tumor (v) Squamous cell carcinoma

EVALUATION & DIAGNOSIS OF MALIGNANT SALIVARY GLAND TUMORS History & clinical examination, use TNM

EVALUATION & DIAGNOSIS OF MALIGNANT SALIVARY GLAND TUMORS History & clinical examination, use TNM Classification to stage the cancer Sialography CT – of no value scans and MRI CT sialography for retromandibular / parapharayngeal lesions Incisional FNAC biopsy is contraindicated

MUCOEPIDERMOID TUMOR Commonest 50% malignant tumour of all salivary gland malignancies Parotid involved in

MUCOEPIDERMOID TUMOR Commonest 50% malignant tumour of all salivary gland malignancies Parotid involved in 40% - 50% 75% are low grade & have good prognosis 1 – 5 year survival 85% High grade mucoepidermoid carcinomas invade locally, spread regionally & distant metastasis. 5 year survival drops 30%

CARCINOMA IN PLEOMORPHIC ADENOMA Mixed malignant tumour Long standing pleomorphic adenoma Older age group

CARCINOMA IN PLEOMORPHIC ADENOMA Mixed malignant tumour Long standing pleomorphic adenoma Older age group Worse prognosis Lymph node metastases 15% Distant metastases 30% 5 year survival 40% - 50%

ADENOID CYSTIC CARCINOMA (CYLINDROMA) Commonly involves submandibular (35% - 40%), only 7% of parotid

ADENOID CYSTIC CARCINOMA (CYLINDROMA) Commonly involves submandibular (35% - 40%), only 7% of parotid malignancies Slowly growing Peri-neural 30% 50% invasion lymph node metastasis, distant metastasis - 5 year survival 75% - 10 year survival 30% - 20 year survival 13%

ACINIC CELL CARCINOMA Low grade Slow growing 10% of malignant parotid tumour Lymph node

ACINIC CELL CARCINOMA Low grade Slow growing 10% of malignant parotid tumour Lymph node mets 10% Aggressive Radical tumours parotidectomy is necessary if parotid gland is involved.

SQUAMOUS CELL CARCINOMA OF SALIVARY GLANDS Infrequent May occurrence 1% - 5% have skin

SQUAMOUS CELL CARCINOMA OF SALIVARY GLANDS Infrequent May occurrence 1% - 5% have skin infiltration Total radical parotidectomy

 Thank you Good luck in your exams …

Thank you Good luck in your exams …
