Sales Training 2017 Introduction Overview How They Work

Sales Training 2017 Introduction Overview How They Work Sales Training Contact Information

Introduction GTP Manufactures: Industrial Glycol Feed Packages Residential Glycol Feed Packages Bypass/Filter Feeders Corrosion Coupon Racks Chemical Mixers Separators & Separator Systems Poly-Cubes & Pump/Control Stations GTPConnect™ Double Wall Tanks Batch/Mix Poly Tanks & Tank Stands Custom Build Systems. General Treatment Products, Inc. is built on the ideal of providing excellent service and products to our customers while perusing and developing the industries newest products. Keeping “our pulse” on the industry and working closely with each other and our customers is instrumental to current product improvement and the development of future products. These ideals, empowered in our team, serves as the cornerstone to our success. Also ask about our distribution products such as, Walchem Metering Pumps and Controls, Sea. Metrics Flow Meters and Controls, Iwaki Mag Drive Pumps, ARO transfer pumps, Flowline Level Sensors and Controls, Ko. Flo Static Mixers, ASCO Solenoid Valves and much more. . . Home Back Next

Overview General Treatment Products, Inc. GTPConnect™ is designed as a simplistic method to connect your controller(s) to your local area network of handheld device. Using basic hardware and a intuitive APP, GTPConnect™ makes controller maintenance wireless and effortless. Features: Connect-Hub connects multiple controller access Connect-WF allows wireless connections Connect-APP controls traffic, datalogs, graphs and reports Connect-CELL enables cellular connectivity Home Back Next

How They Work Connect-WFxxx using standard IP address, makes a connection between the router and you controller. Wirelessly, connect to the router, open your browser and type in your controller IP address. Just that simple. The wireless connection allows you to connect without having to climb into tight areas and make a hard connection. With the customers IT permission & guidance, readdress the router and controller and gain LAN and internet access. Using Walchem’s VTouch free service to connect to your controller anywhere you are. Check status, make changes and monitor all your controls. Safe, simple and easy to use. Walchem W 600 Controller IP: 10. 0. 100. 111 Standard Walchem Settings: W 600=10. 0. 100. 111 W 900=10. 0. 101 WMT=10. 0. 100. 29 WMT=10. 0. 100. 31 Connect-WF 300 IP 300 FT Signal Connect-WF 015 15 FT Signal WF Standard Factory IP: 10. 0. 100. 7 Using you device WIFI, connect to the router, open your browser and enter your controller IP. Now your connected Home Back Next

How They Work Connect-HUB connects one or more controllers. Working as a small server, Connect-HUB remembers controller IP address, store datalogs and creates PDF reports for customer analysis. Use this touch screen terminal as a port to all your control needs. Connect-CELL (shown on inside of Connect. HUB) allow you to cellularly connect to the controller using Team. Viewer unattended connection. AT&T, Verizon and T-Mobile Hot Spots will work. Connect and control multiple controller Connect-CELL AT&T Connect-HUB Simple Cellular Hot Spot technology make connecting from anywhere simple. Touch Screen, Controller ID, Datalog Storage and Report Builder Home Back Next

How They Work Using the “Connect System”, mix and match as needed. Or, make the Connect-HUB your LAN for all your Walchem Controls, using just one Cellular plan. Some Hardwired to the HUB Simple Cellular Hot Spot technology make connecting from anywhere simple. Touch Screen, Controller ID, Datalog Storage and Report Builder Home Back Next Connect and control multiple controller Some Wireless to the HUB

Sales Training Getting started, Information you will need to know to sell and quote: (or see on-line form located on product page for more information) Need to know: Local connection or cellular Number of controllers Datalog storage and report building Or brief listing of what they want to do, or what they expect from their system. Home Back Next

Sales Training Model Number: Connect-WF 015 Choosing a wireless router Base Model: WF 015 = Local 15 FT Range WF 015 E = Local 15 FT Range (No Housing) WF 300 = Local 300 FT Range (No Housing) Connect-WF 015 are single point, 15 FT access routers. Connect-WF 300 are four point, 300 FT access routers with LAN connection if needed. “E” Models come without enclosures and are designed for indoors use. All models would be stored out of the direct sunlight and kept cool. Note: Routers can be configured before shipment, let us know and we will set it up. True, plug and play. Home Back Next

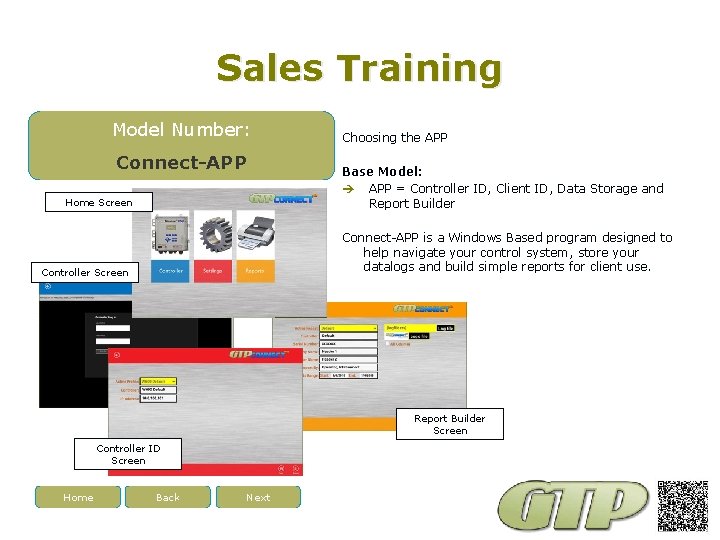

Sales Training Model Number: Connect-APP Home Screen Choosing the APP Base Model: APP = Controller ID, Client ID, Data Storage and Report Builder Connect-APP is a Windows Based program designed to help navigate your control system, store your datalogs and build simple reports for client use. Controller Screen Report Builder Screen Controller ID Screen Home Back Next

Sales Training Model Number: Connect-HUB & CELL Choosing a HUB and cellular Hot Spot Base Model: HUB = Touch Screen Station and Enclosure Connect-APP CELL A = AT&T Hot Spot CELL V = Verizon Hot Spot Connect-HUB comes with Lockable NEMA 4 enclosure, 4 point router, 8” touch screen display and Connect. APP. Connect-HUB Home Back Next Connect-CELL comes with mounting tape and 5 VDC power cable.

Contact Us Mailing Address: General Treatment Products P. O. Box 8697 Brea, CA 92822 -5697 Shipping Address: General Treatment Products 113 Viking Ave. Brea, CA 92821 Phone: 714) 257 -9165 FAX: 714) 257 -9215 Internet: http: //www. gtpcompany. com E-Mail: customerservice@gtpcompany. com Home Back Next
