Sales guide for HSUPA 3 G VPN router

Sales guide for HSUPA 3 G VPN router DWR-555 WRPD, Amy Wang, 4 th Oct. , 2010 D-Link Confidential

DWR- 555 Business Analysis Model Description： DWR-555 is a 802. 11 n Wi. Fi voice-supported HSUPA 3 GVPN router, user can connect to Internet anywhere without hard-wired effort. Besides mobile broadband access, DWR-555 also provides a physical WAN port for fixed-line broadband, and supporting variety of WAN connection types, such as PPPo. E, static IP, dynamic IP (DHCP client), PPTP, and L 2 TP. In order to protect local computers, DWR-555 supports robust SPI firewall and flexible filter rules for your requirements. Users can easily change settings by webbased UI, and backup or restore configuration if required. Speaking of SMS (Short Message Service) feature in every cell phone, user can also send and read SMS with DWR-555. Target Market： SME / SOHO D-Link Confidential

Selling Points Embedded SIM Card; Easily connect UMTS/HSDPA/HSUPA network External 3 G Antenna will have good signal performance Share Network with your friends via high-speed Wi-Fi 150 N (11 n 2 x 2) connection 3 G back-up network enables “always –connection Internet service” concept Won’t miss any GSM call and SMS Secure and Private network access via PPTP, L 2 TP and connection and VPN pass through as well WPS D-Link Confidential

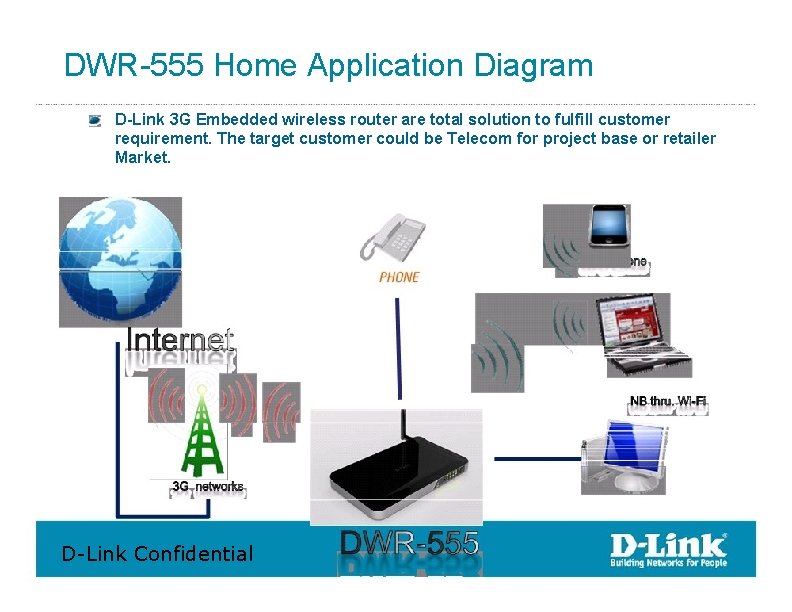

DWR-555 Home Application Diagram D-Link 3 G Embedded wireless router are total solution to fulfill customer requirement. The target customer could be Telecom for project base or retailer Market. D-Link Confidential

DWR-555 Business Application Diagram Integrated with current DWR-555 solution as wireless WAN backup connection for business D-Link Confidential

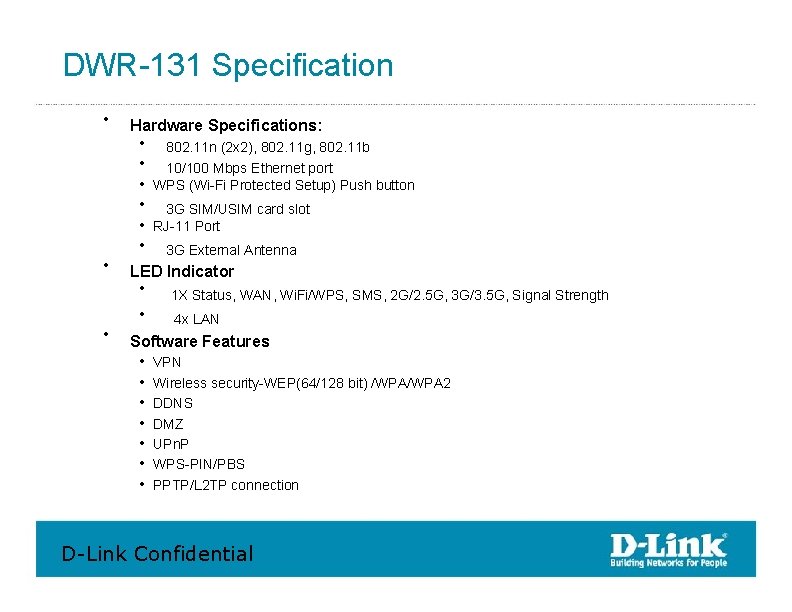

DWR-131 Specification • • • Hardware Specifications: • • • 802. 11 n (2 x 2), 802. 11 g, 802. 11 b 10/100 Mbps Ethernet port WPS (Wi-Fi Protected Setup) Push button 3 G SIM/USIM card slot RJ-11 Port 3 G External Antenna LED Indicator • • 1 X Status, WAN, Wi. Fi/WPS, SMS, 2 G/2. 5 G, 3 G/3. 5 G, Signal Strength 4 x LAN Software Features • • VPN Wireless security-WEP(64/128 bit) /WPA 2 DDNS DMZ UPn. P WPS-PIN/PBS PPTP/L 2 TP connection D-Link Confidential

Thank you D-Link Confidential
