Contents Business Challenge Product Overview • Hardware Overview • Components of DGS-6600 series • DGS-6600 System Capacity • Technology Briefing Product Application Guide Competitive Comparison & Analysis • Key Comparison • Competitive Analysis DGS-6604

Business Challenge

Business Challenge Business Needs Minimize Network Downtime ü Business must run continuously Scalability and Flexibility Infrastructure ü Flexible media connectivity ü Rich management support Enhance Network Performance ü Files’ size is getting larger than before (mail’s attachment and graphic format) ü “Gigabit on client” pushes faster switching in core network Realize Real-time Applications ü IP telephony and Video streaming applications need faster response and guarantee “Qo. S” level Increase Network Security ü Against inside and outside threats Protect Return on Investment

Business Challenge Premium Offering of DGS-6600 Modular Switch Maximized Network Uptime ü Redundant power design ü Resilient switching & routing technologies (VRRP, MSTP. . ) Improves Network Performance ü High port density for mission-critical wiring closets, core and distribution networks requirement ü Maximum port count (144 GE copper port, 144 GE SFP slots, 24 10 GE XFP slots) Application Awareness Enabled ü Vo. IP-enabled network by multi-layer Qo. S classification and prioritization ü Video-enabled network by advanced multicast routing and switching mechanism Comprehensive Security ü Network access control ü Denial of service prevention Return on Investment ü Ease of expansion to increase bandwidth and deploy mixed transmission media network ü Upgradeable to enable applications / services ü Superior performance at affordable price

Business Challenge Value Proposition D-Link DGS-6600 series switches deliver resilient, high performance, multilayer Gigabit and 10 Gigabit connectivity, fulfilling today and tomorrow’s needs “Modular Flexibility” + ”High Density GE/10 GE” + “Superior Features”. Deploy DGS-6600 as – Alternative to Stackable L 3 Management Switches – Core switch of Small/Middle Enterprise Network – Distribution switch of Middle/Large Enterprise Network – Wiring closet switch of Middle/Large Enterprise Network

Product Overview

Product Overview DGS-6600 Hardware Overview ê Scalable H/W Architecture – Flexible modular design – 4 -slot chassis models (other models to be launched in the future) – Switch fabric capacity up to 576 Gbps ê High Resilient H/W Design – Multiple power supplies for redundancy & load sharing – Hot-swappable modular design ê Superior Performance – Gigabit and 10 -Gigabit Ethernet – System performance up to 428. 57 Mpps – 80 Gbps uni-direction line rate performance per slot ê Power over Ethernet (Po. E) – IEEE 802. 3 af standard Po. E (up to 144 ports) DGS-6604

Product Overview Highly Reliable Hardware Architecture (DGS 6604) DGS-6604 Front DGS-6604 Rear 4 Power Supply slots for redundancy Control Module Hot Swappable I/O Modules (2 -4) Replaceable FAN Modular Dimension Height: 280 mm Width: 484 mm Depth: 470 mm

Product Overview Components of DGS-6600 Series DGS-6600 -CM • • • Control Module for DGS-6600 Series 576 G Switching Capacity Out-of-band management 1. 3 GHz CPU 2 GB RAM USB port Console port 10/100 M out-of-band MGMT port

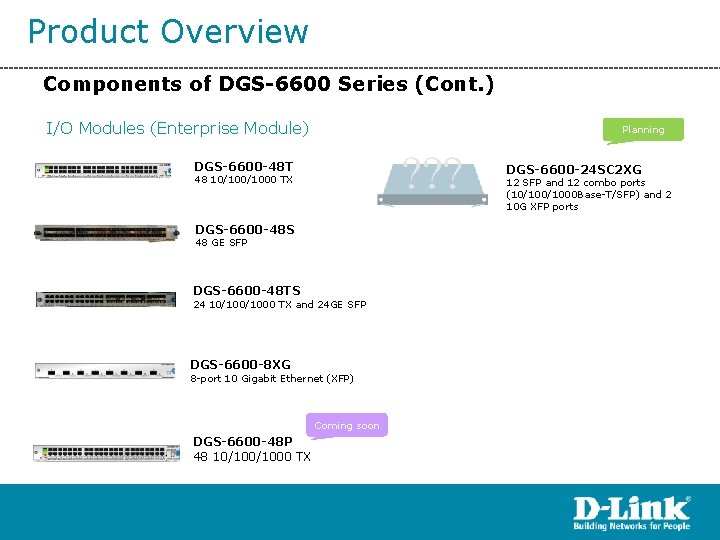

Product Overview Components of DGS-6600 Series (Cont. ) I/O Modules (Enterprise Module) Planning DGS-6600 -48 T DGS-6600 -24 SC 2 XG 48 10/1000 TX 12 SFP and 12 combo ports (10/1000 Base-T/SFP) and 2 10 G XFP ports DGS-6600 -48 S 48 GE SFP DGS-6600 -48 TS 24 10/1000 TX and 24 GE SFP DGS-6600 -8 XG 8 -port 10 Gigabit Ethernet (XFP) Coming soon DGS-6600 -48 P 48 10/1000 TX

Product Overview Components of DGS-6600 Series (Cont. ) DGS-6600 -PWR AC Power Module 850 Watt For load sharing & redundancy DGS-6600 -FAN Module Air inlet Supports Smart-FAN Air outlet

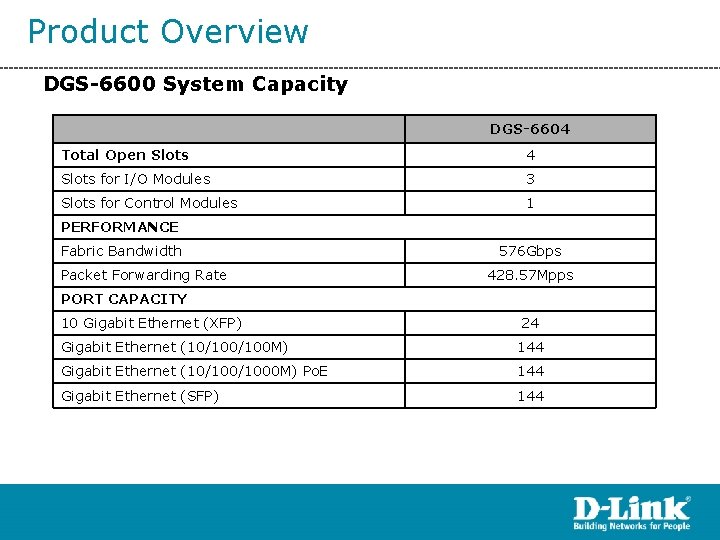

Product Overview DGS-6600 System Capacity DGS-6604 Total Open Slots 4 Slots for I/O Modules 3 Slots for Control Modules 1 PERFORMANCE Fabric Bandwidth Packet Forwarding Rate 576 Gbps 428. 57 Mpps PORT CAPACITY 10 Gigabit Ethernet (XFP) 24 Gigabit Ethernet (10/100 M) 144 Gigabit Ethernet (10/1000 M) Po. E 144 Gigabit Ethernet (SFP) 144

Product Overview Switching Technology Comparison Centralized Switching Catalyst 4500 • Dumb Line Card without capabilities to determine switching path • All traffics MUST be processed by “Control Module” • Switching performance relies on “Control Module” • Packets always be transmitted back and forth between Control Module and Line Cards V. S Distributed Switching • Intelligent Line Card with capability to determine switching path • Synchronized switch/route information on Control Card and Line Card • Layer 2/3/4 Local on board switching capability • Fastest forwarding, near zero-wait

Product Overview Drawback of Centralized Switching 1 All traffics MUST go through control card even traffic in/out on the same line card. Control Card 2 Route and VLAN forwarding information are stored in control card. Before sending packets, dumb line card needs to ask control card 3 Line Card Ports Poor performance is resulted from waiting transmit permit while sending packets Line Card Ports

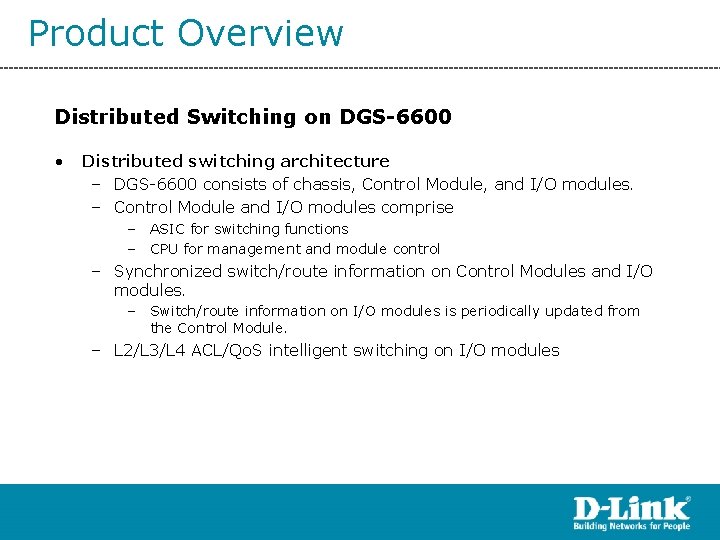

Product Overview Distributed Switching on DGS-6600 • Distributed switching architecture – DGS-6600 consists of chassis, Control Module, and I/O modules. – Control Module and I/O modules comprise – ASIC for switching functions – CPU for management and module control – Synchronized switch/route information on Control Modules and I/O modules. – Switch/route information on I/O modules is periodically updated from the Control Module. – L 2/L 3/L 4 ACL/Qo. S intelligent switching on I/O modules

Product Overview DGS-6600 Switching Architecture CM with high-performance Crossbar Distributed ASIC + Crossbar Design Control Module Crossbar Scalable by abundant bandwidth Crossbar 12 x Hi. Gig+ Backplane 4 x Hi. Gig+ ASIC I/O Module Intelligent I/O ASIC comes on board L 2/L 3/L 4 local switching 8 x Hi. Gig+ ASIC 10 G I/O Module

Product Overview Future-Proofing Switching Technologies on DGS-6600 Unparalleled performance - on-board local switching Unparalleled performance - inter-module switching Optimized traffic flow ü ü ü Control Module Crossbar 12 x Hig. G+ Backplane 4 x Hig. G+ ASIC I/O Module 8 x Hig. G+ ASIC 10 G I/O Module

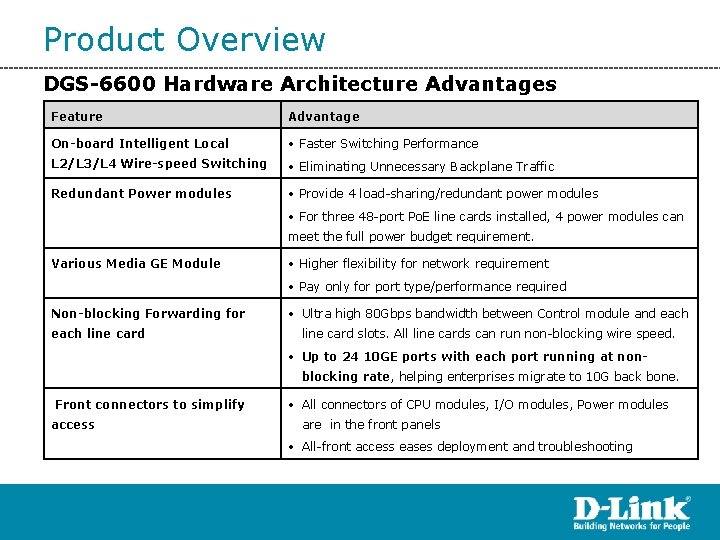

Product Overview DGS-6600 Hardware Architecture Advantages Feature Advantage On-board Intelligent Local • Faster Switching Performance L 2/L 3/L 4 Wire-speed Switching • Eliminating Unnecessary Backplane Traffic Redundant Power modules • Provide 4 load-sharing/redundant power modules • For three 48 -port Po. E line cards installed, 4 power modules can meet the full power budget requirement. Various Media GE Module • Higher flexibility for network requirement • Pay only for port type/performance required Non-blocking Forwarding for each line card • Ultra high 80 Gbps bandwidth between Control module and each line card slots. All line cards can run non-blocking wire speed. • Up to 24 10 GE ports with each port running at nonblocking rate, helping enterprises migrate to 10 G back bone. Front connectors to simplify access • All connectors of CPU modules, I/O modules, Power modules are in the front panels • All-front access eases deployment and troubleshooting

Product Overview Comprehensive Enterprise-class Features DGS-6600 series provides comprehensive and enterprise-class features covering Security, Qo. S, Resiliency to enrich your network. Network Foundation Multiple-Service - VRRP - PIM-SM, PIM-DM - RIP/RIPng OSPF v 2/v 3 BGP ECMP, WCMP Q-in-Q Policy-based Route - Traffic Classification Advanced Qo. S Bandwidth Control (minimum granularity 64 Kbps) - BGP 4+ (future) ERPS (Rapid Ethernet Ring Protection 50~200 ms convergence) (future) - Security Access Control - 802. 1 x Access Control - L 2/3/4 Advanced ACL - IP/MAC/Port Binding (future) Traffic Management - Bandwidth Rate Limiting - Port Mirroring - Safeguard Engine (future) Secure Management - SNMPv 3 Management - SSH v 2 Secure Shell Client
