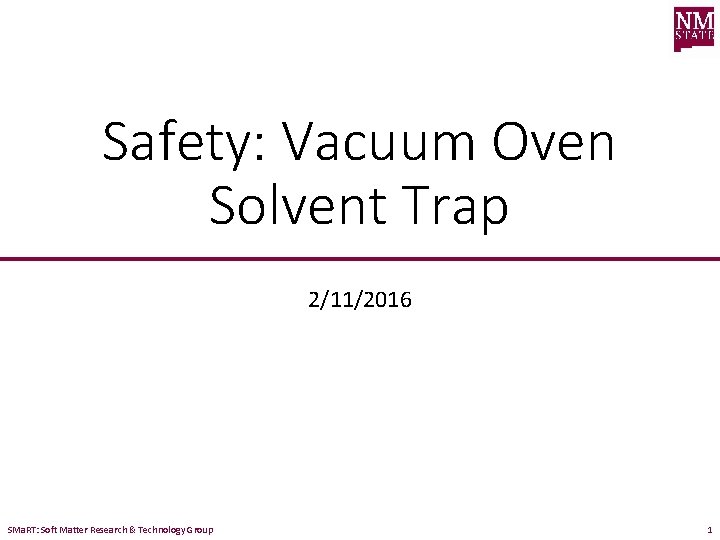

Safety: Vacuum Oven Solvent Trap 2/11/2016 SMa. RT: Soft Matter Research & Technology Group 1

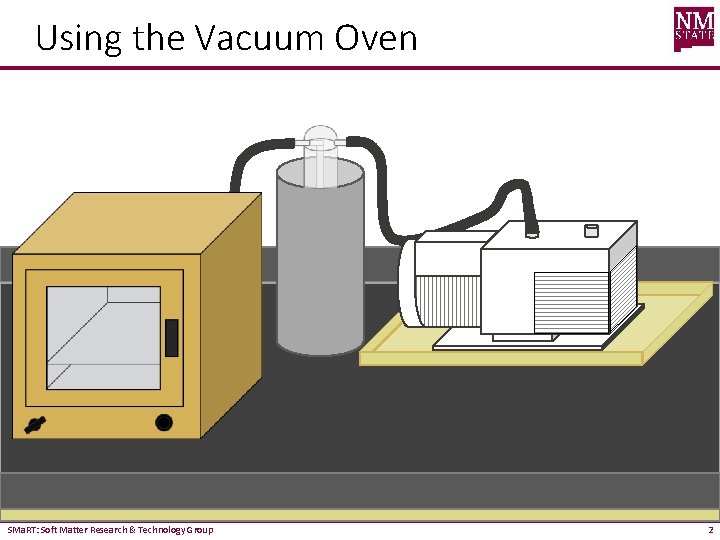

Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2
Using the Vacuum Oven SMa. RT: Soft Matter Research & Technology Group 2

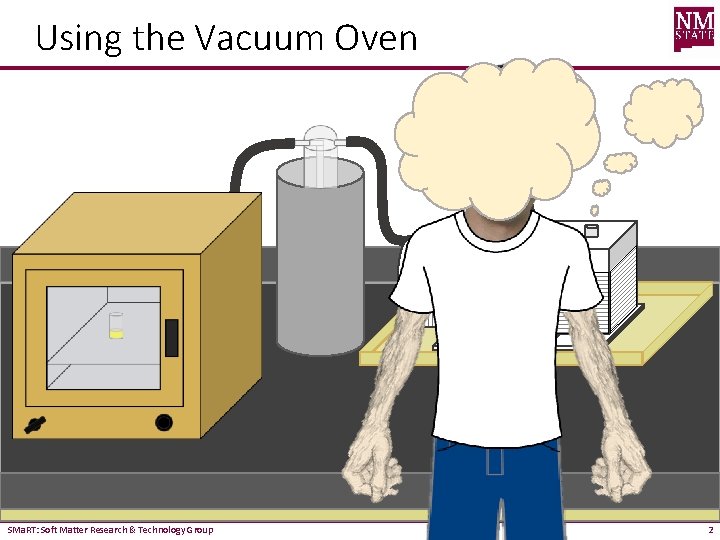

Using the Vacuum Oven What did Dr. Foudazi do wrong? • No gloves • No lab coat • No goggles • No Safe Operating Card • Dry ice wasn’t added before turning on the vacuum pump SMa. RT: Soft Matter Research & Technology Group 2

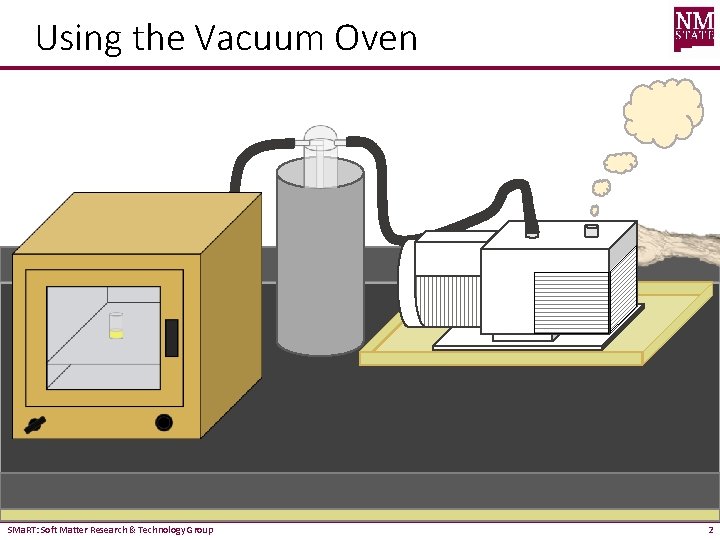

Reasons for Adding Dry Ice • At low pressures, solvents boil rapidly • Solvent vapor skips the condenser, enters the pump, and damages pump gaskets • Solvent vapor then exits the pump into the room SMa. RT: Soft Matter Research & Technology Group Image of pump interior. Retrieved from: http: //www. china-beng. com/en/uploadfile/2006113093913364. jpg 3
Setting Up the Solvent Trap Make sure you’re wearing all of your PPE SMa. RT: Soft Matter Research & Technology Group Image of safe guy. Retrieved from: http: //ehs. virginia. edu/ehs. chemicalsafety/chemicalsafety. images/ppe. jpg 4
Setting Up the Solvent Trap Make sure there is no solvent in the trap SMa. RT: Soft Matter Research & Technology Group 5

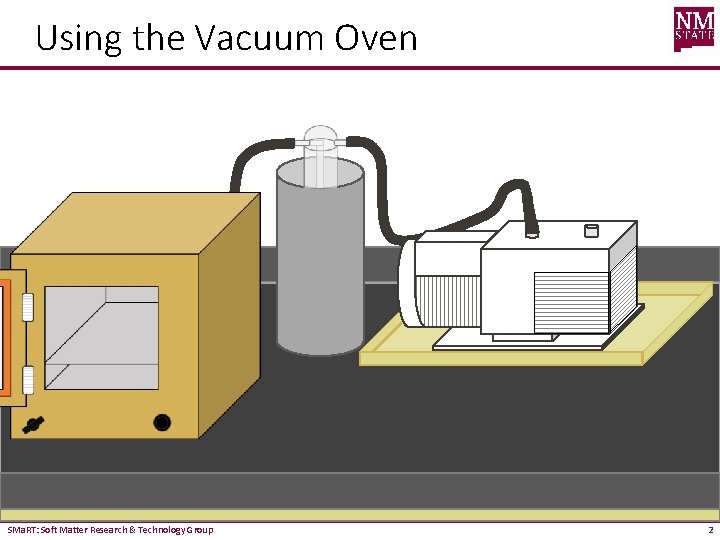

Setting Up the Solvent Trap Ensure that the vacuum line to the oven is closed SMa. RT: Soft Matter Research & Technology Group 6

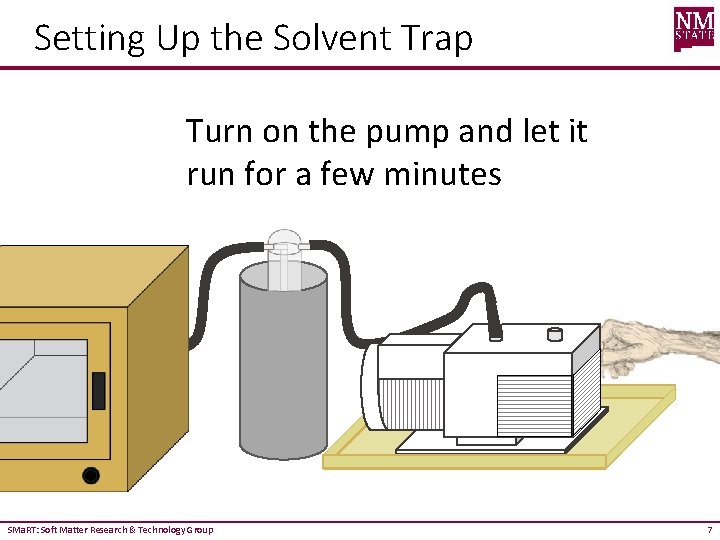

Setting Up the Solvent Trap Turn on the pump and let it run for a few minutes SMa. RT: Soft Matter Research & Technology Group 7

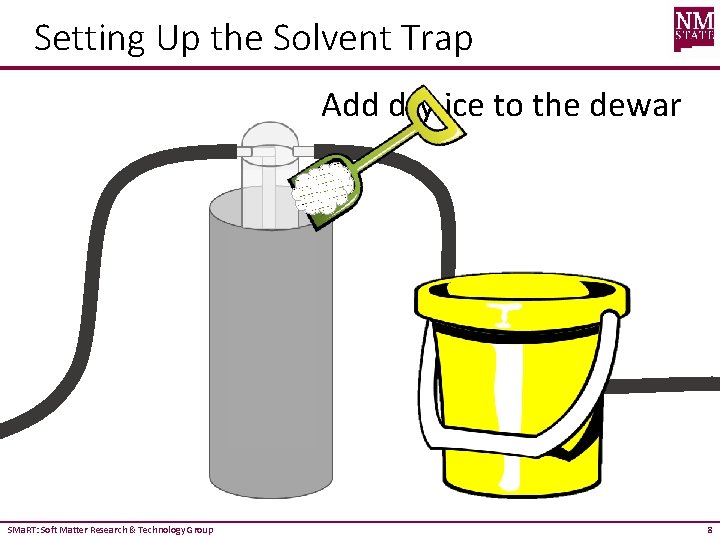

Setting Up the Solvent Trap Add dry ice to the dewar SMa. RT: Soft Matter Research & Technology Group 8
Setting Up the Solvent Trap Add dry ice to the dewar SMa. RT: Soft Matter Research & Technology Group 8
Setting Up the Solvent Trap Add dry ice to the dewar SMa. RT: Soft Matter Research & Technology Group 8
Setting Up the Solvent Trap Add some acetone SMa. RT: Soft Matter Research & Technology Group 9
Setting Up the Solvent Trap Add some acetone SMa. RT: Soft Matter Research & Technology Group 9
Setting Up the Solvent Trap Add your sample and open the vacuum line SMa. RT: Soft Matter Research & Technology Group 10

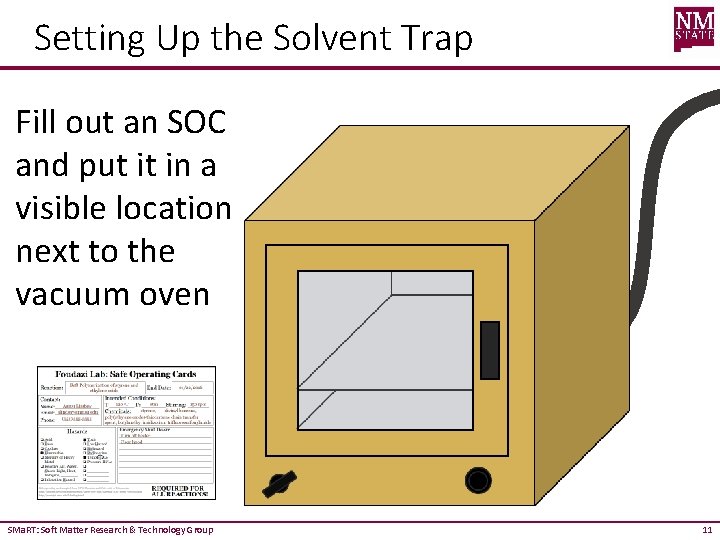

Setting Up the Solvent Trap Fill out an SOC and put it in a visible location next to the vacuum oven SMa. RT: Soft Matter Research & Technology Group 11
After you’re done Turn off the pump SMa. RT: Soft Matter Research & Technology Group 12

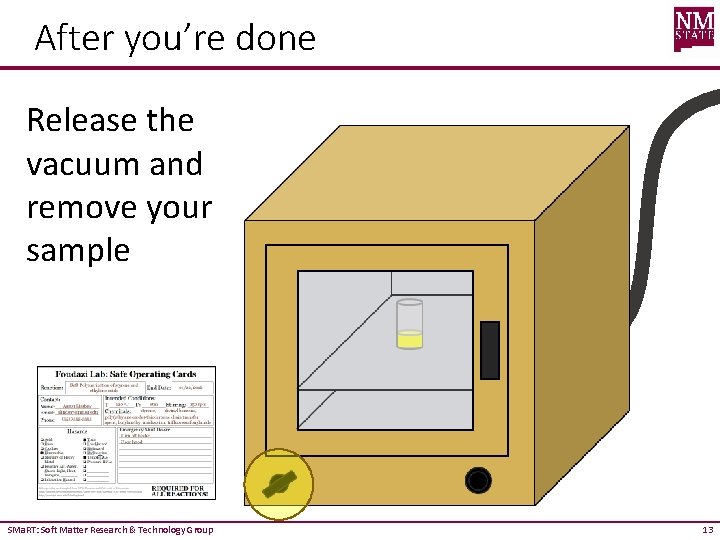

After you’re done Release the vacuum and remove your sample SMa. RT: Soft Matter Research & Technology Group 13
After you’re done • Remove the solvent trap • Disconnect the hoses • Rinse the solvent trap contents into the appropriate waste container • Allow the trap to dry before reconnecting the hoses SMa. RT: Soft Matter Research & Technology Group 14
I am alive! Questions? SMa. RT: Soft Matter Research & Technology Group 15
Questions? SMa. RT: Soft Matter Research & Technology Group 15
Using the Vacuum Oven 0. 003 SMa. RT: Soft Matter Research & Technology Group 0. 2 31
Solvent Trap 0. 003 SMa. RT: Soft Matter Research & Technology Group 0. 2 32
