Safety in the Welding Shop Chapter 1 Learning

Safety in the Welding Shop Chapter 1

Learning Objectives • Identify several common causes of accidents • Recognize possible safety hazards in the welding shop or other work environments. • Select and properly use safety equipment appropriate for work conditions. • Recognize and evaluate potential safety hazards and react appropriately to prevent accidents.

Essential Question • What are the common personal and physical factors contributing to accidents in a welding environment? • What are the common safety hazards in the welding shop or other work environments? • How can we eliminate and minimize safety hazards with the proper selection and use safety equipment appropriate for work conditions. • How do we evaluate potential safety hazards and react appropriately to prevent accidents.

Vocabulary • • • Acetone Acetylene Earmuffs Earplugs Electric shock Electrical ground Electrical resistance Exhaust pickups First Degree Burn Flashburn • Flash Glasses • Forced ventilation • GFCI • Goggles • Infrared Light • MSDS • Natural Ventilation • Safety Glasses • Second Degree Burn • Third Degree Burn • Type A Fire Extinguisher • Type B Fire Extinguisher • Type C Fire Extinguisher • Type D Fire Extinguisher • Ultraviolet Light • Valve Protection Cap • Ventilation • Visible Light • Warning Label • Welding helmet

Accidents Will Happen • Ultimately the responsibility for on the job safety rests with YOU. • A qualified person is someone who has the knowledge and experience to handle problems. • A competent person is someone who can identify working conditions or surroundings that are unsanitary, hazardous, or dangerous to employees and who has authorization to correct or eliminate these conditions promptly. • OSHA requires a competent person at all jobsites to ensure a safe workplace. • Competent person can shut the operation down until it is safe.

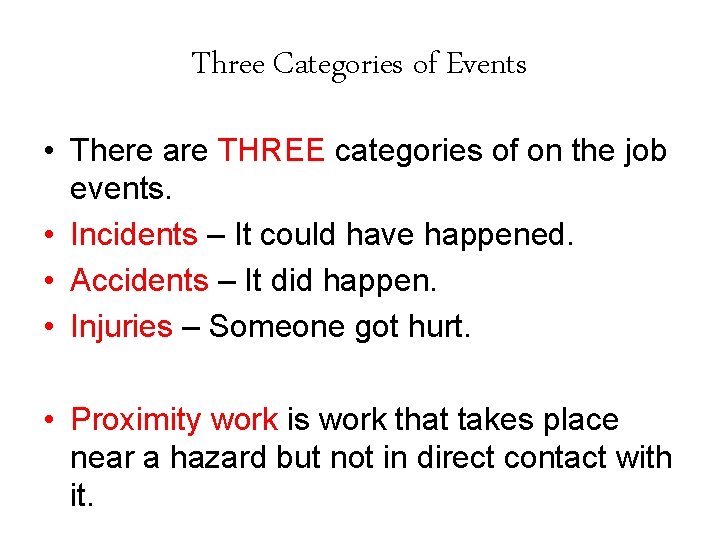

Three Categories of Events • There are THREE categories of on the job events. • Incidents – It could have happened. • Accidents – It did happen. • Injuries – Someone got hurt. • Proximity work is work that takes place near a hazard but not in direct contact with it.

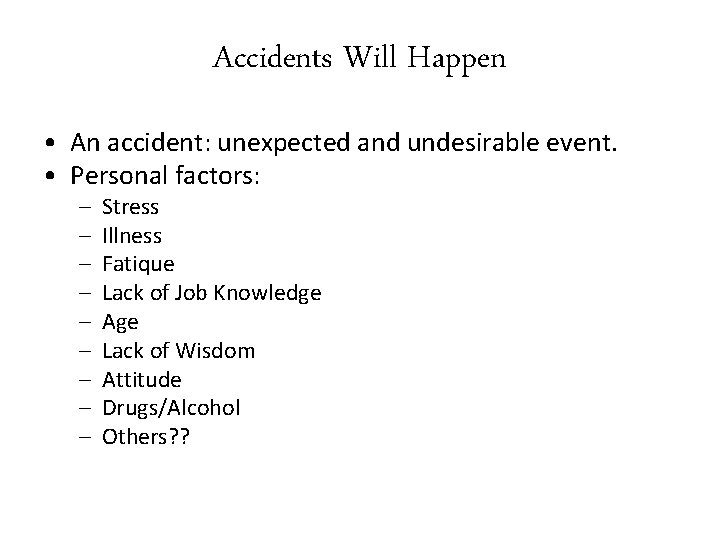

Accidents Will Happen • An accident: unexpected and undesirable event. • Personal factors: – – – – – Stress Illness Fatique Lack of Job Knowledge Age Lack of Wisdom Attitude Drugs/Alcohol Others? ?

Accidents Will Happen • UNSAFE CONDITIONS: – Equipment Failure – Time of Day – Poor Housekeeping – Excessive Noise • Warning Label are not to be disregarded! • MSDS- Material Safety Data Sheet – What Information is on an MSDS Sheet?

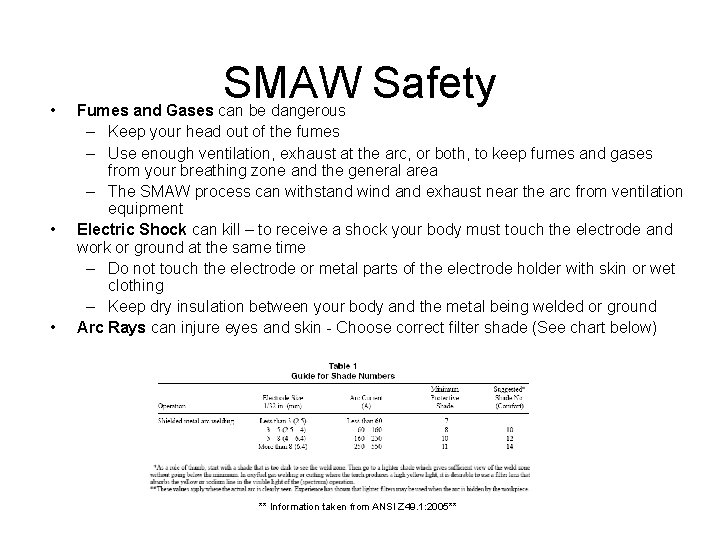

• • • SMAW Safety Fumes and Gases can be dangerous – Keep your head out of the fumes – Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases from your breathing zone and the general area – The SMAW process can withstand wind and exhaust near the arc from ventilation equipment Electric Shock can kill – to receive a shock your body must touch the electrode and work or ground at the same time – Do not touch the electrode or metal parts of the electrode holder with skin or wet clothing – Keep dry insulation between your body and the metal being welded or ground Arc Rays can injure eyes and skin - Choose correct filter shade (See chart below) ** Information taken from ANSI Z 49. 1: 2005** 9

Signs in the Safety Lab • • Information Safety Caution ***** Danger • A red barricade in a work area indicates danger from falling objects. • Posts and chain, steel cable, and wood rails are acceptable materials for a protective barricade.

Shop Safety • WELDING SAFETY CHECKLIST • Electric shock can kill – Water lessens resistance and therefore make electricity more dangerous. – A lockout/tagout system which protects workers from hazardous energy while they work with machines and equipment.

Shop Safety • WELDING SAFETY CHECKLIST • Fumes and Gases can be dangerous. • Forced ventilation is essential where inadequate natural ventilation is available for the hazard. Lincoln Electric Fumes Safety

Shop Safety • WELDING SAFETY CHECKLIST • Welding Sparks can cause fire or explosion – Factors to Consider – Precautionary Summary Lincoln Electric Fire Explosion Risk

Shop Safety • WELDING SAFETY CHECKLIST • Arc rays can burn eyes and skin – Factors to Consider – Precautionary Summary – Never wear Contact Lenses when welding.

Shop Safety • WELDING SAFETY CHECKLIST • Confined Spaces – Factors to Consider – Precautionary Summary

Shop Safety • WELDING SAFETY CHECKLIST • General Work Area Hazards – Factors to Consider – Precautionary Summary

Licoln Electric Safety Lessons • • • Electric Shock Fumes & Gases Fire & Explosion Miscellaneous Welding Safety Personal protective Equipment

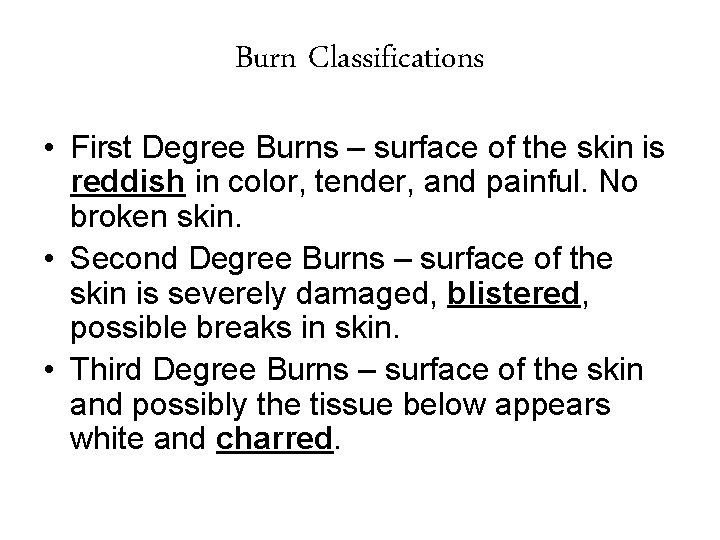

Burn Classifications • First Degree Burns – surface of the skin is reddish in color, tender, and painful. No broken skin. • Second Degree Burns – surface of the skin is severely damaged, blistered, possible breaks in skin. • Third Degree Burns – surface of the skin and possibly the tissue below appears white and charred.

Burns Caused by Light • Three classifications of light: – Visible – the light we see. • Snow blindness, eye strain – Infrared – light waves felt as heat • Sunburn, blistered, etc. – Ultraviolet – not seen or felt but very DANGEROUS! • FLASHBURN – Can’t feel it until later. You may lose partial or complete sight permanently or temporarily depending on how badly the retina is damaged. Lights, Welding, Hazard GO

PPE • Never alter or modify your personal protection equipment. • Eye Protection: – Two functions: flying debris, light reflection. – Safety Glasses ANSI Z 89 • American National Standards Institute – Goggles (same ANSI classification) – Full Face Shield (flying Debris) – Flash Glasses (tint to UV rays, reg light and debris) – Welding Helmets

Ear Protection • Hearing loss due to excessive exposure to loud noises. • Sparks and hot metal shavings entering the auditory canal. • To prevent ear infections clean your earplugs regularly with soap and water. Lincoln Ear Advisory

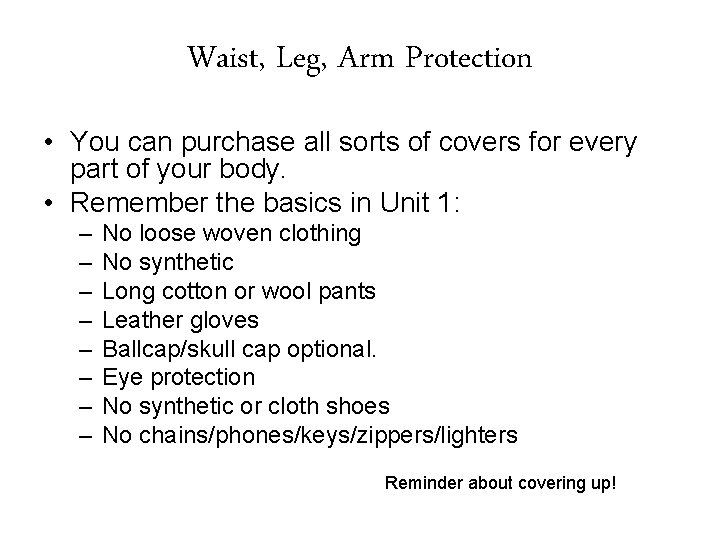

Waist, Leg, Arm Protection • You can purchase all sorts of covers for every part of your body. • Remember the basics in Unit 1: – – – – No loose woven clothing No synthetic Long cotton or wool pants Leather gloves Ballcap/skull cap optional. Eye protection No synthetic or cloth shoes No chains/phones/keys/zippers/lighters Reminder about covering up!

Hard Hats • The outer shell of a hard hat protects your head from a hard blow. • Webbing keeps the hat 1 inch from your head. • Old are Metal, bad for electrical work. • Modern hard hats are made of Fiberglass. Reminder about covering up!

Personal Ventilation Reminder about covering up!

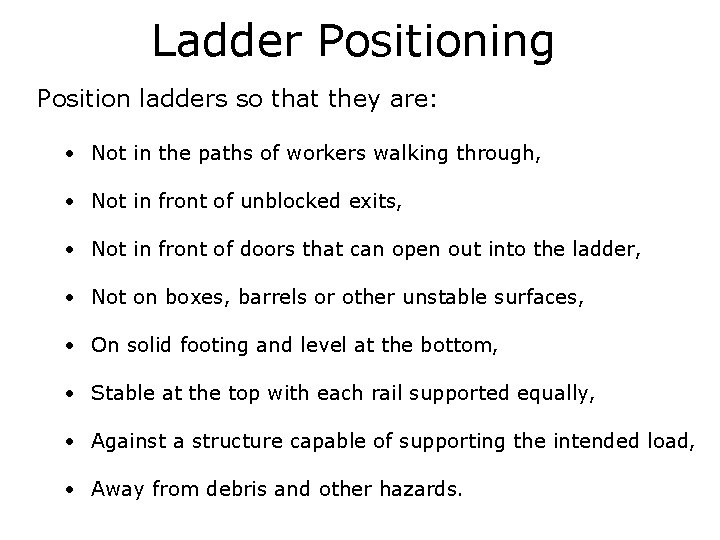

Ladder Positioning Position ladders so that they are: • Not in the paths of workers walking through, • Not in front of unblocked exits, • Not in front of doors that can open out into the ladder, • Not on boxes, barrels or other unstable surfaces, • On solid footing and level at the bottom, • Stable at the top with each rail supported equally, • Against a structure capable of supporting the intended load, • Away from debris and other hazards.

Ladder Placement Place ladders on solid surfaces that will support the ladder and prevent displacement by other workers. Block, tape, lock or guard a door if the ladder is placed where the door will hit it when opened.

Step-Ladder Setup Open up step ladder legs completely and lock the spreader bar braces.

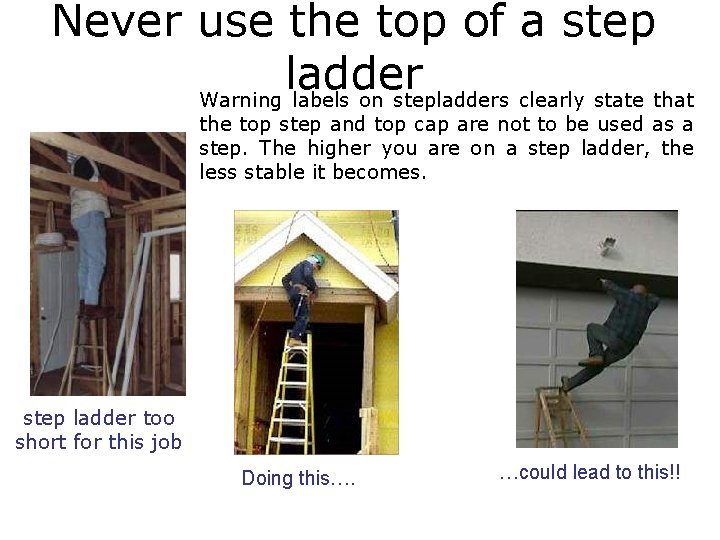

Never use the top of a step ladder Warning labels on stepladders clearly state that the top step and top cap are not to be used as a step. The higher you are on a step ladder, the less stable it becomes. step ladder too short for this job Doing this…. …could lead to this!!

Setting up extension ladder Place ladder base on a firm, level surface with secure footing. Don’t place a ladder on unstable footing or soft ground. As the ladder sinks into the ground or slips from where it is positioned, it becomes very unstable. Position the ladder on solid ground or shoring to ensure stability. An unstable base

Setting up an extension ladder When working from an extension ladder, make sure it is set up at a 4: 1 angle with secure footing on a firm level surface. For accessing an upper level, make sure the extension ladder is set up at a 4: 1 angle on a firm, level surface and the side rails extend at least 3’ above the surface to be accessed. Proper ladder set-up Lastly, make sure the extension ladder is secured at the top and bottom Improper ladder set-up (not 3 ft. above roof line)

Proper Extension Ladder Setup For every four feet of ladder length measured from where the ladder contacts the support point, the base of the ladder should be one foot away from the supporting structure (one to four rule). The ladder must extend at least three feet above the surface to provide safe access or be rigidly secured at the top with a grasping device if less than three feet. The ladder in the photo contacts the supporting structure at 9 feet. This means that the base of the ladder should be 27 inches back from the support. Extended 3 ft. above top surface Secured from slipping 9 ft. 27 in c s e h

Determining proper ladder setup angle One way to ensure proper angle is to stand with your feet at the base of the ladder and extend your arms straight out. If your hands just touch, the ladder will be very close to the 4 to 1 ratio.

Ladder set-up on uneven ground Ladder can be set up straight and level on just about any type of uneven surface using ladder levels attached to the side rails.

Straight ladder stabilizers The straight ladder side rails must be equally supported at the top, unless the ladder is equipped with an adequate stabilizer. Ladders with top stabilizers

Climbing or descending a ladder When climbing a ladder, you must have both hands free and face the ladder. This allows for three points of contact with the ladder at all times and reduces the chances of falling. The three point contact is two hands and one foot or one hand two feet. This way Not this way

Climbing and descending This worker does not have both hands free to hold onto the ladder while climbing or descending the ladder. Proper ladder climbing with tools on belt and both hands free

Overreaching from the sides Doing this…. Could result in this!

Electrical Hazards and Ladders Don’t use metal or conductive ladders near energized electrical equipment or overhead power lines.

Tying Extension ladders Don’t tie or fasten ladder sections together to make a longer ladder, unless the manufacturer specifically endorses this modification using hardware fittings designed for that purpose.

Ladder misuse A ladder must be used only for purposes specifically recommended by the manufacturer. The ladder in this photo is being as a ramp to enter the house interior.

Step Ladder Misuse Rather than a firm, level surface, this stepladder is positioned on a fence so the such that the bottom step is taking the load rather than the side rails. It doesn’t extend three feet above the roof surface, is not secured, and the worker is standing on the top step to access roof. This stepladder is being misused to access doorway. Stepladders can’t be used partially closed and leaned against the wall.

Stepladder Misuse A 3 -legged stepladder with the worker standing on the top cap and balancing on one foot. (Also, no safety glasses while using a nail gun and hard hat is worn backwards)

Step ladder misuse This step ladder is not fully opened with spreader bar locked and the step ladder side rails are straddling a scaffold plank being set up in a position not intended by the manufacturer.

Hazardous Ladder Use A 3 -legged step-ladder leaned against a 2 x 4 nailed across the window. A repair patch on the left front side rail of ladder. No fall protection in use while working at height.

Hazardous ladder use Unsecured, folded step-ladder set on an angled shed roof so that only the tips of the side rails lay on roof. Extension ladder not extended at least 3 -feet above roof, set up at an angle greater than a 4: 1, and it’s not secured top and bottom to prevent movement. No fall protection being used while on this walking/working surface.

Ladder Misuse Two workers using two step-ladders leaned against wall, set up over wood debris, with the far worker standing on the top step. (also, third worker needs fall protection) A better choice in ladders would make this job easier!!

More safe ladder practices Use a ladder only when you are mentally alert and physically able. Don’t let your belt buckle pass beyond either ladder side rails. Hold the ladder with one hand while working with the other. Don't hurry or skip rungs /steps when using the ladder. Be careful when pushing or pulling anything while up on a ladder.

A few more ladder safe practices Don't test a ladder by jumping on it. Don't paint a wood ladder. Don't use any ladder that has been exposed to fire or other strong chemicals. Protect ladders from environmental elements such as: excessive heat or cold. Don't drop or throw ladders. Store ladders out of the way of other employees. Secure ladders firmly when transporting on vehicles.

More Information OSHA Construction e. Tool – ladders CPWR – Ladder Safety (safety meeting topic) CPWR Video – ladder safety (online video) L & I Video Library (several videos on ladder safety)

Introduction • • • Subpart L specifies the requirements needed to safely erect scaffolds or staging. Scaffolds are temporary platforms workers use in order to access their work area and to hold the supplies needed for that job. Because of the locations and dangers involved, • only trained and competent persons are to erect • scaffolds at the job site. Operating Engineers National Hazmat Program 51

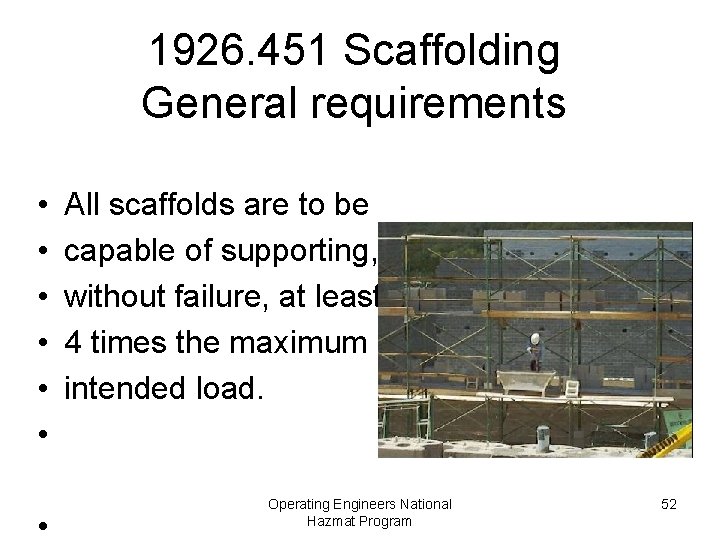

1926. 451 Scaffolding General requirements • • All scaffolds are to be capable of supporting, without failure, at least 4 times the maximum intended load. Operating Engineers National Hazmat Program 52

1926. 451 Scaffolding General requirements Safety Precautions • �Never allow debris/materials to collect on • scaffold • �Always use netting to catch anything that falls • �Make sure scaffold is secure • Operating Engineers National Hazmat Program 53

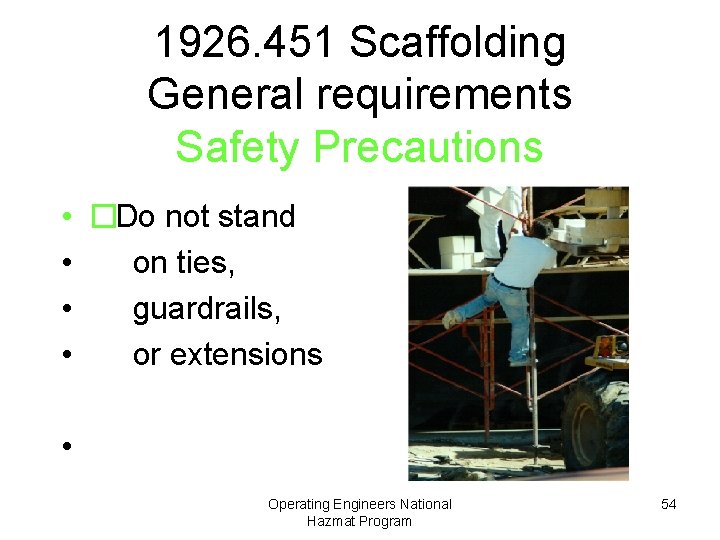

1926. 451 Scaffolding General requirements Safety Precautions • �Do not stand • on ties, • guardrails, • or extensions • Operating Engineers National Hazmat Program 54

1926. 451 Scaffolding General requirements Safety Precautions • �Do not overreach • outside the guardrails • • Operating Engineers National Hazmat Program 55

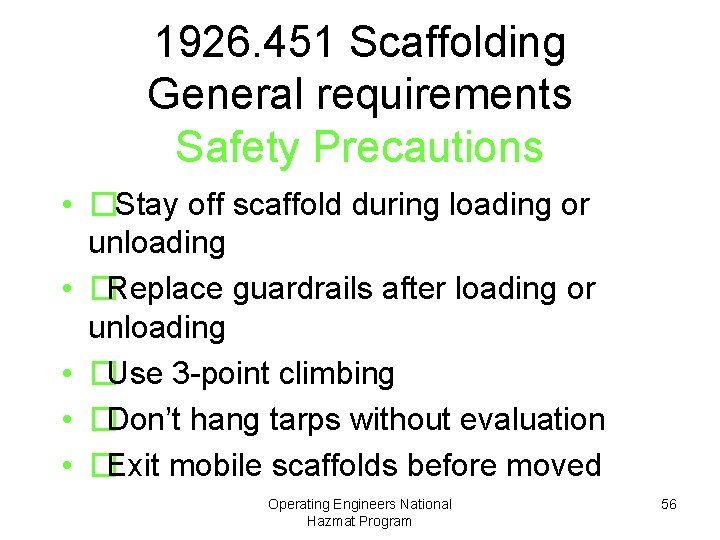

1926. 451 Scaffolding General requirements Safety Precautions • �Stay off scaffold during loading or unloading • �Replace guardrails after loading or unloading • �Use 3 -point climbing • �Don’t hang tarps without evaluation • �Exit mobile scaffolds before moved Operating Engineers National Hazmat Program 56

1926. 451 Scaffolding General requirements Safety Precautions • �Always wear • fall protection • to avoid • accidents • Lanyard for harnesses • Prevent falls from 6’. • Operating Engineers National Hazmat Program 57

1926. 451 Scaffolding General requirements Footing or Anchorage • • • The footing or anchorage is to be on a solid foundation; sound, rigid, and capable of carrying the maximum intended load without settling or displacement. Operating Engineers National Hazmat Program 58

1926. 451 Scaffolding General requirements Footing or Anchorage • • • The use of unstable objects to support planks or scaffolds is prohibited. Operating Engineers National Hazmat Program 59

1926. 451 Scaffolding General requirements Guardrails • The use of guardrails is very • important, preventing workers • from falling. Nearly 3/4 of • the reported scaffold accidents • are caused by improper • guarding. Operating Engineers National Hazmat Program 60

1926. 451 Scaffolding General requirements Guardrails • • Open-ended or opensided platforms must have standard guardrails and • toeboards. Operating Engineers National Hazmat Program 61

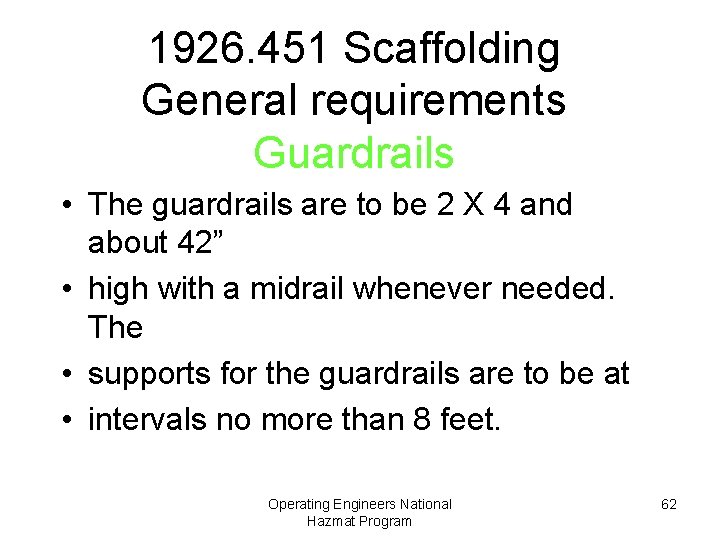

1926. 451 Scaffolding General requirements Guardrails • The guardrails are to be 2 X 4 and about 42” • high with a midrail whenever needed. The • supports for the guardrails are to be at • intervals no more than 8 feet. Operating Engineers National Hazmat Program 62

1926. 451 Scaffolding General requirements Protective Screening • • • Overhead protection shall be provided for men on scaffolds and, in the same sense, a screen is to be placed below the scaffold where persons may in danger of falling objects. Operating Engineers National Hazmat Program 63

1926. 556 Aerial lifts (Subpart N) • • These are vehicle-mounted elevating and rotating work platforms such as ladder trucks and tower trucks. Aerial lifts are to be operated only by authorized persons. Operating Engineers National Hazmat Program 64

1926. 556 Aerial lifts (Subpart N) • Aerial ladders shall be secured in the lower • traveling position by the locking device on top • of the truck cab, and the manually operated • device at the base of the ladder before the Operating Engineers National Hazmat Program 65

1926. 556 Aerial lifts (Subpart N) • • Never move an aerial lift truck when the boom is elevated in a working position with men in the basket, except where specifically designed for this type of operation. Operating Engineers National Hazmat Program 66

1926. 556 Aerial lifts (Subpart N) • Lifts that are used primarily as personnel • carriers must have both platform (upper) and • lower controls. The lower controls are to • override the upper controls, never to be used Operating Engineers National 67 Hazmat Program

1926. 556 Aerial lifts (Subpart N) • While working on aerial lifts, employees shall: • �Always stand firmly • on the floor of the • basket and not sit or • climb on the edge • Operating Engineers National Hazmat Program 68

1926. 556 Aerial lifts (Subpart N) • While working on aerial lifts, employees shall: • �Wear a body belt • and have a lanyard • attached to the • boom or basket • for fall protection Operating Engineers National • Hazmat Program 69

1926. 556 Aerial lifts (Subpart N) • While working on aerial lifts, employees shall: • �Keep within specified load limits • �Use brakes and wheel chocks when needed • • Operating Engineers National Hazmat Program 70

1926. 556 Aerial lifts (Subpart N) • • Examples: �Telescoping �Rotating boom �Scisor type Operating Engineers National Hazmat Program 71

Handling/Storing Cylinders • Oxygen and fuel cylinders must be stored separately. – 20 feet apart – 1. 5 hour burn rate/5 ft. wall – This will ensure that the heat of a small fire from causing the oxygen cylinder safety valve to release. A raging inferno would pursue with the oxygen. • Inert gases may be stored with oxygen cylinders. • Empty cylinders stored separately

Handling/Storing Cylinders • Securing Cylinders: – Chained to a wall. – Upright Position. – In areas away from halls of stairs – Away from heat sources, radiators, furnaces, and welding sparks. • Valve Protection Caps – Always on, unless in use. – Cap protects the valve in the event the cylinder is knocked over or bumped. – Missile Effect.

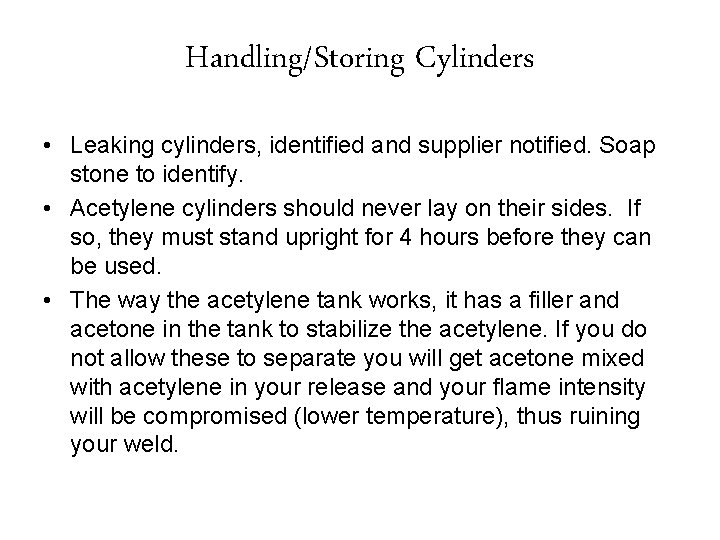

Handling/Storing Cylinders • Leaking cylinders, identified and supplier notified. Soap stone to identify. • Acetylene cylinders should never lay on their sides. If so, they must stand upright for 4 hours before they can be used. • The way the acetylene tank works, it has a filler and acetone in the tank to stabilize the acetylene. If you do not allow these to separate you will get acetone mixed with acetylene in your release and your flame intensity will be compromised (lower temperature), thus ruining your weld.

Welding with Oxy Fuel • Welding considered HOT WORK by the National Association of Fire Prevention. • Plumbers required waiting period. (Fire Watch) • Burn bans in fire storm areas (Southern California, Colorado recently). • PERMITS MUST BE OBTAINED. • When welding Always check for three things: – HOSES, REGULATORS (IF IN USE), AND ALWAYS CHECK FOR FLAMMABLE MATERIALS WITHIN 35 FEET OF WELDING AREA! ESPECIALLY OUTSIDE! LEAVES, PINESTRAW, ETC. WILL BURN! – ALWAYS USE A FRICTION STRIKER TO LIGHT A CUTTING TORCH.

Welding with Oxy Fuel • Always make sure regulators are installed for the correct fuel. Acetylene vs. Fuel • Threads for fuel different from oxygen (reverse thread). • Hoses for Oxygen are green. • Hoses for fuel are red. • Always weld in well ventilated area due to the toxic fumes that may be created.

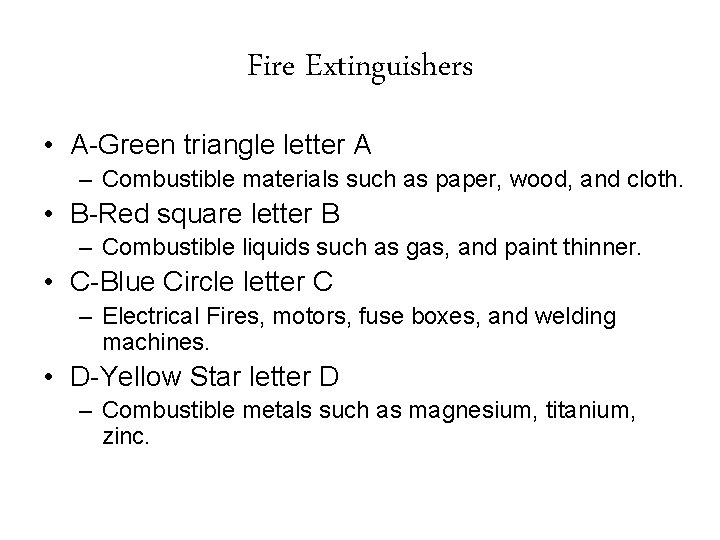

Fire Extinguishers • A-Green triangle letter A – Combustible materials such as paper, wood, and cloth. • B-Red square letter B – Combustible liquids such as gas, and paint thinner. • C-Blue Circle letter C – Electrical Fires, motors, fuse boxes, and welding machines. • D-Yellow Star letter D – Combustible metals such as magnesium, titanium, zinc.

Fire Extinguishers • • • Location is very essential. Marked with red paint and signs High enough to be seen Appropriate for the material in the area. Maxwell fire extinguishers are multipurpose ABC Dry Chemical. • What type of exposure is NOT covered with our current system?

Fire Extinguisher • When using a foam extinguisher, allow foam to fall lightly on the base of the fire. • Carbon Dioxide extinguisher, get as close to fire as possible, start at the edge and go to the center. • Dry Chemical extinguishers, direct the extinguisher at the base of the flames.

Maintenance Plan • Maxwell will have planned maintenance days when the equipment, bays, lab condition will be inspected and improved upon. • Assigned welding bays to ensure you are cleaning your mess. We will expect that spatter is grinded daily! • Sign out equipment and return it. • Grind your tables and positioners to remove spatter. • No food or drink EVERY in the welding lab. (If you spill a coke and you may die of electrocution!)

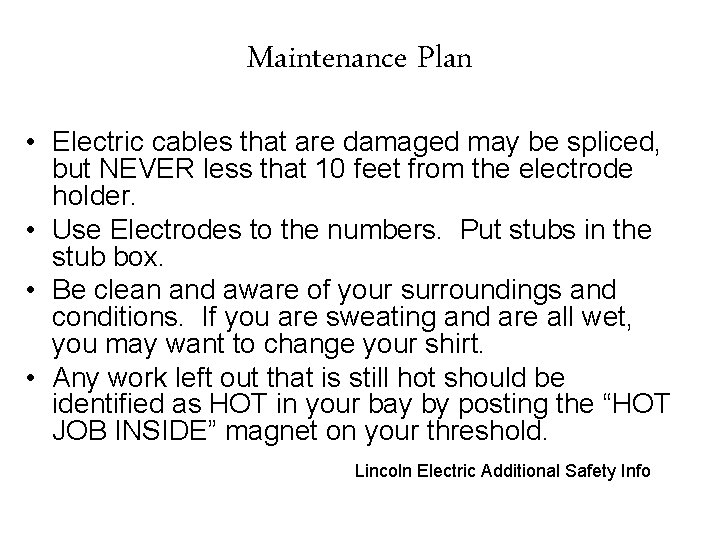

Maintenance Plan • Electric cables that are damaged may be spliced, but NEVER less that 10 feet from the electrode holder. • Use Electrodes to the numbers. Put stubs in the stub box. • Be clean and aware of your surroundings and conditions. If you are sweating and are all wet, you may want to change your shirt. • Any work left out that is still hot should be identified as HOT in your bay by posting the “HOT JOB INSIDE” magnet on your threshold. Lincoln Electric Additional Safety Info

Electric Shock and Safety • CAN CAUSE DEATH!! NO Shhhhh. UGAR! • Electrical resistance is lowered in the presence of water! • All cables and contact are tight! Never a gap for metal shavings to get into. • ALWAYS CHECK THE CONDITION OF YOUR CABLE BEFORE YOU BEGIN A NEW DAY OF WELDING!

Electric Shock and Safety • ALWAYS TURN OFF POWER WHEN WELDING STATION IS LEFT UNATTENDED. • MAKE SURE ALL HAND POWER TOOLS HAVE A GROUND THAT HAS NOT BEEN DAMAGED. SOME PEOPLE PULL OUT THE GROUND TO MAKE THE PLUG FIT INTO A 2 PRONG RECTACLE. THAT IS DANGEROUS. TWO PRONG UL APPROVED MACHINERY HAS A DOUBLE INSULATIVE WIRING THAT WOULD REMOVE LEAKING CURRENT AWAY FROM THE USER. DON’T SCREW WITH ENGINEERED EQUIPMENT!!!!! ITS THERE FOR A REASON!

Voltage/Current and Tools • Always make sure you look at the voltage rating of a tool and use it with the appropriate power supply. • A power source with a voltage greater than the specified voltage can lead to serious injury. • A power source that is a lower voltage than the rating on the tool can lead to motor damage. • Higher the amps the more powerful the motor. • GFCI – Ground fault circuit interrupter: sense the surge and shut down the circuit to save the device and the user.

Grinding • Pedestal • Portable • Smoothing a weld, grinding a groove, removing rust and spatter. • The stone has a max rpm on the paper label. Must match with the grinding tool. If you exceed rpm, can explode your stone, dude, causing serious injury or death even!

Grinders • NEVER use stone is cracked. • Never grind aluminum on a stone meant for mild steel, glazes the stone. • Surface becomes clogged with metal. • Remove gloves when using pedestal grinder. Caught, and sparks fly away!

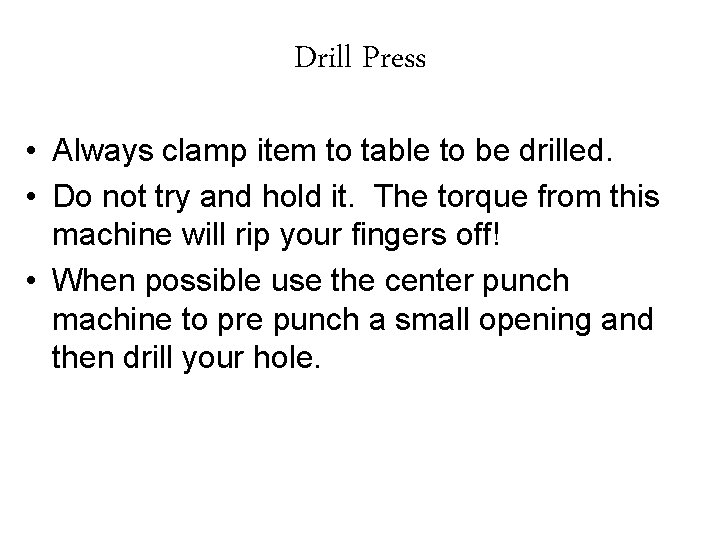

Drill Press • Always clamp item to table to be drilled. • Do not try and hold it. The torque from this machine will rip your fingers off! • When possible use the center punch machine to pre punch a small opening and then drill your hole.

Metal Cutting Machines • Shears and Punches • Motorized usually. Cuts ½” mild steel like butter. • Angle Bender • Horizontal Saw: JET • Demonstration of Each

Guest Speakers • Dr. Gary Pence, Georgia Optometry • Anatomy of the Eye • Eye Conditions – Color Blindness and Other Eye Tests • Injuries & Horror Stories • Eye Care & Correct use of an eye wash • Prescription Welding Eyecare

Guest Speakers • • • Dustin Wagner – GCFD Station 22 Electric Shock and Burn First Aid CPR Special procedure Fire Marshall Inspection
