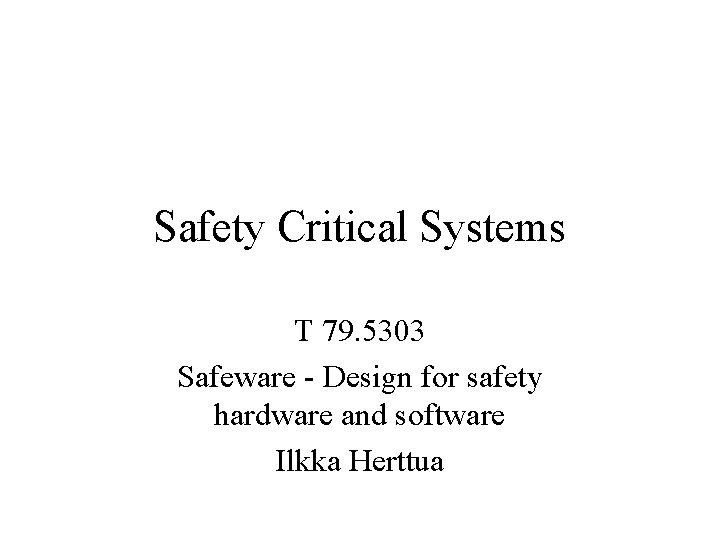

Safety Critical Systems T 79 5303 Safeware Design

  • Slides: 38
Download presentation
Safety Critical Systems T 79. 5303 Safeware - Design for safety hardware and software

Safety Critical Systems T 79. 5303 Safeware - Design for safety hardware and software Ilkka Herttua

V - Lifecycle model Requirements Model Requirements Document Test Scenarios Knowledge Base * Test

V - Lifecycle model Requirements Model Requirements Document Test Scenarios Knowledge Base * Test Scenarios Requirements Analysis Functional / Architechural - Model Systems Analysis & Design Specification Document Software Design System Acceptance System Integration & Test Module Integration & Test Software Implementation & Unit Test * Configuration controlled Knowledge that is increasing in Understanding until Completion of the System: • Requirements Documentation • Requirements Traceability • Model Data/Parameters • Test Definition/Vectors

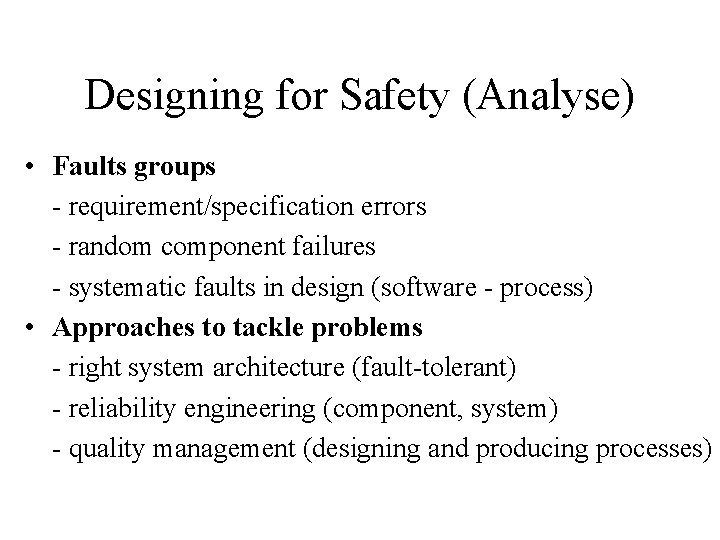

Designing for Safety (Analyse) • Faults groups - requirement/specification errors - random component failures

Designing for Safety (Analyse) • Faults groups - requirement/specification errors - random component failures - systematic faults in design (software - process) • Approaches to tackle problems - right system architecture (fault-tolerant) - reliability engineering (component, system) - quality management (designing and producing processes)

Designing for Safety (Architecture) • Hierarchical design - simple modules, encapsulated functionality - separated

Designing for Safety (Architecture) • Hierarchical design - simple modules, encapsulated functionality - separated safety kernel – safety critical functions • Maintainability - preventative versa corrective maintenance - scheduled maintenance routines for whole lifecycle - easy to find faults and repair – short MTTR (mean time to repair) • Reduce human error - Proper HMI

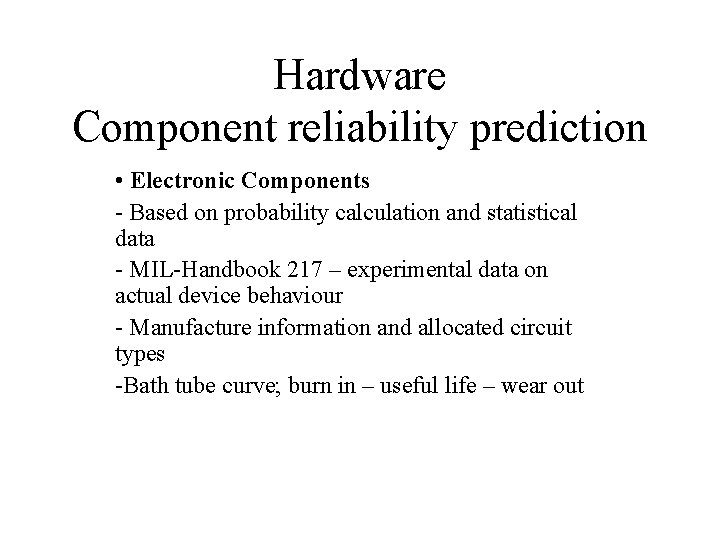

Hardware Component reliability prediction • Electronic Components - Based on probability calculation and statistical

Hardware Component reliability prediction • Electronic Components - Based on probability calculation and statistical data - MIL-Handbook 217 – experimental data on actual device behaviour - Manufacture information and allocated circuit types -Bath tube curve; burn in – useful life – wear out

Hardware Bath tube curve

Hardware Bath tube curve

Hardware Faults Intermittent faults - Fault occurs and recurs over time (loose connector) Transient

Hardware Faults Intermittent faults - Fault occurs and recurs over time (loose connector) Transient faults - Fault occurs and may not recur (lightning) - Electromagnetic interference Permanent faults - Fault persists / physical processor failure (design fault – over current or temperature)

Safety Critical System Fault Detection: - Routines to check that hardware works - Signal

Safety Critical System Fault Detection: - Routines to check that hardware works - Signal comparisons - Information redundancy –parity check etc. . - Watchdog timers - Bus monitoring – check that processor alive - Power monitoring

Hardware Design Guideline • Fault tolerance hardware - Achieved mainly by redundancy - Adds

Hardware Design Guideline • Fault tolerance hardware - Achieved mainly by redundancy - Adds cost, weight, power consumption, complexity Other means: - Improved maintenance, single system with better materials (higher mean time between failure MTBF)

Redundancy Methods Active Redundancy: - Redundant units are always operating in parallel Dynamic Redundancy

Redundancy Methods Active Redundancy: - Redundant units are always operating in parallel Dynamic Redundancy (standby): - Failure has to be detected - Changeover to other module

Hardware redundancy techniques Active techniques: - Parallel (k of N) - Voting (majority/simple) Standby

Hardware redundancy techniques Active techniques: - Parallel (k of N) - Voting (majority/simple) Standby techniques : - Operating - hot stand by - Non-operating – cold stand by

Redundancy Techniques Parallel Active Standby Voting Non-Operating (7) Gate Connector (6) Majority Vote Simple

Redundancy Techniques Parallel Active Standby Voting Non-Operating (7) Gate Connector (6) Majority Vote Simple (1) Duplex (2) Bimodal (3) Simple (4) Adaptive (5) Operating (8)

Simple Parallel Redundancy Active - Type 1 In its simplest form, redundancy consists of

Simple Parallel Redundancy Active - Type 1 In its simplest form, redundancy consists of a simple parallel combination of elements. If any element fails open, identical paths exist through parallel redundant elements.

Duplex Parallel Redundancy Active - Type 2 A 1 OR S 1 AND DL

Duplex Parallel Redundancy Active - Type 2 A 1 OR S 1 AND DL ED AND A 2 S 2 OR This technique is applied to redundant logic sections, such as A 1 and A 2 operating in parallel. It is primarily used in computer applications where A 1 and A 2 can be used in duplex or active redundant modes or as a separate element. An error detector at the output of each logic section detects noncoincident outputs and starts a diagnostic routine to determine and disable the faulty element.

Simple Majority Voting Active - Type 4 A 1 A 2 MVT A 3

Simple Majority Voting Active - Type 4 A 1 A 2 MVT A 3 An Decision can be built into the basic parallel redundant model by inputting signals from parallel elements into a voter to compare each signal with remaining signals. Valid decisions are made only if the number of useful elements exceeds the failed elements.

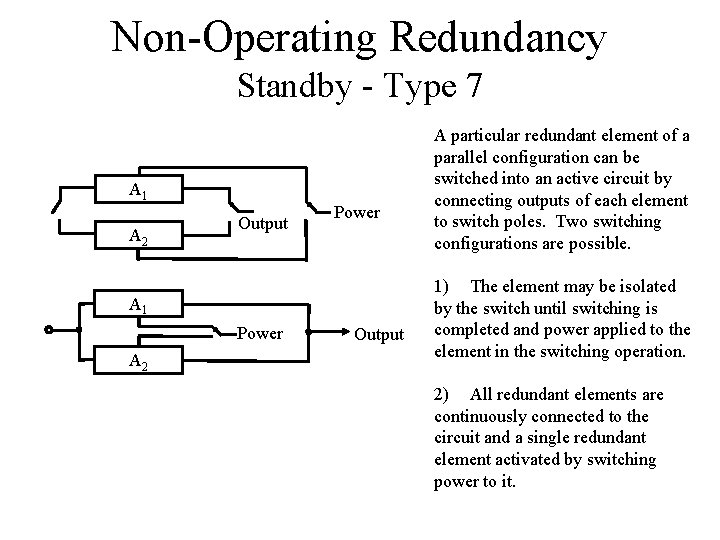

Non-Operating Redundancy Standby - Type 7 A 1 A 2 Output Power A 1

Non-Operating Redundancy Standby - Type 7 A 1 A 2 Output Power A 1 Power A 2 Output A particular redundant element of a parallel configuration can be switched into an active circuit by connecting outputs of each element to switch poles. Two switching configurations are possible. 1) The element may be isolated by the switch until switching is completed and power applied to the element in the switching operation. 2) All redundant elements are continuously connected to the circuit and a single redundant element activated by switching power to it.

Safety Critical Hardware 1. Avoid commercial microprocessors - - No safety firmware, least assurance

Safety Critical Hardware 1. Avoid commercial microprocessors - - No safety firmware, least assurance Redundancy makes better, but common failures possible Fabrication failures, microcode and documentation errors Use components which have history and statistics.

Safety Critical Hardware 2. Use special reliable microprocessors - Collins Avionics/Rockwell AAMP 2 -

Safety Critical Hardware 2. Use special reliable microprocessors - Collins Avionics/Rockwell AAMP 2 - Used in Boeing 747 -400 (30+ pieces) - High cost – bench testing, documentation, formal verified functionality - Other models: Sparc. V 7, TSC 695 E, ERC 32 (ESA radiation-tolerant), 68 HC 908 GP 32 (airbag)

Safety Critical Hardware 3. Programmable Logic Controllers (PLC) • Contains power supply, interface and

Safety Critical Hardware 3. Programmable Logic Controllers (PLC) • Contains power supply, interface and one or more processors, used in industrial application - chemical processes, infrastructure control – water, heat, electricity • Designed for high mean time between failure (MTBF) • Solid Firmware and application software stored in non volatile memory • Programmed with simple ladder or function block diagrams

Software Process guideline Software development: - Normally iteration is needed to develop a working

Software Process guideline Software development: - Normally iteration is needed to develop a working solution. (writing code, testing and modification). - In non-critical environment code is accepted, when tests are passed. - Testing is not enough for safety critical application – Software needs an assessment process: dynamic/static testing, simulation, code analysis and formal verification.

Safety Critical Software Dependable and High Quality - Detailed Process plan for the whole

Safety Critical Software Dependable and High Quality - Detailed Process plan for the whole development and testing phases - Work discipline – recorded supervision - Well documented – easier to validate - Quality management - Validated/verified

Safety-Critical Software Faults - In Requirements: requirements are not specifying the environment in which

Safety-Critical Software Faults - In Requirements: requirements are not specifying the environment in which the software will be used or unambiguous requirements - In Design: not satisfying the requirements or documentation insufficient - In Code: generated code is not conforming with the design.

Safety-Critical Software Common faults: - Subprogram effects: Definition of a called variable has been

Safety-Critical Software Common faults: - Subprogram effects: Definition of a called variable has been changed. -Definitions aliasing: Names referred to the same storage location. - Initialising failures: Variables have been used as assigned values. - Memory management: Buffer, stack and memory overflows - Expression evaluation errors: Divide-byzero/arithmetic overflow

Software Programming Language selection: - Logical soundness: Unambiguous definition of the language- no dialects

Software Programming Language selection: - Logical soundness: Unambiguous definition of the language- no dialects of C++ - Simple definitions: Complexity can lead to errors in compliers or other support tools - Expressive power: Language shall support to express domain features efficiently and easily - Security of definitions: Violations of the language definition shall be detected - Verification: Language supports verification, proving that the produced code is consistent with the specification. - Memory/time constrains: Stack, register and memory usage are controlled.

Safety Critical Software Language comparison: -Structured assembler (wild jumps, exhaustion of memory, well understood)

Safety Critical Software Language comparison: -Structured assembler (wild jumps, exhaustion of memory, well understood) - Ada (wild jumps, data typing, exception handling, separate compilation) - Subset languages: CORAL, SPADE and Ada (Alsys CSMART Ada kernel, Ada. Core&Spark) - Validated compiler for Ada - Available expertise: with common languages higher productivity and fewer mistakes, but C not approved in all applications.

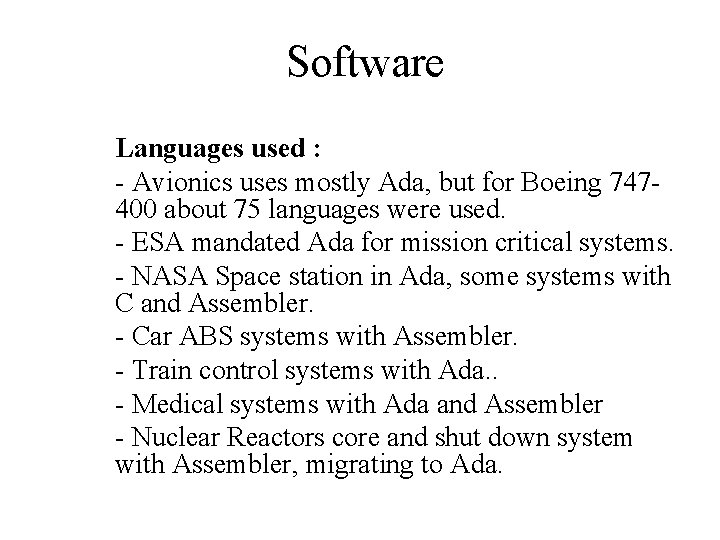

Software Languages used : - Avionics uses mostly Ada, but for Boeing 747400 about

Software Languages used : - Avionics uses mostly Ada, but for Boeing 747400 about 75 languages were used. - ESA mandated Ada for mission critical systems. - NASA Space station in Ada, some systems with C and Assembler. - Car ABS systems with Assembler. - Train control systems with Ada. . - Medical systems with Ada and Assembler - Nuclear Reactors core and shut down system with Assembler, migrating to Ada.

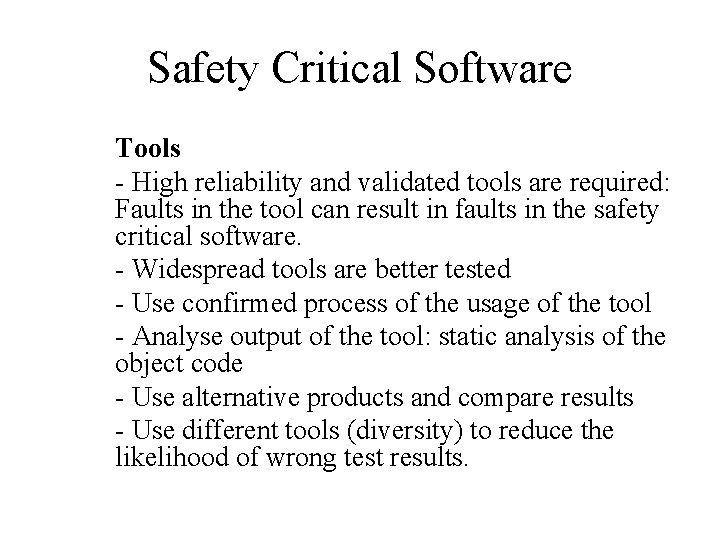

Safety Critical Software Tools - High reliability and validated tools are required: Faults in

Safety Critical Software Tools - High reliability and validated tools are required: Faults in the tool can result in faults in the safety critical software. - Widespread tools are better tested - Use confirmed process of the usage of the tool - Analyse output of the tool: static analysis of the object code - Use alternative products and compare results - Use different tools (diversity) to reduce the likelihood of wrong test results.

Safety Critical Software Design guidelines 1 - New software features add complexity, try to

Safety Critical Software Design guidelines 1 - New software features add complexity, try to keep software simple - Plan for avoiding human error – unambiguous human-computer interface - Removal of hazardous module (Ariane 5 unused code)

Safety Critical Software Designing guidelines 2 - Add barriers: hard/software locks for critical parts

Safety Critical Software Designing guidelines 2 - Add barriers: hard/software locks for critical parts - Minimise single point failures: increase safety margins, exploit redundancy and allow recovery. - Isolate failures: don‘t let things get worse. - Fail-safe: panic shut-downs, watchdog code - Avoid common mode failures: Use diversity – different programmers, n-version programming

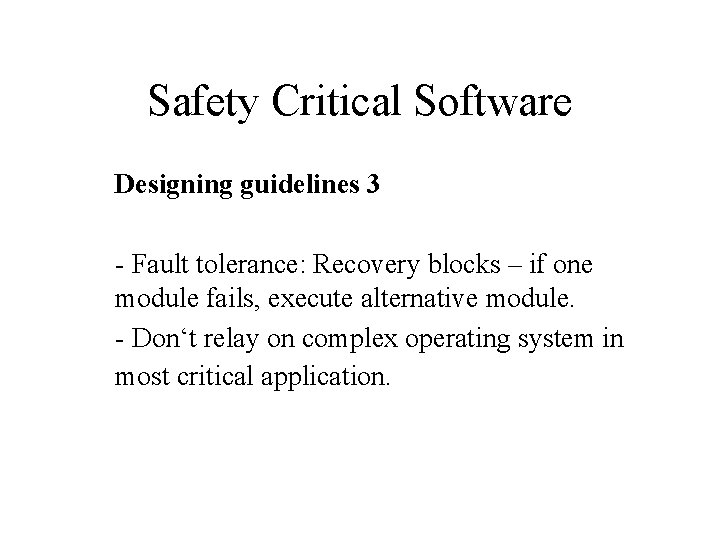

Safety Critical Software Designing guidelines 3 - Fault tolerance: Recovery blocks – if one

Safety Critical Software Designing guidelines 3 - Fault tolerance: Recovery blocks – if one module fails, execute alternative module. - Don‘t relay on complex operating system in most critical application.

Safety Critical Software tool faults: - Faults in software tools (development/modelling) can results in

Safety Critical Software tool faults: - Faults in software tools (development/modelling) can results in system faults. -Techniques for software development (language/design notation) can have a great impact on the performance or the people involved and also determine the likelihood of faults. - The characteristics of the programming systems and their runtime determine how great the impact of possible faults on the overall software subsystem can be.

Practical Design Process (By I-Logix tool manufacture – Statemate)

Practical Design Process (By I-Logix tool manufacture – Statemate)

Improved Development Process

Improved Development Process

Intergrated Development Process

Intergrated Development Process

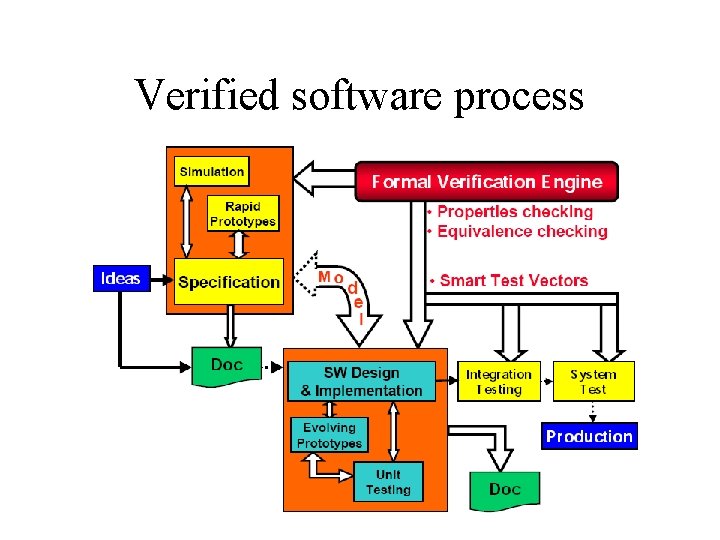

Verified software process

Verified software process

Safety Critical Software Higher integrity software: - Simplify: Code contains only minimum features and

Safety Critical Software Higher integrity software: - Simplify: Code contains only minimum features and no unnecessary or undocumented features or unused executable code - Diversity: Data and control redundancy - Multi-version programming: shared specification leads to common-mode failures, but synchronisation code increases complexity

Home assignments 2 a • Neil Storey’s book: Safety Critical Computer Systems - 5.

Home assignments 2 a • Neil Storey’s book: Safety Critical Computer Systems - 5. 10 Describe a common cause of incompleteness within specifications. How can this situation cause problems? - 9. 17 Describe the advantages and disadvantages of the reuse of software within safety critical projects. Cont.

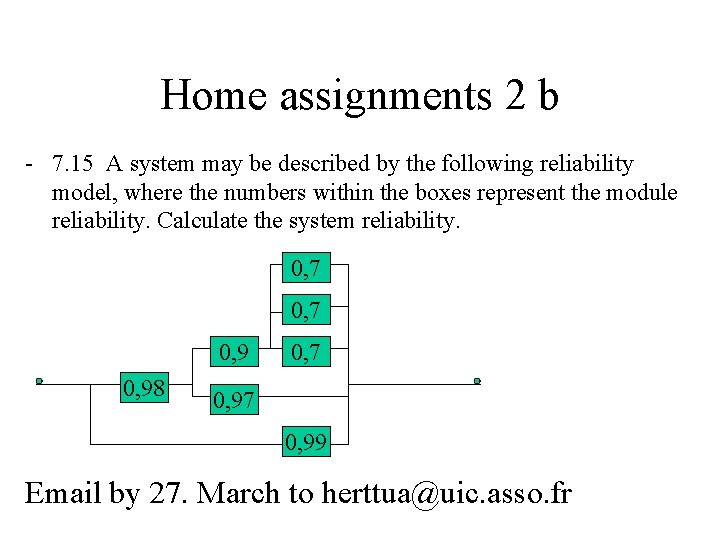

Home assignments 2 b - 7. 15 A system may be described by the

Home assignments 2 b - 7. 15 A system may be described by the following reliability model, where the numbers within the boxes represent the module reliability. Calculate the system reliability. 0, 7 0, 98 0, 7 0, 99 Email by 27. March to herttua@uic. asso. fr
