Modern Cloud Infrastructure Paul Jenkins Iaa. S Product Manager Copyright © 2017, Oracle and/or its affiliates. All rights reserved. |
Oracle Infrastructure as a Service Strategy • Give customers a “high fidelity data center” in the Oracle Cloud • Cost-effective, highly-elastic Compute, Storage, and Network resources • Migrate existing Software Stacks and Automation Tools without re-write • Deep control with unmatched security, governance, and performance It starts with a Modern Cloud Infrastructure…
What is modern ? Confidential – Oracle Internal/Restricted/Highly Restricted
What is modern ? Confidential – Oracle Internal/Restricted/Highly Restricted
Cloud is Modern – right ? 7
On-premises is old fashioned – right ? 8
Oracle Re-Engineered the Cloud Platform
Oracle Re-Engineered the Cloud Platform Oracle Modern Cloud Infrastructure Bare metal servers in minutes Pay for what you use Raw performance without hypervisor overhead Integrated compute, storage, database services on their own private network • All features automated, usable via console or API • Enterprise-level governance • •
Latest Technologies Enable a Modern Cloud Infrastructure Technology Benefit Availability domains Enables enterprise-level high availability Flat, non-blocking network Enables predictable low latency; eliminates “noisy neighbors” Off-box IO virtualization & automated hardware wiping Enables secure deployments of bare metal servers without Oracle management software overhead Direct-attached NVMe storage Enables highest IO workloads

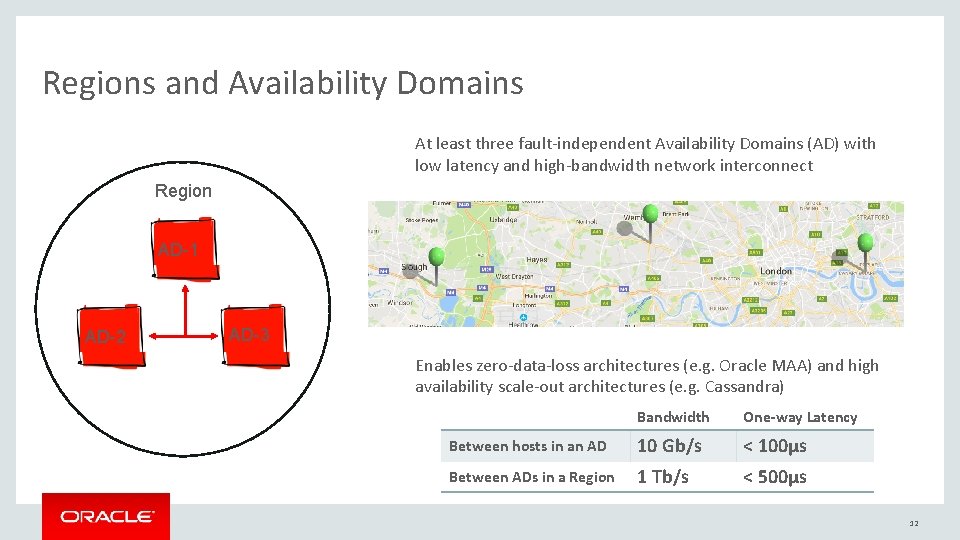

Regions and Availability Domains At least three fault-independent Availability Domains (AD) with low latency and high-bandwidth network interconnect Region AD-1 AD-2 AD-3 Enables zero-data-loss architectures (e. g. Oracle MAA) and high availability scale-out architectures (e. g. Cassandra) Bandwidth One-way Latency Between hosts in an AD 10 Gb/s < 100µs Between ADs in a Region 1 Tb/s < 500µs 12
Global Connectivity Region AD-1 Region AD-2 AD-1 AD-3 AD-2 AD-1 AD-2 AD-3
Physical Network 1 1 1 • Highly scalable, flat physical network design nnn 4 32 Compute Pod 1 1 4 • No network or CPU oversubscription provides predictable bandwidth & performance 32 • Predictable latency and a maximum of two hops between Compute & Storage even at scale Compute Pod Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | 14
Off-box IO Virtualization Maximizes Flexibility and Security • Enables anything with a network port = most customer flexibility Flat Network To Internet To Customer onpremises network Customer Compute Customer Storage Internal Control Planes Network Ingress/Egress To other Availability Domains in same region • No Oracle software on the compute hosts = best-inclass customer security • Direct connectivity between compute & storage nodes = industryleading performance Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Putting it All Together: Reliable, Predictable, Flexible, Fast Bare metal compute NVMe storage DBaa. S etc …. VMs Compute & Storage Virtual Network Physical Network AD-1 AD-2 AD-3 Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Availability Domains
Cutting-edge, High IO Hardware Technology High Performance Compute Systems Compute 36 Cores per Server Standard: Non-NVMe SSD, 256 GB RAM High I/O: 13. 2 TB NVMe SSD, 512 GB RAM Dense I/O: 28. 8 TB NVMe SSD, 512 GB RAM High Performance Storage Systems Storage Local NVMe: up to 28. 8 TB/Server, ~4 Million IOPs Block Storage: 256 GB-2 TB, 1, 500 IOPs per Volume Object Storage – High Throughput, Strong Consistency Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Virtual Cloud Networks VCN 10. 0/16 Availability Domain 1 Subnet 1 10. 0. 1. 0/24 Route Table Availability Domain 2 DRG Subnet 2 10. 0. 2. 0/24 IP-Sec VPN MPLS Virtual Router Fastconnect Availability Domain 3 Subnet 3 10. 0. 3. 0/24 Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 18
Provides governance designed for the enterprise Customer Tenant Customer Compartment Users & Groups Compartments Cost Limits Analytics Working Group Compute, Storage, Network Finance Development Compute Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Organization Access Resources
BMCS Use Cases Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal 20
Rendering as a Service “The Platform” “The Pack” BMCS Render Node Job Submission Management Studios / Artists BMCS Render Node Finished Render BMCS Render Node TENANCY OVH etc Other Platforms Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted
HPC Brokering Head-End HPC Compute Clusters Portal BMCS Node Accademics BMCS Node BMCS Node AVAILABILITY DOMAIN High-Tech Job Submission BMCS Node Workflow Cluster Management AVAILABILITY DOMAIN BMCS Node TENANCY AVAILABILITY DOMAIN In-House Universities AWS Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
GDPR Evil Corp Evil Inc Evil Ltd Evil Gmbh Evil Pty Global Data Protection Regulation (GDPR) comes into effect May 25 th 2018 and effects all companies processing data of EU residents. It’s purpose is to strengthen and unify data protection for individuals within the EU. It also addresses export of personal data outside the EU. The primary objectives of the GDPR are to give citizens back the control of their personal data and to simplify the regulatory environment for international business by unifying the regulation within the EU. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 23
GDPR Evil Corp REGION US Evil Gmbh Evil Ltd Evil Inc REGION GB This requirement extends to all data sovereignty regions and companies will need to deal with data protection and privacy rules. This goes beyond firewalls, encryption etc and requires a different approach to data security. REGION EU Evil Pty REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 24
GDPR Organizations with holding personal data across multiple regions will need to control and audit access to that data. Evil Corporate Data REGION US Evil Gmbh Evil Ltd Evil Inc REGION GB REGION EU Evil Pty REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 25
Anzen’s approach to this is to separate personal identifiable information and store anonymized data across multiple regions. GDPR Evil Corporate Data Evil Gmbh Evil Ltd Evil Inc Evil Pty US Regional Data REGION US REGION GB REGION EU REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 26
GDPR Evil Corporate Data REGION US Evil Gmbh Evil Ltd Evil Inc REGION GB REGION EU Evil Pty REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 27
GDPR Evil Corp Evil Gmbh Evil Ltd Evil Inc The data will only be able to be useful when brought back together. This is only allowed to be done within the controlling data jurisdiction region and under full audit control. Evil Pty US Regional Data REGION US REGION GB REGION EU REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 28
GDPR Evil Corp REGION US Evil Gmbh Evil Ltd Evil Inc REGION GB REGION EU Evil Pty REGION APAC Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 29
Technical Solution Near real time synch Spark Node Mongo Node AVAILABILITY DOMAIN Spark Node AVAILABILITY DOMAIN Mongo Node VCN AVAILABILITY DOMAIN Spark Node Mongo Node AVAILABILITY DOMAIN Spark Cluster Mongo Node AVAILABILITY DOMAIN Mongo. DB Cluster REGION US REGION EU Spark Cluster Mongo. DB Cluster Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | Confidential – Oracle Internal/Restricted/Highly Restricted 30
