Saber SketchGuide l Saber Sketch Saber Guide Saber
Sign up to view full document!
SIGN UP

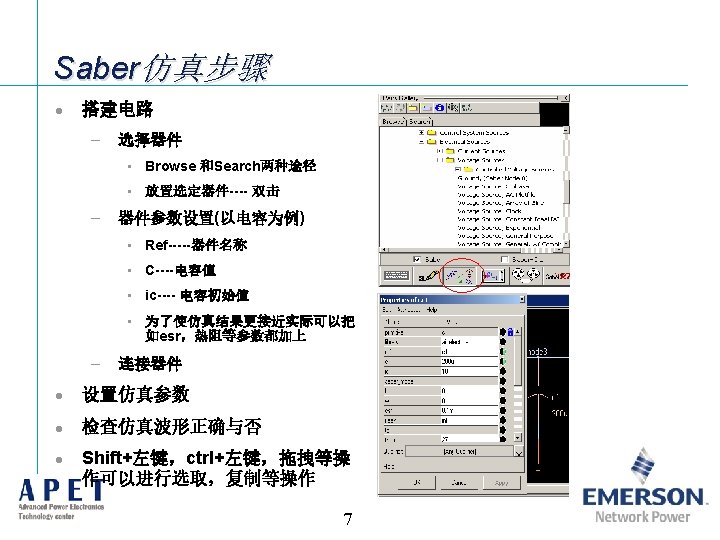

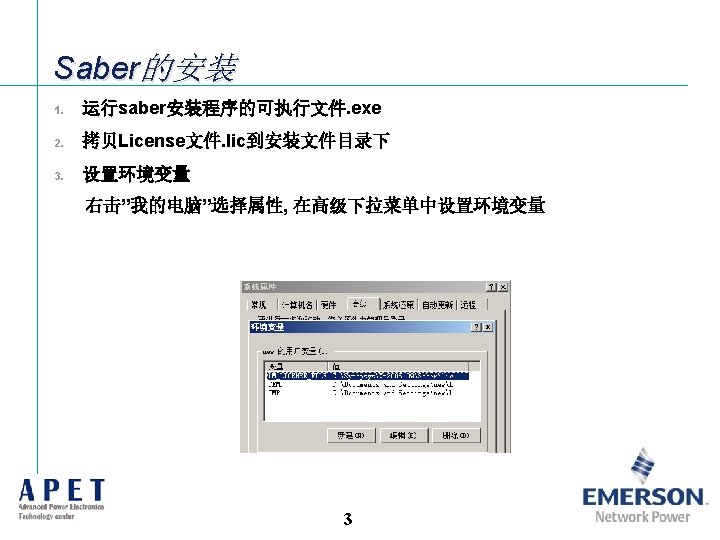

Saber Sketch/Guide 仿真界面 l 作界面和常用功能按钮 Saber Sketch下拉菜单 Saber Guide图标 Saber Sketch图标 仿真电路搭建区 Saber Sketch图标 器件库 4

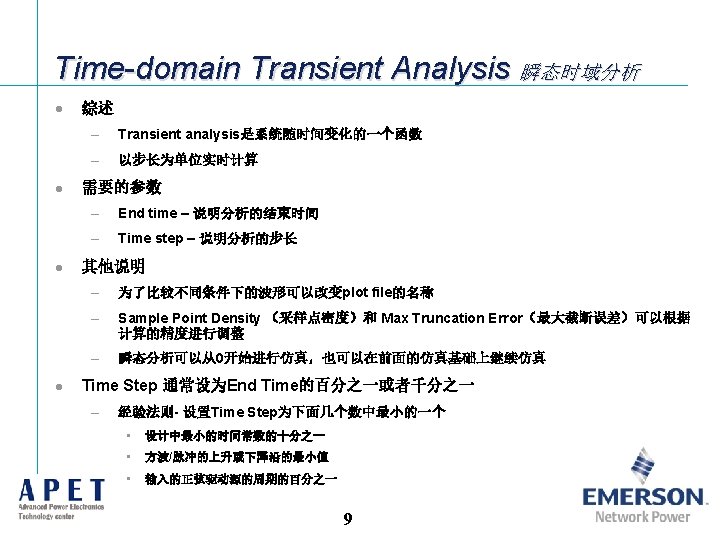

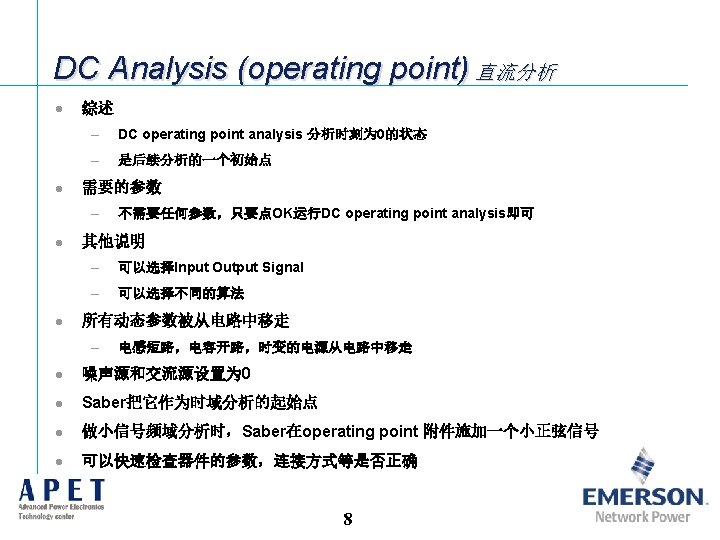

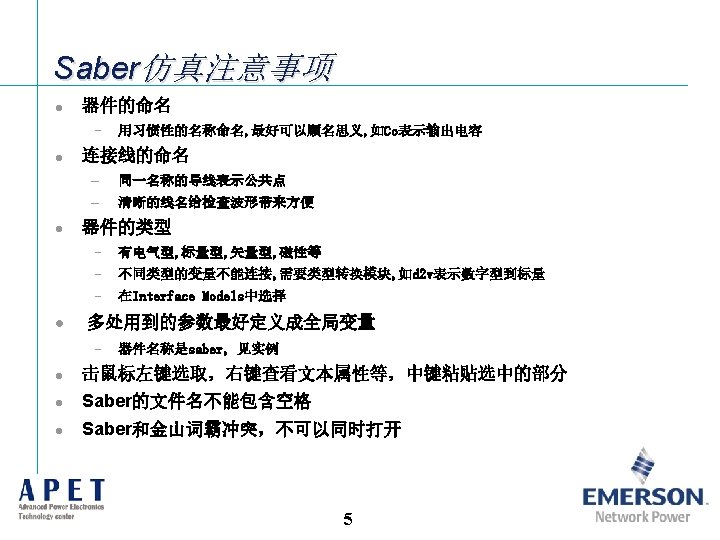

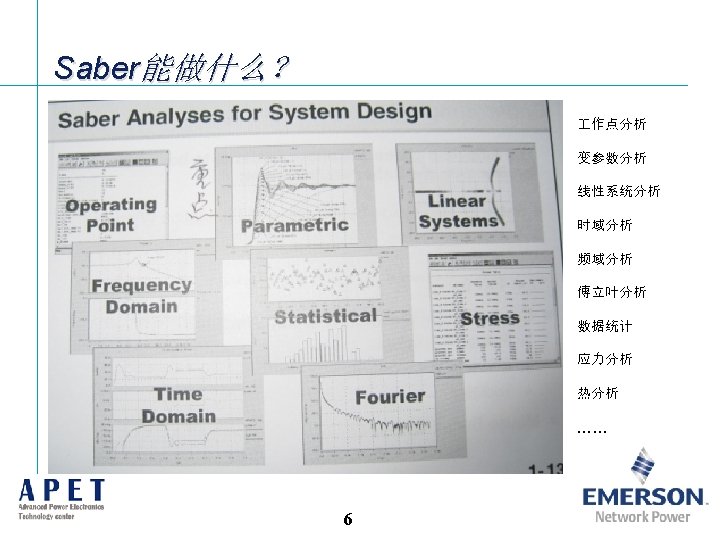

时域的测量值 l Fall time l Rise time l Slew rate l Period l Frequency l Duty cycle l Pulse width l Delay l Overshoot l Undershoot 10

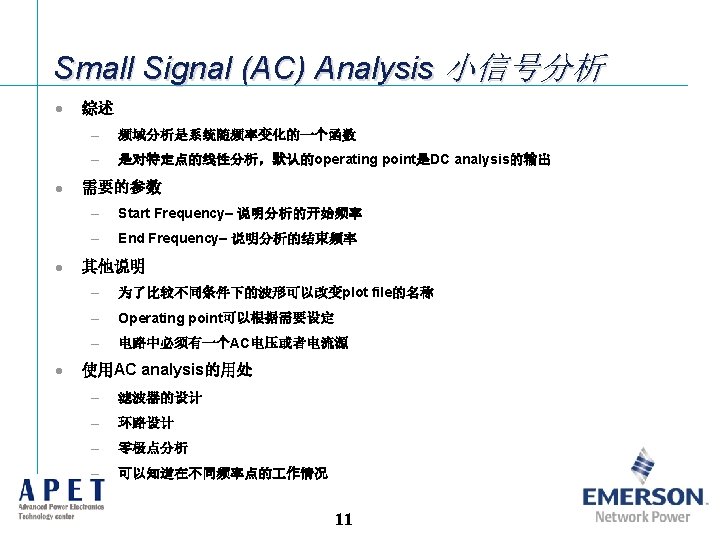

频域的测量值 l Low pass (3 d. B point) l High pass(3 d. B point) l Band pass (Q, ripple, etc. ) l Stop band l Phase margin l Gain margin l Slope l Magnitude l Phase l Real l Imaginary l Nyquist plot frequency 12

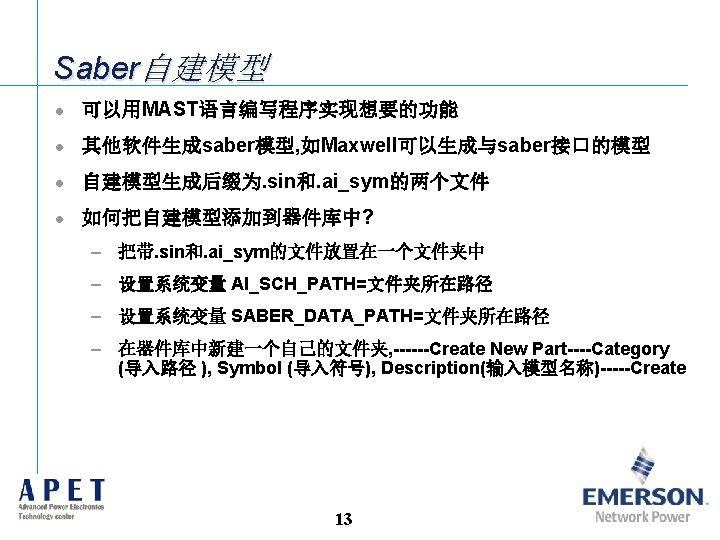

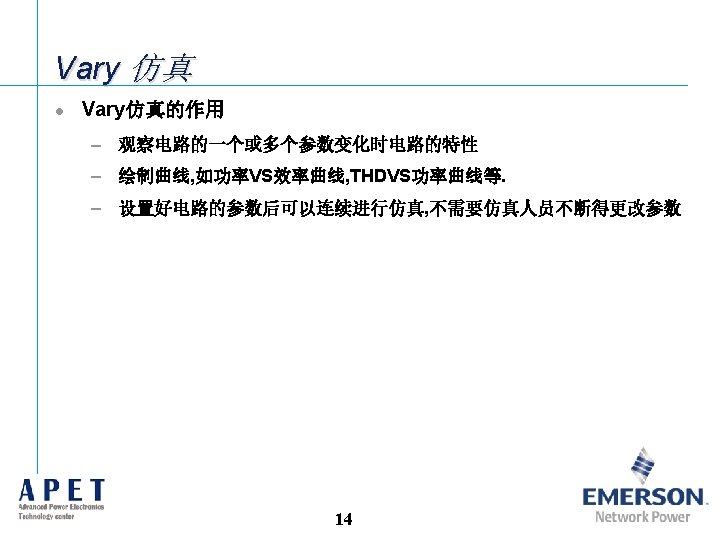

实例演示 l l 开环仿真-只给驱动信号, 1 open loop simulation 闭环模拟仿真-用传递函数搭建控制电路,2 close loop transfer function l Vary-变参数仿真, 6 pulse_diode_circuit_demo l Mast-利用Mast语言编写功能模块, 6 pulse_diode_circuit_demo l 疑问解答 15
- Slides: 16
