S72 227 Digital Communication Systems Bandpass modulation II
S-72. 227 Digital Communication Systems Bandpass modulation II

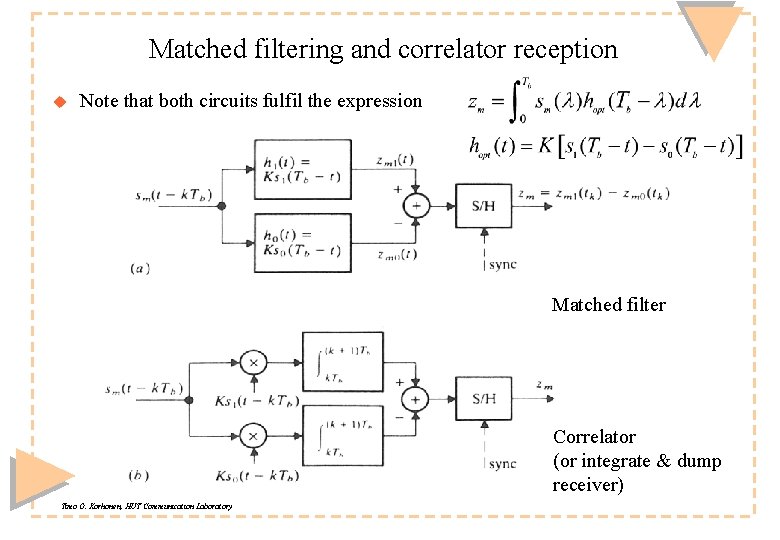

Matched filtering and correlator reception u Note that both circuits fulfil the expression Matched filter Correlator (or integrate & dump receiver) Timo O. Korhonen, HUT Communication Laboratory

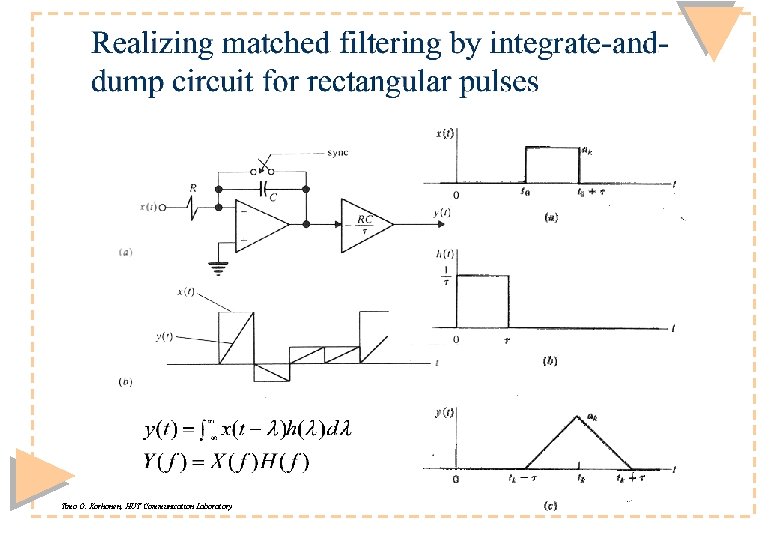

Timo O. Korhonen, HUT Communication Laboratory

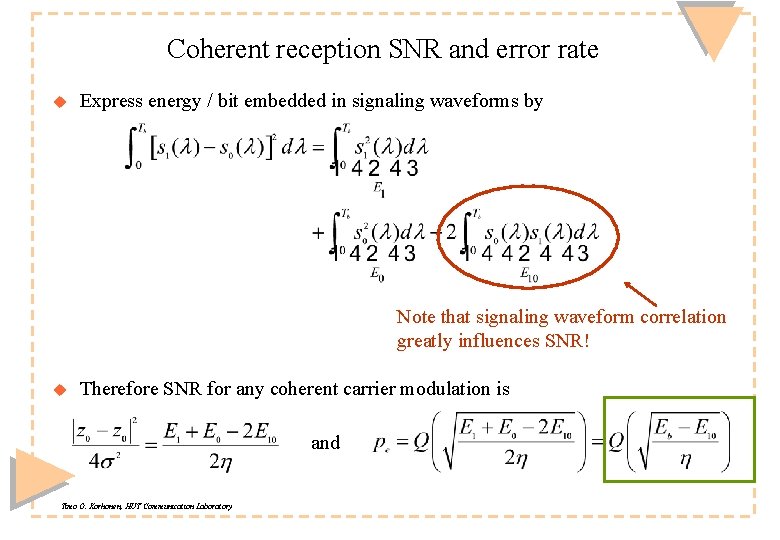

Coherent reception SNR and error rate u Express energy / bit embedded in signaling waveforms by Note that signaling waveform correlation greatly influences SNR! u Therefore SNR for any coherent carrier modulation is and Timo O. Korhonen, HUT Communication Laboratory
Constellations and eye diagrams Example: 4 -ary Pulse Amplitude Modulation (PAM) Timo O. Korhonen, HUT Communication Laboratory

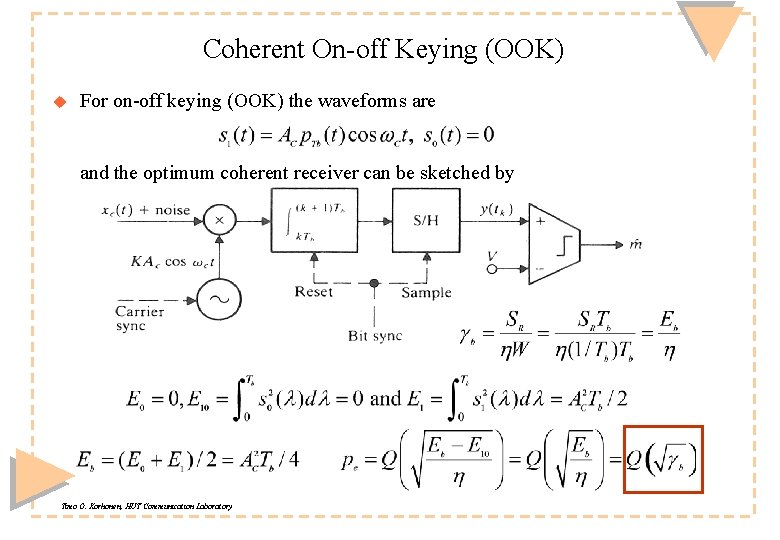

Coherent On-off Keying (OOK) u For on-off keying (OOK) the waveforms are and the optimum coherent receiver can be sketched by Timo O. Korhonen, HUT Communication Laboratory

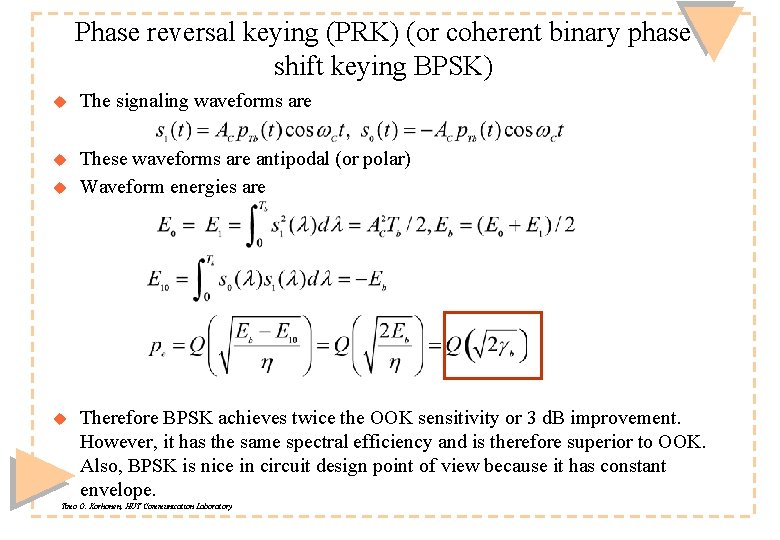

Phase reversal keying (PRK) (or coherent binary phase shift keying BPSK) u The signaling waveforms are u These waveforms are antipodal (or polar) Waveform energies are u u Therefore BPSK achieves twice the OOK sensitivity or 3 d. B improvement. However, it has the same spectral efficiency and is therefore superior to OOK. Also, BPSK is nice in circuit design point of view because it has constant envelope. Timo O. Korhonen, HUT Communication Laboratory

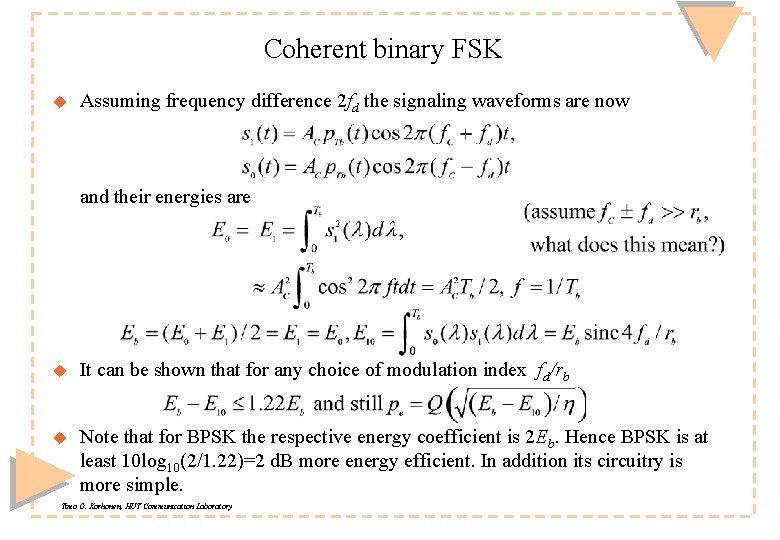

Coherent binary FSK u Assuming frequency difference 2 fd the signaling waveforms are now and their energies are u It can be shown that for any choice of modulation index fd/rb u Note that for BPSK the respective energy coefficient is 2 Eb. Hence BPSK is at least 10 log 10(2/1. 22)=2 d. B more energy efficient. In addition its circuitry is more simple. Timo O. Korhonen, HUT Communication Laboratory

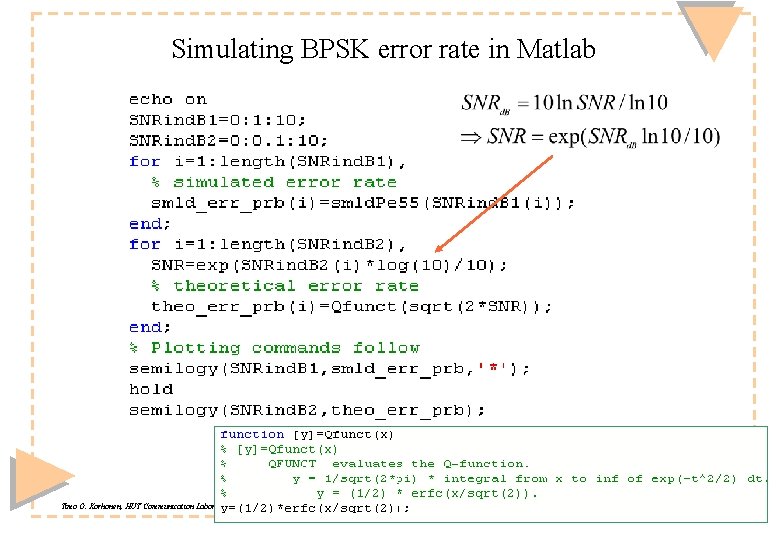

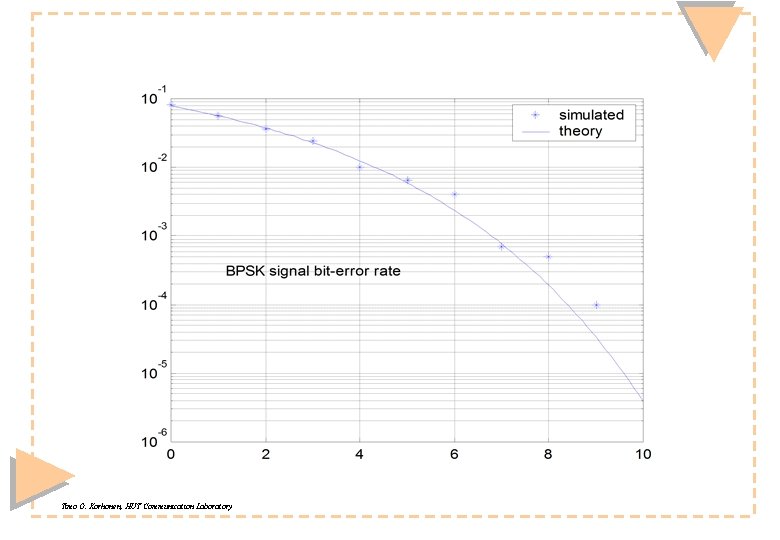

Simulating BPSK error rate in Matlab Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
transformation of random variables Timo O. Korhonen, HUT Communication Laboratory

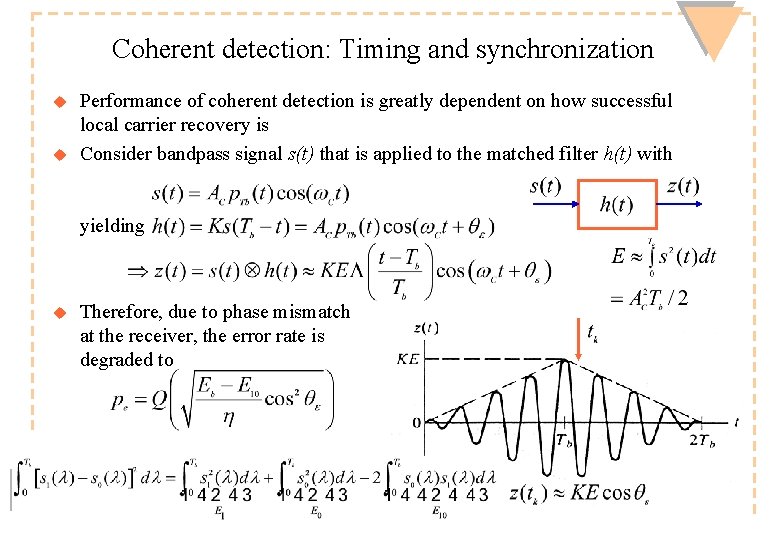

Coherent detection: Timing and synchronization u u Performance of coherent detection is greatly dependent on how successful local carrier recovery is Consider bandpass signal s(t) that is applied to the matched filter h(t) with yielding u Therefore, due to phase mismatch at the receiver, the error rate is degraded to Timo O. Korhonen, HUT Communication Laboratory
Example u Assume data rate is 2 kbaud/s and carrier of 100 k. Hz for a BPSK system. Hence the symbol duration and carrier period are therefore the symbol duration is in radians (or carrier cycles) u Assume carrier phase error is 0. 3 % of the symbol duration. Then the resulting carrier phase error is and the error rate for instance for is that should be compared to the error rate without any phase error or u Hence taking care of phase synchronization is very important (or if not possible non-coherent or differentially coherent techniques must be used) Timo O. Korhonen, HUT Communication Laboratory
Noncoherent binary systems: Noisy envelopes u It can be shown that noise plus carrier signal have envelope whose probability distribution function is – For nonzero, constant carrier component Ac, Rician distributed: – For zero carrier component Rayleigh distributed: Distribution centered around Ac u For large SNR (AC >> s) the Rician envelope simplifies to u Therefore the received envelope is then essentially Gaussian with the variance s 2 and mean equals Timo O. Korhonen, HUT Communication Laboratory
Envelope distribution as the function of carrier component strength Rayleigh distribution Rice distribution Timo O. Korhonen, HUT Communication Laboratory

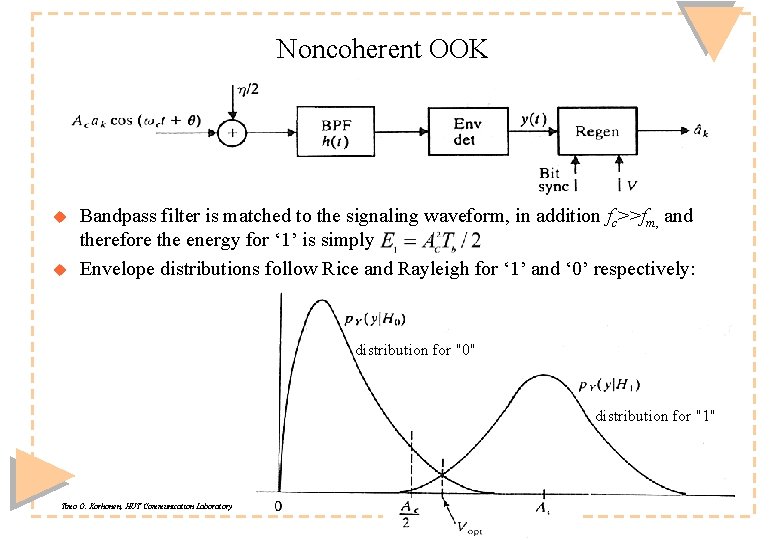

Noncoherent OOK u u Bandpass filter is matched to the signaling waveform, in addition fc>>fm, and therefore the energy for ‘ 1’ is simply Envelope distributions follow Rice and Rayleigh for ‘ 1’ and ‘ 0’ respectively: distribution for "0" distribution for "1" Timo O. Korhonen, HUT Communication Laboratory
Noncoherent OOK error rate u u The optimum threshold is at the intersection of Rice and Rayleigh distributions (areas are the same on both sides) Usually high SNR is assumed and hence threshold is approximately at the half way and the error rate is the average of '0' and '1' reception probabilities where probability to detect "0" in error probability to detect "1" in error Timo O. Korhonen, HUT Communication Laboratory
Noncoherent FSK u FSK signal consists of two overlapped OOK waveforms on different frequencies: u Therefore noncoherent demodulation of binary FSK is enabled by a pair of bandpass filters: Timo O. Korhonen, HUT Communication Laboratory
Noncoherent FSK error probability u u u For signal at the ‘ 1’ branch the envelope distribution is Rician and the other (noise) branch Rayleigh and vice versa Decision threshold is in the middle and therefore for equal probable ‘ 1’ and ‘ 0’ where Y 1 and Y 0 are the decision variables at the output of the respective enveloped detectors This probability is calculated by first determining the joint PDF p(Y 0, Y 1) of Y 1 and Y 0 that is now their product because ‘ 1’ and ‘ 0’ are assumed to be independent. Then by using the definition of condition PDF: that yields then the error rate that is about the same as for OOK or u Has constant envelope, does not need local carrier, decision threshold is not a function of channel SNR as in OOK Timo O. Korhonen, HUT Communication Laboratory
Differentially coherent PSK (DPSK) u This methods circumvents using coherent local oscillator but achieves almost the same performance as PSK: u After the multiplier the signal is and the decision variable after the LPF is Timo O. Korhonen, HUT Communication Laboratory
Differential encoding and decoding u Easy data decoding recalls for differential decoding: mk u ak Decoding is obtained by the simple rule: that is realized by the circuit shown. u u Note that no local oscillator is required How would you construct the encoder? Timo O. Korhonen, HUT Communication Laboratory XOR ABY 001 010 100 111

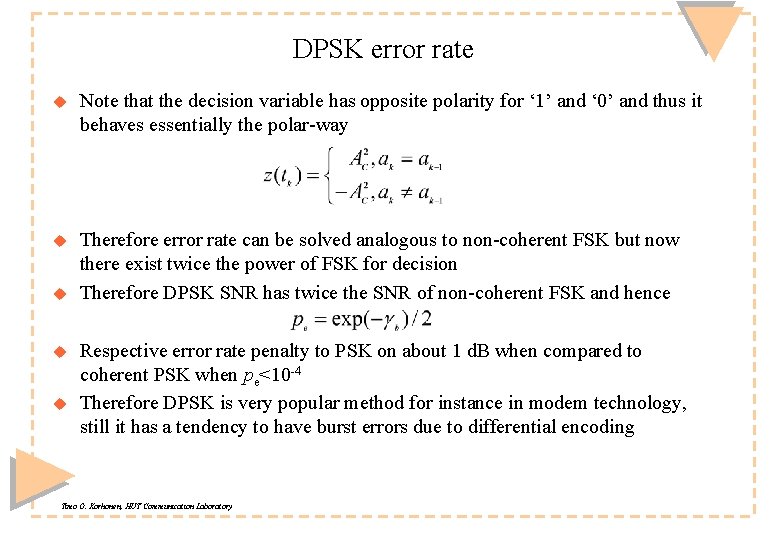

DPSK error rate u Note that the decision variable has opposite polarity for ‘ 1’ and ‘ 0’ and thus it behaves essentially the polar-way u Therefore error rate can be solved analogous to non-coherent FSK but now there exist twice the power of FSK for decision Therefore DPSK SNR has twice the SNR of non-coherent FSK and hence u u u Respective error rate penalty to PSK on about 1 d. B when compared to coherent PSK when pe<10 -4 Therefore DPSK is very popular method for instance in modem technology, still it has a tendency to have burst errors due to differential encoding Timo O. Korhonen, HUT Communication Laboratory
BPSK and DPSK error rates by Mathcad® Timo O. Korhonen, HUT Communication Laboratory

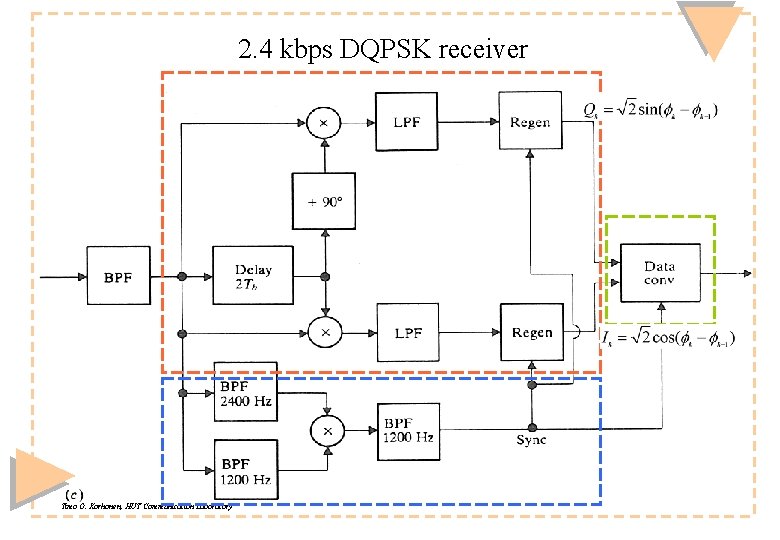

2. 4 kbps DQPSK receiver Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory

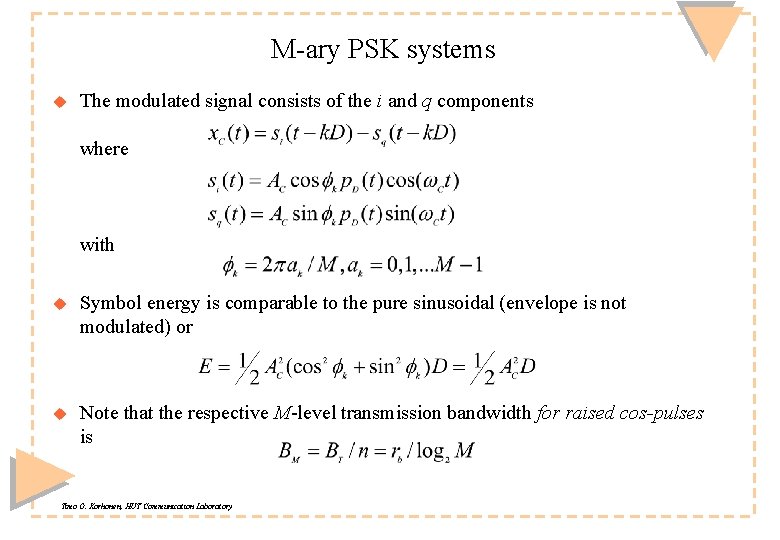

M-ary PSK systems u The modulated signal consists of the i and q components where with u Symbol energy is comparable to the pure sinusoidal (envelope is not modulated) or u Note that the respective M-level transmission bandwidth for raised cos-pulses is Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
M-ary PSK phase components u M-ary PSK receiver includes the familiar two filters producing respective iand -q components u Note that the decision variables are u Consider the dashed region for which and Timo O. Korhonen, HUT Communication Laboratory
Error rate u For the transmitted no error happens if , therefore u The noisy angle is formed by bandpass noise as we already noted or u Under large signal condition, e. g. AC>>s, this angle has the distribution that is essentially Gaussian as we noticed earlier (slide 16). For small angle Timo O. Korhonen, HUT Communication Laboratory
u Depending on signal component magnitude Ac this distribution varies between Gaussian and uniform distribution: u SNR for a (modulated) constant envelope sinusoid: u Change of variables with Timo O. Korhonen, HUT Communication Laboratory
M-ary PSK error rate expressed by Q-function u The result applies Gaussian CDF or therefore u We derived earlier the case M=2 that is Timo O. Korhonen, HUT Communication Laboratory

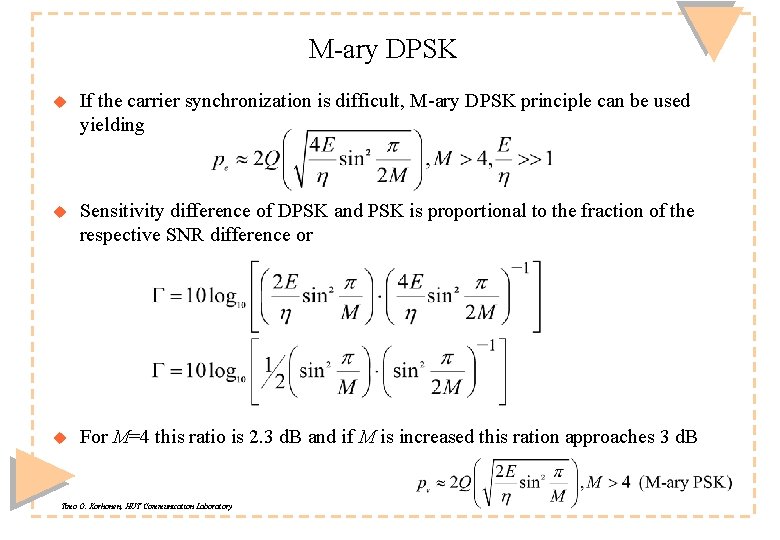

M-ary DPSK u If the carrier synchronization is difficult, M-ary DPSK principle can be used yielding u Sensitivity difference of DPSK and PSK is proportional to the fraction of the respective SNR difference or u For M=4 this ratio is 2. 3 d. B and if M is increased this ration approaches 3 d. B Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
Error rate comparison a: Coherent BPSK b: DPSK c: Coherent OOK d: Noncoherent FSK e: noncoherent OOK Timo O. Korhonen, HUT Communication Laboratory

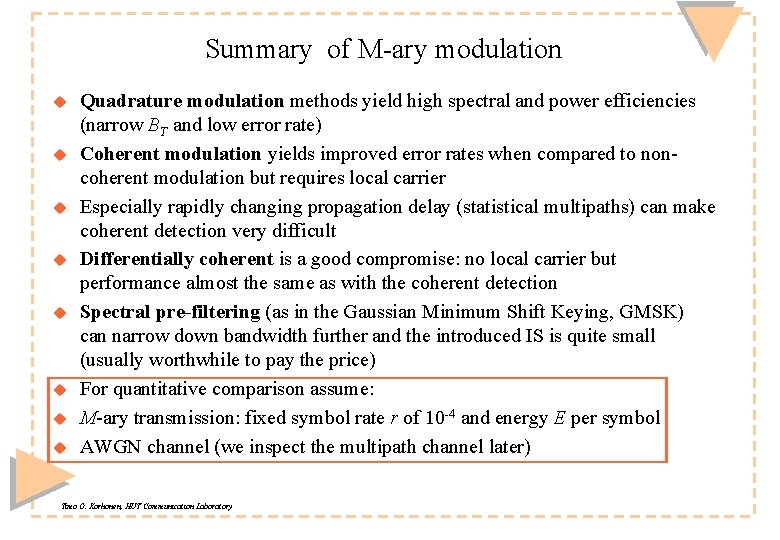

Summary of M-ary modulation u u u u Quadrature modulation methods yield high spectral and power efficiencies (narrow BT and low error rate) Coherent modulation yields improved error rates when compared to noncoherent modulation but requires local carrier Especially rapidly changing propagation delay (statistical multipaths) can make coherent detection very difficult Differentially coherent is a good compromise: no local carrier but performance almost the same as with the coherent detection Spectral pre-filtering (as in the Gaussian Minimum Shift Keying, GMSK) can narrow down bandwidth further and the introduced IS is quite small (usually worthwhile to pay the price) For quantitative comparison assume: M-ary transmission: fixed symbol rate r of 10 -4 and energy E per symbol AWGN channel (we inspect the multipath channel later) Timo O. Korhonen, HUT Communication Laboratory
Comparison of quadrature modulation methods (pe=10 -4) Note that still the performance is good, envelope is not constant. APK (or MQASK) is used in cable modems APK=MQASK Timo O. Korhonen, HUT Communication Laboratory

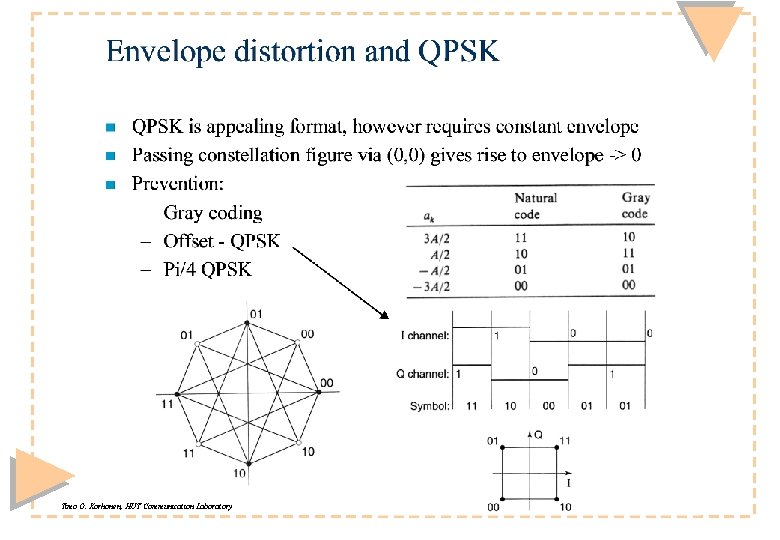

Timo O. Korhonen, HUT Communication Laboratory

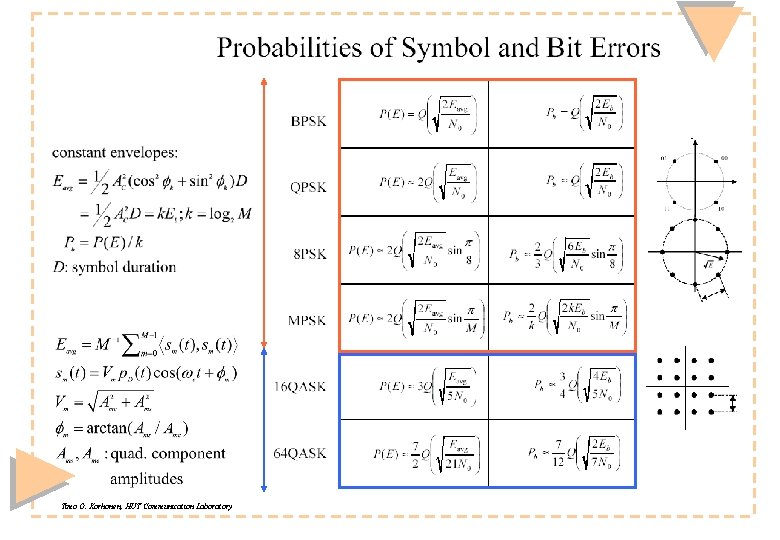

Timo O. Korhonen, HUT Communication Laboratory

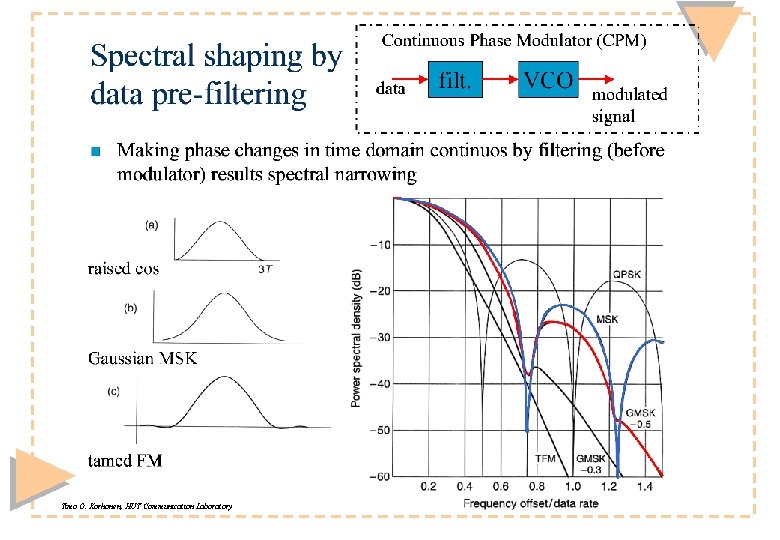

Timo O. Korhonen, HUT Communication Laboratory
Timo O. Korhonen, HUT Communication Laboratory
