S E L A C S L A R U T C E T I ARCH Y G O L O N H C E T F O S N IO T A IC APPL

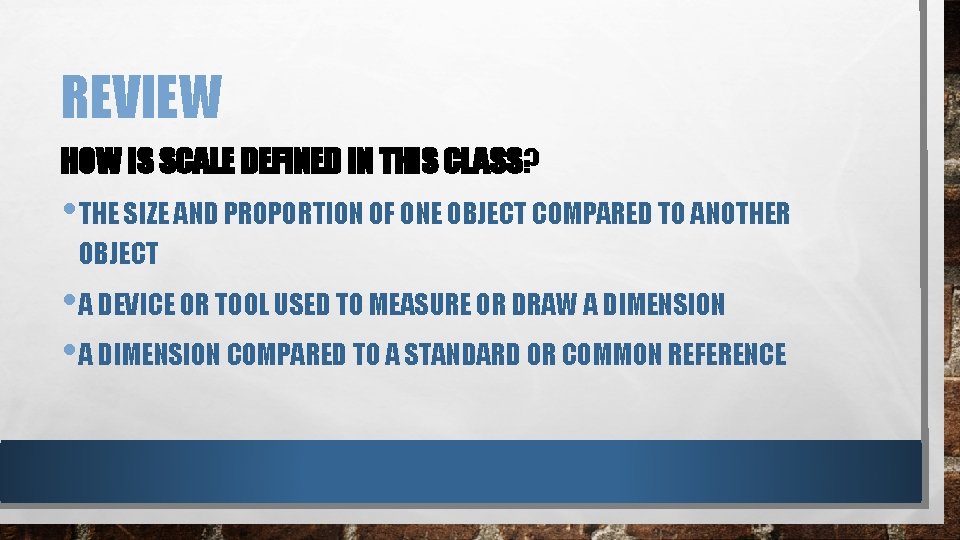

REVIEW HOW IS SCALE DEFINED IN THIS CLASS? • THE SIZE AND PROPORTION OF ONE OBJECT COMPARED TO ANOTHER OBJECT • A DEVICE OR TOOL USED TO MEASURE OR DRAW A DIMENSION • A DIMENSION COMPARED TO A STANDARD OR COMMON REFERENCE

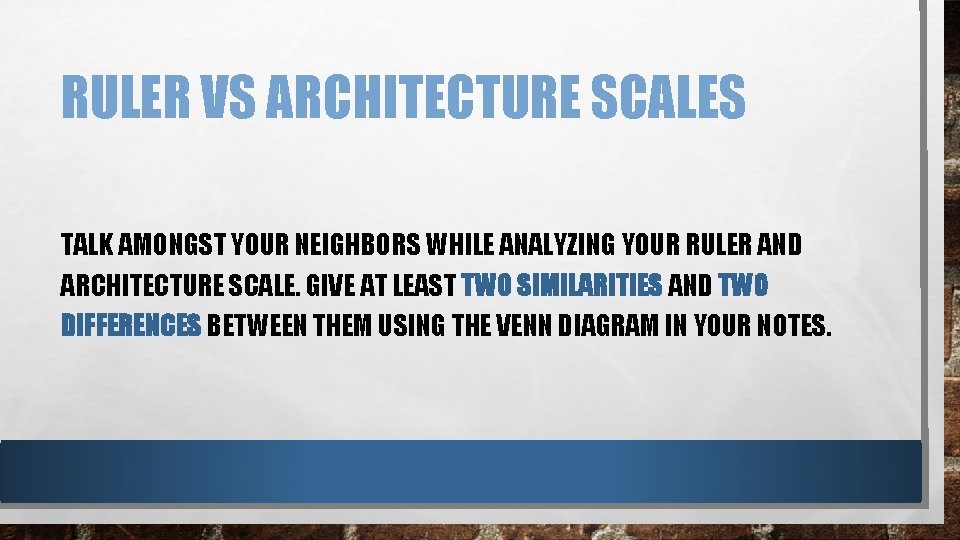

RULER VS ARCHITECTURE SCALES TALK AMONGST YOUR NEIGHBORS WHILE ANALYZING YOUR RULER AND ARCHITECTURE SCALE. GIVE AT LEAST TWO SIMILARITIES AND TWO DIFFERENCES BETWEEN THEM USING THE VENN DIAGRAM IN YOUR NOTES.

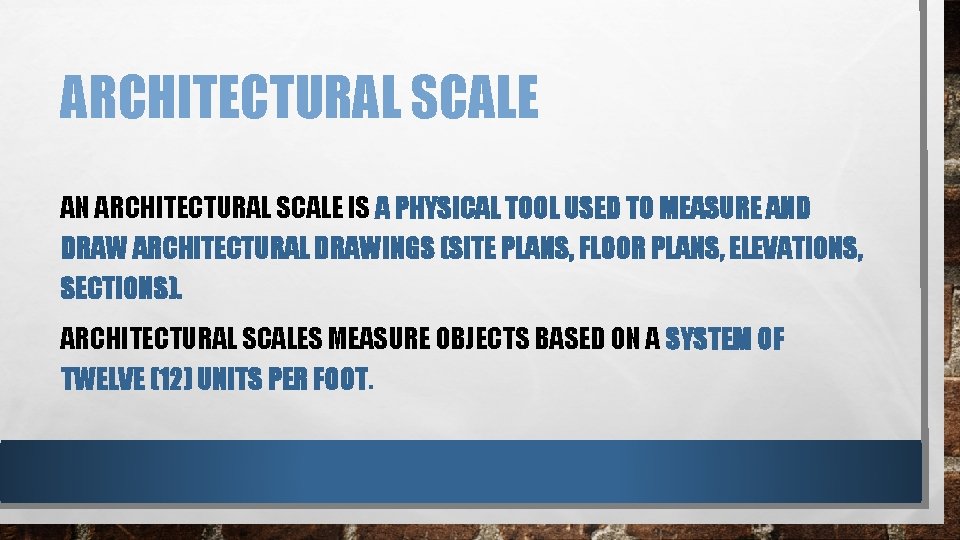

ARCHITECTURAL SCALE AN ARCHITECTURAL SCALE IS A PHYSICAL TOOL USED TO MEASURE AND DRAW ARCHITECTURAL DRAWINGS (SITE PLANS, FLOOR PLANS, ELEVATIONS, SECTIONS). ARCHITECTURAL SCALES MEASURE OBJECTS BASED ON A SYSTEM OF TWELVE (12) UNITS PER FOOT.

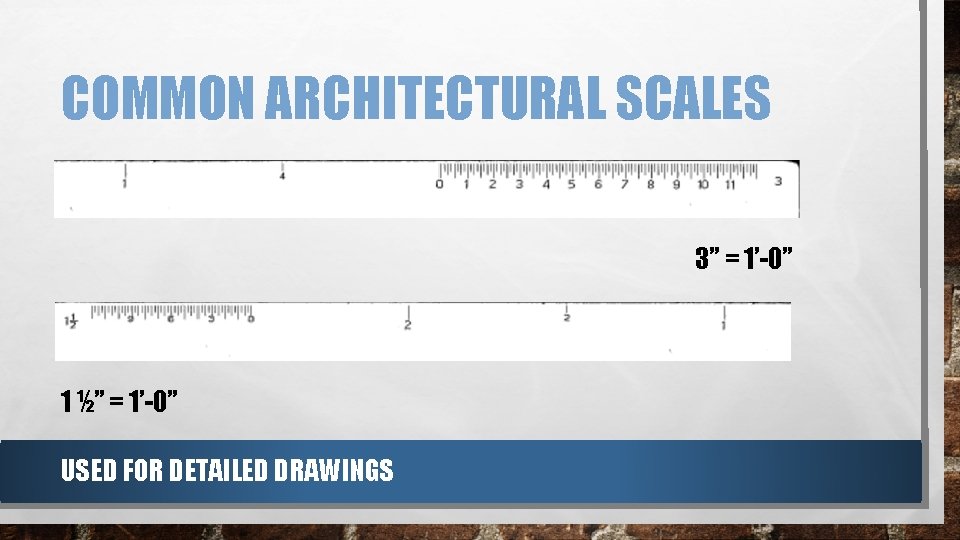

COMMON ARCHITECTURAL SCALES 3” = 1’-0” 1 ½” = 1’-0” USED FOR DETAILED DRAWINGS

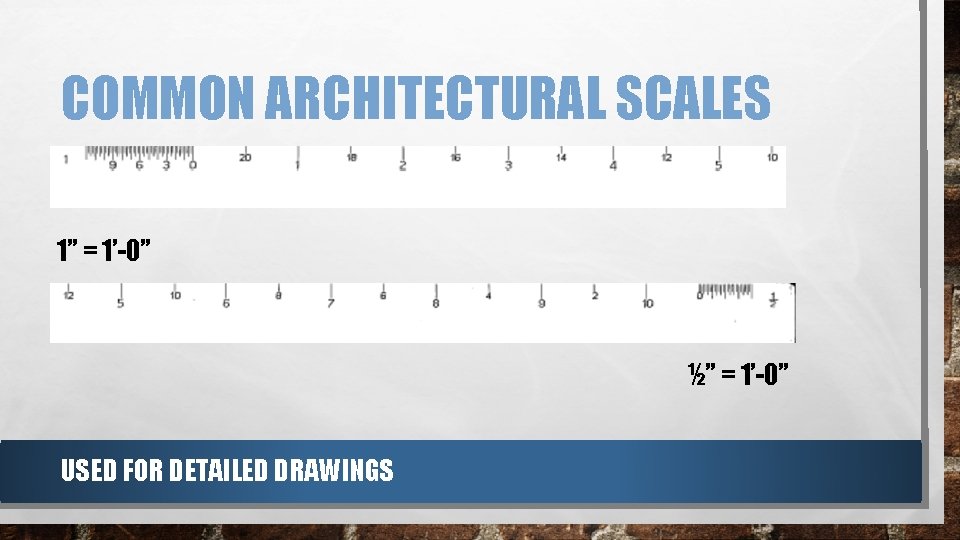

COMMON ARCHITECTURAL SCALES 1” = 1’-0” ½” = 1’-0” USED FOR DETAILED DRAWINGS

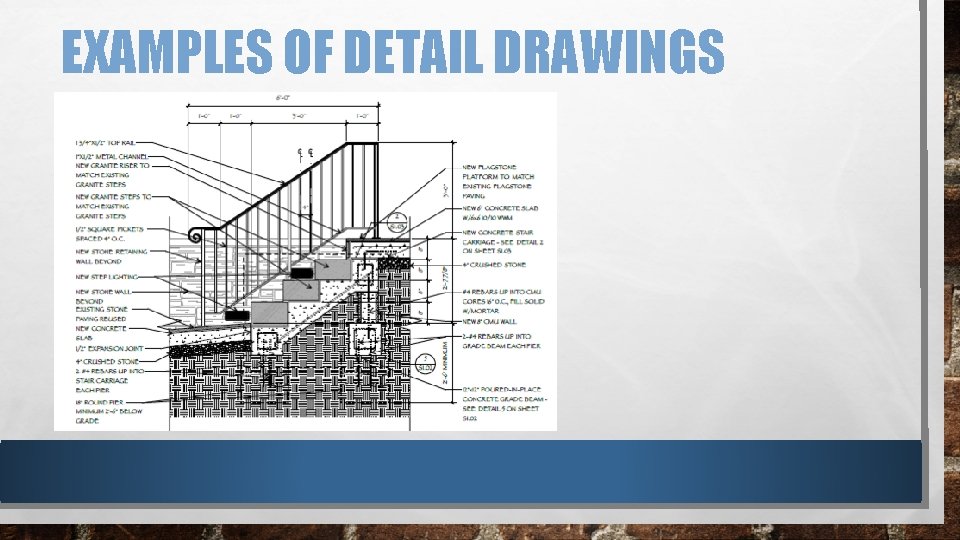

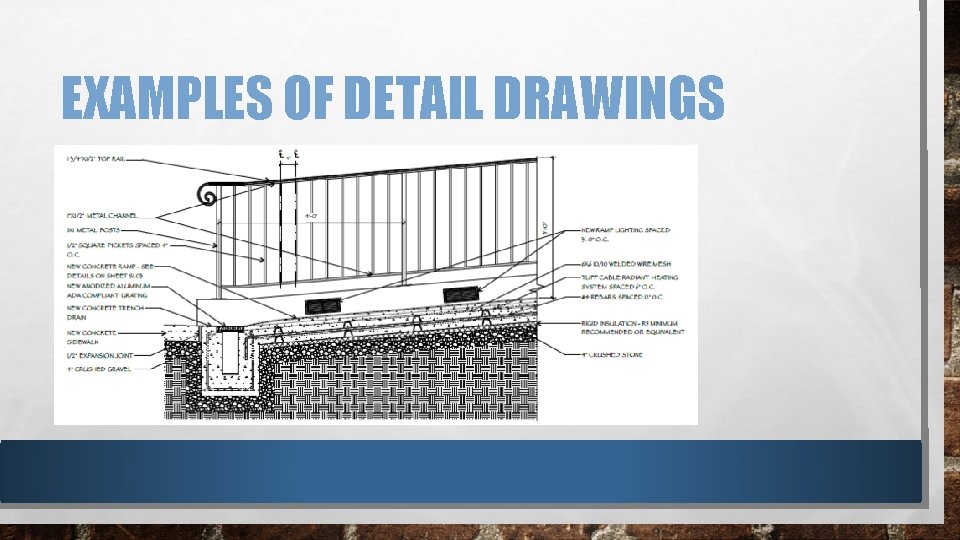

EXAMPLES OF DETAIL DRAWINGS

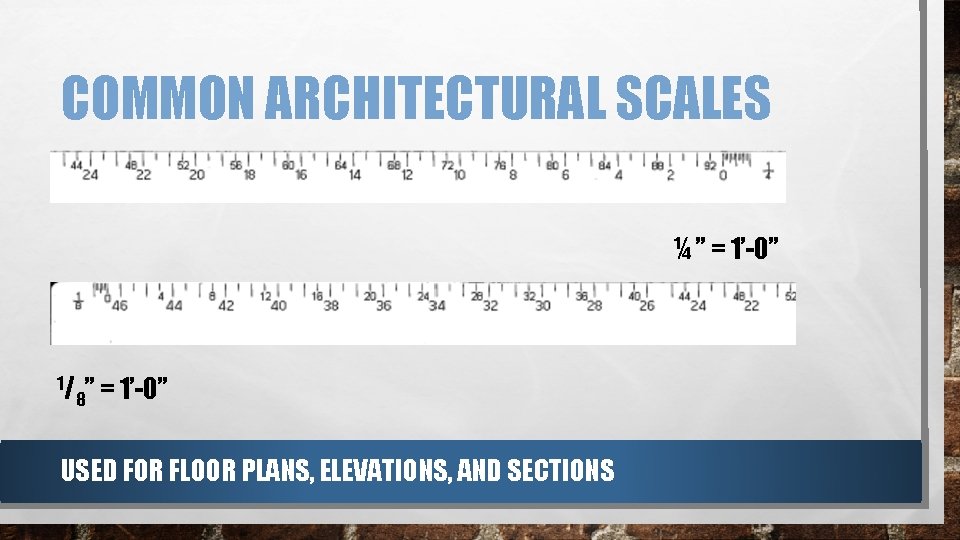

COMMON ARCHITECTURAL SCALES ¼ ” = 1’-0” 1/ 8” = 1’-0” USED FOR FLOOR PLANS, ELEVATIONS, AND SECTIONS

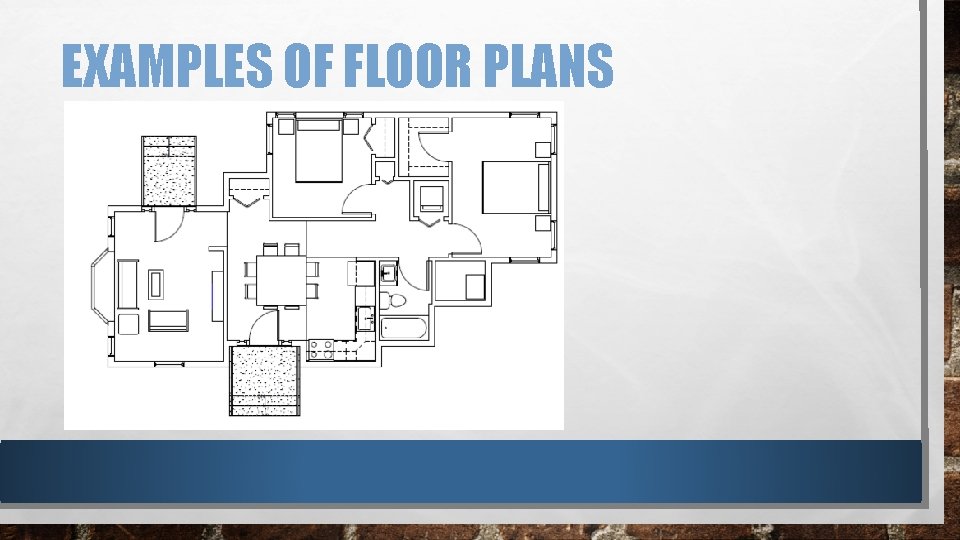

EXAMPLES OF FLOOR PLANS

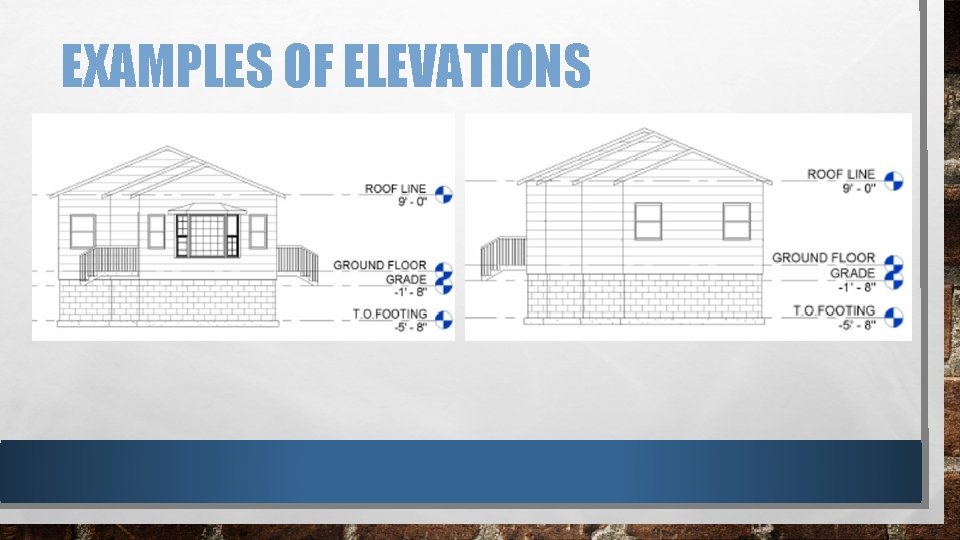

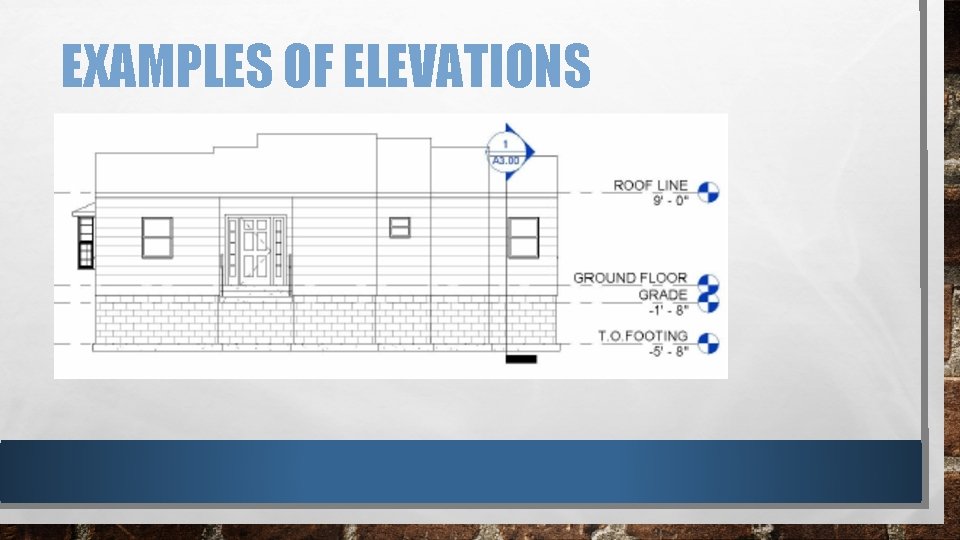

EXAMPLES OF ELEVATIONS

EXAMPLES OF SECTIONS USED FOR FLOOR PLANS, ELEVATIONS, AND SECTIONS

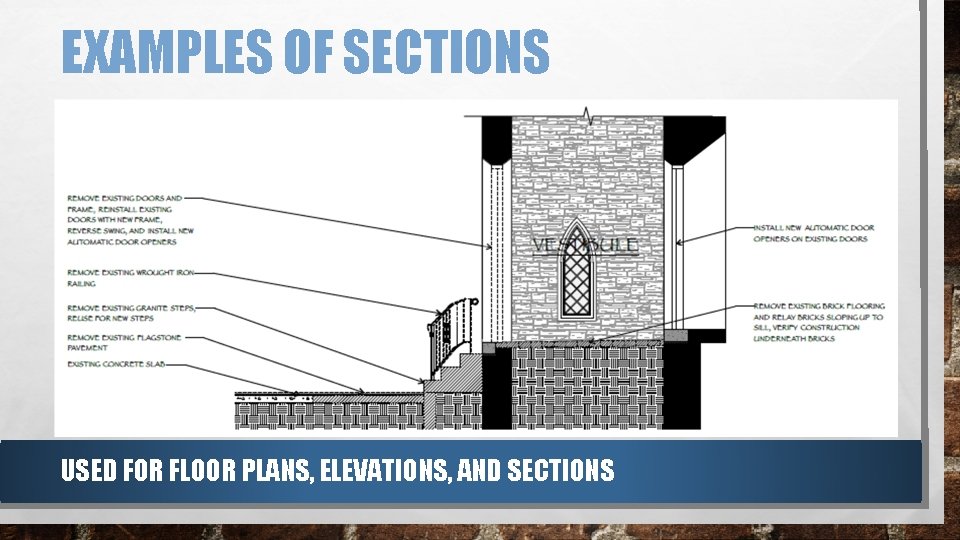

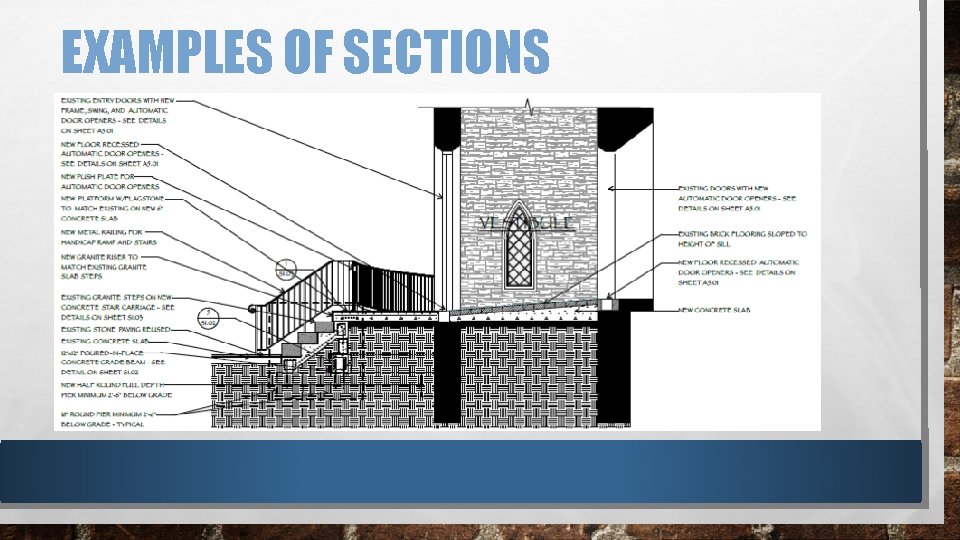

EXAMPLES OF SECTIONS

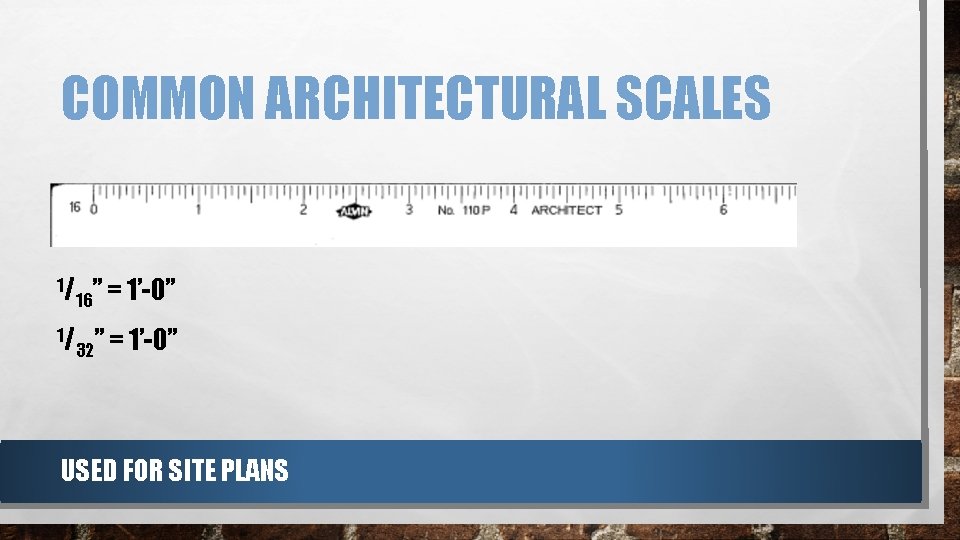

COMMON ARCHITECTURAL SCALES 1/ 16” = 1’-0” 1/ 32” = 1’-0” USED FOR SITE PLANS

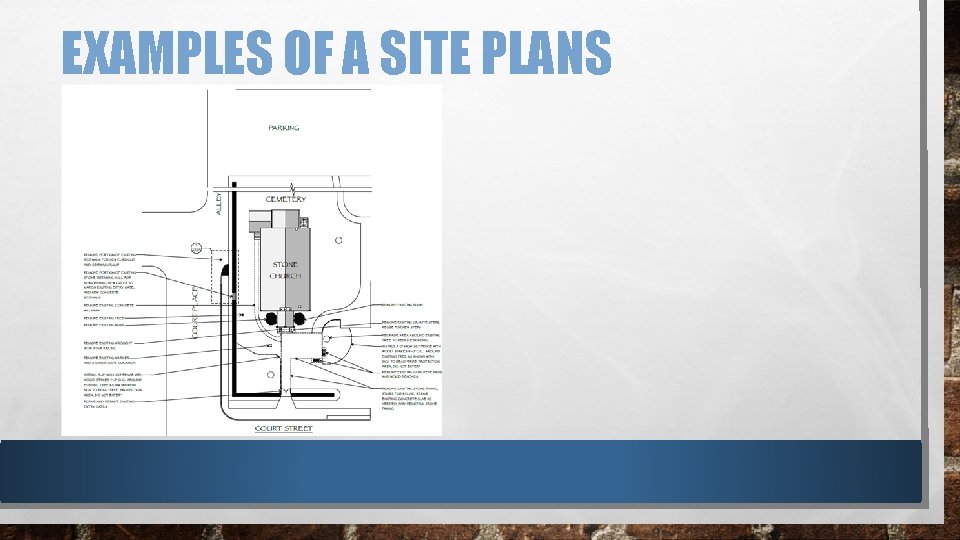

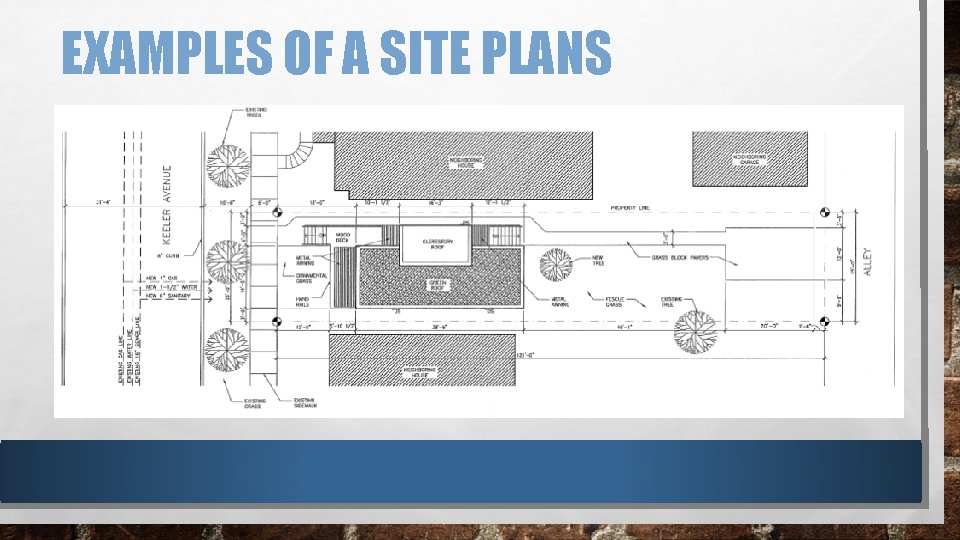

EXAMPLES OF A SITE PLANS

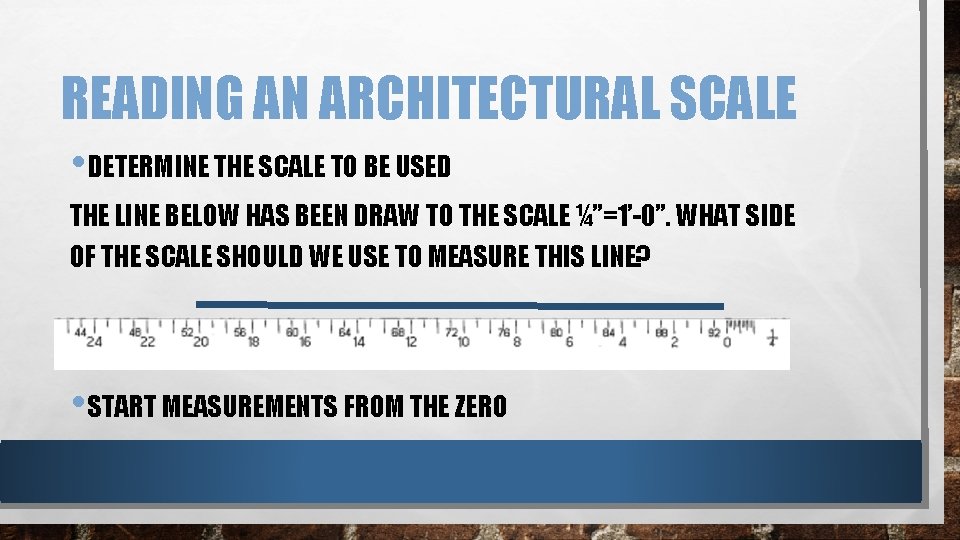

READING AN ARCHITECTURAL SCALE • DETERMINE THE SCALE TO BE USED THE LINE BELOW HAS BEEN DRAW TO THE SCALE ¼”=1’-0”. WHAT SIDE OF THE SCALE SHOULD WE USE TO MEASURE THIS LINE? • START MEASUREMENTS FROM THE ZERO

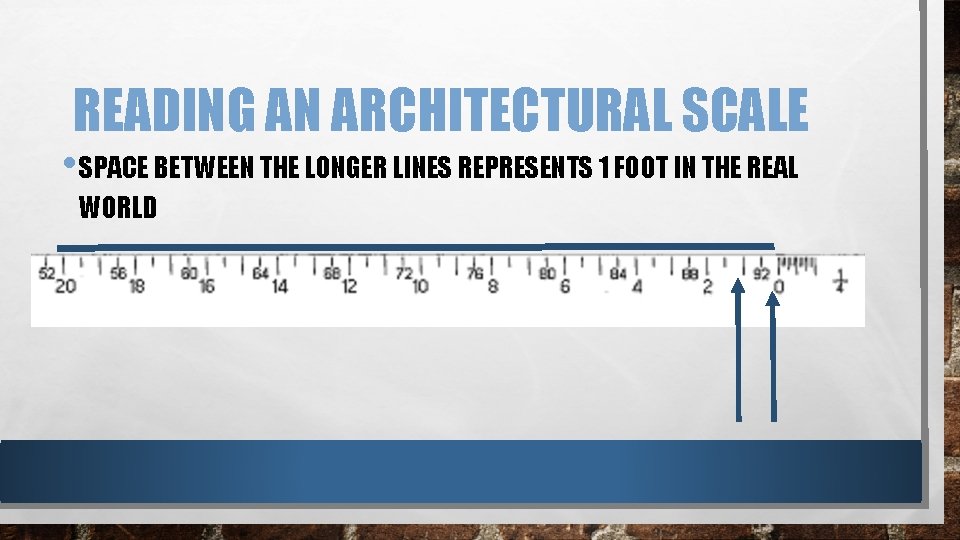

READING AN ARCHITECTURAL SCALE • SPACE BETWEEN THE LONGER LINES REPRESENTS 1 FOOT IN THE REAL WORLD

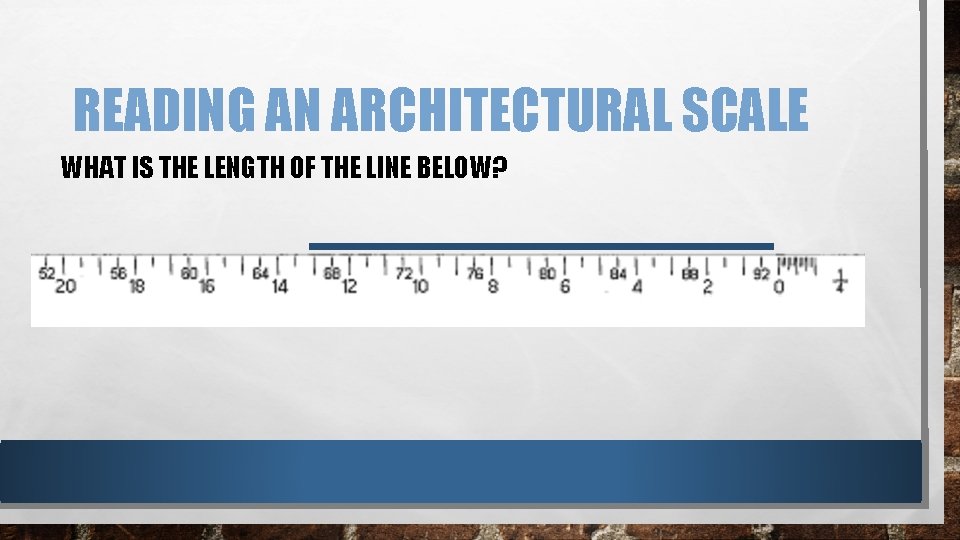

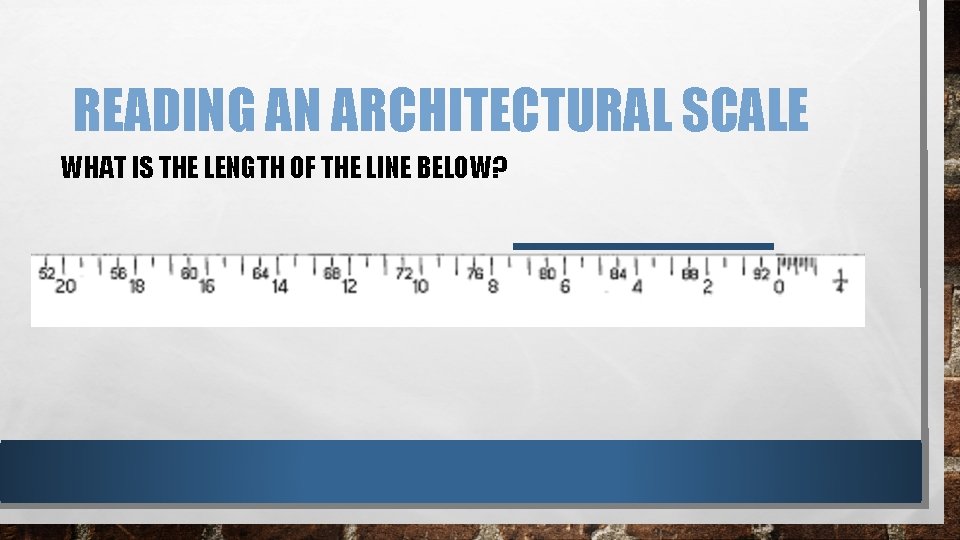

READING AN ARCHITECTURAL SCALE WHAT IS THE LENGTH OF THE LINE BELOW?

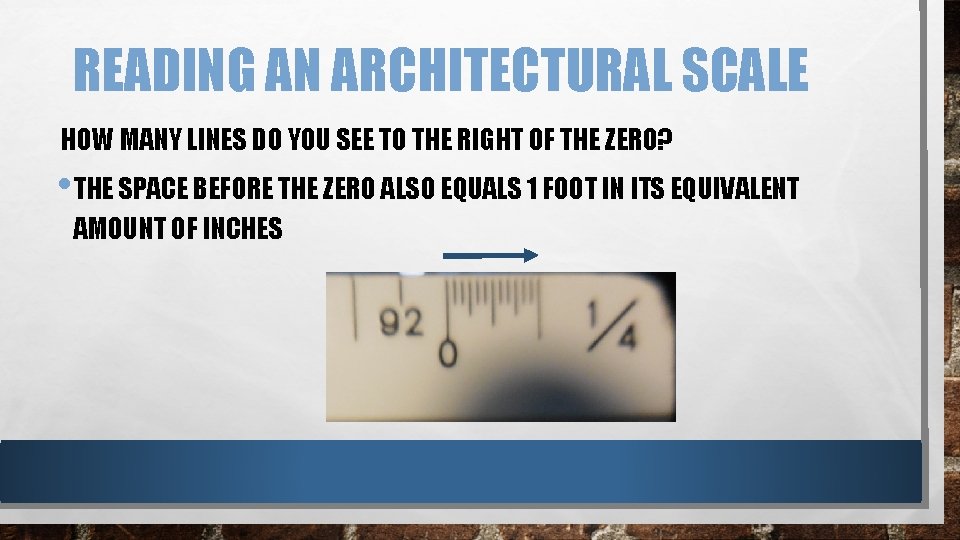

READING AN ARCHITECTURAL SCALE HOW MANY LINES DO YOU SEE TO THE RIGHT OF THE ZERO? • THE SPACE BEFORE THE ZERO ALSO EQUALS 1 FOOT IN ITS EQUIVALENT AMOUNT OF INCHES

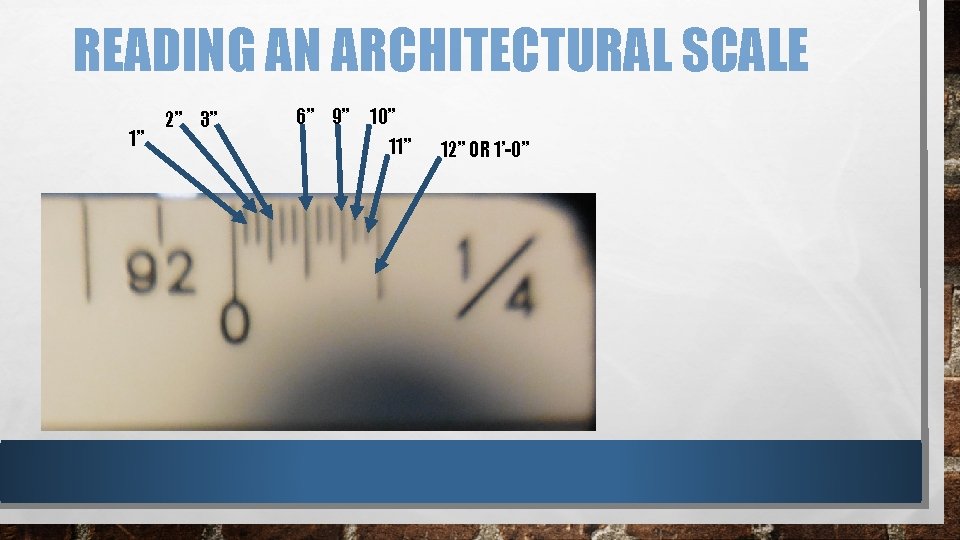

READING AN ARCHITECTURAL SCALE 1” 2” 3” 6” 9” 10” 11” 12” OR 1’-0”

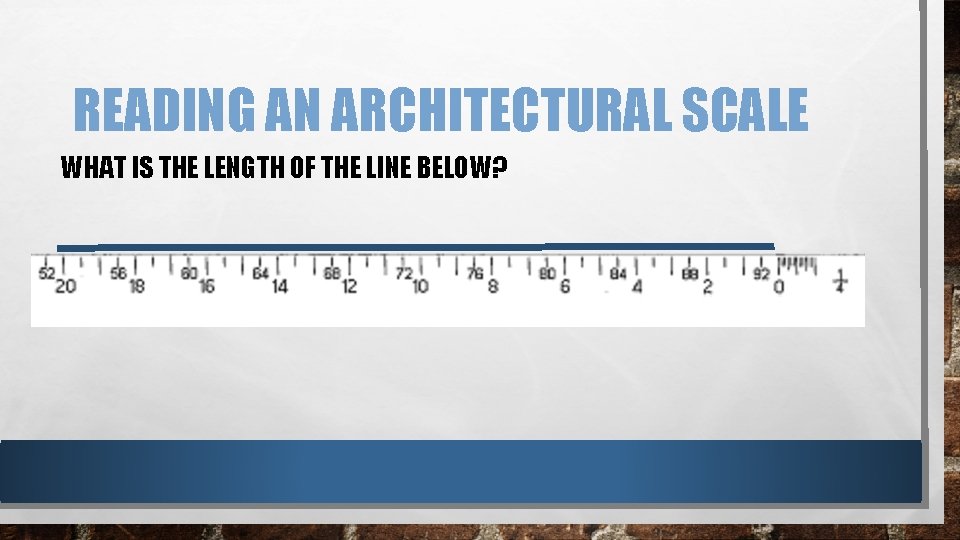

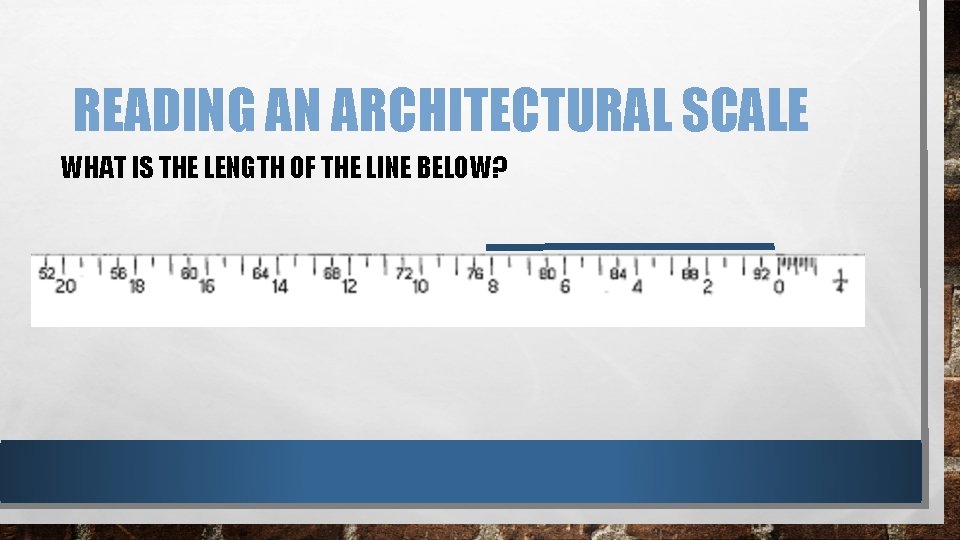

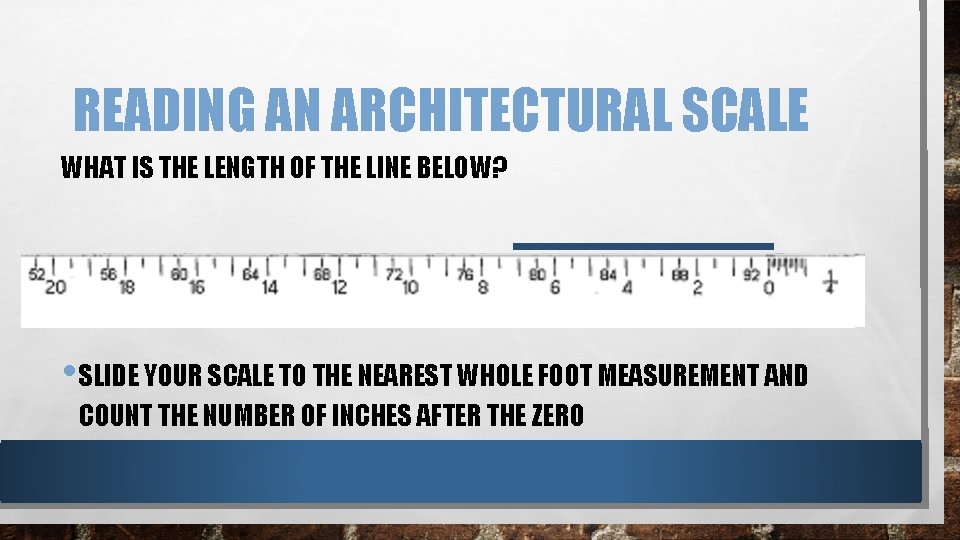

READING AN ARCHITECTURAL SCALE WHAT IS THE LENGTH OF THE LINE BELOW? • SLIDE YOUR SCALE TO THE NEAREST WHOLE FOOT MEASUREMENT AND COUNT THE NUMBER OF INCHES AFTER THE ZERO

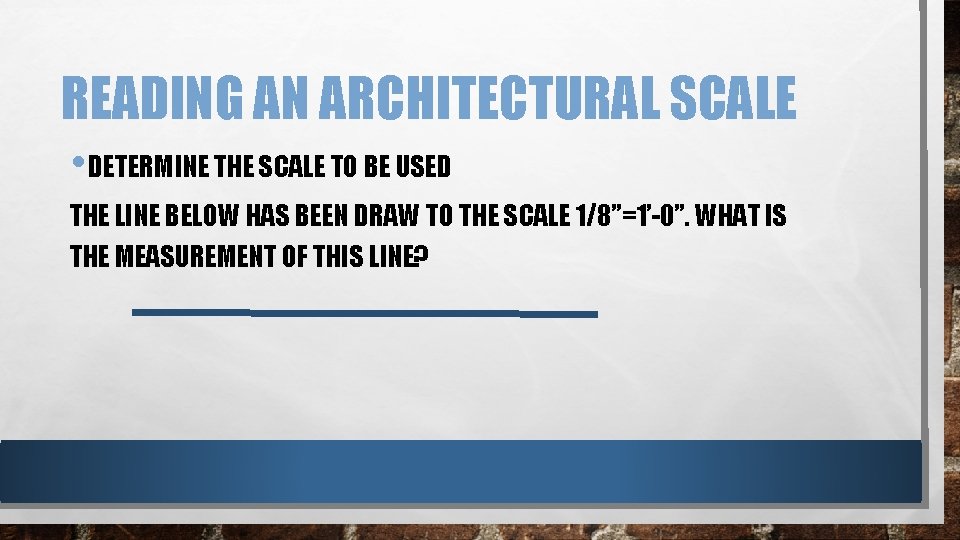

READING AN ARCHITECTURAL SCALE • DETERMINE THE SCALE TO BE USED THE LINE BELOW HAS BEEN DRAW TO THE SCALE 1/8”=1’-0”. WHAT IS THE MEASUREMENT OF THIS LINE?

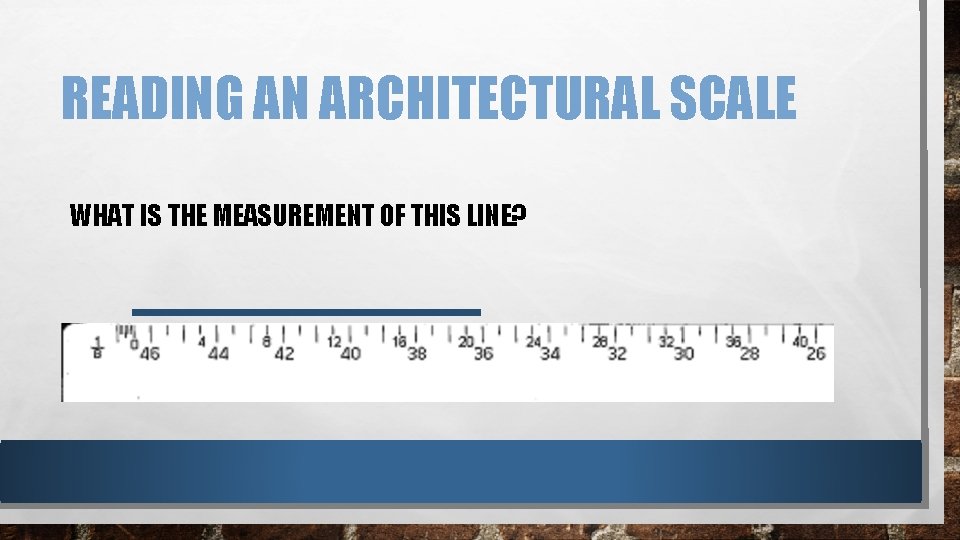

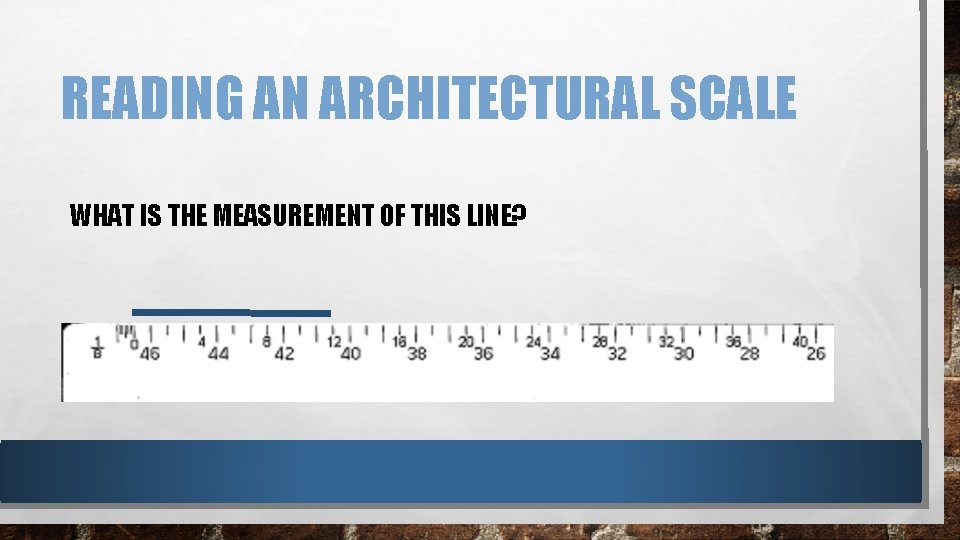

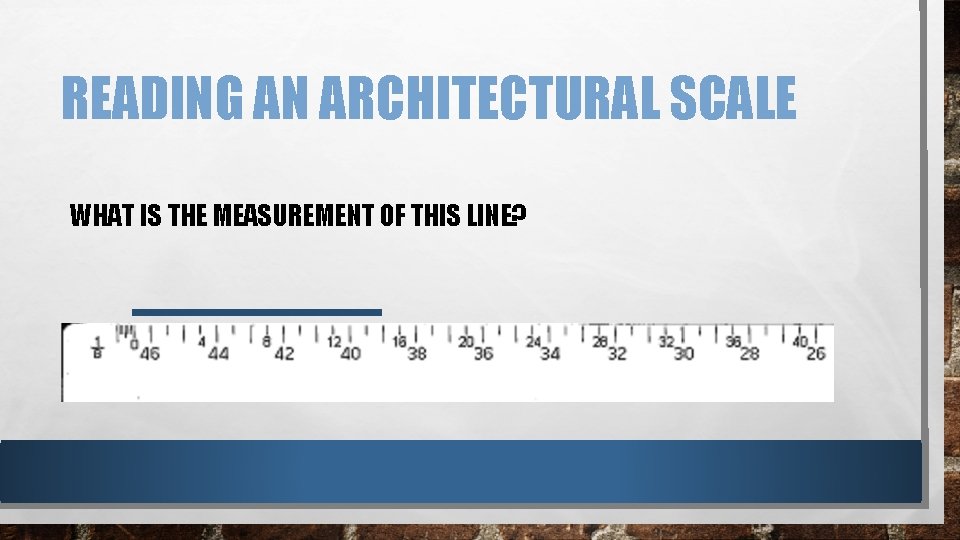

READING AN ARCHITECTURAL SCALE WHAT IS THE MEASUREMENT OF THIS LINE?

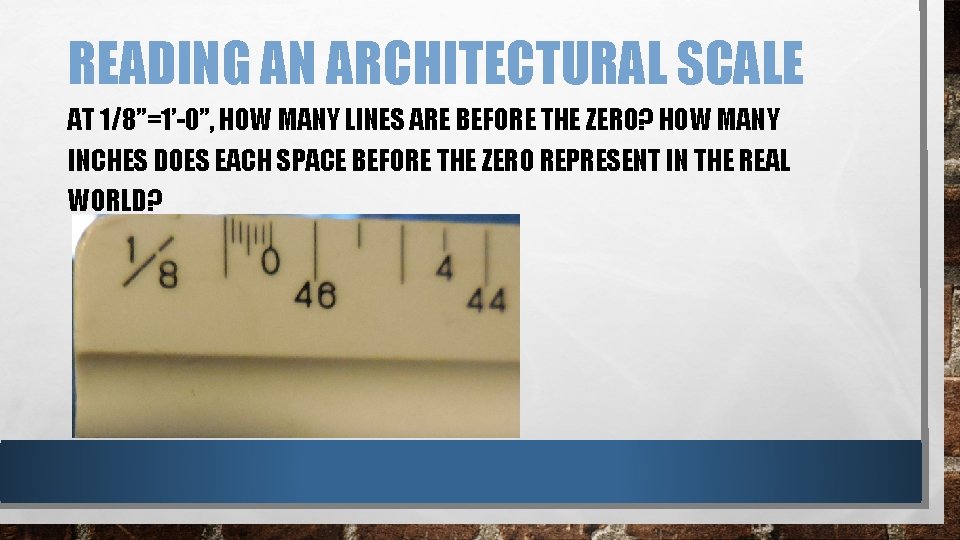

READING AN ARCHITECTURAL SCALE AT 1/8”=1’-0”, HOW MANY LINES ARE BEFORE THE ZERO? HOW MANY INCHES DOES EACH SPACE BEFORE THE ZERO REPRESENT IN THE REAL WORLD?
