![S D E E P S T 3 E 8 RN I S I S D E E P S T -3 E 8 RN I S I](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-1.jpg)
S D E E P S T -3 E 8 RN I S I E LEW T N R O M
![QUESTION How much is your internet speed affected by how you are using it QUESTION How much is your internet speed affected by how you are using it?](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-2.jpg)
QUESTION How much is your internet speed affected by how you are using it?
![RESEARCH I found that some people need faster internet because of the way they RESEARCH I found that some people need faster internet because of the way they](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-3.jpg)
RESEARCH I found that some people need faster internet because of the way they use it. If you do a lot of things on the internet, you will need a faster speed, so you can do multiple things at once without being slowed down. A lot of things use the home internet connection. One of them is the phone. The VOIP phone uses the internet to make phone calls instead of telephone wires. A Microcell uses the internet to route cell phone traffic so you can get a better signal at home. Any streaming video service plays movies over the internet. If you want to be able to watch a Netflix movie without buffering, you should get a faster speed. The quality of your online experience is affected by your internet speed. If you want to watch a show in HD, you should get a faster speed, so you can watch more. Also, videos will buffer less if you have a faster speed. The voice quality will be better if you have a faster connection.
![MATERIALS 1 Arris NVG 589 RG Residential GatewayModemRouter 1 Cisco ISB 7005 MATERIALS • 1 Arris NVG 589 RG (Residential Gateway/Modem-Router) • 1 Cisco ISB 7005](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-4.jpg)
MATERIALS • 1 Arris NVG 589 RG (Residential Gateway/Modem-Router) • 1 Cisco ISB 7005 Wireless Cable Box • 1 Mac. Book Air & USB Ethernet Adapter • 1 Ooma Telo • 1 Cordless Phone • 1 AT&T 3 G Microcell • 1 Motorola VAP 2500 Wireless Access Point • I Smart Phone • 1 Apple TV • 1 Sony TV
![MATERIALS CONTINUED 1 Cat 5 e Ethernet cable MATERIALS CONTINUED • 1 Cat 5 e Ethernet cable](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-5.jpg)
MATERIALS CONTINUED • 1 Cat 5 e Ethernet cable
![E R U D PR E C O E R U D PR E C O](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-6.jpg)
E R U D PR E C O
![PROCEDURE 1 Unplug everything except the DSL and power cable from the NVG 589 PROCEDURE 1. Unplug everything except the DSL and power cable from the NVG 589](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-7.jpg)
PROCEDURE 1. Unplug everything except the DSL and power cable from the NVG 589 modem 2. Take the Mac. Book Air and plug in the Cat 5 e cable into one of the yellow ethernet ports on the NVG 589 and the USB Adapter 3. Open Safari on the i. Mac and go to 192. 168. 1. 254 4. Click on Home Network 5. Click Wireless 6. Enter Access Code 7. Turn Wireless off 8. Click Save 9. Reset Safari
![PROCEDURE CONTINUED 10 Go to www att comspeedtest 11 Run a speedtest 12 Write PROCEDURE CONTINUED 10. Go to www. att. com/speedtest 11. Run a speedtest 12. Write](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-8.jpg)
PROCEDURE CONTINUED 10. Go to www. att. com/speedtest 11. Run a speedtest 12. Write down results 13. Plug Ooma back into the NVG 589 14. Make a phone call on the house phone 15. Repeat steps 10 -12 while still on the phone 16. Hang up the phone 17. Unplug the Ooma from the NVG 589 18. Plug the AT&T 3 G Micro. Cell into the NVG 589 19. Use a Cell Phone to make a call
![PROCEDURE CONTINUED 20 Repeat steps 10 12 while still on the phone 21 Unplug PROCEDURE CONTINUED 20. Repeat steps 10 -12 while still on the phone 21. Unplug](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-9.jpg)
PROCEDURE CONTINUED 20. Repeat steps 10 -12 while still on the phone 21. Unplug the Micro. Cell from the NVG 589 22. Plug the VAP 2500 into the NVG 589 23. Turn on a Cable Box and watch something in HD 24. Repeat 10 -12 25. Change channel to SD 26. Repeat 10 -12 27. Unplug VAP 2500 from NVG 589 28. Turn the NVG 589 Wireless on 29. Change Wi-Fi network name to ATTtest and password to attpassword
![PROCEDURE CONTINUED 30 Go to Apple TV and change WiFi network to ATTtest 31 PROCEDURE CONTINUED 30. Go to Apple TV and change Wi-Fi network to ATTtest 31.](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-10.jpg)
PROCEDURE CONTINUED 30. Go to Apple TV and change Wi-Fi network to ATTtest 31. Watch a Netflix movie 32. Repeat 10 -12 while watching the movie 33. Change Wi-Fi network name and password on the NVG 589 to the original 34. Plug the Coax and Ethernet cables into the NVG 589 35. Repeat steps 10 -12 with everything plugged into the NVG 589
![D A T A D A T A](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-11.jpg)
D A T A
![SPEED TEST 1 ONLY COMPUTER CONNECTED SPEED TEST 1 – ONLY COMPUTER CONNECTED](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-12.jpg)
SPEED TEST 1 – ONLY COMPUTER CONNECTED
![SPEED TEST 2 OOMA SPEED TEST 2 – OOMA](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-13.jpg)
SPEED TEST 2 – OOMA
![SPEED TEST 3 MICROCELL SPEED TEST 3 - MICROCELL](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-14.jpg)
SPEED TEST 3 - MICROCELL
![SPEED TEST 4 HDTV SPEED TEST 4 - HDTV](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-15.jpg)

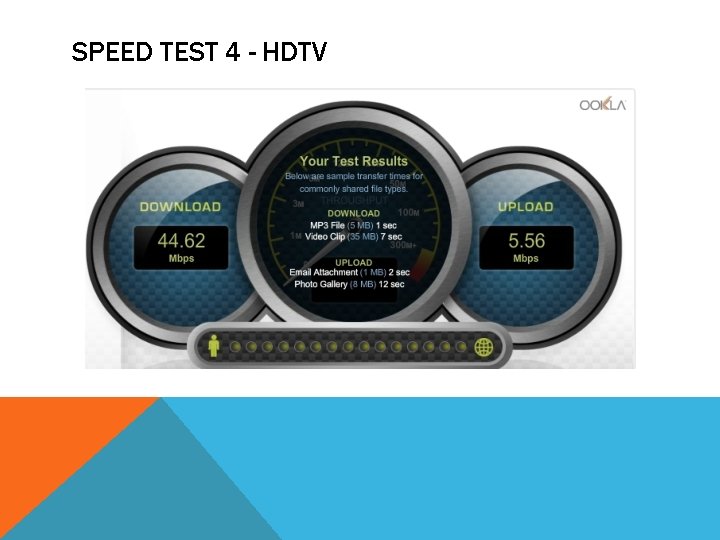

SPEED TEST 4 - HDTV
![SPEED TEST 5 SDTV SPEED TEST 5 - SDTV](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-16.jpg)
SPEED TEST 5 - SDTV
![SPEED TEST 6 NETFLIX SPEED TEST 6 - NETFLIX](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-17.jpg)
SPEED TEST 6 - NETFLIX
![SPEED TEST 7 ALL DEVICES CONNECTED SPEED TEST 7 – ALL DEVICES CONNECTED](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-18.jpg)
SPEED TEST 7 – ALL DEVICES CONNECTED
![OBSERVATIONS When I was making the phone calls the upload speed went down OBSERVATIONS • When I was making the phone calls, the upload speed went down](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-19.jpg)
OBSERVATIONS • When I was making the phone calls, the upload speed went down and the download speed went up. • Netflix uses less bandwidth than SDTV • HDTV uses the most bandwidth • Micro. Cell calls use the least bandwidth
![AN S I S Y L A AN S I S Y L A](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-20.jpg)
AN S I S Y L A
![CHART 55 50 45 40 35 30 Download 25 Upload 20 15 10 5 CHART 55 50 45 40 35 30 Download 25 Upload 20 15 10 5](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-21.jpg)
CHART 55 50 45 40 35 30 Download 25 Upload 20 15 10 5 0 Mac. Book Ooma M-Cell HDTV SDTV Netflix All Connected
![DATA TABLE DATA TABLE](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-22.jpg)
DATA TABLE
![S U L C N O I S U L C N O I](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-23.jpg)
S U L C N O I
![CONCLUSION My IV was the devices using the internet The DV was the internet CONCLUSION My IV was the devices using the internet. The DV was the internet](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-24.jpg)
CONCLUSION My IV was the devices using the internet. The DV was the internet speed. The controls were: same computer, same speedtest server, same connection. My data shows that the more devices using the internet, the less available bandwidth.
![APPLICATIONS AND FURTHER EXPLORATIONS When your internet speed is slow and you want APPLICATIONS AND FURTHER EXPLORATIONS • When your internet speed is slow and you want](https://slidetodoc.com/presentation_image_h/035f723d0a39019718a0267dc3cff6af/image-25.jpg)
APPLICATIONS AND FURTHER EXPLORATIONS • When your internet speed is slow and you want to determine the cause • Diagnosing Issues with your connection • It would be useful to test the speed in a variety of conditions
