S 2/S 3 Data Quality Flagging John G. Zweizig LIGO/Caltech LIGO-G 030642 -00 -E

Data Quality Flags l l l Data quality summary of S 2 data provided by segments Segment ID assigned to each Lock segment Flag word associated with each segment indicates data quality issues for each segment. Segments split ifflags change during locked segment Segment list available online » http: //tenaya. physics. lsa. umich. edu/~keithr/S 2 DQ/S 2 seglist. html » Version 3 released 29 Aug 2003, one more version? l Segments (v 1. 2) package in ligotools LIGO-G 030642 -00 -E

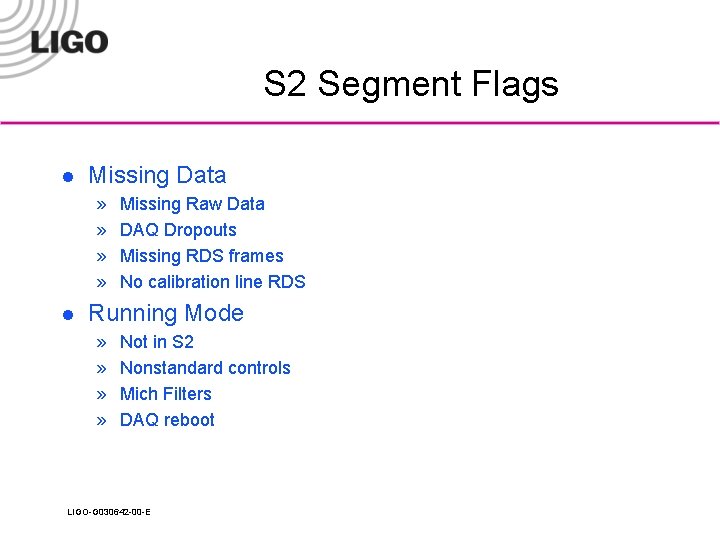

S 2 Segment Flags l Missing Data » » l Missing Raw Data DAQ Dropouts Missing RDS frames No calibration line RDS Running Mode » » Not in S 2 Nonstandard controls Mich Filters DAQ reboot LIGO-G 030642 -00 -E

S 2 Segment Flags (cont’d) l Data Problems » » » » l Timing errors AS_PD saturation AS_Q Large peak-peak deviations AS_Q clustered outliers AS_Q correlated outliers AS_Q upper band outlier AS_Q lower band outlier Calibration » No calibration line » Invalid calibration line LIGO-G 030642 -00 -E

H 1 Segment Flags LIGO-G 030642 -00 -E

H 2 Segment Flags LIGO-G 030642 -00 -E

L 1 Segment Flags LIGO-G 030642 -00 -E

Extrapolation to S 3 l l Important goal: Have S 3 data quality info within weeks of end of run (rather than months). S 2 problems not likely to reoccur in S 3! Need to follow DQ issues, gather important statistics while run is in progress First Step: Online segment summary database » Segment numbers assigned on transition to science mode » Directory created for each segment containing: Start/stop times, Monitor statistics, Con. Log information, Comments » Accessible online at e. g. http: //blue/gds/Seg. List/S 3/H 1/ LIGO-G 030642 -00 -E

Segment Data Base LIGO-G 030642 -00 -E

Monitor Statistics (Data. Qual) LIGO-G 030642 -00 -E

Still More to Do l Make segment database more useful » » l l More monitor statistics Conlog information Comments from Operators, Sci. Mons, et al. Global histograms, other graphical information Identify important failure modes, pathologies Generate segment flags LIGO-G 030642 -00 -E
