Runway Safety ACFT Land/Take Off Runway crossings Weather ACFT Attitude RWY Condition Barriers ADRM Layout Loss of Separation … with edge of runway … with other aircraft/vehicle Collisions Dual Aircraft Excursions Single Aircraft

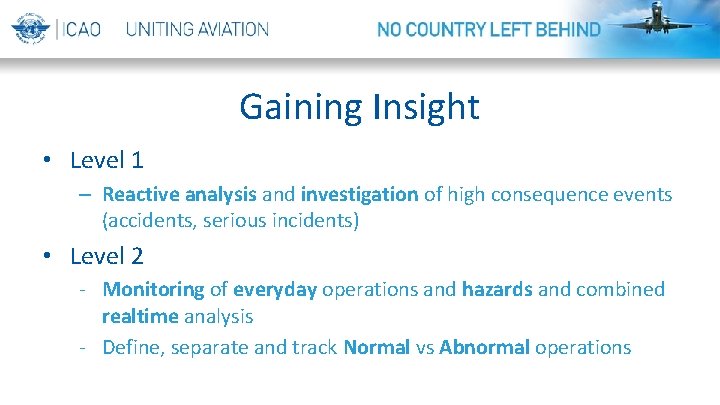

Gaining Insight • Level 1 – Reactive analysis and investigation of high consequence events (accidents, serious incidents) • Level 2 - Monitoring of everyday operations and hazards and combined realtime analysis - Define, separate and track Normal vs Abnormal operations

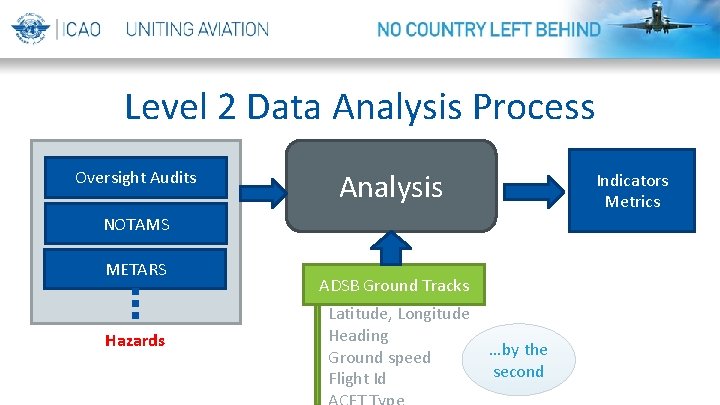

Level 2 Data Analysis Process Oversight Audits Analysis Indicators Metrics NOTAMS METARS Hazards ADSB Ground Tracks Latitude, Longitude Heading Ground speed Flight Id …by the second

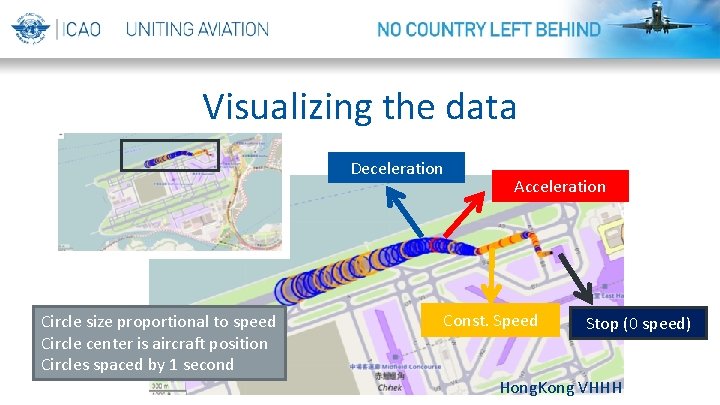

Visualizing the data Deceleration Circle size proportional to speed Circle center is aircraft position Circles spaced by 1 second Acceleration Const. Speed Stop (0 speed) Hong. Kong VHHH

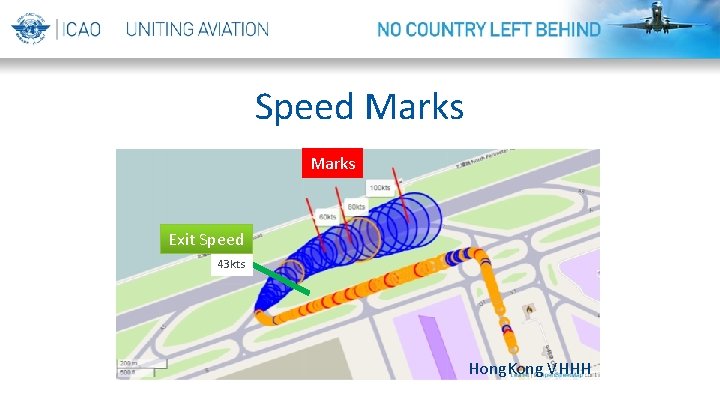

Speed Marks Exit Speed 43 kts Hong. Kong VHHH
Runway Remaining Monitor the separation with runway end

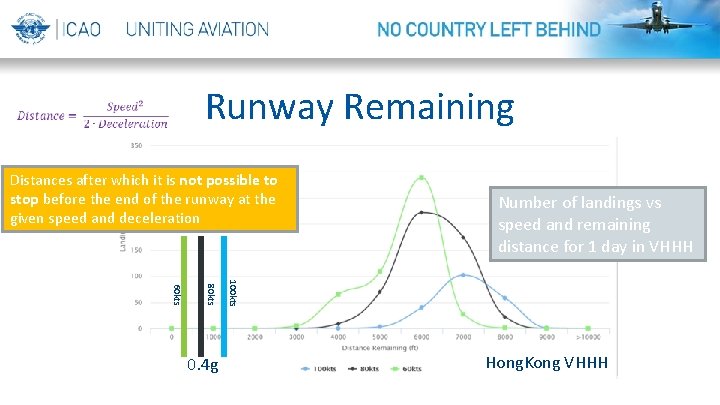

Runway Remaining Distances after which it is not possible to stop before the end of the runway at the given speed and deceleration 100 kts 80 kts 60 kts 0. 4 g Number of landings vs speed and remaining distance for 1 day in VHHH Hong. Kong VHHH

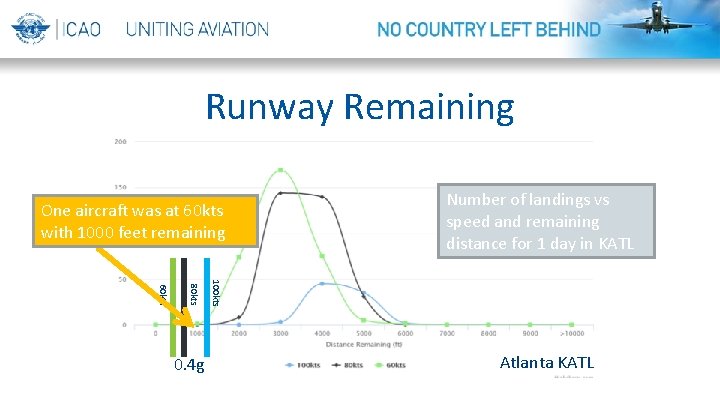

Runway Remaining One aircraft was at 60 kts with 1000 feet remaining 100 kts 80 kts 60 kts 0. 4 g Number of landings vs speed and remaining distance for 1 day in KATL Atlanta KATL

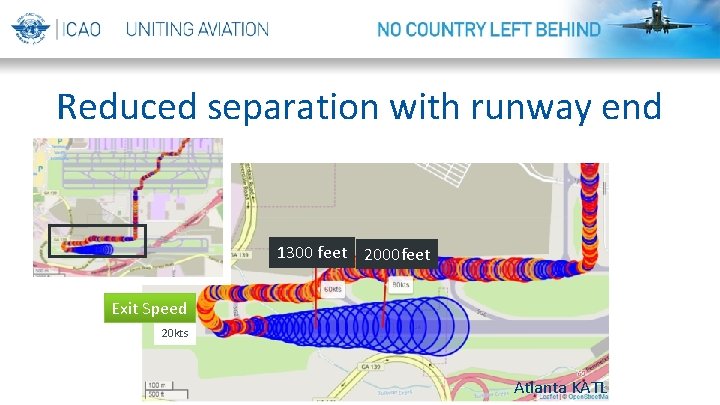

Reduced separation with runway end 1300 feet 2000 feet Exit Speed 20 kts Atlanta KATL

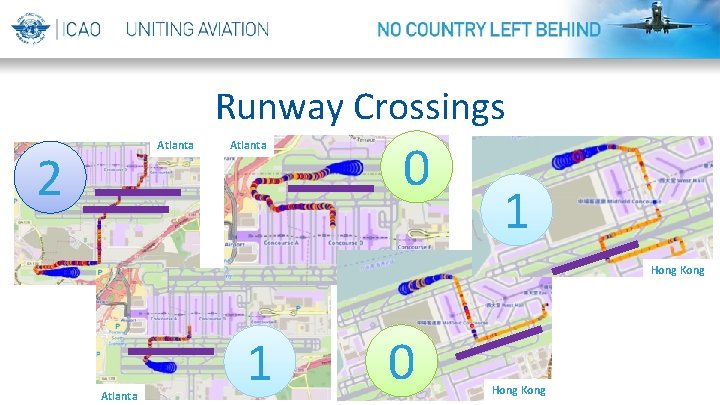

Runway Crossings Atlanta 2 Atlanta 0 1 Hong Kong Atlanta 1 0 Hong Kong

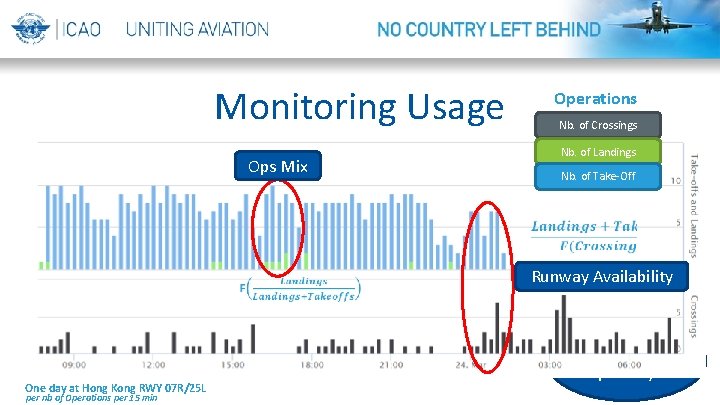

Monitoring Usage Operations Nb. of Crossings Nb. of Landings Ops Mix Nb. of Take-Off One day at Hong Kong RWY 07 R/25 L per nb of Operations per 15 min Runway Availability X Crossings per Day

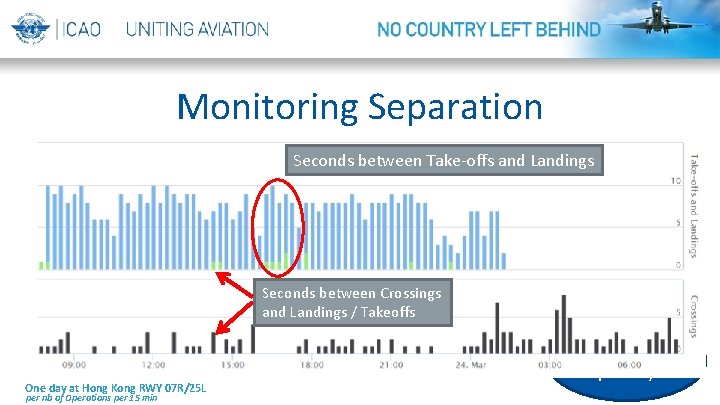

Monitoring Separation Seconds between Take-offs and Landings Seconds between Crossings and Landings / Takeoffs One day at Hong Kong RWY 07 R/25 L per nb of Operations per 15 min X Crossings per Day

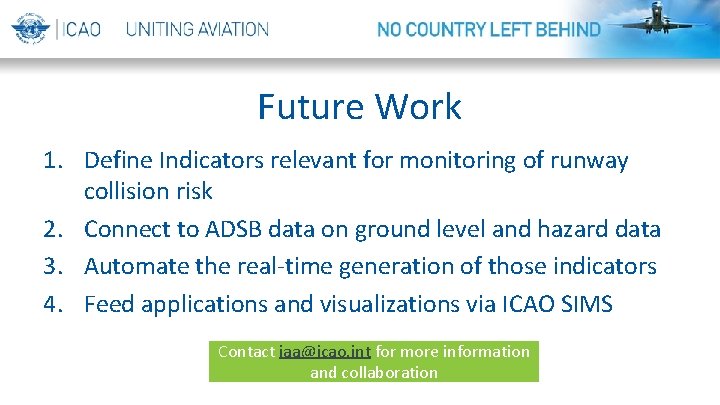

Future Work 1. Define Indicators relevant for monitoring of runway collision risk 2. Connect to ADSB data on ground level and hazard data 3. Automate the real-time generation of those indicators 4. Feed applications and visualizations via ICAO SIMS Contact iaa@icao. int for more information and collaboration
