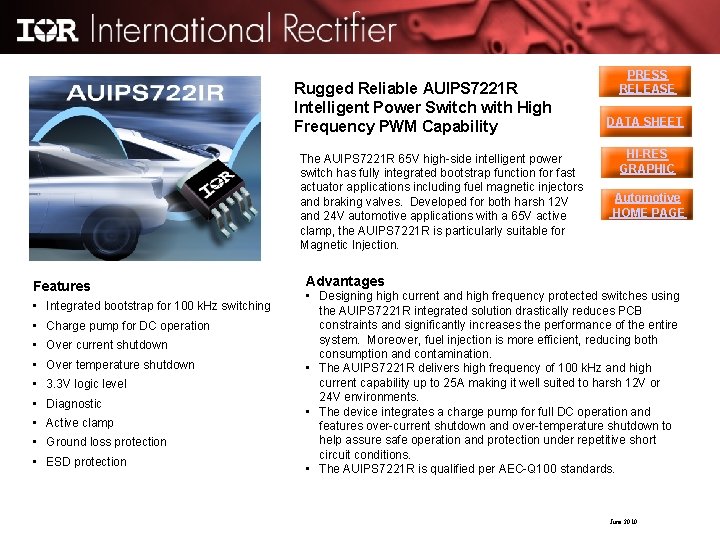

Rugged Reliable AUIPS 7221 R Intelligent Power Switch

Rugged Reliable AUIPS 7221 R Intelligent Power Switch with High Frequency PWM Capability The AUIPS 7221 R 65 V high-side intelligent power switch has fully integrated bootstrap function for fast actuator applications including fuel magnetic injectors and braking valves. Developed for both harsh 12 V and 24 V automotive applications with a 65 V active clamp, the AUIPS 7221 R is particularly suitable for Magnetic Injection. Features • Integrated bootstrap for 100 k. Hz switching • Charge pump for DC operation • Over current shutdown • Over temperature shutdown • 3. 3 V logic level • Diagnostic • Active clamp • Ground loss protection • ESD protection PRESS RELEASE DATA SHEET HI-RES GRAPHIC Automotive HOME PAGE Advantages • Designing high current and high frequency protected switches using the AUIPS 7221 R integrated solution drastically reduces PCB constraints and significantly increases the performance of the entire system. Moreover, fuel injection is more efficient, reducing both consumption and contamination. • The AUIPS 7221 R delivers high frequency of 100 k. Hz and high current capability up to 25 A making it well suited to harsh 12 V or 24 V environments. • The device integrates a charge pump for full DC operation and features over-current shutdown and over-temperature shutdown to help assure safe operation and protection under repetitive short circuit conditions. • The AUIPS 7221 R is qualified per AEC-Q 100 standards. June 2010
